PULSEEIGHT P8-HDMI2-2KDS User manual

1

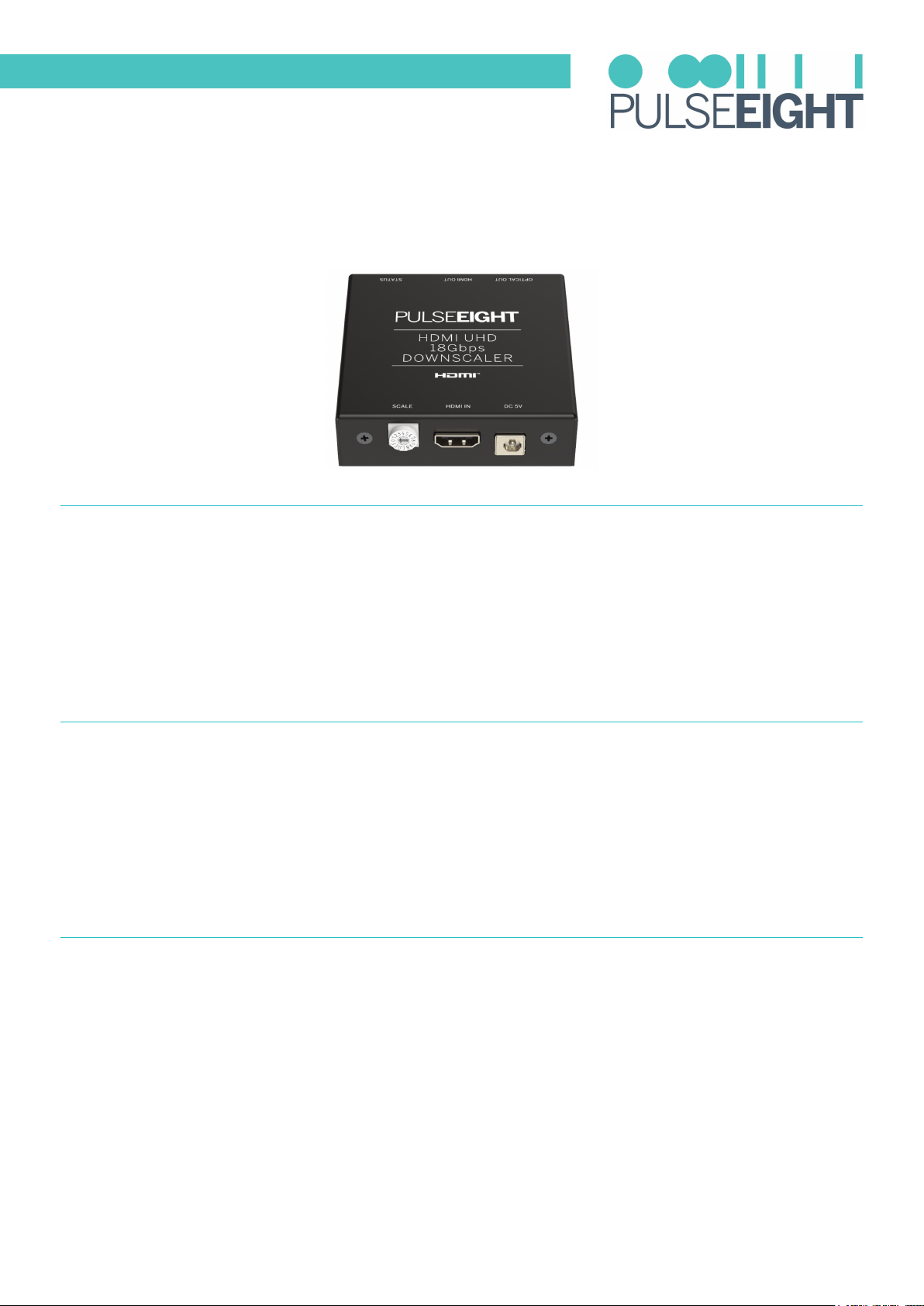

QUICK REFERENCE GUIDE - HDMI UHD 18GBPS DOWNSCALER
HDMI UHD 18GBPS
DOWNSCALER
Mixed resolution deployments are always a source of frustration for both you and your client;
that cherished legacy TV (that should have been replaced) must coexist with the fantastic new
4K HDR TV in the living room. Of course, they want to watch the same thing in both rooms!
With no latency or tearing, our 6G HDMI 4K downscaling solution can convert your 4K content to 1080p in real
time. It’s ideal for a quick x to your mixed resolution deployments, and its low prole allows it to sit perfectly
behind the TV.
INTRODUCTION
FEATURES
• Seamlessly downscales 4K UHD Signals to 1080p
• Designed for installations featuring mixed resolution TVs
• Simple set up using HDMI inputs and outputs
• Rotating dial switch for selecting downscale mode
• Perfect for use with neo matrix systems
• Discreet design, only 1.8 cm high. perfect for placing or mounting behind TV
• Optional optical port for using
INSIDE THE BOX (KIT)
• 1 x HDMI UHD 18Gbps Downscaler
• 1 x Power Cable
• 1 x Installation Guide

2
QUICK REFERENCE GUIDE - HDMI UHD 18GBPS DOWNSCALER
SKU: P8-HDMI2-2KDS
Input HDMI 2.0a
Outputs: HDMI 2.0a, Toslink (Optical)
Max Video Output Clock Speed: Input: 594 Mhz, Output: 340 Mhz
Video Impedance: 100 Ω
Input Video Signal: 3.3 V DC bias, 400-600 mVp-p
Input DDC Signal: 5 volts p-p (TTL)
Transmission Distance: Input - 2-metre (4K/1080p), Output - 2-metre (4K/1080p)
Max In/Out Resolution Supported: Up to 3840 x 2160p @ 60 Hz
Colour Supported: 4:4:4 (8-bit), 4:2:2 (10-bit) or 4:2:0 (12-bit) all but at 3840 x 2160p @60 Hz
Scale Video Down from 3840x2160p @24/25/30/60 Hz to 1920x1080p @ 24/25/30/60 Hz
Audio Input Format: 5.1 Dolby Digital or 2 channel Stereo PCM
Audio Output Format: 5.1 Dolby Digital or 2 channel Stereo PCM
Power Supply: 5 V DC / 10 W power supply (CE/FCC certied)
Power Consumption: Max 2Amp @ 5 V 10 Watts
ESD Protection: 8kV (Air-gap discharge) ± 4 kV (Contact discharge)
Surge Protection: IEC 61000-4-4 (EFT) 40A (5/50ns) IEC 61000-4-5 (Lightning) 25A (8/20μs)
Product Dimensions: 7.9 x 1.8 x 8.3 cm
Product Weight: 100g
Operating Temp Range: 0 to +35°C (32 to +95°F)
Operating Humidity Range: 5 to 90% RH (no condensation)
Certication: CE, FCC, RoHS
SPECIFICATIONS

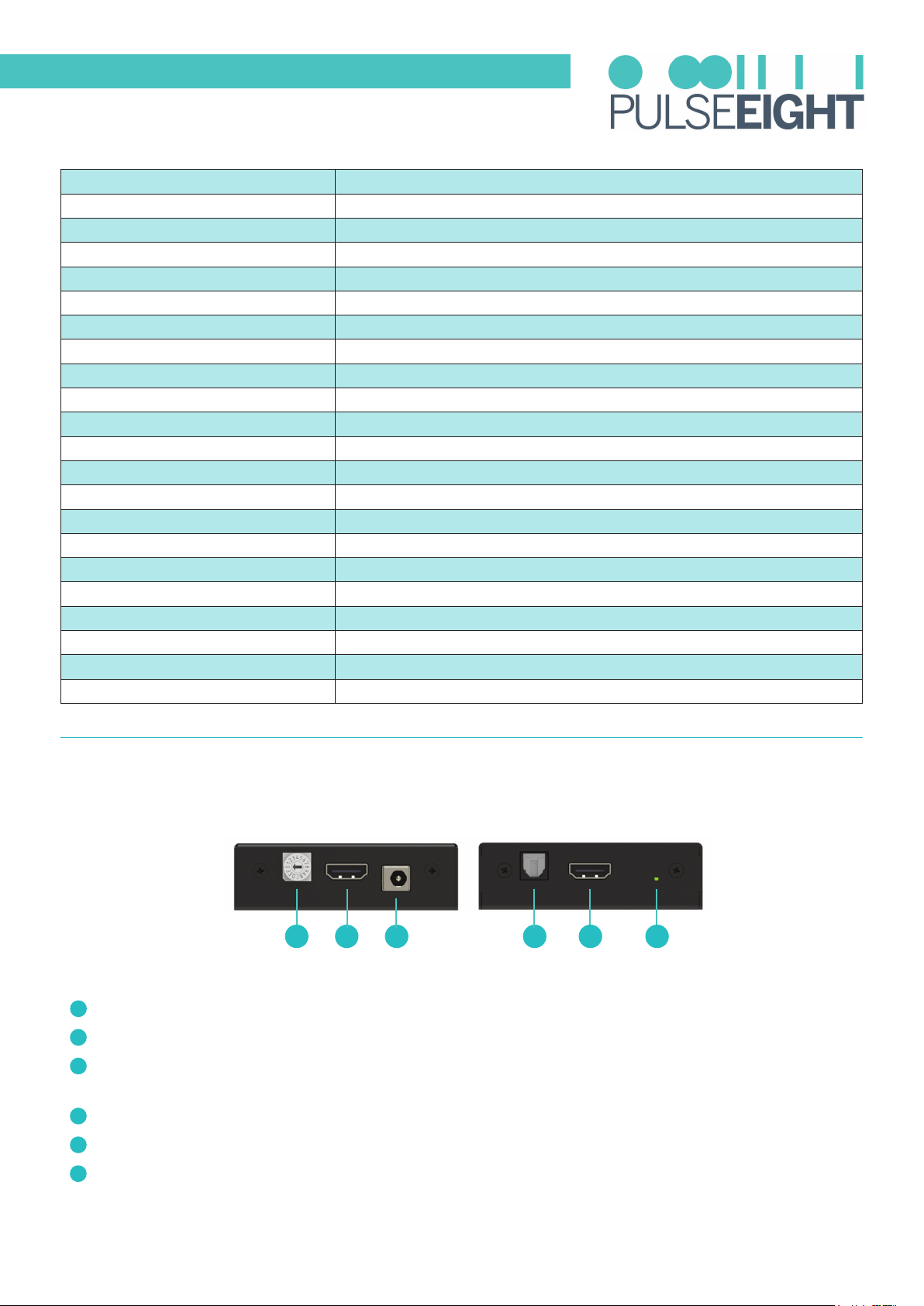

PANEL DESCRIPTIONS
Scale - The scale adjustor to controls the functionality of the Downscaler.
HDMI In - Connect to an HDMI source device (i.e Blu-Ray player) to this port using an HDMI cable.
DC 5V - Use the supplied mains power cable and connect to the chassis. Do not use any other power cables
with this product.
Optical Out - Connect an Optical cable between the ‘Optical Out’ port and the Audio device.
HDMI Out - Use Connect to HDMI sink device (i.e TV) to this port using an HDMI cable.
Status - Status LED indicator
A
B
C
D
F
E
A DCB E F
Rear PanelFront Panel

3
QUICK REFERENCE GUIDE - HDMI UHD 18GBPS DOWNSCALER
INSTALLATION
1. Connect an HDMI cable between Downscaler ‘HDMI OUT’ and TV.
2. Connect an HDMI cable between Downscaler ‘HDMI IN’ and Video Source.
3. For S/PDIF audio output, connect an optical cable between the ‘Optical Out’ port and the Audio device.
4. Plug-in power jack to ‘DC 5V’ port.
5. Power on the power adapter.
The rotating switch controls the functionality of the Downscaler. To set a particular mode:
1. Power OFF the Downscaler.
2. Using a small athead screwdriver, turn the arrow to the desired mode number.
3. Power ON the Downscaler.
Status LED Indicator
EDID Control
RED - Powering on. This may take a few seconds.
AMBER - Detected a change in the video signal and conguring.
GREEN - Congured and healthy. Video and audio will be output.
Scale Function
0Use saved EDID after copying from a TV using mode 1
1Copy EDID from a TV and save it. Switch to 0 after saving EDID
2Use EDID prole 4K, HDR, 8 Channel Audio
3Use EDID prole 4K, HDR, 6 Channel Audio
4Use EDID prole 4K, HDR, 2 Channel Audio
5Use EDID prole 4K, No HDR, 8 Channel Audio
6Use EDID prole 4K, No HDR, 6 Channel Audio
7Use EDID prole 4K, No HDR, 2 Channel Audio
8-F Reserved. No function.

4
QUICK REFERENCE GUIDE - HDMI UHD 18GBPS DOWNSCALER
TROUBLESHOOTING
Should you encounter installation difficulties or issues with device communication, the following checklist of
common issues and causes should help resolve your issues. If you still continue to experience issues, please
contact your local representative for further assistance.
No Video
• Connected and powered? Double check that all HDMI, and power cables are rmly connected to the correct
ports and all devices are correctly powered.
• Cable quality and condition - HDMI cable/connectors can easily be damaged and the quality of material can vary.
Always use good quality leads and cables and try swapping cables that are known to be working into the solution
to see if this improves your image.
No Audio
• Check the source, if the output is more than 6 channels. Audio will not output if there are more than 6 channels.
• Verify the S/PDIF or TOSLINK cable is workingIf you still do not receive a response, please contact a Pulse-Eight
representative or your Installer.

5
QUICK REFERENCE GUIDE - HDMI UHD 18GBPS DOWNSCALER
WARRANTY PROCEDURE
The following policies covers all Pulse-Eight products.
Unless otherwise instructed, please do not open any of our products. Doing so will invalidate your warranty. As
part of the troubleshooting procedure, you may be instructed to open the device, but you can only proceed with
this once consent has been given.
To open a support ticket, please visit: www.pulse-eight.com/support.
Please Note: Warranty cover for ALL products starts from date of receipt of goods NOT date of installation.
Should we nd that your product does need replacing, we will send your replacement directly to the distributor
you purchased from, if not purchased directly from Pulse-Eight.
From 1st April any products purchased will have new warranty lengths. The length of warranty is determined by
the type of product purchased. Our cover can be broken down into 3 categories:
Gold, Silver and Bronze.
GOLD: Pulse-Eight Audio and Video Matrices
• 5-year warranty as standard
- 2-year advanced replacements
- 3-year return to base for repair
SILVER: Pulse-Eight Amps, Extender Sets and Accessories
• 3-year warranty as standard
- 1-year advanced replacements
- 2-year return to base for repair
BRONZE: IR, Cables, Brackets and our Tech Tools
• 1-year advanced replacements
Pulse-Eight Current Product—Within the advanced replacement warranty year(s)
1. Contact support via phone or a support ticket. Pulse-Eight will try to help troubleshoot and resolve the issue
remotely.
2. If unable to resolve the fault remotely and the unit needs replacing an advanced replacement will be raised with
the installer who purchased it. If you purchased from a distributor you will need to return to your distributor
and they will contact Pulse-Eight to get the RMA raised. All distributor advanced replacements will be sent to
the distributor and cannot be sent direct to their installer.
Pulse-Eight Current Product—Within return to base warranty
1. Contact support via phone or a support ticket. Pulse-Eight will try to help troubleshoot and resolve the issue
remotely.
2. If unable to resolve the fault remotely and the unit needs to be repaired, an RMA will be raised with the installer
if purchased direct from Pulse-Eight. Or if purchased from a distributor, the installer will be directed back to
their distributor who will raise an RMA.
Pulse-Eight Products Purchased Before 1st April, 2022.
Please visit: Warranty Page. Or Contact support via phone, opening a support ticket or emailing
[e-mail].
