PureLink RF6 User manual

RF6 Extension System
Rack Mountable Fiber Optic/CAT5 DVI/HDMI
Modular Extension Center
Owner’s Manual
Dtrovision LLC
9A Bergen Turnpike
Little Ferry, NJ 07643
USA
Tel: [phone]
Fax: [phone]
Email: [e-mail]
www.dtrovision.com
For order support, please contact your local dealer.
For technical support, please contact us at supp[email protected]

RF6 Package Contents
Please make sure all of the following items are included in the package;
1) RF6 Main Frame
2) Transmitter/Receiver modules (if purchased separately)
3) DC 12V Power Supply Unit with a power cord
4) Rack ears
5) User Manual

General Specification
• RF6 System is a revolutionary 19’’ 1-RU size rack mount assembly for DVI/HDMI fiber optic/CAT5
extension modules. Various transmitter and receiver modules are designed for slot-loading into the
RF6 main frame.
• Able to mix DVI/HDMI and Fiber Optic/CAT5 extension, RF6 features one power supply for
up to six modules per frame, eliminating a lot of small adapter type power supplies, housed in a
1 RU rack housing.
• Compact & durable design and lower power consumption makes it an ideal solution for connection
for high definition video/audio signal of digital displays such as LCD/Plasma/LED displays and
projectors.
• This pure fiber optic/CAT5 connection enables electrical noise free and EMI free that is ideal for
long distance/mid-range extension of high definition DVI/HDMI signals with audio.
• Intuitive LCD panel on both RF6 show the status of the video and audio signals including
the current signal image format and audio format. This information provides helpful diagnostic
information.

Model
RF6 Extension System
Input Signal
DVI, HDMI, 3.5mm Analog Audio
Optional RS-232, IR
Output Signal
DVI, HDMI, 3.5mm Analog Audio
Optional RS-232, IR
Supporting Display
Resolutions
VGA ~WUXGA(up to 1920 x 1200 @ 60Hz) ,
480i ~ 1080p
Max. Distance
CAT5 Modules: 1920x1200 @ 60Hz or at 1080p: 50M(165ft)
1280x1024 @ 60Hz or at 1080i: 60M(200ft)
Fiber Modules: 1920x1200 @ 60Hz or at 1080p: 1,000M(3,300ft)
1280x1024 @ 60Hz or at 1080i: 1,530M(5,000ft)
Connector Type
DC Power Jack
HDMI 19 Pin Female/DVI 20 Pin Female
LC Receptacles with 4 cores
RJ45
3.5mm Stereo Jack
Conformations
HDMI version 1.3/ DDWG DVI 1.0
With HDCP
Power Rating
DC +12V , 8W Max
Dimension
17.3x6.7x1.7(inches) 440x170x44(mm)
Weight
6.2 lbs (2.8 Kg)

Operation and Reliability Specification
1. Operating Environment
Temperature: 50F ~ 104F (10℃~ 40℃)
Humidity: 10% ~ 80%
Altitude: 3,000m Max.
2. Transit Environment
Temperature: -13F ~ 140F (-25℃~ 60℃)
Humidity: 5% ~ 95%
Altitude: 15,000m Max.
3. Storage Environment
Temperature: -4F ~ -49F (-20℃~ 45℃)
Humidity: 5% ~ 95%
Altitude: 3,000m Max.
4. Reliability
MTBF: 90% at over 50,000 hours aging test
In compliance with LCD Monitor reliability test standard

Main Features
1. Zero loss & Zero noise delivery of digital high definition video and audio signal using optical
conversion technology, RF6 delivers HD signals over fiber optic/Cat5 cables without loss or
digital interference maintaining the clarity and colors. Noise cancellation and error
correction logic enhances DVI/HDMI video and audio signals over long distance.
2. Both transmitter and receiver module can be installed into the same RF6 frame
simultaneously.
3. Built-in signal repeater to support longer distance between the source and the RF6 and the
display. This Signal Repeater logic supports up to 50ft copper based DVI/HDMI cables.
4. Compact and Robust Module Design. 19’’ 1RU size
5. Long Distance (Up to 5000ft at 1080i or lower signal) over cost effective multimode fiber
optic cables.
6. Mid-range (Up to 200ft at 1080i or lower signal) over cost effective RJ45 (CAT5/e/6) cables.
7. Full EDID Management
1) Built-in EDID library
Choose one from 14 pre-saved most widely used EDID
2) EDID Emulation
Saving/Emulating display’s EDID in the RF6T transmitter module enhances reliability
and compatibility with various displays.
8. HDCP (High-bandwidth Digital Content Protection) Support.
9. DDWG DVI 1.0 and HDMI version 1.3 Support.
10. Signal Status LCD panel on RF6 Extension video and audio signal information is displayed
on the LCD panels to help understand the signal even before the display is connected.
Display Resolution, refresh rates and audio signal status are intuitively displayed on the
modules.

Installation and Connection Instructions
1. Turn off both the video source and the display before connecting any cables.
2. Connect DVI/HDMI cable between the source and RF6/Transmitter module and the display.

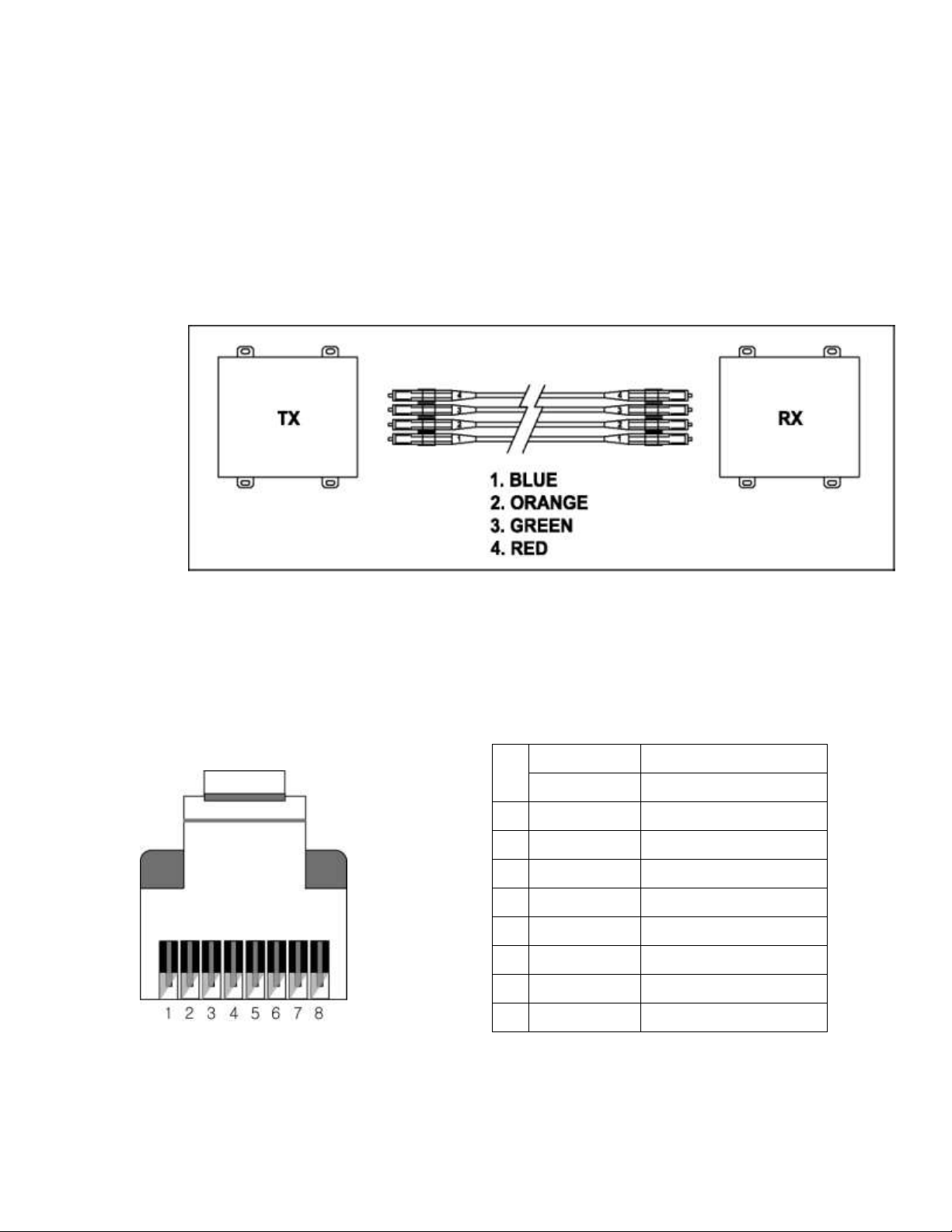

3. Cable Connection:
1) Fiber Cable: Connect LC terminated fiber optic cables according to the picture below;
2) CAT5 Cable: RT6 was designed to conform to TIA/EIA-568-B Standard. Please ensure
that each PIN layout of RF6 is corresponding with the picture below before connecting the
cable. Please note that CAT5e or above level cable enables to deliver better video quality
and longer distance.
Pin
TIA/EIA-568B
Signal
Wire color
Digital RGB
1
Orange/ White
TMDS Data2+
2
Orange
TMDS Data2-
3
Green/ White
TMDS Data1+
4
Blue
TMDS Data0+
5
Blue/ White
TMDS Data0-
6
Green
TMDS Data1-
7
Brown/ White
TMDS Clock+
8
Brown
TMDS Clock-

4. Connect the power supply unit to the RF6 extension system
5. Turn on Display
6. Turn on Video Source
RF6 Extension Frame Specification
Dimensions: 17.3x6.7x1.7(inches) 440x170x44(mm)

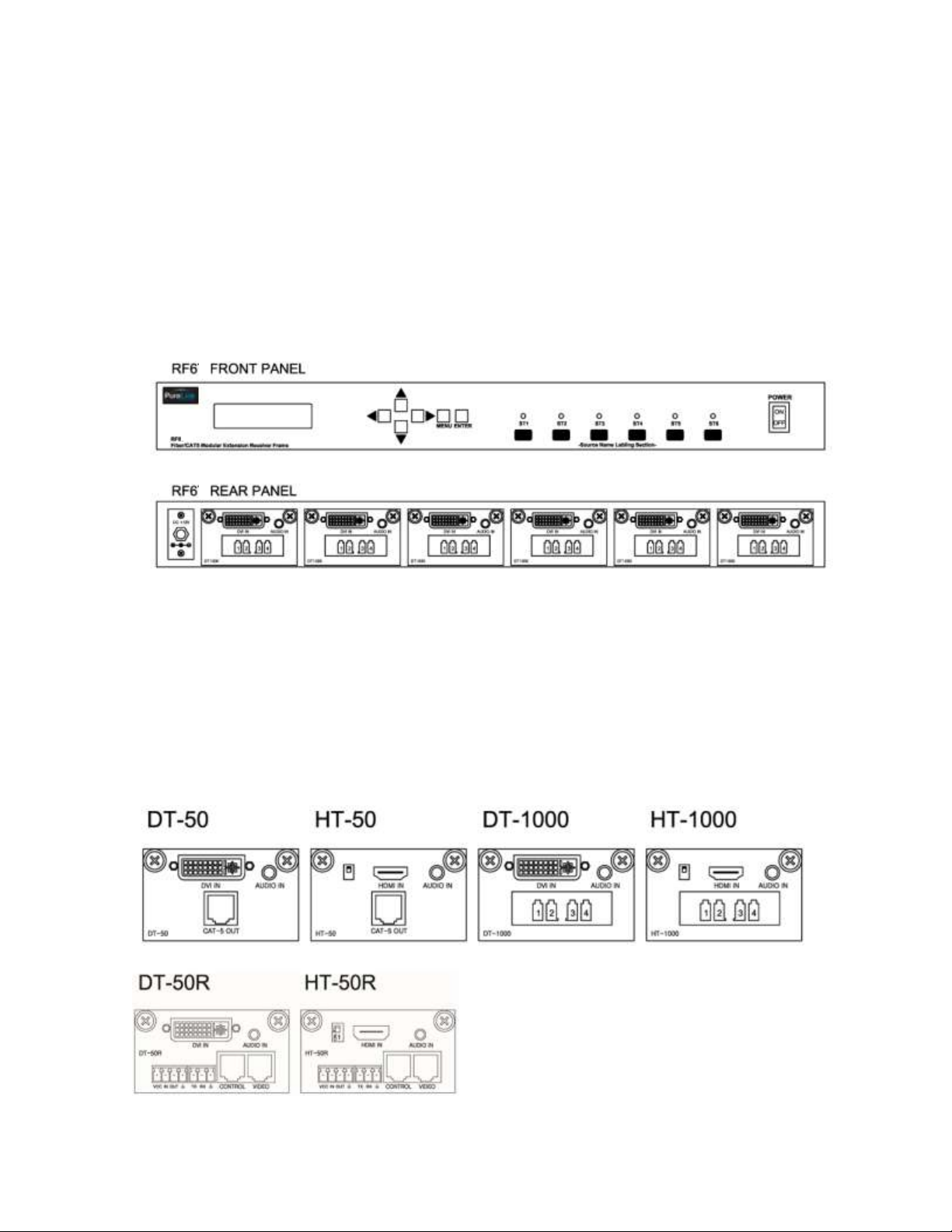

Front Panel:
LCD Display: 16*2 LCD
ST 1 ~ 6 LED: Input Slot Check
Power: Power on/off button
▲▼◀▶: Move button
MENU: Menu button
ENTER

Rear Panel:
DVI/HDMI IN: DVI-D/HDMI Input
Audio IN: 3.5mm Stereo Audio Input
1234: Fiber Optical Receptacles
CAT-5 IN: RJ45 (CAT5/e/6) Receptacles
DC +12V: 12V DC Power Supply Unit Input
Available Input Modules
- DT1000: Optical, DVI, 3.5 Stereo, up to 6 modules can fit in RF6T
- HT1000: Optical, HDMI, 3.5mm Stereo, up to 6 modules can fit in RF6T
- DT50: CAT5, DVI, 3.5mm Stereo, up to 6 modules can fit in RF6T
- HT50: CAT5, HDMI, 3.5mm Stereo, up to 6 modules can fit in RF6T
- DT50R: CAT5, DVI, 3.5mm Stereo, RS-232, IR, up to 6 modules can fit in RF6T
- HT50R: CAT5, HDMI, 3.5mm Stereo, RS-232, IR, up to 6 modules can fit in RF6T
Receiver Module’s Rear Panel:
DVI/HDMI Output: DVI-D/HDMI Output
Audio OUT: 3.5mm Stereo Audio Output
1234: Fiber Optical Receptacles
CAT-5 : RJ45 (CAT5/e/6) Receptacles
DC +12V: 12V DC Power Supply Unit Input

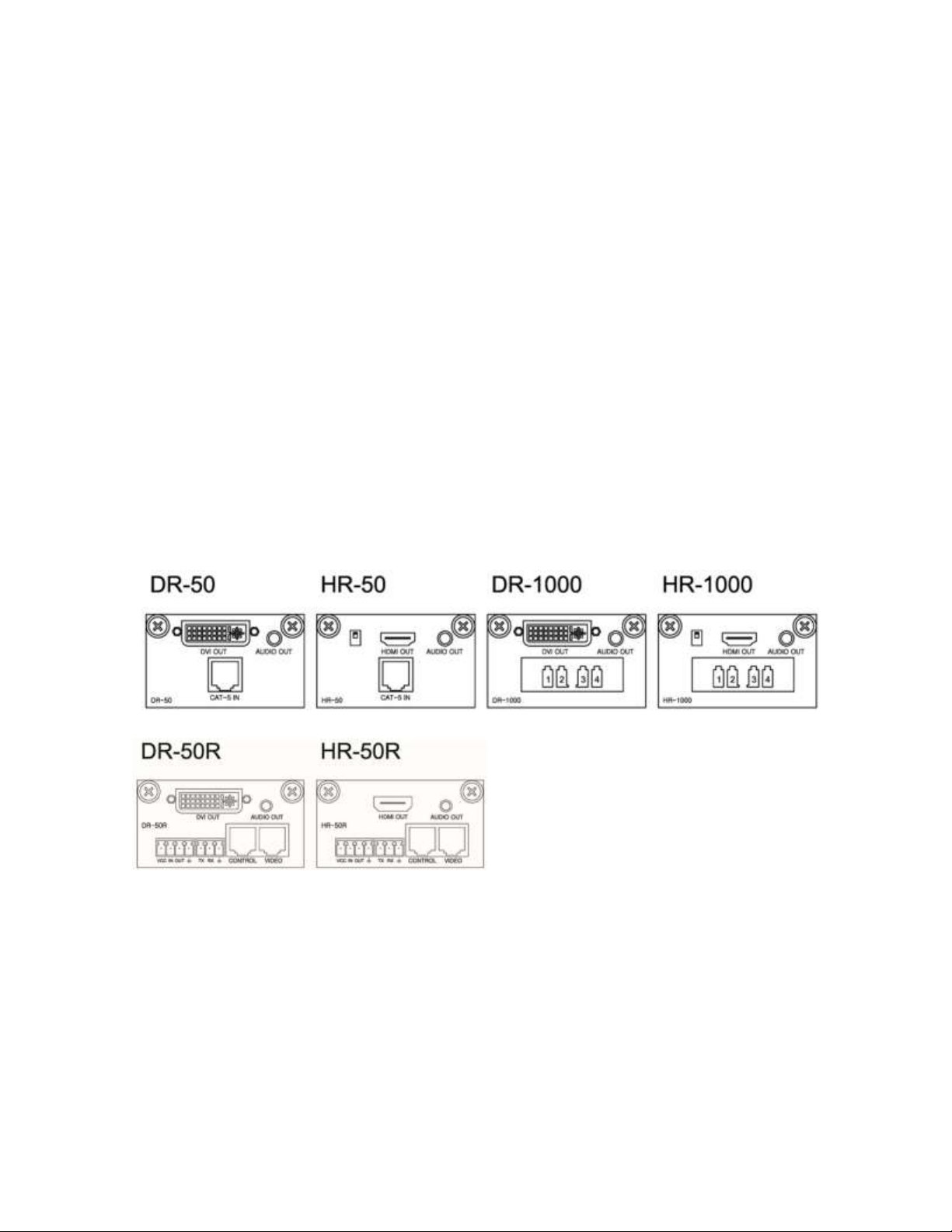

Available Input Modules
- DR1000: Optical, DVI, 3.5 Stereo, up to 6 modules can fit in RF6R
- HR1000: Optical, HDMI, 3.5mm Stereo, up to 6 modules can fit in RF6R
- DR50: CAT5, DVI, 3.5mm Stereo, up to 6 modules can fit in RF6R
- HR50: CAT5, HDMI, 3.5mm Stereo, up to 6 modules can fit in RF6R
- DR50R: CAT5, DVI, 3.5mm Stereo, RS-232, IR, up to 6 modules can fit in RF6R
- HR50R: CAT5, HDMI, 3.5mm Stereo, RS-232, IR, up to 6 modules can fit in RF6R
RF6 Extension system and available Standalone extender’ Compatibility
Chart
Part #
Compatible Part #
RF6
Hold DT1000, HT1000, DT1000RV, DT50, HT50, DT50R, HT50R
Hold DR1000, HR1000, DR1000RV, DR50, HR50, DR50R, HR50R
DT1000
Compatible with DR1000, DRS1000, OBC II RX, OLC RX, DR1000RV,
DRS1000RV, DWR1000RV
HT1000
Compatible with HR1000, HRS1000, HDX II RX, DR1000RV, DRS1000RV,
DWR1000RV
DT50
Compatible with DR50, DRS50, DCE RX
HT50
Compatible with HR50, HRS50, HCE RX
DT50R
Compatible with DR50R, DRS50R, DCE RX
HT50R
Compatible with HR50R, HRS50R, HCE RX
DR1000
Compatible with DT1000, DTS1000, OBC II TX, OLC TX, DT1000RV,
DTS1000RV, DWT1000RV
HR1000
Compatible with HT1000, HTS1000, HDX II TX, DT1000RV, DTS1000RV,
DWT1000RV
DR50
Compatible with DT50, DTS50, DCE TX
HR50
Compatible with HT50, HTS50, HCE TX
DR50R
Compatible with DT50R, DTS50R, DCE TX
HR50R
Compatible with HT50R, HTS50R, HCE TX

[VIDEO EXTENDER]
TX - RF6 (V1.00)
System Checking!
SLOT1 Check OK
SLOT4 Check N.C
SLOT5 Check OK
S L O T : 1 2 3 4 5 6
[ 1920 x 1080P/60 ]
S L O T : 1 2 3 4 5 6
[ Slot N .C ]
S L O T : 1 2 3 4 5 6
[ No Signal ]
Operating Instruction (RF6 / Transmitter module)
1. Initialization menu
--> Model name and Main Firmware Version
--> Input Slot Status Check
--> SLOT4 Check N.C: No module is connected to SLOT4
--> SLOT5 Check OK: Input module is connected to SLOT5
2. Main menu
--> When Slot is connected and input signal is detected
--> Display Selected Slot’s input signal information
--> When Slot is not connected
--> Slot N.C : No module is connected to Slot
--> When Slot is connected but no input signal is detected
--> No Signal: Module is connected but no input signal is detected
* User Left/Right (◀▶) button to move a cursor to the left and right
Selected Slot’s video timing will be displayed
3. Sub menu

→1. V i d e o I n f o
2. SLOT Firm Ver
3. E D I D I n f o
4. Int EDID Save
5. Ext EDID save
[ SLOT1 Time Info ]
1920 x1080P/60
[ SLOT2 Firmware ]
Soft Ver. : 1.00
[ SLOT3 EDIDInfo ]
1600x1200 (TST)
Press Menu button to go to sub-menu list.
--> 1. Display each slot’s input video signal information
--> 2. Display each slot’s firmware version
--> 3. Display each slot’s saved EDID information
--> 4. Display EDID information from built-in EDID library
--> 5. Display EDID information from selected slot’s display device
* User Up/down (▲▼) button to move to the next sub-menu list
* Press menu button to cancel and go back to the main menu
4. Sub Menu detail
[ 1. Video Info ]
--> Display selected Slot #
--> Display input signal information
* User Left/Right (◀▶) button to select slot #
* User Up/down (▲▼) button to display selected slot’s information
* Press menu button to cancel and go back to the main menu
[ 2. Slot Firmware Version ]
--> Display selected Slot #
--> Display firmware version
* User Left/Right (◀▶) button to select slot #
* Press menu button to cancel and go back to the main menu
[ 3. Slot EDID Info ]

[ SLOT4 Int EDID ]
→Sel : Up/Dn , Ent!
[ SLOT4 Int EDID ]
→800x600 60Hz
[ SLOT5 Ext EDID ]
EDID Set : Enter!
--> Display selected Slot #
--> Display EDID information
* User Left/Right (◀▶) button to select slot #
* Press menu button to cancel and go back to the main menu
[ 4. Int EDID Save ]
--> Display selected Slot #
--> Choose EDID from a built-in EDID library list
--> Display selected Slot #
--> Display EDID information that will be saved to the module
* User Left/Right (◀▶) button to select slot #
* User Up/down (▲▼) button to see a built-in EDID library list (14 Pre-saved EDID)
* Press menu button to cancel and go back to the main menu
* EDID List
- 800x600 60Hz , 1024x768 60Hz , 1280x768 60Hz , 1280x1024 60Hz
- 1360x768 60Hz , 1366x768 60Hz , 1400x1050 60Hz , 1600x900 60Hz
- 1600x1200 60Hz , 1680x1050 60Hz , 1920x1200 60Hz , HD1080i 60Hz
- HD1080p (2CH) , HD1080p(Multi)
[ 5. Ext EDID Save ]
--> Display selected slot #
--> Display EDID information that will be saved to the module
* User Left/Right (◀▶) button to select slot #
* Press Enter button to save EDID information from the selected slot’s display device
* Press menu button to cancel and go back to the main menu
Operating Instruction (RF6 / Receiver Module)
1. Initialization menu

System Checking!
SLOT1 Check OK
SLOT4 Check N.C
SLOT5 Check OK
S L O T : 1 2 3 4 5 6
[ 1920 x 1080P/60 ]
S L O T : 1 2 3 4 5 6
[ Slot N .C ]
S L O T : 1 2 3 4 5 6
[ No Signal ]
→1. V i d e o I n f o
2. SLOT Firm Ver
[ SLOT1 Time Info ]
1920 x1080P/60
2.
--> Input Slot Status Check
--> SLOT4 Check N.C: No module is connected to SLOT4
--> SLOT5 Check OK: Input module is connected to SLOT5
2. Main menu
--> When Slot is connected and input signal is detected
--> Display selected Slot’s input signal information
--> When Slot is not connected
--> Slot N.C : No module is connected to Slot
--> When Slot is connected but no input signal is detected
--> No Signal: Module is connected but no input signal is detected
* User Left/Right (◀▶) button to move a cursor to the left and right
Selected Slot’s video timing will be displayed
3. Sub menu
Press Menu button to go to sub-menu list
--> 1. Display each slot’s input video signal information
--> 2. Display each slot’s firmware version
4. Sub Menu detail
[ 1. Video Info ]
--> Display selected Slot #

[ SLOT2 Firmware ]
Soft Ver. : 1.00
--> Display input signal information
* User Left/Right (◀▶) button to select slot #
* User Up/down (▲▼) button to display selected slot’s information
* Press menu button to cancel and go back to the main menu
[ 2. Slot Firmware Version ]
--> Display selected Slot #
--> Display firmware version
* User Left/Right (◀▶) button to select slot #
* Press menu button to cancel and go back to the main menu
Technical Specification
Data Transfer Speed: Up to 2.25 Gbps (DVI Single Link), 10 Gbps (HDMI)

Frequency Range: 25 ~ 165 Mhz
Supporting Display Resolutions: 1080p / Up to WUXGA (1920X1200)@60Hz
I/O Signal Standard: DVI 1.0, HDMI 1.3, TMDS
Max Distance: CAT5 Modules: 1920x1200 @ 60Hz or at 1080p: 50M(165ft)
1280x1024 @ 60Hz or at 1080i: 60M(200ft)
Fiber Modules: 1920x1200 @ 60Hz or at 1080p: 1,000M(3,300ft)
1280x1024 @ 60Hz or at 1080i: 1,530M(5,000ft)
Optical Source: 850 nm Vcsel
Optical Cable Specification: Multimode 50/125 or, 62.5/125
Input Ports: DVI-D Female 29P / HDMI Female 19P /
LC Receptacles x 4 cores / RJ45 / 3.5mm Stereo Jack
Output Ports: DVI-D Female 29P / HDMI Female 19P /
LC Receptacles x 4 cores / RJ45 / 3.5mm Stereo Jack
Power Consumption: 8 Watts (Max)
Power Rating: 12V DC / 3A

Warranty
2 (Two) Year Warranty
Dtrovision warrants this fiber optical HDMI extension cable to be free from defects in workmanship
and materials, under normal use and service, for a period of two (2) year from the date of purchase
from Dtrovision or its authorized resellers.
If a product does not work as warranted during the applicable warranty period, Dtrovision shall, at
its option and expense, repair the defective product or part, deliver to customer an equivalent
product or part to replace the defective item, or refund to customer the purchase price paid for the
defective product.
All products that are replaced will become the property of Dtrovision.
Replacement products may be new or reconditioned.
Any replaced or repaired product or part has a ninety (90) day warranty or the reminder of the initial
warranty period, whichever is longer.
Dtrovision shall not be responsible for any software, firmware, information, or memory data of
customer contained in, stored on, or integrated with any products returned to Dtrovision for repair
under warranty or not.
Warranty Limitation and Exclusion
Dtrovision shall have no further obligation under the foregoing limited warranty if the product has
been damaged due to abuse, misuse, neglect, accident, unusual physical or electrical stress,
unauthorized modifications, tampering, alterations, or service other than by Dtrovision or its
authorized agents, causes other than from ordinary use or failure to properly use the Product in the
application for which said Product is intended.

FCC/CE Statement
This device complies with part 15 of FCC Rules and EN 55022/55024/61000-3 for CE certification.
Operation is subject to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must not accept any interference received, including interference
that may cause undesired operation. This equipment has been tested and found to comply with the
limits for a Class A digital device, pursuant to part 15 and 2 of FCC Rules and EN
55022/55024/61000-3 for CE certification. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and. if not installed and
used in accordance with the instruction guide, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Re-orient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult a service representative for help.
Properly shielded and grounded cables and connectors must be used in order to comply with
FCC/CE emission limits. Changes or modifications not expressly approved by the party responsible
for compliance could void the user s authority to operate the equipment.
UL Statement
This device has completed a UL Commercial Inspection and Testing Services for the multimode
HDMI cable complied with VW-1 under UL 758. it is validated by the UL file number SV2038 and
project number 04CA05353.
