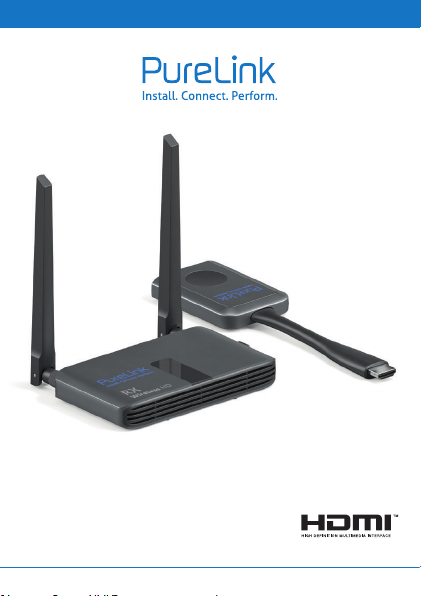

PureLink CSW030 User manual

WIRELESS HDMI EXTENDER SET
CSW030
Instruction Manual

-2-
TABLE OF CONTENT
CHAPTER PAGE
Introduction ................................................................................................. 3
Intended Use ................................................................................................ 3
Safety Instructions .................................................................................. 4-5
Delivery Content ..........................................................................................6
.......................................................................................... 6-9
Installation ................................................................................................ 10
Application ................................................................................................ 11
FAQ ....................................................................................................... 12-13
Maintenance ............................................................................................. 14
Cleaning ..................................................................................................... 14
Warranty and Liability ............................................................................ 15
CE Conformity ........................................................................................... 16
Disposal of the Device ............................................................................ 16
Disclaimer .................................................................................................. 17

-3- ENGLISH
1. INTRODUCTION
Congratulations on your purchase of the PureLink CSW030! Repla-
ce your HDMI cable wirelessly and locate your HDTV or projector
wherever you want in the same room. No need to worry about the
location of your HD equipment. Perfect if you would rather not see
cables running across the walls or if you do not want to (or cannot)
drill holes and lay cables.
Suitable for all HDMI equipment, such as Blu-ray® Player, HD set-
top box or Laptop.
PureLink products are manufactured with the utmost precision and
are top quality. Please read this manual carefully and follow the ins-
tructions in order to get the very best from this product.
2. INTENDED USE
This product is intended for indoor use only. Do not use it
outdoors. Contact with moisture, e.g. in bathrooms, must be
avoided under all circumstances.
For safety and approval purposes (CE), you must not rebuild and/
or modify this product. If you use the product for purposes other
than those described above, the product may be damaged. In addi-
electric shock etc.
Read the instructions carefully and keep them. Make this product
available to third parties only together with its operating instruc-
tions.

-4-
3. SAFETY INSTRUCTIONS
Read the operating instructions carefully and especially observe
the safety information. If you do not follow the safety instructions
and information on proper handling in this manual, we assume no li-
ability for any resulting personal injury or damage to property. Such
cases will invalidate the warranty/guarantee.
The device is not a toy. Keep it out of the reach of children and pets.
Do not leave packaging material lying around carelessly. These may
become dangerous playing material for children.
Protect the product from extreme temperatures, direct sunlight,
solvents.
Do not place the product under any mechanical stress.
If it is no longer possible to operate the product safely, take it out of
operation and protect it from any accidental use. Safe operation can
no longer be guaranteed if the product:
•is visibly damaged,
•is no longer working properly,
•has been stored for an extended period in poor ambient
conditions or
•has been subjected to any serious transport-related stresses
Please handle the product carefully. Jolts, impacts or a fall even
from a low height can damage the product.
Also observe the safety and operating instructions of any other
devices which are connected to the product.

-5-
Consult an expert when in doubt about the operation, safety or
connection of the device.
Make sure to observe the polarity and magnitude of the output
voltage. Incorrect polarity or excessive voltage input leads to the
destruction of the connected electrical appliance.
not cover the product. Never place the product on a table cloth or
The product should not be used immediately after it has been
brought from an area of cold temperature to an area of warm tem-
perature. Condensed water might destroy the product. Wait until
the product adapts to the new ambient temperature before use.
Make sure that the output of the power adapter is not short-circui-
ted.
-
tors, and other medical devices. Keep at least 6 inches (approxima-
and this product. If you suspect this product is interfering with your
pacemaker or any other medical device, stop using it and consult
ENGLISH

-6-
4. DELIVERY CONTENT
1x PureLink CSW030 Transmitter (TX)
1x PureLink CSW030 Receiver (RX)
1x DC 5V/2A power adapter for RX
2x USB-A to USB-C cable for RX & TX
1x User Manual
5. SPECIFICATIONS
Product Size in mm: TX: 72 x 52 x 14.2mm
RX: 124 x 70 x 18.8mm
Product Weight in g: %01-/+g05:XT
RX: 168 g +/- 10%
TX: Interface HDMI in
RX: Interface HDMI out / VGA out / Audio out
WiFi Standard IEEE 802.11 protocol (5GHz)
Frequency Range 5180MHz~5240MHz (Band 1)
RF Power 10 dBm max.
Distance 30 m line of sight (no walls) max.
HDMI Compliance HDMI 1.3

-7- ENGLISH
HDCP Compliance HDCP 1.3
Audio Output PCM 2CH
Resolution 1920 x 1080 @60Hz
Pixel Frequency Range 25MHz~165MHz
Power Supply AC in 110-240V / DC out 5V/2A
Operating Humidity 10 - 80%
Operating Temperature 0 - 45ºC
Storage Temperature -20 - 60ºC

-8-
RECEIVER

-9- ENGLISH
TRANSMITTER

-10-
6. INSTALLATION
THE PURELINK CSW030 TRANSMITTER (TX)
1. )TUOIMDH(ecivedDHruoyotrettimsnart030WSCruoytcennoC
or laptop (HDMI OUT).
2. Connect the power adapter to the USB port on the CSW030 trans-
mitter and to a socket. If your HD device or Laptop has a USB port
you can also use the USB cable to power the CSW030 transmitter.
THE PURELINK CSW030 RECEIVER (RX)
1. Connect your HDTV or HD Projector (HDMI IN) via an HDMI cable
to the CSW030 Receiver (HDMI OUT)
2. Connect the power adapter to the USB IN on the CSW030 Recei-
ver and to an electrical socket
Note: You cannot connect both receiver outputs at the same time.
You must connect either[HDMI OUT] or [VGA OUT + AUDIO OUT]

-11- ENGLISH
7. APPLICATION
1. After plugging the power adapter into the wall outlet, turn on the
2. -
conds to complete the transmission. Connect the transmitter to
the HDMI port of the computer, laptop, or other media source. Af-
to complete the connection, and then press the main button on
the transmitter to mirror the content from your device.
3. When the connection between the transmitter and receiver is
completed, both LEDs will light up continuously.
Note: Place the transmitter and receiver at least 1 meter apart to
ensure a good connection.
SWITCH YOUR EQUIPMENT ON
1. Switch the HDTV or HD Projector ON and select the HDMI input on
this device to which you have connected the PureLink CSW030
Receiver.
2. Switch the HD device or Laptop to which the PureLink CSW030
transmitter is connected ON.
3. If there is a good connection between your HD device and the
HDTV (or HD Projector), both LEDs on the receiver will light up
constantly.

-12-
8. FREQUENTLY ASKED QUESTIONS
NO CONNECTION
If the PureLink CSW030 is not able to make a stable connection for
80 seconds during start-up, the PureLink CSW030 Receiver is pro-
bably outside the range of the PureLink CSW030 Transmitter. Place
them closer to each other (a minimum distance of 1 meters apart)
and check whether the connection can be made.
NO SIGNAL AVAILABLE FROM CHOSEN SOURCE
The PureLink CSW030 does not recognize an input signal on the
selected SOURCE.
•Check whether the correct HDMI source has been selected and
whether this is ON.
•Check whether the HDMI cable between the PureLink CSW030
Transmitter and HD device is connected properly.
•Replace the HDMI cable to the HD device.
VIDEO RESOLUTION IS NOT SUPPORTED
The video resolution that is set on your HD device is not recognized
by the PureLink CSW030 Transmitter.
•Connect the HD device directly to the HDTV or projector and
check whether the set video resolution corresponds to the reso-
lutions that are supported.

-13- ENGLISH
LAPTOP OR PC SETTINGS
•Consult your Laptop or PC instructions for the correct picture and
audio settings.
•Check to ensure that the resolution set corresponds to the reso-
lutions that are supported.
Do you have other questions that have not been resolved by the
above information?
Please contact us on www.purelink.de/en/service/support/

-14-
9. MAINTENANCE
There are no components located inside the product you need to
maintain. Never open/dismantle the product.
-
If you have questions which remain unanswered by these operating
instructions, contact our technical support service or other techni-
cal personnel.
10. CLEANING
Before cleaning the product must be disconnected from mains so-
cket and all electrical loads.
Before cleaning the product, it must be disconnected from all other
connected products.
Only use dry and soft cloth to clear the housing of the Product.
Do not use abrasive or solvents.
Do not use any aggressive cleaning agents, rubbing alcohol or other
chemical solutions as they can cause damage to the housing and
malfunctioning.
apply too much pressure to the housing as this may cause scratch
marks.
You can easily remove dust using a long-haired, soft and clean
brush.

-15- ENGLISH
11. WARRANTY AND LIABILITY
If any fault or damage is detected on your product, please contact
your dealer and provide your sales slip or invoice as evidence of
the purchase, if necessary. Your dealer will repair the fault either on
site, or send the device PureLink. Please describe the possible faults
in detail – only then you can be assured that faults, occurring only
rarely, will be found and repaired with certainty!
Any use other than described in this user`s manual is not permitted.
Disclaimer of liability
PureLink Gmbh will not be held liable, nor provide any warranty for
damage resulting from improper installation, assembly and use of
the product, or failure to observe the operating instructions and/
or safety instructions.

-16-
12. CE CONFORMITY
PureLink GmbH hereby declares that the CSW030
complies with Directive 2014/53/EU.
The full text of the EU Declaration of Conformity is
available at the following internet address:
http://www.purelink.de
DISPOSAL OF THE DEVICE
WEEE-Reg. No.: DE 93847290
According to the European WEEE directive, any electrical
and electronic equipment must not be disposed with
consumers waste. As a consumer, you are committed by
law to reposit electrical and electronic devices to public
collecting points or to the dealer for free at the end of the
device’s lifetime. Details are regulated in the respective
national legislations. The garbage can symbol on the pro-
duct, in the manual or on the packaging refers to these
terms. With the return of your used devices you actively
take part in protecting the environment.

-17- ENGLISH
13. DISCLAIMER
This product complies with the statutory national and European
requirements. All company names and product names are trade-
marks of their respective owners.
All rights reserved.
We reserve our right for misprints and changes of the device,
packing or user manual.
HDMI® is a registered trademark of HDMI Licensing L.L.C

ENGLISH
PureLink GmbH
Von-Liebig-Straße 10
D - 48432 Rheine
Germany
PureLink UK LTD.
Carpenter Court, 1 Maple Road
Bramhall, Stockport
Cheshire SK7 2DH
United Kingdom
Telefon: [phone] -0
Fax: [phone] -99
E-mail: [e-mail]
Internet: www.purelink.de
© 2022 PureLink GmbH. All rights reserved.
All trade names are registered trademarks of
respective manufactures listed.
HDMI is a trademark of HDMI Licensing LLC. v1 | 2022-12

KABELLOSES HDMI EXTENDER SET
CSW030
Bedienungsanleitung

-20- DEUTSCH
INHALTSVERZEICHNIS
KAPITEL SEITE
Einleitung .................................................................................................. 21
Bestimmungsgemäßer Gebrauch ......................................................... 21
Sicherheitshinweise .......................................................................... 22-23
Lieferumfang ............................................................................................. 24
....................................................................................24-27
Installation .................................................................................................28
Anwendung ................................................................................................29
Häufig Gestellte Fragen ...................................................................30-31
Wartung ...................................................................................................... 32
Reinigung ................................................................................................... 32
Gewährleistung und Haftung ................................................................ 33
CE Konformität ......................................................................................... 34
Geräteentsorgung .................................................................................... 34
Haftungsausschluss ................................................................................. 35
