PureLink FIBERX FX-P350 User manual

Version 1.0 | 2018
Instruction manual (EN)
FX-P350 / FX-P355
HDMI 2.0 Single Fiber Pigtail Extender

2
HDMI 2.0 Single Fiber Pigtail Extender
TABLE OF CONTENT
CHAPTER PAGE
Introduction ............................................................................................. 3
Intended use ............................................................................................ 3
Safety Instructions ............................................................................. 4- 5
Delivery Content ..................................................................................... 6
Features ................................................................................................ 6-7
Application ............................................................................................... 7
Specications ..................................................................................... 8-9
Audio, Video & Optical .............................................................................. 8
General .............................................................................................................. 9
Operation and connection diagram ................................................ 10
Troubleshooting / Status LED ............................................................ 11
Maintenance ......................................................................................... 11
Cleaning ................................................................................................. 12
Warranty and Liability ........................................................................ 13
CE-Conformity ...................................................................................... 14
Disposal of the Device ........................................................................ 14
FCC-Compliance Statement ....................................................... 15- 16
Disclaimer .............................................................................................. 17

3
INTRODUCTION
Thank you for purchasing the FX-P350 / FX-P355.
This product is a HDMI 2.0 Single Fiber Pigtail Extender pair.
With the optical extender, you are instantly able to stream
4K content over a single ber optic cable to TVs up to 1000m
away. The dongle includes all hardware and rmware needed to
support full-rate 18 Gbps HDMI signals, as well as HDCP content
protection.
INTENDED USE
This product is intended for indoor use only. Do not use it
outdoors. Contact with moisture, e.g. in bathrooms, must be
avoided under all circumstances.
For safety and approval purposes (CE), you must not rebuild
and/or modify this product. If you use the product for purposes
other than those described above, the product may be dam-
aged. In addition, improper use can cause hazards such as short
circuiting, re, electric shock etc.
Read the instructions carefully and keep them. Make this
product available to third parties only together with its
operating instructions.

4
SAFETY INSTRUCTIONS
Read the operating instructions carefully and especially observe
the safety information before using the device.
If you do not follow the safety instructions and information on
proper handling in this manual, we assume no liability for any
resulting personal injury or damage to property. Such cases will
invalidate the warranty/ guarantee.
CAUTION: Use of controls or adjustments or performance of
procedures other than those specied herein may result in
hazardous radiation exposure.
The device is not a toy. Keep it out of the reach of children and
pets. Do not leave packaging material lying around carelessly.
These may become dangerous playing material for children. Risk
of suocation!
Pay attention to trip hazards; make sure that the cable is
installed safely.

5
Protect the product from extreme temperatures, direct sunlight,
strong jolts, high humidity, moisture, ammable gases, vapors
and solvents.
Do not place the product under any mechanical stress.
If it is no longer possible to operate the product safely, take it
out of operation and protect it from any accidental use.
Safe operation can no longer be guaranteed if the product:
• is visibly damaged
• is no longer working properly
• has been stored for an extended period in poor ambient
conditions, or
• has been subjected to any serious transport-related stresses.
Please handle the product carefully. Jolts, impacts or
a fall even from a low height can damage the product.
Also observe the safety and operating instructions of any other
devices which are connected to the product.
Consult an expert when in doubt about the operation, safety
or connection of the device.

6

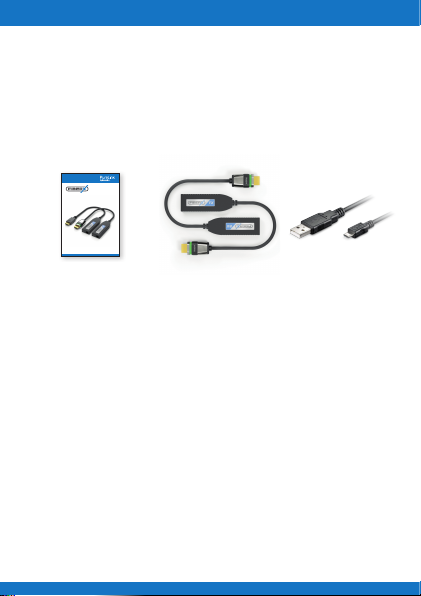

DELIVERY CONTENT
1x HDMI 2.0 Single Fiber Pigtail Sender (TX)
1x HDMI 2.0 Single Fiber Pigtail Empfänger (RX)
2x USB Cable
1x User Manual DE/EN
FEATURES
This HDMI 2.0 Single Fiber Pigtail Extender has many features
that enable it to perform in a superior manner. Amongst those
features you will nd:
• Single optical ber transmission at full 18 Gbps bandwidth
• Resolutions up to 4K@60Hz 4:4:4 incl. HDR 10, HDR 12 and
Dolby Vision
• HDMI 2.0, HDMI 1.x and DVI 1.0 compliant
• HDCP 2.2, HDCP 1.4 compliant
• Supports CEC and transparent EDID
• Zero frame delay, no latency, no compression
Version1.0 | 2018
Bedienungsanleitung(DE)
FX-P350/ FX-P355
HDMI2.0 Single Fiber Pigtail Extender
2x HDMI 2.0 Single Fiber
Pigtail Extender
(1x TX, 1x RX)
2x USB Cable1x User Manual
DE/EN

7
• Single MultiMode ber cable to up to 1000m - SC connector
• Supports all HDMI audio formats incl. Dolby TrueHD and DTS-
HD Master Audio
• Easy Plug & Play installation
• Status LED for simple trouble shooting
• Metal housing for optimized EMI protection and cooling
• Secure Lock HDMI Connector / Ultra Lock HDMI Connector
APPLICATION
This product is suitable for the following applications:
• Digital Signage
• LED Signboards
• Home Theater
• Extension of Blu-ray, 3D Video, Projector, Set-top box, DVR,
Game Consoles and Computers
• Broadcast
• Conference Room
• Video Equipment
• Security Systems

8
SPECIFICATIONS
Audio, Video & Optical
TX input 1 x HDMI locking male
1 x USB (power & rmware)
TX output 1 x OPTICAL (SC)
RX input 1 x OPTICAL (SC)
1 x USB (power & rmware)
RX output 1 x HDMI locking male
HDMI standard HDMI2.0, HDCP2.2, HDR 10, HDR 12
and Dolby Vision incl. RGB, YCbCr
4:4:4, CEC, EDID
Bandwidth 18Gbps (6 Gbps / colour)
Resolution Up to 4K / UltraHD / 20160p
(4096x2160) @60Hz, 4:4:4
Supported audio Up to Dolby Atmos / DTS HD Master
Audio
Transmission mode Optical multimode ber
Laser wavelength HSL: 780, 800, 825, 850 nm;
LSL: 910, 980 nm
Status LED Power, video and HDCP status

9
General
Transmission distance Up to 1.000 m
Operation / storage
Temperature
-0~50°C / -40~85°C
Humidity 10% ~ 90% RH
Power supply TX micro USB 5V1A or HDMI
RX micro USB 5V1A
Power consumption TX 1.5 / 2.0 W (max)
RX 0.8 / 1.0 W (max)
Dimensions (W*H*D) 362mm x 11.5mm x 30.3mm
Housing
88.2mm x 11.5mm x 30.3mm
Net weight (g) 127g
Certication CE, FCC, REACH, ROHS

10
OPERATION AND CONNECTION DIAGRAM
1. Remove Source Converter and Display Converter from box.
2. Plug USB cable into Source Converter.
3. Plug USB cable into Display Converter.
4. Plug both Source HDMI and USB cables into the HDMI video
source (See label with Source arrow on back).
5. Plug both Display HDMI and USB cables into the HDMI display
(See label with Display arrow on back).
6. Plug one end of the SC Fiber Cable into the Source Converter.
7. Plug the other end of the SC Fiber Cable into the Display
Converter. The cable will automatically sync to the source.
It is recommended to power on the devices as the
nal step.
.
.
.
.
TX
SOURCE TX
.
.
.
.
TV / HDMI
Display
DISPLAY RX
RX

11
Cable Link Status
O Module end has no power
Red - steady/ashing Module detects open ber connec-
tion and has disabled the lasers
Yellow Fiber link detected but link initiali-
zation failed
Green - ashing Link functional with no HDCP
video
Green - steady Link functional with HDCP 1.x
video
Blue Link functional with HDCP 2.x
video
Pink
Module detects open ber connec-
tion and has disabled the lasers
and USB is connected and ready
for rmware update
TROUBLESHOOTING / STATUS LED
MAINTENANCE
There are no components located inside the product you need to
maintain. Never open/dismantle the product.
Maintenance, modications and repairs are to be performed
exclusively by an expert or at a qualied shop.
If you have questions which remain unanswered by these oper-
ating instructions, contact our technical support service or other
technical personnel.

12
CLEANING
Do not clean the SC connection without using appropriate ber
cleaning equipment such as a One-Click-Cleaner. Using any
other type of cleaning product is liable to damage the ber port
beyond repair.
Before cleaning the product it must be disconnected from
all other connected products. Ensure the dust cap is always
replaced when not connected to an SC cable.
Do not use any aggressive cleaning agents, rubbing alcohol or
other chemical solutions as they can cause damage to the hous-
ing or cause malfunctions. Be sure not to get cleaning products
or sovents in or around the the ber port, even when the dust
cap is in place.
To clean the product, a dry, soft and clean cloth is sucient.
Do not apply too much pressure to the housing as this may cause
scratch marks.
You can easily remove dust using a long-haired, soft and clean
brush.

13
WARRANTY AND LIABILITY
The manufacturer guarantees full statutory warranty terms on
all new devices.
As the manufacturer has no inuence on installation, warranty
only applies to the product itself.
If any fault or damage is detected on your product, please
contact your dealer and provide your sales slip or invoice as
evidence of the purchase, if necessary. Your dealer will repair the
fault either on site, or send the device to the manufacturer. You
make the work of our technicians considerably easier, describing
possible faults in detail – only then you can be assured that
faults, occurring only rarely, will be found and repaired with
certainty!
The manufacturer is not liable for damages to persons or prop-
erty caused by improper installation, operation or maintenance,
not described in this manual.
Do not alter or modify the product or its accessories.
Any use other than described in this user`s manual is not
permitted and causes loss of warranty, loss of guarantee, and
non-liability.

14
CE CONFORMITY
PureLink GmbH hereby declares that the FX-P350 /
FX-P355 complies with Directive 2014/30/EU.
The full text of the EU Declaration of Conformity is
available at the following Internet address:
www.purelink.de/ce/4251364712146_CE.pdf
www.purelink.de/ce/4251364712153_CE.pdf
DISPOSAL OF THE DEVICE
WEEE-Reg. No.: DE 93847290
According to the European WEEE directive, any electrical
and electronic equipment must not be disposed of along
with consumer waste. As a consumer, you are committed
by law to deposit electrical and electronic devices at
public collecting points or to the dealer for free at the
end of the device’s lifetime. Details are regulated in the
respective national legislations. The Wheelie Bin symbol
on the product, in the manual or on the packaging refers
to these terms. With the return of your used devices you
actively take part in protecting the environment.

15
FCC COMPLIANCE STATEMENT
This device complies with part 15 of the FCC rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Note: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable pro-
tection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communi-
cations. However, there is no guarantee that interference will not
occur in a particular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment o and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit dierent from
that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician
for help.

16
Important: Changes or modications to this product not author-
ized by PureLink could void the electromagnetic compatibility
(EMC) and wireless compliance and negate your authority to
operate the product.
This product has demonstrated EMC compliance under condi-
tions that included the use of compliant peripheral devices and
shielded cables between system components. It is important
that you use compliant peripheral devices and shielded cables
between system components to reduce the possibility of causing
interference to radios, television sets, and other electronic
devices.
Exposure to radio frequency energy The radiated output power
of this device meets the limits of FCC/IC radio frequency
exposure limits. This device should be operated with a minimum
separation distance of 20 cm (8 inches) between the equipment
and a person’s body.
Responsible party (contact for FCC matters only):
PureLink GmbH
Von-Liebig-Straße 10
48432 Rheine
Germany

17
DISCLAIMER
This product complies with the statutory national and European
requirements. All company names and product names are trade-
marks of their respective owners.
All rights reserved.
We reserve our right for misprints and changes of the device,
packing or user`s manual.
HDMI® is a registered trademark of HDMI Licensing L.L.C.
Dolby and the double-D symbol are registered trademarks of
Dolby Laboratories.

18

19

PureLink GmbH
Von-Liebig-Straße 10
48432 Rheine
Deutschland
Tel.: [phone]
Fax: [phone]
[email protected]
www.purelink.de
