Pyle PSBWP9BK User manual

PSBWP9BK-PSBWP9BL
PortableWirelessBTSpeakerRadioSystem
2 Channel BT Fabric Speaker, TWS Function,
USB/FM Radio/RGB Lighting with Rechargeable Battery
www.PyleUSA.com
2
To ensure correct operation and avoid damage,
please read this user manual carefully before using this product.
Product Details:
1. Power On/O
2. TWS Button
3. Play/Pause
4. Forward/Volume Up
5. Battery Indicator
6. Backward/Volume Down
910 11 12
321 4 5 6 7 8
7. Mode Button (turn the modes among BT,
USB disk, FM radio and AUX-IN)
8. Siri Button
9. Charging Jack
10. USB Port
11. AUX IN port
12. Reset Jack
www.PyleUSA.com 3
Power On/O: Press and hold the Power button to turn the speaker on and o.
Wireless BT Streaming:
• Turn the power button to “ON”, the speaker enter Wireless BT mode automatically.
• Activate Wireless BT of mobile phone and search for device name “PyleUSA”
then connect it.
• Play the music from your mobile phone and enjoy.
• Press and hold Forward or Backward button on the device or operate on Mobile
phone to select songs you like.
• Press Forward or Backward button to adjust volume up and down.
Or adjust the mobile phones’volume.
• Press Play/Pause button on the device or operate on Mobile phones to play/pause
the music.
• Press and hold TWS button to disconnect the Wireless BT connection with the
mobile device.
TWS Function:
• Turn on two identical speakers you want to pair, both under Wireless BT mode.
Only need to set one of the two units.
• Press the “TWS” button to pair, the TWS button will keep lighting after paired
successfully.
• Make Wireless BT connection with your mobile phone to play music by the two
paired Speakers to create more powerful surround sound eect.
• Press the “TWS” button again to exit TWS mode.
Notes:
• Under TWS mode and Wireless BT connected, when user press and hold the
TWS button, both the TWS connection and Wireless BT connection will be
disconnected.
• When Wireless BT connected, if user press TWS button to make TWS connection,
the Wireless BT connection will be disconnected for a short time, after TWS
paired, the Wireless BT will be connected again.
www.PyleUSA.com
4
Playing music from USB disk:
• Turn the Power button to“ON”.
• Insert USB ash disk into slot, the speaker will play the stored music automatically.
• Press and hold Forward or Backward button to select songs you like, press to
adjust the volume up and down.
• Press Play/Pause to play or pause.
Notes: Under Wireless BT playing mode, insert USB disk will disconnect the
Wireless BT and switch to play the USB disk. You can short-press the MODE
button to switch to Wireless BT mode again.
FM Radio:
• Turn the power button to “ON”, short-press the “MODE” button to enter radio
state.
• Press and hold “Play/Pause”button to auto search the FM Channel and store it
automatically. Press “Play/Pause”button to mute the speaker.
• Press and hold Forward or Backward button to change the stored FM channel,
press to adjust the volume up and down.
AUX-IN:
• For other compatible music devices or your MP3/MP4 players, use the supplied
audio line cable to connect from the device’s “Line Out” to the “Aux In” of this
device, then enjoy…
• Under any playing mode, when you use the audio cable to connect the device,
it will auto-switch to the AUX mode.
• When using an external device, all functions can be controlled by the external
device.
RGB Lighting
When the speaker is turned on, the RGB light is on automatically, user can press
and hold the Mode button to switch the RGB light on and o.
Activating Voice Assistant:
• Make Wireless BT connection with your mobile phone.
• Short-press Siri button to activate voice assistant SIRI/GOOGLE ASSISTANT.
www.PyleUSA.com 5
Hands-free call:
• Under Wireless BT connection status, if there is an incoming call, user can press
Play/Pause button to accept the call or press and hold Play/Pause button to
reject the call.
• During the call, user can press and hold Play/Pause button to switch to talking
on the phone.
• Press Play/Pause button or operate on mobile phone to end the call.
Reset Functionality:
If the speaker does not turn o or respond, user can short-press the RESET jack
with a small round pin to reset the speaker.
More Remarks:
• Default volume is at 50% status of max volume.
• Play time may vary depending on volume level and music style.
How to charge:
• The charger is not included in the package, please charge the speaker via a
standard 5V/1-2A charger or via a PC.
• Charge time should be 6-8 hours. After full charging, the 4 LEDs keep lighting.
• When battery voltage is low, the speaker will prompt for recharging.
• The unit does not have power bank function, it is forbidden to charge other
device via this unit or to connect other device via the USB port.
IMPORTANT:
When playing music during charging, please put the volume to middle, because
for some music with heavy bass, the charger may not be able to aord the high
current temporarily under the maximum volume.
Warning:
• Don’t use/store this speaker in extreme temperatures.
• Please store it in cool and dry area, keep away from anything that generates
heat, such as radiators, stoves, etc.
• In order to have hearing protection and an extended speaker life, avoid listening
to songs on maximum volume.
• When cleaning this speaker, use a soft dry cloth. For more sever stains, please
dampen the cloth with water only. Anything else has the chance of dissolving
the paint or damaging the plastic.
www.PyleUSA.com
6
Features:
• 2.0 Channel Portable Wireless BT Fabric Speaker
• Water Resistant IPX6
• TWS Function, Double Enhanced Stereo Sound
• Optimized Google Assistant and Siri Voice Control
• Hands-free Mic for Easy Picking Up the Call
• RGB Lighting
• With A2DP Wireless Streaming Music BT
• USB Support
• FM Radio
• Line-in Function, Suitable for PC, MID, TV, and other Audio Devices
• Built-in Lithium Rechargeable Battery, 5400mAh
• Shoulder Strap, Easy to Take Out
• Without Adapter or Outlet Plug
• Perfect for Beach, Pool Side, Boat, and More Outdoor Activities
Wireless BT Connectivity:
• Instantly Stream Music from Your Devices
• Works with All Your Favorite Wireless BT Devices
(iPhone, Android, Smartphone, iPad, Tablet, PC, etc.)
• Wireless BT Version: V4.2+BR
• Wireless BT Protocol: A2DP/AVRCP/HFP
• Wireless BT Network Name: ‘PyleUSA’
• Wireless Range: Over 32’+ Ft.
www.PyleUSA.com 7
What’s in the Box:
• Portable Wireless BT Speaker
• Charging Cable
• Audio Cable
• Shoulder Strap
Technical Specs:
• Power Output: MAX Power: 14W (7W x 2)
• Sound System: 3'' -inches x 2
• Speaker Type: Compact & Portable Boombox
• Play Time: Approximate 6 hours at Maximum Volume (with Light O)
• Construction Material: LG
• BT Transmission Power: -6~4dbm
• Transmission Distance: Up to 32+ ft(10 meters)
• Charging (5V 2A): 6-7 hours (Micro USB-TYPE-C charging)
• USB Music Format: MP3/wav/wma/ac/ape
• USB Maximum Capacity: 32G
• SNR: 72DB
• Wireless BT Connecting Range: 10m
• FM Frequency: 87.5MHz-108MHz
• Speaker driver size: 3'' -inches x 2
• Battery Capacity: 3.7V 5400mAh
• Frequency Response: 100hz-20Khz
• Input Power Supply: DC 5V
• Product Size: 11.14’’ x 4.84’’ x 4.96’’ –inches
This product can expose you to a chemical or group of chemicals, which may include
“Cadmium (Cd)” which is known in the state of California to cause cancer, birth defects,
or other reproductive harm. For more info, go to https://www.p65warnings.ca.gov/.
Questions? Issues?
We are here to help!
Phone: (1) 718-535-1800
Email: suppor[email protected]

This manual suits for next models

1

Other Pyle Portable Speakers manuals

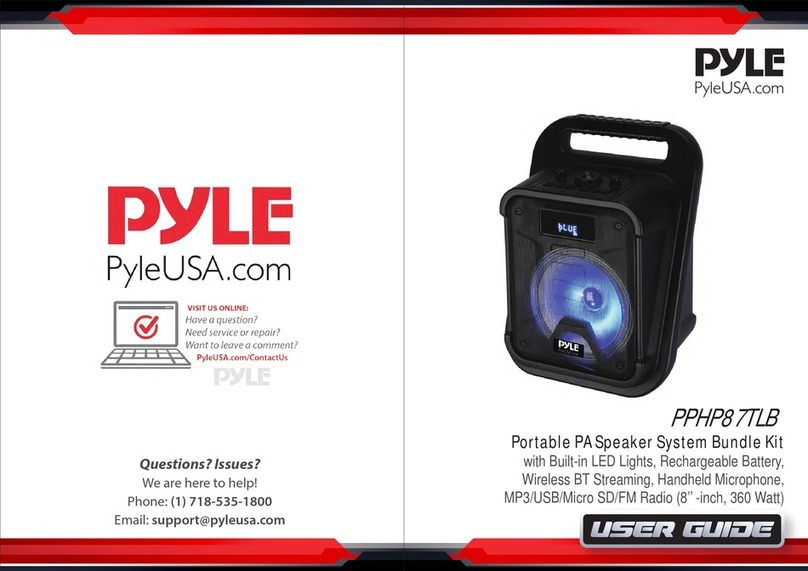

Pyle PPHP87TLB User manual

Pyle

Pyle PPHP87TLB User manual

Pyle PBMSPG198 User manual

Pyle

Pyle PBMSPG198 User manual

Pyle PBMSPRG4 User manual

Pyle

Pyle PBMSPRG4 User manual

Pyle PBMSPG11 User manual

Pyle

Pyle PBMSPG11 User manual

Pyle DISCOJAM PCMX280B User manual

Pyle

Pyle DISCOJAM PCMX280B User manual

Pyle PPHP836B User manual

Pyle

Pyle PPHP836B User manual

Pyle PBMSPG122 User manual

Pyle

Pyle PBMSPG122 User manual

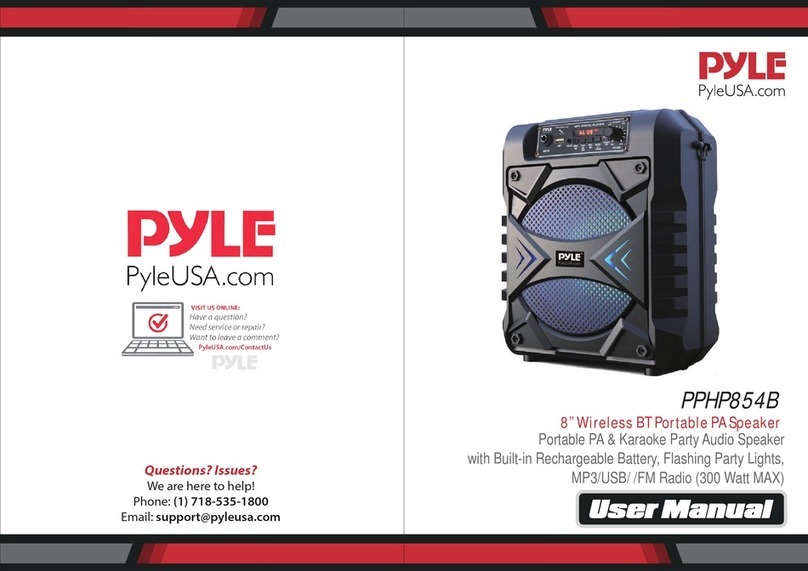

Pyle PPHP854B User manual

Pyle

Pyle PPHP854B User manual

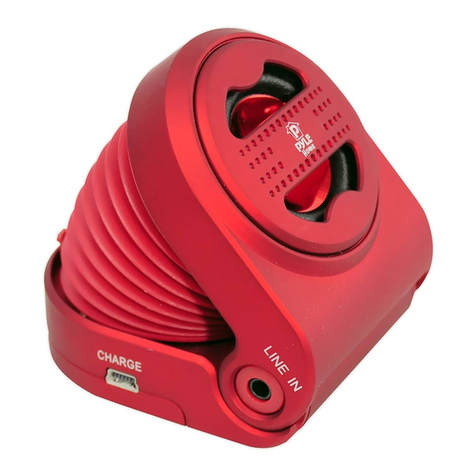

Pyle PM57 User manual

Pyle

Pyle PM57 User manual

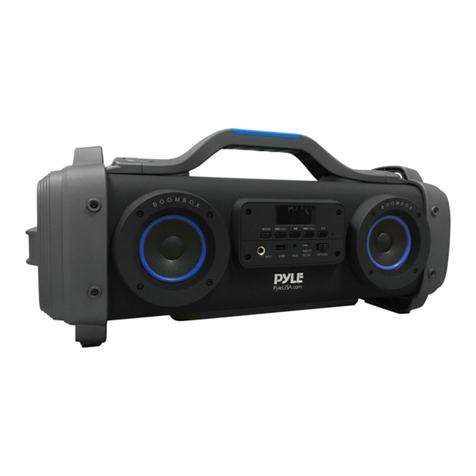

Pyle PBMSPG148 User manual

Pyle

Pyle PBMSPG148 User manual

Pyle PMS8 User manual

Pyle

Pyle PMS8 User manual

Pyle PNX8WPBK User manual

Pyle

Pyle PNX8WPBK User manual

Pyle PCLSB1BK User manual

Pyle

Pyle PCLSB1BK User manual

Pyle PLBSK30S User manual

Pyle

Pyle PLBSK30S User manual

Pyle PBMSPG3BK User manual

Pyle

Pyle PBMSPG3BK User manual

Pyle PWPBT60 User manual

Pyle

Pyle PWPBT60 User manual

Pyle PPHP838B User manual

Pyle

Pyle PPHP838B User manual

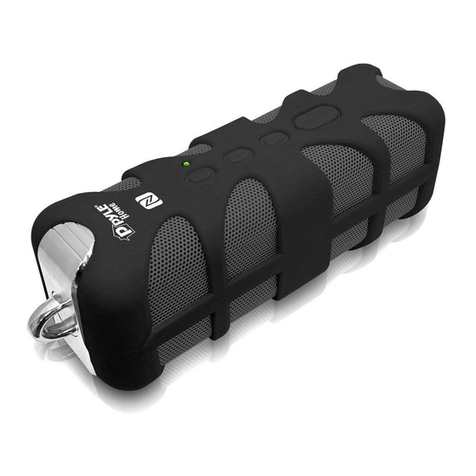

Pyle Soundbox Splash PWPBTN65 User manual

Pyle

Pyle Soundbox Splash PWPBTN65 User manual

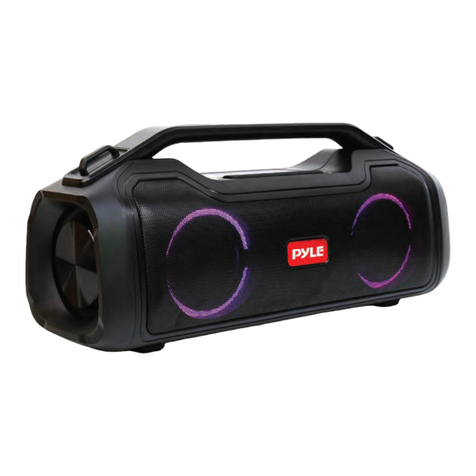

Pyle PSBWP4 User manual

Pyle

Pyle PSBWP4 User manual

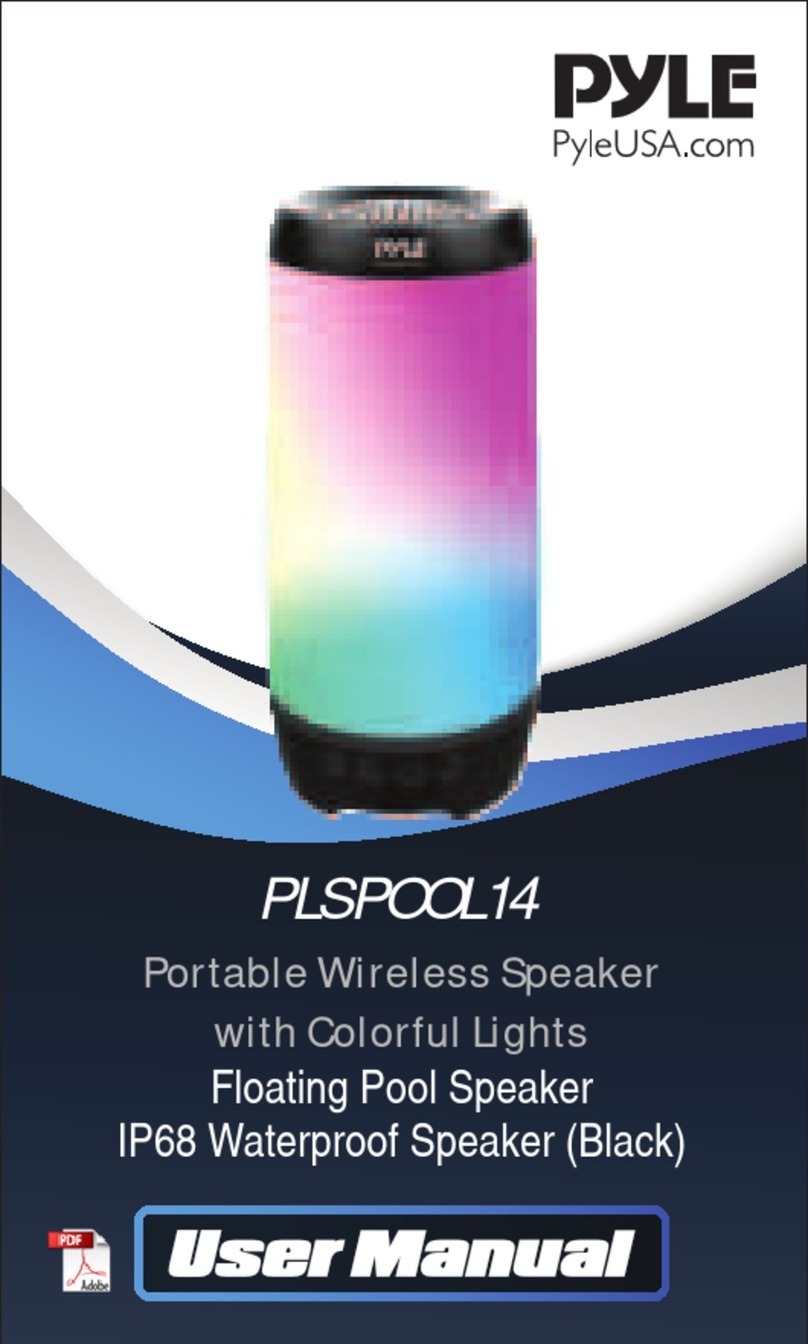

Pyle PLSPOOL14 User manual

Pyle

Pyle PLSPOOL14 User manual

Popular Portable Speakers manuals by other brands

Dali Kubik manual

Dali

Dali Kubik manual

Mackie SP400 Applications

Mackie

Mackie SP400 Applications

Philips BT7700 user manual

Philips

Philips BT7700 user manual

iHome iHome iBT30 instruction manual

iHome

iHome iHome iBT30 instruction manual

OWI LGS170 Specifications

OWI

OWI LGS170 Specifications

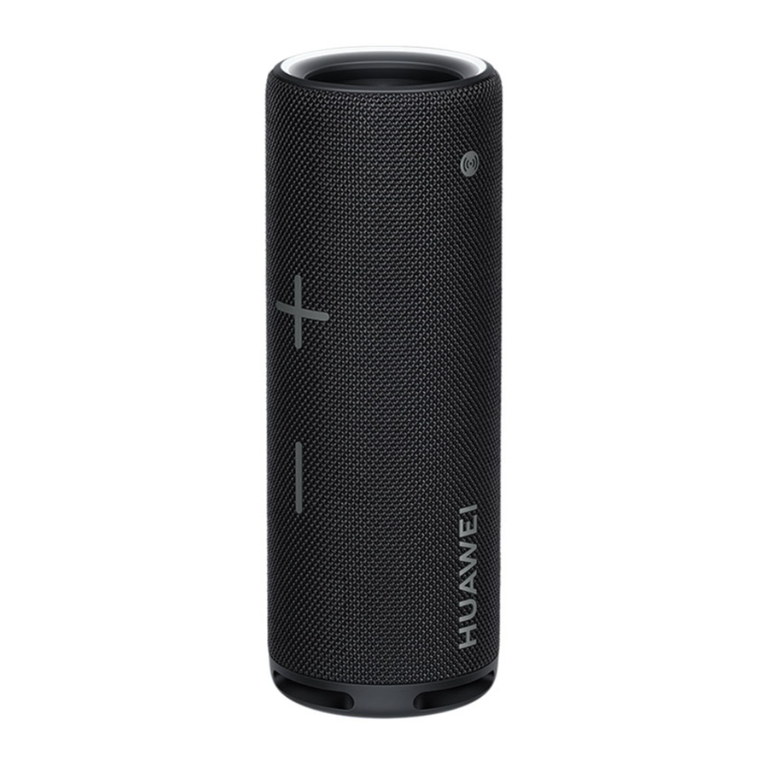

Huawei Sound Joy user manual

Huawei

Huawei Sound Joy user manual

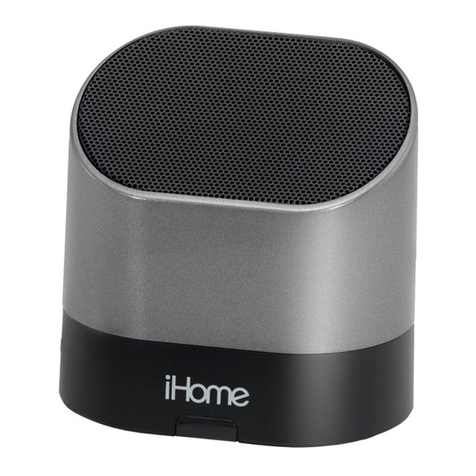

iHome IHM63 user manual

iHome

iHome IHM63 user manual

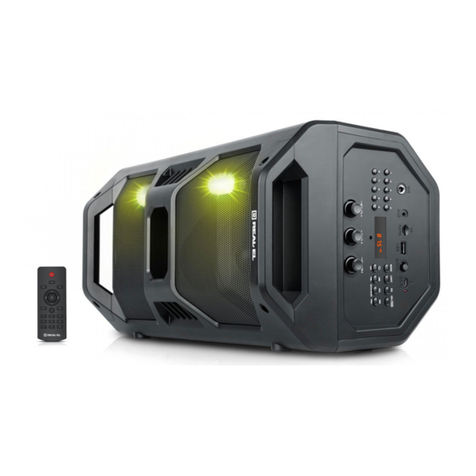

Real-El X-757 user manual

Real-El

Real-El X-757 user manual

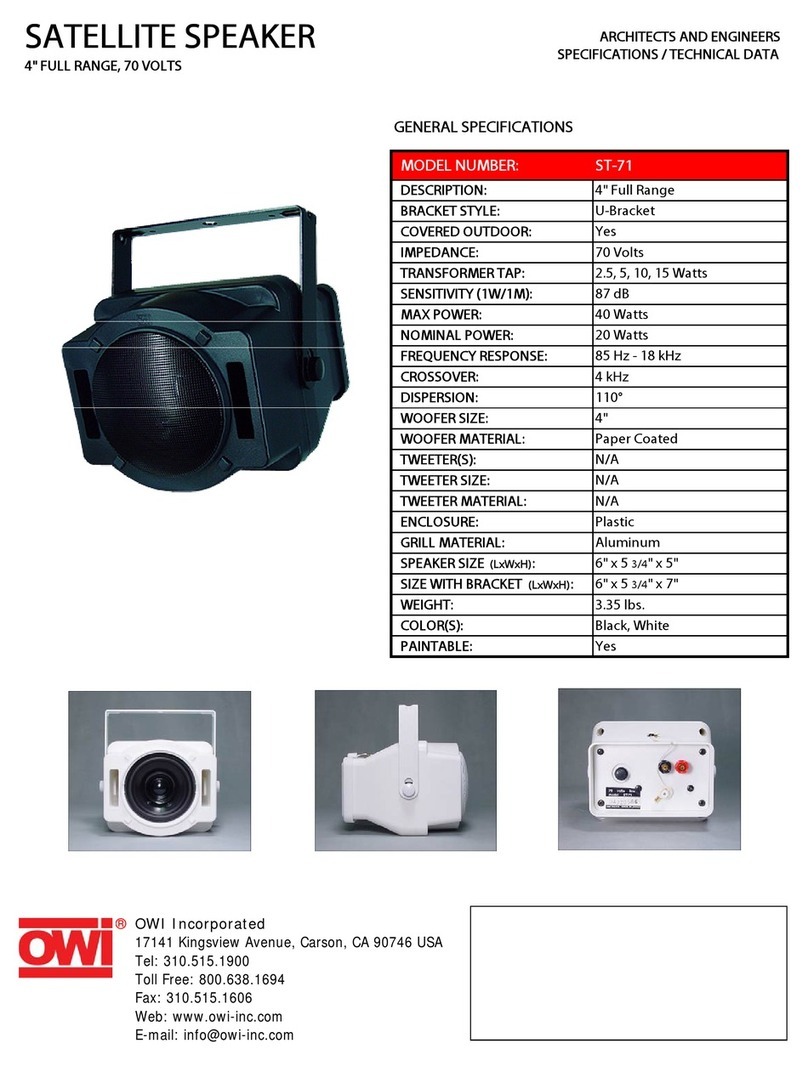

OWI ST-71 Specifications

OWI

OWI ST-71 Specifications

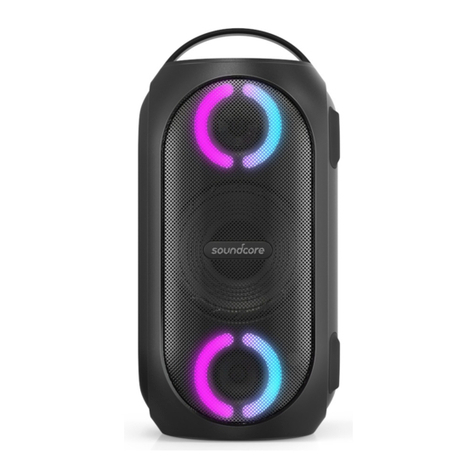

Soundcore Rave PartyCast user manual
