QDI K7VM400M Pro Series User manual

Notice
The information in this document is subject to
change in order to improve reliability, design, or func-
tion without prior notice and does not represent a
commitment on the part of this company. In no event
will we be liable for direct, indirect, special, inciden-
tal, or consequential damages arising out of the use
or the possibility of such damages.
All trademarks are the property of their respective
owners.
If you need any further information, please visit our
web-site: “www.qdigrp.com”.
Item Checklist
This item checklist is only available for retail market.
Completely check your package,If you discover dam-
aged or missing items, contact your retailer.
K7VM400M series mainboard
QDI Utility CD
1HD ribbon cable
1 FDD cable
User’s manual
I/O shield(option)
1 10-pin ribbom cable with bracket
for USB3 and USB4(option)

Declaration of conformity
QUANTUM DESIGNS(HK) LTD.
20th Floor, Devon House, Taikoo Place, 979 King’s Road,
Quarry Bay, Hong Kong
declares that the product
Mainboard
K7VM400M
is in conformity with
(reference to the specification under which conformity is declared in
accordance with 89/336 EEC-EMC Directive)
 EN 55022 Limits and methods of measurements of radio disturbance
characteristics of information technology equipment
 EN 50081-1 Generic emission standard Part 1:
Residential, commercial and light industry
 EN 50082-1 Generic immunity standard Part 1:
Residential, commercial and light industry
European Representative:
QDI COMPUTER ( UK ) LTD QDI COMPUTER ( SCANDINAVIA ) A/S
QDI SYSTEM HANDEL GMBH QDI EUROPE B. V.
QDI COMPUTER (FRANCE) SARL QDI COMPUTER HANDELS GMBH
LEGEND QDI SPAIN S.L . QDI COMPUTER (SWEDEN) AB
Signature : Place / Date : HONG KONG/2003
Printed Name : Xu Wenge Position/ Title : Assistant President

Declaration of conformity
Trade Name: QDI Computer ( U. S . A. ) Inc.
Model Name: K7VM400M
Responsible Party: QDI Computer ( U. S. A.) Inc.
Address: 41456 Christy Street
Fremont, CA 94538
Telephone: [phone]
Facsimile: [phone]
Equipment Classification: FCC Class B Subassembly
Type of Product: Mainboard
Manufacturer:Quantum Designs (HK) Inc.
Address: 20th Floor, Devon House, Taikoo Place
979 King’s Road, Quarry Bay, HONG
KONG
Supplementary Information:
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions : (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Tested to comply with FCC standards.
Signature : Date : 2003

Chapter 1
Introduction .................................................................... 1
Key Features .................................................................. 2
Chapter 2
Installation Instructions.........................................................5
External Connectors ............................................................6
PS/2 Keyboard /Mouse Connector ................................... 6
USB0,USB1, USB2,USB3 and LAN Connectors ................ 6
Parallel Port, Serial Port Connector and VGA port ............ 6
Line-in jack, Mic-in jack, Speaker-out jack ........................ 7
6-Channel Audio .............................................................. 7
IEEE 1394 Port(optional) ................................................. 7

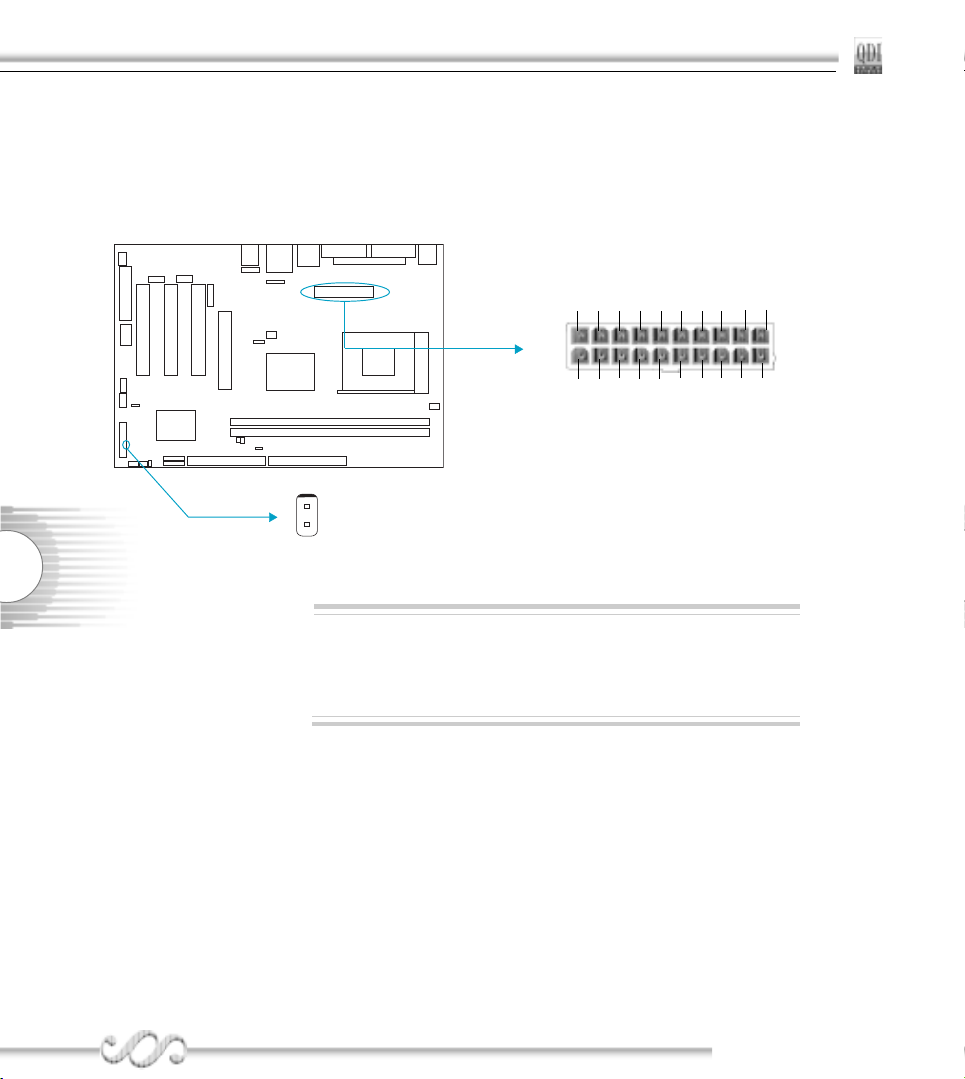

ATX Power Supply Connectors & Power Switch ............. 8
Hard Disk LED Connector ( HD_LED ) .......................... 8
Reset Switch ( RESET ) ................................................. 8
Speaker Connector ( SPEAKER ) .................................. 9
Power LED Connector( PWR_LED ) .............................. 9
Green LED Connector( GREEN_LED )(reserved) .............. 9
ACPI LED Connector( ACPI_LED )(reserved) ................... 9
Hardware Green Connector ( SLEEP SW ) ...................... 9
USB4,5 ............................................................................ 10
Infrared Header ( IrDA ) ................................................... 10
Wake-Up On LAN ( WOL1 )(optional) ............................... 11
Wake-Up On Internal Modem ( WOM 1)(optional) .............. 11
Fan Connectors( CPU_FAN , SYS_FAN) .......................... 12
Audio Connectors (CD_IN1, MODEM_IN1 ) ....................... 12
Audio Interface(F_Audio) ................................................ 13
Onboard SATA(with 8237 only) ....................................... 13
GamePort ....................................................................... 14
UARTCom2 ..................................................................... 14
SPDIFConnector ............................................................. 15
IEEE1394_1 Port(optional) ............................................... 15
Jumper Settings ................................................................. 16

Caution
Caution
Be sure to add some Silicone Grease between the CPU and the
heatsink to keep them fully contacted to meet the heat sink require-
ment.
Be sure to unplug the AC power supply before adding or re-
moving expansion cards, RAM or other system peripherals, other-
wise your mainboard and RAM might be seriously damaged.

T-- This page is intentionally left blank --his

1
K7VM400MK7VM400M
K7VM400MK7VM400M
K7VM400M
Chapter 1Chapter 1
Chapter 1Chapter 1
Chapter 1
Chapter 1
Introduction
K7VM400M series of mainboards utilize VIA KM400+VIA
8235 or 8237 chipset, providing a fully compatible, high per-
formance and cost-effective mATX platform. The new inte-
grated technologies, together with AC’97 audio(2/6-
channel), 6 USB 2.0, 2 SATA(with 8237 only), and ATA133/
100/66/33, give customers an advanced, multimedia solu-
tion at reasonable price. It provides 200/266/333MHz host
bus speed to support AMD Athlon/Athlon XP/Duron socket
A processors and the DDR200/266/333 memory. It also pro-
vides advanced features such as Wake up by USB devices,
Wake-on-LAN, Wake-on-Modem(optional) and Keyboard
Password Power-on functions. Suspending to RAM, the op-
timal implementation of the Advanced Configuration and
Power Interface (ACPI) specification, makes the PC’s power
consumption drop to the lowest possible level and enable
quick wakeup.

2
IntroductionIntroduction
IntroductionIntroduction
Introduction
QDIQDI
QDIQDI
QDI
Form factor
mATX form factor of 244mm x 210mm
Microprocessor
Supports AMD Athlon/Athlon XP/Duron socket A processors of 200/266/333MHz host bus
speed
Supports 200/266/333MHz host bus speed
System memory
Supports DDR200/266/333 SDRAM
Supports 64/128/256/512Mb technology up to 2GB
Provides two 184-pin DDR SDRAM interfaces
Onboard IDE
Supports Independent timing of up to 4 drives
Supports Ultra ATA 33/66/100/133, PIO mode
Two fast IDE interfaces supporting four IDE devices including IDE hard disks and CD ROM
drives
Onboard LAN(optional)
10/100 Mbit/sec Ethernet support
10/100M LAN interface built-in on board
USB 2.0
USB 2.0 compliant, operates at 480Mbps, about 40X times faster than USB 1.1 which cur-
rently works at a snails pace of just 12Mbps
Provides 6 USB 2.0 ports
Onboard I/O
One floppy port supporting up to two 3.5″or 5.25″floppy drives with 360K/720K/1.2M/1.44M
/2.88M format
Two high speed 16550 compatible COMs with 16 byte send/receive FIFO
One parallel port supports SPP/EPP/ECP mode
Supports PS/2 mouse and PS/2 keyboard
Provides one IrDA connector
All I/O ports can be enabled/disabled in the BIOS setup
Key Features

3
K7VM400MK7VM400M
K7VM400MK7VM400M
K7VM400M
Chapter 1Chapter 1
Chapter 1Chapter 1
Chapter 1
Onboard Audio
AC’97 2.2 Specification Compliant
Provides onboard Line-in Jack, Microphone-in Jack, Speaker-out Jack and MIDI/Joystick
Connector
6-channel Onboard Audio(available on -6AS/-6A/-6AL mainboard)
AC’97 2.3 Specification Compliant
Provides Front left&right, Rear left&right/Line-in Jack and Center&Woofer/Microphone-in
Jack,which can be specified by software
AGP Interface
Provides one standard VGA connector and integrated AGP unit
AGP connector supports AGP 3.0 including AGP 8X data transfers
Advanced features
PCI 2.2 Specification Compliant
Provides Trend ChipAwayVirus On Guard
Supports Windows 98/2000/ME/XP soft-off
Supports Wake-on-LAN and Wake-on-Modem(optional)
Supports Keyboard Password Power-on function
Supports hot-plug
Two SATA devices including SATA HDD and CDROM/DVD ROM devices
Supports 150Mbps transfer rate.
BIOS
Licensed advanced AWARD(Phoenix) BIOS, supports flash ROM, plug and play ready
Supports IDE CDROM/SCSI/USB boot up.
Green function(optional)
Supports ACPI (Advanced Configuration and Power Interface) and ODPM (OS Directed
Power Management)
Supports ACPI power status: S0 (full-on), S1 (power on suspend), S3 (suspend to RAM),
S4(suspend to Disk, depends on OS) and S5 (soft-off)

4
IntroductionIntroduction
IntroductionIntroduction
Introduction
QDIQDI
QDIQDI
QDI
Main Expansion Slots and Connectors
Slot/Port (Quantity) Description
PCI(3) PCI slots
IDE(2 ) IDE ports
FLOPPY(1) Floppy Drive port
DDR(2) DIMM socket
USB(6) USB connectors
AGP(1) AGP slot
LAN(1) LAN connector
COM(1) COM connectors
PARALLEL(1) Parallel connector
IrDA(1) IrDA connector

5
K7VM400MK7VM400M
K7VM400MK7VM400M
K7VM400M
Chapter 2Chapter 2
Chapter 2Chapter 2
Chapter 2
Installation Instructions
Chapter 2
This section covers External Connectors and Jumper
Settings. Refer to the mainboard layout chart for locations
of all jumpers, external connectors, slots and I/O ports.
Furthermore, this section lists all necessary connector pin
assignments for your reference. The particular state of the
jumpers, connectors and ports are illustrated in the follow-
ing figures. Before setting the jumpers or inserting these
connectors, please pay attention to the direction.

6
QDIQDI
QDIQDI
QDI
Installation InstrInstallation Instr
Installation InstrInstallation Instr
Installation Instructionuction
uctionuction
uction
External Connectors
PS/2 Keyboard/Mouse Connector
PS/2 keyboard connector is for the usage of PS/2 keyboard. If using a standard AT size keyboard,
an adapter should be used to fit this connector. PS/2 mouse connector is for the usage of PS/
2 mouse.
USB0, USB1, USB2, USB3 and LAN Connectors(optional)
Four USB ports are for connecting USB devices. The RJ-45 connector is for onboard LAN.
Parallel Port, Serial Port Connector (COM1) and VGA Port
The parallel port connector can be connected to a parallel device such as a printer. The serial port
COM1connector can be connected to a serial port device such as a serial port mouse. You can
enable/disable them and choose the IRQ or I/O address in “Integrated Peripherals” from AWARD
BIOS SETUP. The VGA connector is for output to a VGA-Compatible device.
Parallel Port
COM1
Be sure to unplug the AC power supply before adding or remov-
ing expansion cards or other system peripherals, otherwise your
mainboard and expansion cards might be seriously damaged.


 Warning:
VGA port
PS/2 Mouse connector
PS/2 Keyboard connector
USB1USB2
LAN (optional)
LINK ACTIVE
USB0
USB3

7
K7VM400MK7VM400M
K7VM400MK7VM400M
K7VM400M
Chapter 2Chapter 2
Chapter 2Chapter 2
Chapter 2
Line-in jack, Microphone-in jack, Speaker-out jack
The Line-in jack can be connected to devices such as a cassette or minidisc player to playback or
record. The Microphone-in jack can be connected to a microphone for voice input. The Speaker-
out jack allows you to connect speakers or headphones for audio output from the internal amplifier.
6-Channel Audio
This mainboard utilizes VT1616 chip providing 6-channel Audio, which consists of Front Left, Front
Right, Rear Left, Rear Right, Center and Woofer for a complete surround sound effect. When 6-
Channel audio is available, the front Left&Right jack can be connected to the Front speskers, the
Back Left&Right jack can be connected to the rear speakers and the Center&Woofer jack can be
connected to the center speaker and woofer.
Microphone function is offered by F_AUDIO Connector on the mainboard now.
If set 2-Channel Audio mode on -6A or -6AL mainboard, you can connect two speakers to the
Front Left&Right jack, at the same time use the Rear Left&Right jack as Line in jack, and use the
Center&Woofer jack as Microphone in jack.
IEEE 1394 Port (optional)
The IEEE 1394 port is for connecting IEEE 1394 device.
IEEE 1394 port
Speaker out
Line in
Microphone in
Front left&right
Rear left&right
Center&Woofer
Note: If you want to use rear mic in, please install the audio driver, then enter Front speaker
interface, click the “Advanced” of Mic, select the” 20dB boost ”, then click “Close”.

8
QDIQDI
QDIQDI
QDI
Installation InstrInstallation Instr
Installation InstrInstallation Instr
Installation Instructionuction
uctionuction
uction
Hard Disk LED Connector (HD_LED)
The connector connects to the case’s IDE indicator LED indicating the activity status of IDE hard
disk. The connector has an orientation. If one way doesn’t work, try the other way.
Reset Switch (RESET)
The connector connects to the case’s reset switch. Press the switch once, the system resets.
ATX Power Supply Connector & Power Switch (POWER SW)
The power switch (POWER SW) should be connected to a momentary switch. When powering
up your system, first turn on the mechanical switch of the power supply (if one is provided), then
push once the power switch. When powering off the system, you needn’t turn off the mechanical
switch, just push once the power switch.
If you change “Soft-off by PWR-BTTN” from default “Instant-off” to
“Delay 4 Sec” in the “POWER MANAGEMENT SETUP” section of
the BIOS, the power switch should be pressed for morethan 4
seconds before the system powers down.


 Note:
POWER SW
1
ATX Power Supply Connector
20
1
12V
5VSB
5V
GND3.3V GND 5V GND PS-OK3.3V
5V5V
-5VGNDPS-ON-12V3.3V GND GND GND

9
K7VM400MK7VM400M
K7VM400MK7VM400M
K7VM400M
Chapter 2Chapter 2
Chapter 2Chapter 2
Chapter 2

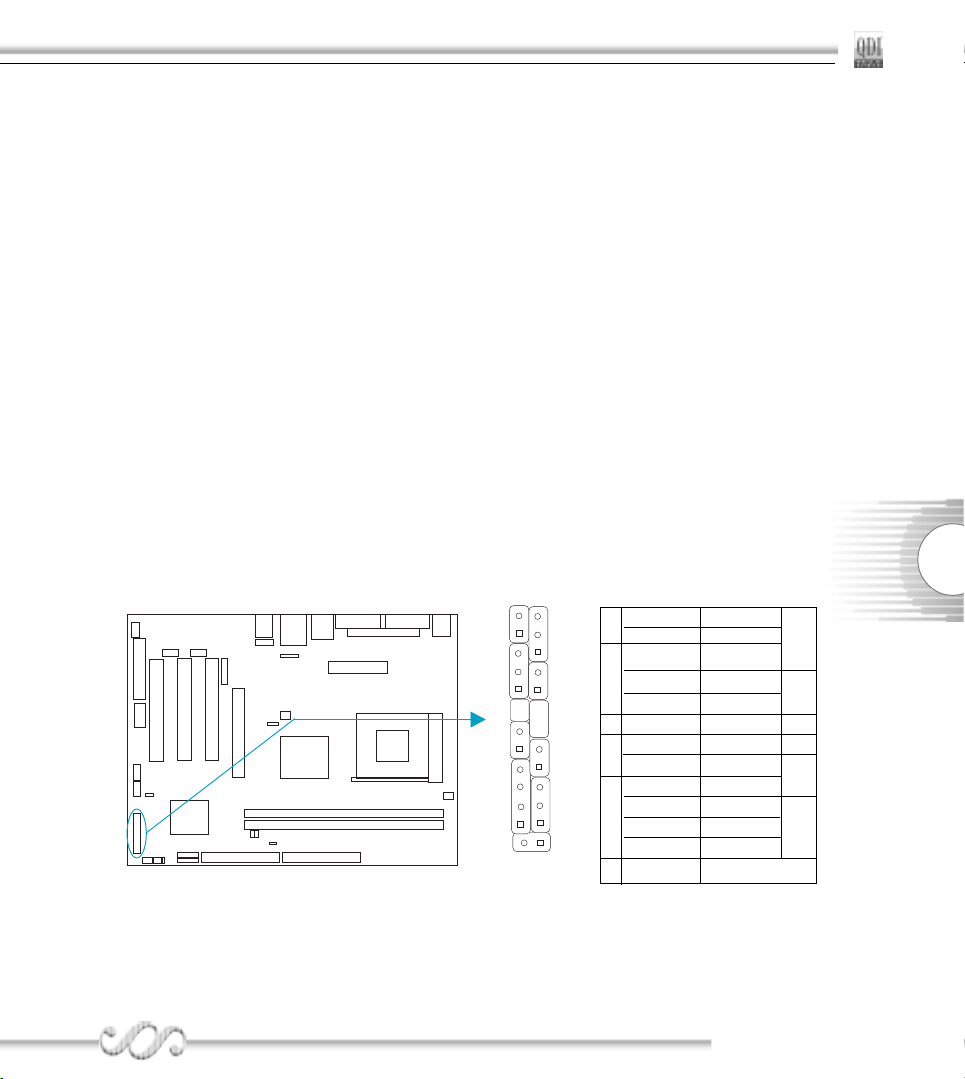

Speaker Connector (SPEAKER)
The connector can be connected to the speaker on the case.
Power LED Connector (PWR_LED)
When the system is in S0 status, the LED is on. When the system is in S1 status, the LED is
blink; When the system is in S3,S4, S5 status, the LED is off. The connector has an orientation.
GREEN LED Connector (GREEN_LED)(Reserved)
When the system is in S0,S1,S4 ,S5 status, the LED is off,When the system is in S3 status,
the LED is on.
ACPI LED Connector (ACPI_LED)(Reserved)
The ACPI LED is a dual-color light with three pins. Pin1and Pin2 drive different color lights.
If Pin1 drives the orange light , then, Pin2 drives the green light, the following status will
come out. When the system is in S0 status, the LED is green on. When the system is in S1
status, the LED is green blink. When the system is in S3 status, the LED is orange on.
When the system is in S4, S5 status, the LED is off.
Hardware Green Connector (SLEEP SW)
Push once the switch connected to this header, the system enters suspend mode.
SPEAKER RESET GREEN_LED
PWR_LEDACPI_LED
HD_LED
POWER
SW
SLEEP
SW
SPEAKER RESET GREEN_LED
ACPI_LED SLEEP
SW PWR_LED
HDD LED(+)
HDD LED(-)
ORANGE(-)
GREEN(-)
LED+
POWER
GND
EMPTY
EMPTY
SLEEP
LED+
LED-
LED-
LED-
LED-
LED+
EMPTY
GND
RESET
SPKDATA
NC
GND
VCC
POWER
SW
EMPTY
EMPTY
GND

10
QDIQDI
QDIQDI
QDI
Installation InstrInstallation Instr
Installation InstrInstallation Instr
Installation Instructionuction
uctionuction
uction
USB4,5
Besides USB0,1,2,3 on the back panel, K7VM400M series of mainboards also have one 10-pin
headers on board which may connect to front panel USB cable( optional ) to provide additional four
USB ports.
Infrared Header (IrDA)
This connector supports wireless transmitting and receiving device. Before using this function,
configure the settings for IR Address, IR Mode and IR IRQ from the “INTEGRATED PERIPH-
ERALS” section of the CMOS SETUP.
IrDA
VCC
IRRX
GND
IRTX
CUT
USB4,5
+5V
D0+
D0-
GND
GND
D1-
D1+
GND
+5V
GND

11
K7VM400MK7VM400M
K7VM400MK7VM400M
K7VM400M
Chapter 2Chapter 2
Chapter 2Chapter 2
Chapter 2
Wake-Up On LAN (WOL1)(available on -L mainboard)
Through the Wake-Up On LAN function, a wake event occurring from the network can wake up
the system. If this function is to be used, please be sure an ATX power supply and a LAN
adapter which supports this function are used. Then connect this header to the relevant con-
nector on the LAN adapter, set “Power on by Ring/LAN” as Enabled in the “POWER MAN-
AGEMENT SETUP” section of the CMOS SETUP. Save and exit, then boot the operating
system once to make sure this function takes effect.
Wake-Up On Internal Modem (WOM1)(optional)
Through this function, the system which is in the suspend or soft-off status can be waked up by
a ring signal received from the internal modem. When this function is used, be sure an internal
modem card which supports this function is used. Then connect this header to the relevant
connector on the modem card, set “Power on by Ring/LAN” as Enabled in the “Power Manage-
ment Setup” section of the CMOS SETUP. Save and exit, then boot the operating system once
to make sure this function takes effect.
Signal for waking up
WOL1 +5V standby
GND
1
Signal for waking up(active low)
WOM1
GND
1

12
QDIQDI
QDIQDI
QDI
Installation InstrInstallation Instr
Installation InstrInstallation Instr
Installation Instructionuction
uctionuction
uction
Audio Connectors (CD_IN1, MODEM_IN1)
CD_IN1 is Sony standard CD audio connector, it can be connected to a CD-ROM drive through
a CD audio cable. The MODEM connector allows the onboard audio to interface with a voice
modem card with a similar connector.It allows connecting the mono_in (such as a phone) or
mono_out (such as a speaker) between the onboard audio and the voice modem card.
Fan Connectors (CPU_FAN, SYS_FAN)
The fan speed of these three fans can be detected and viewed in “PC Health” section of the
CMOS SETUP.
SYS_FAN
CPU_FAN
+12V
GND
SENSE
+12V
SENSE
GND
CD_IN1
MOD_IN 1
CD Right Channel
GND
CD Left Channel
Mono_Out(to modem)
GND
Phone_in
