Qeedji SBL10e User manual

U ser manual
SB L 10 e Regular
1.10 .12 0 0 2 A

2
L egal notice
SB L 10 e Regular 1.10 .12 (0 0 2 A_ en)
© 2020 Qeedji
Rights and Responsib ilities
All rights reserved. No part of this manual may be reproduced in any form or by any means whatsoever. or by any means whatsoever without the
written permission of the publisher. The products and services mentioned herein may be trademarks and/or service marks of the publisher. or
trademarks of their respective owners. The publisher and the author do not claim any rights to these Marks.
Although every precaution has been taken in the preparation of this document, the publisher and the author assume no liability for errors or
omissions, or for damages resulting from the use of the information contained in this document or the use of programs and source code that can go
with it. Under no circumstances can the publisher and the author be held responsible for any loss of profits or any other commercial prejudice caused
or alleged to have been caused directly or indirectly by this document.
Product information
Product design and specifications are subject to change at any time and `Qeedji` reserves the right to modify them without notice. This includes the
hardware, the embedded software and this manual, which should be considered as a general guide to the product. The accessories supplied with the
product may differ slightly from those described in this manual, depending on the developments of the various suppliers.
Precautions for use
Please read and heed the following warnings before turning on the power: - installation and maintenance must be carried out by professionals. - do
not use the device near water. - do not place anything on top of the device, including liquids (beverages) or flammable materials (fabrics, paper). - do
not expose the device to direct sunlight, near a heat source, or in a place susceptible to dust, vibration or shock.
Warranty clauses
The `Qeedji` device is guaranteed against material and manufacturing defects for a certain duration. Check the device warranty duration value at the
end of the document. These warranty conditions do not apply if the failure is the result of improper use of the device, inappropriate maintenance,
unauthorized modification, operation in an unspecified environment (see operating precautions at the beginning of the manual) or if the device has
been damaged by shock or fall, incorrect operation, improper connection, lightning, insufficient protection against heat, humidity or frost.
WEEE Directiv e
This symbol means that your appliance at the end of its service life must not be disposed of with household waste, but must be taken to a collection
point for waste electrical and electronic equipment or returned to your dealer. Your action will protect the environment. In this context, a collection
and recycling system has been set up by the European Union

3
1.1
1.1.1
1.1.2
1.1.3
1.1.4
1.2
2.1
3.1
3.1.1
3.1.2
3.1.3
3.1.4
3.1.5
3.1.6
3.1.7
3.1.8
3.1.9
4.1
4.2
5.1
6.1
6.2
Tab le of contents
Part I : Description and installation
Introduction
Device dimensions
Labelling
Installation
Uninstallation
Smart Busy Light applications
Part II : Applicativ e user interface
Applicative user interface
Part III : Administration console user interface
Administration console user interface
Configuration > Administrator
Configuration > LAN
Configuration > Servers
Maintenance > Firmware
Maintenance > Preferences
Maintenance > Tools
Maintenance > Files
Information > Device
Information > Network
Part IV : Technical information
Technical specifications
Conformities
Part V : C ontacts
Contacts
Part V I : Appendix
Appendix: Web services
Appendix: Qether

4
Part I Description and installation

5
1.1Introduction
This manual explains how to install and configure your device SBL10e.
Recommendations and warnings
This device is designed for indoor use only.
To ensure better rendering of the SBL10e, the device should not be installed under direct sunlight.
The SBL10e device is designed to be illuminated 12 hours a day, 7 days a week.
Package C ontents
Articles Description
Device SBL10e device with the default regular application embedded.

6
1.1.1Dev ice dimensions

7
1.1.2 L ab elling
PSN lab el
The model of the device, the power supply characteristics, the serial number (PSN) and the MAC address are written on labels stuck on the case.
☛ The QR code on the PSN label is corresponding to the product identification U R L , for example:
i.q eedj i.tech?model=S B L 10 e&sn=0 13 2 0 -0 0 0 0 9 &mac.lan1=0 0 -1C -E 6 -0 2 -4C -E C &mac.wpan1=D F -2 7 -8 3 -3 C -8 A -9 0 .
EAN lab el
This is the label stuck also on the cardbox. It is showing:
the device model,
the product serial number (PSN) (embedded also in the QR code),
the manufacturer Web site.
☛ The QR code on the EA N label is corresponding to the product PSN , for example:
PSN01320-00009 CD1 .
☛ The serial number of the device can be req uested in case of technical support.

8

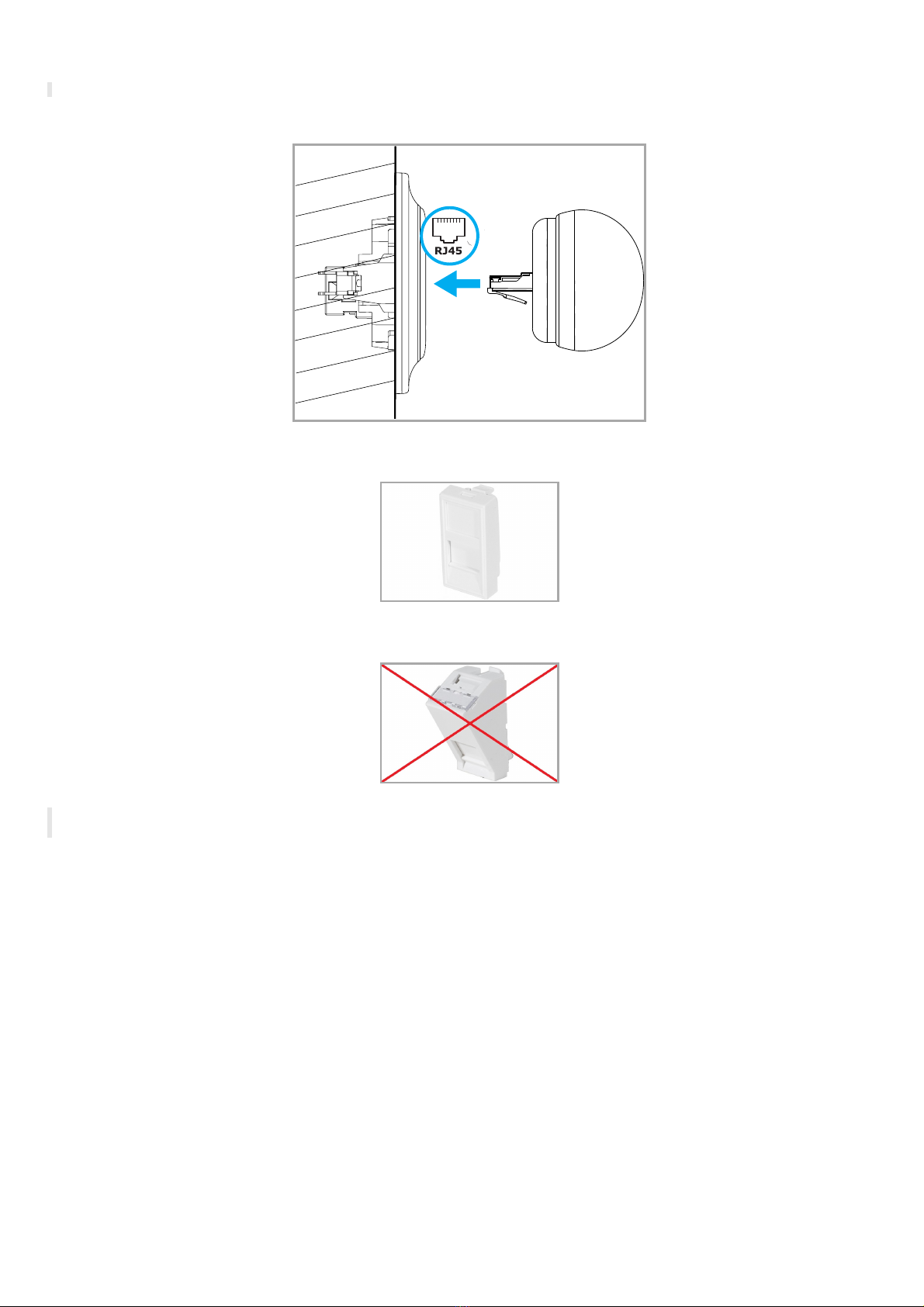

1.1.3 Installation
☛ Install the SB L 10e device on the Ethernet wall plugs of the buildings following the installation plan given by your IT departement.
The SBL10e device has to be plugged to an Ethernet wall plug supporting PoE IEEE802.3af.
G iven the device footprint, it is preconised to use Ethernet wall plug plastron with a right insertion.
Consequently, the Ethernet wall plug whose plastron is angled is not supported.
☛ Thanks to the lock pin of its Ethernet connector, the SB L 10e device can be installed on vertical surfaces, like walls as well as horiz ontal
surfaces, like ceilings.

9
1.1.4U ninstallation
With a screw driver, hold down the pin of the Ethernet connector 1 of the SBL10e device at the same time you are releasing with the hand 2 the
SBL10e device from the Ethernet wall plug.
1
2

10
1.2 Smart B usy L ight applications
The regular application is put by default at the factory. This application is applying the requested light state and color values:
either when set through the device Web user interface available with http://<device-ip-addr>/ ,
or when an appropriate Web command is received, for example with CUR L tool native in MS-Windows,
H owever it is easily to replace by another application. For further information, refer to the chapter § Maintenance > Firmware.
L ight states and colors
The Smart Busy Light applications support these states and colors:
C olor State
OF F
Red ON steady or ON flashing
Green ON steady or ON flashing
Blue ON steady or ON flashing
Orange ON steady or ON flashing
Y ellow ON steady or ON flashing
☛ The O N flashing state is fl ashing O N for 0,5 seconds then O F F for 0,5 seconds every one second.
☛ The light color and state values are stored in the volatile memory ( R A M) . That means that in case the SB L 10e device is unplugged from the
Ethernet wall plug then plugged back again, the light comes back to its default state: O F F .
C onfiguration
The Smart Busy Light application supports the configuration update:
by connecting to the Administration console user interface http://<device-ip-addr>/ ,
when pushing, with a WebDAV client, a prefs.json configuration file on the device WebDAV directory http://<device-ip-addr>/.conf/ ,
when receiving a configure command from the Qether tool.
F irmware upgrade
The Smart Busy Light application supports the firmware upgrade:
by connecting to the Administration console user interface http://<device-ip-addr>/ and loading an appropriate firmware file bm0032_regular-
sbl10e-xx.yy.z z .bin ¹ ,
by pushing a new firmware file bm0032_regular-sbl10e-xx.yy.z z .bin ¹ at the root of the device WebDAV directory http://<device-ip-addr>/ ,
pushed with a WebDAV client,
by receiving an install command from the Qether tool.
¹ Can work also with any other compatible firmware b m0 0 3 2 _<custom>-sb l10 e-x x .yy.z z .b in .
☛ A fter a firmware upgrade, the device is rebooting once.
☛ When the config uration command or the install command has been processed, the last S mart B usy L ig ht state and color are restored.
Preprogrammed flashing seq uence
The SBL10e device has two modes:
Nominal mode : the Smart Busy Light application runs properly and sets the light state and color as expected. When a configuration or a firmware
upgrade is in progress, the light illumination can be temporarily inconsistent and follow the light flashing sequence below.
Recovery mode : the Smart Busy Light application can not be executed. The light state or color can not be modified anymore. It is required to
update the firmware to return to nominal mode.
Depending on these modes, the Smart Busy Light applications can fall into one of these a preprogrammed flashing sequences in some specific cases:

11
Mode Smart Busy light
b ehav iour Information
R ecovery
2 very short and
consecutive blue flashs
(250 ms) with a 4,5
seconds periodicity
The Smart Busy Light application can not be executed (it should never occur). The device Web
user interface is so not available. This sequence is displayed until a new firmware update is
realized with Qether tool. For further information, contact support@ qeedji.tech.
R ecovery
3 very short and
consecutive blue flashs
(250 ms) with a 5 seconds
periodicity
The software resource of the SBL10e device set at factory are not valid. It should never occur. For
further information, contact support@ qeedji.tech.
Nominal
or
recovery
4 very short and
consecutive blue flashs
(250 ms) with a 5,5
seconds periodicity
A SBL10e device F irmware update is in progress. Please wait a couple of seconds.
Nominal 5 very short and consecutive blue flashs
(150 ms) A SBL10e device configuration is in progress. Please wait a couple of seconds.

12
Part II Applicativ e user interface

13
2 .1Applicativ e user interface
The SBL10e device has a Web user interface that can be accessed with a Web browser. The supported browsers are: Google Chrome , Moz illa F irefox ,
MS-Edge and MS-Edge (Chromium) .
It is accessible from the UR L: http://<device_IP_addr>/ .
By default, the login credentials for the device Web user interface are:
login: admin ,
password: admin .
The UR L falls automatically into the regular applicative user interface: http://<device_IP_addr>/webui/ . This pane allows to:
set the light status,
set the light state.

14
Part III Administration console user interface

15
3 .1Administration console user interface
The SBL10e device has a Web user interface that can be accessed with a Web browser. The supported browsers are: Google Chrome , Moz illa F irefox ,
MS-Edge and MS-Edge (Chromium) .
It is accessible from the UR L: http://<device_IP_addr>/ .
By default, the login credentials for the device Web user interface are:
login: admin ,
password: admin .
The UR L falls automatically into the applicative user interface¹ . At the top right corner, click on the Administration Console button.
¹ For further information, refer to the chapter § A pplicative user interface.
This is the Administration console user interface.
◬ After you have changed and saved all your settings in the different panes, be sure to perform a device restart by clicking on the Reboot the
device 2 button so that your changes are fully reflected.
Click on the device logo 1 at the left top corner to return to the applicative user interface.
1
2

16
3 .1.1C onfiguration > Administrator
In the Configuration pane, select the Administrator menu to change:
the hostname,
the login credentials.
For security reasons, it may be useful to change the login credentials to access to the device' s Web user interface. Please keep these login credentials
in a safe place afterwards.
☛ The same login credentials are used to access to the WebDA V server.
It is recommended that you enter one unique H ostname value for each device. In case several SBL10e devices are located in different buildings or
geographical locations, we recommend that you enter hostname values with information about the building and the location (e.g. H all-RD-Paris-1 ).

17
3 .1.2 C onfiguration > L AN
In the Configuration pane, select the L AN menu to set up the network configuration of the LAN interface of your device.
☛ B y default, the device is configured with DHCP activated. In case the DHCP server is not available, after the DHCP timeout, the device ends up using
the static IP address whose default value is 19 2.16 8 .0.2 when it has not been changed yet by the end user.

18

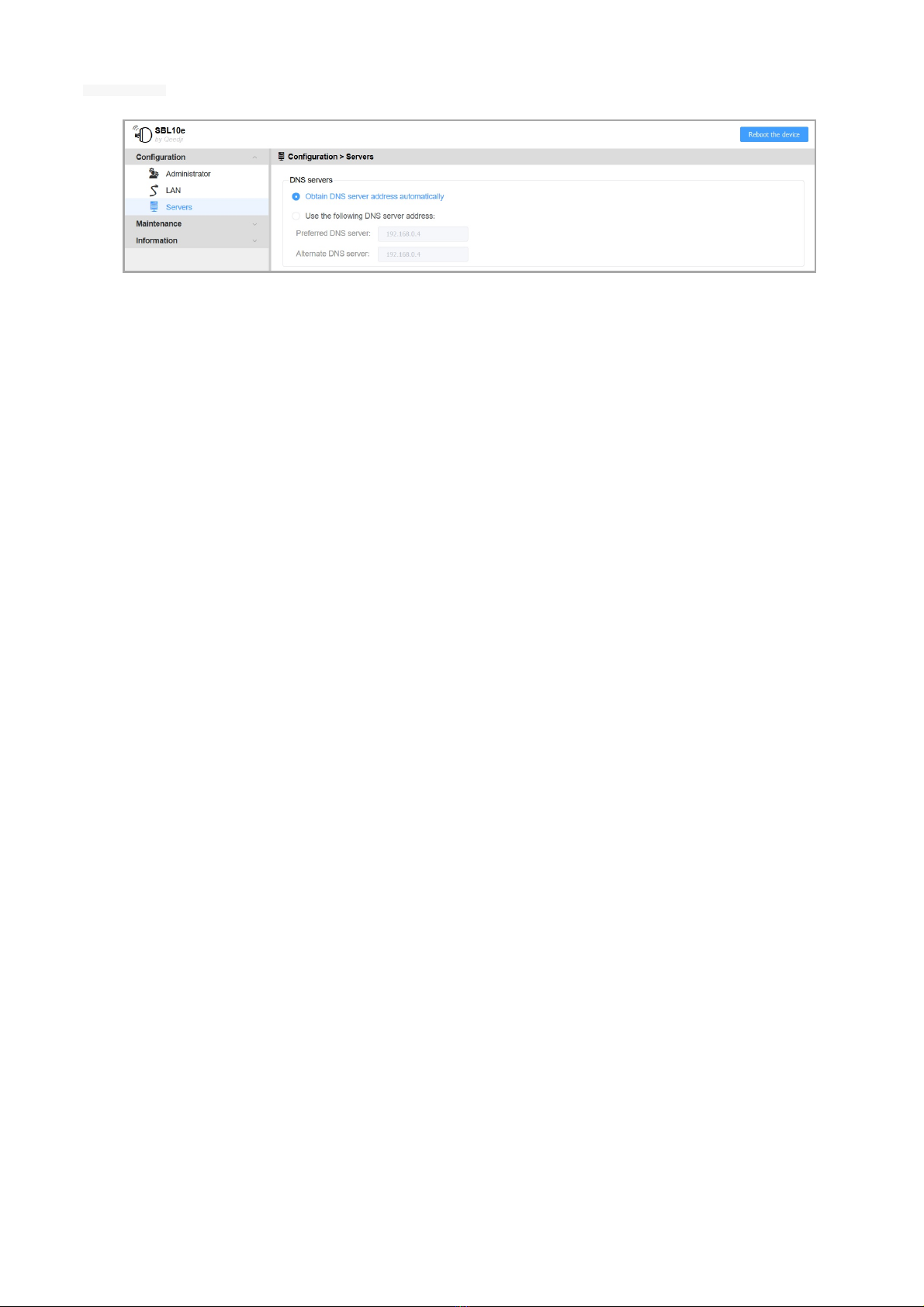

3 .1.3 C onfiguration > Serv ers
In the Configuration pane, select the Serv ers menu to define the configuration of the servers peripheral to your device.

19
3 .1.4Maintenance > F irmware
From the Maintenance pane, select the F irmware menu to view the version of the firmware installed on your device.
☛ Corrective and evolutive maintenance software versions are regularly made available in the support tab of the official Q eedj i website
https: / / www.q eedj i.tech. It is therefore advisable to regularly update your device. From this website, download the appropriate latest firmware
version available for your device model ( .b in file) . For further information, contact support@ q eedj i.tech.
Drop your .bin file in the  Drop file here or click to add one button , then click on the Send button to update the firmware version of your
device. Wait a couple of seconds, the time to load and install the new version. G o back to the Administration console user interface and check the
new firmware version number of the device.
The user preferences common to the both applications are kept when upgrading from regular application to another application (and reciprocally)
meaning:
network configuration,
file system,
hostname,
credentials.
◬ Do not electrically disconnect the device during the firmware upgrade.

20
3 .1.5Maintenance > Preferences
In the Maintenance pane, select the Preferences menu to view all the preferences.
The filter allows to list only the preferences whose name contains the string entered in the filter. All the preferences have optimal default values.
◬ Before changing any value of a preference, please consult your Qeedji support.
Double click on a preference to change its value.
The Restore factory preferences button resets a subset of preferences allowing the device to reprogram its factory preferences. In this case the LAN
network configuration returns to DH CP.
