Qi WPC15-1MWNA User manual

Wi
r
W
P
r
ele
s
P
C1
Us
e
s
s
C
5-1
M
e
r Ma
n
C
har
g
M
W
N
n
ual
g
er
N
A

CONETNES
1.0 INTRODUCTION ----------------------------------------------------1
2.0 FEATURES ----------------------------------------------------------1
3.0 SPECIFICATIONS --------------------------------------------------1
4.0 PACKAGE CONTENTS ----------------------------------------------2
5.0 OPERATION---------------------------------------------------------2
6.0 CONNECTION DIAGRAM -------------------------------------------3

Wireless Charger
1
Wireless Charger
DEAR CUSTOMER
Thank you for purchasing this product. For optimum performance and
safety, please read these instructions carefully before connecting,
operating or using this product. Please keep this manual for future
reference.
1.0 INTRODUCTION

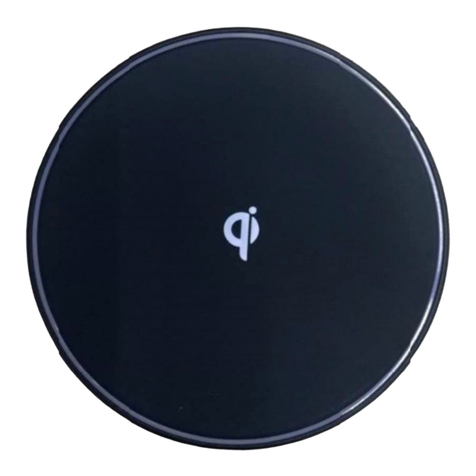

This product is a high-performance wireless charger. This product is
suitable for mobile phones, MP3, MP4, digital productions, and other
productions based on wireless charging 5W or 10W or 15W. Connect
the wireless to a power charger, and then you can charge your device
supported wireless charging (MP3, mobile phones, etc) by put it on
the charger directly. It is helpful in long time journey and convenient
for business!
2.0 FEATURES
 Transmitting terminal input: 5V/2A, 9V/1.67A ,12V/1.5A
 Transmitting terminal output: 5W/7.5W/10W/15W
 Intelligent green indicator to show working condition
 Compliant with QI, CE, FCC standards
 It is light, smart and convenient to use
3.0 SPECIFICATIONS
Input Micro-USB: 5V/2A, 9V/1.67A,12V/1.5A
Output 15W Max
Switch Frequency 110K-205K
Operating Temperature Range 0~35°C
Storage Temperature Range -20 ~ 70°C
Operation Humidity 10% ~ 80% RH
Storage Humidity 5% ~ 95% RH
Size 直径 100.33*7mm
Weight 145g

Wireless Charger
2
4.0 PACKAGE CONTENTS
Before attempting to use this unit, please check the packaging and
make sure the following items are contained in the shipping carton:
 Main unit×1
 User Manual×1
5.0 OPERATION
Operation Procedures
1. Connect the wireless charger with a power adapter, and then the
light will blink green one time，then light off
2. Put your device (supported wireless charging) on the charger, the
green light will breathing .
3. When finished charging, the light will light on
4. Please remove your device after fully charged.
Note: When accident occurs, the light flashes green.
Operation Notes
1. For optimum performance, please use the wireless charger
according to this user manual.
2. Please connect the wireless charger to a power adapter which
output should be 5V/2A, 9V/1.67A,12V/1.5A
3. Please unplug the wireless charger after using.
4. Do not use the wireless charger with an electronic product which is
not in conformity with the specifications, so as to avoid any
problem caused by specification mismatching.
5. It’s normal that wireless charger will be a little overheated in the
use process.
6. When the wireless charger stops working under some accidents ,
you need to check whether the device is compatible with this
charger.
7. Do not let the wireless charger close to fire, such as stove, candles
and etc.
8. Do not let the wireless charger soak into liquid, such as swimming
pool, bathtub, etc.
9. Do not wash the wireless charger with corrosive cleaner.
10. If the wireless charger cannot work properly, please contact the
store or distributor in your area.

6.
0
FC
C
Thi
s
foll
o
(1)
ac
c
un
d
NO
by
t
op
e
Thi
s
un
c
wit
h
bo
d
0
CON
N
C
Warnin
g
s
device c
o
o
wing two
This devi
c
c
ept any
d
esired op
e
TE: Any
c
t
he party
r
e
rate the e
q
s
equipm
e
c
ontrolled
e
h
a minim
d
y.
N
ECTI
O
g
o
mplies wi
condition
s
c
e may no
interferen
c
e
ration.
c
hanges o
r
r
esponsibl
e
q
uipment.
e
nt compli
e
e
nvironm
e
um distan
O
N DI
A
th part 18
s
:
t cause h
a
c
e receiv
e
r
modificat
e
for com
p
e
s with FC
C
e
nt. This
e
ce of 20
3
A
GRAM
of the FC
C
a
rmful inte
e
d, includi
ions to thi
s
p
liance co
u
C
RF radi
a
e
quipment
centimete
r
C
Rules. O
rference,
a
ng interf
e
s
unit not
u
ld void th
e
a
tion expo
s
should b
e
r
s betwee
n
W
peration i
s
a
nd (2) thi
rence th
a
expressly
e
user's a
u
s
ure limits
s
e
installed
n
the radi
a
W
ireless Ch
a
s
subject t
o
s device
m
a
t may c
a
approved
u
thority to
s
et forth f
o
and oper
a
ator and
y
P/N
a
rge
r
o
the
m
ust
a
use
o
r an
a
ted
y
our
