QTORQ SP5 User manual

SP5, SP10, TPW25, SPW25,
SPW55 & MPW125
PRESET TORQUE
SLIPPING WRENCH
OPERATOR’S MANUAL
ORDER CODES:
KEN-555-7300K, KEN-555-7250K,
KEN-555-4100K, KEN-555-4050K,
KEN-555-4070K & KEN-555-4000K
·Tools can be used by operators at
any skill level, due to unique slipping
mechanism.
·High quality, robust design and
construction.
·Accurate process control is ensured
by eliminating under and over
tightening, regardless of operator’s
hand position.
·These versatile tools are ideal
for a wide range of applications.

How to use and care for your
Preset Slipping Torque Wrenches
Tool Specication
Models: SP5 & SP10 (TSN 5: 1.0 – 5.0 Nm, TSN 10: 2.0 – 10.0 Nm)
TPW25 & SPW25: 5-25 N.m SPW55: 15-55 N.m MPW125: 40-125 N.m
Repeatability: +/- 6%
(Torque Setting TPW25,SPW25,SPW55 & MPW125 +/- 4% of torque)
ISO 6789 Class: Type 2, Class C
Calibration Period: Every 12 Months or 5000 cycles (minimum)
Mechanism: Slipping - Incorrect tightening is impossible
EPA Compliant Except SPW55 and MPW125 models

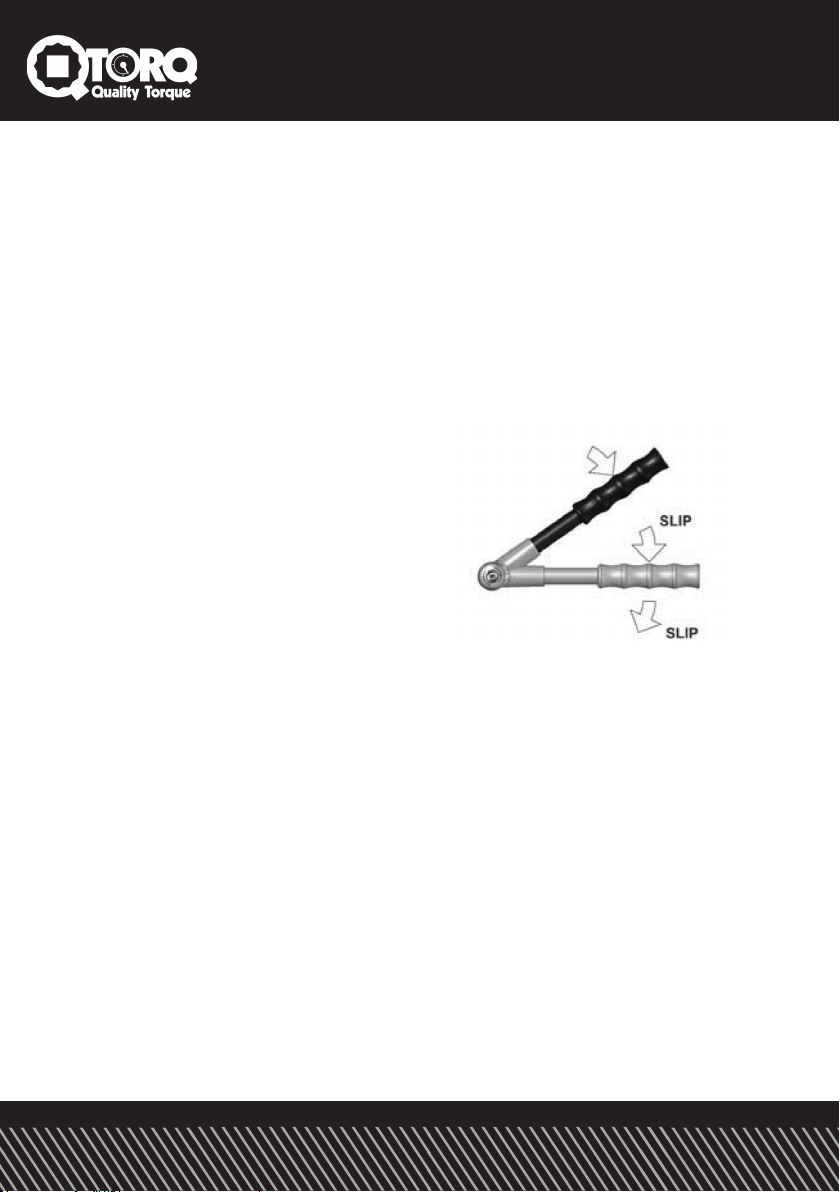

At the set torque, the handle slips free
then resets ready for the next use.
Safety & Maintenance
This Torque Tool is a precision instrument and should
be used for its intended purpose only
Only hold the tool using the handgrip
Always ensure that the tool is in correct alignment with the fastener
Torque tools should be regularly calibrated and inspected to ensure
correct operation
Ensure the tool is clean and free from oil, grease and water before use
Do not use extension bars to increase the leverage of the handle
Never dip into cleaning fluid or petroleum
☑
☑
☑
☑
☑


Angle of
slip = 35˚

How to adjust your Torque Wrench
To check setting:
Use a Torque Analyser. For more details on the
different Analysers visit www.gedore-torque.com
To adjust the torque setting:
Use a 4 mm hex key to remove the end cap.
Use a 2 mm hex key to release the locking grub
screw by turning anti-clockwise.
To increase torque:
Using the 4mm hex key, rotate clockwise
until the correct torque is shown consistently
on the Analyser. (10 readings)
To reduce torque:
When adjusting, always approach the required
torque from a lower setting.
To reduce the torque, rotate the key anti-clockwise
past your setting, then increase
torque to the required value.
To set torque:
Turn the locking grub screw clockwise with a 2mm
hex key.
To use Torque Wrench:
The preset wrenches are designed
for use with sockets
Servicing Information
Regular servicing of your Torque Tool by
competent personnel is important to
ensure it continues to per form correctly.

KENNEDY TOOLS
Wigston, Leicester, England, LE18 2FS
www.kennedy-tools.co.uk
© The Kennedy Group Ltd. 03/18
The Environment
Always dispose of unwanted tools, accessories and
packaging materials in an environmentally friendly manner.
