Quadra-Fire CASTILEI-MBK-C User manual

106/217022-801H
Installation and service of this appliance should be performed by
qualified personnel. Hearth & Home Technologies recommends
HHT Factory Trained or NFI certified professionals.
Installation Manual
Installation & Appliance Set-Up
INSTALLER: Leave this manual with party responsible for use and operation.
OWNER: Retain this manual for future reference.
NOTICE: DO NOT DISCARD THIS MANUAL
NOTE: To obtain a French translation of this manual,
please contact your dealer or visit www.quadrare.com
REMARQUE : Pour obtenir une traduction française de
ce manuel, s’il vous plaît contacter votre revendeur ou
visitez www.quadrare.com
Check building codes prior to installation.
• Installation MUST comply with local, regional, state
and national codes and regulations.
• Consult local building, re ofcials or authorities
having jurisdiction about restrictions, installation
inspection, and permits.
CAUTION
Tested and approved for wood pellets only. Burning of
any other type of fuel voids your warranty.
CAUTION
HOT SURFACES!
Glass and other surfaces are hot
during operation AND cool down.
WARNING
Hot glass will cause burns.
• Do not touch glass until it is cooled
• NEVER allow children to touch glass
• Keep children away
• CAREFULLY SUPERVISE children in same room
as replace.
• Alert children and adults to hazards of
high temperatures
• High temperatures may ignite clothing or other
ammable materials.
• Keep clothing, furniture, draperies and other
ammable materials away.
If the information in these instructions is
not followed exactly, a re could result
causing property damage, personal
injury, or death.
WARNING
• Do not store or use gasoline or other ammable vapors
and liquids in the vicinity of this or any other appliance.
• Do not over re - If appliance or chimney connector
glows, you are over ring. Over ring will void
your warranty.
• Comply with all minimum clearances to combustibles
as specied. Failure to comply may cause house re.
R
CASTILE PELLET INSERT
APPLIANCE
MODEL(S):
CASTILEI-MBK-C
CASTILEI-PMH-C
CASTILEI-TWL-C

206/217022-801H
CASTILE INSERT
TABLE OF CONTENTS
Safety Alert Key:
• DANGER! Indicates a hazardous situation which, if not avoided will result in death or serious injury.
• WARNING! Indicates a hazardous situation which, if not avoided could result in death or serious injury.
• CAUTION! Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
• NOTICE: Indicates practices which may cause damage to the appliance or to property.
Quadra-Fire is a registered trademark of Hearth & Home Technologies.
1 Important Safety Information
A. Appliance Certication....................... 3
B. BTU & Efciency Specications ............... 3
C. Glass Specications ........................ 4
D. Electrical Rating ........................... 4
E. Mobile Home Approved ...................... 4
F. Non-Combustible Materials ................... 4
G. Combustible Materials ...................... 4
H. Sleeping Room ............................ 4
I. California - Prop65 .......................... 4
2 Getting Started
A. Design, Installation & Location Considerations ... 5
B. Thermostat Wall Control Location .............. 6
C. Tools And Supplies Needed .................. 6
D. Inspect Appliance and Components ............ 6
E. Install Checklist ............................ 7
3 Dimensions and Clearances
A. Appliance Dimensions ...................... 8
B. Clearance To Combustibles, UL and ULC....... 10
C. Masonry Chimney and Fireplace Clearances .....11
D. Minimum Opening for Masonry & ZC Fireplaces ..11
E. Hearth Extension.......................... 12
F. Floor Protection ........................... 12
G. Installation into a Factory-Built Fireplace ....... 12
H. Installation into a Masonry Fireplace........... 13
I. Prefabricated Metal Chimney ................. 13
4 Vent Information
A. Venting Termination Minimum Requirements .... 14
B. Avoiding Smoke and Odors.................. 15
C. Negative Pressure......................... 16
D. Draft ................................... 16
E. Chimney and Exhaust Connection ............ 16
F. Equivalent Feet of Pipe ..................... 17
G. Pipe Selection Chart ....................... 17
5 Venting Systems
A. Direct Connect with Outside Air.............................. 18
B. Direct Connect without Outside Air......................... 18
C. Full Reline With Outside Air - Horizontal ................ 19
D. Full Reline With Outside Air - Vertical .................... 20
6 Appliance Set-Up
A. Leveling System ..................................................... 21
B. Door Handle Removal ............................................ 21
C. Door Removal ........................................................ 21
D. Outside Air Kit Instructions .................................... 21
E. Surround & Trim Set............................................... 22
F. Surround and Cast Trim Set .................................. 23
G. Thermostat Installation........................................... 24
H. Optional Log Set Placement Instructions ............... 25
7 Mobile Home Installation ........................................... 26
8 Reference Materials
A. Service and Maintenance Log................................ 27
B. Accessories ............................................................ 32
= Contains updated information


306/217022-801H
CASTILE INSERT
Model Castile Pellet Insert
Laboratory OMNI Test Laboratories, Inc.
Safety
Report No. 061-S-77d-6.2
Type Solid Fuel Room Appliance/Pellet Fuel
Burning Type Insert
Standard
ASTM E1509-2004, ULC S628-93
and ULC/ORD-C1482-M1990 Room
Appliance Pellet Fuel Burning Type and
(UM) 84-HUD, Mobile Home Approved
1 Important Safety Information
A. Appliance Certication B. BTU & Efciency Specications
This pellet insert needs periodic inspection and repair for proper operation. It is against federal regulations to operate this
pellet insert in a manner inconsistent with operating instructions in this manual.
Emissions Report #: 0061PM077E
EPA Certication #: 175-19
EPA Certied Emissions: 1.1 grams per hour
*LHV Tested Efciency: 70.4%
**HHV Tested Efciency: 66.1%
***EPA BTU Output: 5,800 to 22,400 / hr.
****BTU Input: 9,300 to 30,600 / hr.
Vent Size: 3 or 4 “L” or “PL”, or 6
inches
Hopper Capacity: 45 lbs.
Fuel Premium Wood Pellets
*Weighted average LHV (Low Heating Value) efciency
using data collected during EPA emissions test.
**Weighted average HHV (High Heating Value) efciency
using data collected during EPA emissions test.
***A range of BTU outputs based on EPA default
efciency and the burn rates from the low and high
EPA tests.
****Based on the maximum feed rate per hour multiplied
by approximately 8600 BTU’s which is the average BTU’s
from a pound of pellets.
‡ Grade of pellet fuel as certied by Pellet Fuels Institute (PFI), ENPlus
or CANplus.
NOTE: This installation must conform with local codes. In the absence of local codes you must comply with the ASTM
E1509-2004, ULC S628-93, ULC/ORD-C-1482-M1990, (UM) 84-HUD.
The Castile insert is Certied
to comply with 2020 particulate
emission standards.

406/217022-801H
CASTILE INSERT
Improper installation, adjustment, alteration, service or
maintenance can cause injury or property damage.
For assistance or additional information, consult a qualied
installer, service agency or your dealer.
D. Electrical Rating
115 VAC, 60 Hz, Start 4.1 Amps, Run 1.1 Amps
C. Glass Specications
This appliance is equipped with 5mm ceramic glass.
Replace glass only with 5mm ceramic glass. Please
contact your dealer for replacement glass.
E. Mobile Home Approved
• This appliance is approved for mobile home
installations when not installed in a sleeping room and
when an outside combustion air inlet is provided.
• The structural integrity of the mobile home oor, ceiling,
and walls must be maintained.
• The appliance must be properly grounded to the frame
of the mobile home and use only Listed pellet vent
Class “L” or “PL” connector pipe.
• Outside Air Kit, part OAK-ACC must be installed in a
mobile home installation.
H. Sleeping Room
When installed in a sleeping room it is recommended that
3ft of vertical be installed prior to horizontally exiting the
room and a smoke/CO alarm be installed in the bedroom.
The size of the room must be at least 50ft³ per 1,000 Btu/hr
stove input, if the stove exceeds the room size, out air must
be installed.
I. California - Prop65
WARNING
This product and the fuels used to operate this product (wood), and
the products of combustion of such fuels, can expose you to
chemicals including carbon black, which is known to the State of
California to cause cancer, and carbon monoxide, which is known to
the State of California to cause birth defects or other reproductive
harm. For more information go to: WWW.P65Warnings.ca.gov
F. Non-Combustible Materials
Material which will not ignite and burn, composed of any
combination of the following:
-Steel
-Plaster
-Brick
-Iron
-Concrete
-Tile
-Glass
-Slate
Materials reported as passing ASTM E 136, Standard
Test Method for Behavior of Metals, in a Vertical Tube
Furnace of 750°C.
G. Combustible Materials
Material made of/or surfaced with any of the
following materials:
-Wood
-Compressed Paper
-Plant Fibers
-Plastic
- Plywood/OSB
-Sheet Rock (drywall)
Any material that can ignite and burn: ame proofed or not,
plastered or non-plastered.
NOTE: Hearth & Home Technologies, manufacturer
of this appliance, reserves the right to alter
its products, their specications and/or price
without notice.
WARNING
Fire Risk.
Hearth & Home Technologies disclaims any
responsibility for, and the warranty will be
voided by, the following actions:
• Installation and use of any damaged appliance.
• Modication of the appliance.
• Installation other than as instructed by Hearth &
Home Technologies.
• Installation and/or use of any component part not
approved by Hearth & Home Technologies.
• Operating appliance without fully assembling
all components.
• Operating appliance without legs attached (if
supplied with appliance).
• Do NOT Over re - If appliance or chimney
connector glows, you are over ring.
Any such action that may cause a re hazard.

506/217022-801H
CASTILE INSERT
Install Guide
2 Getting Started
Recommended
Location
Marginal
Location
Location
Not
Recommended
Recommended
Location
Location NOT
Recommended
Multi-level Roofs
Windward
Leeward
Outside Air Kit Termination Cap
Figure 5.1
A. Design, Installation & Location
Considerations
1. Appliance Location

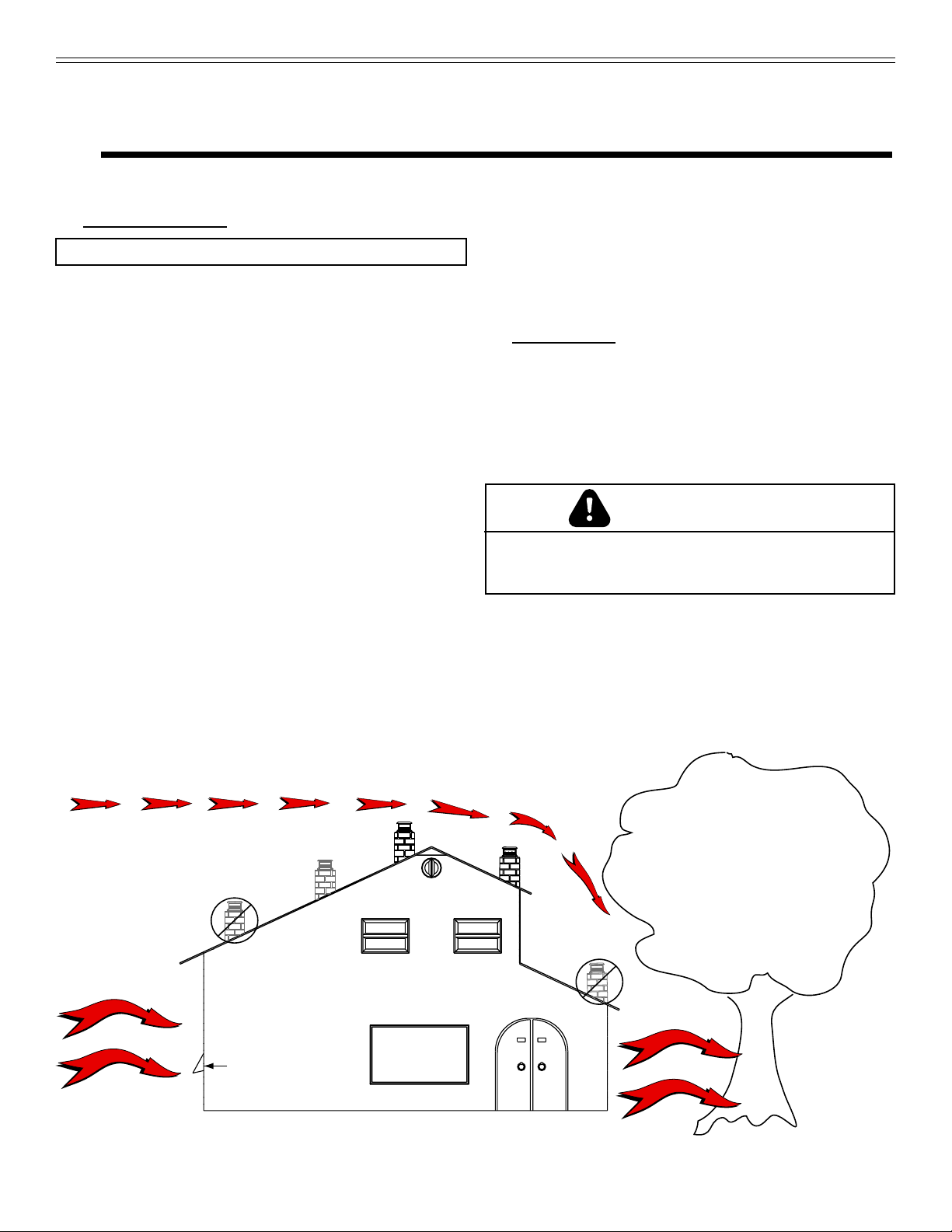

Since pellet exhaust can contain ash, soot or sparks,
you must consider the location of:
• Windows
• Air Intakes
• Air Conditioner
• Overhang, softs, porch roofs, adjacent walls
• Landscaping, vegetation
• Horizontal or vertical vent termination
2. Floor Support
The supporting oor under the appliance must be able to
handle the weight of the appliance, fuel load and the weight
of the chimney.
Ensure that your oor will support these weights prior to
installation. Add sufcient additional support to meet this
weight requirement prior to installation. The weight of the
appliance is 192 lbs.
NOTICE: Check building codes prior to installation.
• Installation MUST comply with local, regional, state and
national codes and regulations.
• Consult insurance carrier, local building inspector,
re ofcials or authorities having jurisdiction over
restrictions, installation inspection and permits.
It is a good idea to plan your installation on paper, using
exact measurements for clearances and oor protection,
before actually beginning the installation. Location of the
appliance and chimney will affect performance.
Consideration must be given to:
• Safety, convenience, trafc ow
• Placement of the chimney and chimney connector and
to minimize the use of chimney offsets.
• Place the appliance where there will be a clear
passage for a Listed chimney through the ceiling and
roof (vertical) or through exterior wall (horizontal).
• Installing the required outside air kit will affect the
location of the vent termination.
When locating vent and venting termination, the ideal
location is to vent above roof line when possible. This
minimizes the affects of wind loading.
WARNING
Risk of Fire.
Damaged parts could impair safe operation. Do NOT
install damaged, incomplete or substitute components.

606/217022-801H
CASTILE INSERT
C. Tools And Supplies Needed
B. Thermostat Wall Control Location
The thermostat wall control’s location will have some affect
on the appliance’s operation.
• Maximum wire length from appliance is 100
feet (30.48m) with continuous non-spliced wire.
Recommended 20 gauge wire, solid copper.
• When located close to the appliance, it may require a
slightly higher temperature setting to keep the rest of
the house comfortable.
• When located in an adjacent room or on a different
oor level, you will notice higher temperatures near
the appliance.
D. Inspect Appliance and Components
• Open the appliance and remove all the parts and
articles packed inside the Component Pack. Inspect all
the parts and glass for shipping damage.
• Report to your dealer any parts damaged in shipment.
• All labels have been removed from the glass door.
• Plated surfaces have been wiped clean with a soft
cloth, if applicable.
• Read all the instructions before starting the installation.
Follow these instructions carefully during the
installation to ensure maximum safety and benet.
• Follow pipe manufacturer instructions for installation
and air clearance requirements.
Tools and building supplies normally required
for installation, unless installing into an existing
masonry replace:
-Reciprocating Saw
-Channel Locks
-Hammer
-Phillips Screwdriver
-Tape Measure
-Plumb Line
- 1/4” Self-Tapping Screws
-Framing Material
- Hi-temp Caulking Material
-Gloves
-Safety Glasses
-Framing Square
- Electric Drill & Bits (1/4”)
-Level
May also need:
Vent Support Straps
Venting Paint
Risk of Fire!
• Damaged parts could impair
safe operation.
• Do NOT install damaged, incomplete or
substitute components.
WARNING
• Installation and use of any damaged appliance.
• Modication of the appliance.
• Installation other than as instructed by Hearth &
Home Technologies.
• Installation and/or use of any component part not
approved by Hearth & Home Technologies.
• Operating appliance without fully assembling
all components.
• Operating appliance without legs attached (if
supplied with appliance).
• Do NOT Over re
Or any such action that may cause a re hazard.
WARNING
Hearth & Home Technologies disclaims any
responsibility for, and the warranty will be
voided by, the following actions:

706/217022-801H
CASTILE INSERT
E. Install Checklist
YES IF NO, WHY?
Verified clearance to combustibles.
Appliance is leveled and connector is secured to appliance.
Hearth extension size/height decided.
Outside air kit installed.
Floor protection requirements have been met.
If appliance is connected to a masonry chimney, it should be cleaned and
inspected by a professional. If installed to a factory built metal chimney, the
chimney must be installed according to the manufacturer’s instructions and
clearances.
Appliance Install
Chimney configuration complies with diagrams.
Chimney installed, locked and secured in place with proper clearance.
Chimney meets recommended height requirements (5 feet minimum vertical).
Roof flashing installed and sealed.
Terminations installed and sealed.
Venting/Chimney
Clearances
Verified all clearances meet installation manual requirements.
Mantels and wall projections comply with installation manual requirements.
Floor protection and heart extensions installed per manual requirements.
Appliance Setup
All protective materials removed.
All labels have been removed from the door.
All packaging materials are removed from inside/under appliance.
Manual bag and all of its contents are removed from inside/under the appliance
and given to the party responsible for use and operation.
WARNING! Risk of Fire or Explosion! Failure to install appliance to these instructions can lead to a fire or
explosion.
Hearth & Home Technologies recommends the following:
Photographing the installation and copying this checklist for your file.
That this checklist remain visible at all times on the appliance until the installation is complete.
Electrical
120 VAC unswitched power provided to the appliance.
Check outlet with multi-meter for proper polarity and voltage (115-120 VAC).
Record voltage reading: _____________
ATTENTION INSTALLER:
Follow this Standard Work Checklist
This standard work checklist is to be used by the installer in conjunction with, not instead of, the instructions contained in this installation manual.
Customer:
Date Installed:
Lot/Address:
Location of Appliance:
Installer:
Dealer/Distributor Phone Number:
Serial Number:
Model Name:
__________________________________________________________________________
______________________________________________________________________
_______________________________________________________________________
________________________________________________________________
___________________________________________________________________________
________________________________________________________
______________________________________________________________________
_______________________________________________________________________
Started appliance and verified that all motors and blowers operate as they should.
Checked draft using a Manometer. Record readings: ______________________
Comments: Further description of the issues, who is responsible (Installer/Builder/Other Trades, ets.) and corrective action needed:
Comments communicated to party responsible __________________________ by ______________________ on ____________
(Builder/Gen. Contractor) (Installer) (Date)
Checked vacuum using a Manometer. Record readings: ____________________

806/217022-801H
CASTILE INSERT

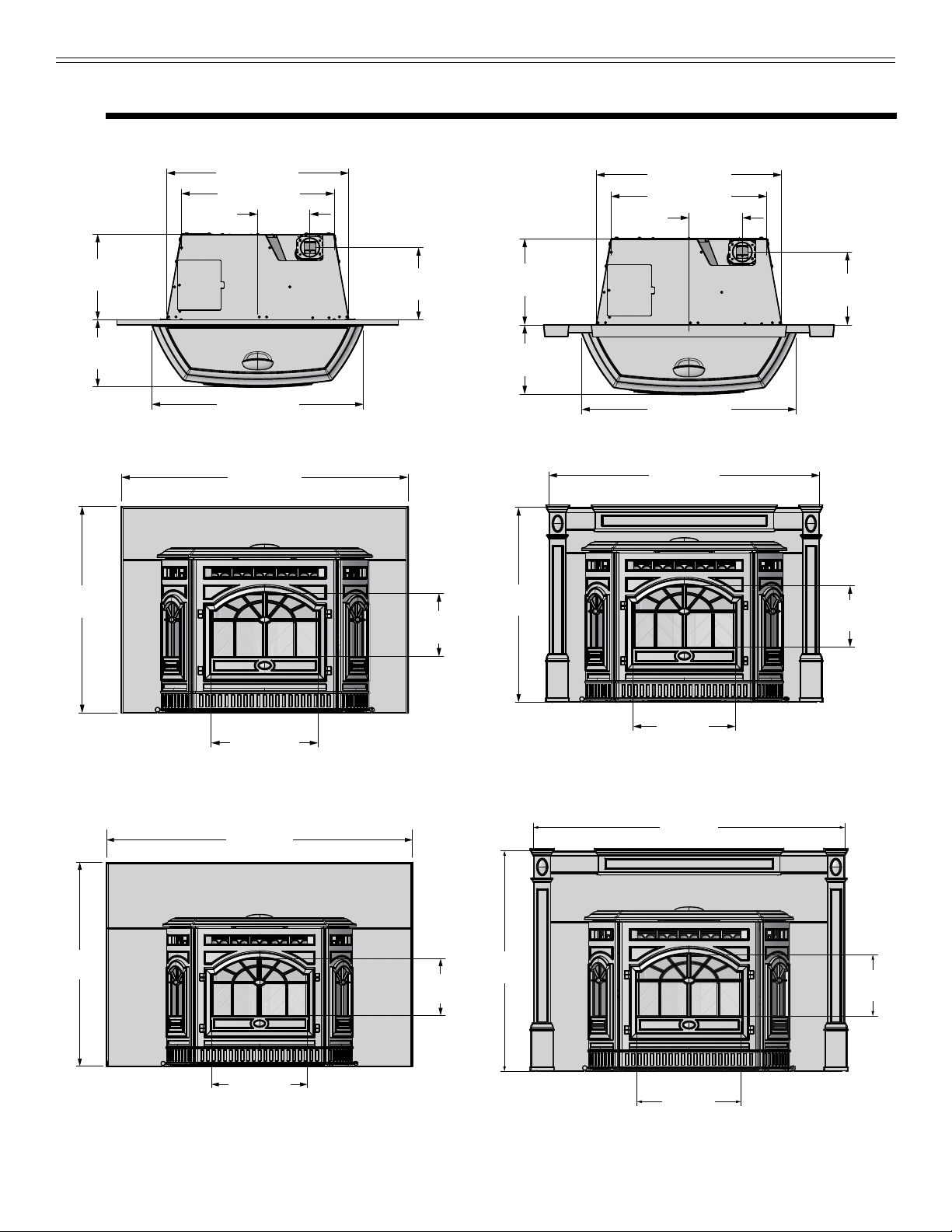

Figure 8.5 - Front View with Small Surround and Cast
Panel Set
Figure 8.4 - Top View with Cast Panel Set
27-3/4 in (706mm)27-3/4 in (706mm)
23-3/8 in (594mm)
23-3/8 in (594mm)
12-7/8 in
(328mm)
12-7/8 in
(328mm) 10-7/8 in
(278mm)
10-7/8 in
(278mm)
32-3/8 in (822mm)
32-3/8 in (822mm)
8 in
(203mm)
8 in
(203mm)
10-3/8 in
(264mm)
9-1/2 in
(240)
9-1/2 in
(240)
16 in (407)
16 in (407)
42-1/2 in (1080)
42-1/2 in (1080)
30 in
(761)
30 in
(761)
27-7/8 in (708mm)27-7/8 in (708mm)
23-3/8 in (594mm)
23-3/8 in (594mm)
13-1/8 in
(333mm)
13-1/8 in
(333mm) 11 in
(280mm)
11 in
(280mm)
32-3/8 in (822mm)
32-3/8 in (822mm)
10-1/4 in
(262mm)
10-1/4 in
(262mm)
8 in
(203mm)
8 in
(203mm)
Figure 8.1 - Top View with Small Surround Panel Set
Figure 8.2 - Front View with Small Surround Panel Set
Figure 8.6 - Front View with Large Surround and Cast
Panel Set
Figure 8.3 - Front View with Large Surround Panel Set
9-1/2 in
(240)
9-1/2 in
(240)
16 in (407)
16 in (407)
48 in (1219)
48 in (1219)
34 in
(863)
34 in
(863)
3 Dimensions and Clearances
A. Appliance Dimensions
9-1/2 in
(240mm)
9-1/2 in
(240mm)
16 in (407mm)
16 in (407mm)
43 in (1092mm)
43 in (1092mm)
31 in
(787mm)
31 in
(787mm)
9-1/2 in
(240mm)
9-1/2 in
(240mm)
16 in (407mm)
16 in (407mm)
51 in (1295mm)
51 in (1295mm)
34 in
(862mm)
34 in
(862mm)

906/217022-801H
CASTILE INSERT
Figure 9.1 - Side View with Small or Large Surround and Cast
Panel Set
9-3/4 in
(249)
9-3/4 in
(249)
22-3/4 in (579)
22-3/4 in (579)
11-3/8 in
(290)
11-3/8 in
(290)
21 in
(533)
21 in
(533)
2 in (51)
2 in (51)
25-1/4 in
(643)
25-1/4 in
(643)
9-3/4 in
(247mm)
9-3/4 in
(247mm)
22-3/4 in (579mm)
22-3/4 in (579mm)
11-3/8 in
(290mm)
11-3/8 in
(290mm)
21 in
(533mm)
21 in
(533mm)
2 in (51mm)
2 in (51mm)
25-1/4 in
(643mm)
25-1/4 in
(643mm)
Figure 9.2 - Side View with Small or Large Surround Panel
Set

10 06/217022-801H
CASTILE INSERT
B. Clearance To Combustibles, UL and ULC
Figure 10.1

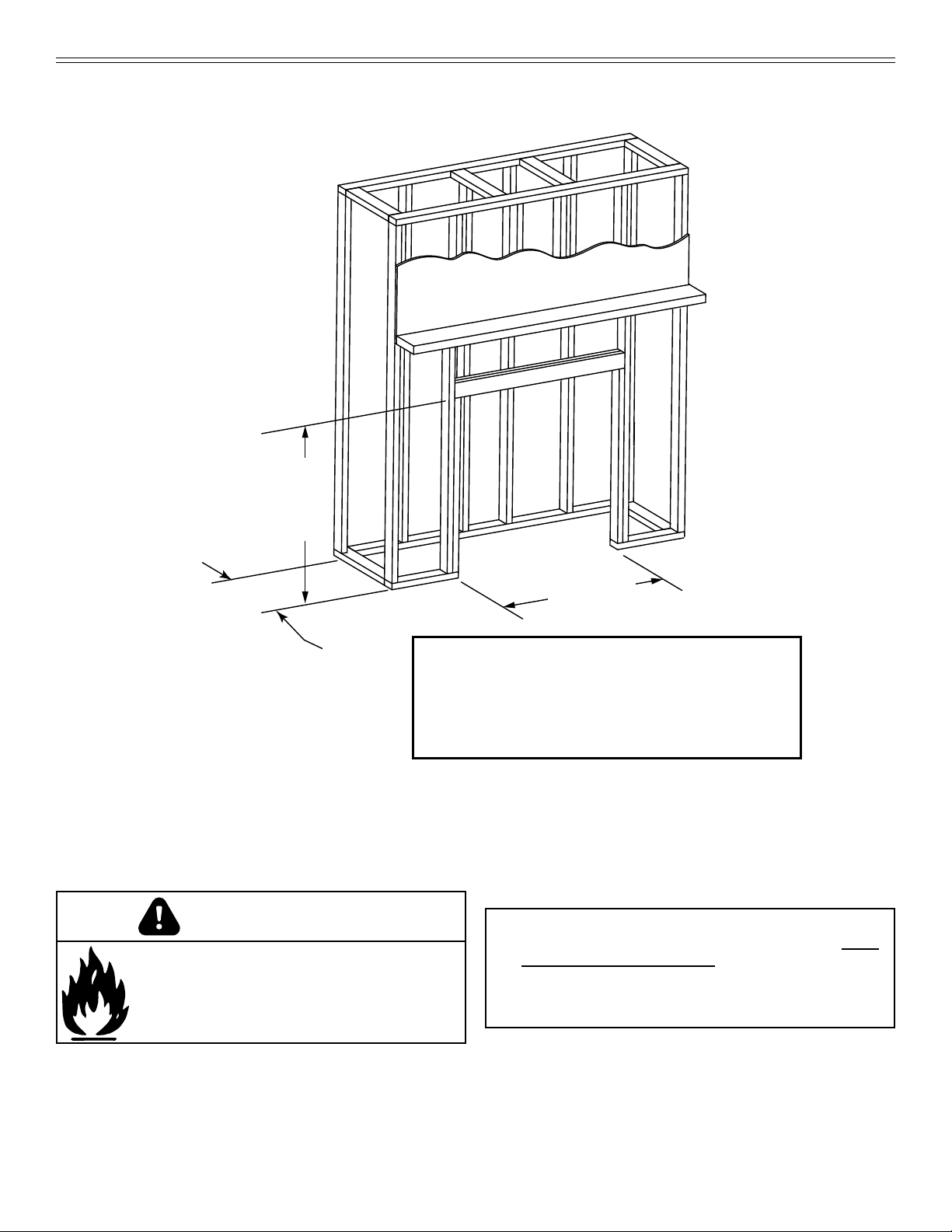

AS A BUILT-IN - Framing Dimensions
Be sure to follow vent manufacturers clearance to
combustibles.
*If interior of chase will be drywalled, add the thickness
to this measurement.
**From finished floor protection. The size of your floor
protector choice must be added to this dimension.
23 in - top vent**
(584mm)
23-1/2 in - rear vent**
(597mm)
23 in - top vent**
(584mm)
23-1/2 in - rear vent**
(597mm)
31-7/8 in.
(810mm)
16-7/8 in.*
(429mm)
NOTE:
• Illustrations reect typical installations and are FOR
DESIGN PURPOSES ONLY.
• Illustrations/diagrams are not drawn to scale.
• Actual installation may vary due to individual
design preference.
Fire Risk.
Comply with all minimum clearances to
combustibles as specied.
Failure to comply may cause house re.
WARNING

11 06/217022-801H
CASTILE INSERT
C
DA
B
D. Minimum Opening for Masonry & ZC
Fireplaces
Figure 11.1
Table 11.1
Figure 11.2
NOTE: It is necessary to permanently seal any opening
between the masonry of the replace and the
facing masonry.
SIDE TRIM
SIDE WALL
TOP TRIM
16-1/4 in
(413mm)
16-1/4 in
(413mm)
16-1/4 in
(413mm)
16-1/4 in
(413mm)
FLOOR PROTECTION
29-3/4
(1010mm)
29-3/4
(1010mm)
32-3/8 in (822mm)
32-3/8 in (822mm)
Location Inches Millimeters
A Height 21-1/4 540
BFront Width (Steel Panel Set) 28-3/8 721
Front Width (Cast Panel Set) 28-1/4 718
C Rear Width 23-7/8 606
DDepth (Steel Panel Set) 13-3/8 340
Depth (Cast Panel Set) 13-1/8 333
FIREPLACE FRONT SURFACE
MANTEL
USA 14 in
CANADA 14 (356mm)
37-1/2 in
(940mm)
12 in
max *
HEARTH EXTENSION
No thermal protection required,
ember protection only.
Figure 11.3
NOTE: Minimum opening dimensions include a 1/4”
(6mm) clearance around unit.
NOTE: If trim measurement is over 3/4 in (19mm)
in depth use mantle or side clearances
to combustibles.
C. Masonry Chimney and Fireplace
Clearances

12 06/217022-801H
CASTILE INSERT
Mark area of
floor to cut
Starter hole
G. Installation into a Factory-Built Fireplace
The following modications are permissible:
-Removal of damper or locked in open position
- Removal of smoke shelf or bafe
-Removal of ember catches
- Removal of re grate
-Removal of view screen/curtain
-Removal of doors
- Removal of factory-built replace oor
• External trim pieces which do not affect the operation
of the replace may be removed providing they can be
stored on or within the replace for reassembly if the
insert is removed.
• The permanent metal warning label provided must
be attached to the back of the replace, with screws
or nails, stating that the replace may have been
altered to accommodate the insert, and must be
returned to original condition for use as a conventional
replace (Figure 12.2).
Figure 12.3
250-2061
WARNING
THIS FIREPLACE MAY HAVE BEEN ALTERED
TO ACCOMMODATE AN INSERT. IT MUST BE
RETURNED TO ITS ORIGINAL CONDITION
BEFORE USE AS A SOLID FUEL BURNING
FIREPLACE. 250-2061
Heath & Home Technologies
250-2061
5.5 in. width x 2 in. height
NON. ANOD. ALUM BLACK LETTERS ON SILVER
with 1/8 in. holes on both sides.
Black letters
Figure 12.2
• If the hearth extension is lower than the replace
opening, the portion of the insert extending onto the
hearth must be supported.
• Manufacturer designed adjustable support kit can be
ordered from your dealer.
NOTE: Refer to chimney liner manufacturer for
recommendations on supporting the liner.
Installation into replaces without a permit
will void the listing.
• The rebrick (refractory), glass doors, screen rails,
screen mesh and log grates can be removed from a
factory-built rebox in order to gain minimum insert
opening requirements.
• Any smoke shelves, shields and bafes may be
removed from a factory-built rebox if attached with
mechanical fasteners.
• The metal oor of the factory-built rebox may be
removed to facilitate the installation of the insert only
when a 1 inch (25mm) airspace is provided between
the insert and the oor of outer wrap.
The following is only one example as there are many
different models of factory-built replaces.
NOTE: This example is for reference only. Any
modications must not compromise the
structural integrity or reduce the protection for
combustible materials.
E. Hearth Extension
F. Floor Protection
Use a non-combustible ember oor protector, extending
beneath the appliance and to the front, and to the sides as
indicated in Floor Protection below.
Figure 12.1
Table 12.1
B
C
A
D
Minimum Floor Protection
Dimensions Inches Millimeters
AFront Width (Steel Panel Set) 28-3/8 540
Front Width (Cast Panel Set) 28-1/4 721
BDepth (Steel Panel Set) 13-3/8 718
Depth (Cast Panel Set) 13-1/8 606
CFloor Protection Depth 14 356
DFloor Protection Width 32-3/8 822

13 06/217022-801H
CASTILE INSERT
Measure and mark the metal oor for cutting. With a drill,
make a starter hole in each corner.
Figure 13.1
Using a saws-all, cut out the oor.
Keep sharp edge of
metal floor away from
power cord
Figure 13.2.
Place the insert into the factory-built rebox. Ensure that
the power cord can not be damaged by the sharp metal
edge. You may need to cut out a notch to accommodate
the cord.
NOTICE: In Canada when using a factory-built chimney
it must be safety listed, Type UL103 HT
(2100°F) [1149°C] CLASS “A” or conforming
to CAN/ULC-S629M, STANDARD FOR 650°C
FACTORY-BUILT CHIMNEYS.
I. Prefabricated Metal Chimney
The chimney can be new or existing, masonry
or prefabricated and must meet the following
minimum requirements:
• Must be minimum 6 inch (152mm) inside diameter of
high temperature chimney listed to UL 103 HT (2100°F)
or ULC-S628.
• Must use components required by the manufacturer
for installation.
• Must maintain clearances required by the manufacturer
for installation.
• Refer to manufacturers instructions for installation
• This insert is listed to ASTM E 1509-12 Standard and
is approved for installation into listed factory-built zero
clearance replaces listed to UL 127 conforming to the
following specications and instructions:
• The original factory-built clearance replace chimney
cap must be re-installed after installing the approved
chimney liner meeting type UL 103 HT requirements
(2100°F) per UL 1777.
• If the chimney is not listed as meeting HT requirements,
or if the factory built replace was tested prior to 1998,
a full height listed chimney liner must be installed from
the appliance ue collar to the chimney top.
• The liner must be securely attached to the insert ue
collar and the chimney top.
• The air ow of the factory-built zero-clearance replace
system must not be altered. The ue liner top support
attachment must not reduce the air ow for the existing
air-cooled chimney system.
• No dilution air is allowed to enter the chimney.
a. Secure the replace damper in the open position. If
this cannot be accomplished, it will be necessary to
remove the damper
b. Seal damper area of chimney around chimney
connector with a high temperature sealant or seal
insert against the face of the replace.
c. Both methods must be removable and replaceable
for cleaning and re-installation.
H. Installation into a Masonry Fireplace
All modications that can be made to a Factory Built
Fireplace can be made to a Masonry Fireplace.
In addition DO NOT remove any brick or mortar from the
existing replace.
WARNING
• Removing oor of replace must not weaken
structure of rebox or reduce protection for
combustible materials.
• Final approval of this installation type is
contingent upon the appropriate local authority
having jurisdiction.
Risk of Fire!
Follow venting manufacturer’s clearances and
instructions when installing venting system.
WARNING

14 06/217022-801H
CASTILE INSERT
4 Vent Information

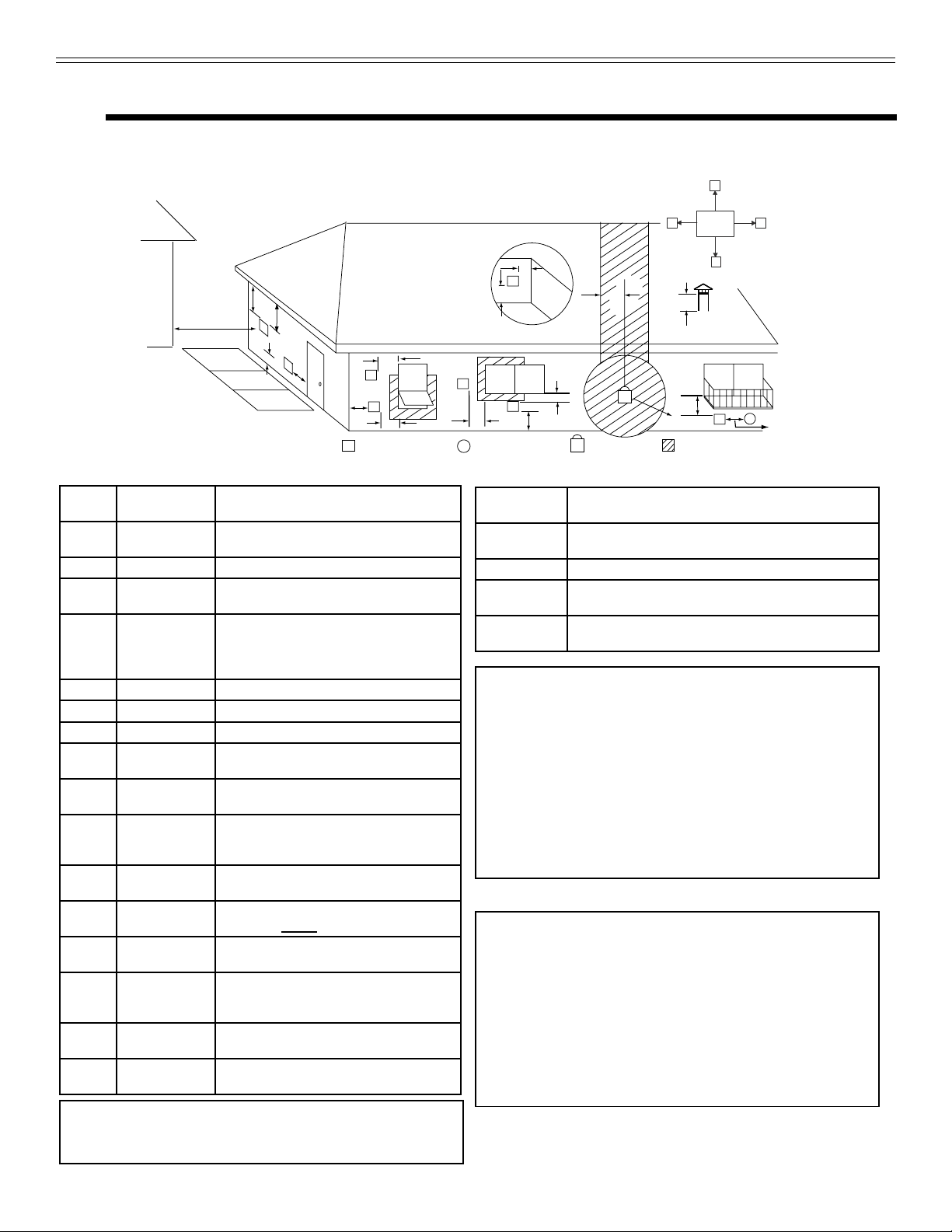

A. Venting Termination Minimum
Requirements
J or K
X
V
M
I
H
A
V
G
B
V
V
A
B
V
FV
C
B
B
E
L
V
D
V
Electrical
Service
V
N
VN
V
N
N
V
Inside Corner
FIXED
CLOSED
OPEN
OPEN
FIXED
CLOSED
VX
G
G
Termination Cap Air Supply Inlet Gas Meter Restricted Area
O
P
A12 in. Above Finish Grade (the grade surface
must be a non-combustible material
B12 in.
48 in. no OAK
Open door or window: below or to the side
B12 in. Open door or window: above
C6 in. Permanently closed window: above, below
or to the side
D18 in.
36 in. no OAK
Vertical clearance to a ventilated soffi t
located above the terminal within a hori-
zontal distance of 2 ft from the center-line
of the terminal
E12 in. Clearance to unventilated soffi t
F12 in. Clearance to outside corner
G12 in. Clearance to inside corner
H36 in. Above gas meter/regulator measured from
horizontal center-line of regulator
I36 in. USA
72 in. Canada
Clearance to service regulator vent outlet
J12 in.
48 in. no OAK
Clearance to non-mechanical air supply
inlet to the building or the combustions air
inlet to any other appliance
K10 ft horizontal
3 ft vertical
Clearance to mechanical air supply
L7 ft. Above paved sidewalk, paved driveway
located on public property
M12 in. Under an open veranda, porch, deck or
balcony
NSee Note
below*
Electric service: above, below or to the
side (location must not obstruct or interfere
with access)
O24 in. Adjacent building, fences and protruding
parts of the structure
P12 in. Clearance above roof line for vertical
terminations
All minimum clearances are listed with an Outside Air Kit (OAK) installed, unless otherwise noted in table below.
24 in. Above grass, top of plants, wood or any other combus-
tible
12 in.
36 in. no OAK
Clearance from any forced air intake of other appliance
12 in. Clearance horizontally from combustible wall
15 in. Vented directly through a wall, minimum length of
horizontal pipe
6 in. horizontal
12 in. vertical
Minimum horizontal or vertical terminations must pro-
trude from wall
*NOTE: Consult local building, fi re offi cials or authorities
having jurisdiction. Local codes or regulations
may require diff erent clearances.
NOTICE: Termination must exhaust above air
inlet elevation.
• It is recommended that at least 60 inches (1.52m) of
vertical pipe be installed when appliance is vented
directly through a wall. This will create a natural draft,
which will help prevent the possibility of smoke or
odor venting into the home during a power outage.
• It will also keep exhaust from causing a nuisance
or hazard by exposing people or shrubs to
high temperatures.
• The safest and preferred venting method is to extend
the vent vertically through the roof or above the roof.
NOTICE: Do NOT Terminate Vent:
• In any location that will allow fl ue gases or soot from
entering or staining the building.
• In any location which could create a nuisance
or hazard.
• In any enclosed or semi-enclosed area such as a
carport, garage, attic, crawl space, under a sun deck
or porch, narrow walkway.
• Closely fenced area, or any location that can build up
a concentration of fumes such as a stairwell, covered
breezeway, etc.

15 06/217022-801H
CASTILE INSERT
B. Avoiding Smoke and Odors
Negative Pressure, Shut-Down and Electrical Power
Failure
To reduce the probability of back-drafting or burn-back
in the pellet appliance during power failure or shut down
conditions, it must be able to draft naturally without exhaust
blower operation.
Negative pressure in the house will resist this natural draft if
not accounted for in the pellet appliance installation.
Heat rises in the house and leaks out at upper levels. This
air must be replaced with cold air from outdoors which
ows into lower levels of the house.
Vents and chimneys into basements and lower levels of the
house can become the conduit for air supply and reverse
under these conditions.
Outside Air
An outside air kit is recommended in all installations. The
Outside Air Kit must be ordered separately.
Per national building codes, consideration must be given
to combustion air supply to all combustion appliances.
Failure to supply adequate combustion air for all appliance
demands may lead to back drafting of those and
other appliances.
When the appliance is roof vented (strongly
recommended):
-The air intake is best located on the exterior wall
oriented towards the prevailing wind direction
during the heating season.
When the appliance is side-wall vented:
-The air intake is best located on the same exterior
wall as the exhaust vent outlet and located lower
on the wall than the exhaust vent outlet.
The outside air supply kit can supply most of the demands
of the pellet appliance, but consideration must be given to
the total house demand.
House demand may consume the air needed for the
appliance. It may be necessary to add additional ventilation
to the space in which the pellet appliance is located.
Consult with your local HVAC professional to determine the
ventilation demands for your house.
Vent Congurations
When installing a pellet appliance with a horizontal vent
conguration the frequency of power outages should
be considered:
• Power outages during operation will cause the
appliance to immediately turn off and may create
conditions where smoke will back draft into the house.
In order to reduce the likelihood of smoke back drafting
into the house during a power outage, Hearth and
Home Technologies strongly suggests:
-Installing the pellet venting with a minimum vertical
run of 5 feet (1.52m).
-Installing the outside air kit at least 4 feet (1.22m)
below the vent termination.
To prevent soot damage to exterior walls of the house and
to prevent re-entry of soot or ash into the house:
• Maintain specied clearances to windows, doors and
air inlets, including air conditioners.
• Vents should not be placed below ventilated softs.
Run the vent above the roof.
• Avoid venting into alcove locations.
• Vents should not terminate under overhangs, decks or
onto covered porches.
• Maintain minimum clearance of 12 inches (305mm)
from the vent termination to the exterior wall. If
you see deposits developing on the wall, you may
need to extend this distance to accommodate your
installation conditions.
Hearth & Home Technologies assumes no responsibility Hearth & Home Technologies assumes no responsibility
for, not does the warranty extend to, smoke damagefor, not does the warranty extend to, smoke damage
caused by reverse drafting of pellet appliances undercaused by reverse drafting of pellet appliances under
shut down or power failure conditions.shut down or power failure conditions.
CAUTION
• DO NOT CONNECT THIS APPLIANCE
TO A CHIMNEY FLUE SERVICING
ANOTHER APPLIANCE.
• DO NOT CONNECT TO ANY AIR DISTRIBUTION
DUCT OR SYSTEM.

16 06/217022-801H
CASTILE INSERT
E. Chimney and Exhaust ConnectionC. Negative Pressure
NOTICE: Hearth & Home Technologies assumes no
responsibility for the improper performance of the
chimney system caused by:
• Inadequate draft due to environmental conditions
• Down drafts
• Tight sealing construction of the structure
• Mechanical exhausting devices
NOTE: Follow venting manufacturers recommendations
for sealing pipe joints.
1. Chimney & Connector: Use 3 or 4 inch (76-102mm)
diameter type “L” or “PL” venting system. It can be
vented vertically or horizontally.
2. Mobile Home: Approved for all Listed pellet vent.
A Quadra-Fire Outside Air Kit must be used with
manufactured home installations.
3. Install vent at clearances specied by the vent
manufacturer.
4. Seal exhaust venting system to the unit with High Temp
500ºF RTV silicone sealant. Secure the venting system
to the unit with at least (3) screws. All pellet vent pipe
must be secured together either by means provided by
the pipe manufacturer or by (3) screws at each joint.
5. DO NOT INSTALL A FLUE DAMPER IN THE EXHAUST
VENTING SYSTEM OF THIS APPLIANCE.
6. DO NOT CONNECT THIS APPLIANCE TO A CHIMNEY
FLUE SERVING ANOTHER APPLIANCE.
NOTE: The appliance exhaust outlet is designed to
accommodate 3 inch venting. Use of 4 inch venting
requires the use of a 3-to-4 inch exhaust vent increaser
in addition to any other venting components needed, sold
separately.
Negative pressure results from the imbalance of air available
for the appliance to operate properly. It can be strongest in
lower levels of the house.
Causes include:
• Exhaust fans (kitchen, bath, etc.)
• Range hoods
• Combustion air requirements for furnaces, water
appliances and other combustion appliances
• Clothes dryers
• Location of return-air vents to furnace or air conditioning
• Imbalances of the HVAC air handling system
• Upper level air leaks such as:
-Recessed lighting
-Attic hatch
-Duct leaks
To minimize the effects of negative air pressure:
• Install the outside air kit with the intake facing prevailing
winds during the heating season
• Ensure adequate outdoor air for all combustion
appliances and exhaust equipment
• Ensure furnace and air conditioning return vents are not
located in the immediate vicinity of the appliance
• Avoid installing the appliance near doors, walkways or
small isolated spaces
• Recessed lighting should be a “sealed can” design
• Attic hatches weather stripped or sealed
• Attic mounted duct work and air handler joints and seams
taped or sealed.
D. Draft
Draft is the pressure difference needed to vent an appliance
successfully. When an appliance is drafting successfully, all
combustion byproducts are exiting the home through the
chimney.
Install through the warm airspace enclosed by the building
envelope. This helps to produce more draft, especially
during lighting and die-down of the re.
Considerations for successful draft include:
• Preventing negative pressure
• Location of appliance and chimney
Risk of Asphyxiation!
Negative pressure can cause spillage of combustion
fumes and soot.
WARNING
USE ONLY RECOMMENDED VENTING COMPONENTS;
OTHERWISE MAKESHIFT PARTS MAY RESULT IN
PROPERTY DAMAGE, PERSONAL INJURY, OR DEATH.
WARNING

17 06/217022-801H
CASTILE INSERT
F. Equivalent Feet of Pipe
The table below can help you calculate the equivalent feet
of pipe which is a method used to determine pellet vent
size (Figure 17.1).
2 ft.
2 ft.
3 ft.
2 ft.
Example of 3 Elbow-Rear Vent Termination Calculation
NOTE: This is a generic example and is not intended to represent any
specic fuel type.
Figure 17.2
3 in. or 4 in. (76mm or
102mm) Diameter Pipe
3 in. or 4 in. (76mm or
102mm) Diameter Pipe
Equivalent Pipe
Length In Feet
Equivalent Pipe
Length In Feet
ALTITUDE IN THOUSANDS OF FEETALTITUDE IN THOUSANDS OF FEET
0
20
30
1 2 3 4 5 6 7 8 9 10
4 in. (102mm) Diameter Pipe Only4 in. (102mm) Diameter Pipe Only
10
Example 1Example 1
Example 2
Example 2
• Example 1: If the equivalent length of pipe is 23 feet
(7m) with altitude of 8,000 feet (2438m) you must use 4
inch (102mm) diameter type “L” or “PL” vent.
• Example 2: If the equivalent length of pipe is 12
feet (3.7m) with altitude of 6,000 feet (1829m) you
may use 3 or 4 inch (76 to 102mm) diameter type
“L” or “PL” vent.
G. Pipe Selection Chart
The chart will help you in determining proper venting
size according to the equivalent feet of pipe calculated
previously and the altitude above sea level of this
installation (Figure 17.2).
1. Locate the calculated equivalent feet of pipe on the
vertical left side of the chart.
2. Move to the right horizontally on the chart until you
reach your altitude above sea level.
3. If you fall below the diagonal line, 3 or 4 inch (76 to
102mm) pipe may be used.
4. If it is anywhere above the diagonal line, a 4 inch
(102mm) diameter pipe is required.
Figure 17.1
Pellet
Venting
Component
# of
Elbows
Feet of
Pipe
Multiplied
By
Equivalent
Feet
Components
Equivalent
Feet
90° Elbow
or Tee 3X 5 15
45° Elbow X3
Horizontal
Pipe 7X1 7
Vertical
Pipe 2X 0.5 1
Total Equivalent Feet 23
NOTICE: A 90° elbow is 5 times as restrictive to the ow
of exhaust gases under positive pressure as
1 foot (305mm) of horizontal pipe. A foot of
horizontal pipe is twice as restrictive as a foot
of vertical pipe.
Vent surfaces get HOT, can cause burns
if touched. Non-combustible shielding or
guards may be required.
WARNING
Risk of Injury or Property Damage.
• Improper installation, adjustment,
alteration, service or maintenance can
cause injury or property damage.
• Refer to the owner’s information manual
provided with this appliance.
• For assistance or additional information
consult a qualied installer, service
agency or your dealer.
WARNING
Risk of Fire!
• Only LISTED venting components may
be used.
• NO OTHER vent components may
be used.
• Substitute or damaged vent components
may impair safe operation.
WARNING

18 06/217022-801H
CASTILE INSERT
NOTE: In Canada, where passage through a wall or
partition of combustible construction is desired,
the installation shall conform to CAN/CSA-B365.
NOTE:
• Illustrations reect typical installations and are FOR
DESIGN PURPOSES ONLY.
• Illustrations/diagrams are not drawn to scale.
• Actual installation may vary due to individual
design preference.
5 Venting Systems
NOTE: In Canada, only a full reline is allowed per ULC
S628-93, ORD ULC C1482-M1990.
A. Direct Connect with Outside Air B. Direct Connect without Outside Air
Outside Air through Rear Wall
Figure 18.1 Figure 18.2
Fire Risk.
Inspection of Chimney:
• Masonry chimney must be in
good condition.
• Meets minimum standard of NFPA 211
• Factory-built chimney must be a minimum
6 inch (152mm) UL103 HT.
WARNING
CAUTION
Never draw outside combustion air from:
• Wall, oor or ceiling cavity
• Enclosed space such as an attic or garage
NOTE:
• Use non-combustible
material around exhaust
vent pipe and seal all
edges with non-ammable
insulation such as
berglass, mineral wool or
ceramic material.
• DO NOT use high
temperature caulking
materials to seal any
edge to prevent future
serviceability.

19 06/217022-801H
CASTILE INSERT
NOTE: In Canada, where passage through a wall or
partition of combustible construction is desired,
the installation shall conform to CAN/CSA-B365.
NOTE:
• Illustrations reect typical installations and are FOR
DESIGN PURPOSES ONLY.
• Illustrations/diagrams are not drawn to scale.
• Actual installation may vary due to individual
design preference.
Figure 19.1
Outside Air through Rear
Wall (Horizontal)
NOTE; Use metal plate around
exhaust vent pipe and seal all
edges with non-flammable insu
-
lation such as , mineral wool or
ceramic.
Do not use high temperature
caulking materials to seal any
edge to prevent future service
-
abilit
y.
C. Full Reline With Outside Air - Horizontal
Fire Risk.
Inspection of Chimney:
• Masonry chimney must be in
good condition.
• Meets minimum standard of NFPA 211
• Factory-built chimney must be a minimum
6 inch (152mm) UL103 HT.
WARNING
CAUTION
Never draw outside combustion air from:
• Wall, oor or ceiling cavity
• Enclosed space such as an attic or garage

20 06/217022-801H
CASTILE INSERT

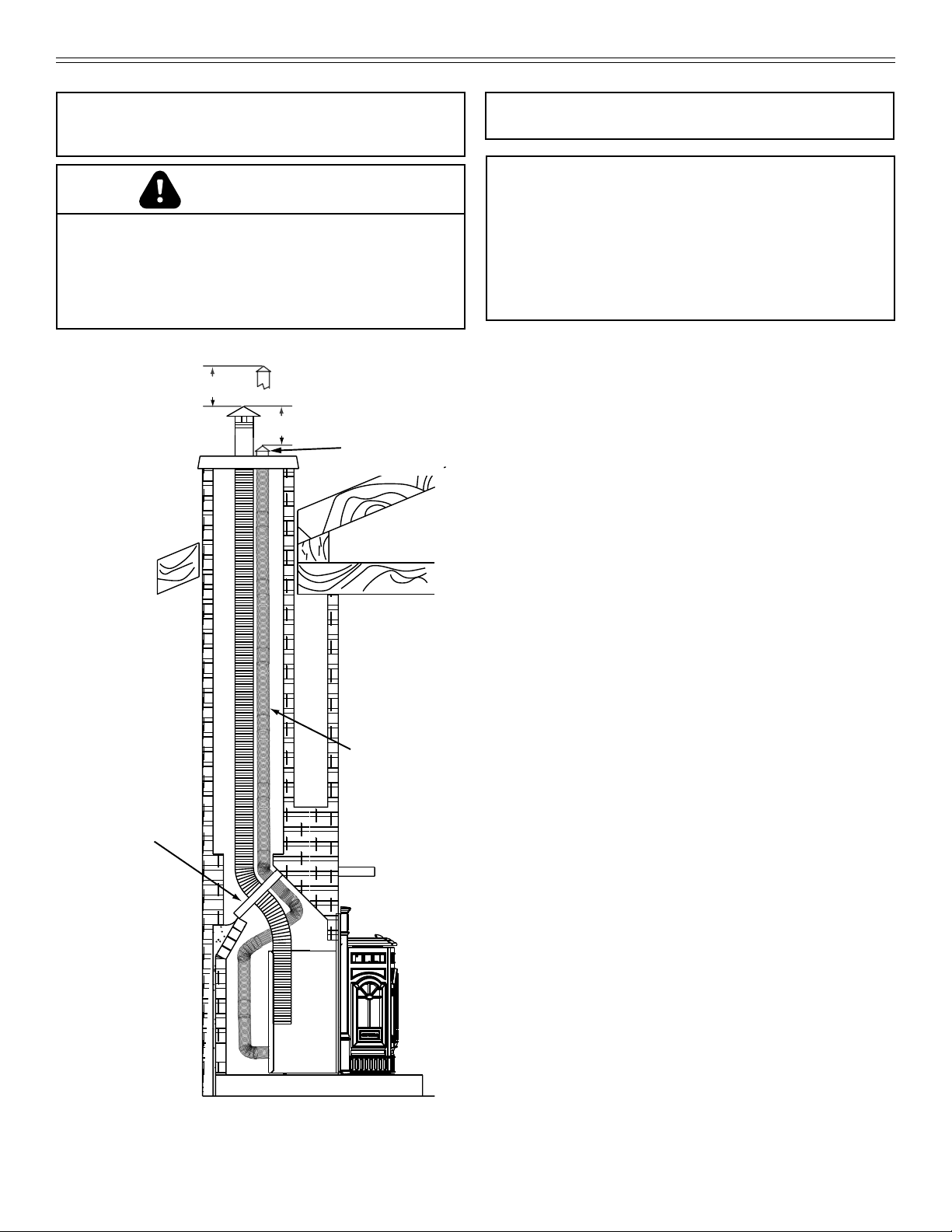

D. Full Reline With Outside Air - Vertical
Figure 20.1
NOTE: Check clearances carefully for this type of
installation to ensure adequate room for outside
air venting.
NOTE: In Canada, only a full reline is allowed per ULC
S628-93, ORD ULC C1482-M1990.
NOTE: In Canada this replace insert must be installed
with a continuous chimney liner extending from
the replace insert to the top of the chimney.
The chimney liner must conform to the Class
3 requirements of CAN/ULC-S635, Standard
for Lining Systems for Existing Masonry or
Factory-Built Chimneys and Vents, or CAN/
ULC-S640, Standard for Lining Systems for
New Masonry Chimneys.
Outside Air Pipe
Outside Air
Termination at
Chimney Top
12” (305mm)
min. below
12” (305mm)
min. above
NOTE: Use metal
plate around
exhaust vent pipe
and seal all edges
with non-flammable
insulation such as
mineral wool or
ceramic.
Do not use high
temperature caulk-
ing materials to seal
any edge to prevent
future serviceability
Check building codes prior to installation.
• Installation MUST comply with local, regional, state
and national codes and regulations.
• Consult local building, re ofcials or authorities
having jurisdiction about restrictions, installation
inspection, and permits.
CAUTION
