Quadra-Fire TREKKERI-MBK User manual

101/217082-153K
R
TREKKER INSERT PELLET
APPLIANCE
MODEL(S):
TREKKERI-MBK
TREKKERI-PMH
TREKKERI-TWL
Installation Manual
Installation & Appliance Set-Up
INSTALLER: Leave this manual with party responsible for use and operation.
OWNER: Retain this manual for future reference.
NOTICE: DO NOT DISCARD THIS MANUAL
Installation and service of this appliance should be performed by
qualified personnel. Hearth & Home Technologies recommends
HHT Factory Trained or NFI certified professionals.
If the information in these instructions is
not followed exactly, a re could result
causing property damage, personal injury,
or death.
• Do not store or use gasoline or other ammable vapors
and liquids in the vicinity of this or any other appliance.
• Do not over re - If appliance or chimney connector
glows, you are over ring. Over ring will void
your warranty.
• Comply with all minimum clearances to combustibles
as specied. Failure to comply may cause house re.
NOTE: To obtain a French translation of this manual,
please contact your dealer or visit www.quadrare.com
REMARQUE : Pour obtenir une traduction française de
ce manuel, s’il vous plaît contacter votre revendeur ou
visitez www.quadrare.com
Check building codes prior to installation.
• Installation MUST comply with local, regional, state
and national codes and regulations.
• Consult local building, re o󰀩cials or authorities
having jurisdiction about restrictions, installation
inspection, and permits.
CAUTION
WARNING
HOT SURFACES!
Glass and other surfaces are hot during
operation AND cool down. Hot glass will
cause burns.
• Do not touch glass until it is cooled
• NEVER allow children to touch glass
• Keep children away
• CAREFULLY SUPERVISE children in same room
as replace.
• Alert children and adults to hazards of high temperatures
• High temperatures may ignite clothing or other
ammable materials.
• Keep clothing, furniture, draperies and other ammable
materials away.
WARNING
Tested and approved for wood pellets only. Burning of
any other type of fuel voids your warranty.
CAUTION

201/217082-153K
TABLE OF CONTENTS
Safety Alert Key:
• DANGER! Indicates a hazardous situation which, if not avoided will result in death or serious injury.
• WARNING! Indicates a hazardous situation which, if not avoided could result in death or serious injury.
• CAUTION! Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
• NOTICE: Indicates practices which may cause damage to the appliance or to property.
Quadra-Fire is a registered trademark of Hearth & Home Technologies.
1 Important Safety Information
A. Appliance Certication . . . . . . . . . . . . . . . . . . . . . . . . . .3
B. BTU & E󰀩ciency Specication....................3
C. Glass Specications............................4
D. Electrical Rating...............................4
E. Mobile Home Approved .........................4
F. Non-Combustible Materials ......................4
G. Combustible Materials ..........................4
H. Sleeping Room ...............................4
I. California - Prop65..............................4
2 Getting Started
A. Design, Installation & Location Considerations .......5
B. Tools And Supplies Needed ......................6
C. Inspect Appliance and Components ...............6
D. Install Checklist ...............................7
3 Dimensions and Clearances
A. Appliance Dimensions ..........................8
B. Clearance to Combustibles, US & CAN.............9
C. Masonry Chimney and Fireplace Clearances .......10
D. Minimum Opening for Masonry & ZC Fireplaces.....10
E. Hearth Extension . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
F. Floor Protection ..............................11
G. Installation into a Factory-Built Fireplace...........11
H. Installation into a Masonry Fireplace ..............12
I. Prefabricated Metal Chimney ....................12
4 Vent Information
A. Venting Termination Minimum Requirements........13
B. Avoiding Smoke and Odors .....................14
C. Negative Pressure ............................15
D. Draft . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
E. Chimney and Exhaust Connection................15
F. Equivalent Feet of Pipe.........................16
G. Pipe Selection Chart ..........................16
5 Venting Systems
A. Full Reline wit Outside Air - Horizontal.............17
B. Full Reline with Outside Air - Vertical ..............17
C. Direct Connect with Outside Air ..................18
D. Direct Connect without Outside Air ...............18
6 Appliance Set-Up
A. Leveling System..............................19
B. Outside Air Kit Instructions ......................19
C. Removal of Cast Sides ........................19
D. Surround & Cast Trim Set ......................20
E. Surround & Basic Trim Set......................20
F. Optional Log Set Instructions . . . . . . . . . . . . . . . . . . . .21
G. Installation of Bluetooth Key ....................21
H. Power to Appliance and User Interface . . . . . . . . . . . .22
I. Location & Mounting of User Interface .............22
7 Mobile Home Installation ......................23
8 Reference Materials
A. Service & Maintenance Log .....................24
B. Accessory List ...............................26
 = Contains updated information


301/217082-153K
A. Appliance Certication B. BTU & E󰀩ciency Specication
Model Trekker Insert Pellet Appliance
Laboratory OMNI Test Laboratories, Inc.
Report
Number. 061-S-84-2
Type Solid Fuel Room Appliance, Pellet Fuel
Burning Type
Standard ASTM E1509-12, ULC-S628-93 and
(UM) 84-HUD, Mobile Home Approved.
FCC
Complies with Part 15 of FCC Rules.
Operation is subject to the following two
conditions: (1) this device may not cause
harmful interference, and (2) this device
must accept any interference received,
including interference that may cause
undesired operation.
This pellet appliance needs periodic inspection and repair
for proper operation. It is against federal regulations to
operate this pellet appliance in a manner inconsistent with
the operating instructions in the owner’s manual.
Approved for ZC reboxes.
Emissions Report
Number: 0061PS094E
EPA Certication
Number: Number: 98-17
EPA Certied Emissions: 0.74 grams per hour
*LHV Tested E󰀩ciency: 83.2%
**HHV Tested E󰀩ciency: 77.9%
***EPA BTU Output: 12,700 to 39,400 / hr.
****BTU Input: 16,400 to 50,800 / hr.
Vent Size: 3” or 4” Type “L” or “PL”
Hopper Capacity: 52 lbs.
Fuel Premium Wood Pellets
*Weighted average LHV (Low Heating Value) e󰀩ciency
using data collected during EPA emissions tests.
*Weighted average HHV (High Heating Value) e󰀩ciency
using data collected during EPA emissions tests.
***A range of BTU outputs calculated using HHV e󰀩ciency
and the burn rates from the EPA tests.
****Based on the maximum feed rate per hour multiplied
by approximately 8600 BTU’s which is the average BTU’s
from a pound of pellets.
‡ Grade of pellet fuel as certied by Pellet Fuels Institute
(PFI), ENPlus or CANplus.
NOTICE: This installation must conform with local codes.
In the absence of local codes you must comply with the
ASTM E1509-12, ULC S628-93, (UM) 84-HUD and
ULC/ORD-C-1482.
The Trekker insert is Certied to comply with
2020 particulate emission standards.
11 Important Safety Information

401/217082-153K
WARNING
C. Glass Specications
This appliance is equipped with 5mm ceramic glass.
Replace glass only with 5mm ceramic glass. Please contact
your dealer for replacement glass.
D. Electrical Rating
115 VAC, 60 Hz, Start 2.9 Amps, Run 2.45 Amps
E. Mobile Home Approved
• This appliance is approved for mobile home installations
when not installed in a sleeping room and when an
outside combustion air inlet is provided.
• The structural integrity of the mobile home oor, ceiling,
and walls must be maintained.
• The appliance must be properly grounded to the frame
of the mobile home and use only Listed pellet vent
Class “L” or “PL” connector pipe.
• Outside Air Kit, part OAK-3 must be installed in a mobile
home installation.
F. Non-Combustible Materials
Material which will not ignite and burn, composed of any
combination of the following:
- Steel
- Plaster
- Brick
- Iron
- Concrete
- Tile
- Glass
- Slate
Materials reported as passing ASTM E 136, Standard Test
Method for Behavior of Metals, in a Vertical Tube Furnace
of 750° C.
G. Combustible Materials
Material made of/or surfaced with any of the
following materials:
- Wood
- Compressed Paper
- Plant Fibers
- Plastic
- Plywood/OSB
- Sheet Rock (drywall)
Any material that can ignite and burn: ame proofed or not,
plastered or non-plastered.
H. Sleeping Room
When installed in a sleeping room it is recommended that
3ft of vertical be installed prior to horizontally exiting the
room and a smoke/CO alarm be installed in the bedroom.
The size of the room must be at least 50ft³ per 1,000 Btu/hr
stove input, if the stove exceeds the room size, out air must
be installed.
I. California - Prop65
WARNING
This product and the fuels used to operate this product (wood), and
the products of combustion of such fuels, can expose you to
chemicals including carbon black, which is known to the State of
California to cause cancer, and carbon monoxide, which is known to
the State of California to cause birth defects or other reproductive
harm. For more information go to: WWW.P65Warnings.ca.gov
Improper installation, adjustment, alteration, service or
maintenance can cause injury or property damage.
For assistance or additional information, consult a qualied
installer, service agency or your dealer.
NOTE: Hearth & Home Technologies, manufacturer of
this appliance, reserves the right to alter its products,
their specications and/or price without notice.
• Installation and use of any damaged appliance.
• Modication of the appliance.
• Installation other than as instructed by Hearth & Home
Technologies.
• Installation and/or use of any component part not
approved by Hearth & Home Technologies.
• Operating appliance without fully assembling
all components.
• Operating appliance without legs attached (if supplied
with appliance).
• Do NOT Over re - If appliance or chimney connector
glows, you are over ring.
Any such action that may cause a re hazard.
Fire Risk
Hearth & Home Technologies disclaims any
responsibility for, and the warranty will be
voided by, the following actions:

501/217082-153K
A. Design, Installation & Location Considerations
Recommended
Location
Marginal
Location
Location
Not
Recommended
Recommended
Location
Location NOT
Recommended
Multi-level Roofs
Windward
Leeward
Outside Air Kit Termination Cap

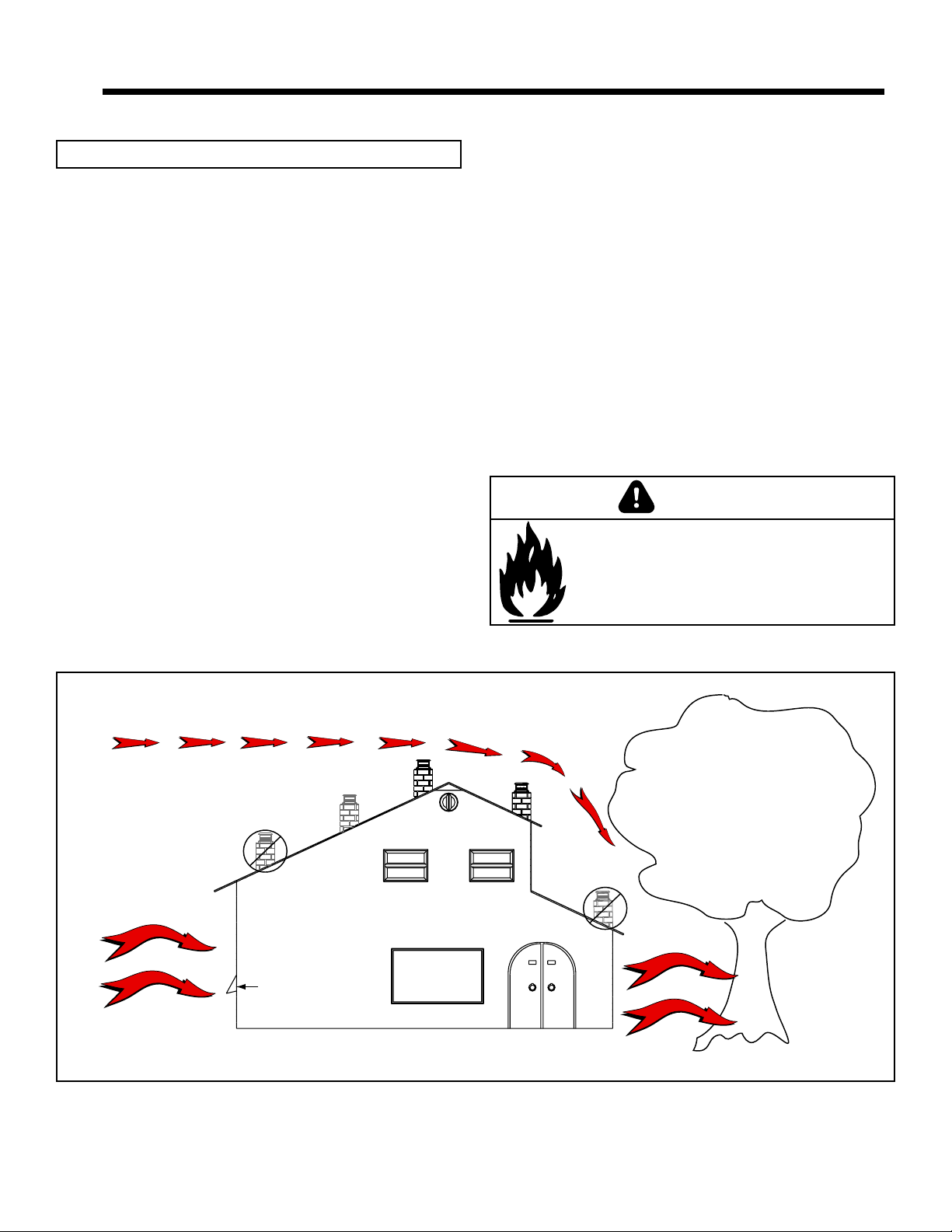

Figure 5.1
NOTICE: Check building codes prior to installation.
1. Appliance Location
• Installation MUST comply with local, regional, state and
national codes and regulations.
• Consult insurance carrier, local building inspector, re
o󰀩cials or authorities having jurisdiction over restrictions,
installation inspection and permits.
It is a good idea to plan your installation on paper, using
exact measurements for clearances and oor protection,
before actually beginning the installation. Location of the
appliance and chimney will a󰀨ect performance.
Consideration must be given to:
• Safety, convenience, tra󰀩c ow
• Placement of the chimney and chimney connector and to
minimize the use of chimney o󰀨sets.
• Place the appliance where there will be a clear passage
for a Listed chimney through the ceiling and roof (vertical)
or through exterior wall (horizontal).
• Installing the required outside air kit will a󰀨ect the location
of the vent termination.
When locating vent and venting termination, the ideal
location is to vent above roof line when possible. This
minimizes the a󰀨ects of wind loading.
22Getting Started
Since pellet exhaust can contain ash, soot or sparks, you
must consider the location of:
• Windows
• Air Intakes
• Air Conditioner
• Overhang, so󰀩ts, porch roofs, adjacent walls
• Landscaping, vegetation
• Horizontal or vertical vent termination
2. Floor Support
The supporting oor under the appliance must be able to
handle the weight of the appliance, fuel load and the weight
of the chimney.
Ensure that your oor will support these weights prior to
installation. Add su󰀩cient additional support to meet this
weight requirement prior to installation. The weight of the
appliance is 510 lbs with a full load of fuel the max weight
is 557 lbs
WARNING
Risk of Fire.
Damaged parts could impair safe operation.
Do NOT install damaged, incomplete or
substitute components.

601/217082-153K
NOTE: Upon removing the appliance from the replace
a tag shall be permanently attached to the replace
indicating it has been altered and should be inspected
by a qualied person prior to re-use as a convectional
replace (tag included in component pack).
B. Tools And Supplies Needed
Tools and building supplies normally required
for installation, unless installing into an existing
masonry replace:
- Reciprocating Saw
- Channel Locks
- Hammer
- Phillips Screwdriver
- Tape Measure
- Plumb Line
- 1/4” Self-Tapping Screws
- Framing Material
- Hi-temp Caulking Material
- Gloves
- Safety Glasses
- Framing Square
- Electric Drill & Bits (1/4”)
- Level
May also need:
Vent Support Straps
Venting Paint
Risk of Fire!
• Damaged parts could impair safe operation.
• Do NOT install damaged, incomplete or
substitute components.
C. Inspect Appliance and Components
• Open the appliance and remove all the parts and articles
packed inside the Component Pack. Inspect all the parts
and glass for shipping damage.
• Report to your dealer any parts damaged in shipment.
• All labels have been removed from the glass door.
• Plated surfaces have been wiped clean with a soft cloth,
if applicable.
• Read all the instructions before starting the
installation. Follow these instructions carefully
during the installation to ensure maximum safety
and benet.
• Follow pipe manufacturer instructions for installation
and air clearance requirements.
WARNING
Hearth & Home Technologies disclaims
any responsibility for, and the warranty
will be voided by, the following actions:
• Installation and use of any damaged appliance.
• Modication of the appliance.
• Installation other than as instructed by Hearth & Home
Technologies.
• Installation and/or use of any component part not
approved by Hearth & Home Technologies.
• Operating appliance without fully assembling
all components.
• Operating appliance without legs attached (if supplied
with appliance).
• Do NOT Over re
Or any such action that may cause a re hazard.
WARNING

701/217082-153K
D. Install Checklist
YES IF NO, WHY?
Verified clearance to combustibles.
Appliance is leveled and connector is secured to appliance.
Hearth extension size/height decided.
Outside air kit installed.
Floor protection requirements have been met.
If appliance is connected to a masonry chimney, it should be cleaned and
inspected by a professional. If installed to a factory built metal chimney, the
chimney must be installed according to the manufacturer’s instructions and
clearances.
Appliance Install
Chimney configuration complies with diagrams.
Chimney installed, locked and secured in place with proper clearance.
Chimney meets recommended height requirements (5 feet minimum vertical).
Roof flashing installed and sealed.
Terminations installed and sealed.
Venting/Chimney
Clearances
Verified all clearances meet installation manual requirements.
Mantels and wall projections comply with installation manual requirements.
Floor protection and heart extensions installed per manual requirements.
Appliance Setup
All protective materials removed.
All labels have been removed from the door.
All packaging materials are removed from inside/under appliance.
Manual bag and all of its contents are removed from inside/under the appliance
and given to the party responsible for use and operation.
WARNING! Risk of Fire or Explosion! Failure to install appliance to these instructions can lead to a fire or
explosion.
Hearth & Home Technologies recommends the following:
Photographing the installation and copying this checklist for your file.
That this checklist remain visible at all times on the appliance until the installation is complete.
Electrical
120 VAC unswitched power provided to the appliance.
Check outlet with multi-meter for proper polarity and voltage (115-120 VAC).
Record voltage reading: _____________
ATTENTION INSTALLER:
Follow this Standard Work Checklist
This standard work checklist is to be used by the installer in conjunction with, not instead of, the instructions contained in this installation manual.
Customer:
Date Installed:
Lot/Address:
Location of Appliance:
Installer:
Dealer/Distributor Phone Number:
Serial Number:
Model Name:
__________________________________________________________________________
______________________________________________________________________
_______________________________________________________________________
________________________________________________________________
___________________________________________________________________________
________________________________________________________
______________________________________________________________________
_______________________________________________________________________
Started appliance and verified that all motors and blowers operate as they should.
Checked draft using a Manometer. Record readings: ______________________
Comments: Further description of the issues, who is responsible (Installer/Builder/Other Trades, ets.) and corrective action needed:
Comments communicated to party responsible __________________________ by ______________________ on ____________
(Builder/Gen. Contractor) (Installer) (Date)
Checked vacuum using a Manometer. Record readings: ____________________

801/217082-153K
Figure 8.3 - Side View with Cast Panel Set
Figure 8.1 - Top View with Cast Panel Set
26-1/4 in [667mm]
14-1/8 in
[359mm]
15 in
[382mm]
13-1/8 in
[333 mm]
36-5/8 in [93 mm]
16-1/4 in
[413mm]
23-7/8 in [606mm]
32 in [814mm]32 in [814mm]
29-3/4 in
[756mm]
23-7/8 in
[605mm]
26-7/8 in [683mm]
11-7/8 in
[302mm]
24-1/8 in
[613mm]
Figure 8.5 - Front View with Basic Surround Panel Set
33 in
[838mm]
50 in [1270mm]
34-1/2 in
[876mm]
45 in [1143mm]
11-3/4 in
[297mm]
18-1/2 in [469mm]
Figure 8.2 - Front View with Cast Panel Set
23-7/8 in [606mm]
32 in [814mm]
26-1/4 in [667mm]
14-1/4 in
[361mm]
15-1/8 in
[384mm]
13 in
[330mm]
36-5/8 in [930mm]
16-3/8 in
[415mm]
Figure 8.4 - Top View with Basic Surround Panel Set
29-3/4 in
[756mm]
23-7/8 in
[605mm]
11-13/16 in
[300mm]
24-1/8 in
[613mm]
26-7/8 in [683mm]
Figure 8.6 - Side View with Basic Surround Set
A. Appliance Dimensions
33Dimensions and Clearances

901/217082-153K
26-7/8 in.**
(683 mm)
19-3/8 in.*
(572 mm)
36 in.
(914 mm)
*If interior of chase will be drywalled, add the
thickness to this measurement.
**From finished floor protection. The size of
your floor protector choice must be added to
this dimension.
Figure 9.1
Built-in Appliance - Rear Vent
NOTE:
• Illustrations reect typical installations and are FOR
DESIGN PURPOSES ONLY.
• Illustrations/diagrams are not drawn to scale.
• Actual installation may vary due to individual
design preference.
B. Clearance to Combustibles, US & CAN
Fire Risk.
• Comply with all minimum clearances to
combustibles as specied.
Failure to comply may cause house re.
WARNING

10 01/217082-153K
Figure 10.2
FIREPLACE FRONT SURFACE
USA 15-1/8
CANADA 15-1/8 (537mm)
41-3/4
1060mm
12in max *
MANTEL
HEARTH EXTENSION
No thermal protection requried,
ember protection only.
C
DA
B
Figure 10.3
Figure 10.1
SIDE TRIM
SIDE WALL
TOP TRIM
18-5/16 in
(465mm)
24-5/16 in
(618mm)
FLOOR PROTECTION
32 (813mm)32 (813mm)
29-3/4 in
(1010mm)
*If mantel depth is 10 inches or less, than the height from
the hearth to the bottom of the mantel is 39-3/4 inches.
Table 10.1
Minimum Opening Dimensions Inches Millimeters
AHeight 24-3/8 619
BFront Width (Steel Panel Set) 32-1/4 819
Front Width (Cast Panel Set) 32-1/4 819
CBack Width 24-1/8 613
DDepth (Steel Panel Set) 16-5/8 422
Depth (Cast Panel Set) 16-1/4 413
D. Minimum Opening for Masonry & ZC Fireplaces
NOTE: Minimum opening dimensions include a 1/4”
(6mm) clearance around unit.
NOTE: If trim measurement is over 3/4 in (19mm) in
depth use mantle or side clearances to combustibles.
C. Masonry Chimney and Fireplace Clearances

11 01/217082-153K

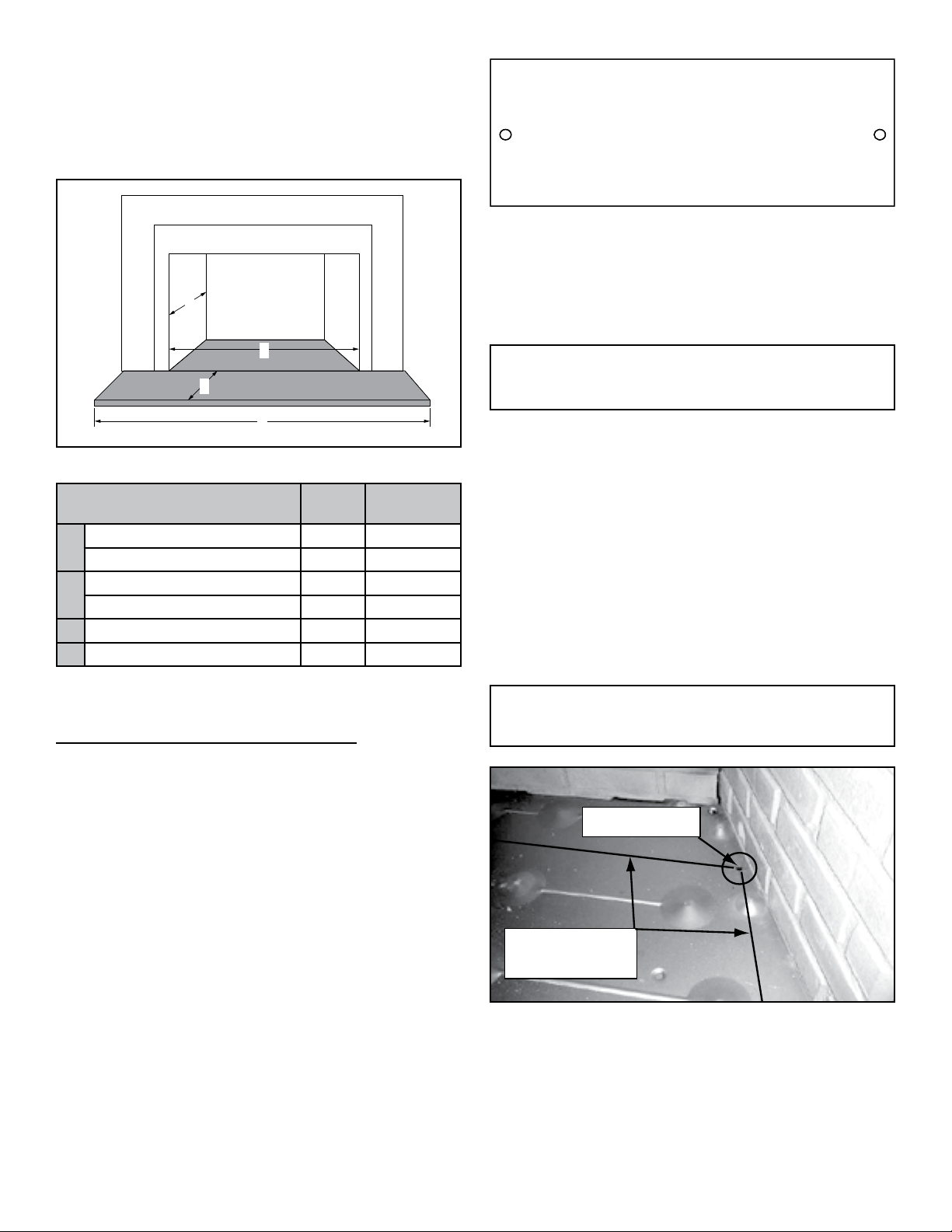

E. Hearth Extension
Use a non-combustible ember oor protector, extending
beneath the appliance and to the front, and to the sides as
indicated in Floor Protection below.
F. Floor Protection
Minimum Floor Protection
Dimensions Inches Millimeters
AFront Width (Steel Panel Set) 32-1/4 819
Front Width (Cast Panel Set) 32-1/4 819
BDepth (Steel Panel Set) 16-5/8 422
Depth (Cast Panel Set) 16-1/4 413
CFloor Protection Depth 15-1/8 384
DFloor Protection Width 32 813
Table 11.1
Figure 11.1
B
C
A
D
WARNING
THIS FIREPLACE MAY HAVE BEEN ALTERED
TO ACCOMMODATE AN INSERT. IT MUST BE
RETURNED TO ITS ORIGINAL CONDITION
BEFORE USE AS A SOLID FUEL BURNING
FIREPLACE. 250-2061
Figure 11.2
G. Installation into a Factory-Built Fireplace
The following modications are permissible:
- Removal of damper or locked in open position
- Removal of smoke shelf or ba󰀪e
- Removal of ember catches
- Removal of re grate
- Removal of view screen/curtain
- Removal of doors
- Removal of factory-built replace oor
• External trim pieces which do not a󰀨ect the operation
of the replace may be removed providing they can be
stored on or within the replace for reassembly if the
insert is removed.
• The permanent metal warning label provided must be
attached to the back of the replace, with screws or
nails, stating that the replace may have been altered
to accommodate the insert, and must be returned to
original condition for use as a conventional replace
(Figure 11.2).
NOTE: Refer to chimney liner manufacturer for
recommendations on supporting the liner. Installation into
replaces without a permit will void the listing.
• The rebrick (refractory), glass doors, screen rails,
screen mesh and log grates can be removed from a
factory-built rebox in order to gain minimum insert
opening requirements.
• Any smoke shelves, shields and ba󰀪es may be removed
from a factory-built rebox if attached with mechanical
fasteners.
• The metal oor of the factory-built rebox may be
removed to facilitate the installation of the insert only
when a 1 inch (25mm) airspace is provided between the
insert and the oor of outer wrap.
The following is only one example as there are many
di󰀨erent models of factory-built replaces.
• If the hearth extension is lower than the replace opening,
the portion of the insert extending onto the hearth must
be supported.
• Manufacturer designed adjustable support kit can be
ordered from your dealer.
NOTE: This example is for reference only. Any
modications must not compromise the structural integrity
or reduce the protection for combustible materials.
Mark area of
floor to cut
Starter hole

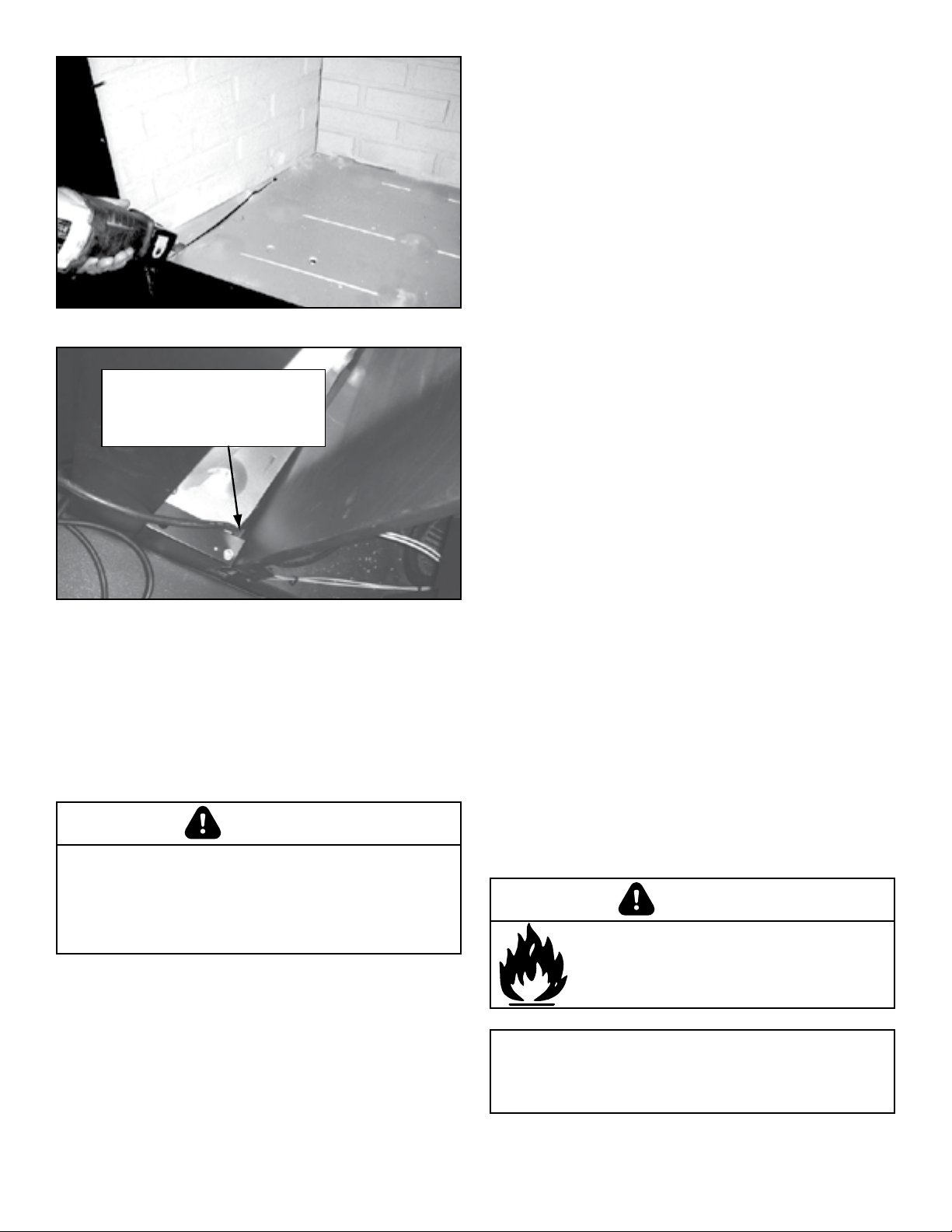

Figure 11.3 - Measure and mark the metal oor for cutting. With a
drill, make a starter hole in each corner.

12 01/217082-153K
NOTICE: In Canada when using a factory-built chimney it
must be safety listed, Type UL103 HT (2100°F) [1149°C]
CLASS “A” or conforming to CAN/ULC-S629M,
STANDARD FOR 650°C FACTORY-BUILT CHIMNEYS.
H. Installation into a Masonry Fireplace
All modications that can be made to a Factory Built Fireplace
can be made to a Masonry Fireplace.
In addition DO NOT remove any brick or mortar from the
existing replace.
I. Prefabricated Metal Chimney
The chimney can be new or existing, masonry or prefabricated
and must meet the following minimum requirements:
- Must be minimum 6 inch (152mm) inside diameter
of high temperature chimney listed to UL 103 HT
(2100°F) or ULC-S628.
- Must use components required by the manufacturer
for installation.
- Must maintain clearances required by the
manufacturer for installation.
- Refer to manufacturers instructions for installation
- This insert is listed to ASTM E 1509-12 Standard
and is approved for installation into listed factory-built
zero clearance replaces listed to UL 127 conforming
to the following specications and instructions:
- The original factory-built clearance replace chimney
cap must be re-installed after installing the approved
chimney liner meeting type UL 103 HT requirements
(2100°F) per UL 1777.
- If the chimney is not listed as meeting HT requirements,
or if the factory built replace was tested prior to 1998,
a full height listed chimney liner must be installed from
the appliance ue collar to the chimney top.
- The liner must be securely attached to the insert ue
collar and the chimney top.
- The air ow of the factory-built zero-clearance
replace system must not be altered. The ue liner
top support attachment must not reduce the air ow
for the existing air-cooled chimney system.
- No dilution air is allowed to enter the chimney.
1. Secure the replace damper in the open position. If this
cannot be accomplished, it will be necessary to remove
the damper.
2. Seal damper area of chimney around chimney connector
with a high temperature sealant or seal insert against the
face of the replace.
3. Both methods must be removable and replaceable for
cleaning and re-installation.
Figure 12.1 - Using a saws-all, cut out the oor.
Keep sharp edge of
metal floor away from
power cord
Figure 12.2 - Place the insert into the factory-built rebox. Ensure
that the power cord can not be damaged by the sharp metal edge.
You may need to cut out a notch to accommodate the cord.
• Removing oor of replace must not weaken structure
of rebox or reduce protection for combustible
materials.
• Final approval of this installation type is contingent
upon the appropriate local authority having jurisdiction.
WARNING
Risk of Fire!
Follow venting manufacturer’s clearances
and instructions when installing venting
system.
WARNING

13 01/217082-153K
A. Venting Termination Minimum Requirements
J or K
X
V
M
I
H
A
V
G
B
V
V
A
B
V
FV
C
B
B
E
L
V
D
V
Electrical
Service
V
N
VN
V
N
N
V
Inside Corner
FIXED
CLOSED
OPEN
OPEN
FIXED
CLOSED
VX
G
G
Termination Cap Air Supply Inlet Gas Meter Restricted Area
O
P
A12 in. Above Finish Grade (the grade surface
must be a non-combustible material
B12 in.
48 in. no OAK
Open door or window: below or to the side
B12 in. Open door or window: above
C6 in. Permanently closed window: above, below
or to the side
D18 in.
36 in. no OAK
Vertical clearance to a ventilated so󰀩 t
located above the terminal within a hori-
zontal distance of 2 ft from the center-line
of the terminal
E12 in. Clearance to unventilated so󰀩 t
F12 in. Clearance to outside corner
G12 in. Clearance to inside corner
H36 in. Above gas meter/regulator measured from
horizontal center-line of regulator
I36 in. USA
72 in. Canada
Clearance to service regulator vent outlet
J12 in.
48 in. no OAK
Clearance to non-mechanical air supply
inlet to the building or the combustions air
inlet to any other appliance
K10 ft horizontal
3 ft vertical
Clearance to mechanical air supply
L7 ft. Above paved sidewalk, paved driveway
located on public property
M12 in. Under an open veranda, porch, deck or
balcony
NSee Note
below*
Electric service: above, below or to the
side (location must not obstruct or interfere
with access)
O24 in. Adjacent building, fences and protruding
parts of the structure
P12 in. Clearance above roof line for vertical
terminations
All minimum clearances are listed with an Outside Air Kit (OAK) installed, unless otherwise noted in table below.
24 in. Above grass, top of plants, wood or any other combus-
tible
12 in.
36 in. no OAK
Clearance from any forced air intake of other appliance
12 in. Clearance horizontally from combustible wall
15 in. Vented directly through a wall, minimum length of
horizontal pipe
6 in. horizontal
12 in. vertical
Minimum horizontal or vertical terminations must pro-
trude from wall
*NOTE: Consult local building,  re o󰀩 cials or authorities
having jurisdiction. Local codes or regulations
may require di󰀨 erent clearances.
NOTICE: Termination must exhaust above air
inlet elevation.
• It is recommended that at least 60 inches (1.52m) of
vertical pipe be installed when appliance is vented
directly through a wall. This will create a natural draft,
which will help prevent the possibility of smoke or
odor venting into the home during a power outage.
• It will also keep exhaust from causing a nuisance
or hazard by exposing people or shrubs to
high temperatures.
• The safest and preferred venting method is to extend
the vent vertically through the roof or above the roof.
NOTICE: Do NOT Terminate Vent:
• In any location that will allow  ue gases or soot from
entering or staining the building.
• In any location which could create a nuisance
or hazard.
• In any enclosed or semi-enclosed area such as a
carport, garage, attic, crawl space, under a sun deck
or porch, narrow walkway.
• Closely fenced area, or any location that can build up
a concentration of fumes such as a stairwell, covered
breezeway, etc.
44Vent Safety Information

14 01/217082-153K
B. Avoiding Smoke and Odors
Negative Pressure, Shut-Down and Electrical
Power Failure
To reduce the probability of back-drafting or burn-back
in the pellet appliance during power failure or shut down
conditions, it must be able to draft naturally without exhaust
blower operation.
Negative pressure in the house will resist this natural draft if
not accounted for in the pellet appliance installation.
Heat rises in the house and leaks out at upper levels. This
air must be replaced with cold air from outdoors which ows
into lower levels of the house.
Vents and chimneys into basements and lower levels of the
house can become the conduit for air supply and reverse
under these conditions.
Outside Air
An outside air kit (OAK-3) is recommended in all installations
and must be ordered separately.
Per national building codes, consideration must be given to
combustion air supply to all combustion appliances. Failure
to supply adequate combustion air for all appliance demands
may lead to back drafting of those and other appliances.
When the appliance is roof vented (strongly recommended):
- The air intake is best located on the exterior wall
oriented towards the prevailing wind direction during
the heating season.
When the appliance is side-wall vented:
- The air intake is best located on the same exterior wall
as the exhaust vent outlet and located lower on the
wall than the exhaust vent outlet.
The outside air supply kit can supply most of the demands of
the pellet appliance, but consideration must be given to the
total house demand.
House demand may consume the air needed for the
appliance. It may be necessary to add additional ventilation
to the space in which the pellet appliance is located.
Consult with your local HVAC professional to determine the
ventilation demands for your house.
Vent Congurations
When installing a pellet appliance with a horizontal vent
conguration the frequency of power outages should
be considered:
• Power outages during operation will cause the appliance
to immediately turn o󰀨 and may create conditions where
smoke will back draft into the house. In order to reduce
the likelihood of smoke back drafting into the house
during a power outage, Hearth and Home Technologies
strongly suggests:
- Installing the pellet venting with a minimum vertical
run of 5 feet (1.52m).
- Installing the outside air kit at least 4 feet (1.22m)
below the vent termination.
To prevent soot damage to exterior walls of the house and
to prevent re-entry of soot or ash into the house:
• Maintain specied clearances to windows, doors and air
inlets, including air conditioners.
• Vents should not be placed below ventilated so󰀩ts. Run
the vent above the roof.
• Avoid venting into alcove locations.
• Vents should not terminate under overhangs, decks or
onto covered porches.
• Maintain minimum clearance of 12 inches (305mm) from
the vent termination to the exterior wall. If you see deposits
developing on the wall, you may need to extend this
distance to accommodate your installation conditions.
• DO NOT CONNECT THIS APPLIANCE TO A CHIMNEY
FLUE SERVICING ANOTHER APPLIANCE.
• DO NOT CONNECT TO ANY AIR DISTRIBUTION
DUCT OR SYSTEM.
CAUTION

15 01/217082-153K
C. Negative Pressure
E. Chimney and Exhaust Connection
1. Chimney & Connector: Use 3 or 4 inch (76-102mm)
diameter type “L” or “PL” venting system. It can be
vented vertically or horizontally.
Negative pressure results from the imbalance of air available
for the appliance to operate properly. It can be strongest in
lower levels of the house.
Causes include:
• Exhaust fans (kitchen, bath, etc.)
• Range hoods
• Combustion air requirements for furnaces, water
appliances and other combustion appliances
• Clothes dryers
• Location of return-air vents to furnace or air conditioning
• Imbalances of the HVAC air handling system
• Upper level air leaks such as:
- Recessed lighting
- Attic hatch
- Duct leaks
To minimize the e󰀨ects of negative air pressure:
• Install the outside air kit with the intake facing prevailing
winds during the heating season
• Ensure adequate outdoor air for all combustion
appliances and exhaust equipment
• Ensure furnace and air conditioning return vents are not
located in the immediate vicinity of the appliance
• Avoid installing the appliance near doors, walkways or
small isolated spaces
• Recessed lighting should be a “sealed can” design
• Attic hatches weather stripped or sealed
• Attic mounted duct work and air handler joints and seams
taped or sealed
D. Draft
Draft is the pressure di󰀨erence needed to vent an appliance
successfully. When an appliance is drafting successfully, all
combustion byproducts are exiting the home through the
chimney.
Install through the warm airspace enclosed by the building
envelope. This helps to produce more draft, especially
during lighting and die-down of the re.
Considerations for successful draft include:
• Preventing negative pressure
• Location of appliance and chimney
NOTICE: Hearth & Home Technologies assumes no
responsibility for the improper performance of the
chimney system caused by:
• Inadequate draft due to environmental conditions
• Down drafts
• Tight sealing construction of the structure
• Mechanical exhausting devices
NOTE: The appliance exhaust outlet is designed to
accommodate 3 inch venting. Use of 4 inch venting
requires the use of a 3-to-4 inch exhaust vent increaser
in addition to any other venting components needed, sold
separately.
NOTE: Follow venting manufacturers recommendations
for sealing pipe joints.
Risk of Asphyxiation!
Negative pressure can cause spillage of combustion
fumes and soot
WARNING
USE ONLY RECOMMENDED VENTING COMPONENTS;
OTHERWISE MAKESHIFT PARTS MAY RESULT IN
PROPERTY DAMAGE, PERSONAL INJURY, OR DEATH.
WARNING
2. Mobile Home: Approved for all Listed pellet vent. If
using the 3 inch (76mm) vertical Top Vent Adapter Kit
or the 3 to 6 inch (76-152mm) Top Vent O󰀨set Adapter,
use Listed double wall ue connector. A Quadra-Fire
Outside Air Kit (OAK-3) must be used with manufactured
home installations.
3. Residential: The 3 inch (76mm) vertical Top Vent
Adapter Kit and the 3 to 6 inch (76-152mm) Top Vent
O󰀨set Adapter are tested to use 24 gauge single wall
ue connector or Listed double wall ue connector to
Class A Listed metal chimneys, or masonry chimneys
meeting International Residential Code standards for
solid fuel appliances.
4. INSTALL VENT AT CLEARANCE SPECIFIED BY THE
VENT MANUFACTURER.
5. Seal exhaust venting system to the unit with High Temp
500ºF RTV silicone sealant. Secure the venting system
to the unit with at least (3) screws. All pellet vent pipe
must be secured together either by means provided by
the pipe manufacturer or by (3) screws at each joint.
6. DO NOT INSTALL A FLUE DAMPER IN THE EXHAUST
VENTING SYSTEM OF THIS APPLIANCE.
7. DO NOT CONNECT THIS APPLIANCE TO A CHIMNEY
FLUE SERVING ANOTHER APPLIANCE.

16 01/217082-153K
F. Equivalent Feet of Pipe
The table below can help you calculate the equivalent feet
of pipe which is a method used to determine pellet vent size
(Figure 16.1).
Example of 3 Elbow-Rear Vent Termination Calculation
Figure 16.1
2 ft.
2 ft.
3 ft.
2 ft.
NOTE: This is a generic example and is not intended to represent any specic fuel type.
Figure 16.2
3 in. or 4 in. (76mm or
102mm) Diameter Pipe
3 in. or 4 in. (76mm or
102mm) Diameter Pipe
Equivalent Pipe
Length In Feet
Equivalent Pipe
Length In Feet
ALTITUDE IN THOUSANDS OF FEETALTITUDE IN THOUSANDS OF FEET
0
20
30
1 2 3 4 5 6 7 8 9 10
4 in. (102mm) Diameter Pipe Only4 in. (102mm) Diameter Pipe Only
10
Example 1Example 1
Example 2
Example 2
Example 1: If the equivalent length of pipe is 23 feet (7m)
with altitude of 8,000 feet (2438m) you must use 4 inch
(102mm) diameter type “L” or “PL” vent.
Example 2: If the equivalent length of pipe is 12 feet (3.7m)
with altitude of 6,000 feet (1829m) you may use 3 or 4 inch
(76 to 102mm) diameter type “L” or “PL” vent.

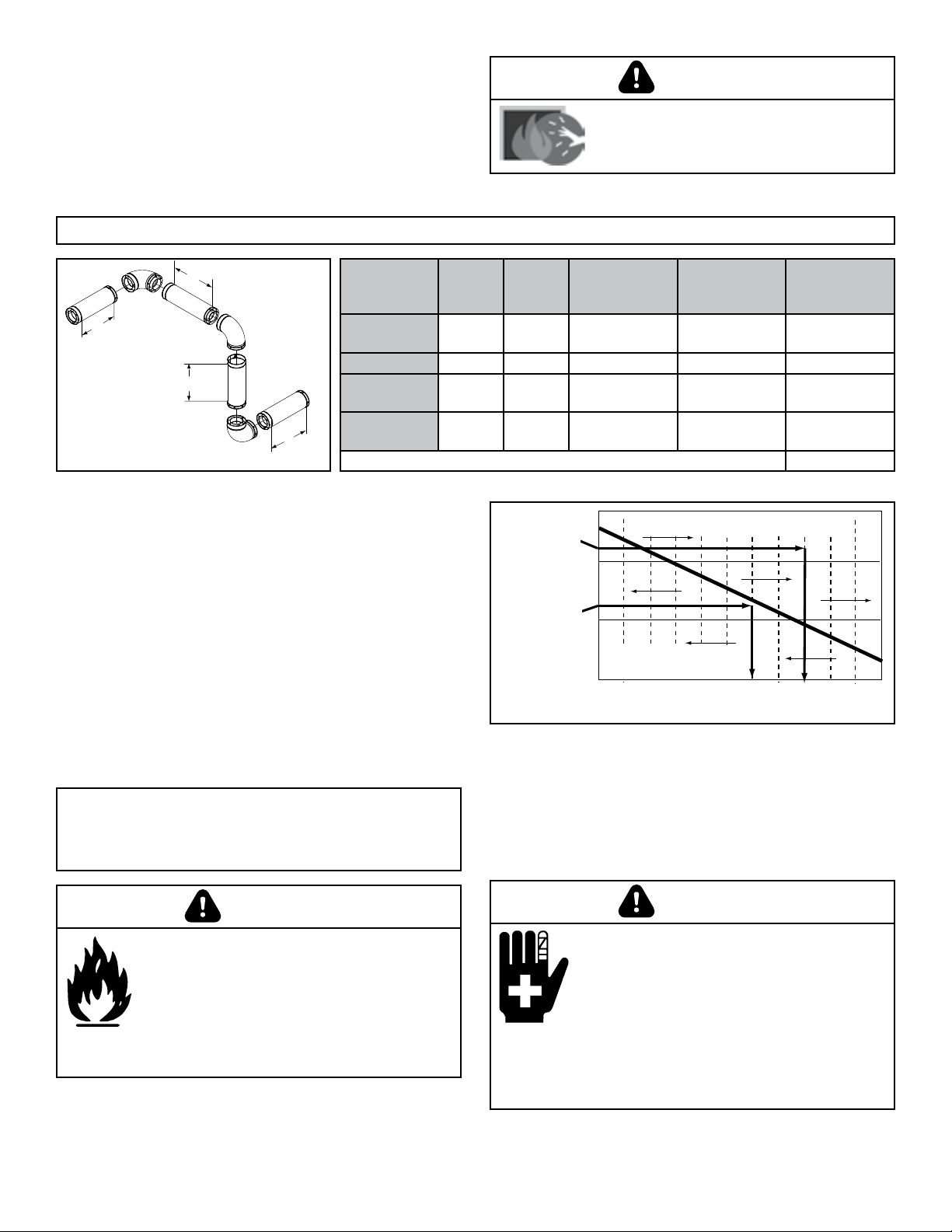

G. Pipe Selection Chart
The chart will help you in determining proper venting size
according to the equivalent feet of pipe calculated previously
and the altitude above sea level of this installation (Figure
16.2).
1. Locate the calculated equivalent feet of pipe on the
vertical left side of the chart.
2. Move to the right horizontally on the chart until you reach
your altitude above sea level.
3. If you fall below the diagonal line, 3 or 4 inch (76 to
102mm) pipe may be used.
4. If it is anywhere above the diagonal line, a 4 inch (102mm)
diameter pipe is required.
NOTICE: A 90° elbow is 5 times as restrictive to the
ow of exhaust gases under positive pressure as 1 foot
(305mm) of horizontal pipe. A foot of horizontal pipe is
twice as restrictive as a foot of vertical pipe.
Pellet
Venting
Component
# of
Elbows
Feet of
Pipe Multiplied By Equivalent Feet
Components
Equivalent
Feet
90° Elbow
or Tee 3X 5 15
45° Elbow X3
Horizontal
Pipe 7X1 7
Vertical
Pipe 2X 0.5 1
Total Equivalent Feet 23
Table 16.1
Vent surfaces get HOT, can cause burns
if touched. Non-combustible shielding or
guards may be required.
WARNING
Risk of Fire!
• Only LISTED venting components may
be used.
• NO OTHER vent components may
be used.
• Substitute or damaged vent components
may impair safe operation.
WARNING
Risk of Injury or Property Damage.
• Improper installation, adjustment,
alteration, service or maintenance can
cause injury or property damage.
• Refer to the owner’s information manual
provided with this appliance.
• For assistance or additional information
consult a qualied installer, service
agency or your dealer.
WARNING

17 01/217082-153K
Figure 17.1
NOTE: Use metal plate around
exhaust vent pipe and seal all
edges with non-flammable
insulation such as fiberglass,
mineral wool or ceramic.
Do not use high temperature
caulking materials to seal any
edge to prevent future
serviceability.
Outside Air
Termination
A. Full Reline with Outside Air - Horizontal
NOTE: In Canada, where passage through a wall or
partition of combustible construction is desired, the
installation shall conform to CAN/CSA-B365
NOTE:
• Illustrations reect typical installations and are FOR
DESIGN PURPOSES ONLY.
• Illustrations/diagrams are not drawn to scale.
• Actual installation may vary due to individual
design preference.
55Venting Systems
Never draw outside combustion air from:
• Wall, oor or ceiling cavity
• Enclosed space such as an attic or garage
CAUTION
Fire Risk.
Inspection of Chimney:
• Masonry chimney must be in good condition.
• Meets minimum standard of NFPA 211
• Factory-built chimney must be a minimum 6
inch (152mm) UL103 HT.
WARNING
NOTE: Check clearances carefully for this type of
installation to ensure adequate room for outside air
venting.

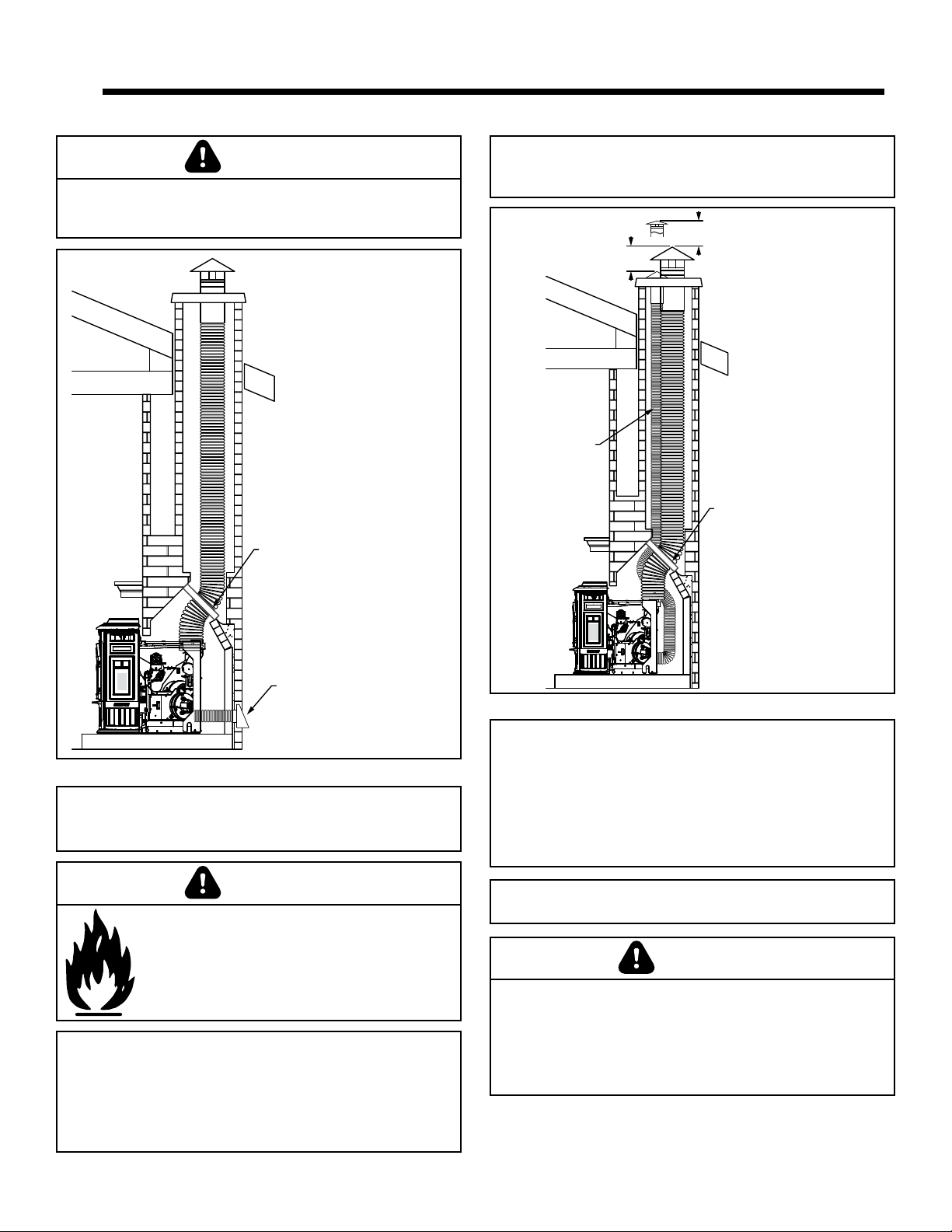

B. Full Reline with Outside Air - Vertical
Figure 17.2
NOTE: Use metal plate
around exhaust vent pipe
and seal all edges with
non-flammable insulation
such as fiberglass, mineral
wool or ceramic.
Do not use high temperature
caulking materials to seal
any edge to prevent future
serviceability.
Outside Air
Termination at
Chimney Top
(Vertical)
12 in [305mm]
min. below
12 in [305mm]
min. below
NOTE: In Canada this replace insert must be installed
with a continuous chimney liner extending from the
replace insert to the top of the chimney. The chimney
liner must conform to the Class 3 requirements of CAN/
ULC-S635, Standard for Lining Systems for Existing
Masonry or Factory-Built Chimneys and Vents, or
CAN/ULC-S640, Standard for Lining Systems for New
Masonry Chimneys.
NOTE: In Canada only a full reline is allowed per ULC
S628, ORD ULC C1482-M1990.
Check building codes prior to installation.
• Installation MUST comply with local, regional, state
and national codes and regulations.
• Consult local building, re o󰀩cials or authorities
having jurisdiction about restrictions, installation
inspection, and permits.
CAUTION

18 01/217082-153K

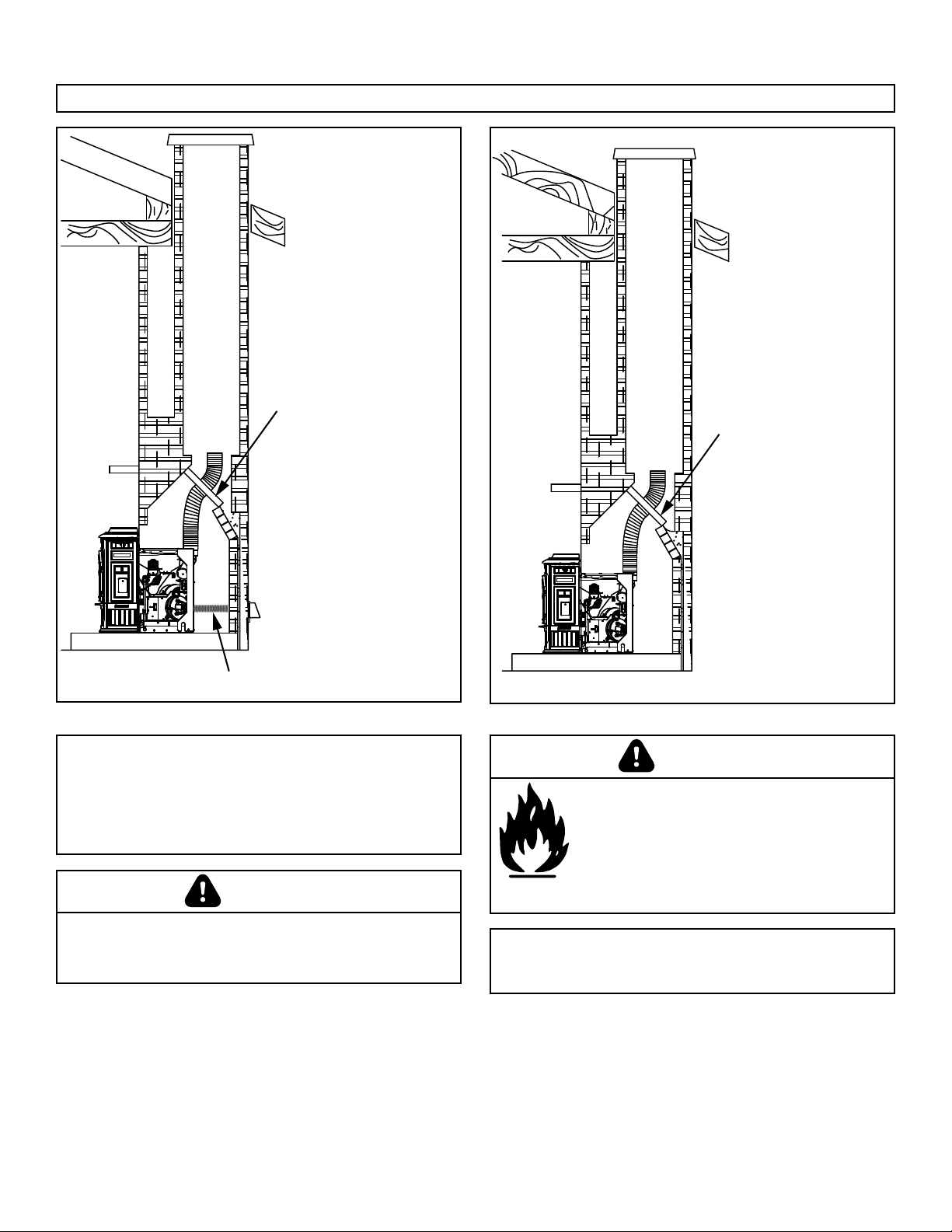

C. Direct Connect with Outside Air D. Direct Connect without Outside Air
NOTE: In Canada, where passage through a wall or
partition of combustible construction is desired, the
installation shall conform to CAN/CSA-B365.
NOTE:
• Illustrations reect typical installations and are FOR
DESIGN PURPOSES ONLY.
• Illustrations/diagrams are not drawn to scale.
• Actual installation may vary due to individual
design preference.
NOTE: In Canada, only a full reline is allowed per ULC S628-93, ORD ULC C1482-M1990.
Figure 18.2
Outside Air through Rear Wall
Note:
• Use metal plate around exhaust vent
pipe and seal all edges with
non-flammable insulation such as
fiberglass, mineral wool or ceramic
material.
• DO NOT use high temperature cauling
materials to seal any edge to prevent
future serviceability
Figure 18.2
Note:
• Use metal plate around exhaust vent
pipe and seal all edges with
non-flammable insulation such as
fiberglass, mineral wool or ceramic
material.
• DO NOT use high temperature cauling
materials to seal any edge to prevent
future serviceability
Never draw outside combustion air from:
• Wall, oor or ceiling cavity
• Enclosed space such as an attic or garage
CAUTION
Fire Risk.
Inspection of Chimney:
• Masonry chimney must be in
good condition.
• Meets minimum standard of NFPA 211
• Factory-built chimney must be a minimum
6 inch (152mm) UL103 HT.
WARNING

19 01/217082-153K
Abaisser le nivellement
Boulons si nécessaire
pour Conserver le
niveau d'insertion Lors
de l'installation.

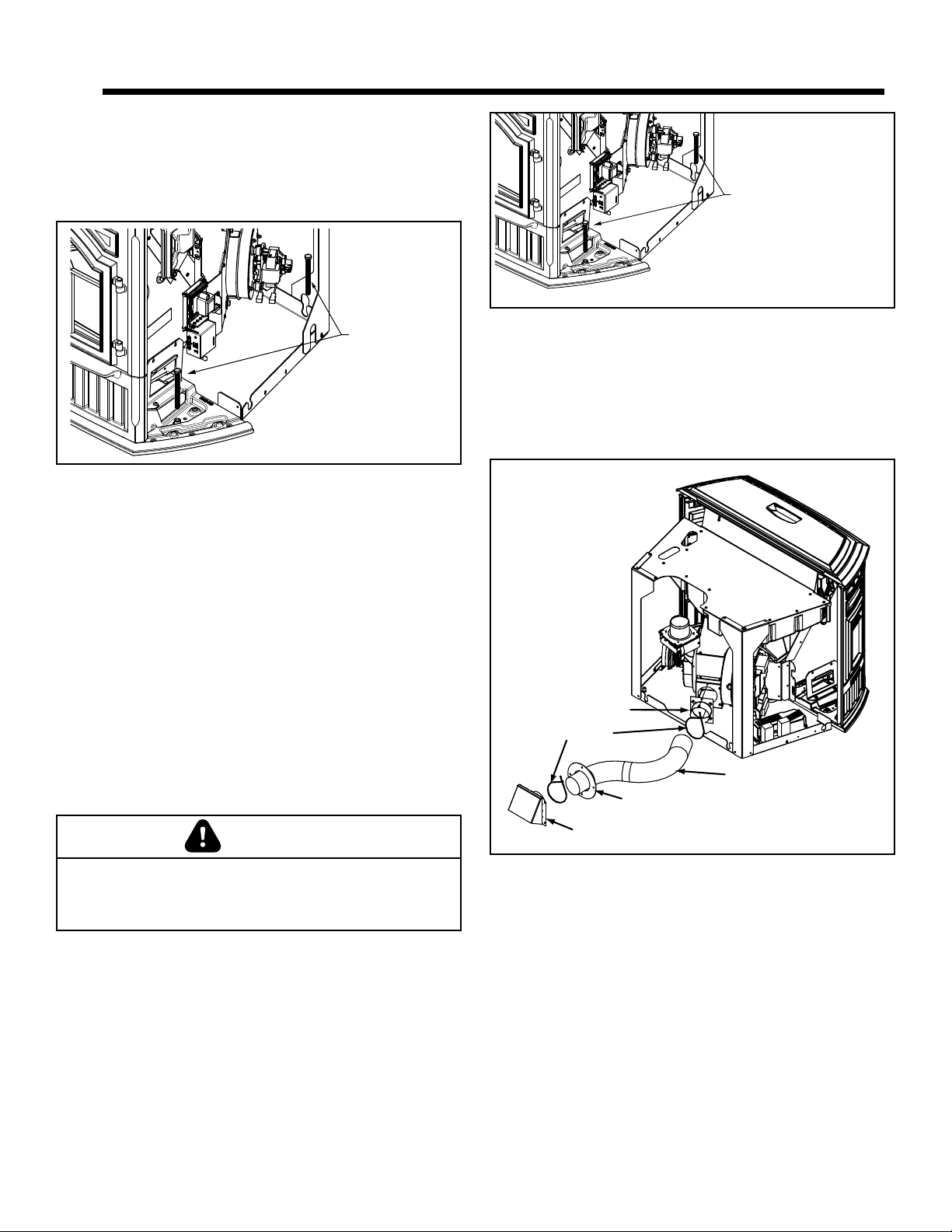

Figure 19.2 - OAK Exploded View
A. Leveling System
The leveling bolts are located on the sides of the appliance,
front and rear. To access the bolts, remove the front access
panels. Reach in and turn the bolt to the desired height to
level the appliance (Figure 19.1).
B. Outside Air Kit Instructions
3 INCH (76mm) ALUMINUM FLEX PIPE NOT INCLUDED
1. Measure distance from oor to air vent opening in
appliance and mark location on wall.
2. Use saw to cut opening in wall. Cut a 3-1/2 to 4 inch
(89-102mm) opening on inside wall and a 4 to 4-1/2 inch
(102-114mm) opening on outside of house.
3. Use wire ties to secure ex pipe to collar assembly.
4. Slide trim ring over ex pipe and run pipe through wall.
5. Attach ex pipe (not included) to outside termination cap
with second wire tie (Figure 19.2).
6. Secure termination cap to outside surface.
7. Secure trim ring to interior wall.
C. Removal of Cast Sides
Remove the cast side by releasing the upper, spring-loaded
latch (Figure 19.3). Access the latch through the upper
panel vent holes. The cast panel should fall forward. Lift it
out of its lower nest and set the panel aside.
66 Appliance Set-Up
Figure 19.1
Lower the leveling
bolts if necessary to
keep the insert level
when installing.
Never draw outside combustion air from:
• Wall, oor or ceiling cavity
• Enclosed space such as an attic or garage
CAUTION
Figure 19.3 - Shown with Cast Panel Set
Collar
Wire Ties
Trim Ring
Termination Cap
3 inch Aluminum Flex
Pipe (not included)

20 01/217082-153K
Shown with trim installed on panel set.
Figure 20.5
Figure 20.4
Back of Top Surround
Back of Side Surround
Screws
Figure 20.3
Figure 20.1
1. Screw panels
together
2. Bend tabs down
1. Screw panels
together
3. Install Cast Trim Header
2. Bend tabs
down
Figure 20.2 - Completed View
D. Surround & Cast Trim Set
1. Remove contents from box being careful not to scratch
or damage the cast trim pieces.
2. Lay the surround set face down on protective covering to
prevent scratching the painted surface.
3. Secure the surround legs to top panel with the
screws provided.
4. Now bend the tabs down toward the backside of the
panel set, 5 on top and 2 on each leg. Leave the panel
set face down (Figure 20.1).
5. Place the corresponding cast trim pieces (2 cast trim
legs and 1 cast trim header) underneath the panel set,
also face down.
6. Place washer provided over tab and secure the trim and
panel together with screw. Continue for all tabs.
7. Secure cast footers with screws.
8. Remove both left and right cast sides from insert
(Figure 20.2).
9. Carefully slide surround and trim over the top of the
insert into place matching the mounting holes on the
panel with the mounting holes on the insert. Secure with
screws provided.
E. Surround & Basic Trim Set
1. Secure the top panel to the surround sides with the
screws provided (Figure 20.3).
2. Assemble the trim with the (2) corner brackets
provided (Figure 20.4).
3. Remove the 2 cast sides and slide the assembled trim over
the assembled surround set (Figure 19.3 on page 19).
4. Carefully slide surround and trim over the top of the
insert into place matching the mounting holes on the
panel with the mounting holes on the insert. Secure with
screws provided (Figure 20.5).
