QUADRA-FIRE 2100 & 4300 MILLENIUM ACC WOOD BURNER INSTALLATION INSTRUCTIONS
INSTALLATIONS TO COMPLY WITH AS/NZS2918:2001
AND WILL REQUIRE A BUILDING CONSENT
IMPORTANT: Read all instructions carefully before starting installation. Failure to follow these
instructions may result in a re hazard and will void the warranty.
• Fig.3,4,5andTable1&2relatetoinstallationswithtesteduesystems;asperAS/NZS 2918:2001 -
Appendix F,withaceilinganglebetween0°-30°inclusive.
• For installations with a ceiling angle greater than 30°, refer to Fig. 6 & 7 and AS/NZS 2918:2001 4.6.3(b)
• CeilingPlatemayvaryinsizedependingonceilingangle.Pleasespecifyceilingpitchpriortoorderingthe
ceilingplate.
• Quadra-Fire2100&4300MilleniumACCwoodburner’saretestedandapprovedtotheN.Z.National
EnvironmentalStandards;
21M-ACC-NZ - 2100 Millenium ACC Softwood Certied
ParticulateEmissions=0.6g/kgSpaceHeatingEfciency=72%
21M-ACC-AU - 2100 Millenium ACC Hardwood Certied
ParticulateEmissions=2.0g/kgSpaceHeatingEfciency=81%
43M-ACC-NZ - 4300 Millenium ACC
SoftwoodParticulateEmissions=0.4g/kgSpaceHeatingEfciency=71%
 HardwoodParticulateEmissions=2.5g/kgSpaceHeatingEfciency=78%
Model:
21M-ACC-NZ
21M-ACC-AU
43M-ACC-NZ

Page 2 7037-141B March 28, 2012
R
2100 & 4300 Millennium ACC Wood Burner
Hearth & Home Technologies welcomes you to our tradition
of excellence! In choosing a Quadra-Fire appliance, you
have our assurance of commitment to quality, durability, and
performance.
This commitment begins with our research of the market,
including ‘Voice of the Customer’ contacts, ensuring we
make products that will satisfy your needs. Our Research
and Development facility then employs the world’s most
advanced technology to achieve the optimum operation of
our stoves, inserts and replaces. And yet we are old-fash-
ioned when it comes to craftsmanship. Each unit is meticu-
lously fabricated and surfaces are hand-nished for lasting
beauty and enjoyment. Our pledge to quality is completed
as each model undergoes a quality control inspection.
We wish you and your family many years of enjoyment in
the warmth and comfort of your hearth appliance. Thank
you for choosing Quadra-Fire.
4300 MILLENNIUM ACC
762mm
383mm
271mm
475mm
373mm
660mm
247mm 330mm
C
L
292mm
527mm
406mm
C
L
L
C
729mm
668mm
170mm
108mm
Outside Air
Connection

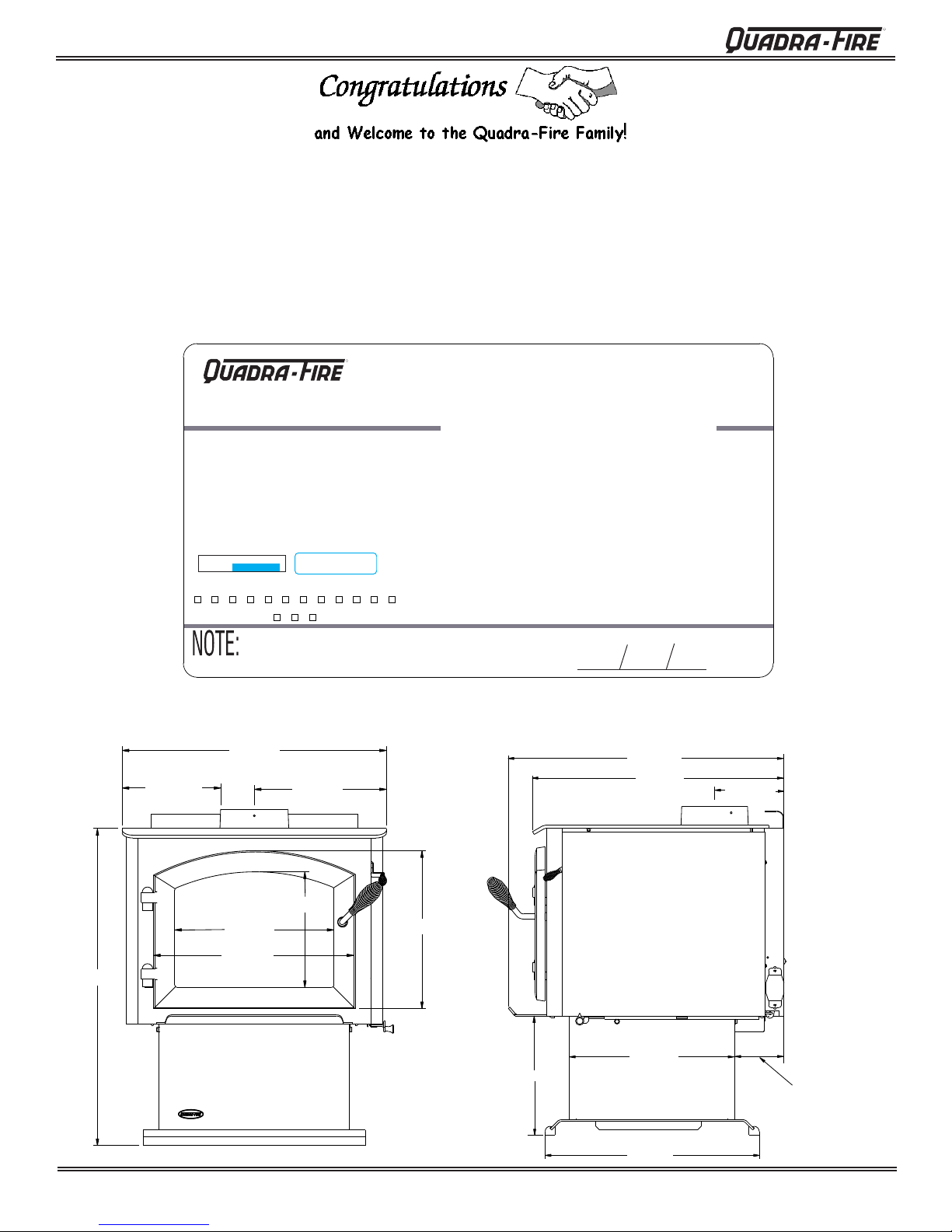

Fig. 2 - Quadra-Fire 4300 Millenium ACC Wood Burner Dimensions
room for .14 x .875”S/N
1.5” x .375 Barcode Label
JAN FEB MAR APR MAY JUN JUL AUG SEP OCT NOV DEC
2012 2013 2014
INSTALLATION
DATE
MILLENNIUM ACC WOODFIRE COMPLIANCE LABEL
R
SERIAL NO.
007037
7037-147
This appliance has been TESTED TO AS/NZS4013 for Softwood by Applied Research Services Ltd. Report # 07/1717 Date tested: November 2007
This appliance has been TESTED TO AS/NZS4013 for Hardwood by HRL Technology Report # HCMG/12/016 Date tested: March 2012
MODEL QUADRA-FIRE 4300 MILLENNIUM ACC
BURN ONLY WOODWITH A MOISTURE CONTENT LESS THEN 25% (dry
basis).
Wetbacks are NOT an approved option and must not be tted.
Hearth & Home Technologies, 1445 North Highway, Colville,WA
99114, United States of America.
OVERALL AVERAGE EFFICIENCY
TESTED TO AS/NZS 4012
AVERAGE PARTICULATE EMISSION FACTOR
TESTED TO AS/NZS 4013
MAXIMUM AVERAGE HEAT OUTPUT
APPROVED FUEL
WETBACK - ALL MODELS
MANUFACTURED BY
PERFORMANCE MAY VARY FROM TEST VALUES DEPENDING ON ACTUAL
OPERATING CONDITIONS.
SOFTWOOD
71%
0.4 g/kg
10 kW
HARDWOOD
78%
2.5 g/kg
11.8 kW
U.S. ENVIRONMENTAL PROTECTION AGENCY
Export stove. May not be operated within the United States.

March 28, 2012 7037-141B Page 3
R2100 & 4300 Millennium ACC Wood Burner
2100 (NZ-SOFTWOOD) MILLENNIUM ACC
709mm
342mm
235mm
432mm
324mm
594mm
219mm 297mm
C
L
C
L
292mm 406mm
C
L108mm
Outside Air
Connection
527mm
671mm
618mm
170mm
Fig. 1 - Quadra-Fire 2100 Millenium ACC Wood Burner Dimensions
room for .14 x .875”S/N
1.5” x .375 Barcode Label
JAN FEB MAR APR MAY JUN JUL AUG SEP OCT NOV DEC
2012 2013 2014
INSTALLATION
DATE
MILLENNIUM ACC WOODFIRE COMPLIANCE LABEL
R
SERIAL NO. / NUMÉRO DE SÉRIE / SERIENUMMER
007036
7039-145C
This appliance has been TESTED TO AS/NZS4013 by Applied Research Services Ltd. Report # 07/1716
Date tested: November 2007
ECan Authorisation Number
083786 ECan Expiry Date 24/10/2013
MODEL QUADRA-FIRE 2100 MILLENNIUM ACC
72%
0.6 g/kg
9 kW
BURN ONLY SOFTWOOD WITH A MOISTURE CONTENT LESS THEN
25% (dry basis).
Wetbacks are NOT an approved option and must not be tted.
Hearth & Home Technologies, 1445 North Highway, Colville,WA
99114, United States of America.
OVERALL AVERAGE EFFICIENCY BURNING SOFTWOOD
WHEN TESTED IN ACCORDANCEWITH AS/NZS 4012
AVERAGE PARTICULATE EMISSION FACTOR BURNING SOFTWOOD
WHEN TESTED IN ACCORDANCEWITH AS/NZS 4013
MAXIMUM AVERAGE HEAT OUTPUT BURNING SOFTWOOD
APPROVED FUEL
WETBACK - ALL MODELS
MANUFACTURED BY
PERFORMANCE MAY VARY FROM TESTVALUES DEPENDING ON ACTUAL
OPERATING CONDITIONS.
U.S. ENVIRONMENTAL PROTECTION AGENCY
Export stove. May not be operated within the United States.
JAN FEB MAR APR MAY JUN JUL AUG SEP OCT NOV DEC
2012 2013 2014
INSTALLATION
DATE
MILLENNIUM ACC WOODFIRE COMPLIANCE LABEL
R
SERIAL NO.
007044
7039-148
This appliance has been TESTED TO AS/NZS4013 for Hardwood by HRL Technology Report # HCMG/12/014 Date tested: March 2012
MODEL QUADRA-FIRE 2100 MILLENNIUM ACC
81%
2.0 g/kg
9.1 kW
BURN ONLY HARDWOODWITH A MOISTURE CONTENT LESS THEN
25% (dry basis).
Wetbacks are NOT an approved option and must not be tted.
Hearth & Home Technologies, 1445 North Highway, Colville,WA
99114, United States of America.
OVERALL AVERAGE EFFICIENCY BURNING HARDWOOD
TESTED TO AS/NZS 4012
AVERAGE PARTICULATE EMISSION FACTOR BURNING HARDWOOD
TESTED TO AS/NZS 4013
MAXIMUM AVERAGE HEAT OUTPUT BURNING HARDWOOD
APPROVED FUEL
WETBACK - ALL MODELS
MANUFACTURED BY
PERFORMANCE MAY VARY FROM TESTVALUES DEPENDING ON ACTUAL
OPERATING CONDITIONS.
U.S. ENVIRONMENTAL PROTECTION AGENCY
Export stove. May not be operated within the United States.
2100 (AU-HARDWOOD) MILLENNIUM ACC

Page 4 7037-141B March 28, 2012
R
2100 & 4300 Millennium ACC Wood Burner
Drawing not to scale
FLOOR PROTECTOR 1.QF.1B

Quadra-fire 2100 & 4300 Millennium ACC do not require a insulating Floor Protector, as they are tested
and comply with the minimum Floor Protector requirements of AS/NZS 2918:2001.

Note:
▪The minimum Floor Protector sizes are specified in the clearance chart, see Table 1 & 2.
▪A Floor Protector can include ceramic tiles with grouted joints fixed directly onto a wooden floor or a
sheet of toughened glass, panel steel or any other non combustible material laid directly onto a
wooden floor.
▪If installed directly onto a concrete slab, the concrete slab can be considered as the floor protector,
but must maintain the minimum measurement listed.




PARALLEL POSITIONING

Fig. 3



A


E
B
F

D




C




G







Ta b l e 1


DESCRIPTION
Pioneer Double Flue Mounted Shield Universal
Shall be Fitted
With Double Flue
Shield Fitted

2100 4300
AMin. clearance from firebox to rear wall 150 200
B Min. clearance from firebox to side wall 550 400
C Min. distance from firebox opening to floor protector front 300 300
DMin. distance from firebox to floor protector side 76 69
EMin. distance from flue centre to side wall 847 730
FMin distance from rear wall to front of floor protector 1034 1133
GWidth of floor protector 746 798


NOTE: HEAT SHIELD REQUIREMENTS FOR HEAT SENSITIVE WALLS
Clearances may be reduced by provision of an appropriately located heat shield refer to
AS/ NZS 2198:2001 3.2.3 Table 3.1
DESCRIPTION
Pioneer Double Flue Mounted Shield Universal
Shall be Fitted
With Double Flue Shield Fitted
2100-NZ 2100-AU 4300
AMin. Clearance from rebox to rear wall 150 160 200
BMin. clearance from rebox to side wall 550 280 400
CMin. distance from rebox opening to oor protector front 300 300 300
DMin. distance from rebox to oor protector side 76 76 69
EMin. distance from ue centre to side wall 847 577 730
FMin. distance from rear wall to front of oor protector 1034 1043 1133
GWidth of oor protector 746 746 798

March 28, 2012 7037-141B Page 5
R2100 & 4300 Millennium ACC Wood Burner
CORNE
R
POSITIONING (45˚)
1.Q
F
.1C

Drawing not to scale




C
Fig. 4



A




D


CA


B

E


F

D









Tab l e 2


DESCRIPTION
Pioneer Double Flue Mounted Shield Universal
Shall be Fitted
With Double Flue
Shield Fitted

2100 4300
AMin. clearance from firebox to corner walls 230 250
B Min. distance from firebox to floor protector front 300 300
C Min. distance from rear wall to front of protector 1280 1380
DMin. floor protector projection from wall 860 910
EMin. overall floor protector depth 1510 1620
FMin floor protector front width 594 660






FIREBOX INSTALLATION



1. If a separate floor protector is being used position now. Place the firebox on the floor protector to
suit the minimum installation clearances. (See Fig 3 or 4).
2. Seismically restrain the firebox and the floor protector to the floor.
3. Fit 2 x 6mm fixings suitable for the floor material. DO NOT over tighten.
4. Fit timber trim pedestal edging to front and back of base (optional).
CORNER POSITIONING (45°)
DESCRIPTION
Pioneer Double Flue Mounted Shield Universal
Shall be Fitted
With Double Flue Shield Fitted
2100-NZ 2100-AU 4300
AMin. clearance from rebox to corner walls 230 210 250
BMin. distance from rebox to oor protector front 300 300 300
CMin. distance from rear wall to oor protector front 1280 1228 1380
DMin. oor protector projection from wall 860 808 910
EMin. overall oor protector depth 1510 1440 1620
FMin. oor protector front width 594 594 660

Page 6 7037-141B March 28, 2012
R
2100 & 4300 Millennium ACC Wood Burner

GENERAL INSTRUCTIONS FOR FLUE SYSTEM 1.QF.1D


▪Flue pipe installed crimp/narrow end down
▪Outer casings installed crimped/narrow end up. (Critical when exposed above the roof)
▪Inner casings - direction not critical
▪Flue pipes - seal all joints including firebox spigot.
- fix with a minimum of 3 stainless steel rivets
▪Flue pipe spacers - affix to flue pipe
▪Flue system termination point - Refer to AS/NZS 2918:2001 4.9.1, see Fig. 9.
▪Flue pipe shall extend not less than 4.6m above top of the floor protector as per
AS/NZS 2918:2001 4.9.1(a)
▪Façade or chase systems - same rule applies as above.
▪Roof penetration and flashing method refer to NZ Building Code E2.(From 01/07/05)


Note: These instructions apply to 150mm diameter flue pipe systems as tested to
AS/NZS 2918:2001


1. Either locate the appliance in position or by measuring at the ceiling mark the flue pipe centre
position. Check that the outer casing is unobstructed through the attic space or roof area.
2. Spike the centre with a nail. Transfer this position to the next surface above. Plumb bob/laser.
3. Cut out the ceiling penetration hole – square or rectangle – short axis equals outer casing
diameter plus 50mm, long axis as required. See Table 5 . Perform the same at the roof
penetration.
4. Frame out the hole with minimum 75 x 50 timber or as required for roofing material. Minimum
requirement at roof penetration see NZ Building Code E2 Acceptable Solution (from 01/07/05).
5. Install the outer casing so that :-
(i) lower end is flush with the underside of the ceiling material and
(ii) with the addition of metal “L” brackets, affix to the outer casing at 90 degrees secure the outer
casing centrally to the ceiling and roof nogs. Alternatively substitute the “L” brackets for 25mm
thick non heat sensitive packers. Secure the outer casing through the packers with horizontal
fixings to the nogs. Refer to the General Instruction for termination height. The option of outer
casing slips to be taken into account.
6. Flash the outer casing to the roof material with the appropriate approved flashing.
7. If using an outer/inner casing combination, now install the inner casing ensuring it extends a
minimum 200mm above the high side of the roof penetration. If not using a combination see ‘11’
below.
8. Refer to Firebox Installation, points 1 & 2.
9. Prepare the ceiling plate and place upside down over the flue spigot.
10.Install the flue pipes by preferred method – either up or down the outer casing. Affix each length
per the notes in General Instructions (above). Extend the flue pipe above the outer
casing to suit the casing cover/cowl assembly.
11. If the inner casing has not been installed, install now. Refer to 7 above for minimum height.
12.Install the cowl assembly, i.e. Top spacer, casing cover and cowl.
13.Position and secure the ceiling plate with the screws and spacers.
14.Wipe the flue pipe to remove finger marks.
15.Refer to Firebox Installation, point 3.
16.If flue offset is required, refer to AS/NZS 2918:2001 4.1

March 28, 2012 7037-141B Page 7
R2100 & 4300 Millennium ACC Wood Burner
FLUE PENETRATION
1.Q
F
.1E

C
L
Drawing not to scale
12


Tested flue systems, as per AS/NZS 2918:2001






Fig. 5 ADD Cowl


Casing Cover

Spider Bracket
oversized casing cover
is necessary

minimum 25mm gap
between flue pipe casing &
combustible material

Non combustible material
Hebel block or 12mm
Promina board or similar
under the flashing



25 25

Approved Flashing

Roof Line

Inner Casing 200mm
above roof line


Outer Casing

Inner Casing

25 Internal Swage




25 25




12.5 
V ented
Ceiling Plate





Pioneer
Double Flue
Shield

Flue Pipe










C
L
C L





Quadra-fire Millennium






Floor
Protector
FLUE PENETRATION

Page 8 7037-141B March 28, 2012
R
2100 & 4300 Millennium ACC Wood Burner

150
FLUE PENETRATION 1.QF.1F


Un-tested flue systems, as per AS/NZS 2918:2001, 4.6.3(b)



Fig. 6


AS/NZS2918:2001

Un-tested flue with sloped ceiling
penetration greater than 30° from
horizontal

A = 25mm

4.6.3(b)
Fig 4.6 = downward distance of
casing and 3 x ø flue distance of
the ceiling plate
ADD Cowl


Casing Cover

Spider Bracket



Approved Flashing





A
Ceiling Plate

Batten
A







3 x Ø flue pipe

Ceiling

flue pipe
Ø







Fig. 7
ADD Cowl
AS/NZS2918:2001

Un-tested flue with sloped ceiling
penetration greater than 30° from
horizontal

A = 25mm

4.6.3(b)
Fig 4.6 = 3 x ø flue from active flue
to heat sensitive surface

Casing Cover

Spider Bracket




Approved Flashing



A
Ceiling Plate

Batten
A










Ceiling
flue pipe
Ø

March 28, 2012 7037-141B Page 9
R2100 & 4300 Millennium ACC Wood Burner

PIONEER DOUBLE FLUE SHIELD FITTING INSTRUCTIONS 1.QF.1G

1. Unpack the Flue Mounted Shield, detach the three brackets and familarize yourself with the
illustrations.

2. Using a sharp knife or razor blade, carefully cut through the plastic film on the “inside face” where
it meets the outer shield (refer sketch). Cut along the full length of the Flue Mounted Shield on
both side, then peel off and fully remove the plastic film from the stainless steel inner shield.

3. Peel back and fully remove the plastic film from the outer shield.

4. Fit the top bracket to the Flue Mounted Shield as illustrated ensuring the rear mid section of the
bracket fits “outside” while the two outer sections of the bracket fit “inside”.

5. Fit the appropriate lower bracket to your woodfire.

Lower Bracket “5B suitable for all other woodfires without an inner rear heatshield.
On certain model woodfires without a raised flue spigot it will be necessary to cut off both the
lower outer legs from the bracket “5B” leaving the entral tongue to locate inside the flue outlet
only.

Two tabs are provided and if folded back at 90 degrees the bracket and Flue Mounted Shield will
mount lower onto the appliance.

The Flue Mounted Shield then locates into the two notches provided n bracket “5B” as illustated.

6. Once the Flue Mounted Shield is fitted in position onto either of the two lower mounting brackets,
check to ensure a large gap is not present between the top of the woodfire and the base of the
Flue Mounted Shield, as this may result in a hot spot on the rear wall directly behind the flue
outlet. If your woodfire has a lift off top grill the Flue Mounted Shield should be raised sufficiently
to enable the top grill to be removed.

7. Using the pre-punched holes in the two tabs provided on the top bracket as guides, drill into the
flue pipe and secure the top bracket to the flue pipe with two stainless steel rivets (not supplied).


MINIMUM HEIGHT OF FLUE SYSTEM EXIT

As per AS/NZS 2918:2001 4.9.1 Fig 4.9


Fig. 8






3000
3000
or less
More than
3000



600 min.

3000

increase from 1000mm
minimum until clear within
3000mm of flue
top




increase as necessary
until nothing within
3000mm of flue
top

Any nearby
structure

Page 10 7037-141B March 28, 2012
R
2100 & 4300 Millennium ACC Wood Burner

AS/NZS 2918:2001 General Notes 1.QF.1H




WARNINGS:

WARNING: THE APPLIANCE AND FLUE SYSTEM SHALL BE INSTALLED IN ACCORDANCE WITH
AS/NZS 2918 AND THE APPROPRIATE REQUIREMENTS OF THE RELEVANT BUILDING CODE OR
CODES.

WARNING: APPLIANCES INSTALLED IN ACCORDANCE WITH THIS STANDARD SHALL COMPLY WITH
THE REQUIREMENTS OF AS/NZS 4013 WHERE REQUIRED BY THE REGULATORY AUTHORITY, I.E.
THE APPLIANCE SHALL BE
IDENTIFIABLE BY A COMPLIANCE PLATE WITH THE MARKING ‘TESTED
TO AS/NZS 4013’.

ANY MODIFICATION OF THE APPLIANCE THAT HAS NOT BEEN APPROVED IN WRITING BY THE
TESTING AUTHORITY IS CONSIDERED TO BE IN BREACH OF THE APPROVAL GRANTED FOR
COMPLIANCE WITH AS/NZS 4013.

CAUTION: MIXING OF APPLIANCE OR FLUE SYSTEM COMPONENTS FROM DIFFERENT SOURCES
OR MODIFYING THE DIMENSIONAL SPECIFICATION OF COMPONENTS MAY RESULT IN HAZARDOUS
CONDITIONS. WHERE SUCH ACTION IS CONSIDERED, THE MANUFACTURER SHOULD BE
CONSULTED IN THE FIRST INSTANCE.

CAUTIONS: CRACKED AND BROKEN COMPONENTS, e.g. GLASS PANELS OR CERAMIC TILES, MAY
RENDER THE INSTALLATION UNSAFE.

WARNING: ANY MODIFICATION OF THE APPLIANCE THAT HAS NOT BEEN APPROVED IN WRITING
BY THE TESTING AUTHORITY IS CONSIDERED AS BREACHING AS/NZS 4013.

WARNING: DO NOT USE FLAMMABLE LIQUIDS OR AEROSOLS TO START OR REKINDLE THE
FIRE.

WARNING: DO NOT USE FLAMMABLE LIQUIDS OR AEROSOLS IN THE VICINITY OF THIS
APPLIANCE WHEN ITS OPERATING.

WARNING: DO NOT STORE FUEL WITHIN HEATER INSTALLATION CLEARANCES.

WARNING: FOR OPTIMUM PERFORMANCE FUEL MUST BE LOADED SO THE LOGS LAY “FRONT TO
REAR” IN PREFERENCE TO LAYING ACROSS THE WIDTH OF THE FIREBOX. SPACES SHOULD BE
LEFT BETWEEN THE LOGS TO ENABLE OXYGEN TO GET TO AS MUCH OF THE SURFACE OF THE
FUEL AS POSSIBLE.

CAUTION: THIS APPLIANCE SHOULD BE MAINTAINED AND OPERATED AT ALL TIMES IN ACCORDANCE
WITH THESE INSTRUCTIONS.

CAUTION: THE USE OF SOME TYPES OF PRESERVATIVE-TREATED WOOD AS A FUEL CAN BE
HAZARDOUS.











▪AUCKLAND

12 Tawari Street, Mt. Eden Ph: 09 623 6990 Fax: [phone]
▪HAMILTON Cnr Alexandra & Hood Street’s Ph: 07 839 7146 Fax: [phone]
▪WELLINGTON Upper Level, 34-56 Thorndon Quay Ph: 04 473 7207 Fax: [phone]
▪CHRISTCHURCH 54 Mandeville Street, Riccarton Ph: 03 348 8011 Fax: [phone]
▪
Du N e DiN 477 Princes Street Ph: 03 479 0041 Fax: [phone]


March 28, 2012 7037-141B Page 11
R2100 & 4300 Millennium ACC Wood Burner
Homeowner Notes:

Page 12 7037-141B March 28, 2012
R
2100 & 4300 Millennium ACC Wood Burner
Service And Maintenance Log
Date of Service Performed By Description of Service

March 28, 2012
7037-141B
Page 13
Date purchased/installed:
Serial Number: Location on appliance:
Dealership purchased from: Dealer phone:
Notes:
We recommend that you record the following pertinent
information for your 2100 or 4300 MILLENNIUM ACC STOVE
DO NOT DISCARD THIS MANUAL
CAUTION
• Important operating and
maintenance instruc-
tions included.
• Leave this manual with
party responsible for use
and operation.
• Read, understand and
follow these instruc-
tions for safe installa-
tion and operation.
DO NOT
DISCARD
Please contact your Quadra-Fire dealer with any questions or concerns.
For the number of your nearest Quadra-Fire dealer
logo onto www.quadrare.com
CONTACT INFORMATION:
