Page 1 7033-308D March 4, 2015
QUADRA-FIRE 3100 SERIES ACC WOOD BURNER INSTALLATION INSTRUCTIONS
QUADRA-FIRE 3100 SERIES ACC WOOD BURNER INSTALLATION INSTRUCTIONS
INSTALLATIONS TO COMPLY WITH AS/NZS2918:2001
AND WILL REQUIRE A BUILDING CONSENT
IMPORTANT: Read all instructions carefully before starting installation. Failure to follow these
instructions may result in a fire hazard and will void the warranty.
• Fig. 3,4,5,6, 7 and Table 1,2,3,4 relate to installations with tested flue systems; as per AS/NZS 2918:2001 -
Appendix F, with a ceiling angle between 0° - 30° inclusive.
• For installations with a ceiling angle greater than 30°, refer to Fig. 7 & 8 and AS/NZS 2918:2001 4.6.3(b)
• Ceiling Plate may vary in size depending on ceiling angle. Please specify ceiling pitch prior to ordering the
ceiling plate.
• Quadra-Fire 3100 series ACC wood burner’s are tested and approved to the N.Z. National Environmental
Standards;
31M-ACC-AU 3100 Millenium Hardwood Certified
31LE-ACC-AU 3100 Limited Edition Hardwood Certified
31ST-ACC-AU 3100 Step Top Hardwood Certified
Particulate Emissions = 1.4 g/kg Space Heating Efficiency = 71%
Model:
31M-ACC-AU Model: 31ST-ACC-AU Model: 31LE-ACC-AU

Page 2 7033-308D March 4, 2015
3100 Series ACC Wood Burner
Hearth & Home Technologies welcomes you to our tradition
of excellence! In choosing a Quadra-Fire appliance, you
have our assurance of commitment to quality, durability, and
performance.
This commitment begins with our research of the market,
including ‘Voice of the Customer’ contacts, ensuring we
make products that will satisfy your needs. Our Research
and Development facility then employs the world’s most
advanced technology to achieve the optimum operation of
our stoves, inserts and fireplaces. And yet we are old-fash-
ioned when it comes to craftsmanship. Each unit is meticu-
lously fabricated and surfaces are hand-finished for lasting
beauty and enjoyment. Our pledge to quality is completed
as each model undergoes a quality control inspection.
We wish you and your family many years of enjoyment in
the warmth and comfort of your hearth appliance. Thank
you for choosing Quadra-Fire.
and Welcome to the Quadra-Fire Family!
3100 Series ACC
JAN FEB MAR APR MAY JUN JUL AUG SEP OCT NOV DEC
2015 2016 2017
INSTALLATION
DATE
QUADRA-FIRE WOODFIRE COMPLIANCE LABEL
R
SERIAL NO.
007050
7033-309
This appliance has been TESTED TO AS/NZS4013 for Hardwood by HRL Technology Report # HCMG/12/043A Date tested: May 2012
MODEL QUADRAFIRE 3100 SERIES ACC FREESTANDING WOOD STOVE
71%
1.4 g/kg
7.1 kW
BURN ONLY HARDWOOD WITH A MOISTURE CONTENT LESS THEN
25% (dry basis).
Wetbacks are NOT an approved option and must not be tted.
Hearth & HomeTechnologies, 1445 North Highway, Colville,WA
99114, United States of America.
OVERALL AVERAGE EFFICIENCY BURNING HARDWOOD
WHEN TESTED IN ACCORDANCE TO AS/NZS 4012
AVERAGE PARTICULATE EMISSION FACTOR BURNING HARDWOOD
WHEN TESTED IN ACCORDANCE TO AS/NZS 4013
MAXIMUM AVERAGE HEAT OUTPUT BURNING HARDWOOD
APPROVED FUEL
WETBACK - ALL MODELS
MANUFACTURED BY
PERFORMANCE MAY VARY FROM TEST VALUES DEPENDING ON ACTUAL
OPERATING CONDITIONS.
U.S. ENVIRONMENTAL PROTECTION AGENCY
Export stove. May not be operated within the United States.
Millenium Step Top

March 4, 2015 7033-308D Page 3
3100 Series ACC Wood Burner
Quadra-Fire 3100 Millenium ACC Wood Burner Dimensions
616 mm
533 mm
254 mm 457 mm
273 mm
397 mm
379 mm
484 mm
749 mm
90 mm
25 mm
499 mm
406 mm
677 mm46 mm
Quadra-Fire 3100 Limited Edition ACC Wood Burner Dimensions
978mm
1320mm
641mm
454mm
387mm
508mm
564mm
170mm
618mm
677mm

Page 4 7033-308D March 4, 2015
3100 Series ACC Wood Burner
DESCRIPTION
Pioneer Double Flue Mounted Shield Universal
Shall be Fitted
With Double Flue
Shield Fitted
A Min. Clearance from back of unit to rear wall 175mm
B Min. clearance from center of spigot to rear wall 345mm
C Min. distance from front of base to floor protector front 300mm
D Min. floor protector front width 800mm
E Min. distance from rear wall to front of floor protector 1062mm
F Min. distance from unit side to side wall 360mm
G Min. clearance from center of spigot to side wall 668mm
Quadra-fire 3100 Millenium and 3100 LE ACC produdcts do not require a insulating Floor Protector,
as they are tested and comply with the minimum Floor Protector requirements of AS/NZS 2918:2001.
Note:
▪The minimum Floor Protector sizes are specified in the clearance chart, see Table 1 & 2.
▪A Floor Protector can include ceramic tiles with grouted joints fixed directly onto a wooden floor or
a sheet of toughened glass, panel steel or any other non combustible material laid directly onto a
wooden floor.
▪If installed directly onto a concrete slab, the concrete slab can be considered as the floor
protector,but must maintain the minimum measurement listed.
FLOOR PROTECTOR - 31M and 31LE
PARALLEL POSITIONNG - 31M and 31LE
NOTE: HEAT SHIELD REQUIREMENTS FOR HEAT SENSITIVE WALLS
Clearances may be reduced by provision of an appropriately located heat shield refer to
AS/NZS 2198:2001 3.2.3 TABLE 3.1
Table 1
Fig. 3
FLOOR PROTECTOR
B
C
D
F
EA
G
REAR WALL
SIDE WALL
REAR WALL

March 4, 2015 7033-308D Page 5
3100 Series ACC Wood Burner
CORNER POSITIONING (45°)
DESCRIPTION
Pioneer Double Flue Mounted Shield Universal
Shall be Fitted
With Double
Flue Shield
Fitted
A Min. clearance from firebox corner to corner walls 225mm
B Min. distance from center of spigot to corner walls 532mm
C Min. distance from corner wall to floor protector front 1322mm
D Min. floor protector projection from corner wall 756mm
E Min. floor protector front width 800mm
F Min. overall floor protector depth 1469mm
CORNER POSITIONING (45°) - 31M and 31LE
Table 2
Fig. 4
FIREBOX INSTALLATION
1. If a separate floor protector is being used position now. Place the firebox on the floor protector to
suit the minimum installation clearances. (See Fig 3 or 4).
2. Seismically restrain the firebox and the floor protector to the floor.
3. Fit 2 x 6mm fixings suitable for the floor material. DO NOT over tighten.
4. Fit timber trim pedestal edging to front and back of base (optional).
A
B
D
E
F
C
FLOOR PROTECTOR
CORNER WALL
CORNER WALL

Page 6 7033-308D March 4, 2015
3100 Series ACC Wood Burner
Quadra-Fire 31 Step Top ACC Wood Burner Dimensions
678mm
618mm
391mm
292mm
406mm
527mm
870mm
635mm
318mm
237mm C
L
457mm
606mm
841mm
194mm
537mm
264mm
170mm
89mm
C
L

March 4, 2015 7033-308D Page 7
3100 Series ACC Wood Burner
DESCRIPTION
Pioneer Double Flue Mounted Shield Universal
Shall be Fitted
With Double Flue
Shield Fitted
A Min. Clearance from back of unit to rear wall 175mm
B Min. clearance from center of spigot to rear wall 345mm
C Min. distance from front of base to floor protector front 300mm
D Min. floor protector front width 800mm
E Min. distance from rear wall to front of floor protector 1062mm
F Min. distance from unit side to side wall 325mm
G Min. clearance from center of spigot to side wall 633mm
Quadra-fire 3100 Step Top ACC does not require a insulating Floor Protector, as they are tested and
comply with the minimum Floor Protector requirements of AS/NZS 2918:2001.
Note:
▪The minimum Floor Protector sizes are specified in the clearance chart, see Table 3 & 4.
▪A Floor Protector can include ceramic tiles with grouted joints fixed directly onto a wooden floor or
a sheet of toughened glass, panel steel or any other non combustible material laid directly onto a
wooden floor.
▪If installed directly onto a concrete slab, the concrete slab can be considered as the floor
protector,but must maintain the minimum measurement listed.
FLOOR PROTECTOR - 31 Step Top
PARALLEL POSITIONNG - 31 Step Top
NOTE: HEAT SHIELD REQUIREMENTS FOR HEAT SENSITIVE WALLS
Clearances may be reduced by provision of an appropriately located heat shield refer to
AS/NZS 2198:2001 3.2.3 TABLE 3.1
Table 3
Fig. 5
FLOOR PROTECTOR
B
C
D
F
EA
G
REAR WALL
SIDE WALL
REAR WALL

Page 8 7033-308D March 4, 2015
3100 Series ACC Wood Burner
CORNER POSITIONING (45°)
DESCRIPTION
Pioneer Double Flue Mounted Shield Universal
Shall be Fitted
With Double
Flue Shield
Fitted
A Min. clearance from firebox corner to corner walls 130mm
B Min. distance from center of spigot to corner walls 437mm
C Min. distance from corner wall to floor protector front 1227mm
D Min. floor protector projection from corner wall 661mm
E Min. floor protector front width 800mm
F Min. overall floor protector depth 1335mm
CORNER POSITIONING (45°) - 31 Step Top
Table 4
Fig. 6
FIREBOX INSTALLATION
1. If a separate floor protector is being used position now. Place the firebox on the floor protector to
suit the minimum installation clearances. (See Fig 5 or 6).
2. Seismically restrain the firebox and the floor protector to the floor.
3. Fit 2 x 6mm fixings suitable for the floor material. DO NOT over tighten.
4. Fit timber trim pedestal edging to front and back of base (optional).
A
B
D
E
F
C
FLOOR PROTECTOR
CORNER WALL
CORNER WALL

March 4, 2015 7033-308D Page 9
3100 Series ACC Wood Burner

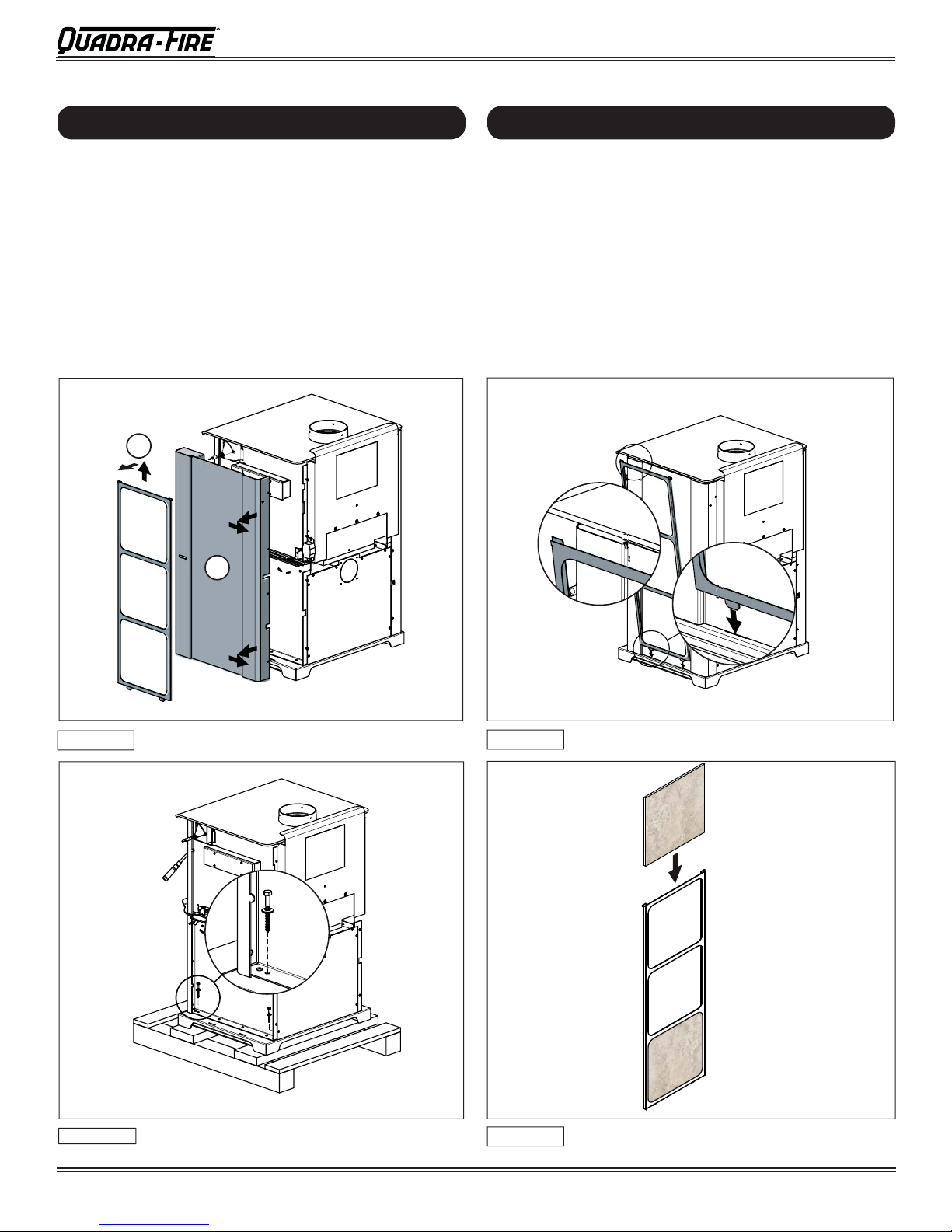

3100 Limited Edition Special Instructions
REMOVING FROM PALLET
1
2
1. Remove Tile frames from both sides by lifting
up and away. (Fig. 14.3)
2. Remove both side panels using a phillips
screwdriver to remove 4 screws on back (Fig.
14.1)
3. Using a 11mm socket or wrench, remove 4
wood lag bolts located in corners of pedestal
base. (Fig. 14.2)
4. Lift stove off of pallet and reassemble sides.
Fig.14.1
Fig.14.2
DECORATIVE TILE INSTALLATION
1. Remove Tile frames from sides by lifting up
and pulling away from stove.(Fig. 14.3)
2. Stack tiles in tile frame as shown (Fig. 14.4)
3. Reattach Tile Frames.
Fig.14.3
Fig.14.4

Page 10 7033-308D March 4, 2015
3100 Series ACC Wood Burner
▪Flue pipe installed crimp/narrow end down
▪Outer casings installed crimped/narrow end up. (Critical when exposed above the roof)
▪Inner casings - direction not critical
▪Flue pipes - seal all joints including firebox spigot.
- fix with a minimum of 3 stainless steel rivets
▪Flue pipe spacers - affix to flue pipe
▪Flue system termination point - Refer to AS/NZS 2918:2001 4.9.1, see Fig. 9.
▪Flue pipe shall extend not less than 4.6m above top of the floor protector as per
AS/NZS 2918:2001 4.9.1(a)
▪Façade or chase systems - same rule applies as above.
▪Roof penetration and flashing method refer to NZ Building Code E2.(From 01/07/05)
Note: These instructions apply to 150mm diameter flue pipe systems as tested to
AS/NZS 2918:2001
1. Either locate the appliance in position or by measuring at the ceiling mark the flue pipe centre position.
Check that the outer casing is unobstructed through the attic space or roof area.
2. Spike the centre with a nail. Transfer this position to the next surface above. Plumb bob/laser.
3. Cut out the ceiling penetration hole – square or rectangle – short axis equals outer casing diameter
plus 50mm, long axis as required. See Table 5 . Perform the same at the roof penetration.
4. Frame out the hole with minimum 75 x 50 timber or as required for roofing material. Minimum
requirement at roof penetration see NZ Building Code E2 Acceptable Solution (from 01/07/05).
5. Install the outer casing so that :-
(i) lower end is flush with the underside of the ceiling material and
(ii) with the addition of metal “L” brackets, affix to the outer casing at 90 degrees secure the outer
casing centrally to the ceiling and roof nogs. Alternatively substitute the “L” brackets for 25mm thick
non heat sensitive packers. Secure the outer casing through the packers with horizontal fixings to
the nogs. Refer to the General Instruction for termination height. The option of outer casing slips to
be taken into account.
6. Flash the outer casing to the roof material with the appropriate approved flashing.
7. If using an outer/inner casing combination, now install the inner casing ensuring it extends a minimum
200mm above the high side of the roof penetration. If not using a combination see ‘11’ below.
8. Refer to Firebox Installation, points 1 & 2.
9. Prepare the ceiling plate and place upside down over the flue spigot.
10. Install the flue pipes by preferred method – either up or down the outer casing. Affix each length
per the notes in General Instructions (above). Extend the flue pipe above the outer
casing to suit the casing cover/cowl assembly.
11. If the inner casing has not been installed, install now. Refer to 7 above for minimum height.
12. Install the cowl assembly, i.e. Top spacer, casing cover and cowl.
13. Position and secure the ceiling plate with the screws and spacers.
14. Wipe the flue pipe to remove finger marks.
15. Refer to Firebox Installation, point 3.
16. If flue offset is required, refer to AS/NZS 2918:2001 4.1
GENERAL INSTRUCTIONS FOR FLUE SYSTEM

March 4, 2015 7033-308D Page 11
3100 Series ACC Wood Burner
C
L
Drawing not to scale
12
Tested flue systems, as per AS/NZS 2918:2001
Fig. 5 ADD Cowl
Casing Cover
Spider Bracket
oversized casing cover
is necessary
minimum 25mm gap
between flue pipe casing &
combustible material
Non combustible material
Hebel block or 12mm
Promina board or similar
under the flashing
25 25
Approved Flashing
Roof Line
Inner Casing 200mm
above roof line
Outer Casing
Inner Casing
25 Internal Swage
25 25
12.5
V ented
Ceiling Plate
Pioneer
Double Flue
Shield
Flue Pipe
C
L
C L
Quadra-fire Millennium
Floor
The flue crimp must be cut so the swage
(half-moon bulge after the crimp) fits
tightly into the spigot.
FLUE PENETRATION
Fig. 7

Page 12 7033-308D March 4, 2015
3100 Series ACC Wood Burner

150
FLUE PENETRATION 1.QF.1F


Un-tested flue systems, as per AS/NZS 2918:2001, 4.6.3(b)



Fig. 6


AS/NZS2918:2001

Un-tested flue with sloped ceiling
penetration greater than 30° from
horizontal

A= 25mm

4.6.3(b)
Fig 4.6 = downward distance of
casing and 3 x ø flue distance of
the ceiling plate
ADD Cowl

Casing Cover

Spider Bracket


Approved Flashing





A
Ceiling Plate

Batten
A







3 x Ø flue pipe

Ceiling

flue pipe
Ø







Fig. 7
ADD Cowl
AS/NZS2918:2001

Un-tested flue with sloped ceiling
penetration greater than 30° from
horizontal
A = 25mm
4.6.3(b)
Fig 4.6 = 3 x ø flue from active flue
to heat sensitive surface

Casing Cover

Spider Bracket




Approved Flashing



A
Ceiling Plate
Batten
A










Ceiling flue pipe
Ø
Fig. 8
Fig. 9

March 4, 2015 7033-308D Page 13
3100 Series ACC Wood Burner
1. Unpack the Flue Mounted Shield, detach the three brackets and familarize yourself with the illustra-
tions.
2. Using a sharp knife or razor blade, carefully cut through the plastic film on the “inside face” where
it meets the outer shield (refer sketch). Cut along the full length of the Flue Mounted Shield on both
side, then peel off and fully remove the plastic film from the stainless steel inner shield.
3. Peel back and fully remove the plastic film from the outer shield.
4. Fit the top bracket to the Flue Mounted Shield as illustrated ensuring the rear mid section of the
bracket fits “outside” while the two outer sections of the bracket fit “inside”.
5. Fit the appropriate lower bracket to your woodfire.
Lower Bracket “5B suitable for all other woodfires without an inner rear heatshield. On certain model
woodfires without a raised flue spigot it will be necessary to cut off both the lower outer legs from the
bracket “5B” leaving the entral tongue to locate inside the flue outlet only.
Two tabs are provided and if folded back at 90 degrees the bracket and Flue Mounted Shield will
mount lower onto the appliance.
The Flue Mounted Shield then locates into the two notches provided n bracket “5B” as illustated.
6. Once the Flue Mounted Shield is fitted in position onto either of the two lower mounting brackets,
check to ensure a large gap is not present between the top of the woodfire and the base of the Flue
Mounted Shield, as this may result in a hot spot on the rear wall directly behind the flue outlet. If your
woodfire has a lift off top grill the Flue Mounted Shield should be raised sufficiently to enable the top
grill to be removed.
7. Using the pre-punched holes in the two tabs provided on the top bracket as guides, drill into the
flue pipe and secure the top bracket to the flue pipe with two stainless steel rivets (not supplied).
GENERAL INSTRUCTIONS FOR FLUE SYSTEM
MINIMUM HEIGHT OF FLUE SYSTEM EXIT
Fig. 8
3000
3000
or less More than
3000
600 min.
3000
increase as necessary
until nothing within
3000mm of flue
top
Any nearby
structure
increase from 1000mm
minimum until clear within
3000mm of flue top
Fig. 10

Page 14 7033-308D March 4, 2015
3100 Series ACC Wood Burner
WARNINGS:
WARNING: THE APPLIANCE AND FLUE SYSTEM SHALL BE INSTALLED IN ACCORDANCE
WITH AS/NZS 2918 AND THE APPROPRIATE REQUIREMENTS OF THE RELEVANT BUILDING
CODE OR CODES.
WARNING: APPLIANCES INSTALLED IN ACCORDANCE WITH THIS STANDARD SHALL
COMPLY WITH THE REQUIREMENTS OF AS/NZS 4013 WHERE REQUIRED BY THE REGULA-
TORY AUTHORITY, I.E. THE APPLIANCE SHALL BE IDENTIFIABLE BY A COMPLIANCE PLATE
WITH THE MARKING ‘TESTED TO AS/NZS 4013’.
ANY MODIFICATION OF THE APPLIANCE THAT HAS NOT BEEN APPROVED IN WRITING BY
THE TESTING AUTHORITY IS CONSIDERED TO BE IN BREACH OF THE APPROVAL GRANTED
FOR COMPLIANCE WITH AS/NZS 4013.
CAUTION: MIXING OF APPLIANCE OR FLUE SYSTEM COMPONENTS FROM DIFFERENT
SOURCES OR MODIFYING THE DIMENSIONAL SPECIFICATION OF COMPONENTS MAY
RESULT IN HAZARDOUS CONDITIONS. WHERE SUCH ACTION IS CONSIDERED, THE MAN-
UFACTURER SHOULD BE CONSULTED IN THE FIRST INSTANCE.
CAUTIONS: CRACKED AND BROKEN COMPONENTS, e.g. GLASS PANELS OR CERAMIC TILES,
MAY RENDER THE INSTALLATION UNSAFE.
WARNING: ANY MODIFICATION OF THE APPLIANCE THAT HAS NOT BEEN APPROVED IN
WRITING BY THE TESTING AUTHORITY IS CONSIDERED AS BREACHING AS/NZS 4013.
WARNING: DO NOT USE FLAMMABLE LIQUIDS OR AEROSOLS TO START OR REKIN-
DLE THE FIRE.
WARNING: DO NOT USE FLAMMABLE LIQUIDS OR AEROSOLS IN THE VICINITY OF THIS
APPLIANCE WHEN ITS OPERATING.
WARNING: DO NOT STORE FUEL WITHIN HEATER INSTALLATION CLEARANCES.
WARNING: FOR OPTIMUM PERFORMANCE FUEL MUST BE LOADED SO THE LOGS LAY
“FRONT TO REAR” IN PREFERENCE TO LAYING ACROSS THE WIDTH OF THE FIREBOX.
SPACES SHOULD BE LEFT BETWEEN THE LOGS TO ENABLE OXYGEN TO GET TO AS MUCH
OF THE SURFACE OF THE FUEL AS POSSIBLE.
CAUTION: THIS APPLIANCE SHOULD BE MAINTAINED AND OPERATED AT ALL TIMES IN
ACCORDANCE WITH THESE INSTRUCTIONS.
CAUTION: THE USE OF SOME TYPES OF PRESERVATIVE-TREATED WOOD AS A FUEL CAN BE
HAZARDOUS.
AS/NZS 2918:2001 General Notes

March 4, 2015 7033-308D Page 15
3100 Series ACC Wood Burner
AUSTRALIAN WARRANTY INFORMATION
Hearth & Home Technologies Inc (HHT)
1445 N. Highway | Colville, WA 99114 | (509-684-3745)
HHT extends the following manufacturer’s warranty for HHT gas, wood, pellet, coal and electric hearth appliances that are purchased
from an HHT authorized dealer.
HHT warrants to the original owner of the HHT appliance at the site of installation, and to any transferee taking ownership of the appliance
at the site of installation within two years following the date of original purchase, that the HHT appliance will be free from defects in
materials and workmanship at the time of manufacture.
After installation, if covered components manufactured by HHT are found to be defective in materials or workmanship during the applicable
warranty period, HHT will, at its option, repair or replace the covered components. HHT, at its own discretion, may fully discharge all of
its obligations under this manufacturer’s warranty by replacing the product itself or refunding the verified purchase price of the product
itself. The maximum amount recoverable under this warranty is limited to the purchase price of the product. This warranty is subject to
conditions, exclusions and limitations as described below.
Warranty coverage begins on the date of original purchase. In the case of new home construction, coverage under this manufacturer’s
warranty begins on the date of first occupancy of the dwelling or six months after the sale of the product by an independent, authorized
HHT dealer/ distributor, whichever occurs earlier. The warranty period for this manufacturer’s warranty shall commence no later than 24
months following the date of product shipment from HHT, regardless of the installation or occupancy date. The manufacturer’s warranty
period for parts and labor for covered components is produced in the following table.
The term “Limited Lifetime” in the table below is defined as: 20 years from the beginning date of warranty coverage for gas appliances,
and 10 years from the beginning date of warranty coverage for wood, pellet and coal appliances. These time periods reflect the minimum
expected useful lives of the designated components under normal operating conditions.
Warranty Period Hearth and Home Technologies Manufactured Appliances and Venting
Components Covered
Parts Labor Gas Wood Pellet EPA
Wood Coal Electric Venting
1 Year X X X X X X X
All parts and material
except as covered by
Conditions, Exclusions,
and Limitations listed
2 years
XXX Igniters, electronic
components, and glass
XXXXX Factory-installed blowers
X Molded refractory panels
3 years X Firepots and Burnpots
5 years 1 year X X Castings and baffles
7 years 3 years X X X
Manifold tubes,
HHT chimney and
termination
10
years 1 year X Burners, logs and refractory
Limited
Lifetime 3 years X X X X X Firebox and heat exchanger
90 Days X X X X X X X All replacement parts
beyond warranty period

Page 16 7033-308D March 4, 2015
We recommend that you record the following pertinent
information for your 3100 Series ACC STOVE
Date purchased/installed:
Serial Number: Location on appliance:
Dealership purchased from: Dealer phone:
Notes:
DO NOT DISCARD THIS MANUAL
CAUTION
• Important operating and
maintenance instruc-
tions included.
• Leave this manual with
party responsible for use
and operation.
• Read, understand and
follow these instruc-
tions for safe installa-
tion and operation.
DO NOT
DISCARD
Please contact your Quadra-Fire dealer with any questions or concerns.
For the number of your nearest Quadra-Fire dealer
log onto www.quadrafire.com
CONTACT INFORMATION:
