Quaildigital Qp10hs User manual

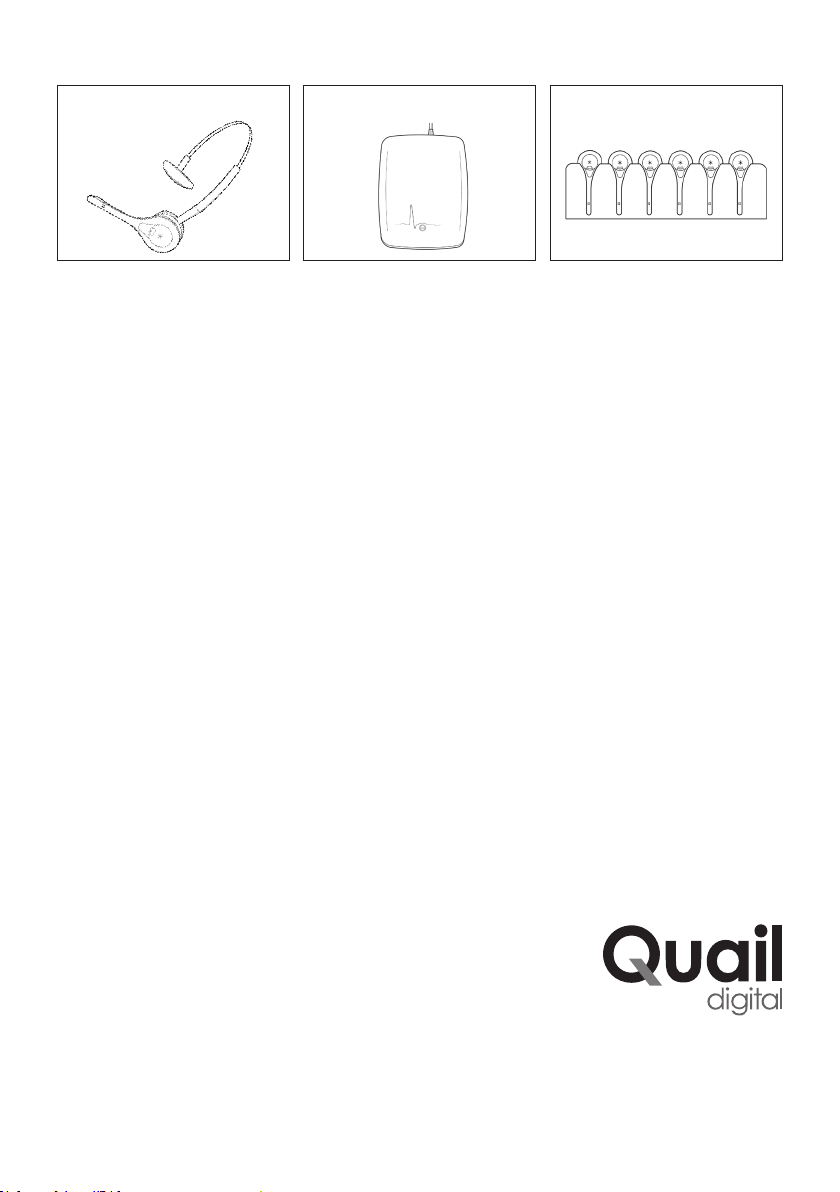

Pro11

Headset System

Installation Manual

STEP 1

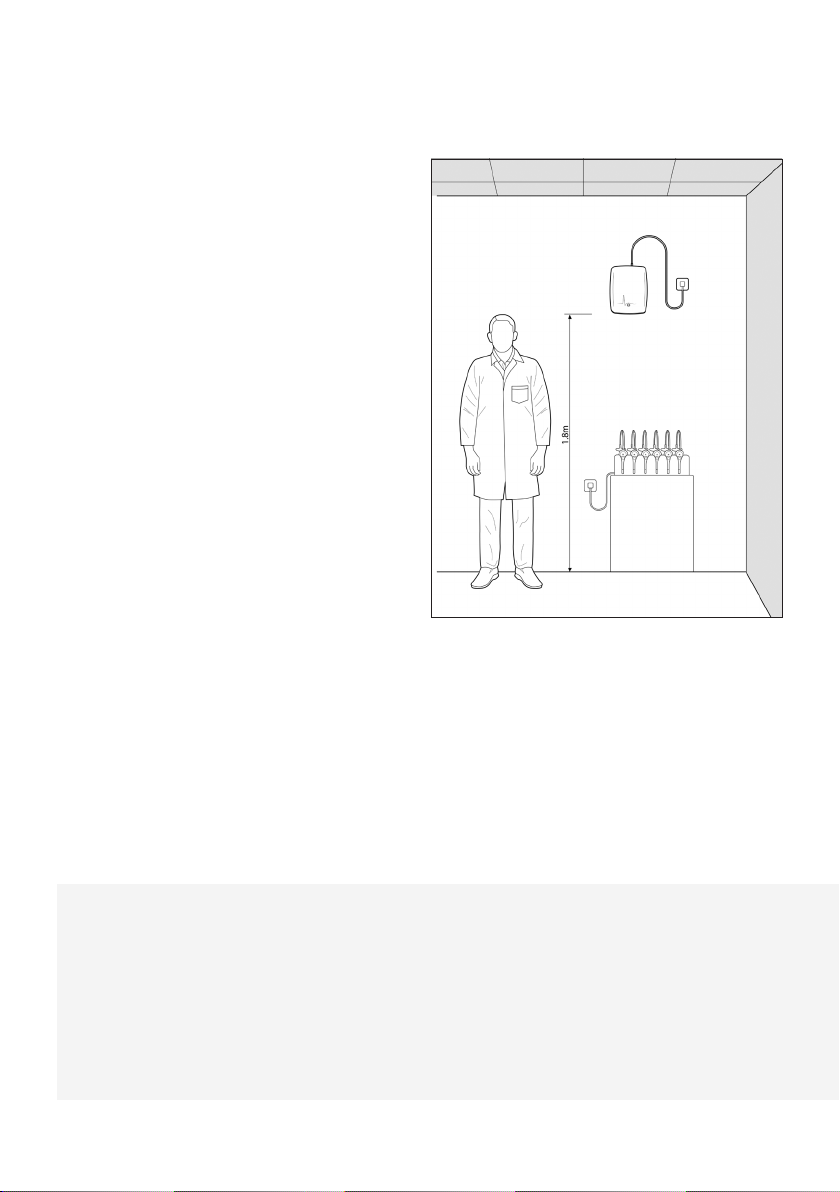

•The base station can be located in

either the OR or the monitoring room.

•Identify a location with clear space

around it and nothing in front (the

base is a transmitter). (figure 1)

•You need a power socket close by.

Connect the Q-PSU48 power supply

into the wall socket and then into the

socket in the top of the base.

•The base should be fitted to the wall

using the two velcro strips supplied,

peeling back the protective covers.

Do not fit the base to the wall upside

down or sideways.

•When the power is connected, the

LED on the front will start AMBER during

booting up, then go GREEN after 30

secs.

gure 1

Useful information

• If you have multiple ORs and multiple Pro11 systems, you can move headsets

from one room to another by following Step 4. When a headset is registered to

another base station, it automatically deregisters from the previous one.

• If you hear 2 beeps in your ear, it means you’ve gone out of range. Move back

towards the base station it’s registered to and the headset will reconnect.

STEP 2

•Set up the 6-port battery charger.

Select a clear desk or cabinet top in

the monitoring room close to a power

socket that DOESN’T get switched off

or unplugged at night. (figure 2)

•Connect the Q-PSU5 power supply

into the back of the charger and

weave the cable around the gates.

(figure 3)

•Switch on the power. The LED on

the front of the charger will illuminate

GREEN.

gure 2

gure 3

• Batteries will last for 16 hours on standby and up to 10 hours in hands-free mode.

Always put headsets back into the charger when not in use.

• Wipe down headsets and charger with hygiene wipes routinely.

• Call your service provider if you have any problems.

STEP 3

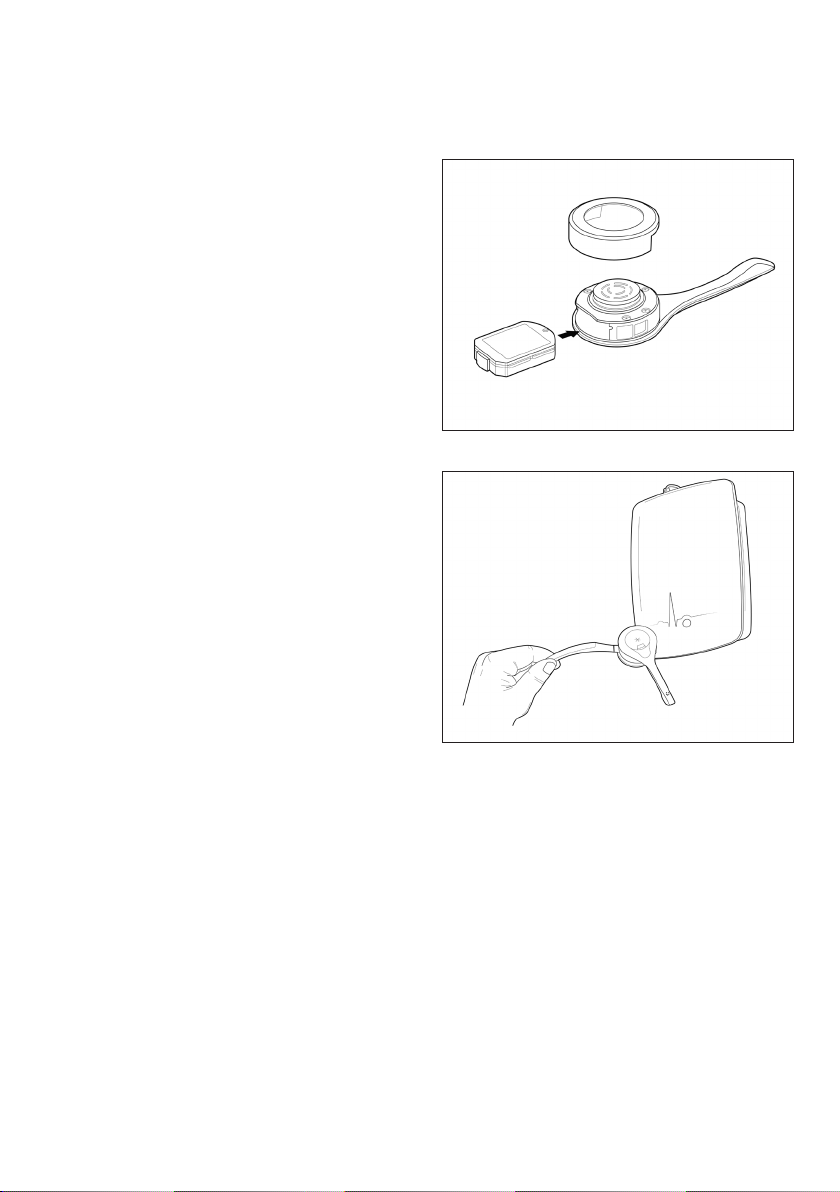

•Place a battery into each headset,

by removing the outer sleeve on

the body of the headset using your

fingernail. (figure 4)

•Remove the tape over the battery

contacts, then slot the battery into the

chamber. It only goes in one way, so

turn it over if it won’t slide in. Clip the

sleeve back on. As soon as the battery

is connected the LED will flash BLUE

every second.

•Place all headsets into the charger.

The headsets are now charging. The

LED on the headset will flash BLUE

every 10 seconds.

gure 4

gure 5

STEP 4

•To register a headset to the base

station, take one headset at a time

out of the charger and hold the

outside face of the headset to the

bottom of the base. (figure 5)

•As soon as you do this, the LED on

the base will flash AMBER, and then go

solid AMBER, which means the headset

is registered. Place the headset back

in the charger and repeat the process

with the next one.

•Leave all headsets in the charger for 2

minutes to synchronise with each other.

•To test, put on a headset, press the

talk button and speak into the headset

- if you can hear your own voice, the

headset is working and ready for use.

(figure 6)

gure 6

Battery replacement schedule

• Batteries are a consumable item and must be replaced every two years to

maintain the performance and safety of the headset system.

• Each battery is dated with month/year of issue; see the reverse side of the

battery for issue date. We recommend that your batteries are retired at two years

from the issue date.

• Batteries with missing issue date should be considered consumed and replaced.

• You should dispose of spent batteries through approved disposal channels.

Please ask your service agent for details. To purchase replacement batteries,

contact: [email protected] or your service agent.

•To use a headset in ‘hands-free’ mode,

press the talk button for a second; the

blue LED will remain on, indicating that

you are ‘hands-free’. To use in normal

‘Push-To-Talk’ mode, remove your finger

from the talk button when you finish

speaking. To change volume, press the

volume button; it has 5 levels.

Customer video support

• www.quaildigital.com/video/QD-Pro11-installation.mp4

Headset audio Status Next steps

Bloop-bleep Call drop Either you’ve moved out of range of base

(move towards it), or base has no power

(check LED on front of base). If LED out, call

Tech support.

2 beeps every 10

seconds

Out of range Headset is not in range of base (move towards

it), or base has no power (check LED on front

of base). If LED out, call Tech support.

3 beeps every 60

seconds

Battery low Put headset in charger and take another

headset.

1 beep every 3 seconds

(and fast ashing LED)

Registration required Headset is working but needs to be registered

to the system.

Fault/symptoms Action

Headset has been in

charger, but LED isn’t

flashing

Determine whether it’s a headset or battery fault. Swap the battery

from one in a working headset. If changing the battery clears the

fault, then throw away the faulty battery and order a new one. If not,

send the headset back for repair/replacement.

Headset LED is pulsing as

normal every 4 seconds

but audio not working

Put the headset back into the charger for at least 10 seconds. This

should reset the headset. If it doesn’t, remove the battery from the

headset then replace it again. If this doesn’t clear the fault, send the

headset back for repair/replacement.

Headset functionality and system trouble shooting

Disclaimer

Quail Digital accepts no liability for injury (in the absence of any negligence or other breach of duty), loss or damage arising from

use of its products as a result of a failure to use them in accordance with the relevant instructions of use.

Regulatory notices

Headset - HVIN: Q-P11HS

FCC ID: UDDQP10HS This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause

undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate

the equipment. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However,

there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the

following measures: Reorient or relocate the receiving antenna; Increase the separation between the equipment and receiver; Connect the equipment

into an outlet on a circuit different from that to which the receiver is connected; Consult the dealer or an experienced radio/TV technician for help.

ISED ID: 6402A-QP10HS

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:

(1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of

the device.

L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique

Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes:

L’appareil ne doit pas produire de brouillage; L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en

compromettre le fonctionnement.

This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. Cet équipement est conforme aux limites d’exposition

de radiation IC énoncés pour un environnement non contrôlé.

Base Station - HVIN: Q-P11BS

FCC ID: UDDQP11BS This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause

undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate

the equipment. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.

In order to comply with FCC and IC RF Exposure requirements, the base station must be installed and operated such that a minimum separation distance

of 20 cm is maintained between the base and all persons during normal operation.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However,

there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the

following measures: Reorient or relocate the receiving antenna; Increase the separation between the equipment and receiver; Connect the equipment into

an outlet on a circuit different from that to which the receiver is connected; Consult the dealer or an experienced radio/TV technician for help.

ISED ID: 6402A-QP11BS This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1)

this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada

applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes:

L’appareil ne doit pas produire de brouillage; L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre

le fonctionnement.

This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. Cet équipement est conforme aux limites d’exposition de

radiation IC énoncés pour un environnement non contrôlé.
