Quick Unigrip 130 User manual

12155849 G
2022-10
EN SV DE FR ES PL DA FI NO
CZ
Operator’s Manual Unigrip
130 | 160
Original instructions - Bruksanvisning i original - Original Betriebsanleitung -
Notice originale - Manual original - Instrukcja oryginalna - Original brugsanvisning -
Alkuperäiset ohjeet - Original driftsinstruks - Původní pokyny
Caution!
Read through the entire instruction manual before you start to use the product.
it contains important information for your safety.

x

203076
1
TABLE OF CONTENTS
1. PREFACE.................................................6
1.1. General information.................................................... 6
2. SAFETY INSTRUCTIONS........................7
2.1. General information.................................................... 7
2.1.1. Warning decals........................................................7
2.2. Explanation of warning levels.....................................7
2.2.1. Explanation of symbols..........................................8
2.3. Supervision and users..................................................8
2.3.1. Responsibility......................................................... 8
3. DESCRIPTION....................................... 11
3.1. Definitions................................................................. 11
3.1.1. Third hydraulic function.......................................11
3.1.2. ErgoDrive / ErgoDrive LCS................................. 11
3.1.3. ElectroDrive CDC / ElectroDrive LCS / EasyDrive
LCS................................................................................. 11
3.1.4. Hose kit.................................................................11
3.2. Tool carrier................................................................ 11
4. DRIVING INSTRUCTIONS.....................12
4.1. Application areas.......................................................12
4.1.1. Designated use......................................................12
4.1.2. Fitting....................................................................12
4.2. Before operating the implement................................13
4.2.1. Dump/Roll back the implement............................13
4.2.2. Open/close the implement - EasyDrive LCS and
ElectroDrive LCS........................................................... 14
4.2.3. Open/close the implement - ErgoDrive LCS/
ErgoDrive........................................................................14
4.2.4. Opening/closing the implement - ElectroDrive
CDC................................................................................ 14
4.2.5. Open/close the implement - Hose kit................... 14
4.2.6. Operating instructions...........................................15
4.2.7. Parking the implement..........................................15
5. LUBRICATION AND
MAINTENANCE......................................... 16
5.1. Lubrication points..................................................... 16
5.2. Storage.......................................................................16
5.3. Hoses and cylinders.................................................. 16
5.3.1. Checking the hydraulic connections.....................17
5.3.2. Repairing the hydraulic cylinders.........................17
6. DATA...................................................... 18
6.1. Table of recommendations........................................ 18
7. WARRANTY CONDITIONS................... 19
EU Declaration of Conformity........................................19
UK DECLARATION OF CONFORMITY ..................20
INNEHÅLLSFÖRTECKNING
8. FÖRORD................................................ 21
8.1. Allmän information................................................... 21
9. SÄKERHETSINSTRUKTIONER............ 22
9.1. Allmän information................................................... 22
9.1.1. Varningsdekaler.....................................................22
9.2. Förklaring av varningsnivåer.................................... 22
9.2.1. Symbolförklaring..................................................22
9.3. Arbetsledning och brukare........................................ 23
9.3.1. Ansvar...................................................................23
10. BESKRIVNING.....................................26
10.1. Definitioner..............................................................26
10.1.1. Tredje hydraulfunktion....................................... 26
10.1.2. ErgoDrive / ErgoDrive LCS............................... 26
10.1.3. ElectroDrive CDC / ElectroDrive LCS /
EasyDrive LCS...............................................................26
10.1.4. Slangsats............................................................. 26
10.2. Redskapsfästen........................................................ 26
11. KÖRINSTRUKTIONER........................ 27
11.1. Användningsområden..............................................27
11.1.1. Avsedd användning.............................................27
11.1.2. Montering............................................................27
11.2. Att göra innan användning av redskapet................. 28
11.2.1. Tömma/bryta upp redskap..................................28
11.2.2. Öppna/stänga redskapet - EasyDrive LCS och
ElectroDrive LCS........................................................... 29
11.2.3. Öppna/stänga redskapet - ErgoDrive LCS/
ErgoDrive........................................................................29
11.2.4. Öppna/stänga redskapet - ElectroDrive
CDC................................................................................ 29
11.2.5. Öppna/stänga redskapet - Slangsats....................29
11.2.6. Körinstruktion..................................................... 29
11.2.7. Vid avställning.................................................... 30
12. SMÖRJNING OCH UNDERHÅLL........31
12.1. Smörjpunkter........................................................... 31
12.2. Förvaring................................................................. 31
12.3. Slangar och cylindrar.............................................. 31
12.3.1. Kontroll av hydraulanslutningar.........................32
12.3.2. Reparation av hydraulcylindrar.......................... 32
13. DATA.................................................... 33
13.1. Rekommendationstabell.......................................... 33
14. GARANTIBESTÄMMELSER............... 34
EG-försäkran om överensstämmelse...............................34
UK DECLARATION OF CONFORMITY ..................35
INHALT
15. VORWORT........................................... 36
15.1. Allgemeine Informationen...................................... 36
16. SICHERHEITSANWEISUNGEN.......... 37
16.1. Allgemeine Informationen...................................... 37
16.1.1. Warnschilder....................................................... 37
16.2. Erklärung der Warnstufen....................................... 37
16.2.1. Symbolerklärung.................................................38
16.3. Arbeitsleitung und Bediener....................................38
16.3.1. Verantwortung.....................................................38
17. BESCHREIBUNG.................................42
17.1. Definitionen.............................................................42
17.1.1. 3. Hydraulikfunktion...........................................42
17.1.2. ErgoDrive/ErgoDrive LCS................................. 42
17.1.3. ElectroDrive CDC/ElectroDrive LCS/EasyDrive
LCS................................................................................. 42
17.1.4. Schlauch-satz...................................................... 42
17.2. Gerätehalterungen....................................................42

203076
2
18. FAHRANWEISUNGEN.........................43
18.1. Einsatzbereiche........................................................43
18.1.1. Verwendungszweck.............................................43
18.1.2. Montage.............................................................. 43
18.2. Inbetriebnahme des Geräts......................................44
18.2.1. Gerät ankippen / abkippen..................................45
18.2.2. Gerät öffnen/schließen - EasyDrive LCS und
ElectroDrive LCS........................................................... 45
18.2.3. Gerät öffnen/schließen - ErgoDrive LCS/
ErgoDrive........................................................................45
18.2.4. Gerät öffnen/schließen - ElectroDrive CDC.......45
18.2.5. Gerät öffnen/schließen - Schlauchsatz................46
18.2.6. Fahranweisung....................................................46
18.2.7. Abstellung...........................................................46
19. SCHMIERUNG UND WARTUNG.........47
19.1. Schmierpunkte.........................................................47
19.2. Aufbewahrung......................................................... 47
19.3. Schläuche und Zylinder...........................................47
19.3.1. Überprüfung von Hydraulikanschlüssen............ 48
19.3.2. Reparatur von Hydraulikzylindern..................... 48
20. TECHNISCHE DATEN......................... 49
20.1. Tabelle mit Empfehlungen...................................... 49
21. GARANTIEBEDINGUNGEN................ 50
EU-Konformitätserklärung..............................................50
UK DECLARATION OF CONFORMITY ..................51
SOMMAIRE
22. PRÉFACE.............................................52
22.1. Autres informations.................................................52
23. CONSIGNES DE SÉCURITÉ...............53
23.1. Autres informations.................................................53
23.1.1. Autocollants de mise en garde............................53
23.2. Explication des niveaux de mise en garde.............. 53
23.2.1. Explication des symboles................................... 54
23.3. Encadrement et utilisateurs..................................... 54
23.3.1. Responsabilité.....................................................54
24. DESCRIPTION..................................... 58
24.1. Définitions............................................................... 58
24.1.1. Troisième fonction hydraulique..........................58
24.1.2. ErgoDrive / ErgoDrive LCS............................... 58
24.1.3. ElectroDrive CDC / ElectroDrive LCS /
EasyDrive LCS...............................................................58
24.1.4. Jeu de flexibles................................................... 58
24.2. Porte-outil................................................................ 58
25. INSTRUCTIONS DE CONDUITE.........59
25.1. Applications.............................................................59
25.1.1. Utilisation prévue............................................... 59
25.1.2. Montage.............................................................. 59
25.2. Avant la mise en service de l’outil..........................60
25.2.1. Fonction bennage/cavage....................................60
25.2.2. Pour ouvrir/fermer l'outil - EasyDrive LCS et
ElectroDrive LCS........................................................... 61
25.2.3. Ouvrir/fermer l'outil - ErgoDrive LCS/
ErgoDrive........................................................................61
25.2.4. Pour ouvrir/fermer l'outil - ElectroDrive
CDC................................................................................ 61
25.2.5. Pour ouvrir/fermer l'outil - Jeu de flexibles........ 61
25.2.6. Utilisation............................................................62
25.2.7. Stationnement de l'outil...................................... 62
26. LUBRIFICATION ET ENTRETIEN....... 63
26.1. Points de graissage..................................................63
26.2. Rangement...............................................................63
26.3. Flexibles et vérins................................................... 63
26.3.1. Contrôle des raccords hydrauliques....................64
26.3.2. Réparation des vérins hydrauliques....................64
27. CARACTÉRISTIQUES
TECHNIQUES............................................ 65
27.1. Tableau de recommandations..................................65
28. CONDITIONS DE GARANTIE............. 66
Attestation de conformité UE......................................... 66
UK DECLARATION OF CONFORMITY ..................67
ÍNDICE
29. INTRODUCCIÓN..................................68
29.1. Información general................................................ 68
30. INSTRUCCIONES DE
SEGURIDAD.............................................. 69
30.1. Información general................................................ 69
30.1.1. Pegatinas de advertencia.....................................69
30.2. Explicación de los niveles de advertencia...............69
30.2.1. Explicación de símbolos.....................................70
30.3. Supervisión y usuarios............................................ 70
30.3.1. Responsabilidad..................................................70
31. DESCRIPCIÓN.....................................73
31.1. Definiciones.............................................................73
31.1.1. Tercera función hidráulica..................................73
31.1.2. ErgoDrive / ErgoDrive LCS............................... 73
31.1.3. ElectroDrive CDC / ElectroDrive LCS /
EasyDrive LCS...............................................................73
31.1.4. Juego de mangueras............................................73
31.2. Fijaciones de implemento........................................73
32. INSTRUCCIONES DE
OPERACIÓN.............................................. 74
32.1. Áreas de aplicación................................................. 74
32.1.1. Usos específicos................................................. 74
32.1.2. Montaje............................................................... 74
32.2. Efectuar antes de utilizar el implemento.................75
32.2.1. Vaciado/inclinación hacia arriba del
implemento..................................................................... 75
32.2.2. Abrir/cerrar el implemento - EasyDrive LCS y
ElectroDrive LCS........................................................... 76
32.2.3. Abrir/cerrar el implemento - ErgoDrive LCS/
ErgoDrive........................................................................76
32.2.4. Abrir/cerrar el implemento - ElectroDrive
CDC................................................................................ 76
32.2.5. Abrir/cerrar el implemento - Juego de
mangueras....................................................................... 76
32.2.6. Instrucciones de operación................................. 77
32.2.7. Para desacoplarlo................................................77

203076
3
33. LUBRICACIÓN Y
MANTENIMIENTO......................................78
33.1. Puntos de lubricación..............................................78
33.2. Almacenamiento......................................................78
33.3. Mangueras y cilindros.............................................78
33.3.1. Control de las conexiones hidráulicas................ 79
33.3.2. Reparación de los cilindros hidráulicos..............79
34. DATOS..................................................80
34.1. Tabla de recomendaciones...................................... 80
35. CONDICIONES DE GARANTÍA.......... 81
Declaración de conformidad CE.....................................81
UK DECLARATION OF CONFORMITY ..................82
SPIS TREŚCI
36. WSTĘP................................................. 83
36.1. Informacje ogólne....................................................83
37. INSTRUKCJA
BEZPIECZEŃSTWA...................................84
37.1. Informacje ogólne....................................................84
37.1.1. Naklejki ostrzegawcze........................................84
37.2. Objaśnienie poziomów ostrzeżeń............................84
37.2.1. Objaśnienie symboli........................................... 85
37.3. Dotyczy kierownictwa i użytkowników..................85
37.3.1. Odpowiedzialność...............................................85
38. OPIS..................................................... 89
38.1. Definicje.................................................................. 89
38.1.1. Trzecia funkcja hydrauliczna..............................89
38.1.2. ErgoDrive / ErgoDrive LCS............................... 89
38.1.3. ElectroDrive CDC / ElectroDrive LCS /
EasyDrive LCS...............................................................89
38.1.4. Zestaw przewodów giętkich...............................89
38.2. Mocowania osprzętu................................................89
39. INSTRUKCJA UŻYTKOWANIA...........90
39.1. Obszary zastosowania............................................. 90
39.1.1. Przewidziane zastosowania................................ 90
39.1.2. Montaż................................................................ 90
39.2. Czynności do wykonania przed rozpoczęciem
użytkowania osprzętu.......................................................91
39.2.1. Opróżnianie/podnoszenie osprzętu.....................91
39.2.2. Otwieranie/zamykanie osprzętu – EasyDrive LCS
i ElectroDrive LCS.........................................................92
39.2.3. Otwieranie/zamykanie osprzętu - ErgoDrive LCS/
ErgoDrive........................................................................92
39.2.4. Otwieranie/zamykanie osprzętu – ElectroDrive
CDC................................................................................ 92
39.2.5. Otwieranie/zamykanie osprzętu - Zespół
przewodów giętkich........................................................92
39.2.6. Instrukcja użytkowania.......................................93
39.2.7. Przy odstawianiu.................................................93
40. SMAROWANIE I KONSERWACJA..... 94
40.1. Punkty smarowania................................................. 94
40.2. Przechowywanie......................................................94
40.3. Przewody giętkie i siłowniki...................................94
40.3.1. Kontrola połączeń hydraulicznych..................... 95
40.3.2. Naprawa siłowników hydraulicznych.................95
41. DANE....................................................96
41.1. Tabela zaleceń......................................................... 96
42. POSTANOWIENIA
GWARANCYJNE........................................97
Deklaracja zgodności WE...............................................97
UK DECLARATION OF CONFORMITY ..................98
INDHOLDSFORTEGNELSE
43. FORORD.............................................. 99
43.1. Generel information................................................ 99
44. SIKKERHEDSVEJLEDNING............. 100
44.1. Generel information.............................................. 100
44.1.1. Advarselsmærkater........................................... 100
44.2. Forklaring af advarselsniveauer............................ 100
44.2.1. Symbolforklaring.............................................. 101
44.3. Arbejdsledelse og brugere.....................................101
44.3.1. Ansvar...............................................................101
45. BESKRIVELSE...................................104
45.1. Definitioner............................................................104
45.1.1. Tredje hydraulikfunktion.................................. 104
45.1.2. ErgoDrive / ErgoDrive LCS............................. 104
45.1.3. ElectroDrive CDC / ElectroDrive LCS /
EasyDrive LCS.............................................................104
45.1.4. Slangesæt.......................................................... 104
45.2. Redskabsbeslag......................................................104
46. ANVENDELSESVEJLEDNING..........105
46.1. Anvendelsesområder............................................. 105
46.1.1. Korrekt brug..................................................... 105
46.1.2. Montering..........................................................105
46.2. Ting, der skal gøres, inden redskabet anvendes.....106
46.2.1. Tømning/opadvipning af redskab.....................106
46.2.2. Åbne/lukke redskabet - EasyDrive LCS og
ElectroDrive LCS......................................................... 107
46.2.3. Åbne/lukke redskabet - ErgoDrive LCS/
ErgoDrive......................................................................107
46.2.4. Åbne/lukke redskabet - ElectroDrive CDC...... 107
46.2.5. Åbning/lukning af redskabet - slangesæt..........107
46.2.6. Anvendelsesvejledning..................................... 107
46.2.7. Ved afsætning................................................... 108
47. SMØRING OG
VEDLIGEHOLDELSE...............................109
47.1. Smøresteder........................................................... 109
47.2. Opbevaring............................................................ 109
47.3. Slanger og cylindre............................................... 109
47.3.1. Kontrol af hydrauliktilslutninger......................110
47.3.2. Reparation af hydraulikcylindre....................... 110
48. DATA.................................................. 111
48.1. Tabel over anbefalinger.........................................111
49. GARANTIBESTEMMELSER............. 112
EF-overensstemmelseserklæring...................................112
UK DECLARATION OF CONFORMITY ................113
SISÄLLYSLUETTELO

203076
4
50. JOHDANTO........................................114
50.1. Yleistä....................................................................114
51. TURVALLISUUSOHJEET..................115
51.1. Yleistä....................................................................115
51.1.1. Varoitustarrat.....................................................115
51.2. Varoitustasojen selitys........................................... 115
51.2.1. Symbolien selostus........................................... 116
51.3. Työnjohto ja käyttäjät............................................116
51.3.1. Vastuu................................................................116
52. KUVAUS.............................................119
52.1. Määritelmät............................................................119
52.1.1. Kolmas hydraulitoiminto..................................119
52.1.2. ErgoDrive / ErgoDrive LCS............................. 119
52.1.3. ElectroDrive CDC / ElectroDrive LCS /
EasyDrive LCS.............................................................119
52.1.4. Letkusarja..........................................................119
52.2. Työvälinelevyt....................................................... 119
53. KÄYTTÖOHJEET...............................120
53.1. Käyttöalueet...........................................................120
53.1.1. Tarkoitettu käyttö..............................................120
53.1.2. Asennus.............................................................120
53.2. Valmistelut ennen työlaitteen käyttöä....................121
53.2.1. Varusteen tyhjennys/avaus................................121
53.2.2. Avaa/sulje työväline - EasyDrive LCS ja
ElectroDrive LCS......................................................... 122
53.2.3. Avaa/sulje työväline - ErgoDrive LCS/
ErgoDrive......................................................................122
53.2.4. Työvälineen avaaminen/sulkeminen -
ElectroDrive CDC........................................................ 122
53.2.5. Työvälineen avaaminen/sulkeminen -
Letkusarja......................................................................122
53.2.6. Käyttöohje.........................................................123
53.2.7. Irrottaminen.......................................................123
54. VOITELU JA HUOLTO.......................124
54.1. Voitelukohdat.........................................................124
54.2. Säilytys.................................................................. 124
54.3. Letkut ja sylinterit................................................. 124
54.3.1. Hydrauliliitäntöjen tarkastus.............................125
54.3.2. Hydraulisylinterien korjaus.............................. 125
55. TIEDOT...............................................126
55.1. Suositustaulukko....................................................126
56. TAKUUMÄÄRÄYKSET...................... 127
EY-vaatimustenmukaisuusvakuutus..............................127
UK DECLARATION OF CONFORMITY ................128
INNHOLDSFORTEGNELSE
57. FORORD............................................ 129
57.1. Generell informasjon.............................................129
58. SIKKERHETSINSTRUKSJONER......130
58.1. Generell informasjon.............................................130
58.1.1. Varselskilt..........................................................130
58.2. Forklaring av farenivåer........................................130
58.2.1. Symbolforklaring.............................................. 130
58.3. Arbeidsledelse og brukere.....................................131
58.3.1. Ansvar...............................................................131
59. BESKRIVELSE...................................134
59.1. Definisjoner........................................................... 134
59.1.1. Tredje hydraulikkfunksjon................................134
59.1.2. ErgoDrive / ErgoDrive LCS............................. 134
59.1.3. ElectroDrive CDC / ElectroDrive LCS /
EasyDrive LCS.............................................................134
59.1.4. Slangesett.......................................................... 134
59.2. Redskapsfester.......................................................134
60. KJØREINSTRUKSJONER.................135
60.1. Bruksområder........................................................ 135
60.1.1. Tiltenkt bruk..................................................... 135
60.1.2. Montering..........................................................135
60.2. Klargjøring av redskap for bruk............................136
60.2.1. Tømme/bryte opp redskap................................136
60.2.2. Åpne/stenge redskapet – EasyDrive LCS og
ElectroDrive LCS......................................................... 137
60.2.3. Åpne/stenge redskapet - ErgoDrive LCS/
ErgoDrive......................................................................137
60.2.4. Åpne/stenge redskapet – ElectroDrive CDC.... 137
60.2.5. Åpne/stenge redskapet – Slangesett..................137
60.2.6. Kjøreinstruksjon................................................137
60.2.7. Ved utkobling....................................................138
61. SMØRING OG VEDLIKEHOLD......... 139
61.1. Smørepunkter.........................................................139
61.2. Oppbevaring.......................................................... 139
61.3. Slanger og sylindere..............................................139
61.3.1. Kontroll av hydraulikktilkoblinger...................140
61.3.2. Reparasjon av hydraulikksylindere...................140
62. DATA.................................................. 141
62.1. Anbefalingstabell...................................................141
63. GARANTIBESTEMMELSER............. 142
EU-deklarasjon om overensstemmelse......................... 142
UK DECLARATION OF CONFORMITY ................143
OBSAH
64. ÚVOD..................................................144
64.1. Všeobecné informace............................................ 144
65. BEZPEČNOSTNÍ POKYNY............... 145
65.1. Všeobecné informace............................................ 145
65.1.1. Štítky s varováním............................................145
65.2. Vysvětlení úrovní varování....................................145
65.2.1. Vysvětlení symbolů...........................................146
65.3. Dohled a uživatelé.................................................146
65.3.1. Odpovědnost..................................................... 146
66. POPIS.................................................149
66.1. Definice................................................................. 149
66.1.1. Třetí hydraulická funkce...................................149
66.1.2. ErgoDrive / ErgoDrive LCS............................. 149
66.1.3. ElectroDrive CDC / ElectroDrive LCS /
EasyDrive LCS.............................................................149
66.1.4. Sada hadic.........................................................149
66.2. Držák nářadí.......................................................... 149
67. POKYNY PRO JÍZDU........................ 150

203076
5
67.1. Oblasti použití....................................................... 150
67.1.1. Použití v souladu s určením..............................150
67.1.2. Nasazení............................................................150
67.2. Před použitím nářadí............................................. 151
67.2.1. Vyklopení/přiklopení nářadí............................. 151
67.2.2. Otevření/zavření nářadí - EasyDrive LCS a
ElectroDrive LCS......................................................... 152
67.2.3. Otevření/zavření nářadí - ErgoDrive LCS/
ErgoDrive......................................................................152
67.2.4. Otevření/zavření nářadí - ElectroDrive
CDC.............................................................................. 152
67.2.5. Otevření/zavření nářadí - Sada hadic................152
67.2.6. Provozní pokyny...............................................153
67.2.7. Parkování nářadí............................................... 153
68. MAZÁNÍ A ÚDRŽBA..........................154
68.1. Mazací místa......................................................... 154
68.2. Skladování............................................................. 154
68.3. Hadice a válce....................................................... 154
68.3.1. Kontrola spojení hydraulického systému..........155
68.3.2. Oprava hydraulických válců.............................155
69. TECHNICKÉ ÚDAJE..........................156
69.1. Tabulka doporučení............................................... 156
70. PODMÍNKY ZÁRUKY........................ 157
ES prohlášení o shodě...................................................157
UK DECLARATION OF CONFORMITY ................158

Preface
6
1. PREFACE
1.1. General information
Warning!
Careless or incorrect use may result in serious
injury or fatality for the driver or others.
Observe the safety instructions.
This instruction manual describes the operation and
maintenance of the implement. The information in the
instruction manual was correct when this manual went to
press. Please visit your dealer if there is anything you do
not understand in the manual.
A user manual is supplied with each implement to show the
operator how to handle and maintain the implement. Read
and use the information so that you can use the implement
in a safe manner, in combination with short stoppages. This
implement has a design that makes it simple to service,
allowing maintenance using regular hand tools.
Read and study the text in the instruction manual
thoroughly before you start to use the implement. If you
are not an experienced driver, study the instruction manual
and ask an experienced driver to explain things to you.
Your dealer can help you by teaching you about operation
and suitable work methods. Keep this instruction manual
readily available, preferably inside the tractor. Get a new
instruction manual if the old one is damaged or gets lost.
Read the instruction manual for the loader too; it contains
important information for your safety.
Caution!
Read through the entire instruction manual
before you start to use the product.
We reserve the right to introduce changes to design and
specification, or improvements at any time, without prior
notice or commitment.
Fill in the information from the implement's type plate and
always state this when contacting your dealer.
Fig.1 Read through the entire user manual before you start to
use the product.
Product information
Product
Type
Ref. No.
Serial No.
Date
Weight
Manufacturer
Reseller
information
Fig.2 Product information
The sign specifies:
Product, type, reference, serial number and weight.
Always provide: Product (A), Type (B) and serial number
(C) for service issues or spare parts needs.
Umeå Sweden
Made in Xxxxxxx
Ålö AB
XXXXXXXXXXXXXXXXXXXXXXXXXXXXXX
XXXXXXXXXXXXXXXXXXXXXXXXXXXXXX
XXXXXXXXXXXXXXXXXXXXXXXXXXXXXX
XXXXXXX kg
XXXXXXXXXX
XXXXXXXXX
Weight
Type
Serial No. / Year
Product
Ref.No.
Made by
Kit No.
XXXXXXXXX
XXXX
B
C
A
Fig.3 Machine sign.

Safety instructions
7
2. SAFETY INSTRUCTIONS
2.1. General information
Driver safety is one of the most important matters when
a new implement is designed. The designer builds in as
many safety functions as possible. Several accidents occur
every year which could have been avoided by taking a
few seconds of consideration, and through more careful
operation of the implement.
Avoid personal injury. Read the following personal safety
instructions and insist that everybody who works with you,
or for you, also complies with the instructions.
2.1.1. Warning decals
Warning decals are fitted in different locations on the
attachment. Locate, read and find out what the decals mean
before loader and implement are used.
• Do not cover or remove any of the warning decals. If a
warning decal is missing or illegible, replace it with a
new decal. New warning decals are available from your
dealer.
MAX 200 bar
60018712
60051165
11136514
xxxxxxxxxx
Date
Umeå Sweden
Made in Xxxxxxx
Ålö AB
XXXXXXXXXXXXXXXXXXXX
XXXXXXXXXXXXXXXXXXXX
XXXXXXXXXXXXXXXXXXXX
XXXXXXX kg
XXXXXXXXXXXXXXXXX
Weight
Certificate
EuroTest
Type
Serial No.
Product
Ref.No.
Made by
XXXXXXXXXX/XXXXXXX
Fig.4 Location of warning decals and machine plate.
2.2. Explanation of warning levels
When you see the safety symbol and the signal words on
decals or in the instruction manual, the instructions MUST
be followed since they are related to your own personal
safety.
Fig.5 Locate, read and find out what the decals mean before
the loader and implement are used.

Safety instructions
8
2.2.1. Explanation of symbols
Safety symbol. Information adjacent to this symbol refers to
your personal safety and must be observed.
Danger!
Means an immediately dangerous situation
which, if not avoided, will lead to death or serious
personal injury. (North America only)
Warning!
Means that an accident could occur if the
instruction is not followed. The accident might
lead to serious personal injury or death.
Caution!
Means that an accident could occur if the
instruction is not followed. An accident could
lead to personal injury.
The following texts and instructions do not refer to personal
safety, but are used consistently in the instruction manual,
to provide tips about operation or service of the implement.
Important! Means that an accident could occur if the
instruction is not followed. The accident might lead to
damage to the property or to the process, or personal injury.
Note. Refers to extra information which could facilitate the
understanding or implementation of a certain task.
Fig.6 Safety symbol.
2.3. Supervision and users
2.3.1. Responsibility
Caution!
Always store this instruction manual as well
as the tractor's own instruction manual in the
tractor.
• If there is no instruction manual included with the
tractor then obtain one from the reseller before fitting
and using the loader and the attachment.
• Read through all material carefully and learn how to
use the equipment in a safe and correct manner.
Warning!
Do NOT use the loader or the attachment as a
working platform.
Warning!
Only use the attachment for the intended
application area.
Warning!
Do not grip objects that extend the centre of
gravity to a significant extent. This can lead to
instability.
Fig.7 Do NOT use the loader or the attachment as a working
platform.

Safety instructions
9
Warning!
Do NOT use the loader to lift or transport people.
• Only qualified individuals are permitted to operate the
machine.
Warning!
Always check the machine's surroundings and
ensure that all individuals, especially children
and animals have moved away before starting or
driving the machine.
You may not hear any shouting to attract your attention
from individuals on the outside when you are sitting in the
cab with the door closed.
Danger!
To prevent serious injury or death from crushing:
Keep all individuals and objects clear while any
part of this machine is in motion.

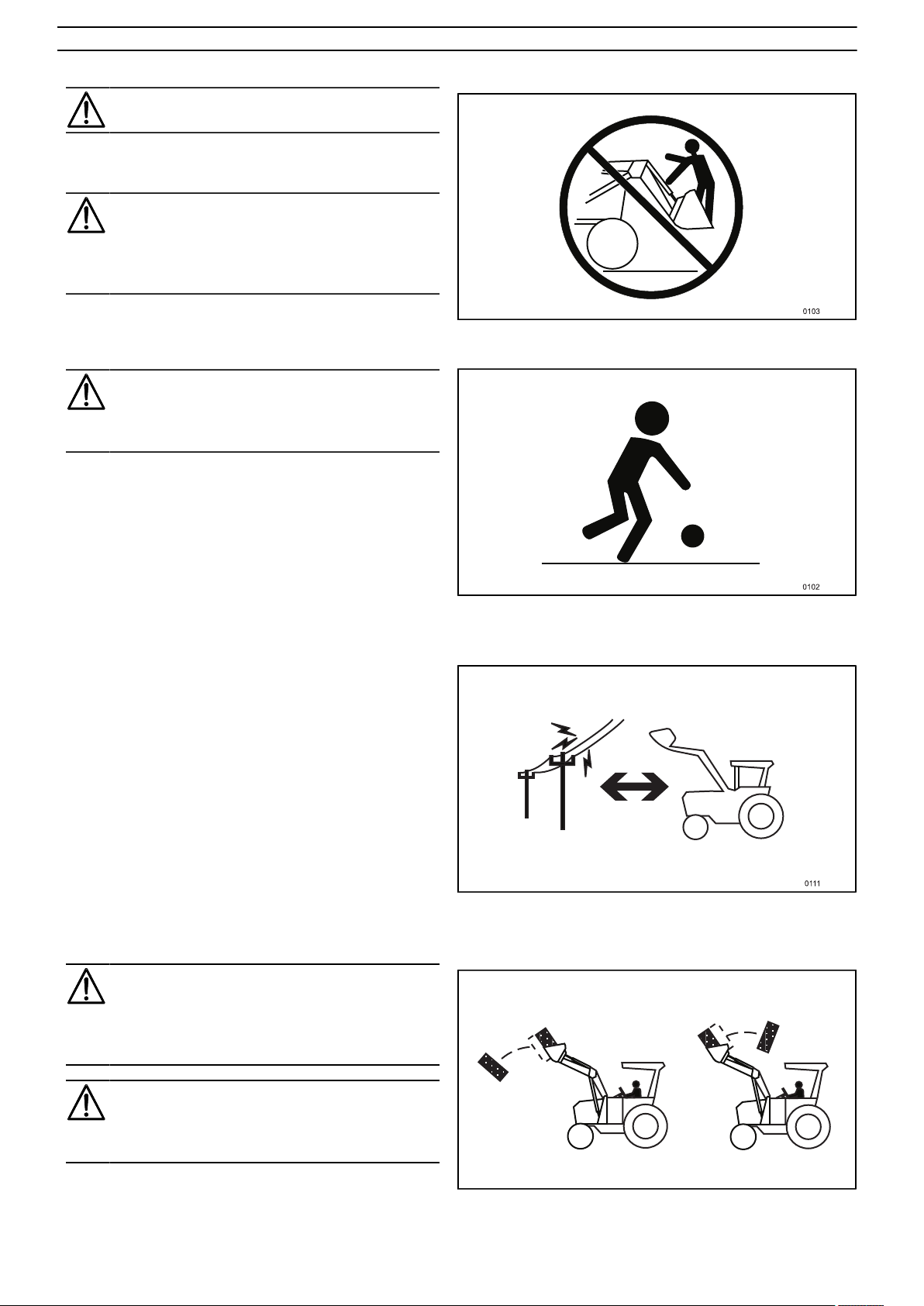

Fig.8 Do NOT use the loader or attachment to lift or transport
people.
Fig.9 Before starting, make sure that no individuals are in the
vicinity of the machine.
Familiarise yourself with the working area and terrain. Pay
attention to vertical clearance and limitations that arise due
to the increased reach.
Fig.10 Familiarise yourself with the working area before
starting. Maintain a safe distance from electrical cables and
other obstructions.
Warning!
Always look at the implement. Objects can fall or
roll backwards onto the driver when the loader is
raised. Only lift loads that are designed for each
specific implement.
Warning!
Always look at the implement. Objects can fall
out during transport. Only transport loads that
are designed for each specific implement.
Fig.11 Always look at the implement. Objects can fall or roll
backwards onto the driver when the loader is raised.

Safety instructions
10
Warning!
Never stand between the front of the tractor and
the loader's cross tubes.
Warning!
Risk of crushing and jamming
The loader may fall downwards.
Lower the loader/implement to the ground prior
to lubrication.
Warning!
When installing the hoses, check that these
are long enough and that they do not get stuck
between the tool carrier, the loader beam or the
links. If necessary, adjust the couplings.
Fig.12 Never stand between the front of the tractor and the
loader's cross tubes.
Warning!
Pressurised oil.
Hydraulic oil at high pressure can be injected
into the body in the event of leakage and cause
serious injury, blindness or fatality. Leakage may
be invisible.
Use approved protective safety glasses and
protect the skin using strong leather gloves for
example. Use cardboard or wood for leakage
detection. If fluid has entered the skin then it
MUST be removed within a couple of hours by a
doctor who can treat this type of injury.
Fig.13 NEVER use fingers or hands for leakage detection.

Description
11
3. DESCRIPTION
3.1. Definitions
3.1.1. Third hydraulic function
Optional hydraulic function for operating the implement's
hydraulics.
3.1.2. ErgoDrive / ErgoDrive LCS
The ErgoDrive system is composed of a control valve and
mechanical joystick as well as hydraulic connections and
control cables for specified tractor models.
3.1.3. ElectroDrive CDC / ElectroDrive
LCS / EasyDrive LCS
Installation kit as above but with an electrically operated
valve and electronic joystick.
3.1.4. Hose kit
Hoses and hydraulic components for connecting the loader
to the tractor's original valve.
3.2. Tool carrier
The implement can be equipped with various types of
implement hook, depending on the loader’s/base machine’s
attachment. There are various attachment systems for
the hooks, e.g. welded or various bolted systems. For
information about which implement hooks are available,
contact Ålö AB. Take care to ensure that the implement
hook is compatible with the loader’s/base machine’s
attachment system. Never improvise or adapt!
Ensure that the implement is locked correctly according
to the loader’s/base machine’s and the implement carrier’s

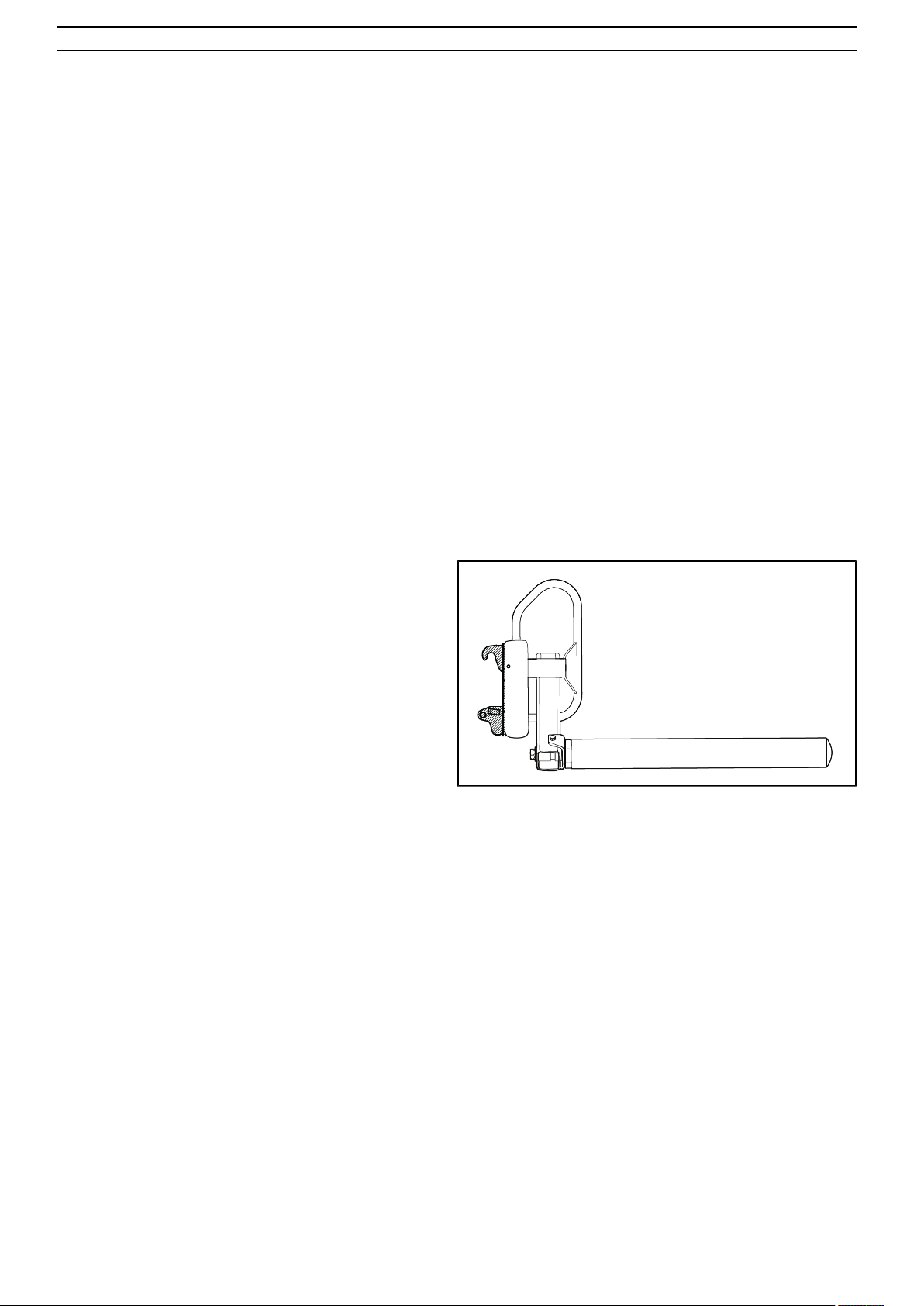

current instructions prior to use. Fig.14 The implement can be equipped with various types of
implement hook.

Driving instructions
12
4. DRIVING INSTRUCTIONS
4.1. Application areas
4.1.1. Designated use
The attachment is equipped with two grip arms that are
used to carry the material. Transport the material as low as
possible. The main application area is the handling of:
• round bales
• square bales
Lower the loader as far as possible when moving. Keep
in mind that the higher you lift the loader, the higher the
centre of gravity, resulting in increased risk of the tractor
overturning.
4.1.2. Fitting
The implement is either supplied complete or partially
assembled.
With partial assembly the attachments and hoses are
supplied in separate kits.
Fixing kit.
Fit the loader fixing as shown.

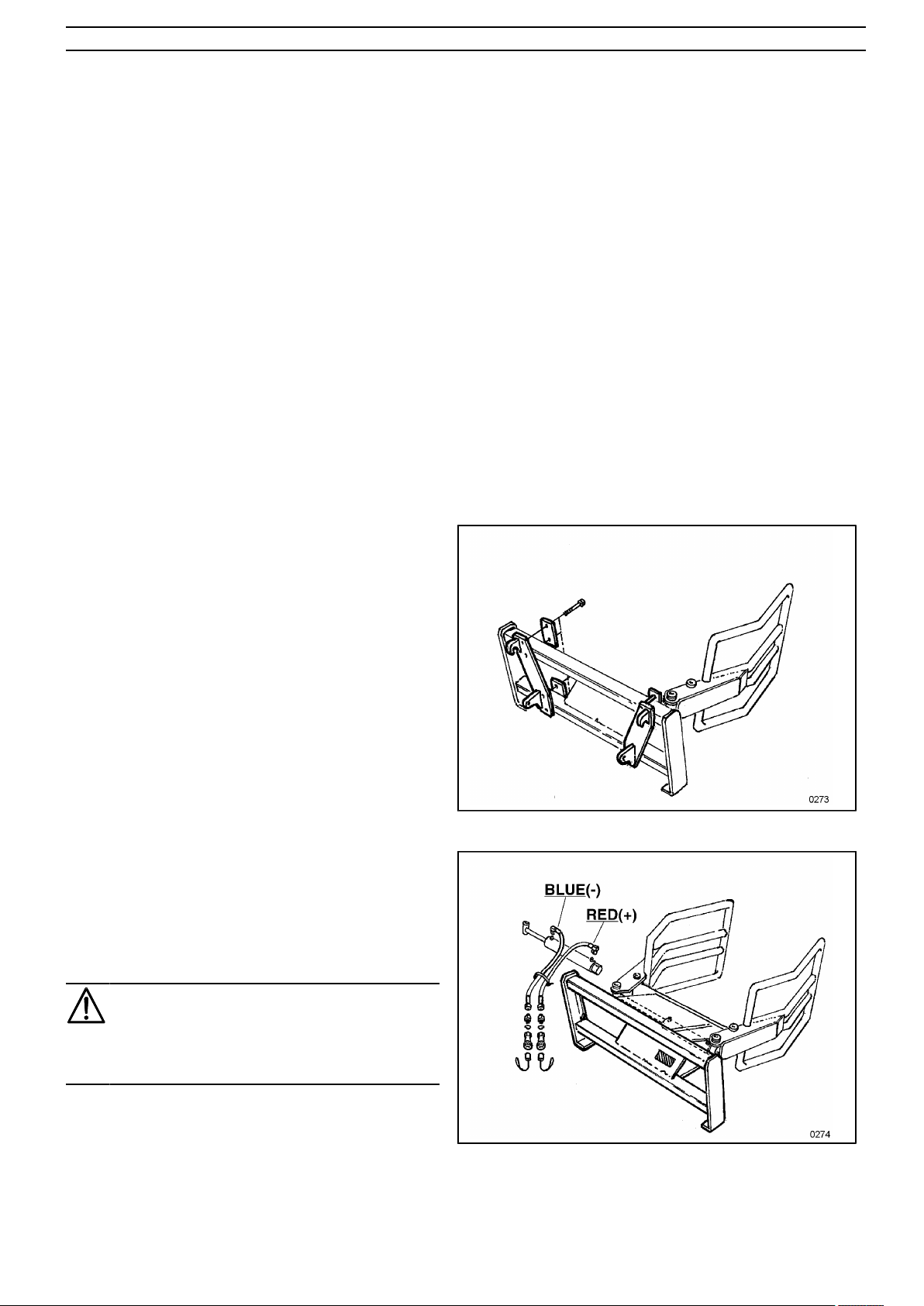

Fig.15 Fixing kit.
Hose kit.
Connect the hose to the cylinder.
The hose connected to the cylinder's (+) is marked in red.
The hose connected to the cylinder's (-) is marked in blue.
The loader should be equipped with a double-acting oil
return on the implement attachment.
Warning!
When installing the hoses, check that these
are long enough and that they do not get stuck
between the tool carrier, the loader beam or the
links. If necessary, adjust the couplings.
Fig.16 Hose kit.

Driving instructions
13
4.2. Before operating the implement
Check with caution that:
1. The hose connected to the cylinder's (+) side has red
marking, and the implement moves in accordance with
the open/close description.
2. There is no leakage of hydraulic oil.
3. The implement is correctly fitted and that the pins are
in the locked position. Press the tip of the implement
against the ground (1) to check that the implement is
firmly fixed (2).
4. There is no risk of collision between loader and
attachment (see illustration).
4. There is no risk of collision between loader and
attachment.
5. Lubricate the implement sufficiently 5. Lubrication and
maintenance.
See also the chapter "Connection and disconnection of the
implement" in the loader operating manual.
Fig.17 Check that the implement is secured by pressing its front
end against the ground.
Warning!
Do NOT stand, walk or work under or beside a
raised loader. Make sure you keep everybody,
especially children and animals, away from the
work area.
Fig.18 Do NOT stand, walk or work under a lifted loader.
4.2.1. Dump/Roll back the implement
Right-hand fitting: Move the lever to the left (4) to roll back
the implement.
Move the lever to the right (5) to dump the implement.
Note. With left-hand mounting, the movements will be
reversed. (This does not apply to EasyDrive LCS and
ElectroDrive LCS which only have right-hand mounting.)
5
5
4
4
0306
Fig.19 Dump/Roll back the implement

Driving instructions
14
4.2.2. Open/close the implement -
EasyDrive LCS and ElectroDrive LCS
To open and close the implement, use the third hydraulic
function which is controlled by switch F2.
When the lever is moved to the right (5) the implement is
opened, and when moved to the left (4) the implement is
closed (right-hand fitting).
Note. When the switch for the third hydraulic service is
released then the control immediately returns to the dump/
roll back function.
0413
5 4 54
F2
Fig.20 Open/close the implement - EasyDrive LCS and
ElectroDrive LCS
4.2.3. Open/close the implement -
ErgoDrive LCS/ErgoDrive
To open and close the implement, use the third hydraulic
function which is controlled with a switch (A) on the front
of the joystick control.
When the lever is moved to the right (5) the implement is
opened, and when moved to the left (4) the implement is
closed (right-hand fitting).
The movements are reversed for left-hand fitting.
Note. When the switch for the third hydraulic service is
released then the control immediately returns to the dump/
roll back function.
A
0307
5 4 54
Fig.21 Open/close the implement - ErgoDrive LCS/ErgoDrive
4.2.4. Opening/closing the implement -
ElectroDrive CDC
To open and close the implement, use the third hydraulic
service which is controlled by switch P2.
When the lever is moved to the right (5) the implement is
opened, and when moved to the left (4) the implement is
closed (right-hand fitting).
The movements are reversed for left-hand fitting.
When the switch for the third hydraulic service is released
then the control immediately returns to the dump/roll back
function.
0308
P2
5 4 54
Fig.22 Opening/closing the implement - ElectroDrive CDC
4.2.5. Open/close the implement - Hose
kit
Hose kit - tractor Joystick, see the instruction manual for
the tractor.

Driving instructions
15
4.2.6. Operating instructions
To avoid damage to the plastic, the upper part of the grapple
arms should be placed at the same height as the middle
of the bale. Transport the bale horizontally - crowd it to
vertical once at the loading/storage location.
The bale should be turned at as high a height as possible.
Avoid longer transportation distances, as the grip can
reduce, due to inner oil leakage in the loader control valve.
Fig.23 Operating instructions
4.2.7. Parking the implement
Do not disconnect the cylinder from the implement at any
of the end positions - difficulties may arise due to over-
pressure, when the quick connections are to be connected.
See also the chapter "Connection and disconnection of the
implement" in the loader operating manual.

Lubrication and maintenance
16
5. LUBRICATION AND MAINTENANCE
Warning!
Never stand between the front of the tractor and
the loader's cross tubes.

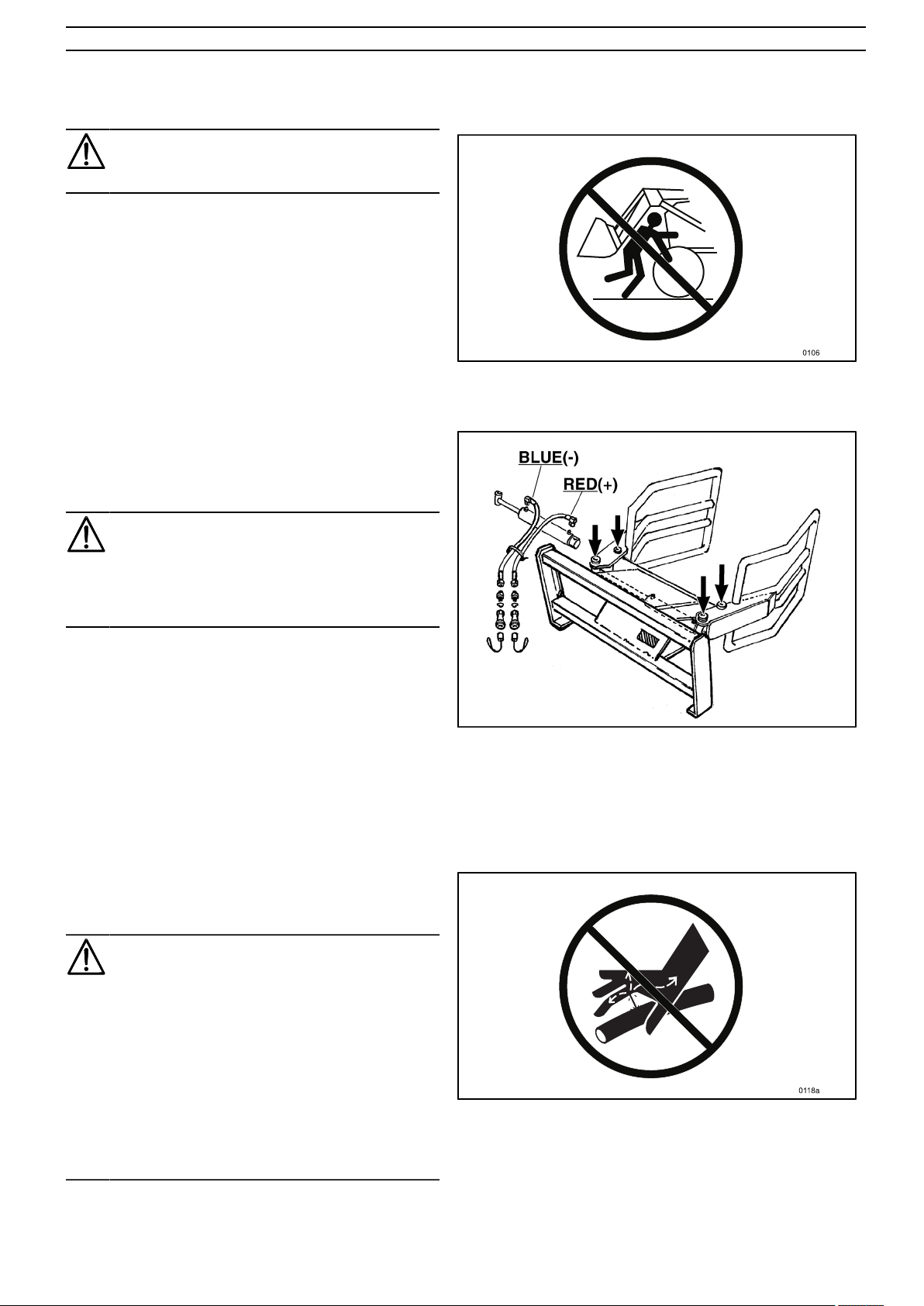

Fig.24 Never stand between the front of the tractor and the
loader's cross tubes.
5.1. Lubrication points
All bearings are equipped with bushings, which normally
only require lubrication once per month.
Warning!
Risk of crushing and jamming
The loader may fall downwards.
Lower the implement to the ground and close the
attachment before starting to lubricate.
Fig.25 Lubrication points.
5.2. Storage
Apply a thin layer of grease on visible piston rods in order
to protect them.
5.3. Hoses and cylinders
Read this before checking the hydraulic system for leakage:
Warning!
Pressurised oil.
Hydraulic oil at high pressure can be injected
into the body in the event of leakage and cause
serious injury, blindness or fatality. Leakage may
be invisible.
Use approved protective safety glasses and
protect the skin using strong leather gloves for
example. Use cardboard or wood for leakage
detection. If fluid has entered the skin then it
MUST be removed within a couple of hours by a
doctor who can treat this type of injury.
Fig.26 NEVER use fingers or hands for leakage detection.

Lubrication and maintenance
17
Check hoses and connections for wear and leakage
at regular intervals. Ensure that hoses have sufficient
clearance and do not scrape against other components.
Replace damaged hoses and tighten all connections.
The cylinders are double-acting. They must always be
maintained in good condition for optimal function. Leaks,
internal or external, affect performance and may be
dangerous.
In order for the implement to function optimally, it requires
a hydraulic system that works at high pressure. Only use
spare parts approved by the manufacturer.
5.3.1. Checking the hydraulic connections
Check that all hoses and adapters are tightened and that
they do not leak.
5.3.2. Repairing the hydraulic cylinders
The removal, repair and fitting of the hydraulic cylinders
require special tools to prevent damage to internal
components. We recommend that a cylinder that needs
repairing be sent to an authorised dealer to be fixed.

Data
18
6. DATA
Model
130
160
Weight (kg)
190
220
Cylinders, diameter (mm)
70/40 mm
80/40 mm
Max. pressure (bar)
200
Max. load (kg)
1000
To use Unigrip, a lifting and breaking force (75 cm) is required, equivalent to:1
• 1000 g and 1300 kg respectively, for a bale weight of
800 kg.
• 1250 kg and 1900 kg respectively, for a bale weight of
1000 kg.
1 These figures are a guideline only.
6.1. Table of recommendations
Quicke
Trima
Q21
+1.1
Q31
+2.1
Q41
+3.1
Q51
+4.1
Q61
+5.1
Q26
+1.1P
Q36
+2.1P
Q46
+3.1P
Q56
+4.1P
Q66
+5.1P
Q76
+6.1P
Q88
+7.3P
Unigrip 130
○
∆
∆
∆
∆
∆
∆
∆
∆
∆
∆
∆
Unigrip 160
○
○
∆
∆
∆
○
∆
∆
∆
∆
∆
∆
○
Recommended for lighter materials
∆
Recommended combination
