Quincy lab 140 Series User manual
140 & 180 ANALOG MODELS
PAGE 1
Issue Rev C 1221
Copyright Quincy Lab Inc. 2021
General Purpose Incubators
OPERATING MANUAL
Model Series 140 & 180
HEAT/ CYCLE
POWER
Model12-140 Incubator
Interior Dimensions
INCHES W x H x D
(CM) W x H x D
Exterior Dimensions
INCHES W x H x D
(CM) W x H x D
12x10x10 18x16x12 18x16x1212x10x10
13x15x11 19x21x13 13x15x11 19x21x11
Weight (lbs) 19 lbs 33 lbs 19 lbs 33 lbs
Standard Electrical
31x25x25 46x41x30 46x41x3031x25x25
33x38x28 48x53x33 33x38x28 48x53x33
SPECIFICATIONS
Temperature Range
Ambient + 2oC to 62oC
Common Unit Construction
Exterior: Powder-Coated Steel Interior: Aluminum
Insulation: Fiberglass Door: 140: Acrylic, 180: Steel Insulated
Thermo-control: Bi-Metal Heater: Resistive-Tubular Incoloy
* Standard models voltage only, optional 230 voltage available. Check label on back of unit.
VOLTS / WATTS 115 / 120* 115 / 235* 115 / 270* 115 / 385*
HEAT/CYCLE
POWER
Model 10-180 Incubator
Ambient + 3oC to 94oC
Cubic Foot Capacity
.7 ft32.0 ft3.7 ft32.0 ft3
Model 10-180
Model 12-140
Common Unit Specifications
Operating Environment:Indoor use, altitude to 6,500 ft. (2,000m) Installation Category II,
Pollution Degree 2, ambient temperature 10oC/50oF to 35oC/95oF,
80% RH maximum.
Storage Temperature: -10oC/14oF to 70oC/158oF, 70% RH maximum.
Approvals: Underwriter's Laboratory Listed, Laboratory Equipment, C/UL
United States/Canadian. E212550 (115VAC models only)
Compliance: UL Standard 61010-1, IEC 61010-1, 2nd Edition.
MODEL
10-140 MODEL
12-140 MODEL
10-180 MODEL
12-180
uincy
ab
Read Operating Instructions Thoroughly Prior to Operation
Safety Precautions
•
Safety Precautions
20 40 60 80 100 20 40 60 80 200 20 40 60 80 300 20 40 60 80 400 20 40 60 80 500
0 10 20 30 40 50 60 70 80 90 100 10 20 30 40 50 60 70 80 90 200 10 20 30
Minumum
Required Space
above the
incubator for
thermocouple
placement.
16” (inches)

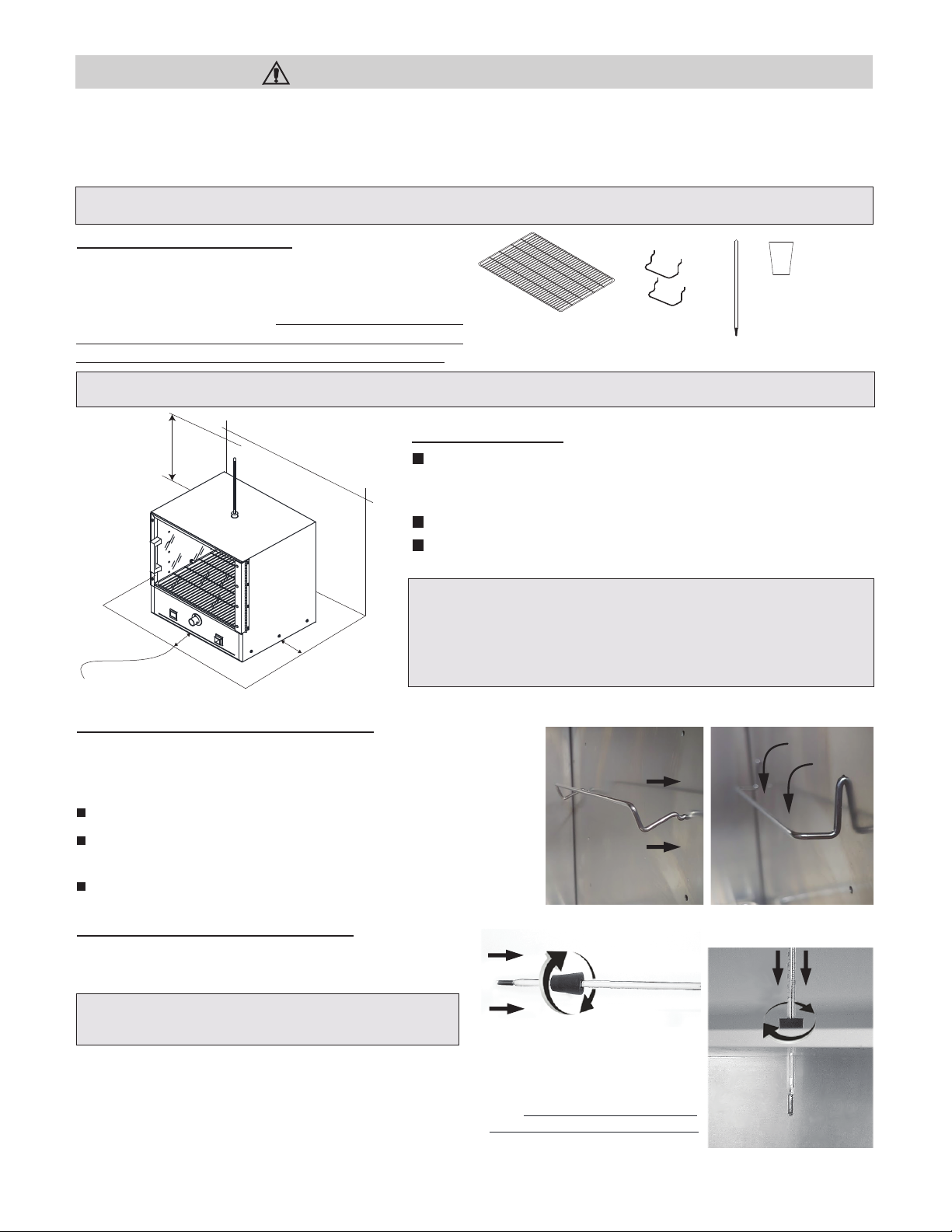

INCUBATOR SHELF INSTALLATION
THERMOMETER INSTALLATION
DAMAGE/MISSING ITEM REPORT
FIG. 2 FIG. 3
FIG. 1
IMPORTANT:
FIG. 4
FIG. 5
NOTE:
narrow part
Grommet will only go in about
1/4 inch into the top port hole.
as shown in
PAGE 2
WARNING:
CAUTION:
INCUBATOR SET-UP
CAUTION:
Mantain a minimum of 3 inch
spacing around the unit.
The design of the parts and
accessories may differ from the pictures shown. Their design is
subject to change without noce for product improvement.
Thermometer
General Opera�on
IMPORTANT:
See Performance and Chamber
Loading and Important Operaonal Notes.
Performance and Chamber Loading
Important guidelines to chamber loading and processing:
IMPORTANT:
Probes can be inserted at
top port.
PAGE 3
140 & 180 ANALOG MODELS
PAGE 4
For best chamber temperature stability, keep the ambient temperature stable.
Quincy Lab, Inc. warrants to the original purchaser that this product will be free from defects in mate-
rial and workmanship under normal use throughout the warranty period. The standard warranty period
for this instrument is eighteen months from date of shipment. The instrument warranty is supplemented
with a three year warranty on the heating element. Please refer to your invoice or shipping documents
to determine the active warranty period. This warranty covers parts & labor (labor at factory only) and
shipping cost for replacement parts.
Limited Warranty
Technical Support
Email:
Voice:
Fax:
800-482-4328
773-622-2282
Quincy Lab, Inc.
109 Shore Dr.,
Burr Ridge, Illinois 60527
on the web at www.quincylab.com
Maintenance
.
Important Opera�onal Notes:
The unit's minimum opera�ng temperature is largely determined by ambient (room) temperature.

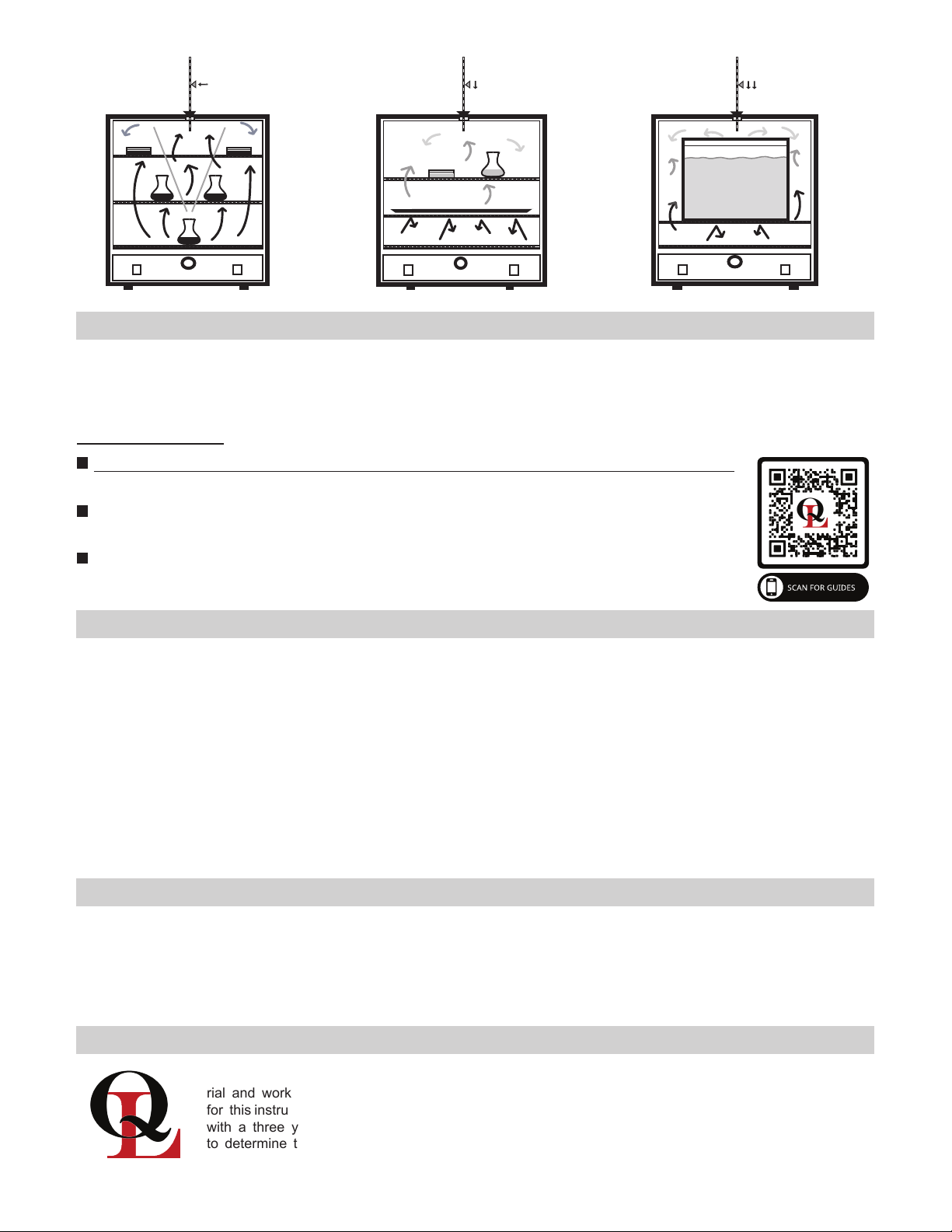

FIG. 6 FIG. 7 FIG. 8
Addi�onal Notes:
non-typical ambient condions can be
This manual suits for next models
5
Table of contents
Other Quincy lab Accessories manuals
