Model 12E Incubator
POWER
DIGITALMICROPROCESSOR
140 SERIES
Switch
opening
Quincy Lab, Inc.
PAGE 1
Issue Rev A 0915
Copyright Quincy Lab Inc. 2010
Model Series 140AE & 180AE
General Purpose Incubators
OPERATING MANUAL
Model 10-180AE
DIGITAL MICROPROCESSOR
Quincy Lab, Inc.
Model 10E Incubator
POWER
Switch
opening
140 SERIES
Model 12-140AE
Interior Dimensions
INCHES W x H x D
(CM) W x H x D
Exterior Dimensions
INCHES W x H x D
(CM) W x H x D
12x10x10 16x15.5x12 16x15.5x1212x10x10
13x15x11 19x21x13 13x15x11 19x21x11
Standard Electrical
31x25x25 46x41x30 46x41x3031x25x25
33x38x28 48x53x33 33x38x28 48x53x33
SPECIFICATIONS MODEL
10-140AE MODEL
12-140AE MODEL
10-180AE MODEL
12-180AE
Common Unit Construction
Exterior: Powder-Coated Steel Interior: Aluminum
Insulation: Fiberglass Door: 140AE: Acrylic, 180AE: Steel Insulated
Thermo-control: PID Microprocessor Heater: Resistive-Tubular Incoloy
* Standard models voltage only, optional 230 voltage available. Check label on back of unit.
VOLTS / WATTS 115 / 200* 115 / 295* 115 / 365* 115 / 465*
Cubic Foot Capacity
.7 ft31.72 ft3.7 ft31.72 ft3
Common Unit Specifications
Operating Environment: Indoor use, altitude to 6,500 ft. (2,000m) Installation Category II,
Pollution Degree 2, ambient temperature 10oC/50oF to 35oC/95oF,
80% RH maximum.
Storage Temperature: -10oC/14oF to 70oC/158oF, 70% RH maximum.
Approvals: Underwriter's Laboratory Listed, Laboratory Equipment, C/UL
United States/Canadian. E212550 (115VAC models only)
Compliance: UL Standard 61010-1, IEC 61010-1, 2nd Edition.
Weight (lbs) 23 lbs 39 lbs 23 lbs 39 lbs
Temperature Range
Ambient +8 C to:
o62 C
o62 C o94 C o94 C o

PAGE 2
AB
CD
FIG. 1
Set-up & Installation
Read Operating Instructions Thoroughly Prior to Operation
Safety Precautions
Read Operating Instructions thoroughly prior to operation. Use only a grounded outlet that is rated for your
model's electrical requirement. Do not modify the oven or factory control settings to operate the oven above the
stated maximum operating temperature. Exterior surfaces on the 180AE models may become hot to the touch
when operating at higher set temperatures. Conduct periodic maintenance as required.
General Operation
Chamber Loading
Position unit in its ultimate operating location. Keep a minimum of 3"
of airspace around the unit and a minimum of 6" above the unit. The
port hole at the top of the unit will expel a small amount of warm air
through natural convection. This port can also be used as an access
way for external temperature measurement of a solution for example.
Install adjustable shelf by placing the ends of the wire shelf bracket
into the corresponding holes located on the inner sides of the oven at
the desired height. Push the ends of the bracket into the holes until the
first bends in the bracket are against the wall, then rotate the bracket
down. Place the shelf on the brackets. (FIG 1)
Place drip tray on lower shelf.
Plug the unit into a grounded outlet for your unit's rated voltage.
The unit is ready for your immediate use. All control parameters,
calibration and tuning has been done at the factory, no adjustments are
necessary.
Push the illuminated power button. All LED's on the temperature control
will light up and display the current chamber temperature and the set
temperature. The motor will also start.
Set temperature is constantly displayed in the lower right-hand corner of
the display. To change the set temperature, simply press either the up
arrow key or the down arrow key until desired set temperature is
reached. (FIG 2) The temperature control is set at the factory to read
in 1/10 degree F, or Fahrenheit units. To change Controller functions
see: Menu Level Functions (page 3).
Once the unit nears the desired temperature, allow the unit to cycle for
20 minutes at set point before temperature becomes fully stable.
NOTE: Upon each initial powering-up, the control may typically overshoot the set temp by a few degrees,
especially if the temperature set point is close to the operating ambient temperature. After equilibrium is achieved
the control will hold set temperature within 1 unit degree.
FIG. 2
Increase/Decrease Setpoint
Enter/Exit Menu
Menu Scroll
(PRESS)
OMRON E5GC
PF
CMW
MANU
STOP
TUNE
F
Leave a space between articles on a shelf to allow the unit's horizontal
air flow to circulate around each article. (FIG. 3)
Don't block the return air port located at the back of the lower
plenum/shelf.
Avoid extremely large (in quantity or size) or high-density loads. This
will show by non-uniform processing and long or impossible "heat-
through" times. To help determine a large load's suitability, use the set-
point recovery time (the time it takes for the temperature to recover to
the original set temperature once load is placed), as a guide. To reduce
recovery time, reduce load proportionally. When possible, measure
large loads or solution temperatures directly with an ancillary
thermometer or probe. Probes can be inserted at top port.
Article processing times and temperature uniformity are largely dependent on load density and positioning. Load
the incubator so that air circulation within the incubator is not impaired. Here are some general guidelines:
FIG. 3

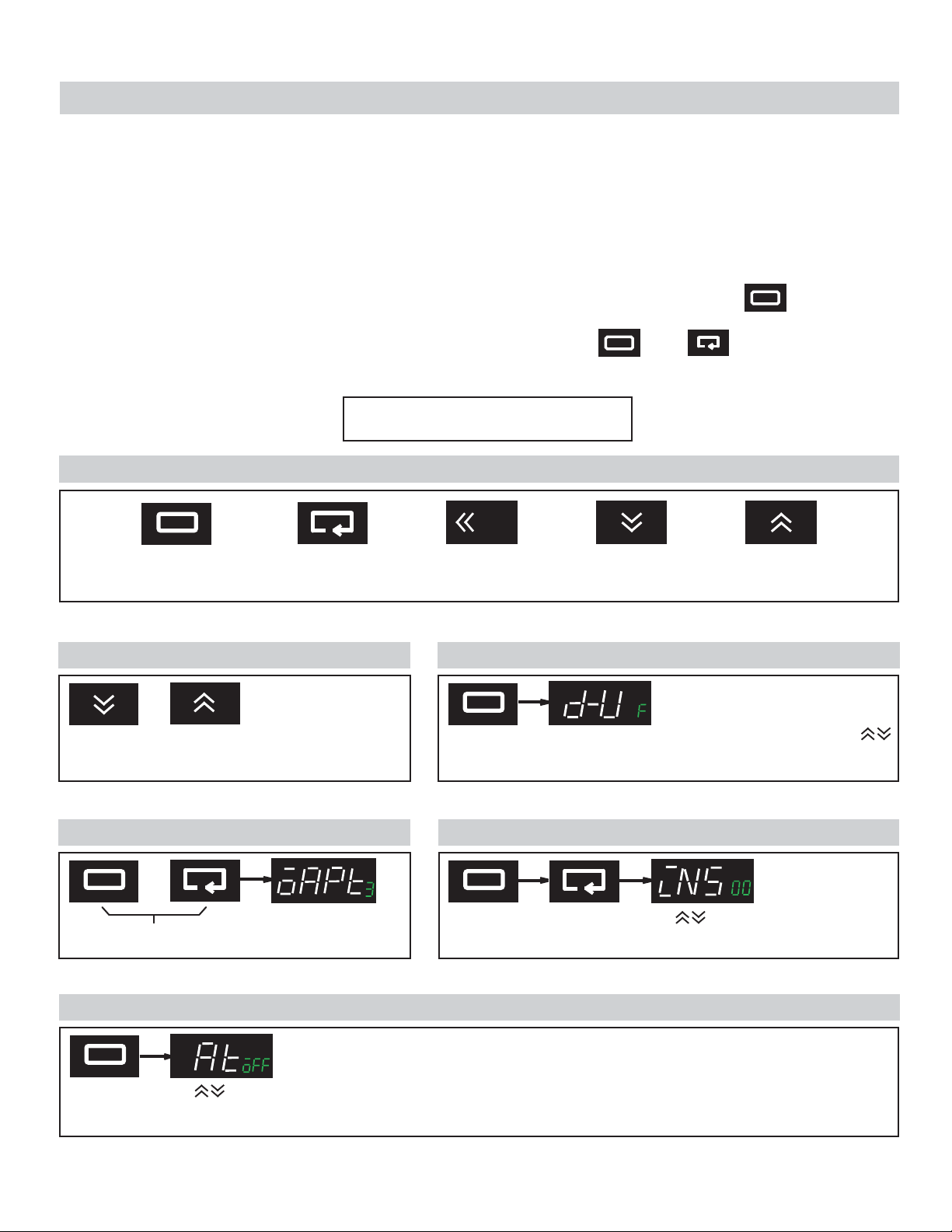

Menu Level Functions Guide
To adjust control to read in C or F temperature units
Hold 3 sec View
To calibrate control to independent probe/sensor
To lock setpoint temperature
To Auto-tune oven
Hit ONCE
Default set to 0
PF
Enter / Exit MENU MENU Scroll Decrease Increase
To set setpoint temperature
Decrease Increase
Up and down arrow
keys (shown left) are
used to increase or
decrease set-point
control temperature
as desired by user
Hold together 3 seconds
Lock setpoint by
changing to '3'
Use keys to
change setting
Default set to 40%
To access menu for common menu functions, please refer to the easy-to-use Menu Guide below: Menu
setting changes are quick and easy with our new 5-button digital microprocessor.
Through the use of these controls you can:
Changes digit
cursor on set
temperature
PAGE 3
Digital Controller Function Buttons
All units are Auto-tuned at the factory using the 'At-1' option for faster response time. You
may, however, want to Auto-tune your oven to your specific application. To do this, once at
the 'At' prompt (at left), use arrow keys to initiate either Auto-tune option: 'At-1' (for 40%
Auto-tune), or 'At-2' (for 100% Autotune). The 40% Auto-tune (At-1), will stabilize the oven
temperature quicker and with less 'overshoot' than the 100%, but will be somewhat less
precise. The 100% Auto-tune (At-2), will take longer to stabilize oven temperature but will
be more precise, and take a little longer to complete the Auto-tune process.
When at the d-U "Degree Units"
prompt, you can change the
temperature units to F for Farenheit,
or C for Celcius, by using the
buttons.
Default set to F
After most changes to the configuration, return to normal operating mode by holding the enter/exit key
for 3 seconds.
- set the operating temperaure,
- lock the set-temperature,
- select either degrees Farenheit or Centigrade,
- calibrate your unit to your independent temperature-sensing device,
- auto-tune your Incubator for maximum efficiency.
M E N U G U I D E
For returning from setting the set-point temperature lock, hold both and for 3 seconds.
Hit ONCE Hit ONCE Use keys to
enter temperature
shift in degrees
To calibrate unit
add (or subtract)
the temperature
differential, to the
existing iNS value
shown at prompt

PAGE 4
Control prompts will only display when a fault or alarm condition exists.
Limited Warranty
Technical Support
If you have any questions or need technical assistance, please contact Quincy Lab Te ch Support at:
Email: [email protected] Quincy Lab, Inc.
Voice: 800-482-HEAT (4328) 1925 N Leamington Ave
Fax: [phone] Chicago, Illinois 60639
Maintenance / Control Calibration
To clean interior and exterior surfaces, use a damp cloth with or without an all-purpose cleaner. Avoid
commercially available oven cleaners. The acrylic door should only be cleaned using a lint-free cloth, with or
without water. Paper towels can mar the surface of the acrylic door. Use of any commercial cleansers on the
acrylic door will cause crazing and cracking of the surface of the acrylic over time. Periodically, check the
accuracy of the control's temperature display against a known accurate or calibrated device. This should be
done with an empty chamber after the set temperature becomes steady (typically after 45 - 60 minutes).
Calibrate the control in the control's function menu, (see page 3).

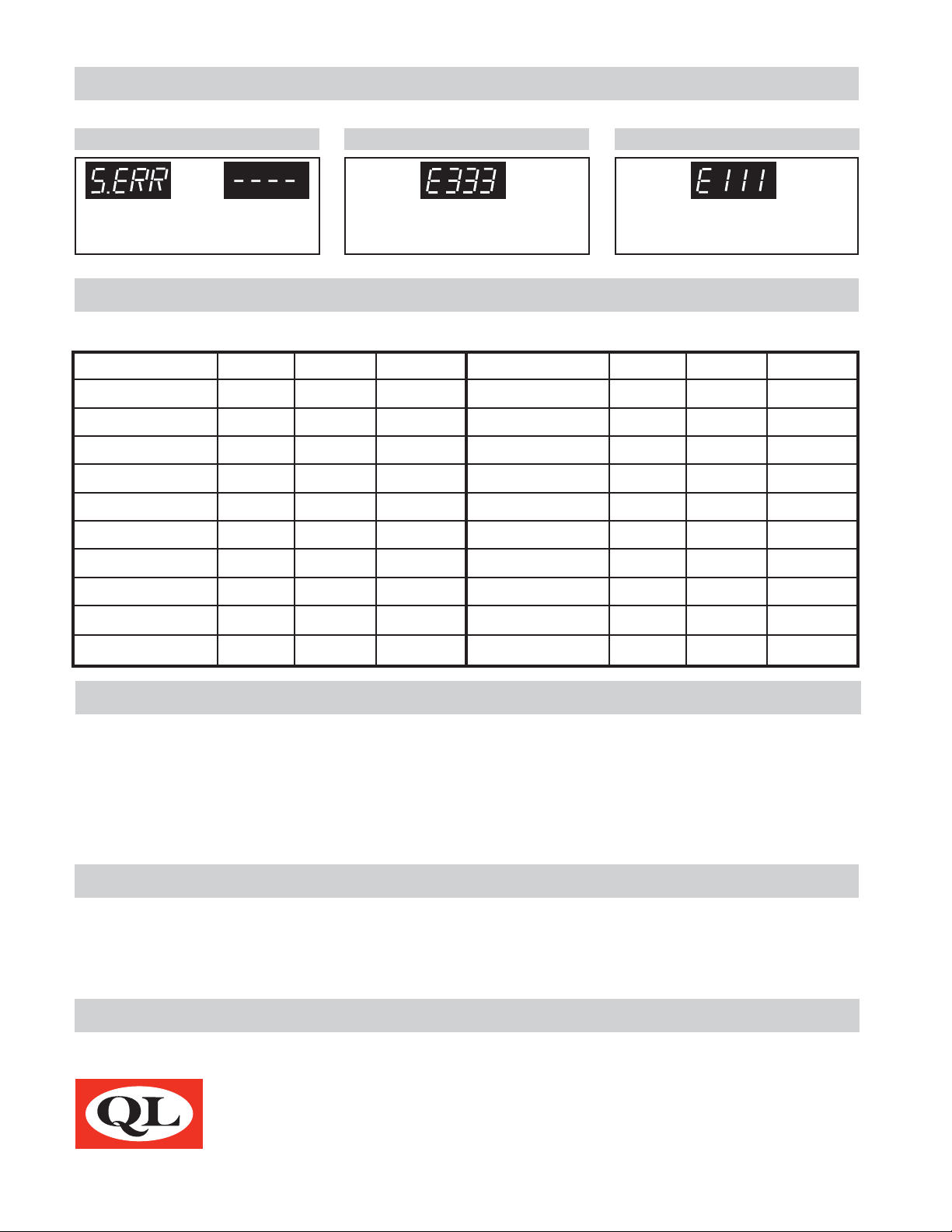

Control Self Diagnostics
Quincy Lab, Inc. warrants to the original purchaser that this product will be free from defects in material and
workmanship under normal use throughout the warranty period. The standard warranty period for this
instrument is eighteen months from date of shipment. The instrument warranty is
supplemented with a three year warranty on the heating element. Please refer to your invoice
or shipping documents to determine the active warranty period. This warranty covers parts &
labor (labor at factory only) and shipping cost for replacement parts.
Indicates Input Error
ALARM Codes "S.ERR" & "- - - -"
or
Check to make sure Thermocouple
wiring is connected securely
Indicates Internal Circuit Error
ALARM Code "E333"
Turn Controller OFF and On. If problem
remains, replace Controller
Indicates Internal Memory Error
ALARM Code "E111"
Turn Controller OFF and On. If problem
remains, replace Controller
COMPONENT MODEL PART #VOLTAGE COMPONENT MODEL PART #VOLTAGE
Common Replacement Components
All replacement components are readily available and are easily replaced in the field.
Digital Controller All
Relay All
Push Button Switch All
Thermocouple All
Shelf Supports (2)
All
Motor w/ Fan & Brkt All 115V
101-1230
401-1235
401-1231
101-1001
401-2025
Magnetic Catch (set) All All 401-1214
All 230V 401-2025-1
401-2213
115V
Fuse (3 amp) All Q-1196
Fuse (5 amp) All Q-1193
Aluminum Shelf All 401-6033 Fuse Holder (Black) All Q-1197
Aluminum Shelf All F-6043A
All
All
10-140AE
10-180AE
12-140AE
12-180AE
All
All
All
Shelf Supports (2) 101-3001
10-140AE
10-180AE
12-140AE
12-180AE
Acrylic Door/Hinge 10-140AE 401-1010
All
Acrylic Door/Hinge 12-140AE 401-1211
Motor w/ Fan & Brkt
10-140AE
12-140AE
10-180AE
12-180AE
Push Button Switch All 401-2213-1
230V
All
Fuse Holder (Red) All Q-1198
All
6' Cord & Plug All 115V 101-1803
All 230V 101-1603-1
6' Cord & Plug
