Quinny Buzz Xtra User manual

French Guide Included
(Mode d’emploi en français inclus)
CV268
User Guide
Mode d’emploi

Parts List Warnings
Assembly
Care & Maintenance
Contents
Replaceable Parts
Warranty
To Use
Contents
Assembly To Use
Install Infant Car Seat
Stroller Care and Maintenance i
Replaceable Parts i
Warranty i
Warnings 1
Parts List 2
Assembly 3-4
To Use 5-6
Install Infant Car Seat 7

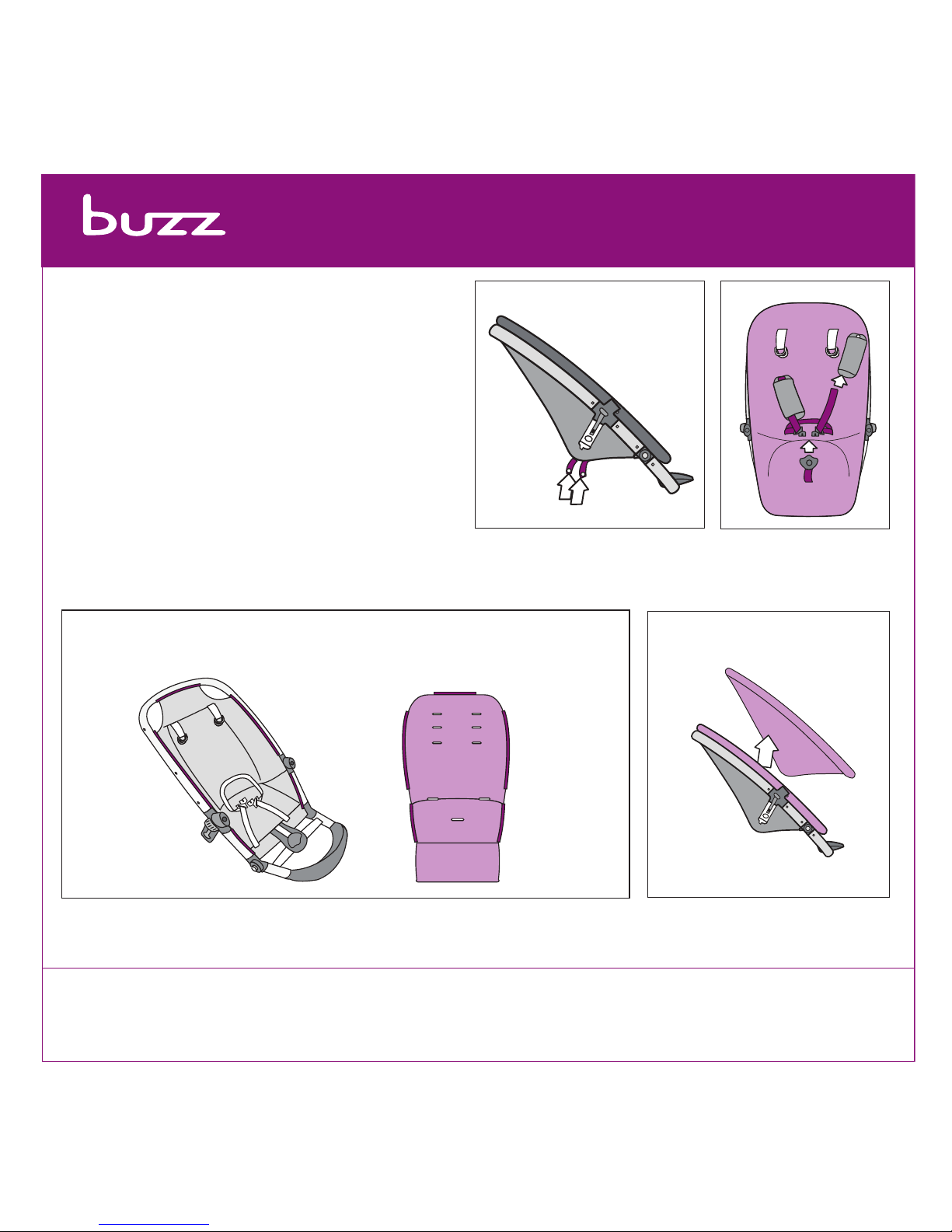

To Remove Seat Pad 8
Guide d’utilisation français: 9
English User Guide:
Stroller Care and Maintenance
• Hand wash in cold water. Line dry. Do not iron or dry clean.
• Periodically check for loose screws, worn parts, torn material or loose stitching. Tighten or replace parts as needed.
• Front Wheel Unit
• Rear Wheels
• Shopping Basket
• Car Seat/Bassinet Adapters
• Bumper Bar
• Canopy
• Seat Pad
• Transport Strap
• To order parts call [phone].
• Include the model number and manufacture date (found on the bottom rail of stroller frame) and a brief description of the part.
• Tukk™ f oldable carrier
• Maxi-Cosi Infant Car Seats
• Weathershield
• Parasol
• Front Wheel Unit (converts buzz to a 4 wheel stroller)
• Cup Holder
• Footmuff
• Travel Bag
• Buzz Box
• Adapter for Safety 1st® onBoard™ Infant Car Seat
Replaceable Parts Available Accessories (sold separately)
Two-Year Limited Warranty
Dorel Juvenile Group, Inc. warrants to the original purchaser that this product ( Buzz stroller ), is free from material and workmanship defects when used under normal conditions
for a period of two (2) years from the date of purchase. Should the product contain defects in material or workmanship Dorel Juvenile Group, Inc., will repair or replace the
product, at our option, free of charge. Purchaser will be responsible for all costs associated with packaging and shipping the product to Dorel Juvenile Group Consumer Relations
Department at the address noted on the front of this document and all other freight or insurance costs associated with the return. Dorel Juvenile Group will bear the cost of
shipping the repaired or replaced product to the purchaser. Product should be returned in its original package accompanied by a proof of purchase, either a sales receipt or other
proof that the product is within the warranty period. This warranty is void if the owner repairs or modifies the product or the product has been damaged as a result of misuse.
This warranty excludes any liability other than that expressly stated previously, including but not limited to, any incidental or inconsequential damages.
SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR
EXCLUSION MAY NOT APPLY TO YOU.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS THAT MAY VARY FROM STATE TO STATE.

Parts List
Warnings
Assembly
Care & Maintenance
Contents
Replaceable Parts
Warranty
To Use
Contents
Assembly To Use
Install Infant Car Seat
FOR THE SAFETY OF YOUR CHILD, PLEASE READ THE FOLLOWING WARNINGS AND ASSEMBLY
INSTRUCTIONS AND KEEP FOR FUTURE REFERENCE.
• Adult assembly required.
• CAUTION: Keep small parts away from children during assembly.
• NEVER LEAVE CHILD UNATTENDED. ALWAYS keep child in view when in stroller.
• AVOID SERIOUS INJURY from falling or sliding out. ALWAYS use seat belt. Check frequently to make sure it is secure.
• ALWAYS keep fingers away from moving parts, when folding, unfolding or adjusting stroller to prevent
finger entrapment.
• ALWAYS make sure stroller is FULLY OPEN AND LOCKED before using.
• ALWAYS use the brakes when stroller is stopped.
• ALWAYS remove protective material and poly bags and dispose before assembly.
• NEVER use stroller on stairs or escalators.
• NEVER rollerblade with stroller.
• NEVER allow children to play with or hang onto the stroller.
• NEVER allow children to climb into the stroller unassisted. Stroller may tip over and injure child.
• NEVER place or hang parcels, bags or accessories on the handle or canopy. The stroller may tip over or the
canopy may collapse.
• This product will become unstable if a parcel bag or rack is used when there is no provision for one.
• This product may become unstable if a parcel bag, other than the one recommended by the manufacturer is used.
• This product will become unstable if the manufacturer’s recommended load is exceeded.
• DO NOT carry additional children, goods or accessories in or on this product except as recommended in the
manufacturer’s instructions.
• NEVER place more than 11-LBS. (5-kg) in the storage basket. If weight is exceeded, hazardous unstable
conditions may exist.
• STROLLER is only for use with children up to 50-LBS. (22.73-kg), and WHEN SEATED, the midpoint of the
child’s head is at or below the top of the stroller seat.
• ONLY use this stroller with ONE child at a time.
• STROLLER is for use with children who can sit up unassisted, and is NOT recommended for newborns.
• Recommended rear tire pressure is 26-psi. Recommended front tire pressure is 18-psi.
WARNING
1

Parts List
Warnings
Assembly
Care & Maintenance
Contents
Replaceable Parts
Warranty
To Use
Contents
Assembly To Use
Install Infant Car Seat
2
Rear wheels (2)
Front wheel unit
Transport strap
Maxi-Cosi infant car seats and
Quinny tukk™ f oldable carrier adapters* (2)
Shopping basket
Adjustable height handle
Canopy (with sunshade)
Bumper bar
A
B
C
E
F
G
H
D
* Maxi-Cosi Infant Car Seats and Quinny tukk™
f oldable carrier sold separately.
• Keep these instructions for future use.
• Lay out and identify all parts.
• Do not return this product to the place of
purchase. If any parts are missing, call Consumer
Relations at [phone]. Or visit our website
at www.quinny.com.
• Include the model number and manufacture date
(found on the bottom rail of stroller).
A
B
G
F
E
D
H
C

Parts List Warnings
Assembly
Care & Maintenance
Contents
Replaceable Parts
Warranty
To Use
Contents
Assembly To Use
Install Infant Car Seat
1 Install Rear Wheels
Slide the rear wheel axle into
the frame until you hear a “click”
(Figure 1). Repeat for other rear
wheel. Pull to confirm each is
assembled securely.
3
3 Install Front Wheel Unit
Squeeze the front wheel fork
while inserting it into the frame
tube. Push front wheel into frame
tube until you hear a “click”
(Figure 3).
Pull to confirm it is assembled
securely.
2 Attach Shopping Basket
Locate tab on basket. Slide tab
into tube at the front center
(Figure 2).
Secure hook-and-loop strap
around frame above each rear
wheel (Figure 2a).
2
3
4a
4b
4 Unfold Stroller
Unfasten transport strap
(Figure 4).
Push back on frame lock to
release and gently pull up on
frame from handlebar (Figure 4a).
Frame will begin to unfold
automatically and click into place
(Figure 4b).
5 Adjust Handlebar Height
Squeeze the adjustment button
and slide the handlebar to desired
height (Figure 5). The handlebar
will click into place.
5
6 Parking Brake
Always use the parking brake,
even when standing still for only a
few moments! Push firmly down
on the red pedal (P) behind the
rear wheel to set the parking
brake (Figure 6). Push the
opposite pedal to release the
parking brake.
6
NOTE: The Buzz stroller frame has
a unique mechanism that enables the
automatic unfolding of the frame. The
temperature can affect the functioning
of this mechanism. In cold or frosty
weather, the stroller may unfold
more slowly than usual (at room
temperature).
14
2a

Parts List Warnings
Assembly
Care & Maintenance
Contents
Replaceable Parts
Warranty
To Use
Contents
Assembly
To Use
Install Infant Car Seat
7 Attach Seat Facing
Handlebar or Forward
Slide both sides of the seat
into the frame until you hear
each side click and the RED
INDICATOR IS NOT VISIBLE
(Figure 7). If indicator is visible
DO NOT USE. There are only
TWO acceptable positions in
each orientation.
4
7b
Seat Facing Handlebar
The seat can be adjusted to two
positions; a semi-reclined position
and a reclined position. Stand at
the side of or behind the stroller.
Push the buttons on both sides
downward and tilt the seat to the
desired position (Figure 7a).
NOTES: The seat can be positioned facing the handlebar or forward. The Buzz
stroller seat is suitable for children from 6 months to age 4 (maximum 50-LBS.
/ 22.73-kg).
Red
Indicator
7
7a
Seat Facing Forward
The seat can be adjusted to two
positions when facing forward;
an upright and a semi-reclined
position. Push the buttons on
both sides downward and tilt
the seat to the desired position
(Figure 7b).
8 To Remove Seat
Push the buttons on both sides
downward and lift the seat from
the frame (Figure 8).
9 Canopy
Clip each side of the canopy onto
the frame until it clicks into place
(Figure 9).
Height of canopy may be adjusted
by sliding it up and
down the frame
(Figure 9).
To fully extend
canopy, unzip the
sunshade (Figure 9a).
8
99a
WARNING DO NOT use when red
indicator is visible (Figure 7). DO NOT use with seat
in the position labeled “WRONG.”
UPRIGHT SEMI-RECLINED WRONG
SEMI-RECLINED RECLINED WRONG

Parts List Warnings
Assembly
Care & Maintenance
Contents
Replaceable Parts
Warranty
To Use
Contents
Assembly To Use
Install Infant Car Seat
5
10 Bumper Bar
Insert bumper bar into
openings on seat until you hear
each side click (Figure 10).
To Remove
Bumper Bar
Press buttons under each side
of bumper bar and pull the bar
off the seat (Figure 10a).
IMPORTANT: Always secure
the child with the restraining
straps.
11 Footrest
To adjust the footrest up, pull
footrest up. To adjust down,
press the buttons on both sides
and push down (Figure 11).
12 Swivel Wheel
Lock the swivel wheel when using
the stroller in a straight direction
for a long period. To lock, push
the lock lever downward and
rotate wheel until it locks into
place (Figure 12). To unlock,
push the lock lever upward.
10
10a
11
12
13 To Use Restraint
System
Unbuckle restraint system
(Figure 13). Place your child
in the stroller, with the crotch
strap between the child’s legs.
Fit clips together. Slide clips into
buckle until you hear a “click”.
To tighten strap, pull strap end
down (Figure 13a).
To loosen strap, back strap
back through loops (Figure
13b).
Adjust straps snugly around
your child (Figure 13a).
WARNING
• NEVER LEAVE CHILD UNATTENDED. ALWAYS keep
child in view when in stroller.
• AVOID SERIOUS INJURY from falling or sliding out.
ALWAYS use seat belt. Check frequently to make sure it is
secure. Belts must be threaded exactly as shown (Fig. 14b).
• Failure to follow these instructions could result in the
serious injury or death of your child.
2x
5
3
2
4
2x
13
13a
13b
14 Adjust Restraint Height
The shoulder straps have
three height positions for
your growing child. Unsnap
shoulder cushions from harness.
Unthread shoulder straps
(Figure 14). Push shoulder
straps through back of the seat
pad into the desired slot (Figure
14a). Thread straps as shown
(Figure 14b). Attach snaps.
14a
14
14b

Parts List Warnings
Assembly
Care & Maintenance
Contents
Replaceable Parts
Warranty
To Use
Contents
Assembly
To Use
Install Infant Car Seat
6
15 Tire Pressure
Recommended rear tire pressure is 26-psi. Recommended front tire
pressure is 18-psi. Use a manual bike pump to inflate tires. NEVER use
an air compressor to fill tires with air (like those used at gas stations).
16 Fold Stroller
NOTE: You have the option of
removing the seat before folding.
Seat must be in forward facing
and upright position. Before
folding stroller we suggest that
you fold back the canopy, lower
handlebar (Figure 16) and lock
the wheels.
16
16a
16b
16d
16e
To make the stroller more
compact, you may remove the
wheels. Press the rear wheel
release button to pull each rear
wheel out (Figure 16d).
While buttons are engaged, push
down so that stroller begins
to fold towards front wheel.
Continue to push until it clicks
into the frame lock (Figure 16b).
Stand at the front of the stroller,
position one foot in front of the
swivel wheel for added stability
Depress button on left side of
stroller frame and slide button
on right side of frame towards
you (Figure 16a).
Press both front wheel release
buttons to pull the front wheel
out of the frame tube (Figure
16e).
With stroller locked and
handlebar adjusted to lowest
position, wrap transport strap
around handlebar and secure
buckle (Figure 16c). Pull strap
to confirm it is assembled
securely.
NOTE: When stroller is in use,
attach buckle to prevent from
dragging.
16c

Parts List Warnings
Assembly
Care & Maintenance
Contents
Replaceable Parts
Warranty
To Use
Contents
Assembly To Use
Install Infant Car Seat
7
To avoid serious injury:
• Use ONLY Maxi-Cosi Mico®, Mico® AP, Mico®
Nxt and PreziTM infant car seat and Quinny tukk™
foldable carrier with adapters included with this
stroller.
• Please refer to the manufacturer’s instructions for
the use of your infant car seat and bassinet.
• ALWAYS install car seat and bassinet facing the
stroller handlebar.
• ALWAYS use the restraint system in the car
seat.
WARNING
17a
17
Align Slots
17 Install Maxi-Cosi Mico®, Mico® AP, Mico® Nxt and PreziTM
Infant Car Seats or Quinny tukkTM foldable carrier
Push the parking brake pedal down. Remove the seat.
Locate the buttons inside each hub on both sides of stroller frame.
Depress the button and rotate the hubs so that the two slots on top
are aligned (Figure 17). Be sure that the hubs are in the upright position,
otherwise the adapters will not fit.
Insert the adapter labeled “R” into the frame hub labeled “R” until you
hear a “click.” Then insert the adapter labeled “L” into the frame hub
labeled “L” until you hear a “click” (Figure 17a).
Car seat and carrier must be positioned so that
child faces the stroller handle.
Lower car seat or bassinet into adapters until both sides “click” (Figure 17b, 17c).
Pull up on car seat or foldable carrier to ensure that it is locked into place.
To remove Mico, Mico AP, Mico Nxt car seat, press both buttons on car
seat while lifting car seat up (Figure 17d). To remove Prezi car seat, pull
grey release button on back of car seat while lifting up (Figure 17e). To
remove tukk, press both release buttons (one on each side of carrier) then
pull up on the carrier (Figure 17f).
To remove car seat adapters, press release button and slide adapter off the
frame hubs (Figure 17g).
17g
17b
Tukk Carrier
Car Seat
Tukk Carrier
17f
17c
2x
17d 17e
Mico, Mico AP,
Mico Nxt Car
Seats Prezi Car Seat

Parts List Warnings
Assembly
Care & Maintenance
Replaceable Parts
Warranty
To Use
Contents
Assembly
To Remove Seat Pad
TM
TM
TM TM TM
TM
TM
TM TM
Install Infant Car Seat
8
To Remove Small Seat:
1. Remove the seat from the stroller frame
(
Fig. 1). Consult Buzz manual if needed.
2. Locate and unsnap two straps from bottom
of seat ( Fig. 2). Push straps through seat.
3.
Unbuckle restraint. Unsnap shoulder pads.
Unthread shoulder straps from ÒDÓ shaped
rings. Slide shoulder pads off straps (Fig. 3).
4. Remove hook-and-loop patch at lower end of
seat pad. Slide seat pad binding up the side
grooves (Reverse step 6 and 7). Remove seat
pad (
Fig. 4).
To Install XL Seat Pad:
5. Feed the upper binding upward into grooves
evenly on each side (
Fig. 5). Feed beyond
.pets txen rof kcals edivorp ot pot
.6
Feed the top binding into top groove ( Fig. 6).
7. Pull restraint straps through seat pad (5
( )secalp
Fig. 7). Replace shoulder pads and
.sgnir ÓDÒ hguorht sparts redluohs daerhter
.sparts ot sdap redluohs panS
8. Buckle straps. Feed the lower binding into
( taes fo sedis ta sevoorg
Fig. 8).
DŽpose Du Petit Siège :
1. Retirer le siège du cadre de la poussette
eb uA .)1 .giF(
.zzuB iolpmeÕd
2. RepŽrer et dŽfaire les deux c au bas du siège
(Fig. 2). RepŽrer et dŽfaire les deux c au bas du siège Passer les courroies dans le siège.
3.
oS .serèiluapŽ
e xuaenna sed
serèiluapŽ sel
4. Enlever la fermeture ˆ velcro au bas du
essilG .nissuoc
arŽtal seruniar
c el revelnE .)7
Installation Du Coussin De Siège XL :
5. Passer lÕattache supŽrieure vers le haut dans
les rainures, de manière Žgale de chaque
D
.)5 .giF( Žt™c
masiffus riovaÕd
prochaine Žtape.
t
taÕl ressaP .6
supŽrieure (Fig. 6).
7. Tirer les courroies de retenue ˆ travers le
coussin du siège (5 endroits) (Fig. 7).
p
Ž sel resopeR
pŽÕd seiorruoc
D Ç ed emrof
aux courroies.
8. Boucler les courroies. Passer lÕattache
s
nad erueirŽfni
.giF( egèis ud
2 3
1
5 6
78
Lower Grooves
Rainures infŽrieures
Top Groove
Rainure
du dessus
Upper
Grooves
Rainures
supŽrieures
Seat without
seat pad
Siège sans
coussin
Top
Binding
Fixation
de la capote
Upper
Binding
Fixation
supŽrieure
Lower
Binding
Fixation
infŽrieure
To Remove Small Seat:
1. Remove the seat from the stroller frame
(
Fig. 1). Consult Buzz manual if needed.
2. Locate and unsnap two straps from bottom
of seat (
Fig. 2). Push straps through seat.
3.
Unbuckle restraint. Unsnap shoulder pads.
Unthread shoulder straps from ÒDÓ shaped
rings. Slide shoulder pads off straps (Fig. 3).
4. Remove hook-and-loop patch at lower end of
seat pad. Slide seat pad binding up the side
grooves (Reverse step 6 and 7). Remove seat
pad (
Fig. 4).
To Install XL Seat Pad:
5. Feed the upper binding upward into grooves
evenly on each side (
Fig. 5). Feed beyond
.pets txen rof kcals edivorp ot pot
.6
Feed the top binding into top groove ( Fig. 6).
7. Pull restraint straps through seat pad (5
( )secalp
Fig. 7). Replace shoulder pads and
.sgnir ÓDÒ hguorht sparts redluohs daerhter
.sparts ot sdap redluohs panS
8. Buckle straps. Feed the lower binding into
( taes fo sedis ta sevoorg
Fig. 8).
DŽpose Du Petit Siège :
1. Retirer le siège du cadre de la poussette
eb uA .)1 .giF(
.zzuB iolpmeÕd
2. RepŽrer et dŽfaire les deux c au bas du siège
(Fig. 2). RepŽrer et dŽfaire les deux c au bas du siège Passer les courroies dans le siège.
3.
oS .serèiluapŽ
e xuaenna sed
serèiluapŽ sel
4. Enlever la fermeture ˆ velcro au bas du
e
ssilG .nissuoc
arŽtal seruniar
c el revelnE .)7
Installation Du Coussin De Siège XL :
5. Passer lÕattache supŽrieure vers le haut dans
les rainures, de manière Žgale de chaque
D
.)5 .giF( Žt™c
masiffus riovaÕd
prochaine Žtape.
t
taÕl ressaP .6
supŽrieure (Fig. 6).
7. Tirer les courroies de retenue ˆ travers le
coussin du siège (5 endroits) (Fig. 7).
p
Ž sel resopeR
pŽÕd seiorruoc
D Ç ed emrof
aux courroies.
8. Boucler les courroies. Passer lÕattache
s
nad erueirŽfni
.giF( egèis ud
2 3
1
5 6
78
Lower Grooves
Rainures infŽrieures
Top Groove
Rainure
du dessus
Upper
Grooves
Rainures
supŽrieures
Seat without
seat pad
Siège sans
coussin
Top
Binding
Fixation
de la capote
Upper
Binding
Fixation
supŽrieure
Lower
Binding
Fixation
infŽrieure
To Remove Small Seat:
1. Remove the seat from the stroller frame
(
Fig. 1). Consult Buzz manual if needed.
2. Locate and unsnap two straps from bottom
of seat (
Fig. 2). Push straps through seat.
3.
Unbuckle restraint. Unsnap shoulder pads.
Unthread shoulder straps from ÒDÓ shaped
rings. Slide shoulder pads off straps (Fig. 3).
4. Remove hook-and-loop patch at lower end of
seat pad. Slide seat pad binding up the side
grooves (Reverse step 6 and 7). Remove seat
pad (
Fig. 4).
To Install XL Seat Pad:
5. Feed the upper binding upward into grooves
evenly on each side (
Fig. 5). Feed beyond
.pets txen rof kcals edivorp ot pot
.6
Feed the top binding into top groove ( Fig. 6).
7. Pull restraint straps through seat pad (5
( )secalp
Fig. 7). Replace shoulder pads and
.sgnir ÓDÒ hguorht sparts redluohs daerhter
.sparts ot sdap redluohs panS
8. Buckle straps. Feed the lower binding into
( taes fo sedis ta sevoorg
Fig. 8).
DŽpose Du Petit Siège :
1. Retirer le siège du cadre de la poussette
eb uA .)1 .giF(
.zzuB iolpmeÕd
2. RepŽrer et dŽfaire les deux c au bas du siège
(Fig. 2). RepŽrer et dŽfaire les deux c au bas du siège Passer les courroies dans le siège.
3.
oS .serèiluapŽ
e xuaenna sed
serèiluapŽ sel
4. Enlever la fermeture ˆ velcro au bas du
e
ssilG .nissuoc
arŽtal seruniar
c el revelnE .)7
Installation Du Coussin De Siège XL :
5. Passer lÕattache supŽrieure vers le haut dans
les rainures, de manière Žgale de chaque
D
.)5 .giF( Žt™c
masiffus riovaÕd
prochaine Žtape.
t
taÕl ressaP .6
supŽrieure (Fig. 6).
7. Tirer les courroies de retenue ˆ travers le
coussin du siège (5 endroits) (Fig. 7).
p
Ž sel resopeR
pŽÕd seiorruoc
D Ç ed emrof
aux courroies.
8. Boucler les courroies. Passer lÕattache
s
nad erueirŽfni
.giF( egèis ud
2 3
1
5 6
78
Lower Grooves
Rainures infŽrieures
Top Groove
Rainure
du dessus
Upper
Grooves
Rainures
supŽrieures
Seat without
seat pad
Siège sans
coussin
Top
Binding
Fixation
de la capote
Upper
Binding
Fixation
supŽrieure
Lower
Binding
Fixation
infŽrieure
18
18b 18c
18a
18 To Remove Seat Pad:
1. Remove the seat from the stroller frame, refer to step 8 on page 4.
2. Locate and unsnap two straps from bottom of seat (Figure 18) and
push straps through seat.
3. Unbuckle restraint. Unsnap shoulder pads. Unthread shoulder straps
from “D” shaped rings. Slide shoulder pads off straps (Figure 18a).
4. Remove hook-and-loop patch at lower end of seat pad. Slide seat
pad binding up the side grooves and remove from top groove (Figure
18b). Remove seat pad (Figure 18c).
To reattach, reverse steps.
To Remove Small Seat:
1. Remove the seat from the stroller frame
(
Fig. 1). Consult Buzz manual if needed.
2. Locate and unsnap two straps from bottom
of seat (
Fig. 2). Push straps through seat.
3.
Unbuckle restraint. Unsnap shoulder pads.
Unthread shoulder straps from ÒDÓ shaped
rings. Slide shoulder pads off straps (Fig. 3).
4. Remove hook-and-loop patch at lower end of
seat pad. Slide seat pad binding up the side
grooves (Reverse step 6 and 7). Remove seat
pad (
Fig. 4).
To Install XL Seat Pad:
5. Feed the upper binding upward into grooves
evenly on each side (
Fig. 5). Feed beyond
.pets txen rof kcals edivorp ot pot
.6
Feed the top binding into top groove ( Fig. 6).
7. Pull restraint straps through seat pad (5
( )secalp
Fig. 7). Replace shoulder pads and
.sgnir ÓDÒ hguorht sparts redluohs daerhter
.sparts ot sdap redluohs panS
8. Buckle straps. Feed the lower binding into
( taes fo sedis ta sevoorg
Fig. 8).
DŽpose Du Petit Siège :
1. Retirer le siège du cadre de la poussette
eb uA .)1 .giF(
.zzuB iolpmeÕd
2. RepŽrer et dŽfaire les deux c au bas du siège
(Fig. 2). RepŽrer et dŽfaire les deux c au bas du siège Passer les courroies dans le siège.
3.
oS .serèiluapŽ
e xuaenna sed
serèiluapŽ sel
4. Enlever la fermeture ˆ velcro au bas du
e
ssilG .nissuoc
arŽtal seruniar
c el revelnE .)7
Installation Du Coussin De Siège XL :
5. Passer lÕattache supŽrieure vers le haut dans
les rainures, de manière Žgale de chaque
D
.)5 .giF( Žt™c
masiffus riovaÕd
prochaine Žtape.
t
taÕl ressaP .6
supŽrieure (Fig. 6).
7. Tirer les courroies de retenue ˆ travers le
coussin du siège (5 endroits) (Fig. 7).
p
Ž sel resopeR
pŽÕd seiorruoc
D Ç ed emrof
aux courroies.
8. Boucler les courroies. Passer lÕattache
s
nad erueirŽfni
.giF( egèis ud
2 3
1
5 6
78
Lower Grooves
Rainures infŽrieures
Top Groove
Rainure
du dessus
Upper
Grooves
Rainures
supŽrieures
Seat without
seat pad
Siège sans
coussin
Top
Binding
Fixation
de la capote
Upper
Binding
Fixation
supŽrieure
Lower
Binding
Fixation
infŽrieure
Top
Groove
Upper
Grooves
Lower
Grooves
Seat without
Seat Pad Top Binding
Upper
Binding
Lower
Binding
