Qvis APOIR-PTZ23 User manual

APOIR-PTZ23
23X ZOOM ANALOGUE PTZ CAMERA
User’s Manual
V1.0 11 / 2013

© Copyright Qvis® All documentation rights reserved. i

© Copyright Qvis® All documentation rights reserved. ii
Table of Contents
1FEATURES AND FUNCTIONS................................................................................................1
1.1 General Introduction..........................................................................................................................................1
1.2 Features ..............................................................................................................................................................1
1.2.1 On-Screen Menu .............................................................................................................................................1
1.2.2 On-screen Tips ................................................................................................................................................1
1.2.3 Support multiple protocols...............................................................................................................................1
1.2.4 Proportional Pan and Tilt .................................................................................................................................1
1.2.5 Preset Setup and Call......................................................................................................................................2
1.2.6 Auto Scan ........................................................................................................................................................2
1.2.7 Auto Touring ....................................................................................................................................................2
1.2.8 Auto Pattern.....................................................................................................................................................2
1.2.9 Privacy Masking...............................................................................................................................................2
1.2.10 IR Night Vision.............................................................................................................................................2
1.2.11 Action on Alarm...........................................................................................................................................2
1.2.12 Auto Flip ......................................................................................................................................................2
1.2.13 Self-diagnosis..............................................................................................................................................2
1.2.14 Day/Night Mode (B/W & Color Mode) .........................................................................................................3
1.2.15 Auto Focus ..................................................................................................................................................3
1.2.16 Backlight Compensation..............................................................................................................................3
1.2.17 Pan Tilt and Zoom.......................................................................................................................................3
1.2.18 3D Intelligent Location.................................................................................................................................3
1.2.19 Idle Status....................................................................................................................................................3
1.2.20 Image Stabilizer/Flip....................................................................................................................................3
2IR PTZ CAMERA INSTALLATION ..........................................................................................4
2.1 Installation Preparation .....................................................................................................................................4
2.2 IR PTZ camera and network IR PTZ camera installation................................................................................5
2.2.1 PTZ camera bracket installation ......................................................................................................................5

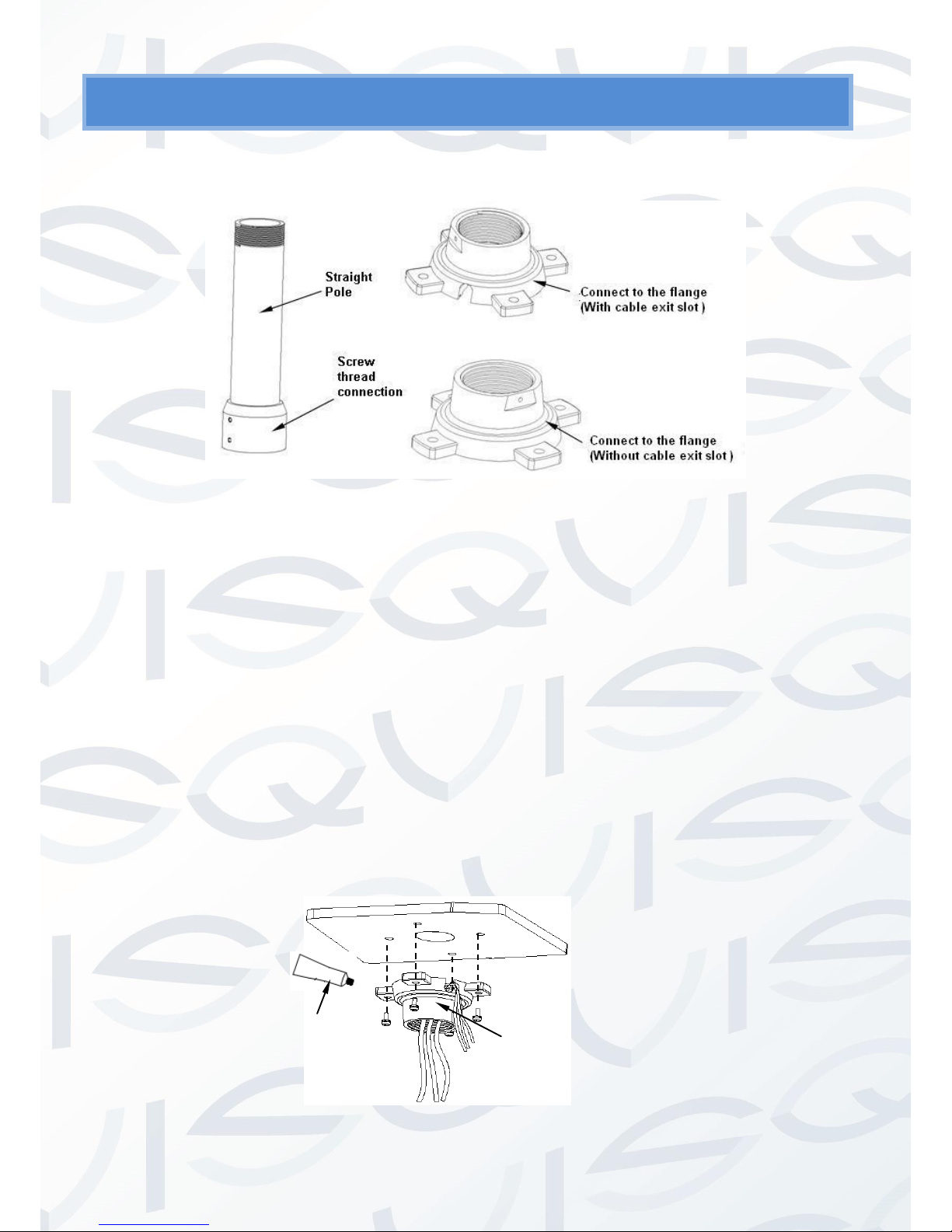

2.2.2 Pipe thread bracket installation........................................................................................................................5
2.2.3 Clip wall mount bracket installation..................................................................................................................6
2.2.4 Secure the PTZ camera to the flange..............................................................................................................6

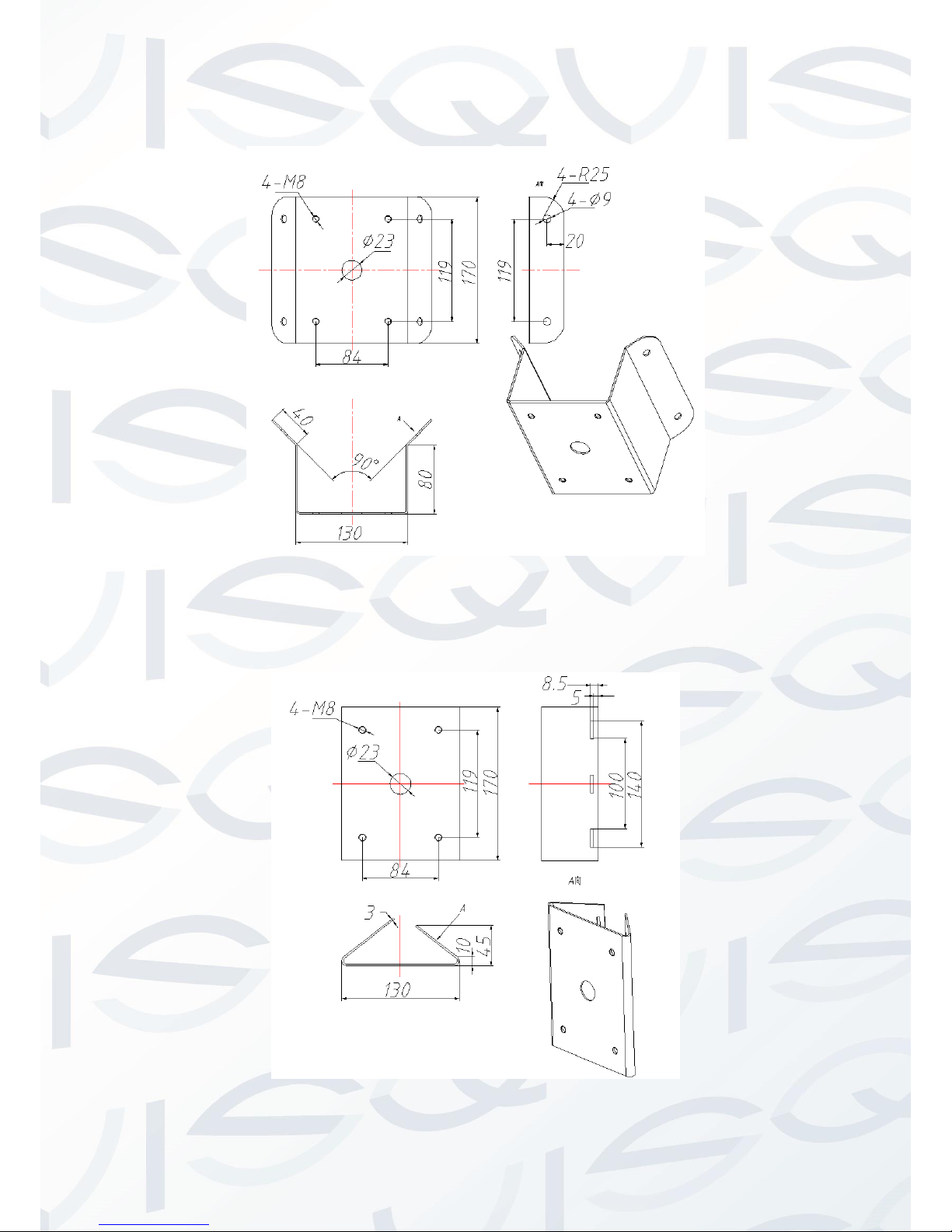

3BRACKET DIMENSIONS.........................................................................................................8
3.1 Wall mount bracket............................................................................................................................................8
3.2 Hanging mount bracket (Multiple Lengths).....................................................................................................8
3.3 Corner mount bracket........................................................................................................................................9

© Copyright Qvis® All documentation rights reserved. iii
3.4 Pole mount bracket............................................................................................................................................9
4WALL MOUNT BRACKET INSTALLATION..........................................................................10
4.1 Component Installation ...................................................................................................................................10
4.2 Installation ........................................................................................................................................................10
4.2.1 Installation Requirements ..............................................................................................................................10
4.2.2 Installation Steps ...........................................................................................................................................10
5HANG MOUNT BRACKET INSTALLATION .........................................................................12
5.1 Component Installation ...................................................................................................................................12
5.2 Installation ........................................................................................................................................................12
5.2.1 Installation Requirements ..............................................................................................................................12
5.2.2 Installation Steps ...........................................................................................................................................12
6CORNER MOUNT BRACKET INSTALLATION ....................................................................14
6.1 Component Installation ...................................................................................................................................14
6.2 Installation ........................................................................................................................................................14
6.2.1 Installation Requirements ..............................................................................................................................14
6.2.2 Installation Steps ...........................................................................................................................................14
7POLE MOUNT BRACKET INSTALLATION ..........................................................................16
7.1 Installation ........................................................................................................................................................16
7.1.1 Installation Requirements ..............................................................................................................................16
8PROTOCOL, BAUD RATE, ADDRESS SETUP....................................................................18
8.1 Protocol and Baud Rate Setup .......................................................................................................................18
8.2 Set address dial switch ...................................................................................................................................20
9CABLE CONNECTION ..........................................................................................................21
9.1 Power board Cable Connection......................................................................................................................21
9.2 System Layout..................................................................................................................................................22
9.2.1 BUS connection.............................................................................................................................................22
9.2.2 Alarm Connection ..........................................................................................................................................23
9.2.3 Keyboard Connection....................................................................................................................................24

© Copyright Qvis® All documentation rights reserved. iv
10 MENU.................................................................................................................................25
10.1 Screen Menu Index ..........................................................................................................................................25
10.2 Self-diagnosis System Information................................................................................................................26
10.3 Main Menu.........................................................................................................................................................26
10.4 Menu Operation................................................................................................................................................27
10.4.1 System Information....................................................................................................................................27
10.4.2 Display Setting...........................................................................................................................................29
10.4.3 Camera Setting..........................................................................................................................................29
10.4.4 Function Setting.........................................................................................................................................34
10.4.5 IR Light Setup............................................................................................................................................43
10.4.6 Alarm Setup...............................................................................................................................................44
10.5 Abnormal Phenomenon Operation ................................................................................................................44
10.5.1 Restore to Factory Default Setup..............................................................................................................44
10.5.2 Irregular PTZ Movement ...........................................................................................................................44
11 CABLE CONNECTION......................................................................................................45
11.1 Combination Cable Connection......................................................................................................................45
12 FAQ....................................................................................................................................46
12.1 Daily Maintenance............................................................................................................................................46
12.2 Problems and Solutions..................................................................................................................................46

© Copyright Qvis® All documentation rights reserved. v
Welcome
Thank you for purchasing the APOIR-23PTZ camera.
This user’s manual is designed to be a reference tool for the installation and
operation of your system.
Here you can find information about the corresponding camera’s features and
functions, as well as a detailed installation method.
Before installation and operation please read the following safeguards and
warnings carefully!

© Copyright Qvis® All documentation rights reserved. vi
Important Safeguards and Warnings
1．Electrical safety
All installation and operation here should conform to your local electrical safety codes.
We assume no liability or responsibility for all the fires or electrical shock caused by improper handling or
installation.
We are not liable for any problems caused by unauthorized modification or attempted repair.
2．Transportation Security
No heavy stress, violent vibration or contact with water is allowed during transportation, storage and
installation.
Please use the original packing material (or the material of the same quality) when you ship it back to the
manufacturer.
3．Installation
Do not apply power to the product before completing installation.
Do not put object(s) on the product.
4．Environment
This product should be installed in a cool, dry place away from direct sunlight, inflammable, explosive
substances and etc.
Please keep it away from environments that contain electromagnetic radiation or objects that produce it.
Please keep sound ventilation around the device at all times.
Do not allow the water and other liquid to penetrate into the device if casing has been compromised. This
series product complies with the IP66 standard specified in the Degrees of Protection Provided by
Enclosure.
Please make sure the CCD (CMOS) component is away from the radiation of the laser beam device.
Otherwise it may result in CCD (CMOS) optical component damage.
5. Daily Maintenance
Current series product has no power button. Please unplug all corresponding power cables before your
begin installation or daily maintenance work.
Please keep the dustproof cap back to protect the CCD or CMOS part if the device does not work for a long
time.
Do not touch CCD (CMOS) component. You can use the blower to clean the dust on the surface of the
device. You can use the dry cloth with some alcohol or mild detergent to clear if necessary.
Do not use volatility solvent such as the benzene or thinner, or detergent with strong abradability. It may
result in lens damage or it may adversely affect the device performance.

© Copyright Qvis® All documentation rights reserved. vii
If there is too much dust, please use the water to dilute the mild detergent first and then use it to clean the
device. Finally use the dry cloth to clean the device.
6. About Accessories
Always use all the accessories recommended by manufacturer.
Before installation, please open the package and check that all the components are included in the package.
Contact your local retailer ASAP if something is missing in your package.

© Copyright Qvis® All documentation rights reserved. 1
1Features and Functions
1.1 General Introduction

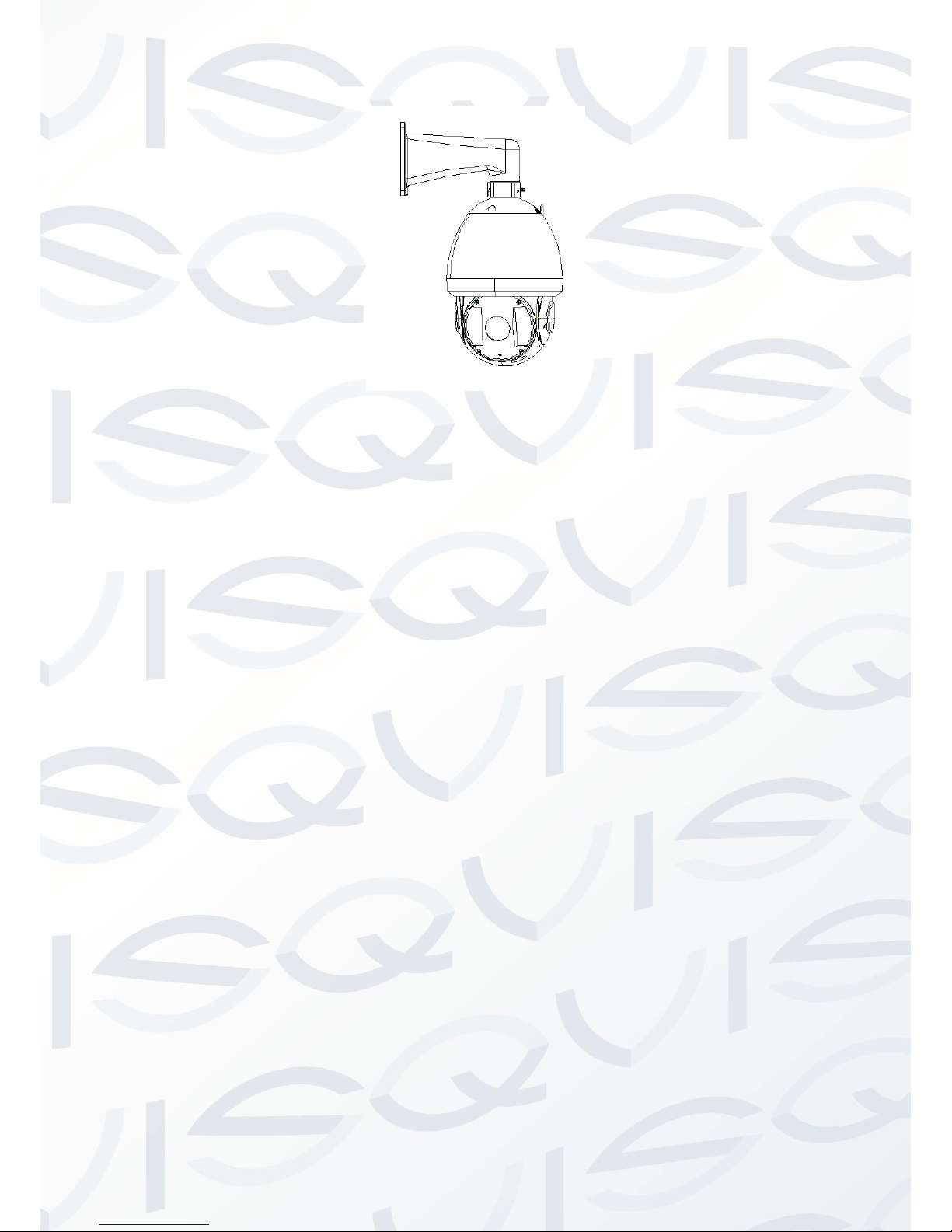

The IR intelligent PTZ dome analogue camera not only gives you 23X optical zoom but also the ability to digitally
zoom in to the video footage up to 16X, to scrutinise far away objects much more closely. It adopts a new
configuration design and is easy to install during project construction. This is a digitally intelligent product that
can provide you with vivid video visuals.
The camera’s external ports adopt a buckle design and a waterproof interface incorporated to the pipe thread
allowing for a quick & easy installation process. It supports various languages, a real-time clock function,
automatic protocol recognition, 360° continuous pan, 92°tilt and 180° auto flip (with blind spot monitor).
Through detailed design towards the camera’s aesthetics it also allows it to be incorporated into many modern
settings. At the same the shape and materials provides it with the robustness to survive a variety of weather
conditions. Internal technology allows for the PTZ rotation speed to be automatically adjusted according to lens
zoom speed. It supports various languages, real-time clock function, blind spot recognition and protocol auto
recognition. It also gives you a full 360° continuously pan, 92°tilt and 180° auto flip.
1.2 Features
This PTZ PTZ camera has the following features:
1.2.1 On-Screen Menu
There are multiple language options for the menu system to be displayed in preferred language.
It is easy for you to view dome information and to configure the dome camera parameters.
1.2.2 On-screen Tips
Here you can view:
Preset name and system version (software and hardware)
Dome system temperature (this is optional, you can disable this function)
Dome address (optional, you can disable this function)
1.2.3 Support multiple protocols
Supports universally used protocols such as PELCO-P, PELCO-D and PELCO-S. You can use various devices
(such as the matrix, control keyboard or DVR) and protocols to operate PTZ camera.
1.2.4 Proportional Pan and Tilt
This function keeps the image from moving too fast when there is a large amount of zoom.
The PTZ camera continually decreases or increases pan and tilt speeds in proportion to depth of zoom.
When zooms speed increases, the camera moving speed becomes slow. When zooms speed decreases,
the camera moving speed becomes fast.

© Copyright Qvis® All documentation rights reserved. 2
1.2.5 Preset Setup and Call
Preset function is to save the address information (such as PTZ pan/tilt, focus and etc) to the memory so that
you can quickly adjust the dome and PTZ to the correct position. The camera supports a maximum of 255
presets in PELCO-D and PELCO-P protocols.
1.2.6 Auto Scan
Camera scans back and forth regularly along the horizontal field. Here you need to set left and right limit and
scan speed. You can set 5 scanning paths.
1.2.7 Auto Touring
Add addresses into a routine in a desired order and then set time and stop duration for each address. The dome
will begin an auto touring between these addresses. Each touring path can contain max 32 presets.
1.2.8 Auto Pattern
Memorises dome operations such as pan, tilt, and zoom to repeat. You can call it to repeat the previous
operation.
1.2.9 Privacy Masking
Privacy masking is a user-defined, four-sided area that cannot be viewed by you. The masking area will move
with pan and tilt functions and automatically adjust in size as the lens zooms.
1.2.10 IR Night Vision
Whilst set to night vision status, it can use the IR light to spot objects within the monitoring view. You can also
monitor the various environments in low illumination situations.
1.2.11 Action on Alarm
This camera supports three alarm activation operations. There are also 7 alarm inputs (NO/NC). Alarms can be
individually programmed to initiate an associated preset, scanning, or tour when triggered. Dome will return to a
previously programmed state after alarm acknowledgement or to its previous position before alarm.
1.2.12 Auto Flip
As long as you continue to hold the keyboard joystick in the down position, the dome rotates 180 degrees and
repositions itself for uninterrupted viewing of any subjects that passes directly beneath the dome.
1.2.13 Self-diagnosis
There is a self-diagnosis procedure when camera boots up.
Tilt and vertical engine check
Camera diagnostics
Displays dome information and diagnosis information such as address, protocol, baud rate.
