R.V.R. Elettronica TOUCH30S User manual

TOUCH30S
User Manual
Volume 1: User Manual
Manufactured by Italy

TOUCH30S-UserManual
Versione 2.1
© Copyright 2003
R.V.R. Elettronica SpA
Via del Fonditore 2/2c - 40138 - Bologna (Italia)
Telefono: [phone]
Fax: [phone]
Email: [e-mail]
Web: www.rvr.it
Allrightsreserved
PrintedandboundinItaly.Nopartofthismanualmaybereproduced,
memorized or transmitted in any form or by any means, electronic or
mechanic, including photocopying, recording or by any information
storageandretrievalsystem,withoutwrittenpermissionofthecopyright
owner.
File name: capitoli_en.P65
Version: 2.1
Date: 11/06/2003
Revision History
2.0 13/12/2002 New version D. Canazza
Version Date Reason Editor
2.1 11/06/2003 Add telemetry board J. Berti

TOUCH30S
iUser Manual Rev.2.1-11/06/03
Table of Contents
1. Preliminary Instructions 1
2. Warranty 3
3. First Aid 5
3.1 Treatment of electrical shocks 5
3.2 Treatment of electrical Burns 6
4. General Description 7
4.1 Main Characteristics 7
4.2 Meter Readings 8
4.3 Microprocessor Section 8
5. Quick Reference 9
6. Use 11
6.1 First Use 11
6.2 Visualization mode 14
6.3 Programming mode 16
6.4 General advises 18
7. External description 21
7.1 Connectors description 23
8. Technical Specifications 25
8.1 R.F. Characteristics 25
8.2 Stereo Operation 26
8.3 Mono Operation 26
8.4 S/N Ratio 26
8.5 Audio Inputs 27
8.6 Audio Outputs 27
8.7 Environmental Characteristics 28
8.8 Mechanical Characteristics 28
9. Identification and access to the modules 29
9.1 Circuit description 29

TOUCH30S
ii User ManualRev.2.1-11/06/03
This page was intentionally left blank

TOUCH30S
1 / 34User Manual Rev. 2.1 - 11/06/03
1. Preliminary Instructions
This manual is written as a general guide for those having previous knowledge
and experience with this kind of equipment, well conscious of the risks connected
with the operation of electrical equipment.
It is not intended to contain a complete statement of all safety rules which should
be observed by personnel in using this or other electronic equipment.
The installation, use and maintenance of this piece of equipment involve risks
both for the personnel performing them and for the device itself, that shall be used
only by trained personnel.
R.V.R. Elettronica SpA doesn’t assume responsibility for injury or damage resulting
from improper procedures or practices by untrained/unqualified personnel in the
handling of this unit.
Please observe all local codes and fire protection standards in the operations of
this unit.
WARNING: always disconnect power before opening covers or removing any
part of this unit.
Use appropriate grounding procedures to short out capacitors and high voltage
points before servicing.
WARNING: this device can irradiate radio frequency waves, and if it’s not installed
following the instructions contained in the manual and local regulations it could
generate interferences in radio communications.
This is a "CLASS A" equipment. In a residential place this equipment can cause
hash. In this case can be requested to user to take the necessary measures.
R.V.R. Elettronica SpA reserves the right to modify the design and/or the technical
specifications of the product and this manual without notice.

TOUCH30S
2 / 34 User ManualRev. 2.1 - 11/06/03
This page was intentionally left blank

TOUCH30S
3 / 34User Manual Rev. 2.1 - 11/06/03
2. Warranty
Any product of R.V.R. Elettronica is covered by a 24 (twentyfour) month warranty.
For components like tubes for power amplifiers, the original manufacturer’s warranty
applies.
R.V.R. Elettronica SpA extends to the original end-user purchaser all
manufacturers warranties which are transferrable and all claims are to be made
directly to R.V.R. per indicated procedures.
Warranty shall not include:
1 danni verificatisi durante la spedizione della macchina alla R.V.R. per eventuali
riparazioni;
2 Any unauthorized repair/modification;
3 Incidental/consequential damages as a result of any defect
4 Nominal non-incidental defects
5 Re-shipment costs or insurance of the unit or replacement units/parts
Any damage to the goods must be reported to the carrier in writing on the shipment
receipt.
Any discrepancy or damage discovered subsequent to delivery, shall be reported
to R.V.R. Elettronica within 5(five) days from delivery date.
To claim your rights under this warranty, you shold follow this procedure:
1 Contact the dealer or distributor where you purchased the unit. Describe the
problem and, so that a possible easy solution can be detected.
Dealers and Distributors are supplied with all the information about problems
that may occur and usually they can repair the unit quicker than what the
manufacturer could do. Very often installing errors are discovered by dealers.
2 If your dealer cannot help you, contact R.V.R. Elettronica and explain the
problem. If it is decided to return the unit to the factory, R.V.R. Elettronica
will mail you a regular authorization with all the necessary instructions to send
back the goods.
3 When you receive the authorization, you can return the unit. Pack it carefully
for the shipment, preferably using the original packing and seal the package
perfectly. The customer always assumes the risks of loss (i.e., R.V.R. is never
responsible for damage or loss), until the package reaches R.V.R. premises.
For this reason, we suggest you to insure the goods for the whole value.
Shipment must be effected C.I.F. (PREPAID) to the address specified by R.V.R.’s
service manager on the authorization
DO NOT RETURN UNITS WITHOUT OUR AUTHORIZATION AS THEY WILL
BE REFUSED

TOUCH30S
4 / 34 User ManualRev. 2.1 - 11/06/03
4 Be sure to enclose a written technical report where mention all the problems
found and a copy of your original invoice establishing the starting date of the
warranty.
Replacement and warranty parts may be ordered from the following address. Be
sure to include the equipment model and serial number as well as part description
and part number.
R.V.R. Elettronica SpA
Via del Fonditore, 2/2c
40138 BOLOGNA
ITALY
Tel. [phone]

TOUCH30S
5 / 34User Manual Rev. 2.1 - 11/06/03
3. First Aid
The personnel employed in the installation, use and maintenance of the device,
shall be familiar with theory and practice of first aid..
3.1 Treatment of electrical shocks
3.1.1 If the victim is not responsive
Follow the A-B-C's of basic life support

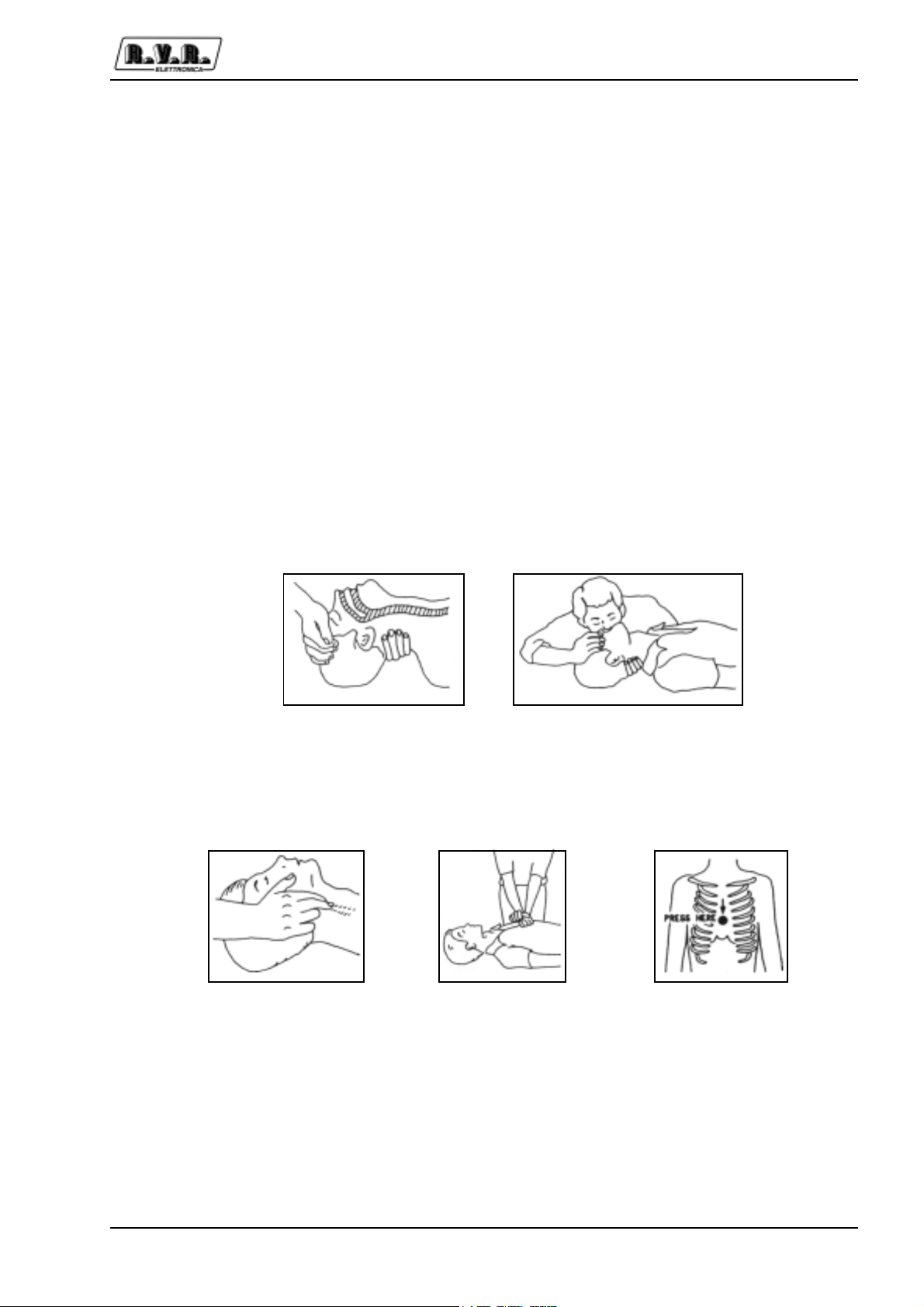

• Place victim flat on his backon a hard surface.
• Open airway: lift up neck, push forehead back (Fig. 3-1).
• clear out mouth if necessary and observe for breathing
• if not breathing, begin artificial breathing (Figure 3-2): tilt head, pinch nostrils,
make airtight seal, four quick full breaths. Remember mouth to mouth
resuscitation must be commenced as soon as possible
Figure 3-1 Figure 3-2
• Check carotid pulse (Fig 3-3); if pulse is absent, begin artificial circulation
(Fig. 3-4) depressing sternum (Fig. 3-5)
Figure 3-3 Figure 3-4 Figure 3-5
• In case of only one rescuer, 15 compressions alternated to two breaths.
• If there are two rescuers, the rythm shall be of one brath each 5 compressions.
• Do not interrupt the rythm of compressions when the second person is giving
breath.
• Call for medical assistance as soon as possible.

TOUCH30S
6 / 34 User ManualRev. 2.1 - 11/06/03
3.1.2 If victim is responsive
•Keep them warm
•Keep them as quiet as possible
•Loosen their clothing (a reclining position is recommended)
•Call for medical help as soon as possible
3.2 Treatment of electrical Burns
3.2.1 Extensive burned and broken skin
•Cover area with clean sheet or cloth
•Do not break blisters, remove tissue, remove adhered particles of clothing, or
apply any salve or ointment.
•Treat victim for shock as required.
•Arrange transportation to a hospital as quickly as possible.
•If arms or legs are affected keep them elevated
If medical help will not be available within an hour and the victim is conscious and
not vomiting, give him a weak solution of salt and soda: 1 level teaspoonful of salt
and 1/2 level teaspoonful of baking soda to each quart of water (neither hot or
cold). Allow victim to sip slowly about 4 ounces (half a glass) over a period of 15
minutes. Discontinue fluid if vomiting occurs
DO NOT give alcohol
3.2.2 Less severe burns
• Apply cool (not ice cold) compresses using the cleansed available cloth article.
•Do not break blisters, remove tissue, remove adhered particles of clothing, or
apply salve or ointment.
•Apply clean dry dressing if necessary.
•Treat victim for shock as required.
•Arrange transportation to a hospital as quickly as possible
•If arms or legs are affected keep them elevated.

TOUCH30S
7 / 34User Manual Rev. 2.1 - 11/06/03
4. General Description
The TOUCH30S is an exciter for FM audio broadcasting able to transmit in the
band between 87.5 and 108 MHz with an output RF power adjustable up to a
maximum of 30 W
The TOUCH30S can be used like exciter of an amplifier of greater power, or like
transmitter directly in antenna.
4.1 Main Characteristics
•State of the art performances at moderate cost .
•Controlled through microprocessor - programmable externally through PC via
RS232.
•Extremely low distortion THD, IMD & TIM (Transient Intermod. Distortion)
specified.
•Very silent operation (S/N).
•Highest stereo performances: separation 80 Hz*15 kHz typ. 65 dB (30*80Hz
typ. 56dB).
•L, R (balanced & unbalanced), RDS / SCA, AUX, MPX.
•0, 50 o 75us preemphasis .
•Easy to handle: comprehensive monitoring of all relevant parameters and setting
values.
•Modular construction, easy to customise and fast to test. Auxiliary functions as
special encoders on request. Smartly designed to minimise spare parts
•All solid state using RF Power Mosfet in output module, LDMOS in driver stage.
•Automatic Power Control (APC) maintains required RF power at 45*C & at
1.3:1 VSWR. Higher value of VSWR causes the power reduction.
•Lightweight RF power module, can be removed from mainframe and replaced
in less than 5 minutes.
•Nominal RF o/p level = 30W / typical max power in excess of 35 W. Power
output continuously adjustable.
•Built-in RF harmonic filter and true wattmeter.
•High spectral purity: > -100 dBc spurious, >-75dBc harmonics (typ.).
•Provides the following outputs: RF, RF monitor, 19 kHz to lock RDS, RS232,
RS485 remote alarm, and remote memory setting. Rds available.
•AC mains in switching mode selectable between 95 and 130 Vac beyond 195
and 265 Vac.

TOUCH30S
8 / 34 User ManualRev. 2.1 - 11/06/03
•CCIR & FCC compliant.
4.2 Meter Readings
• Forward power.
• Reflected power.
• DC Supply voltages.
• Frequency
• Mono and stereo sensitivity (0.25 dB step).
• Output power programmed.
• MPX peak modulation.
• L & R peak level.
• Rds, Sca, Aux, MPX ext modulation.
• Audio programmed parameters (+L or -L, +R or -R, L on/off, R on/off,
Preemphasis lin, 50, 75 mS, Limiter on/off, Input Impedance Z=10KOhm/ 600
Ohm,
• Alarm status
• Memory status
• Internal voltages
• Serial Number
4.3 Microprocessor Section
•All functions are controlled by 9 keys and a 2-rows/16 characters LCD display.
• RS232 (on front panel), DB9 socket I/O
• RS485 (on rear panel) RJ45 socket
•Interlock input on connector DB9: 4 pin for interlock (2 jumper normally closes).
A predisposed connector is supplied with the machine.
•Firmware upgradable, via RS232 connection and an external PC
•Friendly parameters configuration
•Customizable slides on the LCD display with address, web, phone, network
identification or local sales organization, can be inserted on demand.

TOUCH30S
9 / 34User Manual Rev. 2.1 - 11/06/03
5. Quick Reference
The following instruction permits you to manage this transmitter quickly.
1) Two modes of operation are possible:
•Single visualization mode
•Programming mode
2) You can move between various slides by using the four "function keys" (audio,
frequency, power, check) and the up & down keys of the "navigation ring".
3) Pushing the central button of the "navigation ring" for more than 4 sec., you
can enter to the programmable functions menus.
4) You can program all audio functions and audio parameters, frequency, power
etc. When a value as been modified press the central button to confirm.
5) Una volta programmati, i dati verranno memorizzati premendo a lungo il tasto
centrale. Se nel frattempo non viene effettuata nessuna regolazione per i
successivi due minuti (tempo di abbandono) il trasmettitore chiude
automaticamente la modalità di programmazione e tutti i nuovi dati, compresi
quelli modificati, non verranno memorizzati.
Once programmed, the data will come memorized pushing the central key for
long time. If in the meantime does not come made any regulation for two
minutes (abandonment time) the transmitter closes automatically the
programming mode and all the new data, comprised those modified, will not
come memorized.

TOUCH30S
10 / 34 User ManualRev. 2.1 - 11/06/03
This page was intentionally left blank

TOUCH30S
11 / 34User Manual Rev. 2.1 - 11/06/03
6. Use
This FM transmitter has been projected to be operated in a manner as simple and
consistent as possible.
Many options/selections are accessed by an easy direct action dedicated keys
and thematic subsequent menus.
A full description of the menus and how to move around them is described in the
later sections.
6.1 First Use
6.1.1 Demounting instructions
WARNING : before the instalaltion follow this instructions:
•REMOVE THE TWO SCREWS BLOCKING THE COVER
• SLIDE OUT THE COVER
• REMOVE THE FOAM CUBE HOLDING THE VCO
• CLOSE THE COVER WITH THE TWO SCREWS
• USE THE TRANSMITTER IN HORIZONTAL POSITION
TOP
REMEMBER: Insert supplied PLUG into DB 9 CONNECTOR located on rear
panel to allow the power distribution(interlock)

TOUCH30S
12 / 34 User ManualRev. 2.1 - 11/06/03
6.1.2 Power supply requirements and setting
Inserire la spina di alimentazione nella presa VDE presente nel pannello posteriore.
Insert the mains plug in the VDE place in the rear panel.
The power supply can work at any voltage between 95 and 130 Vac or between
195 and 265 Vac. A label on the rear, glued close to the ON/OFF switch, indicates
the preset voltage range. If you want to change this voltage, or for fuse replacement,
follow next instructions:
•SWITCH-OFF AND DISCONNECT from mains the equipment
•Open the transmitter (see standard "demounting" instructions)
•Unscrew the cover of the power supply (please control if the plug of input

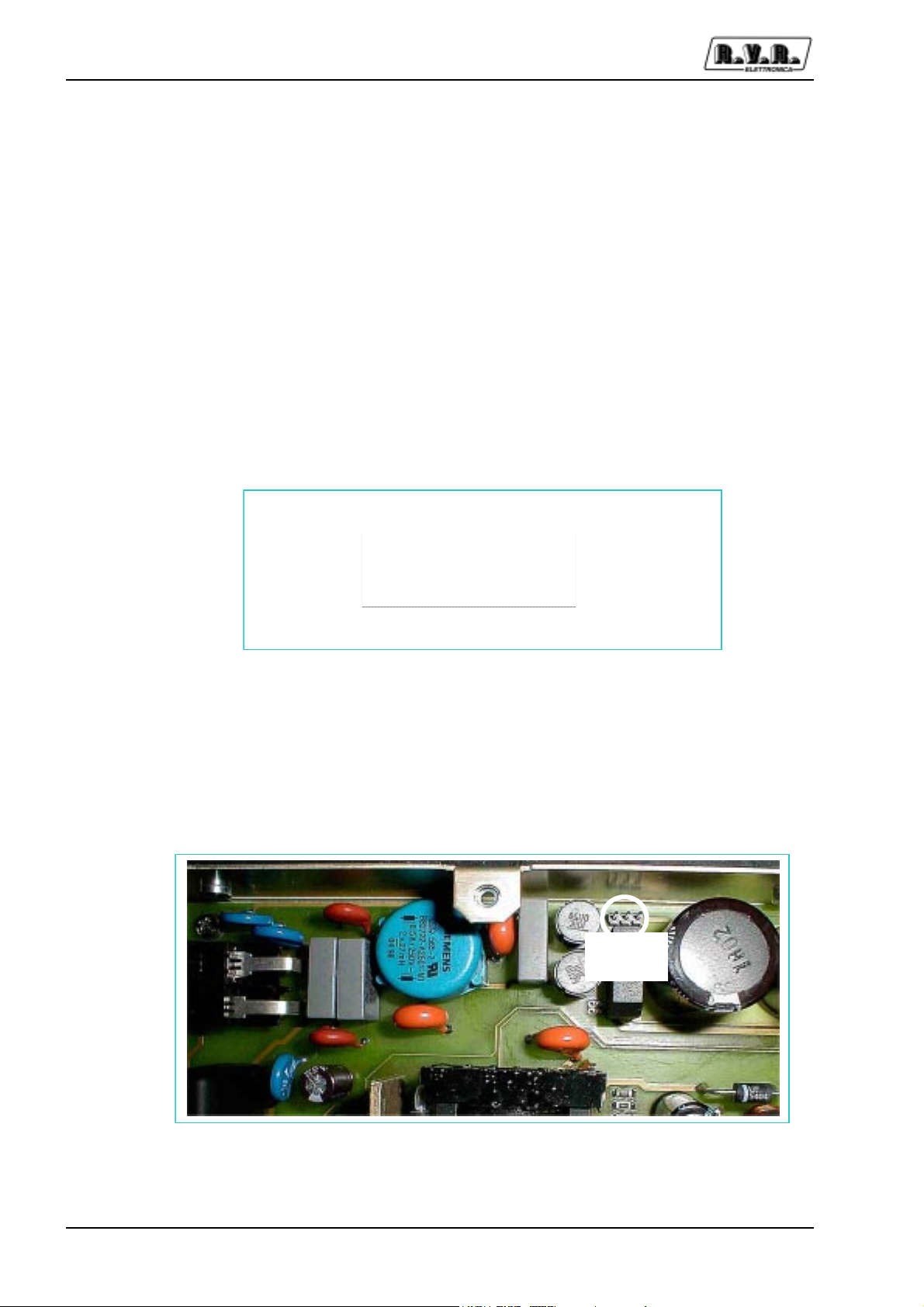

power cord is out of its receptacle!!), see photo:
!"
#SCREWS
$%
•Slide out the internal black plastic cover of the mains socket and change the
two fuses.
• Replace the fuses by using two 1.25 A fuses for 220/230 V range and 2.5 A for
110/117 V. Insert the plastic cover.
• Move the jumper in the position "A" for 110V and “B” for 220V:
&' &'
A B
• Place the supply cover in the original position and fix the screws.
•Close the transmitter with the top cover.

TOUCH30S
13 / 34User Manual Rev. 2.1 - 11/06/03
•PAYATTENTION: the transmitter cannot work without the cover. The air-cooling
system is designed to work in a closed box.
Serious problems can result if the transmitter is operated without cover.
•Reconnect the mains.
6.1.3 Switch On
Connect the transmitter to a 30 W dummy load and start it by the switch (03
pag.22) placed on the rear panel.
The first image that you see in the front display is similar to:
The PLL (phase locked loop) enters in function and are necessary approximately
10-40 sec. (depends on the frequencies) because the oscillator locks on the
established frequency. The slowness of the operation is due to a slow answer of
the PLL filter that is designated in order to increase the stereo separation to the
lower audio frequencies.
6.1.4 Keyboards and indicators description and use
Are presents nine key on the front panel that control the transmitter.
The five buttons placed in the left side of the front panel (identified in page 21 from
numbers 06 to 10) are necessary to "navigate", in usual mode, through various
slides and functions.
The central button (10 pag.21) is a standard "ENTER" key. By pushing this key for
a long time you have access to program functions and you can change various
parameters. An equivalent long action closes the access to program and the
transmitter returns to visual mode operations.
The other four buttons are (listed in sequence):
•“AUDIO” (audio function) (11pag.21)
•“FREQ” (frequencies programming) (12 pag.21)
•“RF PWR” (power programming) (13 pag.21)
•“CHK” (information and control slides) (14 pag.21)
When the red LED (05 pag.21) is lighting, the program mode is active and the
operator must be very alert.
The four green LEDs (01 pag.21), (02 pag.21), (03 pag.21), (04 pag.21) indicate
selection of the correspondent key.

TOUCH30S
14 / 34 User ManualRev. 2.1 - 11/06/03
The lighting of the five red LEDs (16 pag.21), (17 pag.21), (18 pag.21), (19 pag.21),
(20 pag.21) indicates:
•Transmitter unlocked (PLL)
•Internal limiter disabled
•Preemphasis disabled
•RF OUT disabled
•An external alarm is active
The four yellow LEDs (21 pag.21), (22 pag.21), (23 pag.21), (24 pag.21) indicate
the active memory M1 to M4 (not implemented).
The green LED (27 pag.21) is the standard "power" indicator.
The DB9 connector (25 pag.21) permits the RS232 connection to the PC.
The last connector (26 pag.21) is a BNC female type for monitoring and
measurement purposes.
6.2 Visualization mode
It's possible to check all parameters and stored data, without modifications, during
the normal functioning of the equipment. The available menus regard audio setting,
frequency setting, internal supply voltages control, general information about
firmware version, Internet manufacturer's web, serial number etc.
6.2.1 Audio menu

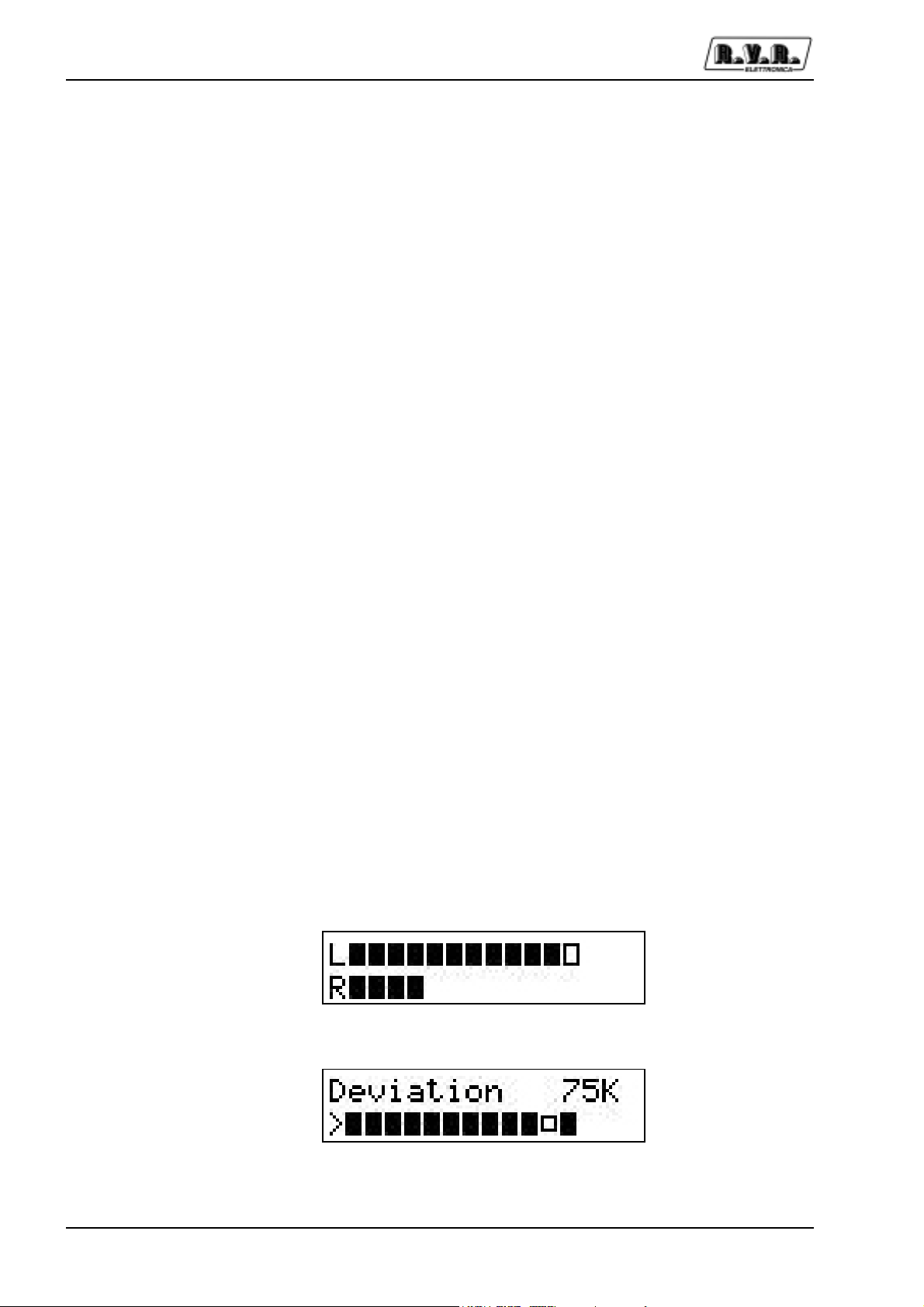

The audio menu, through the selction of the UP (08 pag.21) and DOWN (09 pag.21)
buttons, shown the follow parameters:
1) L & R bars show the peak modulation. The filled square blocks indicate 10%/
each of modulation, unfilled block show 100% modulation.
2) Peak deviation indicator. Unfilled block= 75 kHz

TOUCH30S
15 / 34User Manual Rev. 2.1 - 11/06/03

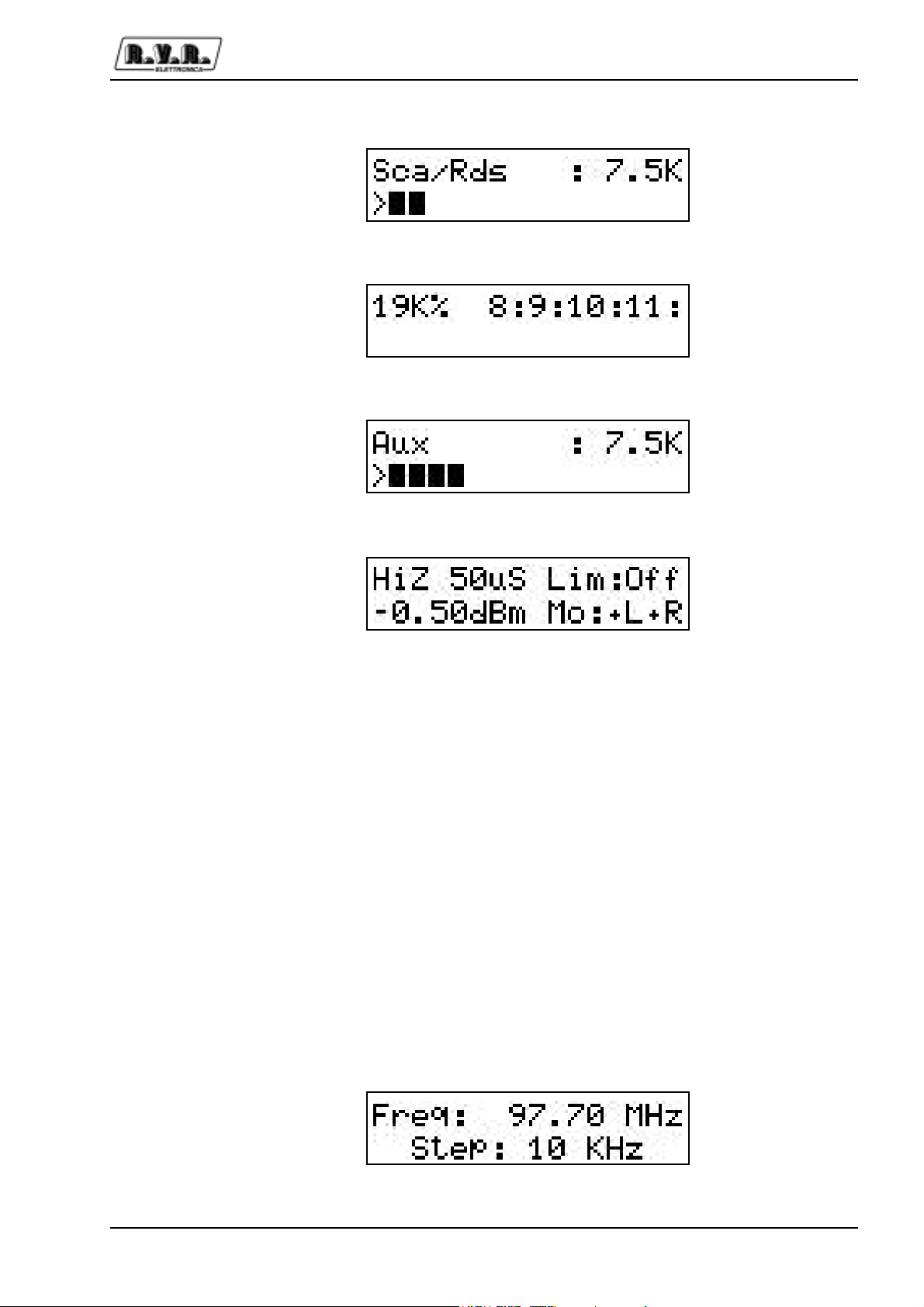

3) SCA/RDS peak deviation indicator. Unfilled block= 7.5 kHz
4) 19kHz % control bar. (internally adjustable)
5) AUX peak deviation indicator. Unfilled block= 7.5 kHz
6) All set audio parameters synthesis slide :
• HI-Z: Impedenza degli ingressi bilanciati. Scelta tra 10 Kohm (HI-Z) o 600
Ohm (LO-Z).
• 50uS : Preemphasis value. You can choose between "FLAT" (no preemphasis)
and 50/75 uS. The value, that is depending on specific local rules, can be
modified by moving a jumper located on the mother board.
• Limiter OFF: status of internal limiter. This limiter, when active, performs a
strong cutting of all peaks that exceed the authorized 75kHz deviation
• -0.50dBm. Audio sensitivity. You can set this value from -3.75 and 12 dBm in
0.25 dB/step. Remember that 0 dBm = 1mW on 600 Ohm or 774 mVeff. or
2.19 Vpp.
• MO = Mono. The internal coder stereo is disable. To able select ST = Stereo.
• +L, +R is the channels status and fase. The other options are -L, +R; -L, -R; +L
(R=off); -L (R=off); +R (L=off); -R (L=off).
6.2.2 Frequency menu
When you push the audio button a slide similar to the following will appear:

TOUCH30S
16 / 34 User ManualRev. 2.1 - 11/06/03
6.2.3 R.F. power menu

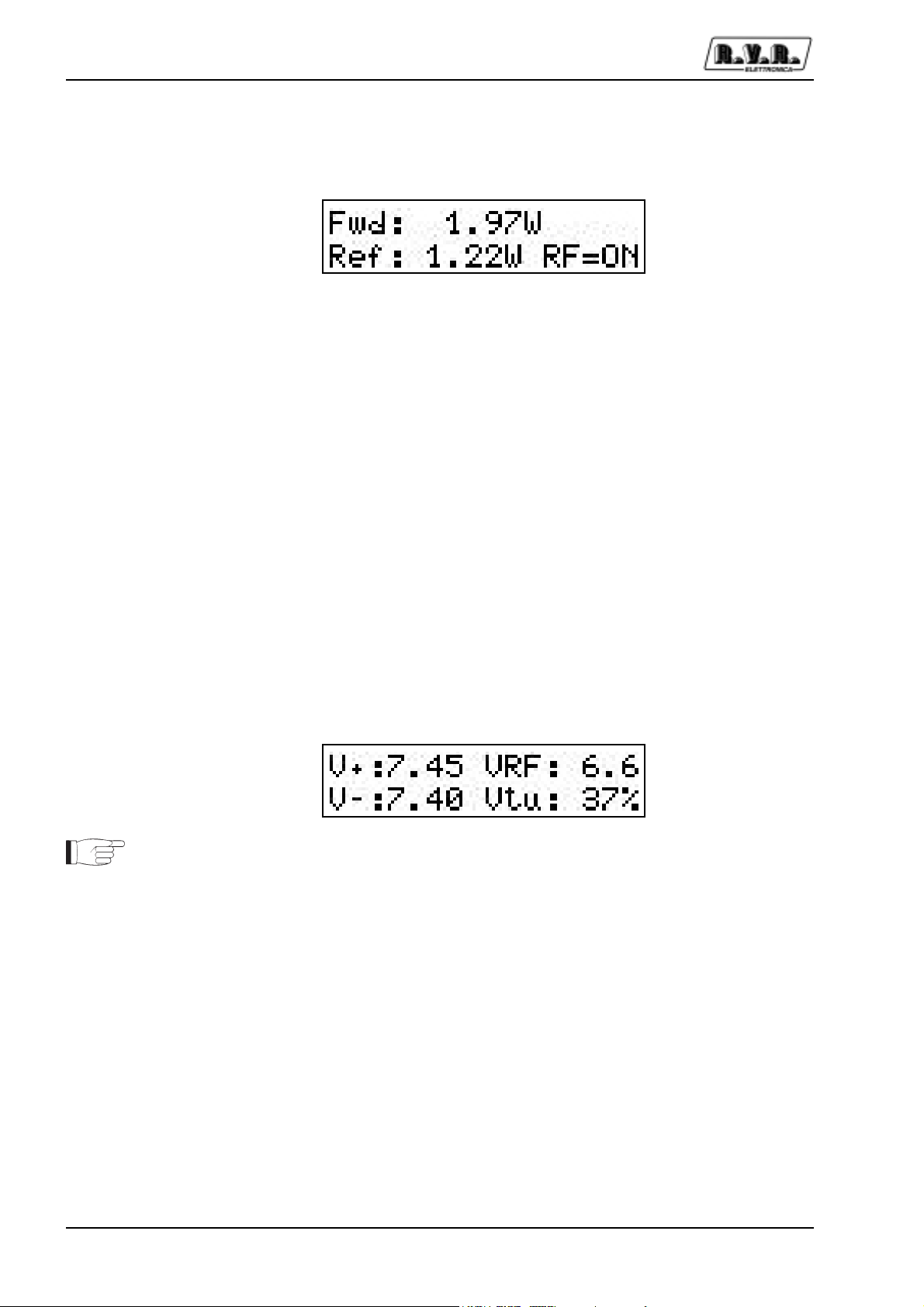

The following image is an example of the slide obtained pressing the RF PWR
button (13 pag.21) :
• Fwd: forward power measure
• Ref: reflected power measure
• RF: distributed power status (ON or OFF)
6.2.4 Information and control menu
This slide shows for control purposes:
• V + : Positive internal power supply +7.5V (± 0.15V)
• V - : Negative internal power supply -7.5V (± 0.15V)
• VRF: power supply voltage of the final stage of power . This voltage can varies
between 5V and 28V depending by the RF output power.
• Vtu: VCO voltage expressed in percentage.
These informations are interesting for the technicians in case of a failure taken
place.
One more screen is present in this menù, that shows the software version and the
serial number of the machine.
6.3 Programming mode
In order to vary the different parameters of the transmitter is necessary to enter
the programming mode.
In order to begin, select the parameter to change and to press the corresponding
key, press for some seconds key "ENTER" (10 pag.21) (the central key of the
navigation keys). The red LED (05 pag.21) will illuminate itself. This indicates that
the access to the modification of the parameters of the apparatus has been made
