Thank you for choosing Guardian
®
. Our mission is to be the most trusted
brand in the pet ownership experience.We want to ensure your pet’s safety
by providing you with the tools and techniques to successfully train your
pet. If you have any questions, please contact the Customer Care Center at
1-866-381-2785 (US), 1-800-457-3911 (Canada) or visit our website at
www.guardianpet.net.To get the most protection out of your limited
warranty, please register your product within 90 days at www.guardianpet.net.
By registering, you will enjoy the product’s full warranty and should you ever
need to call the Customer Care Center, we will be able to help you faster.
Additionally, you will not have to save your product receipt as registering
serves as proof of purchase. Most importantly, Guardian
®
will never give or
sell your valuable information to anyone.
____________________________________________________________
How the System Works
The Guardian
®
Underground Fence
®
has been proven safe,
comfortable, and effective for pets over 8 pounds.The system works
by producing a radio signal from the Fence Transmitter through up to
2000 feet of BoundaryWire.The Boundary Wire is buried or attached
to a fixed object to enclose the Pet Area.You temporarily define this Pet
Area with Boundary Flags for a visual aid in training your pet.Your pet
wears a Receiver Collar with Contact Points that touch his neck, and,
once trained, is allowed to roam freely in the Pet Area.When your pet
reaches the Warning Zone, the Receiver Collar gives a warning beep.
If your pet continues into the Static Correction Zone, a safe Static
Correction will be delivered through the Contact Points to get his
attention until he returns to the Pet Area.

www.guardianpet.net 3
Prepare the Receiver Collar
Your Receiver Collar comes with short Contact
Points installed. Use the long Contact Points for
pets with long or thick hair. Tighten the Contact
Points with the Test Light Tool one-half turn
beyond finger tight (A). Check the tightness
weekly. Before inserting the batteries, wipe the
outer edge of the battery door with a clean cloth
to remove any dirt or debris.
A

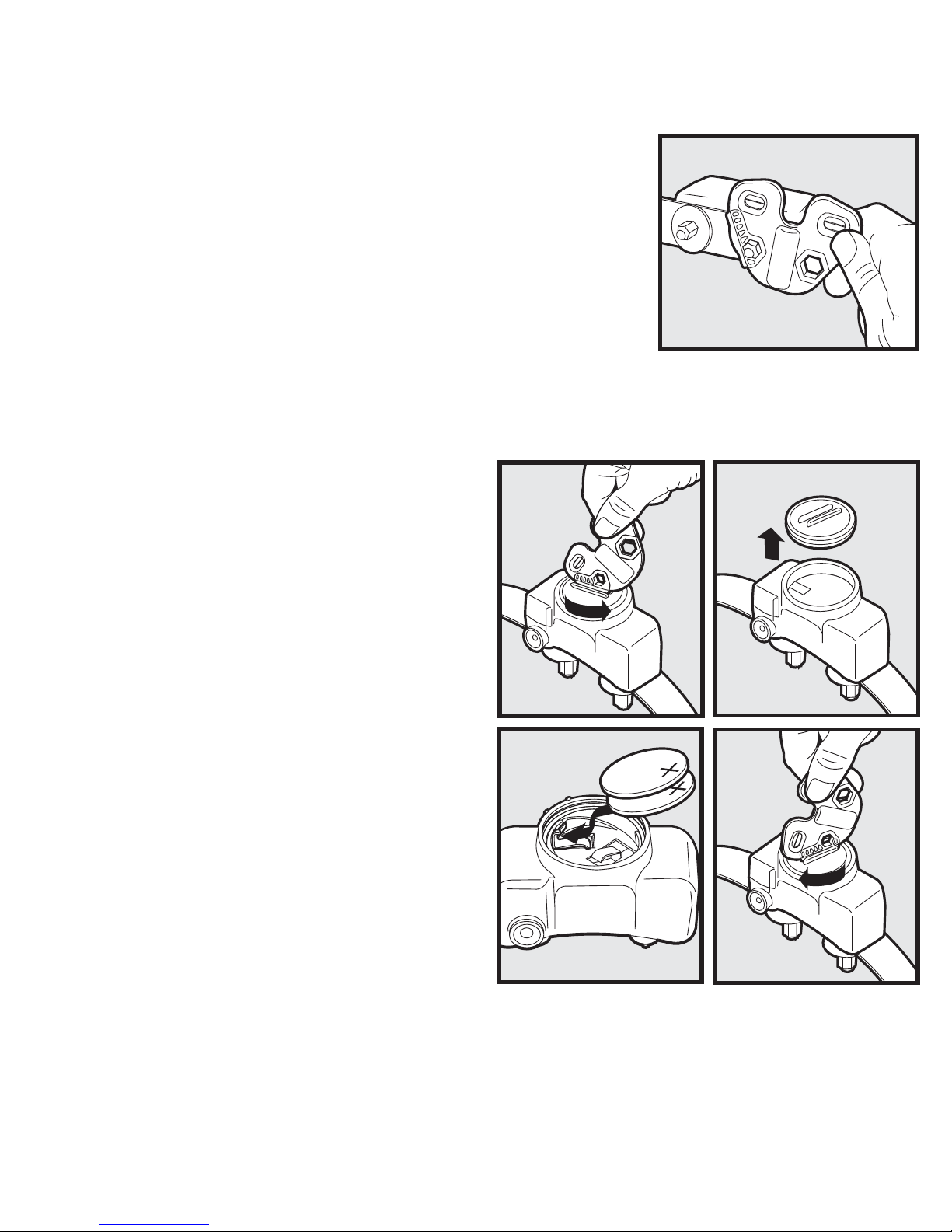

To Insert and Remove the Batteries
1.Turn the battery door counter-
clockwise using the edge of the
Test Light Tool as shown (B).
2. Install two (2), 3-volt batteries
positive (+) side out, negative
(-) side pointed toward inside of
battery unit (C). Place the lower
3 Volt battery under the positive
battery contact. Insert the upper
3 Volt battery against the positive
battery contact (D).
3. Replace the battery door using
the edge of the Test Light Tool
as shown. Turn the battery door
clockwise (E).
BC
DE
Battery life will vary depending on how often your pet tests the
system and receives a Static Correction. Check the Receiver Collar
every month to ensure the batteries are working properly.

4 1-866-381-2785 (US) / 1-800-457-3911 (Canada)
The Guardian®Underground Fence®Receiver Collar uses two 3-volt
Lithium coin cell batteries, size CR2032. Replacement batteries
can be found at many retailers. Contact the Customer Care Center
at 1-866-381-2785 (US) or 1-800-457-3911 (Canada) or visit our
website at www.guardianpet.net to locate a retailer near you.
To Set the Static Correction Level
Read all steps before attempting to set
the Static Correction Level.

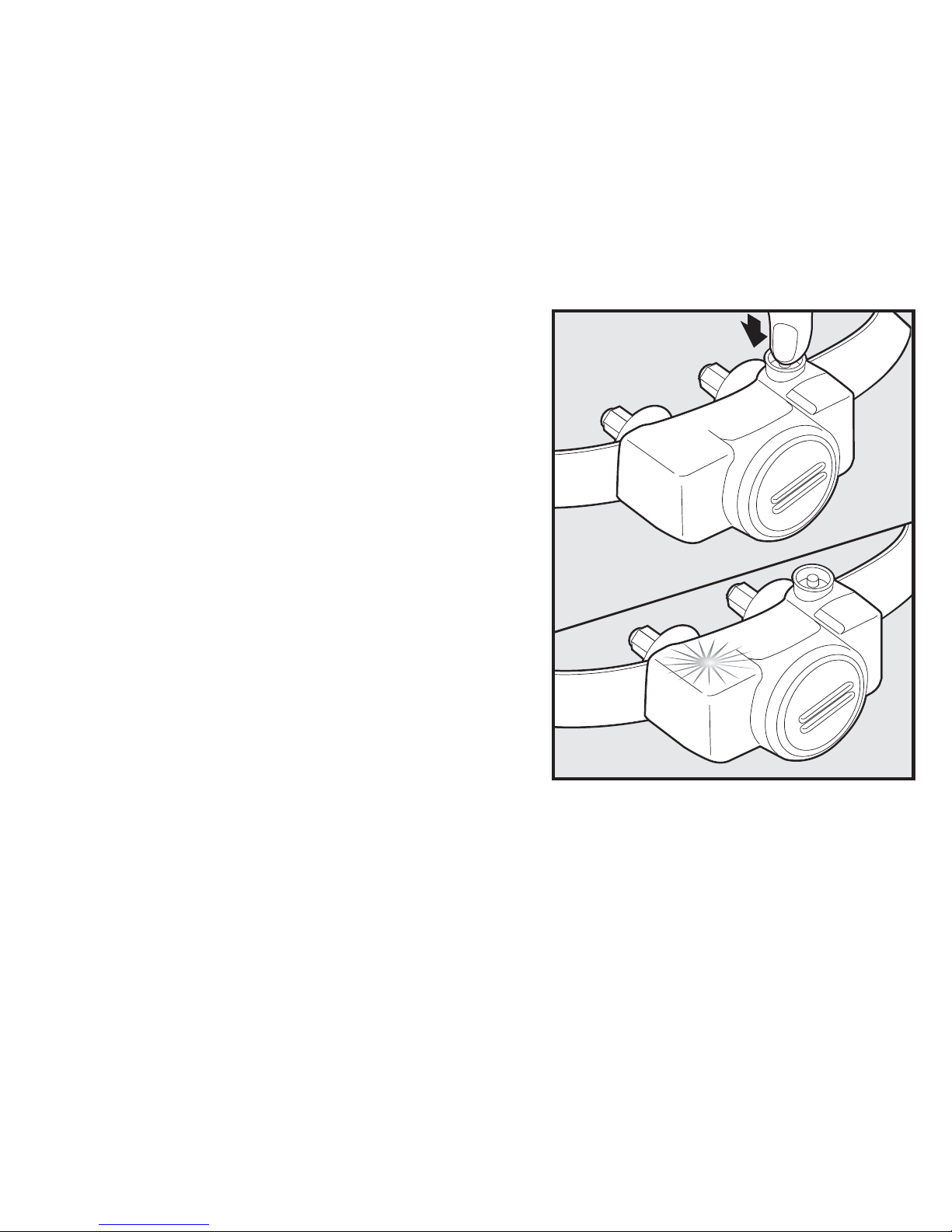

1.With the batteries installed, press the
Correction Level Button and release
when the Receiver Indicator Light
lights up (F).
2.The Receiver Indicator Light will
emit a number of flashes representing
the Static Correction Level (F).
3. Increase the Static Correction
Level by pressing and releasing the
Correction Level Button within 5
seconds of the previous flashes.
F
The Static Correction Levels increase from 1 to 3. Pushing
the Correction Level Button while the Receiver Collar is on level
3 will cause the Receiver Collar to revert to level 1. Refer to the
Function and Response Table to choose the Static Correction level
that best fits your pet.
The Receiver Indicator Light acts as a low battery indicator, flashing
every 5 seconds when battery replacement is required.
Test your Receiver Collar at least once a month to verify that it is
functioning properly. Check that it activates at the Boundary Wire.

www.guardianpet.net 5
Over Correction Protection
In the unlikely event that your pet “freezes” in the Static Correction
Zone, this feature limits the static correction duration to 30 seconds.
The system locks out further static correction until the pet leaves the
Static Correction Zone.
____________________________________________________________
Function and Response Table
Note: Begin training with Static Correction Level 2 and only increase if
your pet does not respond to the Static Correction.
Indicator
Light
Response
Static
Correction
Level
Receiver Collar
Function
Temperament
of Pet
1 Flash 1 No Static
Correction, Beep
Only
2 Flashes 2 Low Static
Correction
Timid
3 Flashes 3 High Static
Correction
High energy
Flashes
once every 5
seconds
Low
Battery

6 1-866-381-2785 (US) / 1-800-457-3911 (Canada)
Fit the Receiver Collar
Important:The proper fit and placement of your Receiver Collar
is important for effective training.The Contact Points must have
direct contact with your pet’s skin on the underside of his neck.
To assure a proper fit, please follow these
steps:
1. Remove and discard the Guardian® security tag (G).
2. Make sure that the battery is not installed in the
Receiver Collar.

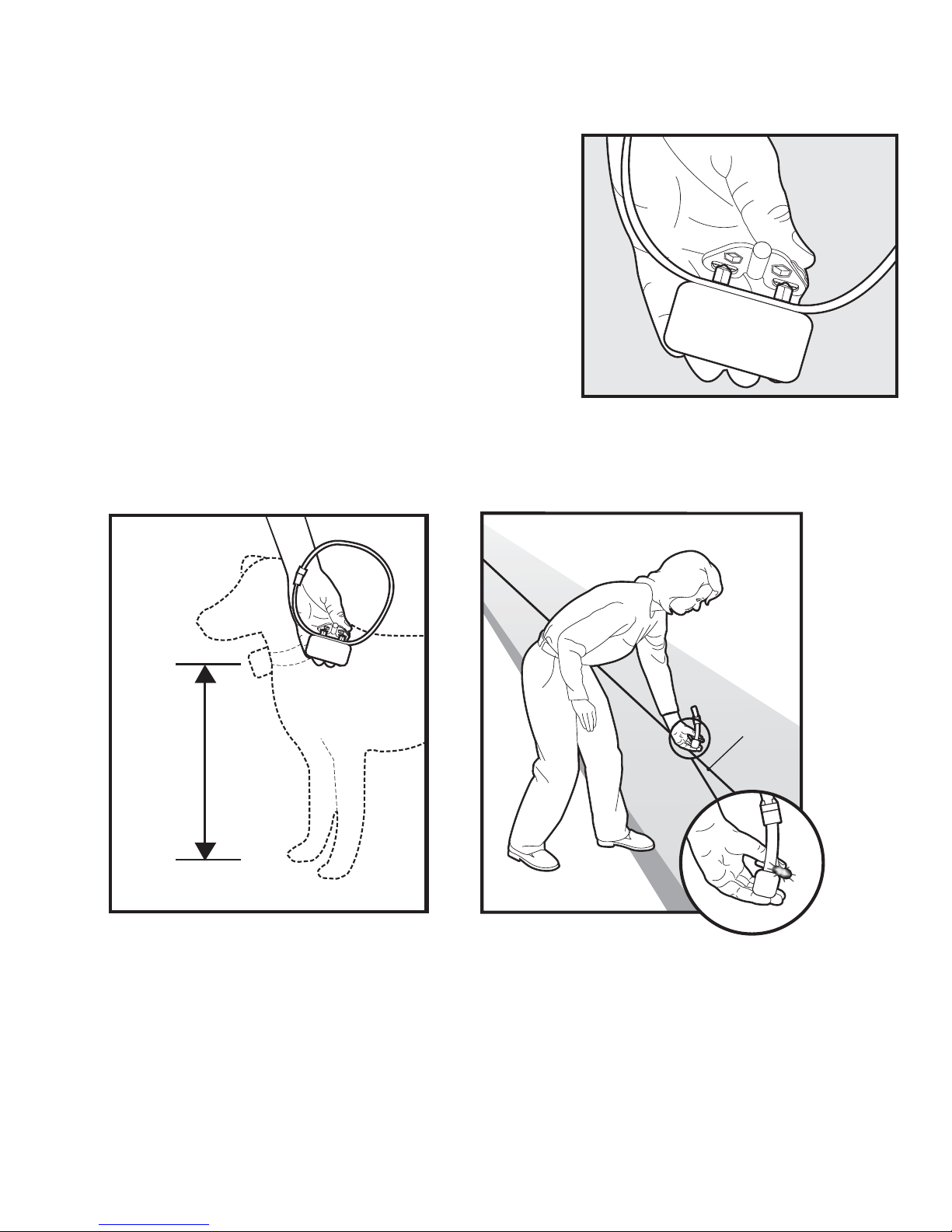

3. Start with your pet standing comfortably (H).
4. Place the Receiver Collar on your pet so that the
“Guardian®by PetSafe®” logo is facing your pet’s
chin. Center the Contact Points underneath your
pet’s neck, touching the skin. If your pet has a
long or thick coat, use the enclosed long Contact
Points to reach through the hair. Note: It is sometimes
necessary to trim the hair around the Contact Points to
make sure that contact is consistent.
G
H
5. Check the tightness
of the Receiver Collar
by inserting one finger
between the end of a
Contact Point and
your pet’s neck.The fit
should be snug but not
constricting (I).
6. Allow your pet to wear the
collar for several minutes
I
then recheck the fit. Check the fit again as your pet becomes more
comfortable with the Receiver Collar.

www.guardianpet.net 7

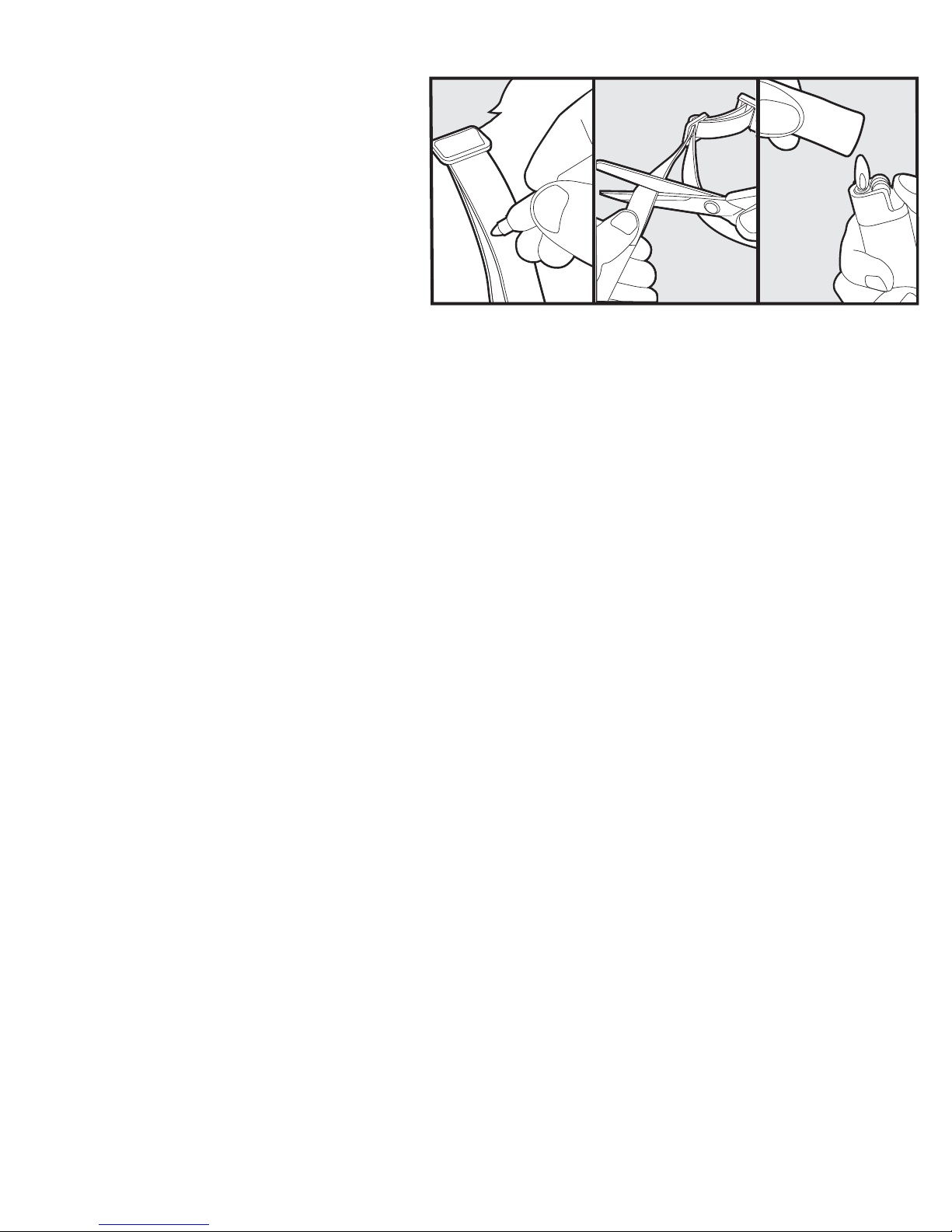

7. Once you are satisfied with
the fit of the Receiver Collar
then you may trim any excess
collar straps as follows (J):
a. Mark the desired length of
the Receiver Collar with a
pen. Allow for growth if
J
your pet is young or grows a thick winter coat.
b. Remove the Receiver Collar from your pet and cut off the excess.
c. Before placing the Receiver Collar back onto your pet, seal the
edge of the cut collar by applying a flame along the frayed edge.
Important: For comfort, safety and effectiveness of product, please
ensure the following:
• During the first 2 weeks of training, do not use the training device
on your pet without direct supervision.
• Check the fit to prevent excessive pressure by being able to insert
one finger between the Contact Point and your pet’s skin.
• Never leave the Receiver Collar on your pet for more than 12
consecutive hours.
• Your pet must be carefully examined daily for any signs of a rash
or sore.
• If a rash or sore is observed, discontinue the use of the Receiver
Collar for a few days.
• If the condition persists beyond 48 hours, see your veterinarian.
• Your pet’s neck and the Contact Points must be washed weekly
with a wash cloth and mild hand soap, then rinsed thoroughly.
A condition called Pressure Necrosis, which is a devitalization of
the skin due to excessive and prolonged contact against the Contact
Points, may occur if the steps above are not followed.

8 1-866-381-2785 (US) / 1-800-457-3911 (Canada)
To Re-Thread the Collar
Slide Buckle
Ridges
The slide buckle prevents
the collar from becoming
loose around your pet’s
neck.
The ridges must be facing
up; the collar will slip if it is
not properly threaded.

www.guardianpet.net 9
Taking Your Pet Out of the Pet Area
Important: Remove the Receiver Collar and leave it in the Pet Area.
Once your pet learns the Boundary Zone, he
will be reluctant to cross it for walks or car rides.
Option 1: Replace the Receiver Collar with
a regular collar. Put your pet in a car that is
within the Pet Area and drive him out of the
Pet Area.
Option 2: Replace the Receiver Collar with a
regular collar and leash.Walk your pet out of
the Pet Area while giving a command such as
“OK” at a specific place of the Boundary Zone (the end of your
driveway, sidewalk, etc.). Always leave the Pet Area with a leash at
this place and your pet will associate leaving the Pet Area only on
a leash, only at this place, and only with a person.You may initially
need to convince your pet to leave the Pet Area with a food treat and
lots of praise.
Note:You may also carry your pet out of the Pet Area.

10 1-866-381-2785 (US) / 1-800-457-3911 (Canada)
Troubleshooting
The Receiver
Collar is not
beeping or
correcting.
• Check batteries to make sure they are
installed properly.
• Check that both lights are lit on the Fence
Transmitter. If not, perform the “Short Loop Test”
on page 13.
The Receiver
Collar is
beeping, but
the pet is not
responding
to the Static
Correction.
• Make sure the Static Correction Level is set to level
#2 or #3.
• Test the Receiver Collar with the Test Light, walking
toward the Boundary Wire.
• If the Test Light flashes, check the fit of the Receiver
Collar.
• Trim your pet’s fur where the Contact Points touch
the neck and/or switch to the longer Contact Points.
• Repeat training steps to reinforce training.
• Purchase a stronger Receiver Collar by contacting
the Customer Care Center at 1-866-381-2785 (US) /
1-800-457-3911 (Canada).
The Receiver
Collar has
to be held
on top of the
Boundary
Wire to
activate.
• Replace batteries.
• Adjust BoundaryWidth Control knob clockwise to
increase the distance from the BoundaryWire that the
Receiver Collar activates.
• If using a Double Loop, make sure BoundaryWires
are separated 3 to 5 feet.
• If the Receiver Collar still has to be held on top of the
BoundaryWire, perform the “Short Loop Test” on
page 13.

www.guardianpet.net 11
Additional Information
• The system should only be used with healthy pets. Contact your
veterinarian if you have concerns about the medical condition of your pet
(medication, pregnant, heart conditions, etc.).
• This system is not for vicious or aggressive pets. If your pet may pose a
threat to others, DO NOT USE THIS SYSTEM. If you are unsure if
your dog is aggressive, please consult your veterinarian or a certified trainer.
• The Guardian®Underground Fence®is for residential use only.
• The Static Correction will get your pet’s attention, but will not cause
harm. It is designed to startle, not to punish.
• Test the Receiver Collar at least once a month to verify that it is
functioning properly. Check that it activates at the Boundary Wire.The
typical battery life is 3 to 6 months. Battery life depends upon how often
the Receiver Collar is activated.

12 1-866-381-2785 (US) / 1-800-457-3911 (Canada)
Test Light Instructions
1. Set the Correction Level to 2 or above.
2. Hold the Test Light Contacts to the Contact
Points (K).
3.Walk toward the BoundaryWire holding the
Receiver collar at your pet’s neck level (L)
until the Test Light flashes (M).
Save the Test Light for future testing.
If the Test Light does not flash, refer to
the Troubleshooting section, or call the
Customer Care Center.
K
L
Boundary
Wire
M

www.guardianpet.net 13
Short Loop Test
The Short Loop Test is a simple test to determine if each component (Fence
Transmitter, Receiver Collar and Boundary Wire) is functioning properly.
Disconnect the BoundaryWire.1.
Cut approximately 10 feet of unused Boundary Wire and connect it to2.
the Boundary Wire Terminals.
Spread the BoundaryWire out into a circle.3.
Set the BoundaryWidth Control knob to 10.4.
If the Loop Indicator Light is not lit, then your Fence Transmitter is not5.
functioning properly. Contact the Customer Care Center at
1-866-381-2785 (US) / 1-800-457-3911 (Canada).
If the Loop Indicator Light is lit, disconnect one end of the Boundary6.
Wire from the BoundaryWire Terminal.
If the Loop Indicator Light does not go out, the Fence Transmitter needs7.
to be replaced. Contact the Customer Care Center at 1-866-381-2785
(US) / 1-800-457-3911 (Canada).
If the Loop Indicator Light goes out, plug the BoundaryWire back into8.
the Boundary Wire Terminal.
Hold the Test Light Contacts to the Receiver Contact Points. Hold9.
the Receiver Collar next to the 10-foot length of BoundaryWire.The
Receiver Collar should beep about one foot away from the Boundary
Wire.The Test Light should then flash as you hold the Receiver Collar
closer to the BoundaryWire.
If Receiver Collar does not beep and the Test Light does not flash,10.
replace the batteries in the Receiver Collar. If it still does not beep and
the Test Light does not flash, contact the Customer Care Center at
1-866-381-2785 (US) / 1-800-457-3911 (Canada).
If the Receiver Collar beeps, there may be a complete or partial break in11.
the Boundary Wire.

14 1-866-381-2785 (US) / 1-800-457-3911 (Canada)
Terms of Use and Limitation
of Liability
1. Terms of Use
This Product is offered to you conditioned upon your acceptance
without modification of the terms, conditions and notices contained
herein. Usage of this Product implies acceptance of all such terms,
conditions, and notices.
2. Proper Use
This Product is designed for use with pets where training is
desired. The specific temperament of your pet may not work with
this Product. We recommend that you not use this Product if your
pet is less than 8 pounds or if your pet is aggressive. If you are
unsure whether this is appropriate for your pet, please consult
your veterinarian or certified trainer.
Proper use includes reviewing the entire Guide provided with your
Product and any specific Caution statements.
3. No Unlawful or Prohibited Use
This Product is designed for use with pets only. This pet training
device is not intended to harm, injure or provoke. Using this
Product in a way that is not intended could result in violation of
Federal, State or local laws.
4. Limitation of Liability
In no event shall Radio Systems®Corporation be liable for any
direct, indirect, punitive, incidental, special or consequential
damages, or any damages whatsoever arising out of or connected
with the use or misuse of this Product. Buyer assumes all risks and
liability from the use of this Product.
5. Modification of Terms and Conditions
Radio Systems®Corporation reserves the right to change the
terms, conditions and notices under which this Product is offered.

www.guardianpet.net 15
FCC/Canada Compliance
This Class B digital apparatus complies with Canadian ICES-003. This
equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference
when the equipment is operated in a residential environment. This
equipment generates, uses, and can radiate radio frequency energy and,
if not installed and used in accordance with the instruction guide, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a practical installation. If this
equipment causes harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the
following measures:
• Relocate the interfered receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different to that to
which the receiver is connected.
• Contact the Customer Care Center at 1-866-381-2785 (US),
1-800-457-3911 (Canada).
This device complies with Industry Canada Rules. This device
complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Unauthorized changes or modifications to the equipment, not
approved by Radio Systems®Corporation, could result in not meeting
compliance with FCC regulations and could void the user’s authority
to operate the equipment.

16 1-866-381-2785 (US) / 1-800-457-3911 (Canada)
Caution
The Guardian®Underground Fence®is NOT a solid barrier.The system is
designed to act as a deterrent to remind pets by Static Correction to remain in
the boundary established. It is important that you reinforce training with your
pet on a regular basis. Since the tolerance level to Static Correction varies from
pet to pet, Radio Systems
®
Corporation CANNOT guarantee that the system
will, in all cases, keep a pet within the established boundary. Not all pets can be
trained to avoid crossing the boundary! Therefore, if you have reason to believe
that your pet may pose a danger to others or harm himself if he is not kept
from crossing the boundaries, you should NOT rely solely upon the Guardian®
Underground Fence®to confine your pet. Radio Systems
®
Corporation shall
NOT be liable for any property damage, economic loss or any consequential
damages, sustained as a result of any animal crossing the boundary.
_______________________________________________________________
Perchlorate Battery
Perchlorate Material - special handling may apply.
See www.dtsc.ca.gov/hazardouswaste.perchlorate.
_______________________________________________________________
Non-Transferrable Limited Warranty
WHAT IS COVERED: Radio Systems
®
Corporation d/b/a PetSafe
®
(hereinafter referred to as “PetSafe
®
”) warrants to the original retail consumer
purchaser, and not any other purchaser or subsequent owner, that its Guardian
®
Electronic product when subject to normal and proper residential use will be
free from defects in material or workmanship for a period of three (3) years
from the date of retail purchase.When serviced by PetSafe
®
Customer Service,
PetSafe
®
covers labor for the first year of ownership; after the first year, a service
charge will apply for the repair or replacement of the product.The limited
warranty is non-transferrable and shall automatically terminate if the original
retail consumer purchaser resells the PetSafe
®
product or transfers the property
on which the PetSafe
®
product is installed. In the event of defect, these are
your exclusive remedies.

www.guardianpet.net 17
PROPER PRODUCT USE:This product is designed only for use with
domesticated animals; do not use this product for any other purpose.
However, the specific temperament of your animal may not work with this
product. We recommend that you do not use this product if your animal is
aggressive. If you are unsure whether this product is appropriate for your animal,
please consult with your veterinarian or certified trainer before you use this
product. Please see the instruction manual for additional important information.
WHAT IS NOT COVERED: This non-transferrable limited warranty does
not provide protection against, and PetSafe
®
will have no liability under this
non-transferrable limited warranty for any failure, defect or damage caused by
events and situations beyond normal residential exposure conditions, including,
but not limited to: commercial use, misuse, abuse, neglect, improper installation
or installation not in accordance with PetSafe
®
’s instructions, use of non-PetSafe
®
accessories, impacts of foreign objects, acts of God, abnormal or improper use,
improper storage, attempted repair or service by anyone other than PetSafe
®
Customer Service, accident, alteration, defects in or failure of the surface the
PetSafe
®
product is installed in or upon, discoloration or other damage caused by
pollution, sunlight, other environmental conditions, mold, dirt, mildew, or exposure
to harmful chemicals and any other cause not involving manufacturing defects in
the PetSafe
®
product. Furthermore, this non-transferrable limited warranty does
not cover damage to or defects in the products caused by any animal.
Under no circumstances will PetSafe®be liable for any non-Petsafe®labor
charges or any expenses whatsoever in connection with the removal, repair or
installation of either the original or replacement component(s).
REGISTERINGTHE PRODUCT: Within thirty (30) days of purchase,
please go to www.Guardianpet.net to register your purchase.You may be
required to provide proof of purchase to obtain warranty coverage. Please keep
this information in a safe place.
MAKING AWARRANTY CLAIM:To obtain warranty service, call the
PetSafe®Customer Care Center at 1-866-381-2785 for assistance.

18 1-866-381-2785 (US) / 1-800-457-3911 (Canada)
Pursuant to this non-transferrable limited warranty, PetSafe®will replace the part
with a new or refurbished part.This non-transferrable limited warranty will then
apply to either the new or refurbished part for the remainder of the original non-
transferrable limited warranty period.
EXCLUSIONS: REPLACEMENT AS PROVIDED UNDERTHIS
NON-TRANSFERRABLE LIMITEDWARRANTY IS THE EXCLUSIVE
REMEDY OFTHE CONSUMER. NEITHER LABOR TO REMOVE
THE PART NOR LABORTO INSTALLTHE REPAIRED OR
REPLACED PART IS COVERED.
THIS NON-TRANSFERRABLE LIMITEDWARRANTY IS IN LIEU
OF ALL OTHER EXPRESSWARRANTIES. PetSafe®EXPRESSLY
DISCLAIMS AND EXCLUDES ALL OTHERWARRANTIES,
EXPRESS OR IMPLIED, INCLUDINGWITHOUT LIMITATION,
THEWARRANTIES OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE. PetSafe®ALSO DISCLAIMS
AND EXCLUDES ALL LIABILITY FOR INCIDENTAL,
CONSEQUENTIAL, PUNITIVE, DIRECT, INDIRECT, SPECIAL
OR ANY OTHER DAMAGES ARISING OUT OF OR CONNECTED
WITHTHE PURCHASE, USE OR MISUSE OFTHIS PRODUCT OR
FORTHE BREACH OF ANY EXPRESS OR IMPLIEDWARRANTIES
OR BREACH OF CONTRACT OR OTHERWISE. PURCHASER
ASSUMES ALL RISKS AND LIABILITIES FROMTHE USE OR
MISUSE OFTHIS PRODUCT. PetSafe®DOES NOT AUTHORIZE
ANY OTHER PERSON OR AGENT TO MAKE ANY OTHER
EXPRESS OR IMPLIEDWARRANTIES.
FURTHERMORE, PetSafe®WILL NOT BE LIABLE FOR ANY LOSS,
DAMAGE OR INJURY RESULTING FROM DELAY IN DELIVERY
OF REPLACEMENT PARTS OR FOR ANY FAILURE BY Petsafe®TO
PERFORM COVERED REPAIRWORK DUE TO CIRCUMSTANCES
BEYOND PetSafe®’s CONTROL.

www.guardianpet.net 19
GOVERNING LAW: This non-transferrable limited warranty shall be governed
by the law of the State of Tennessee, U.S.A., and by the laws of the United States
of America, excluding their conflicts of laws principles. Furthermore, the United
Nations Convention on Contracts for the International Sale of Goods is hereby
excluded in its entirety from application to this non-transferrable limited warranty.
Jurisdiction and venue shall be exclusive to the courts of Knox County,Tennessee.
These warranties give you specific legal rights, and you may also have other rights
that vary from state to state. Some states do not allow the exclusion or limitation
of incidental or consequential damages, so the above limitation or exclusion may
not apply to you.

20 1-866-381-2785 (US) / 1-800-457-3911 (Canada)
Français
Merci d’avoir choisi Guardian
®
. Notre mission consiste à être la marque de confiance
des propriétaires d’animaux de compagnie. Nous voulons assurer la sécurité de votre
animal en vous fournissant des outils et des techniques pour bien le dresser. Pour toute
question, veuillez entrer en contact avec le centre de service à la clientèle au
1-866-381-2785 (États-Unis) ou au 1-800-457-3911 (Canada) ou encore, consultez
notre siteWeb à l’adresse www.guardianpet.net. Pour tirer le meilleur parti de la garantie
limitée, veuillez enregistrer votre produit au cours des 90 jours suivant l’achat sur le
site www.guardianpet.net. En l’inscrivant, vous profiterez de la garantie complète du
produit, et nous serons en mesure de vous aider plus rapidement si vous appelez le
centre de service à la clientèle. De plus, vous n’aurez pas à conserver le reçu du produit,
car l’inscription sert de preuve d’achat. Il est important de noter que Guardian
®
ne
transmettra ou ne vendra jamais vos renseignements personnels à un tiers.
____________________________________________________________
Mode de fonctionnement du système
L’efficacité, le confort et la sécurité du dispositif de dressage Guardian®Underground
Fence®ont été éprouvés pour les animaux de plus de 8 livres. L’émetteur pour
clôture émet un signal radio qui est transmis à une distance maximale de 2 000 pieds
(600 m) du câble d’enceinte. Le câble d’enceinte est enterré ou attaché à un objet
immobile afin de délimiter la zone de confinement de l’animal.Vous délimitez la zone
de confinement de l’animal de façon temporaire à l’aide des drapeaux qui servent
alors d’aide visuelle pour dresser votre animal.Votre animal porte un collier récepteur
doté de points de contact qui touchent son cou, et, une fois dressé, il pourra circuler
librement dans la zone de confinement. Lorsque votre animal s’approche de la zone
d’avertissement, le collier récepteur émet un bip. Si votre animal continue d’avancer
dans la zone de correction statique, une correction statique lui sera administrée au
moyen des points de contact pour attirer son attention jusqu’à ce qu’il retourne dans la
zone de confinement.
