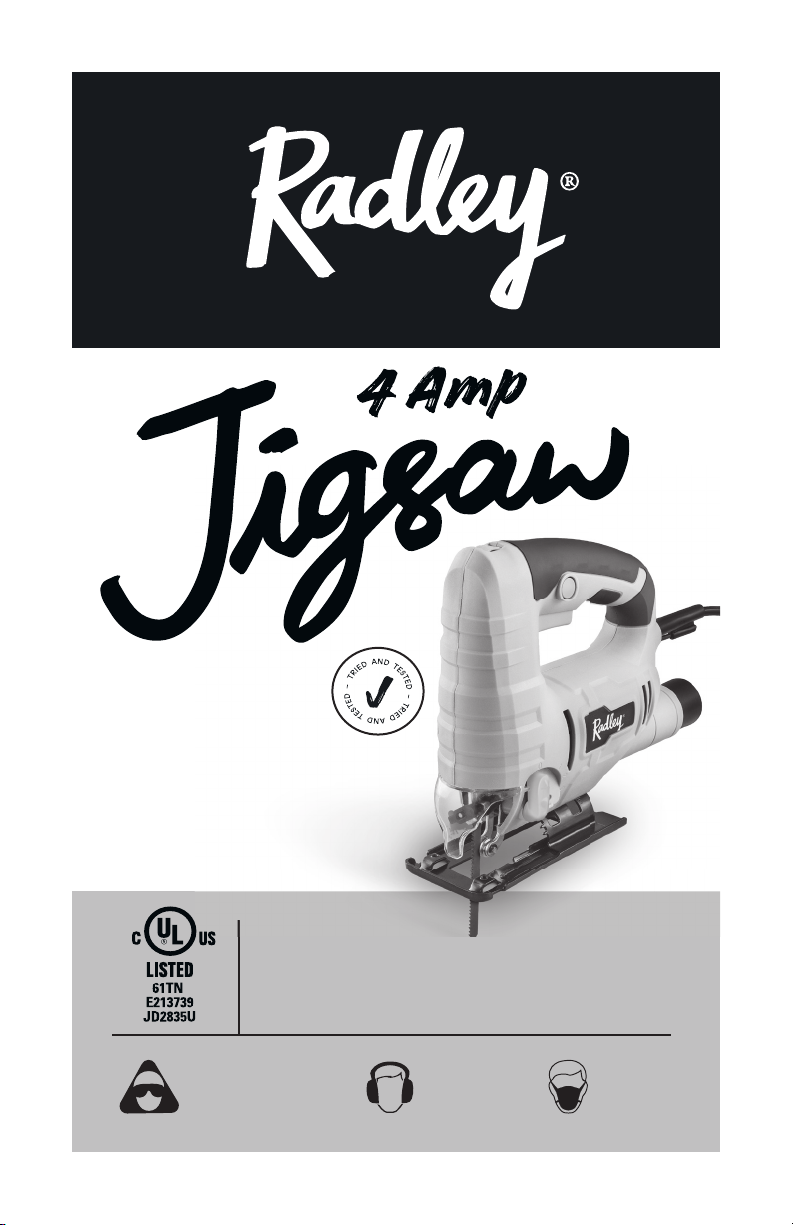

RADLEY 1268-536 User manual

1268-536
READ ALL INSTRUCTIONS BEFORE FIRST USE.
KEEP THIS MANUAL FOR FUTURE REFERENCE.
KEEP AWAY FROM CHILDREN.
WEAR A
FACE MASK
WEAR EAR
PROTECTION
WEAR CSA APPROVED
EYE PROTECTION
Onr's
Mna

1
4 Ap Jga - Onr's Mna
PRODUCT SPECIFICATIONS
4 A VARIABLE SPEED JIGSAW
Rating 120V, 60Hz, AC
Amperes 4.0 A
  
   11/16
  
   
  /16
    1/4
  
  
   
Need Assistance?


• 
• Replacement parts
• 

2
1268-536
TABLE OF CONTENTS















Installing a blade









General cutting







………….……………………………………………………………1
………….……………………………………………………………2


………….…………………………………………………………….4




………….……………………………………………………………6

…….……………………………………………………………8

………….……………………………………………………………10

………….……………………………………………………………11
………….……………………………………………………………11
……….……………………………………………………………11

….……………………………………………………………12




………….……………………………………………………………14



………….……………………………………………………………16

………….……………………………………………………………18

………….…………………………………………………………… 21


4 Ap Jga - Onr's Mna
GENERAL SAFETY WARNINGS
WARNING:




This instruction manual includes the following:
EYE, EAR & LUNG PROTECTION
ALWAYS WEAR EYE PROTECTION THAT CONFORMS WITH CSA
REQUIREMENTS or ANSI SAFETY STANDARD Z87.1

 WARNING: 

ALWAYS WEAR EAR PROTECTION
WARNING: 

WEAR A DUST MASK THAT IS DESIGNED TO BE USED WHEN OPERATING A POWER TOOL IN
A DUSTY ENVIRONMENT.
WARNING:









•
•

•
•
•
•
•
WEAR A
FACE MASK
WEAR EAR
PROTECTION
WEAR CSA APPROVED
EYE PROTECTION

4
1268-536
ELECTRICAL SAFETY
WARNING:  
 
WARNING: 

 
 
 
Power tool plugs must match the outlet. Never modify the plug in any way.
Do not use any adapter plugs with earthed (grounded) power tools 

Avoid body contact with earthed or grounded surfaces such as pipes, radiators,
ranges and refrigerators. 

Do not expose power tools to rain or wet conditions. 

Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the
power tool. Keep cord away from heat, oil, sharp edges or moving parts. 

When operating a power tool outdoors, use an extension cord suitable for outdoor
use. 
WEAR A
FACE MASK


4 Ap Jga - Onr's Mna
POWER TOOL SAFETY
WORK AREA SAFETY
Keep work area clean and well lit.

Keep children and bystanders away while operating a power tool.

PERSONAL SAFETY
Stay alert, watch what you are doing and use common sense when operating a
power tool. Do not use a power tool while you are tired or under the inuence of
drugs, alcohol or medication.

Use personal protective equipment. Always wear eye protection. 


Ensure the switch is in the off-position before connecting to power source and/or
battery pack, picking up or carrying the tool.


Remove adjusting key or wrench before turning the power tool on.
Do not overreach. Keep proper footing and balance at all times.

Do not wear loose clothing or jewellery.


Connect dust extraction and collection facilities, ensure these are connected and
properly used.
POWER TOOL USE AND CARE
Do not force the power tool.



6
1268-536
Do not use the power tool if the switch does not turn it on and off.

Disconnect the plug from the power source and/or the battery pack from the power
tool before making any adjustments, changing accessories, or storing power tools.


Store idle power tools out of the reach of children and do not allow persons unfamiliar
with the power tool or these instructions to operate the power tool. 

Maintain power tools.



Keep cutting tools sharp and clean.

Use the power tool, accessories and tool bits etc. in accordance with these
instructions, taking into account the working conditions and the work to be
performed. 

Hold power tools by insulated gripping surfaces when performing an operation
where the cutting tool or fastener may contact hidden wiring or its own cord.


SERVICE
Have your power tool serviced by a qualied repair person using only identical
replacement parts. 
maintained.


4 Ap Jga - Onr's Mna
   
   
   


WARNING:










blade.






DANGER:



WEAR CSA
APPROVED
EYE PROTECTION
WARNING:



SPECIFIC SAFETY RULES

8
1268-536











4 Ap Jga - Onr's Mna
GUIDELINES FOR EXTENSION CORDS















WARNING: Repair or replace damaged or worn extension cords immediately.




WARNING:


MINIMUM GAUGE (AWG) EXTENSION
CORDS(120 V use only)
Ampere rating
Total length infeet
More
than
Not
more
than
7.5 m
(25')
15 m
(50')
30 m
(100')
45 m
(150')
0
6
18
16
16
14
6
10
18
16
14
12
10
12
16
16
14
12
12
16
14
12
Not Applicable
