Rail King PCC ElectricStreet Car User manual

PCC Electric
Street Car
OPERATOR’S MANUAL
PLEASE READ BEFORE USE AND SAVE
Compatibility
This engine will operate on any traditional
O-31 Gauge track system, including
M.T.H.’s RealTrax®or ScaleTrax™ or
traditional tubular track. It is also compatible
with most standard AC transformers. (See
page 18 for a complete list of compatible
transformers and wiring instructions.)

CAUTION: ELECTRICALLY OPERATED PRODUCT:
Not recommended for children under 10 years of age. M.T.H. recommends adult supervision with children ages 10 - 16.
As with all electric products, precautions should be observed during handling and use to reduce therisk of electric shock.
WARNING:When usingelectricalproducts,basicsafetyprecautionsshouldbeobserved,includingthefollowing:
Readthismanualthoroughlybefore usingthisdevice.
M.T.H. recommends that all users and persons supervising use examine the hobby transformer and other electronic equipment
periodically for conditions that may result in the risk of fire, electric shock, or injury to persons, such as damage to the primary
cord, plug blades, housing, output jacks or other parts. In the event such conditions exist, the train set should not be used until
properlyrepaired.
Donotoperateyourlayoutunattended. Obstructedaccessoriesorstalledtrainsmayoverheat,resulting in damage toyourlayout.
Thistrainsetisintendedforindooruse. Donotuseifwaterispresent. Seriousinjuryorfatalitymayresult.
l
l
l
lDonotoperatethehobbytransformerwithdamagedcord,plug,switches,buttonsorcase.
Table of Contents
Set Up Checklist................................................................................................... 3
Lubrication.............................................................................................3
Checking The Battery.............................................................................3
Basic Operation.....................................................................................................4
Activating Features.................................................................................4
Proto-Sound 2.0 Operating Instructions........................................................... 6
Activating Proto-Sound 2.0 Conventional Mode Features....................6
Transit Announcement Stops (TAS)......................................................7
Speed Control.........................................................................................11
Locking Locomotive Into A Direction.................................................. 12
Reset To Factory Default.......................................................................12
Automatic Sound Effects.......................................................................12
Maintenance.........................................................................................................13
Lubricating and Greasing Instructions...................................................13
Cleaning The Wheels, Tires and Track..................................................14
Headlight Replacement Instructions......................................................15
Self Charging Battery Back-Up.............................................................15
Troubleshooting Proto-Sound® 2.0 Problems.......................................17
Transformer Compatibility and Wiring Chart.......................................18
Additional Features Accessible Of DCS Remote Control System........19
Service & Warranty Information...........................................................20
Limited One-Year Warranty..................................................................20

RailKing PCC Street Car 3
Set Up Checklist
•Lubricate the locomotive
•Check to see whether the battery needs to be charged for full sound effects
•Apply power to run as described in the Basic Operating Section of this manual
Lubrication
You should lubricate the engine to prevent it from squeaking. Use
light household oil and follow the lubrication points marked “L” in
Fig. 1. Do not over-oil. Use only a drop or two on each pivot point.
LubricatePick UpRollers(L)Lubricate Pick Up Rollers (L)
Lubricate Wheel Axles (L)
(On Each Truck)

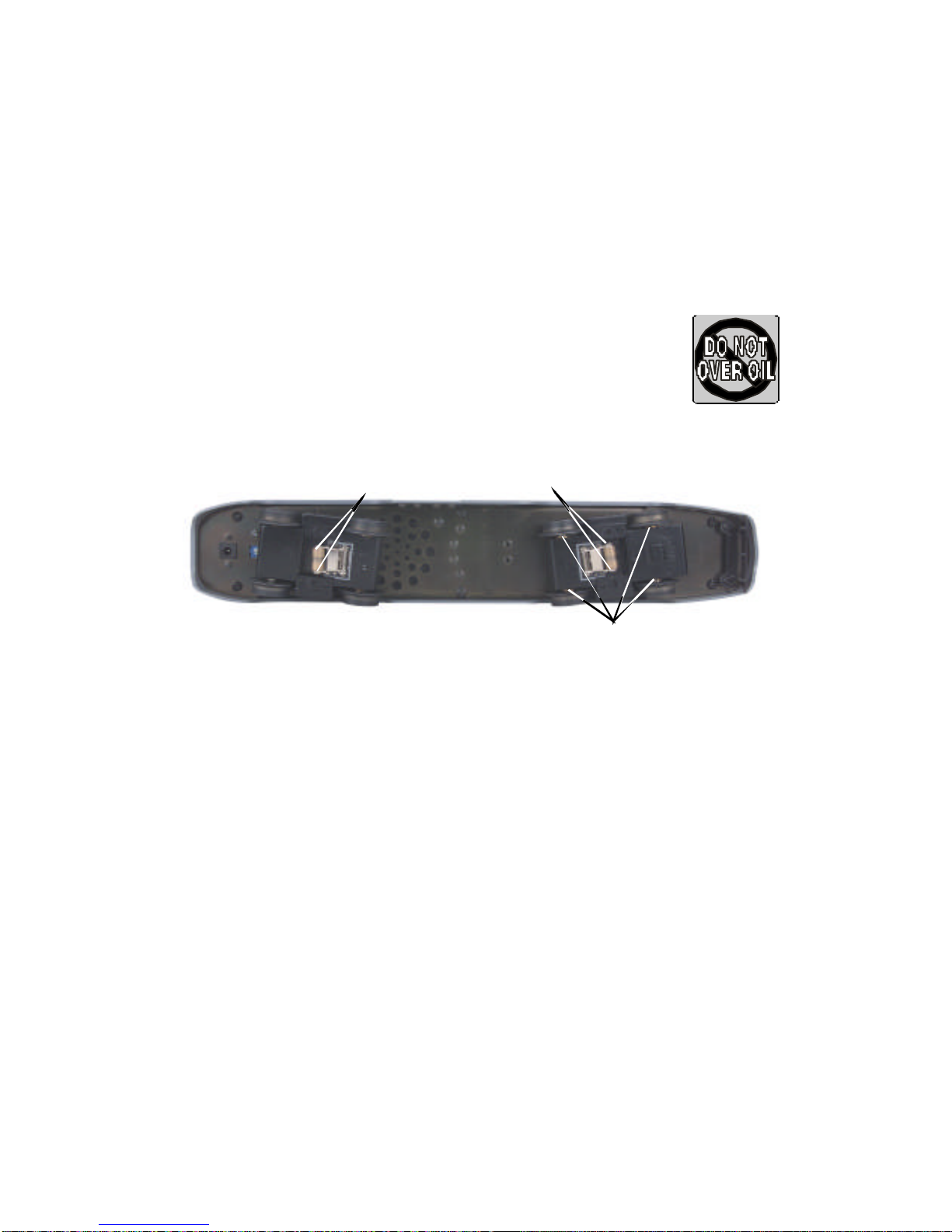

Figure 1. Lubrication Points on the Locomotive
DO NOT
OVER OIL
Checking The Battery
You may find, if your locomotive was built several months before you set it up, that the
rechargeable battery has run down and needs to be charged before operating. If you
notice that the sounds are garbled, test and charge the engine as described in the
"Self-Charging Battery Back-Up" on page 15.

4RailKing PCC Street Car
Basic Operation
The Throttle knob controls how fast your train will travel.
Turn the throttle knob up ½-way, until the engine and caboose lights shine bright.
Put the engine into motion by pressing the Direction button on your transformer once.
(hold it for approximately 1 second)
If the engine does not begin to move as soon as you firmly press the Direction button,
you may not have sent enough voltage to the track to make the train move. Turn the
throttle up a bit higher until the train begins to move.
Throttle To increase or decrease track voltage, and therefore train speed, turn the
throttle control knob. Turning clockwise will increase voltage and speed, while turning
counterclockwise will decrease voltage and speed. The engine will maintain the speed
you set after you release the throttle until you turn it again to change the voltage and
speed.
Bell- To sound the bell, in an engine equipped with a bell firmly press and release the
Bell button. To turn the bell off, press and release the Bell button again. The bell will
continue to ring from the time you turn it on until you press and release the button again
to turn it off.
Horn/Whistle- To sound the whistle, firmly press the Horn/Whistle button. The whistle
will sound for as long as you continue to depress the button. It will stop when you
release the button.
Direction Your train is programmed to
start in neutral. The train will always
cycle neutral-forward-neutral-reverse with
each press and release of the direction
button. The engine is programmed to
restart in neutral each time the track
voltage is turned off for 25 seconds or
more.
CyclePhases
Neutral
Neutral ForwardReverse
Activating Features

RailKing PCC Street Car 5
Manual Volume Control
To adjust the volume of all sounds made by this engine, turn the master volume control
knob located next to the fuel tank clockwise to increase the volume and
counter-clockwise to decrease the volume.
Proto-Sound 2.0
Volume Adjustment Knob
Figure 2: Manual Proto-Sound 2.0 Volume Adjustment

6RailKing PCC Street Car
This manual contains the operating instructions for Proto-Sound 2.0 in conventional
mode only. Instructions for accessing DCS command mode features accompany the DCS
Remote Control System equipment.
Because Proto-Sound 2.0 is an all-new system developed by M.T.H.'s own research and
development team, it operates differently from original Proto-Sound. Most Proto-Sound
2.0 features are automatically enabled, and Reset has been eliminated, so there is no need
to program features as with original Proto-Sound. Although the new system is easier to
operate than original Proto-Sound, you should read these instructions thoroughly before
using Proto-Sound 2.0 features in order to prevent harm to yourself or your equipment.
Proto-Sound 2.0 features are activated by sequences of Bell and Horn button pushes
described below. Please read the full descriptions of each feature before using it. To use
these buttons to activate features rather than to blow the horn or ring the bell, you should
press the buttons firmly, but rapidly with a ½-second pause between button presses. You
may need to practice your timing to make this work smoothly.
Proto-Sound 2.0
Operating Instructions
Timing Chart
Total Time Lapse: 1 Seconds½
Press
Horn
Short &
Firm
½ Sec.
Pause ½ Sec. Pause
Press
Bell
Short&
Firm
Press
Bell
Short &
Firm
Activating Proto-Sound 2.0 Conventional
Mode Features

7 RailKing PCC Street Car
1. Manual Mode
Upon initial power application, the engine will start up in manual mode. The chart below
lists the features available to the operator when in Manual Mode. Different features are
available when operating in Learn and Auto Modes, which are described later.
Your Proto-Sound 2.0 street car is equipped with operator controlled Transit
Announcement Sounds, hereafter known as TAS. This easy-to-use feature plays digitally
reproduced transit announcements and platform action sounds whenever you activate and
stop your engine. No additional wires or modifications are needed on your layout to
enjoy these amazing sound effects. These different sounds are heard each time you give a
long bell button press. The entire TAS sequence is designed to simulate the arrival,
disembarking, embarking, and departure of a transit stop. The sounds include the driver
announcing the stop and the upcoming stop, passenger disembarking and embarking
sounds, driver to passenger requests, door openings and closing and general transit stop
sounds. After the station sounds have finished, the engine will shift back into gear and, if
the throttle is set high enough, will pull away from the station.
To activate the TAS, press and hold the bell button for approximately 2 seconds.
If you do not wish to stop at the station that is announced after activating TAS, press and
hold the bell button again without throttling down the train.
Operating Modes
Feature to Be Activated Button Code:
Transit Announcement Sounds (TAS)
Speed Control On/Off
Lock into a Direction
Reset to Factory Defaults (including
default Auto Mode route settings)
1 Bell (depress button approx. 2 secs.)
1 Horn, 2 Bells (from neutral only)
1 Horn, 3 Bells
1 Horn, 3 Bells
1 Horn, 5 Bells (from neutral only)
Transit Announcement Sounds (TAS)

8RailKing PCC Street Car
In Learn Mode, the engine may be programmed with either an "Out & Back" route or a
"Loop" route. An "Out & Back" route begins at the 1st station (as programmed by the
operator), stops at intermediate stations, ends at the last station, then reverses its route
until it reaches the 1st station. A "Loop" route begins at the 1st station (as programmed
by the operator), stops at intermediate stations, ends at the last station, and then begins
the route over again at the 1st station.
Excample Of An Out and Back:
Example Of A Loop:
To program stations:
1. Running in Forward, stop the unit at the desired location for the first stop by pressing
the direction button. Note: if you stop the engine with the throttle control, you must
re-apply power so that the engine goes into neutral and does not shut down.
2. Learn Mode
Flatbush
Avenue
Flatbush
Avenue
241st
Street
42nd
Street
241st
Street
42nd
Street
Wall
Street
Flatbush
Avenue 42nd Street
241st
Street
Wall
Street

RailKing PCC Street Car 9
2. Enter Learn Mode by pressing Horn Bell Bell Bell - Bell. The train will then
announce that you have entered Learn Mode.
3. Press and hold the Bell button to scroll through the available stations until you hear
the one that you would like to be your first stop. Release the button quickly as soon as
you have heard the desired stop name.
4. Press and hold the Horn button until a "saved" response confirms that station's
location and name are saved in memory.
5. Proceed to the next stop by pressing the Direction button.
6. Press the Direction button to stop the train again when you have reached the next
desired station location.
7. Using the Bell button, select the name of the station, then save using the Horn button.
8. Repeat steps 5 7 until you are ready to program the last stop in the route.
9. The manner of saving the last station in the route determines whether the route will be
an "Out & Back" or "Loop" route.
"Out &Back"
follow steps 5 7 to save the last station. After you press the Horn button and
the sound system plays the "Saved" confirmation, press the Horn button again.
Another "Saved" confirmation will play and the car will exit Learn Mode and
enter Manual Mode.
“Loop" follow steps 5 7 to save the last station. Press the Direction button once to
start the car in forward and stop the car at the location of the first stop by pressing the
Direction button. Press the Bell button as many times as is necessary to hear the name of
the first stop. Press the Horn button until the "Saved" confirmation is played. The
car will then automatically exit Learn Mode and enter Manual Mode.
Notes:
Always approach a desired station stop location while running in Forward. Learn mode
counts distance traveled, not actual physical locations. However, unlike an automobile's
odometer, Proto-Sound 2.0 Learn Mode does erase distance when traveling in reverse. If
you operate your car past the desired stop location, you may back it up to the desired
stop location, however you must put the car into forward and then neutral again before
saving the stop name and location into memory.

10 RailKing PCC Street Car
Auto Mode
When you have finished programming your stations in Learn the car will be in Manual
Mode. Running in Forward, stop the car at the location of the first programmed station by
pressing the Direction button. Press Bell Horn Horn to put the train into Auto Mode.
Press the Direction button again to begin operation in Auto Mode. Because Auto Mode
operation begins at the first stop, the next stop announced will be the second stop.
Notes:
The engine will always power up in Manual Mode.
Function Learn Mode Button Code:
To Enter Learn Mode
To Stop at Each Station
To Scroll through the Station Names
To Save Station
1 Horn, 4 Bells
Direction
Bell (hold to scroll and release as soon
as you hear the desired station name)
Horn (hold for "Saved" response)
Function Auto Mode Button Code:
To Enter Auto Mode from
Manual Mode
To Begin Programmed Run
1 Bell, 2 Horn at the location of the
first programmed station stop
Direction
Function Manual Mode Button Code:
To Enter Manual Mode
from Auto Mode 1 Bell, 2 Whistles

RailKing PCC Street Car 11
M.T.H. engines equipped with Proto-Sound 2.0 have speed control capabilities that allow
the engine to maintain a constant speed up and down grades and around curves, much
like an automobile cruise control. You can add or drop cars on the run, and the engine
will maintain the speed you set.
While the engine is programmed to start with the speed control feature activated, you can
opt to turn it off. This means the engine's speed will fall as it labors up a hill and increase
as it travels downward. It is also affected by the addition or releasing of cars while on the
run. Because the engine will run more slowly at a given throttle voltage when speed
control is on than when it is off, you should adjust the throttle to a lower power level for
operation with speed control off to avoid high-speed derailments. When speed control is
off, the volume will drop to allow for better low voltage operation.
To turn speed control on and off, put the engine in neutral, then quickly tap the
transformer's Horn button one time then quickly tap the Bell button two times, allowing
approximately ½ second to lapse between each quick button press. Two horn blasts will
indicate that the engine has made the change. Repeat the 1 horn, 2 bells code to return it
to the other condition. You will want to do this during the initial neutral upon start-up if
you ever couple this engine to another engine that is not equipped with speed control to
avoid damaging the motors in either engine. Each time you shut down the engine
completely, it will automatically turn speed control on.
Horn
Place
Engine into
Neutral
Bell Bell =SpeedControl
Two Horn Blasts
RepeattoReturn
to Normal Condition
(indicates change is made)
Speed Control

12 RailKing PCC Street Car
You can lock your engine into a direction (forward, neutral, or reverse) so that it will not
change directions. To do this, put the engine into the direction you want (or into neutral
to lock it into neutral), run it at a very slow crawl (as slowly as it will move without
halting), and quickly but firmly tap the Horn button once followed by three quick taps of
the Bell button, allowing approximately ½ second to lapse between each quick button
press. Two horn blasts will indicate that the engine has made the change. The engine will
not change direction (including going into neutral) until you repeat the 1 horn, 3 bells
code to return the engine to its normal condition, even if the engine is kept without power
for extended periods of time.
Horn
Place
Engine into
Desired
Direction
Horn Bell Bell Bell =Direction Lock
Two Horn Blasts
Repeat to Return
to Normal Condition
(indicateschangeismade)
To override the settings you currently have assigned to the engine and reset it to its
factory defaults, while in Neutral tap the Horn button quickly once, followed by five
quick taps of the Bell button, allowing approximately ½ second to lapse between each
quick button press. Two horn blasts will indicate that the engine has made the change.
Reset
TwoHornBlasts
Repeat to Return
to Normal Condition
(indicateschange ismade)
Horn
Place
Engine in
Neutral =
BellBellBellBellBell
Certain Proto-Sound 2.0 sound effects automatically play in programmed conventional
mode conditions:
•Squealing Brakes play any time the engine's speed decreases rapidly.
•Cab Chatter plays at random intervals when the engine idles in neutral.
•Engine Start-up and Shut-down sounds play when the engine is initially powered
on or is powered off for five seconds or more.
Locking Locomotive Into A Direction
Reset To Factory Default
Automatic Sound Effects

RailKing PCC Street Car 13
Maintenance
The engine should be well oiled and greased in order to run properly.
Regularly lubricate all axles and linkage components and pickup rollers
to prevent squeaking. Use light household oil, such as that found in
M.T.H.'s maintenance kit. Do not over oil. Use only a drop or two on
each pivot point.
DO NOT
OVER OIL
Body Mount Screws
Motor Mounting Screw
Body Mount Screws
Figure 3
The locomotive’s internal gearing was greased at the factory and should not need
additional grease until after 50 hours of operation or one year, whichever comes first.
Follow the greasing instructions below. Note that in some tightly packed engines you
may need to move internal components temporarily in order to access the gears.
1. To access the gear box, remove the cab from the chassis by unscrewing the chassis
screws as seen in Figure 3 and lifting the cab from the chassis.
2. Once the cab is removed, remove the trucks by unscrewing the black Phillips motor
mount screw located on the underside of the drive trucks (see Fig. 3).
3. Once the motor mount screw has been removed, pull the motor away from the truck
block and lightly coat the motor worm gear and bronze drive gear (in the truck block)
with grease.
4. Reassemble the truck and motor, being careful not to pinch any wires between the
truck block and motor mount.
Lubricating and Greasing Instructions

14 RailKing PCC Street Car
Periodically check the locomotive wheels and pickups for dirt and buildup, which can
cause poor electrical contact and traction as well as prematurely wear out the neoprene
traction tires.
Periodically check the locomotive wheels and pickups for dirt and buildup, which can
cause poor electrical contact and traction and prematurely wear out the neoprene traction
tires. Wheels and tires can be cleaned using denatured (not rubbing) alcohol applied with
a cotton swab.
To clean the track, use RailKing Track Cleaning Fluid and a clean rag or denatured (not
rubbing) alcohol. Unplug the
transformer and wipe the rails of the
track, turning the rag frequently to
ensure that you are using clean cloth on
the rails. Thereafter, keep an eye on
the track and clean it when it gets dirty
to ensure good electrical contact and to
lengthen the life of the tires.
Cleaning The Wheels, Tires and Track

RailKing PCC Street Car 15
The locomotive’s headlight is controlled by a constant voltage circuit in the engine. The
headlight is easy to remove and replace when it burns out. The bulb has a quick
disconnect plug that attaches the bulb harness to a light circuit. Replacement bulbs are
available directly from the M.T.H. Parts Department.
Follow the body removal instructions found in the Lubrication and Greasing Instructions.
Gently disconnect the bulb harness from the socket on the constant voltage circuit and
replace the entire harness. The destination light bulb harness resides between the roof
and the headlight. Remove the two screws securing the destination bulb mount and the
replace the entire bulb harness.
The interior bulbs are of the bayonet variety and can be removed by gently pushing down
on the bulb and twisting clockwise before pulling up and removing from the socket.
The special NiCad 7-cell 8.4v self-charging battery recharges continuously during train
operation and should last for up to five years. The battery is a dry battery that should not
leak or cause any damage to your engine. Depending upon when your engine was built,
it may need to be charged right out of the box. If engine sounds seem distorted or
garbled at low voltages or become silent when power from the transformer is turned off,
test the battery to determine whether it should be recharged or replaced.
FrontRear Headlight
Wire Harness
Interior Lights
Marker Light
Wire Harness
Figure 4
Headlight Replacement Instructions
Self Charging Battery Back-Up

16 RailKing PCC Street Car
Test: Put the engine in neutral and leave the track voltage at 10-12 volts (high enough
for the lights to shine brightly and the engine to move steadily) for 15 minutes.
Recharge: If the sounds are improved at the end of the 15-minute test charge, the battery
charge has run down and can be
recharged. There are a number of
ways you can do this:
•Leave the engine in neutral
with track voltage at 10-12
volts for 6-7 hours so the
battery can fully recharge
(if your engine has a
smoke unit, be sure it is
turned off).
•Use M.T.H.'s battery
recharger (sold separately)
that plugs into a wall outlet and a special port under the engine to recharge the
battery overnight without leaving it on the track.
Replace: If the sounds are not improved at the end of the 15-minute test charge, it is
time to replace the battery. Available through M.T.H. Parts. A standard 9v alkaline
battery can be substituted until your replacement arrives, but since alkaline batteries
cannot be recharged, it will eventually wear down. Do NOT use a 6-cell 7.2v battery.
Proto-Sound 2.0
Battery Charging Port
Figure 6
UnhookWires,Remove
and Replace Battery
Figure 5

RailKing PCC Street Car 17
Although Proto-Sound 2.0 has been designed and engineered for ease of use, you may
have some questions during initial operation. The following table should answer most
questions. If your problem cannot be resolved with this table, contact M.T.H. for
assistance (telephone: [phone]; fax: [phone]; [email protected],
7020 Columbia Gateway Drive, Columbia MD 21046-1532).
StartingUp
Bell
Remedy
Remedy
When I press the horn button, the bell comes on
instead.
I can't get any sound to play when I press the horn
button.
When I press the bell button, I get a station stop
announcement, not the bell. You are holding the bell button too long. Press it for only about one second to trigger the bell.
That is normal for this model.
You may be pressing the button too quickly to trigger the
bell. Try pressing the horn button more slowly, taking
approximatelyonefullsecond tofullydepressthebutton.
Coupler Remedy
When I try to fire the coupler, TAS starts.
The Proto-Coupler won't let the engine uncouple
onthefly.
The coupler does not fire or stay coupled.
You are waiting too long between horn button presses.
Try lubricating the coupler knuckle and rivet with a dry
graphite lubricant.
The coupler needs to be cleaned. Wipe with denatured
alcohol (not rubbing alcohol) and let dry.
Platform Action Sounds Remedy
Sometimes the Platform Action Sounds don't play. Platform Action Sounds play only in neutral at random
intervals.
Lock-out Remedy
I can't get the engine to run after I power up the
transformer. It sits still with the diesel and
compressor sounds running.
The engine won't lock into forward, neutral, or
reverse.
The engine is locked into the neutral position. Follow the
procedure in the "Lock into a Direction" section.
Engine speed must be below 10 scale mph (approx. 10
voltsorlessinconventionalmode).
Volume Remedy
Thesoundsseemdistorted,especiallywhenthe
hornor bell is activated.
No Sound
Proto-Sound 2.0 volume is set too high. Turn the volume
control knob on the bottom of the chassis counter-
clockwise to reduce the volume.
Volume is set too low, adjust volume control knob on the
bottom of the chassis clockwise to increase the volume
or check connector to speaker.
Battery Remedy
The engine will not leave the initial neutral setting.
I get no sounds when the engine shifts between
directions.
After I turn off my transformer, my engine
continues to make sounds before quitting.
Check to be sure the battery is installed and fully charged.
See the "Self-Charging Battery Back-Up" section.
The battery may be dead or need to be charged. See the
"Self-Charging Battery Back-Up" section.
Proto-Sound 2.0 is designed to continue to sound for a
few seconds after power to the track has been shut off to
allow for a more realistic shut-down.
PSA Remedy
The TAS sounds occasionally repeat themselves. Proto-Sound 2.0 has a built-in random number generator
that randomly selects each sound clip to play. Because
there are a limited number of sound clips available in
each TAS sequence, it is probable that some of these
sound clips will be repeated from time to time.
Troubleshooting Proto-Sound® 2.0 Problems

18 RailKing PCC Street Car
Proto-Sound 2.0 is designed to work with most standard AC transformers. The chart
below lists the many compatible transformers. Note that many of the operational
commands described in these instructions require a bell button, so if your transformer
does not have its own bell button, you should consider adding one to get the full benefit
of the system. In addition, the chart details how the terminals on these transformers
should be attached to your layout.
Transformer
Model Center Rail Outside Rail Min/Max. Voltage Power Rating Transformer Type
Lionel1032 U A 5-16v 90-Watt Standard
Lionel 1032M U A 5-16v 90-Watt Standard
Lionel1033 U A 5-16v 90-Watt Standard
Lionel1043 U A 5-16v 90-Watt Standard
Lionel 1043M U A 5-16v 90-Watt Standard
Lionel1044 U A 5-16v 90-Watt Standard
Lionel1053 U A 8-17v 60-Watt Standard
Lionel1063 U A 8-17v 60-Watt Standard
All-Trol Left Terminal Right Terminal 0-24v 300-Watt Electronic
Dallee Hostler Left Terminal Right Terminal Electronic
Lionel LW A U 8-18v 75-Watt Standard
Lionel KW A or B U6-20v 190-Watt Standard
LionelMW OutsideTrack
Terminal Inside Track Terminal 5-16v 50V.A. Electronic
Lionel RS-1 Red Terminal Black Terminal 0-18v 50V.A. Electronic
Electronic
Lionel RW U A 9-19v 110-Watt Standard
Lionel SW U A Unknown 130-Watt Standard
Lionel TW U A 8-18v 175-Watt Standard
Lionel ZW
Lionel Post-War
Celebration
Series ZW
A,B,C or D
A,B,C or D
U
Common
8-20v
0-20v
275-Watt
135/190 Watt
Standard
MTH Z-500 Red Terminal Black Terminal 0-18v 50-Watt Electronic
MTH Z-750 Red Terminal Black Terminal 0-21v 75-Watt Electronic
MTH Z-4000 Red Terminal Black Terminal 0-22v 390-Watt Electronic
* Conventional Mode Only
Transformer Compatibility and Wiring Chart

RailKing PCC Street Car 19
(Additional equipment required)
While conventional mode operation of a Proto-Sound 2.0 engine yields wonderfully
realistic sound and several train control features, command mode operation allows the
user to access a world of command functions never before accessible to O Gauge
railroaders. With the addition of the DCS Remote Control System (including a DCS
remote handheld and Track Interface Unit) users gain many advanced features, including:
•DCS Proto-Speed Control - Establishes desired locomotive speed in scale miles
per hour increments via a thumbwheel control and allows operator to set
maximum speed and acceleration/deceleration rates
•ProtoSmoke® Variable Output Control - Controls how much smoke each engine
outputs and matches smoke to locomotive speed
•Locomotive Lighting Control - Controls locomotive headlights, marker and
interior lights, beacon lights, ditch lights, and MARS lights
•Emergency Stop-Single button push stops all Proto-Sound 2.0 trains but does not
turn off the power
•One Touch Global Mute/UnMute-Single button mutes or unmutes all
DCS-controlled locomotives' user-defined actions, including sound, lights, and
smoke
•Proto-Dispatch Operation-Public Address-like feature allows users to speak
through locomotive speaker during operation
•Proto-Cast-Allows users to play audio recordings through locomotive speaker
during operation
•Proto-Doppler Sound Effects Set Up-Users can configure locomotive for
Doppler Operation, including setting distance points for Doppler start, repeat,
and stop modes
•Independent Volume Control of Engine Sounds, Bell, Horn & Whistle for each
Locomotive
•Control up to 50 different DCS-Equipped Locomotives at one time with multiple
TIUs
•Proto-Effects™ Set Up-User can select individual Proto-Effects™ operations to
be active or inactive, including cab chatter, train wreck sounds, coupler sounds,
and wheel clickety-clack sounds
•Direction Control Set Up-User can set initial individual start-up direction (start
in forward or reverse) for double-heading operations
•Locomotive Consist Set-up-User can determine locomotive values for consist
make-ups, allowing multiple locomotives belonging to a consist to operate
together
Additional Features Accessible With The DCS
Remote Control System

How to Get Service Under the Terms of the Limited One-Year Warranty
For warranty repair, follow the instructions below to obtain warranty service.
First, e-mail, write, call or fax an Authorized M.T.H. Service Center in your area or M.T.H. Electric
Trains to obtain Repair Authorization. You can find the list of Authorized Service Centers on the
M.T.H. website, www.mth-railking.com. Otherwise, contact M.T.H. (at e-mail:
[email protected]; 7020 Columbia Gateway Drive, Columbia, MD 21046; tel:
410-381-2580; fax: [phone]), stating when the item was purchased and describing the
problem. If you contact M.T.H., you will be given a return authorization number to assure that your
merchandise will be properly handled upon its receipt.
CAUTION: Make sure the product is packed in its original factory packaging including its foam
and plastic wrapping material so as to prevent damage to the merchandise. The shipment must be
prepaid and we recommend that it be insured. A cover letter including your name, address, daytime
phone number, e-mail address (if available), Return Authorization number, a copy of your sales
receipt and a full description of the problem must be included to facilitate the repairs. Please
include the description regardless of whether you discussed the problem with a service technician
when contacting the Service Center or M.T.H. for your Return Authorization.
All M.T.H. products purchased from an Authorized M.T.H. Train Merchant are covered by this
warranty. See our website at www.mth-railking.com or call 1-888-640-3700 to identify an
Authorized M.T.H. Train Merchant near you.
M.T.H. products are warrantied for one year from the date of purchase against defects in material or
workmanship, excluding light bulbs, pick-up rollers and traction tires. We will repair or replace(at
our option) the defective part without charge for the parts or labor, if the item is returned to an
Authorized M.T.H. Service Center or M.T.H. Electric Trains within one year of the original date of
purchase. This warranty does not cover damages caused by improper care, handling, or use.
Transportation costs incurred by the customer are not covered under this warranty.
Items sent for repair must be accompanied by a return authorization number, a description of the
problem, and a copy of the original sales receipt from an Authorized M.T.H. Train Merchant, which
gives the date of purchase. If you are sending the item to M.T.H., call 410-381-2580, fax
410-423-0009, or e-mail the Service Department at [email protected] to obtain a return
authorization number. If you are sending this product to an Authorized Service Center, contact that
Center for their return authorization.
This warranty gives you specific legal rights, and you may have other rights that vary from state to
state.
Service Department
M.T.H. Electric Trains
7020 Columbia Gateway Drive
Columbia, Maryland 21046-1532
Service & Warranty Information
Limited One-Year Warranty
