Rail King RAILKING N User manual

RAILKING N&W J
WITH LOCO-SOUND
READY-TO-RUN TRAIN SET
OPERATING INSTRUCTIONS
Your RailKing
®Ready-To-Run train set is complete with everything you need to get
your model railroad up and running. This set includes a
N&W J 4-8-4 steam locomotive,
a set of
three passenger cars, a transformer, a loop of RealTrax, the RailKing wireless
infrared remote control, and the infrared activated remote lock-on. You also get
M.T.H.’s exclusive RailWare CD-ROM with track layout software and other information
helpful to model railroaders.
M.T.H. takes pride in manufacturing high quality products like your train set, and we
hope that you will enjoy it for a long time. Please read all the accompanying instructions
carefully before setting up and operating your train set. With proper care, this set should
yield years of trouble-free performance.

2
RailKing N&W J Steam Engine
Table of Contents
Set Up Assembling RealTrax®3
Plugging in the Transformer 4
Lubricating the Engine 4
Priming the Smoke Unit 4
Coupling the Engine and Cars 5
Remote Control 6
BasicOperation
Operation Buttons 7
Speed Control 8
Direction Lock 8
Proto-Cast and Proto-Dispatch 9
VolumeControl 10
Maintenance
Care of Remote Control 11
Lubrication and Greasing Instructions 11
Cleaning the Wheels, Tires and Track 13
Locomotive Traction Tire Replacement 13
Smoke Unit Maintenance 14
Locomotive Light Bulb Replacement 15

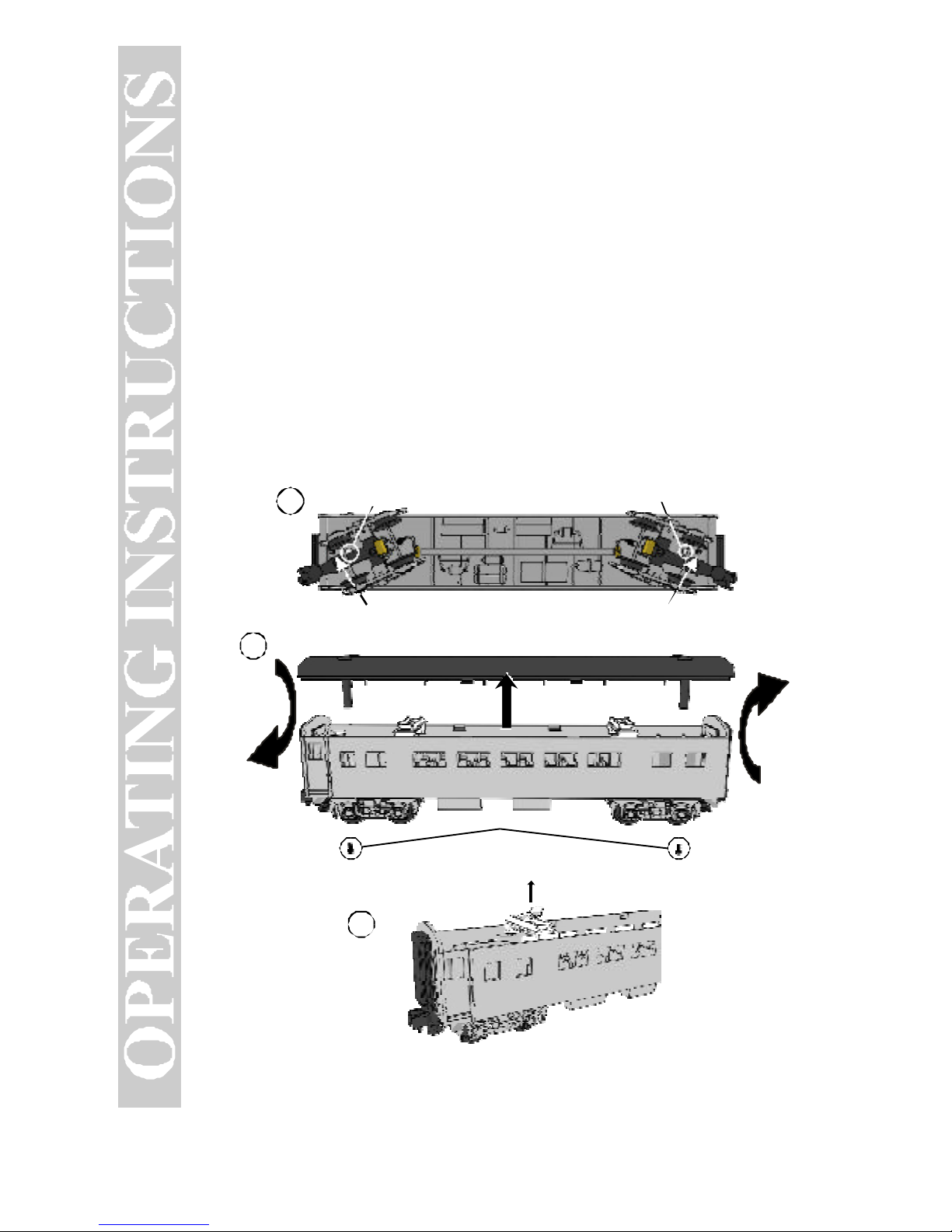

Passenger CarLight Bulb Replacement 16
RailWare Interactive CD-ROM 18
Troubleshooting 19
Compatibility 20
Transformer Compatibility Chart 21
Safety Precautions 22
Service and Warranty Information 24

3
RailKing N&W J Steam Engine
Set Up Checklist
• Assemble RealTrax®
• Connect the transformer
• Lubricate the train
• Place the engine and cars on the track and couple them together
• Apply power to run as described in the Basic Operation section of
these instructions.
Assembling RealTrax
®
Unlike other O Gauge track systems, each RealTrax section features a realistic
built-in roadbed base, solid nickel-silver track rails, and realistic railroad ties,
all designed to give you an authentic looking track system. The quick
connectors and built-in roadbed allow you to set up RealTrax anywhere,
including carpeted surfaces, without the need for track nails or the worry of
carpet stains.
Each RealTrax segment has at least one knock-out tab in the roadbed (on either
end of the segment) that can be removed with a pair of pliers to reveal an
opening for the lock-on that is used to connect the transformer to the track. To
assemble RealTrax, follow the instructions below.
Knock Out must be
removed before
RemoteLock Oncan
be installed
Remove Knock Out
by Holding and Twisting Up
with a pair of pliers
1a
1c
1b
1d Make sure the
metal contacts
line up.
Figure 1a-1d: Installation of Remote Lock On

4
RailKing N&W J Steam Engine
Connecting the Transformer
The Z--750®power supply included with this set provides an easy-to-use, safe
power source for AC-powered trains and accessories.
Plug the wire from the transformer into the remote lock-on’s center port, then
plug the transformer into the wall outlet. Insert two AA batteries (not
included) into the remote handheld as shown.
Lubricating the Engine
You must lubricate the engine before operating it. Use a light household oil
and follow the lubrication points marked “L” in Fig. 10 on pg. 11. Do not over
oil. Use only a drop or two on each pivot point.
Priming the Smoke Unit
You should prime the smoke unit with
smoke fluid before operating. Add 15-20
drops of smoke fluid from the included
pipette through the smokestack (see figure
4), then gently blow into the stack to
eliminate any air bubbles in the fluid.
Add Smoke Fluid
ThroughSmokestack

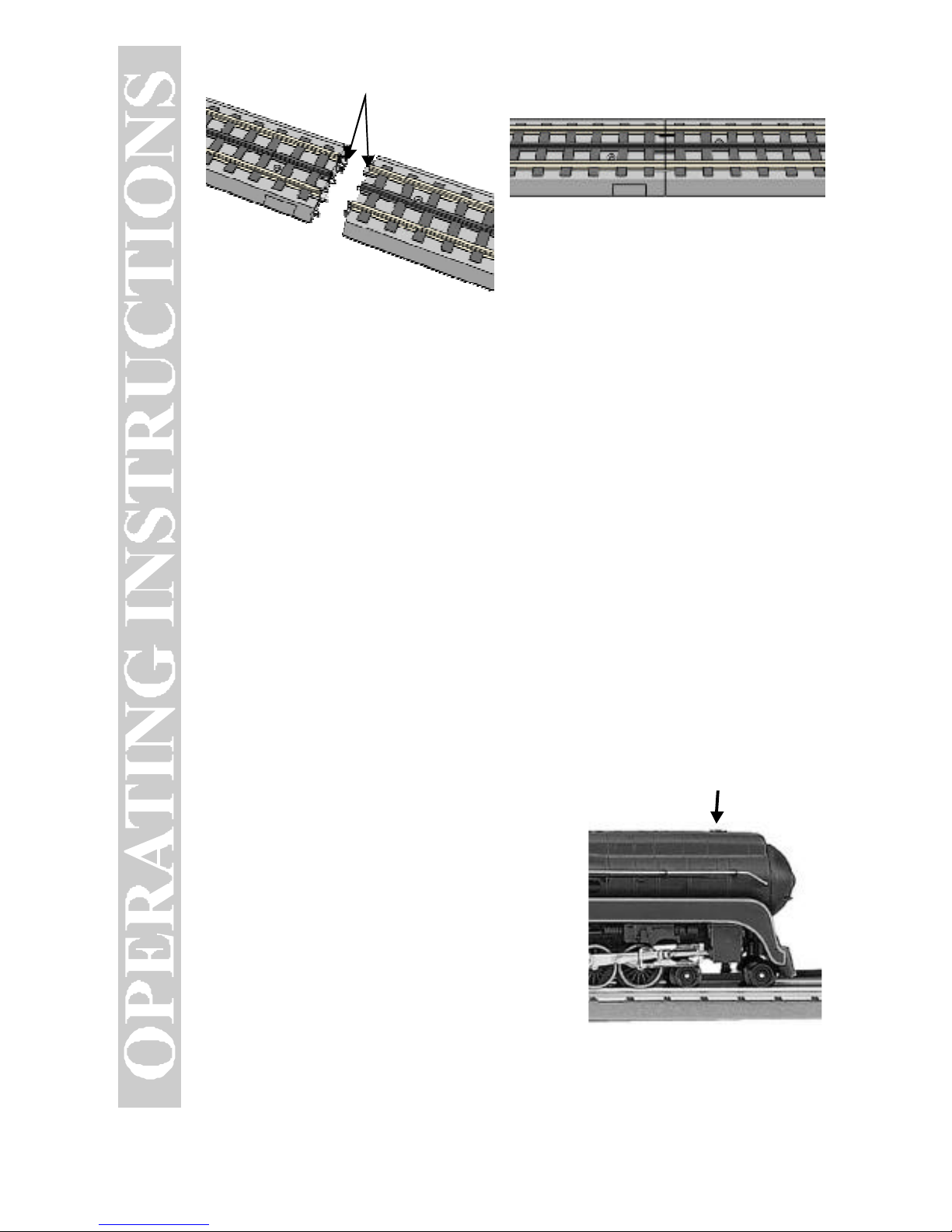

Figure 4. add Smoke Fluid
Through the Smoke Stack
Align Quick Connect
Plugs and Gently Push
RealTrax® Sections Together
Figure 2: Preparing to snap RealTrax®
sections together by aligning Quick
Connect Connectors together.
Figure 3: RealTrax® sections in properly
connected position.

5
RailKing N&W J Steam Engine
If you choose not to prime the unit with
fluid, turn the smoke unit switch located
under
the engine tothe OFF position
(see Figure 5). Running the engine
without a primed smoke unit may cause
damage. See the “ProtoSmoke Unit
Operation” section of this book for more
information on smoke unit maintenance.
Coupling the Engine and Cars
Our couplers are designed for realistic
operation. Place the engine and cars on
the track and couple them together. If
the coupler is already closed, press down
on the small finger that extends from
under the right side of the coupler to open
the coupler knuckle and allow the couplers
to interlock as shown in Figure 6
.
Insert the reverse unit plug that extends
out of the tender into the receptacle at the
back of the engine. Connect the draw bar
between the engine and tender.
WARNING: DO NOT CONNECT
THIS ENGINE TO A TENDER FROM
ANOTHER ENGINE; IT MAY CAUSE
SERIOUSDAMAGE.
Look at the
bottom of the engine and tender where
each will have a color-coded stamp. If
they match you may connect those two
pieces; if not, don’t.
Push Down on Coupler Finger to
Release Knuckle
Figure 6.Coupling the Passenger
Cars Together
SMOKE UNIT
ON/OFF SWITCH

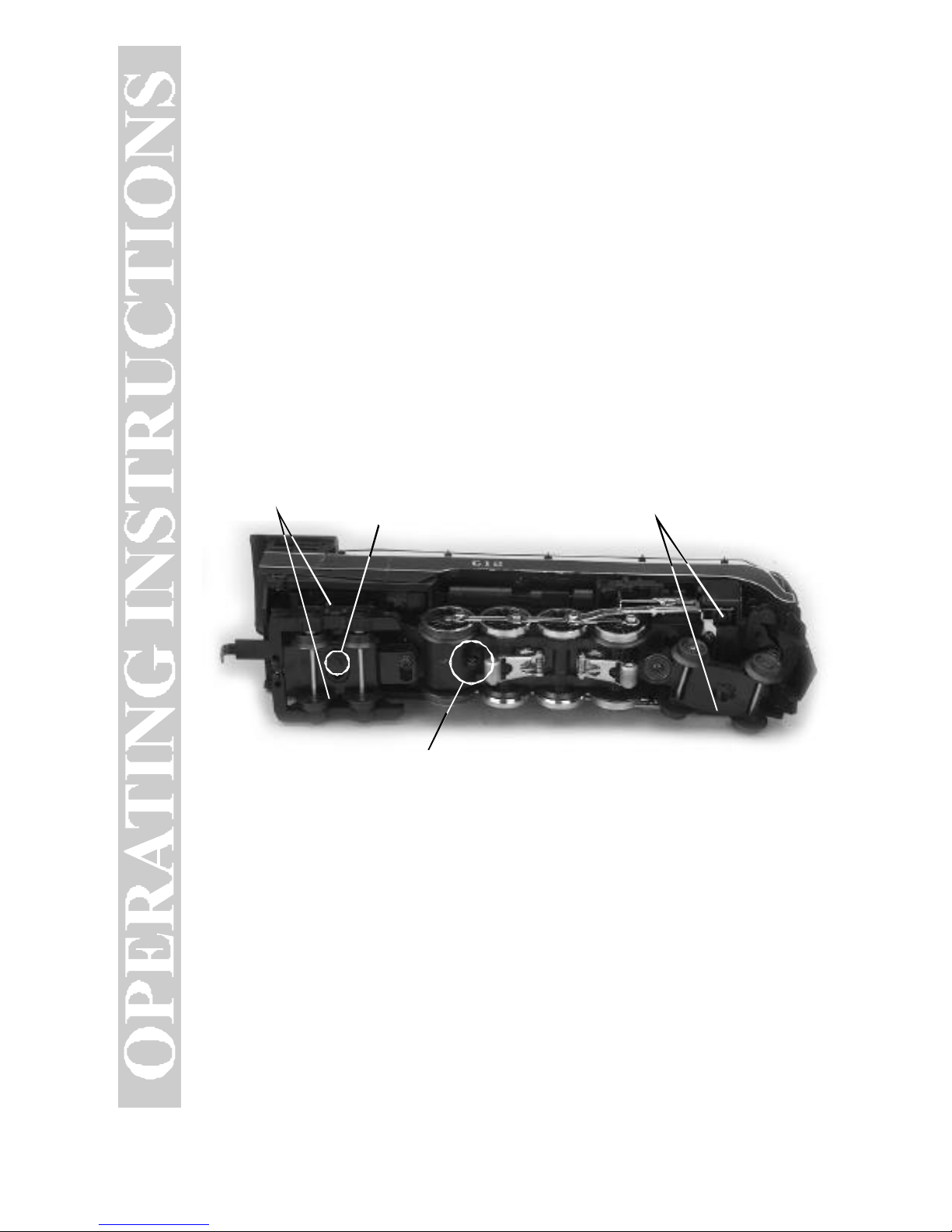

Figure 5. Smoke Unit ON/OFF Switch

6
RailKing N&W J Steam Engine
Remote Control
The RailKing
®Remote Control System included with this set uses wireless
infrared technology, much like a television remote control, to allow users
remote control of their trains from up to 15 feet away. The remote and lock-on
replace the control box found with M.T.H.’s Z-500™and Z-750®transformers,
and they are designed for use with moderately powered transformers such as
these. It is compatible with virtually any manufacturer’s engines.
Because the RailKing remote is an infrared line-of-sight remote, you must aim
it at the lock-on in order to send signals to the track. The green LED atop the
lock-on will come on, indicating the track is receiving power. Subsequent
pushes of any buttons on the remote will cause the LED to blink, indicating it
is receiving the signal.
Note: The RailKing®Remote Control and Remote Lock-on will not
operate engines equipped with pre-1997 versions of Proto-Sound®or with
Proto-One, ™Proto-Plus,™Proto-Deluxe,
™aftermarket systems.
Whistle/
Horn
Direction
Throttle Control
Rocker Switch
Bell
Emergency
Stop

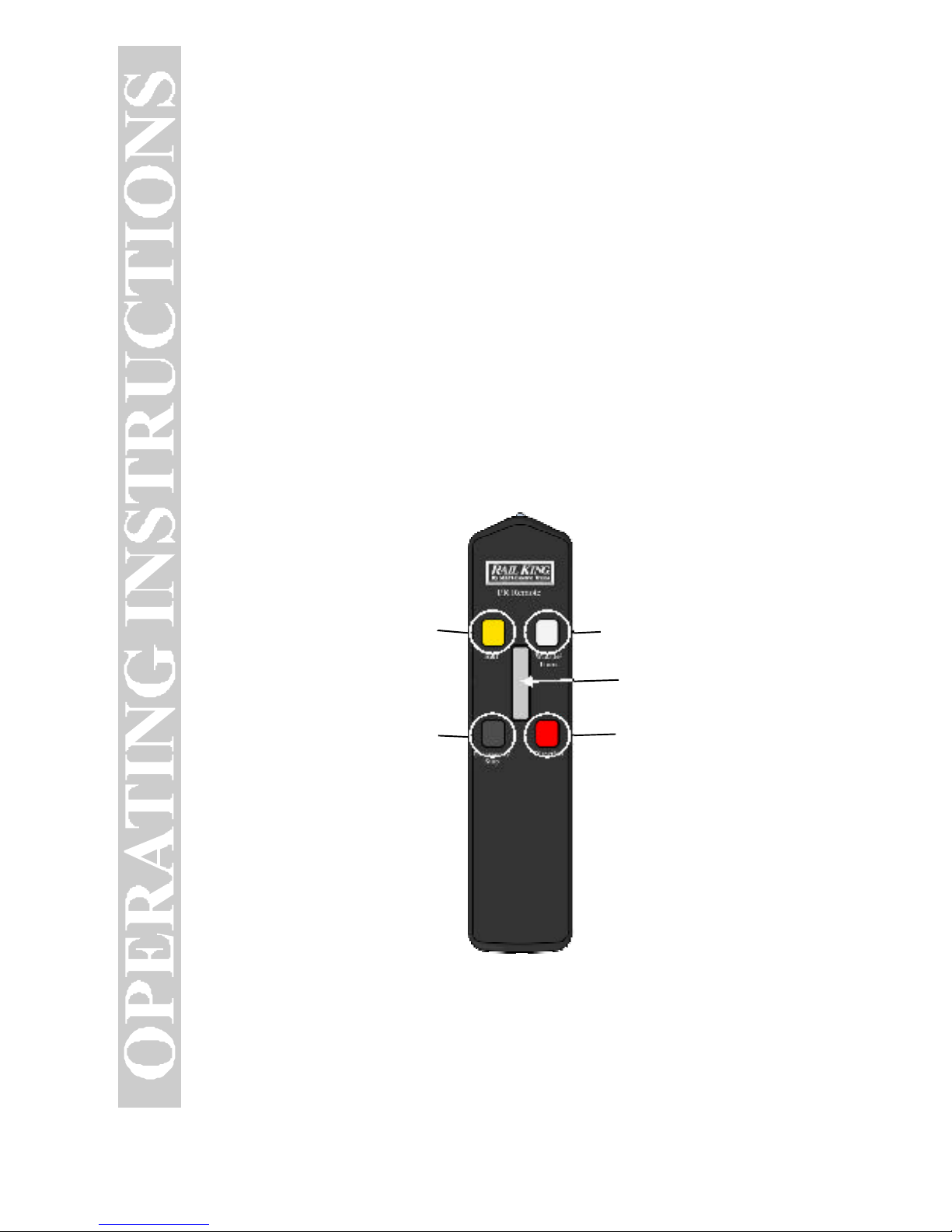

Figure 7: Overview of the Remote controls

7
RailKing N&W J Steam Engine
Basic Operation
Throttle up the power to your track.
Give your train enough power so that
the head light shines brightly. Then put the engine into motion by firmly
pressing the Direction button on your remote once.
Operation Buttons
Use the operation buttons on your remote as described below(see figure 7 on
pg. 6).
• Throttle –
To increase or decrease track voltage, and therefore train speed,
press the throttle control rocker switch. Pressing the top end of the throttle will
increase voltage and speed. Pressing the bottom end of the throttle will
decrease voltage and speed. The engine will maintain the speed you set after
you release the throttle until you press it again to change the voltage and speed.
•
Horn/Whistle - To sound the horn, firmly press the Horn/Whistle button. The
horn will sound for as long as you continue to depress the button. It will stop
when you release the button.
• Bell
- To sound the bell, firmly press and release the Bell button. To turn the
bell off, press and release the Bell button again. The bell will continue to ring
from the time your turn it on until you press and release the button again to turn
it off.
• Direction
– Your train is programmed to start in neutral. To put the engine
into forward and then to change the direction of the train or to put it into
neutral, firmly press and release the Direction button on your remote. Just as
you must stop your car between forward and reverse, this engine will not go
directly from forward to reverse; it goes into neutral between directions. If the
train has been moving forward, the first press of the Direction button will put
the train from forward into neutral, the second press into reverse, the third
press back into neutral, and the fourth back into forward.
To prevent accidental
high-speed start-ups, this engine is programmed to restart in neutral each time
the track voltage is turned off for 25 seconds or more.

8
RailKing N&W J Steam Engine
Speed Control:
M.T.H. engines equipped with Loco-Sound have speed control capabilities
that allow the engine to maintain a constant speed up and down grades and
around curves, much like an automobile cruise control. You can add or drop
cars on the run, and the engine will maintain the speed you set.
While the engine is programmed to start with the speed control feature
activated, you can opt to turn it off. This means the engine’s speed will fall as
it labors up a hill and increase as it travels downward. It is also affected by the
addition or releasing of cars while on the run. The engine will run more slowly
at a given throttle voltage when speed control is on than when it is off.
To turn speed control on and off,put the engine in neutral, then press the
remote’s Whistle button firmly but quickly one time then immediately press
the Bell button two times. Repeat the 1 whistle, 2 bells code to return it to the
other state. You will want to do this during the initial neutral upon start-up if
you ever couple this engine to another engine that is not equipped with speed
control to avoid damaging the motors in either engine. Each time you shut
down the engine completely, it will automatically turn speed control on.
Direction Lock:
You can lock your engine into a directional state (forward, neutral, or reverse)
so that it will not change directions. To do this, put the engine into the
direction you want or into neutral, to lock it into neutral, run it at a very slow
speed (< 10 scale mph), and quickly but firmly press your remote’s Whistle
button once followed immediately by three presses of the Bell button. The
engine will not change direction (including going into neutral) until you repeat
the 1 whistle, 3 bells code to return the engine to its normal state.
Feature to Be Activated:
Speed Control On/Off
Lock into a Direction/Unlock
Button Code:
1 Whistle, 2 Bells
1 Whistle, 3 Bells

9
RailKing N&W J Steam Engine
Proto-Cast and Proto-Dispatch:
When used with the remote lock-on included in this set, Loco-Sound-equipped
engines gain Proto-Cast
™and Proto-Dispatch™features.
Proto-Cast:
This feature allows you to
play audio recordings through your
engine’s speakers. You must supply the
audio source (a small portable is
sufficient) and a male-to-male mini cable
(1/8” plug, like that used for the headset
with a portable CD/tape player) to connect
your audio source to the Remote
Lock-On. To use Proto-Cast, simply plug
the mini-cable into your audio source
(usually into the headphone jack) and into
the “Audio” port on the right side of the
remote lock-on and adjust the volume.
Proto-Dispatch:
This feature allows you
to broadcast your own voice through your
engine’s speakers. You must supply the microphone and a mini cable (1/8”
plug, like that used for the headset with a portable CD/tape player) to connect
your microphone to the Remote Lock-On. To use Proto-Dispatch, simply plug
the mini-cable into the microphone and into the “Mic” port on the left side of
the remote lock-on and speak into the microphone.
When these features are in use, the locomotive’s own sounds (engine sounds
and bells, whistles, and horns) will be muted so that only the sounds you
broadcast will be heard. Because these two features are voice activated, there
will be a 10-15 second delay after you stop speaking into the microphone or
turn off the stereo before the engine sounds resume. To stop using the feature
and return to normal operation, unplug the cable from the lock-on jack.
If using parallel tracks with multiple Loco-Sound-equipped engines,
Proto-Cast and Proto-Dispatch transmissions from one track may be picked up
by the other nearby engines.
If you experience popping and interference, try cleaning the track with
denatured alcohol as described in the “Cleaning the Wheels, Tires and Track”
section of this booklet.
Note: M.T.H. does not recommend using Proto-Cast and Proto-Dispatch
at the same time.
Proto-Cast
Proto-DispatchPower
Figure 8: Overview of the Inputs on
the Remote Lock On

10
RailKing N&W J Steam Engine
Volume Control –To adjust the volume of all sounds made by this engine,
turn the master volume control knob located under the tender clockwise to
increase the volume and counter-clockwise to decrease the volume (see Fig. 9).
Loco-Sound
Volume Adjustment
Knob
Figure 9. Location of the Loco-Sound Volume Adjustment Knob

11
RailKing N&W J Steam Engine
Maintenance:
Care of the Remote Control
Your RailKing Remote Control System should offer years of trouble-free
service. There are a few things you can do to ensure trouble-free operation:
If your train responds inconsistently, replace old batteries with fresh ones. Do
not mix old and new batteries.
Remove batteries before storing for extended periods.
Do not drop the remote. It can damage the delicate electronics inside.
Any attempt by anyone other than an authorized M.T.H. repair person to open
and repair the handheld transmitter or lock-on may result in damage and the
loss of warranty protection.
Lubrication and Greasing Instructions
The engine should be oiled and greased in order to run properly.
You should regularly lubricate all side rods and linkage components and
pickup rollers to prevent them from squeaking. Use light household oil and
follow the lubrication points marked “L” in Fig. 10
. Do not over oil. Use
only a drop or two on each pivot point.
Lubricate Side Rods and Linkage (L)
Lubricate Pick Up Rollers (L)
Figure 10. Lubrication Points on the Locomotive

12
RailKing N&W J Steam Engine
The locomotive’s internal gearing was greased at the factory and should not
need additional grease until after 50 hours of operation or one year, whichever
comes first. To access the gear box, do the following:
1. Turn the engine upside down.
2. Remove the Phillips screw (marked “GREASE”) located at the fourth set of
drivers (counting from the front of the engine).
3. Use a grease tube dispenser to put a small amount (approx. 1-2 ml.) of
lithium-based grease into the gearbox.
4. Replace the screw.
You should also grease the leading and trailing locomotive truck tongues to
enhance their ability to slide on the chassis. Follow the grease points shown on
Fig. 11.
Grease Screw (G)
Body Mounting Screws
Body Mounting Screws
Lubricate Pivot Point (G)
Figure 11. Greasing Points on the Engine and Body Mounting Screws

13
RailKing N&W J Steam Engine
Cleaning the Wheels, Tires and Track
Periodically check the locomotive wheels and pickups for dirt and buildup,
which can cause poor electrical contact and traction and prematurely wear out
the neoprene traction tires. Wheels and tires can be cleaned using denatured
(not rubbing) alcohol applied with a cotton swab.
To clean the track, use a clean rag and denatured (not rubbing) alcohol.
Unplug the transformer and wipe the rails of the track, turning the rag
frequently to ensure that you are using clean cloth on the rails. Because the
manufacturing process leaves a coat on RealTrax, you should clean the rails
after the first 30 minutes of use (you may smell something burning during
initial use as the coat burns off; this is normal). Thereafter, keep an eye on the
track and clean it when it gets dirty to ensure good electrical contact and to
lengthen the life of the tires.
Traction Tire Replacement Instructions
Your locomotive is equipped with two neoprene rubber traction tires on the
rear set of flanged drivers. While these tires are extremely durable, you may
need to replace them at some point.
1. Remove the side rods (the rods that connect each drive wheel to the other)
from the wheels in order to slip the new tire over the grooved drive wheel.
These screws can be loosened with a 5mm nutdriver.
2. Make sure the old tire has been completely removed from the groove in the
drive wheel, using a razor blade or small flathead screwdriver to pry away any
remains.
3. Slip the new tire onto the wheel. You may find it useful to use two small
flathead screwdrivers to stretch the tire over the wheel.
4. If you twist the tire while stretching it over the wheel, you will need to
remove and reinstall the tire. Otherwise your engine will wobble while
operating.
5. Make sure the tire is fully seated inside the groove. Use a razor blade to
trim away any excess tire that doesn’t seat itself inside the groove properly.
Replacement tires are available directly from the M.T.H. Parts Department.

14
RailKing N&W J Steam Engine
ProtoSmoke
®
Unit Operation
This steam locomotive contains a smoke unit that outputs smoke through the
smokestack on the boiler of the engine. The smoke unit is essentially a small
heating element and wick that soaks up and then heats a mineral oil-based fluid
that emits a harmless smoke. The smoke is then forced out of the stack by a
small electric fan.
With a few easy maintenance steps, you should enjoy trouble-free smoke unit
operation for years.
When preparing to run this engine, add 15-20 drops of smoke fluid through the
smokestack (see figure 4 on pg. 4). We recommend M.T.H. ProtoSmoke,
Seuthe, LGB, or LVTS fluids (a small pipette of ProtoSmoke fluid is
included). Do not overfill the unit or the fluid may leak out and coat the
interior engine components.
If you choose not to add the fluid (or have already added the fluid but choose
to run smoke-free), turn off the smoke unit switch located under the body(see
figure 5 on pg. 5). Failure either to add fluid to the unit or to turn it off may
damage the smoke unit heating element and/or wicking material.
When the smoke output while running the engine begins to diminish, add
another 10-15 drops of smoke fluid or turn the smoke unit off.
When storing the unit for long periods of time, you may want to add about 15
drops of fluid to prevent the wick from drying out.
After removing the engine from storage, add another 25 drops of fluid, letting
the wick soak up the fluid for 15 minutes
prior to operation.
If you experience poor or no smoke output
when the smoke unit is on and has fluid,
check the wick to see if it has become
hard, blackened, and unabsorbent around
the heating element. Remove the smoke
unit inspection cover from the smoke
unit’s body (see Fig. 12). After removing
the chassis and inspection cover screws,
lift the inspection plate away and inspect
the wick. If it is darkly discolored and
hard, it should be replaced.
Smoke Unit
Cover Screws
Figure 12. Inspection Cover Screws

15
RailKing N&W J Steam Engine
Locomotive Light Bulb Replacement
To replace the light bulb in the locomotive, follow these instructions and see
the diagrams below:
Remove the locomotive boiler from its chassis as shown in Figure
11 . Once
the body has been removed, rotate the headlight bulb counter-clockwise as
seen in Figure 13
to remove.
You can obtain replacement bulbs directly from the M.T.H. Parts Department
(phone: [phone]; e-mail: [email protected]; mail: 7020 Columbia
Gateway Drive, Columbia MD 21046-1532).
HeadLight
Figure 13. Changing the Locomotive’s Headlight Bulb

16
RailKing N&W J Steam Engine
Passenger Car Light Bulb Replacement
To replace the interior light bulbs follow these instructions and see the
diagrams below:
1. Turn the car over and remove the two mounting screws (as seen in Figure
14-1) attaching the body to the chassis.
2. Turn the car back over and gently lift the car roof away from the body and
chassis (see Figure 14-2)You may need to twist the car a little to make to roof
come loose from the body.
3. Gently pull the bulb away from its housing (see Figure 14-3)and push the
replacement bulb into the housing (like a Christmas tree light).
4. Reassemble in reverse order.
You can obtain replacement bulbs directly from the M.T.H. Parts Department.
Roof Mounting Screw Roof Mounting Screw
Interior Mounting ScrewInterior Mounting Screw
Roof Mounting Screws
1
2
3
Figure 14. Instructions for Replacing the Lights in the Passenger cars.

17
RailKing N&W J Steam Engine
RailWare Interactive CD-ROM
M.T.H. provides a free RailWare CD-ROM in each Ready-To-Run set. It is
full of helpful information on M.T.H. product history, track planning software,
a dealer finder, and information and video clips on Loco-Sound and
Proto-Sound 2.0. Follow the directions below to use the CD-ROM.
Minimum System Requirements: Pentium 100, 16MB RAM, Windows 95 or
later, CD-ROM drive, Sound Card, display properties set to greater than 256
colors. The CD will not work on a Mac OS unless you run VirtualPC®.
Running RR-Track Software
You may run the RR-Track software directly off of the CD-Rom or you may
install the software to your hard drive.
1. On the Desktop, click on the icon that says My Computer.
2. Find your CD-Rom drive.
3. With the MTH CD-Rom in the drive, double click on the icon for the
CD-Rom drive.
4. Find the folder on the CD-Rom entitled INSTALLATION.
5. Choose the folder inside entitled RRTRAXSETUP.
6. Run the file in that folder called SETUP.EXE and follow the directions it
provides.
The program may ask you for a registration code. If it does type in MTH and it
will run.

18
RailKing N&W J Steam Engine
Installing Adobe Acrobat Software
To read some of the electronic documents included on the CD-Rom, you will
need to install the Adobe Acrobat Reader®if it is not already on your
computer. To install the software:
1. On the Desktop, click on the icon that says My Computer.
2. Find your CD-Rom drive.
3. With the MTH CD-Rom in the drive, double click on the icon for the
CD-Rom drive.
4. Find the folder on the CD-Rom entitled INSTALLATION.
5. Choose the folder inside entitled ACROBAT READER.
*If you are running Windows 95, 98 or NT choose the folder 32 BIT. Run the
file AR32E301.EXE and follow the directions it provides.
If you have problems you cannot resolve by using these directions, contact
[email protected] for further help.

19
RailKing N&W J Steam Engine
Troubleshooting Loco-Sound
™Problems
Although Loco-Sound has been designed and engineered for ease of use, you
may have some questions during initial operation. The following table should
answer most questions. If your problem cannot be resolved with this table,
contact M.T.H. for assistance (telephone: [phone]; fax: [phone];
[email protected], 7020 Columbia Gateway Drive, Columbia MD
21046-1532).
StartingUp
Horn/Whistle
Bell
Remedy
Remedy
Remedy
Remedy
When I first turn the power on, the
engine will not begin to run. I have to
turn the throttle off and then on again
to get the engine to operate.
I can’t get the horn/whistle to blow
when I press the whistle button.
I can’t get the bell to ring when I press
thebellbutton.
You may be pressing the button too
quickly. Try pressing the whistle button
more slowly, taking approximately one
full second to fully depress the button.
You may be pressing the button too
quickly. Try pressing the bell button
more slowly, taking approximately one
full second to fully depress the button.
Thisisnormalbehavior. Toprevent
accidental high-speed start-ups, Loco-
Sound is programmed to start up in
neutral anytime track power has been
turned off for several seconds. See
the "Basic Operation" section for more
details.
Lock-out Remedy
I can’t get the engine to run after I
power up the transformer. It sits still
with the engine sounds running.
The engine won’t lock into forward,
neutral, or reverse.
The engine is locked into the neutral
position. Follow the procedure in the
“Lock into a Direction” section.
Engine speed must be below 10 scale
mph (approx. 10 volts or less in
conventional mode).

20
RailKing N&W J Steam Engine
Volume Remedy
The sounds seem distorted, especially
when the whistle or bell is activated. Loco-Sound volume is set too high.
Turn the volume control knob on the
bottom of the chassis counter-
clockwise to reduce the volume.
Compatibility
While this Ready-To-Run set is equipped with everything you need to operate
it, the design allows flexibility. The train will operate on any traditional O-31
or larger O Gauge track system, including the RealTrax®included with this set
or traditional tubular track. It is also compatible with most standard AC
transformers, including the hobby transformer packaged with your set. (See
page 21 for a complete list of compatible transformers and wiring
instructions.)
