Rail King SW 1500 Freight Set User manual

RAILKING SW1500
DIESEL ENGINE
OPERATING INSTRUCTIONS
This RailKing SW1500 road switcher is perfectly suited for freight yard and industrial
work on your railroad. It has an ABS body and die-cast floor and runs on O-27 track.
This RailKing Diesel Engine contains state-of-the-art electronics with many built-in
automatic features for incredibly realistic operation. Despite these advanced features, the
locomotive is easy to operate with any compatible standard AC transformer (see the
compatibility chart on page 18), and is completely compatible with most other 3-rail
locomotives, rolling stock, and accessories.
This locomotive is equipped with Proto-Sound 2.0 with Digital Command System
(DCS). This new system will allow you to operate your locomotive in Command mode
(when used with the DCS Remote Control System, sold separately) or Conventional
mode. Conventional operating features are described in the following pages, while the
DCS operating features are covered in the set of operating instructions that
accompanies the DCS equipment.
Conventional Mode operation of this locomotive is
much simpler than operation of original Proto-Sound engines. For your own safety and
that of your equipment, please read the instructions before you operate this engine.

2
RailKing SW-1500 Diesel Engine
Table of Contents
Initial Lubrication 3
Basic Operation 3
Throttle 3
Operation Buttons 3
VolumeControl 4
Proto-Sound 2.0 Operation 5
Activating Proto-Sound 2.0 Conventional Mode Features 5
Freight Yard Sounds (FYS) 6
Tips on Using FYS 7
Proto-Coupler
®Operation 8
Speed Control 8
Lock into a Direction State 9
Reset to Factory Defaults 9
Automatic Sounds 9
Maintenance 10
Lubrication and Greasing Instructions 10
Cleaning the Wheels, Tires and Track 12
Locomotive Traction Tire Replacement 12
Locomotive Light Bulb Replacement 13
Self-Charging Battery Back-Up 14
Troubleshooting 15
Compatibility 17
Transformer Compatibility Chart 18
Additional Features with DCS Remote Control System 19
Safety Precautions 21
Service and Warranty Information 24

3
RailKing SW-1500 Diesel Engine
Initial Lubrication
Although the engine was lubricated at the factory, it is important that you
lubricate the chassis before operation. Lightly grease the outside idler and

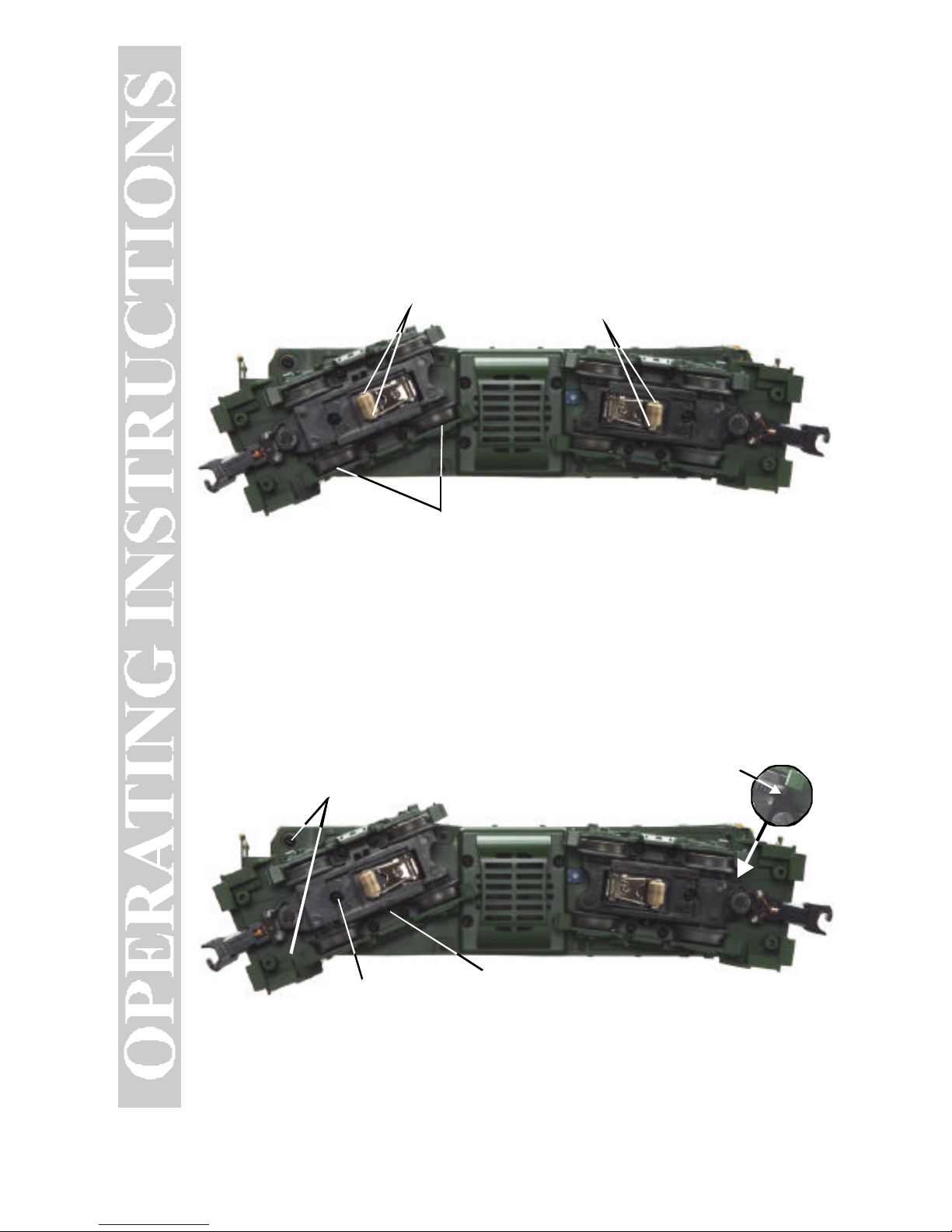

drive gears (marked “G” in Fig. 3 on pg. 10) to prevent them from squeaking.
Use light household oil and follow the lubrication points marked “L” in Fig. 2
on pg. 10. Do not over-oil. Use only a drop or two on each pivot point.
At this point, you are ready to put your engine on the track and begin running
it.
Basic Operation
Throttle
– Throttle up the power to your track. Give about 10-14 volts or
enough power so that the engine’s headlight shines brightly. Then put the
engine into motion by either firmly pressing the Direction button on your
transformer or remote once or dropping and advancing the throttle to put the
engine in forward.
Operation Buttons
Use the operation buttons on your transformer or remote as described below.
Horn/Whistle
- To sound the horn, firmly press the Horn/Whistle button. The
horn will sound for as long as you continue to depress the button. It will stop
when you release the button. The horn has four different endings, depending
on whether you hold the button for less than three seconds, three seconds, four
seconds, or five seconds or longer.
Bell
- To sound the bell, firmly press and release the Bell button. To turn the
bell off, press and release the Bell button again. The bell will continue to ring
from the time you turn it on until you press and release the button again to turn
it off.
Direction
– Your train is programmed to start in neutral. The first direction
after neutral upon start-up is forward. Firmly press and release the Direction
button to allow the engine to move forward. Just as you must stop your
automobile between forward and reverse, this engine will not go directly from
forward to reverse; it goes into neutral between directions. If the train has been
moving forward, the first press of the Direction button will put the train from
forward into neutral, the second press into reverse, the third press back into
neutral, and the fourth back into forward.
To prevent accidental high-speed
start-ups, this engine is programmed to restart in neutral each time the track
voltage is turned off for 25 seconds or more.

4
RailKing SW-1500 Diesel Engine
Volume Control–To adjust the volume of all sounds made by this engine,
turn the master volume control knob located under the engine clockwise to
increase the volume and counter-clockwise to decrease the volume (see Fig. 1).
Proto-Sound2.0
Volume Adjustment Knob
Figure 1. Location of the Proto-Sound 2.0 Volume Adjustment Knob

5
RailKing SW-1500 Diesel Engine
Proto-Sound 2.0 Operating Instructions
This manual contains the operating instructions for Proto-Sound 2.0 in
conventional mode only. Instructions for accessing DCS command mode
features accompany the DCS Remote Control System equipment.
Because Proto-Sound 2.0 is an all-new system developed by M.T.H.’s own
research and development team, it operates differently from original
Proto-Sound. Most Proto-Sound 2.0 features are automatically enabled, and the
reset state has been eliminated, so there is no need to program features as with
original Proto-Sound. Although the new system is easier to operate than
original Proto-Sound, you should read these instructions thoroughly before
using Proto-Sound 2.0 features in order to prevent harm to yourself or your
equipment.
Activating Proto-Sound 2.0 Conventional Mode Features:
Proto-Sound 2.0 features are activated by sequences of Bell and Whistle button
pushes described below. Please read the full descriptions of each feature
before using it. To use these buttons to activate features rather than to blow
the whistle or ring the bell, you should press the buttons for a shorter time (1/2
second); you may need to practice your timing to make this work smoothly.
Feature to Be Activated:
Freight Yard Sounds
Fire the Rear Coupler
Fire the Front Coupler
Speed Control On/Off
Lock into a Direction/Unlock
Reset to Factory Defaults
ButtonCode:
1 Bell, 2 Whistles
1 Bell, 3 Whistles
1 Bell, 4 Whistles
1 Whistle, 2 Bells
1 Whistle, 3 Bells
1 Whistle, 5 Bells (From Neutral Only)
(From Neutral Only)

6
RailKing SW-1500 Diesel Engine
Freight Yard Sounds (FYS):
Your engine is equipped with a sound package of freight yard sounds that you
can play when you pull into a yard. Each sequence described below will
play as long as it is left on, randomly generating sounds, but be sure to
allow approximately 30 seconds between the button pushes described
below to allow the FYS sufficient time to run through each sequence.
1. To cue the sound system to play the FYS, quickly but firmly press the Bell
button once followed by 2 quick presses of the Whistle button while the
engine is moving.
2. Press the Direction button or drop and advance the throttle once to stop the
engine. This will trigger the first sequence of FYS. The reverse unit is
temporarily disabled so that the train will not move as you use the Direction
button to trigger the sounds, and Proto-Sound 2.0 has disabled operator control
over the Whistle and Bell buttons until the full FYS sequence is complete.
3. After waiting about 30 seconds for that sequence to run, press the Direction
button again to trigger the second sequence of FYS.
4. After about 30 seconds, press the Direction button again to trigger the third
FYSsequence.
5. Again, after allowing about 30 seconds for that sequence to run, press the
Direction button one more time to trigger the fourth and final FYS sequence.
The FYS will continue, and within a few seconds, the engine will start and
move out on its own at the current throttle setting, in the same direction it was
traveling when you began the sequence. Once the bell turns off, the operator
regains control of the transformer’s bell and whistle buttons and can ring the
bell or blow the whistle as usual.

7
RailKing SW-1500 Diesel Engine
Tips on Using FYS
• You can terminate FYS at anytime by turning off power to the
track for 15 seconds.
• You do not have to be in Forward to use FYS. At the
conclusion of the full sequence, the train will pull away from
the station in whatever direction you were going when you
activated the feature.
• You can use FYS even if you are double-heading with another
engine. If the second engine is not equipped with FYS at all,
you must remember not to leave the throttle at a high voltage
level once you have stopped the engine to run the FYS.
Otherwise, the engine without FYS will begin vibrating on the
track as its motors strain to move the train, since they cannot be
automatically disabled during the FYS cycle. If the second
engine is an original Proto-Sound engine equipped with FYS,
you may choose to disable it when used in double-heading
operations, so you will not experience competing FYS sounds.
To disable FYS in an original Proto-Sound engine, see the
operating instructions for that engine.
• FYS can be triggered from Neutral. It will operate the same as
if triggered while in motion except that, at the conclusion of the
FYS, the engine will depart in the next direction of travel, as
opposed to the direction it was traveling before entering
Neutral.

8
RailKing SW-1500 Diesel Engine
Proto-Coupler®Operation
This locomotive is equipped with two coil-wound Proto-Couplers for remote
uncoupling action. Because the Proto-Coupler is controlled through the
Proto-Sound 2.0 microprocessor, it does not require an uncoupling track
section or modification to your layout to function. You can fire the coupler(s)
from neutral or while in motion. Use the codes shown below (and in the chart
on p. 5) to fire the coupler(s).
Rear Coupler:
To fire the rear coupler, press the Bell button once followed immediately by
three pushes of the Whistle button. The sound of the liftbar and air line
depletion will play, and the knuckle will be released.
Front Coupler:
To fire the front coupler, press the Bell button once followed immediately by
four pushes of the Whistle button. The sound of the liftbar and air line
depletion will play, and the knuckle will be released.
Speed Control:
M.T.H. engines equipped with Proto-Sound 2.0 have speed control capabilities
that allow the engine to maintain a constant speed up and down grades and
around curves, much like an automobile cruise control. You can add or drop
cars on the run, and the engine will maintain the speed you set.
While the engine is programmed to start with the speed control feature
activated, you can opt to turn it off. This means the engine’s speed will fall as
it labors up a hill and increase as it travels downward. It is also affected by the
addition or releasing of cars while on the run.
To turn speed control on and off, put the engine in neutral, then press the
transformer’s Whistle button one time then immediately press the Bell button
two times. Two horn blasts will indicate that the engine has made the change.
Repeat the 1 whistle, 2 bells code to return it to the other state. Youwillwant
to do this during the initial neutral upon start-up if you ever couple this
engine to another engine that is not equipped with speed control to avoid
damaging the motors in either engine. Each time you shut down the engine
completely, it will automatically turn speed control on.

9
RailKing SW-1500 Diesel Engine
Lock into a Directional State:
You can lock your engine into a directional state (forward, neutral, or reverse)
so that it will not change directions. To do this, put the engine into the
direction you want or into neutral, to lock it into neutral, run it at a very slow
crawl (as slowly as it will move without halting), and quickly but firmly press
your remote’s Horn button once followed immediately by three presses of the
Bell button.
Two horn blasts will indicate that the engine has made the change.
The engine will not change direction (including going into neutral) until you
repeat the 1 horn, 3 bells code to return the engine to its normal state, even if
the engine is kept without power for extended periods of time.
Reset to Factory Defaults:
To override the settings you currently have assigned to the engine and reset it
to its factory defaults, while in Neutral press the Whistle button once, followed
immediately by five quick pushes of the Bell button.
Two horn blasts will
indicate that the engine has made the change.
Automatic Sounds:
Certain Proto-Sound 2.0 sound effects automatically play in programmed
conventional mode conditions:
• Squealing Brakes
play any time the engine’s speed decreases rapidly.
• Cab Chatter
plays at random intervals when the engine idles in neutral.
• Engine Start-up and Shut-down
sounds play when the engine is initially
powered on or is powered off for five seconds or more.

10
RailKing SW-1500 Diesel Engine
Maintenance:
Lubrication and Greasing Instructions
The engine should be oiled and greased in order to run properly.
You should regularly lubricate all outside idler gears and pickup rollers to
prevent them from squeaking. Use light household oil and follow the
lubrication points marked “L” in Fig. 2. Do not over oil. Use only a drop or
two on each pivot point.
The locomotive’s internal gearing was greased at the factory and should not
need additional grease until after 50 hours of operation or one year, whichever
comes first. Use lithium based grease and follow the greasing instructions
below. Note that in some tightly packed engines you may need to move
internal components temporarily in order to access the gears.
Lubricate Pick Up Rollers (L) Lubricate Pick Up Rollers (L)
Lubricate Wheel Axles (L)
Figure 2. Lubrication Points on the Engine
Body Mount Screw
Body Mount Screws
MotorMountScrew(G) Grease Idler Gear(G)
Figure 3. Body Mount Screws and Greasing Points.
