RAIS Q20 Parts list manual

ENGLISH RAISmanualforRaisQ20
1
INSTRUCTIONSFORINSTALLATION,
USEANDMAINTENANCE
RAISQ20
IMPORTANTINFORMATION
Onfirstlightingthestoveyoumustbecarefulnottotouchthepainted
surfacesanditisMOSTIMPORTANTthatthedooriskeptslightly‘ajar’in
orderforthedoorsealandsealanttocure.
Thiswillpreventthedoorsealstickingtothepaintedbodyandbecoming
damaged.

ENGLISH RAISmanualforRaisQ20
2

ENGLISH RAISmanualforRaisQ20
3
Revision:
Date :2011MARCH
INTRODUCTION ………………………………………………………….. 4
WARRANTY …………………………………………………….………….. 4
SPECIFICATIONS………………………………………………………….. 5
INSTALLATIONINSTRUCTIONS ………………………………….……… 6
QUICKGUIDE…………………………………………………………. 7
CONVECTION…………………………………………………………. 8
CHIMNEY………………………………………………………….…… 8
FLUEOUTLETPOSITIONS…………………………………………. 10
HEARTH………………………………………………………………… 11
COMBUSTIONAIRSUPPLY………………………………………… 11
INSTALLATION………………………………………………………… 11

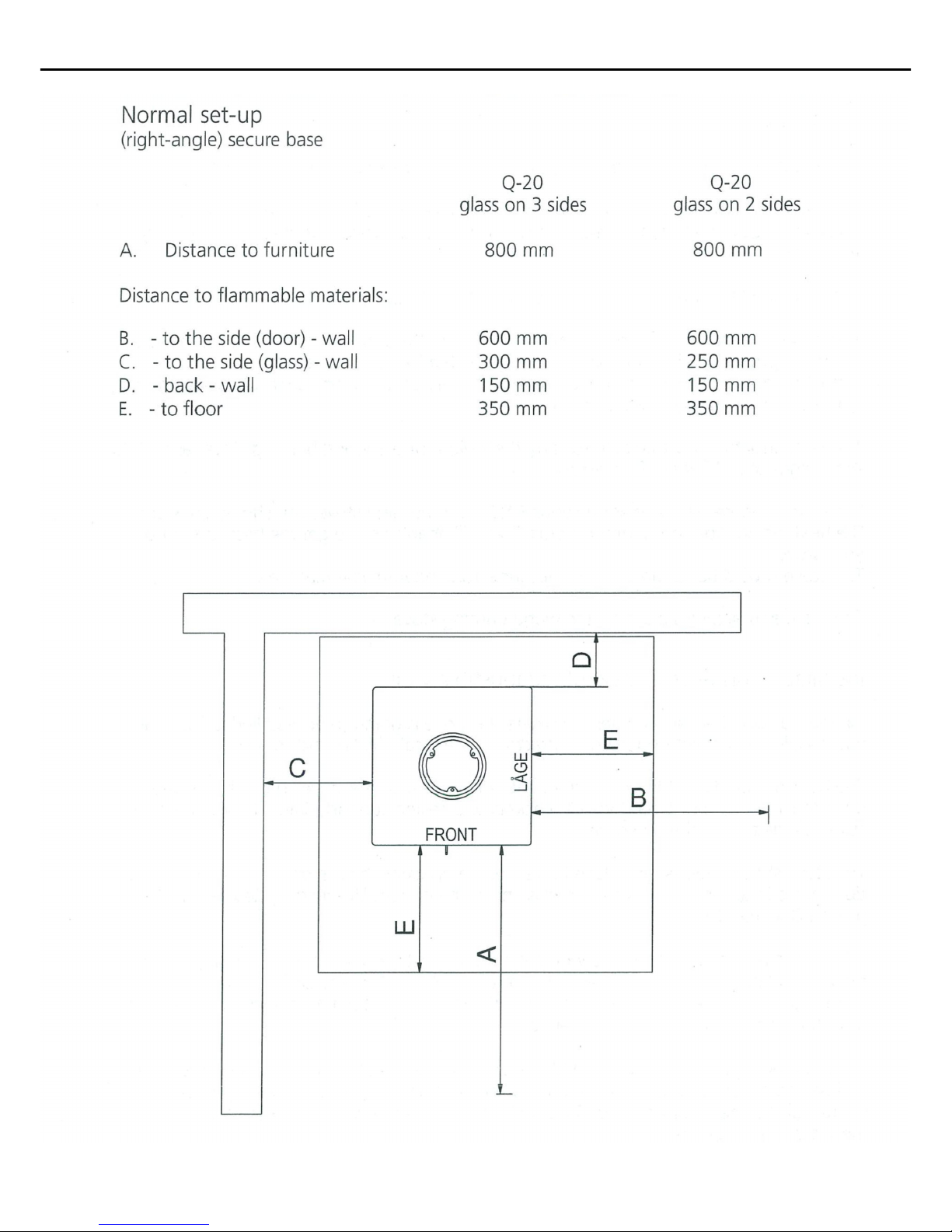

INSTALLATIONDISTANCETOCOMBUSTIBLEWALL………… 12
COMMISSIONINGANDHANDOVER………………………………. 12
GENERALINSTALLATION(RIGHTANGLE)SECUREBASE…. 13

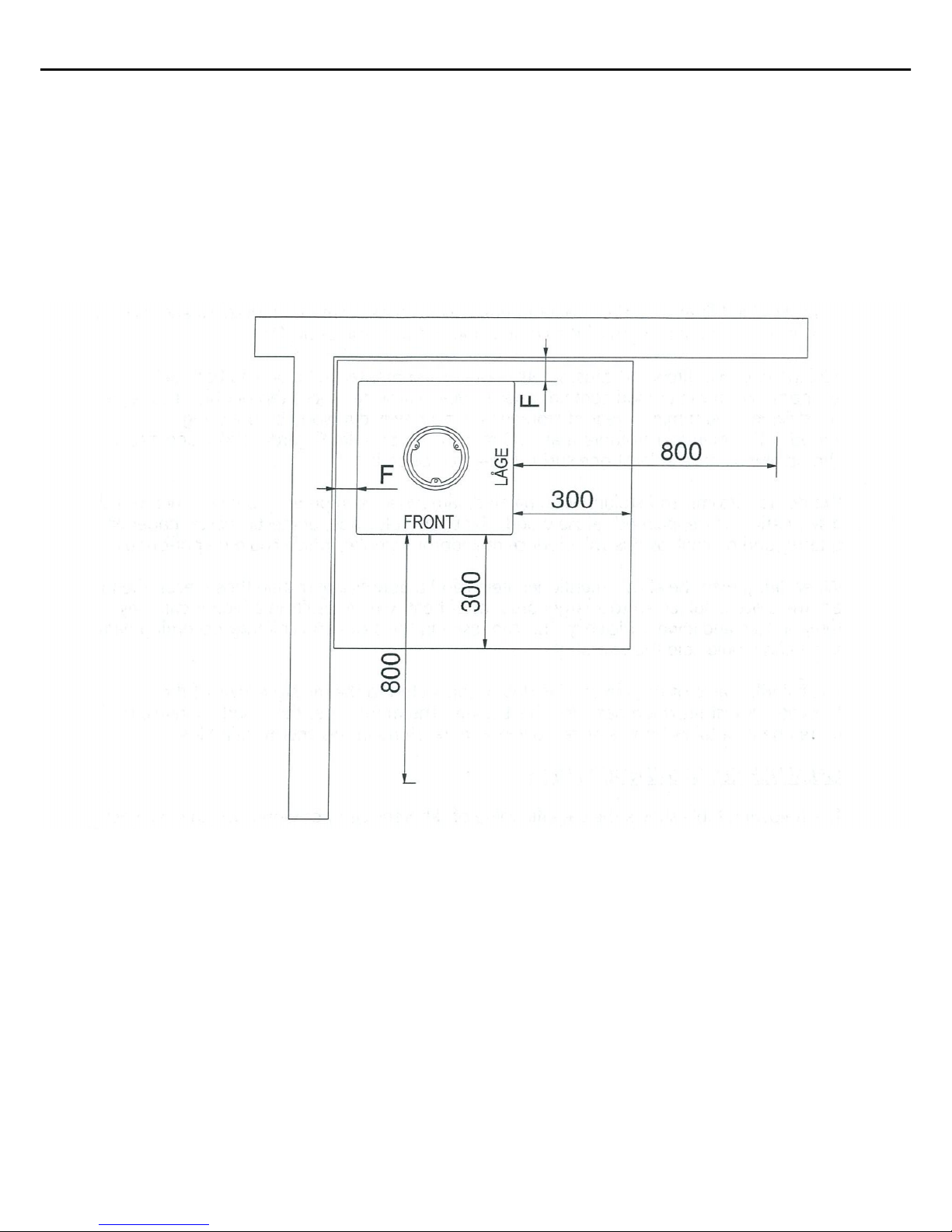

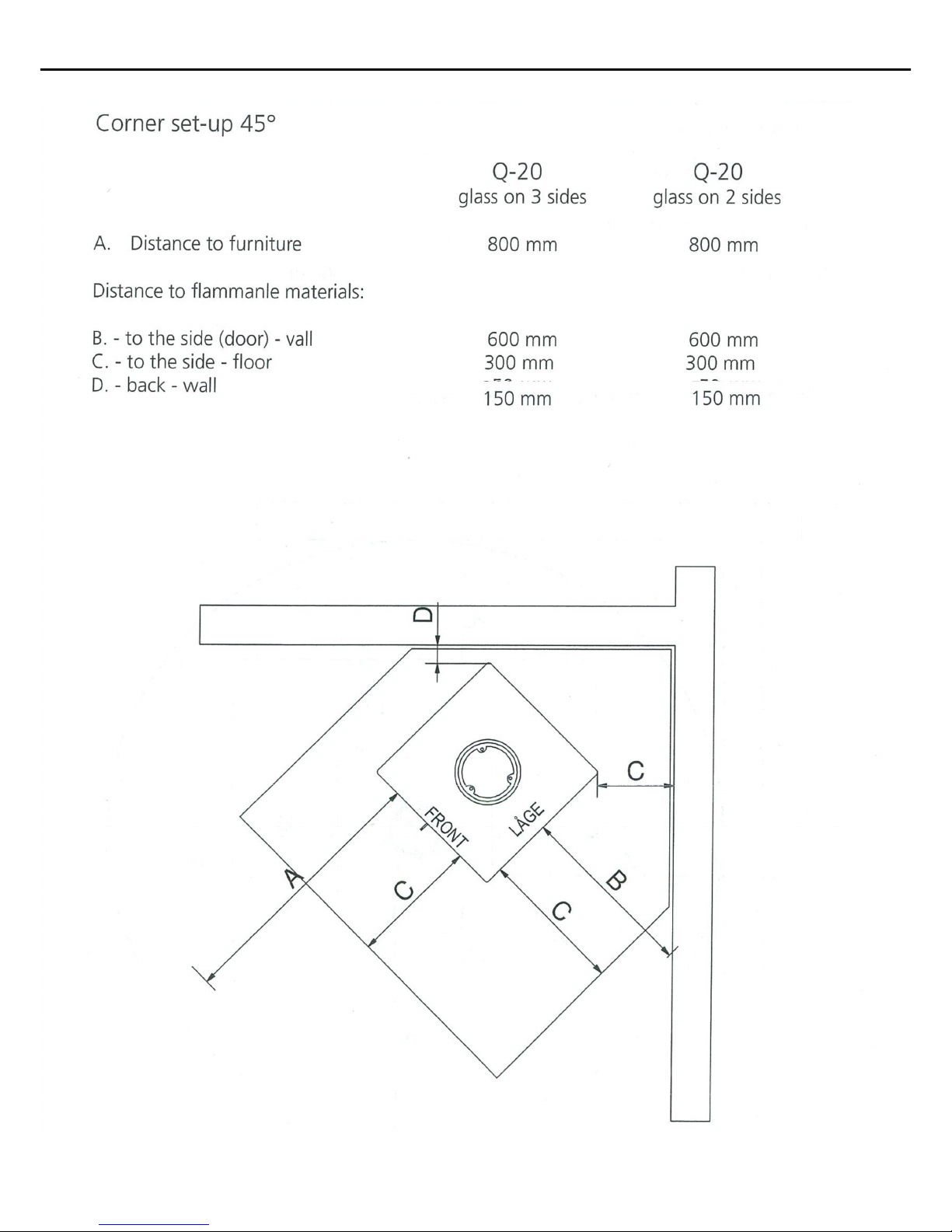

CORNERINSTALLATION45°………………………………………. 14

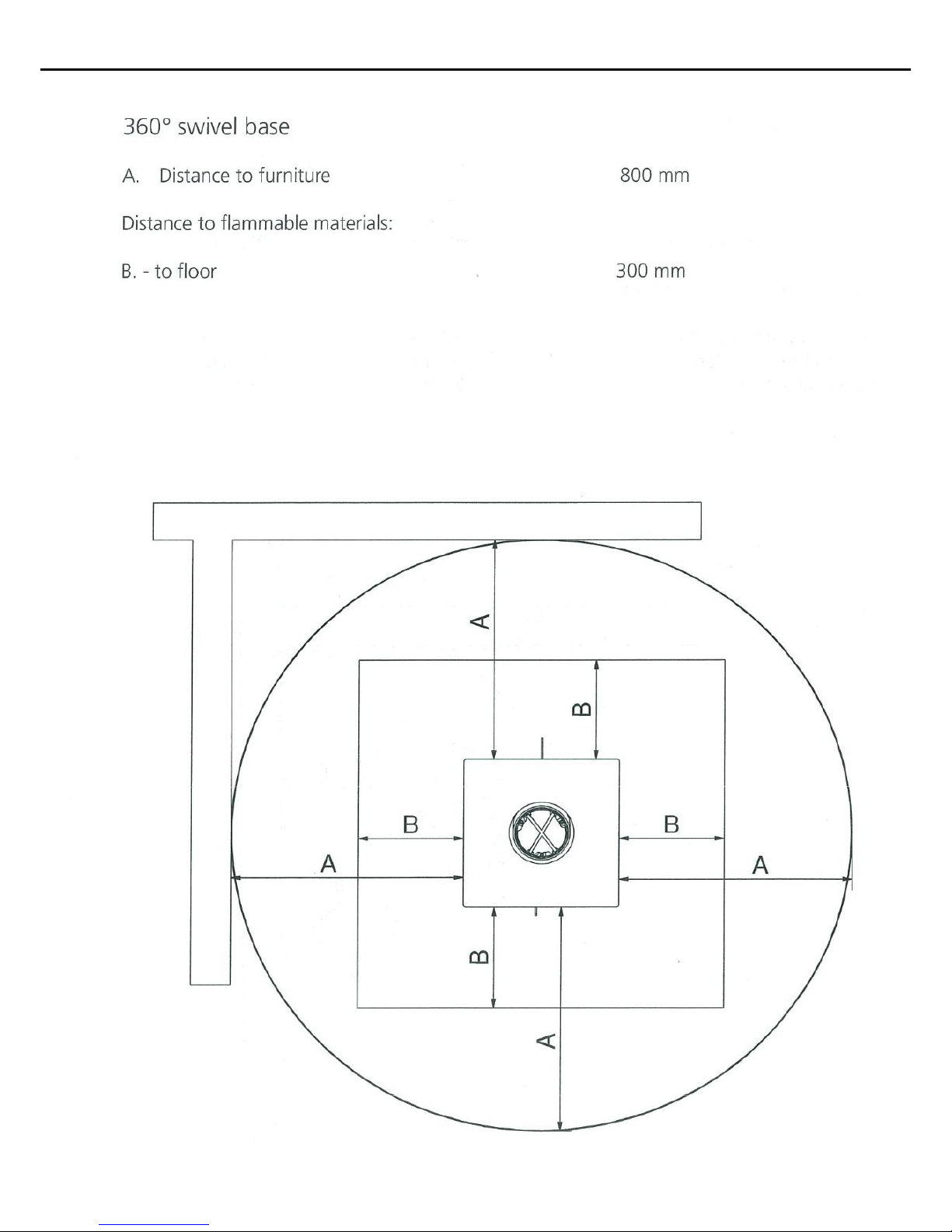

360°SWIVELBASE…………………………………………………… 15
INSTALLATIONDISTANCETONONCOMBUSTIBLEWALL…. 16
OPERATINGINSTRUCTIONS…………………………………………….. 17
FUEL……………………………………………………………………. 17
DRYINGANDSTORAGE……………………………………………. 18
REGULATIONOFCOMBUSTIONAIR…………………………….. 18
ROOMVENTILATIONANDSTOVES………………………………. 18
COALARM……………………………………………………………. 18
USINGTHEWOODBURNINGSTOVE……………………………. 19
FIRSTUSAGE…………………………………………………………. 19
LIGHTINGANDFUELLING…………………………………………. 21
MAINTENANCE
CLEANINGANDCARE………………………………………………. 22
CHIMNEYCLEANING………………………………………………… 22
CLEANINGTHEFLUEWAYS………...…………………………….. 23
PROBLEMSOLVING…………………………………………………. 24
DO’SANDDON'TS……………………………………………………. 25
ACCESSORIESANDSPAREPARTS……………………………………. 26
SPAREPARTDIAGRAMQ20………..……………………………… 2728
Q20

ENGLISH RAISmanualforRaisQ20
4
ARaiswoodburningstoveismorethanjustaheatsource:italsoshowsthatyou
careaboutdesignandqualityinyourhome.
Tomakethemostofyourwoodburningstoveitisimportantthatyoureadthemanual
thoroughlybeforeinstallingandusingit.
Inthecaseofwarrantycoverage,andforgeneralqueriesregardingyourwood
burningstove,itisimportantthatyouknowthestove’sproductionnumber.
Wethereforerecommendthatyounotedownthenumberinthetablebelow.
Theproductionnumberislocatedatthebackofthestoveatthebottom.
Warranty
YourRaiswoodburningstovecomeswitha5yearwarranty.
Thewarranty,however,doesnotcoverheatinsulatingmaterials,glassandseals.
TheseareavailabletoorderfromyourlocalRaisdealer/stockist.
Anyalterationsmadetothestovewillvoidthewarranty.
Introduction
ThankyouforpurchasingaRaiswoodburningstove.
TheseapplianceshavebeenapprovedbyHETASas
intermittentoperatingappliancesforburningwoodlogsonly.

ENGLISH RAISmanualforRaisQ20
5
SPECIFICATIONS
Q20
Nominaloutput(kW): 5
Min./Max.output(kW): 37
Heatingarea(m
2
): Ca.60105
Size,width/depth/height(mm): 426  426  1290
Combustionchamberwidth/depth/height(mm). 308  275  558
Recommendedamountofwoodwhenfuelling(kg)
(Basedon2  3logsofwoodapprox.25cm)
1.6
Min.uptake/Min.draught(Pascal): 12
Weight(kg): 115/220
Smokegasmassflow(g/s): 5.6
Smokegastemperature(°C): 249
Intermittentoperation: Fuellingshould
beundertaken
within3hours
Efficiency(%) 79
ParticlesafterNS3058/3059(g/kg) 2.9
DustmeasuredaccordingtoDin+(mg/Nm
3
) 9
PleaseNote,thisappliancehasbeentestedbythemanufacturersandworksona
3mstraightflue.

ENGLISH RAISmanualforRaisQ20
6
InstallationInstructions
Thefollowingpagesgiveinstructionsforthesafeandproperinstallationofthisheating
applianceintheUK.Theseinstructionscoverthebasicprinciplesofinstallation,
althoughsomedetailsmayneedslightmodificationtosuitparticularlocalsiteconditions.
InallcasestheinstallationmustcomplywithcurrentUKBuildingRegulations,Local
AuthorityByelawsandotherspecificationsorregulationsastheyaffecttheinstallationof
thestove.
PleasenotethatitisalegalrequirementunderEnglandandWalesBuildingRegulations
thattheinstallationofthestoveiseithercarriedoutunderlocalAuthorityBuilding
ControlapprovalorisinstalledbyaCompetentPersonregisteredwithaGovernment
approvedCompetentPersonsScheme.HETASoperatesuchaschemeandalistingof
theirregisteredCompetentPersonscanbefoundontheirwebsiteatwww.hetas.co.uk.
ItshouldbenotedthatthecurrentBuildingRegulationsrequirementsaregivenin
ApprovedDocumentJ.Theserequirementsmayalsobemetbyadoptingtherelevant
recommendationsgiveninBritishStandardsBS8303,BS6461andBS7566.
WARNING.HealthandSafetyAdviceNotice.
TheinstallationofthisheatingapplianceisgovernedbytheHealthandSafetyatWork
Act1974.itistheresponsibilityoftheinstallertoensurethatallrequirementsofthisAct
aremetduringtheinstallationworks.Attentionisdrawninparticulartothefollowing:
Handling: Theapplianceisaheavyitemandadequatefacilitiesmustbeavailable
forloading,unloadingandsitehandling.
FireCement: Sometypesoffirecementarecausticandshouldnotbeallowedtocome
intocontactwiththeskin.Protectiveglovesshouldbewornwhen
handlingfirecement.Incaseofcontactwiththeskin,washimmediately
withplentyofwater.
Asbestos: Thisstovecontainsnoasbestos.Ifthereisapossibilityofdisturbingany
asbestosinthecourseoftheinstallation,thenpleaseseekspecialist
guidanceanduseappropriateprotectiveequipment.
MetalParts: Wheninstallingorservicingthisstovecareshouldbetakentoavoidthe
possibilityofpersonalinjury.
ImportantWarning  PreparatoryWorkandsafetyChecks:
· Thisstovemustnotbeinstalledintoachimneywhichservesanyotherheating
appliance.
· Theremustnotbeanextractorfanfittedinthesameroomasthestove,asthiscan
causethestovetoemitfumesintotheroom.
· Ifthisapplianceisinstalledintoanexistingchimney,thechimneymustfirstbe
sweptandexaminedforsoundnessandsuitability,beforetheapplianceisinstalled
(seealsosectionheaded‘Chimney’).

ENGLISH RAISmanualforRaisQ20
7

ENGLISH RAISmanualforRaisQ20
8
Convection
Raisstovesareconvectionstoves.Thismeansthatthestove’sbackandsidepanelsare
notoverheated.Convectionmeansthatthereisacirculationofair,whichensuresthatthe
heatisdistributedmoreevenlythroughouttheentireroom.Thecoldairissuckedinatthe
baseofthestoveandupthroughtheconvectionchannel,whichrunsalongthestove’s
combustionchamber.Theheatedaircomesoutatthetopofthestove,whichensuresa
circulationofwarmairthroughouttheroom.
Thestovesareequippedwithcooldoorhandles  aRaisspecialfeature whichmeans
youcouldalmostdoawaywithgloves.Beaware,however,thatallexteriorsurfaces
becomehotduringuse  sotakeextremecare.
Chimney
Inorderforthestovetoperformsatisfactorilythechimneyheightmustbesufficientto
ensureanadequatedraughtofapproximately15Pasoastocleartheproductsof
combustionandpreventsmokeproblemsintotheroom.
NOTE:Achimneyheightofnotlessthan4.5metresmeasuredverticallyfromtheoutletof
thestovetothetopofthechimneyshouldbesatisfactory.Alternativelythecalculation
proceduregiveninEN133841maybeusedasthebasisfordecidingwhethera
particularchimneydesignwillprovidesufficientdraught.
PleaseNote,thisappliancehasbeentestedbythemanufacturersandworksona3m
straightflue.

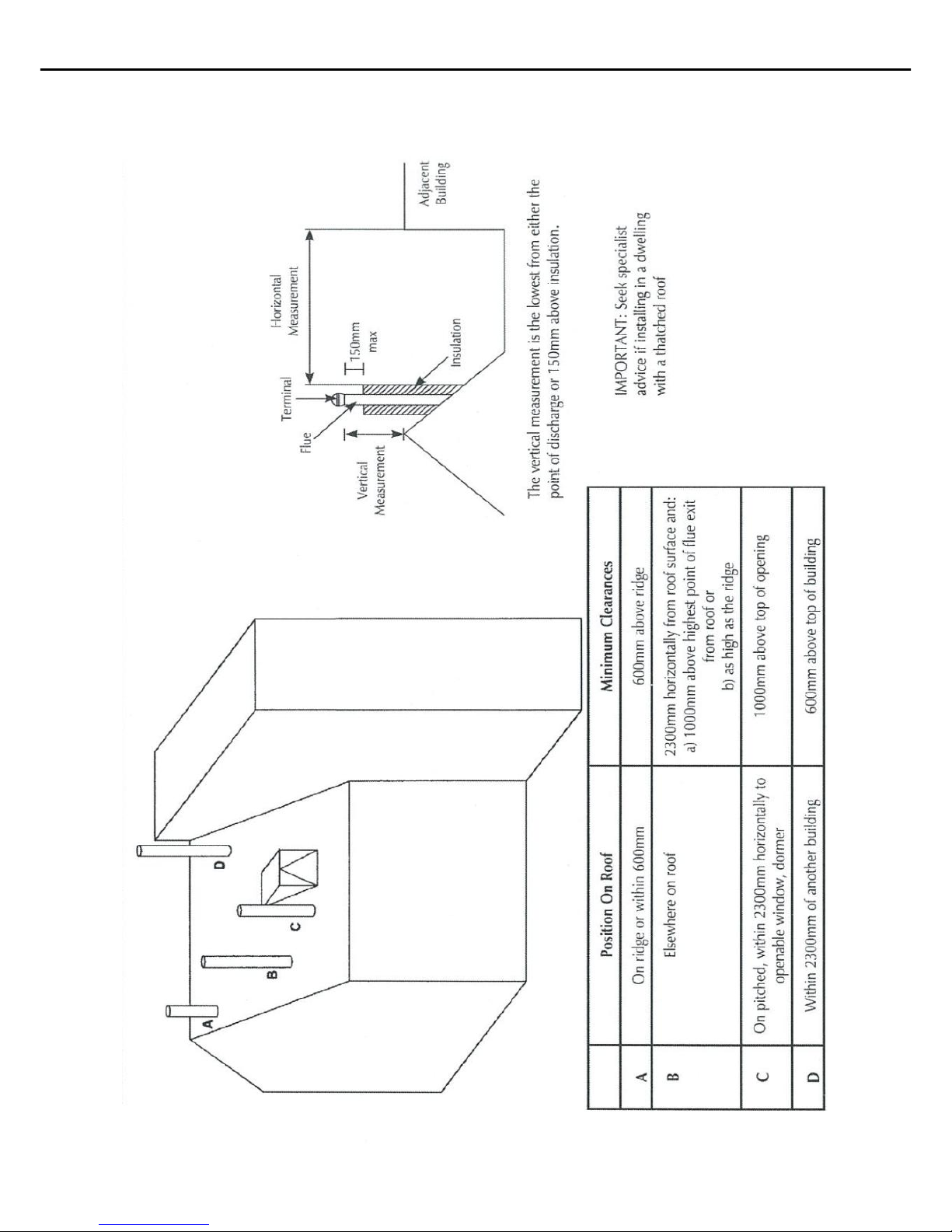

Theoutletfromthechimneyshouldbeabovetheroofofthebuildinginaccordancewith
theprovisionsofBuildingRegulationsApprovedDocumentJ.
Ifinstallationisintoanexistingchimneythenitmustbesoundandhavenocracksorother
faultswhichmightallowfumesintothehouse.Olderproperties,especially,mayhave
chimneyfaultsorthecrosssectionmaybetoolargei.e.morethan230mmx230mm.
Remedialactionshouldbetaken,ifrequired,seekingexpertadvice,ifnecessary.Ifitis
foundnecessarytolinethechimneythenafluelinersuitableforsolidfuelmustbeusedin
accordancewithBuildingRegulationsApprovedDocumentJ.
Anyexistingchimneymustbeclearofobstructionandhavebeensweptclean
immediatelybeforeinstallationofthestove.Ifthestoveisfittedinplaceofanopenfire
thenthechimneyshouldbesweptonemonthafterinstallationtoclearanysootfallswhich
mayhaveoccurredduetothedifferenceincombustionbetweenthestoveandtheopen
fire.
Ifthereisnoexistingchimneythenanynewsystemmustbetothedesignation
describedaboveandinaccordancewithBuildingRegulationsApprovedDocumentJ.
Asinglewallmetalfluepipeissuitableforconnectingthestovetothechimneybutisnot
suitableforuseasthecompletechimney.Thechimneyandconnectingfluepipemust
haveaminimumdiameterof150mmanditsdimensionshouldbenotlessthanthesizeof
theoutletsocketofthestove.

ENGLISH RAISmanualforRaisQ20
9
Anybendinthechimneyorconnectingfluepipeshouldnotexceed45°.
90°bendsshouldnotbeused.
Combustiblematerialshouldnotbelocatedwheretheheatdissipatingthroughthewallsof
fireplacesorfluescouldigniteit.Thereforewheninstallingthestoveinthepresenceof
combustiblematerialsdueaccountmustbetakenoftheguidanceontheseparationof
combustiblematerialgiveninBuildingRegulationsApprovedDocumentJandalsoin
thesestoveinstructions.
Ifitisfoundthatthereisexcessivedraughtinthechimneythenadraughtstabilisershould
befitted.Fittingofadraughtstabiliserwillaffecttherequirementforthe
permanentairsupplyintotheroominwhichthestoveisfittedinaccordancewith
ApprovedDocumentJ(seealsocombustionairsupply).
Adequateprovisione.g.easilyaccessiblesootdoorordoorsmustbeprovidedforsweep
ingthechimneyandconnectingfluepipewhereitisnotintendedforthe
chimneytobesweptthroughtheappliance.
ChimneyFires
Ifthechimneyisthoroughlyandregularlyswept,chimneyfiresshouldnotoccur.
However,ifachimneyfiredoesoccurturnoffthestoveimmediatelyandisolatethemains
electricitysupply(ifapplicable),andtightlyclosethedoorsofthestove.Thisshouldcause
thechimneyfiretogoout.Ifthechimneyfiredoesnotgooutwhentheaboveactionis
takenthenthefirebrigadeshouldbecalledimmediately.Donotrelightthestoveuntilthe
chimneyandfluewayshavebeencleanedandexaminedbya
professional.

ENGLISH RAISmanualforRaisQ20
10
FlueOutletPositions

ENGLISH RAISmanualforRaisQ20
11
Hearth
Thehearthshouldbeabletoaccommodatetheweightofthestoveanditschimneyif
thechimneyisnotindependentlysupported.Theweightofthestoveisindicatedinthe
brochure.
Thestoveshouldpreferablybeinstalledonanoncombustiblehearthofasizeand
constructionthatisinaccordancewiththeprovisionsofthecurrentBuilding
RegulationsApprovedDocumentJ.
Theclearancedistancestocombustiblematerialbeneath,surroundingoruponthe
hearthandwallsadjacenttothehearthshouldcomplywiththeguidanceonthe
separationofcombustiblematerialgiveninBuildingRegulationsApprovedDocumentJ
andalsointhesestoveinstructions.
Ifthestoveistobeinstalledonacombustiblefloorsurface,itmustbecoveredwith a
noncombustiblematerialatleast12mmthick,inaccordancewithBuildingRegulations
ApprovedDocumentJ, toadistanceof30cminfrontofthestoveand15cmtoeach
sidemeasuringfromthedoorofthecombustionchamber.
Combustionairsupply
Inorderforthestovetoperformefficientlyandsafelytheremustbeanadequateair
supplyintotheroominwhichthestoveisinstalledtoprovidecombustionair.The
provisionofairsupplytothestovemustbeinaccordancewithcurrentBuilding
RegulationsApprovedDocumentJ.Anopeningwindowisnotappropriateforthis
purpose.
Installation
Itisprohibitedtocarryoutunauthorisedalterationstothestove.
Theremustbeplentyoffreshairintheroomwherethestoveisbeinginstalled,inorder
toensurepropercombustion.Notethatanymechanicalexhaustventilatione.g.an
extractionhoodmayreducetheairsupply.Anyairgrillesmustbeplacedinsucha
manner,thattheairsupplyisnotblocked.
BuildingRegulationsApprovedDocumentJgivesspecificguidanceontherequired
permanentventilationintotheroomforcombustionairofsolidfuelappliances.
Thefloorstructuremustbeabletocarrytheweightofthewoodburningstove,aswell
astheweightofachimney,ifnecessary.
WhenyouchoosewheretosetupyourRAISwoodburningstove,youshouldconsider
theheatdistributiontotheotherrooms.Thiswillenableyoutogetthebestuseoutof
yourstove.
Thestoveshouldbesetupatasafedistancefrominflammablematerials.
Seethemanufacturer'splateonthewoodburningstove.

ENGLISH RAISmanualforRaisQ20
12
Installationdistanceincaseofcombustiblewall
Tofindoutwhetherthewallnexttowherethestoveisgoingtobeinstalledisflammable,
youshouldcontactyourbuildingcontractororthelocalbuildingauthorities.
Thehearthshouldbeabletoaccommodatetheweightofthestove.Thechimneymust
beindependentlysupportedbywallbracketsoraceilingsupportplate.Theweightofthe
stoveisindicatedinthebrochure.
Thestoveshouldalwaysbeinstalledonanoncombustiblehearthofasizeand
constructionthatisinaccordancewiththeprovisionsofthecurrentUKBuilding
RegulationsApprovedDocumentJ.
Ifthestoveistobeinstalledonawoodenfloor,itmustbecoveredwitha
noncombustiblematerialatleast12mmthick,inaccordancewithUKBuilding
RegulationsApprovedDocumentJ,toadistanceof300mminfrontofthestoveand
150mmtoeachsidemeasuringfromthedoorofthecombustionchamber.
Theclearancedistancestocombustiblematerialbeneath,surroundingoruponthe
hearthandwallsadjacenttothehearthshouldcomplywiththeguidanceonthe
separationofcombustiblematerialgiveninUKBuildingRegulationsApproved
DocumentJandalsointhesestoveinstructions.
Commissioningandhandover
Ensureallpartsarefittedinaccordancewiththeinstructions.
Oncompletionoftheinstallationallowasuitableperiodoftimeforanyfirecementand
mortartodryout,beforelightingthestove.Oncethestoveisunderfirecheckallseals
forsoundnessandcheckthattheflueisfunctioningcorrectlyandthatallproductsof
combustionareventedsafelytoatmosphereviathechimneyterminal.
Oncompletionoftheinstallationandcommissioningensurethattheoperating
instructionsforthestoveareleftwiththecustomer.Ensuretoadvisethecustomeron
thecorrectuseoftheapplianceandwarnthemtouseonlytherecommendedfuelforthe
stove.
Advisetheuserwhattodoshouldsmokeorfumesbeemittedfromthestove.The
customershouldbewarnedtouseafireguardtoBS8423:2002(ReplacesBS6539)in
thepresenceofchildren,agedand/orinfirmpersons.
COAlarm
Buildingregulationsrequirethatwheneveraneworreplacementfixedsolidfuelor
wood/biomassapplianceisinstalledinadwellingacarbonmonoxidealarmmustbe
fittedinthesameroomastheappliance.Furtherguidanceontheinstallationofthe
carbonmonoxidealarmisavailableinBSEN50292:2002andfromthealarm
manufacturer’sinstructions.
Provisionofanalarmmustnotbeconsideredasubstituteforeitherinstallingthe
appliancecorrectlyorensuringregularservicingandmaintenanceoftheapplianceand
chimneysystem.

ENGLISH RAISmanualforRaisQ20
13

ENGLISH RAISmanualforRaisQ20
14

ENGLISH RAISmanualforRaisQ20
15

ENGLISH RAISmanualforRaisQ20
16
FortheInstaller
Finallybeforefiringthestoveforthefirsttimeacheckshouldbemadetoensurethatthe
assemblyandstoveinstallationhasbeensatisfactoryandthattherearenoleaksinany
sealsintheapplianceandapplianceconnectionstothechimney.
Ensurethattheapplianceandchimneyfluearefunctioningcorrectlybeforefinally
handingovertotheuser.Readthelaterpartsofthismanualforguidanceoncare
requiredwhenfirstlighting.
Informtheuserthattheappliancehasbeencommissionedandreadytouseandgive
instructiononthesafeoperationofthestove.
TheseInstructionsmustbeleftwiththeuserandtheusershouldbeinstructedtokeep
theminasafeplace.
Installationdistancesfornoncombustiblewall
Werecommendaminimumdistancetononcombustiblematerialof50mm(F)forcleaning
considerations.
Usinguninsulatedfluepipe,theminimumdistancetoacombustiblewallmustbe450mmor
225mmifthewallisheatshielded(seeSectionJoftheBuildingRegulations)fromtheflue
pipe.

ENGLISH RAISmanualforRaisQ20
17
ONLYUSERECOMMENDEDFUELS
Thefollowingtableshowsthecalorificvalueofdifferenttypesofwood,whichhavebeen
storedfor2yearsandwhichhavearesidualmoistureof15 17%.
Wood Kgdrywoodprm
3 comparedtobeech/oak
Hornbeam 640 110%
Beechandoak 580 100%
Ash 570 98%
Maple 540 93%
Birch 510 88%
Mountainpine 480 83%
Fir 390 67%
Poplar 380 65%
1kgofwoodyieldsthesameheatenergyirrespectiveofwoodtype.
1kgofbeechmerelytakesuplessspacethan1kgoffir.
Operatinginstructions
PleasenotethatHETASApplianceApprovalonlycoverstheuseofdryseasonedwood
logsonthisappliance.HETASApprovaldoesnotcovertheuseofotherfuelseither
aloneormixedwiththewoodlogs,nordoesitcoverinstructionsfortheuseofother
fuels.
Fuel
ThestoveisdesignedandapprovedinaccordancewithEN13240andNS3058for
stokingsplit,driedfirewood.Thefirewoodmusthaveawatercontentof1522%andits
max.lengthshouldbethelengthofthecombustionchamberminus5060mm.
Stokingwithwetfirewoodcausesbothsoot,environmentalpollutionandbadfuel
economy.Freshlycutwoodcontainsapprox.5070%waterandisthoroughlyunsuitable
forstoking.Allowatleast1yearofstoragetimefornewlycutwoodbeforeusing.Wood
withadiameterofmorethan100mmshouldbesplit.Regardlessofwoodsize,itshould
alwayshaveatleastonesurfaceareafreeofbark.
Wedonotrecommendstokingwithpainted,laminatedorimpregnatedwood,woodwith
asyntheticsurface,paintedrefusewood,chipboard,plywood,domesticwaste,paper
briquettesandpitcoal,asthiswillproducemalodoroussmoke,whichcouldbe
poisonous.
Whenfiringwiththeabovementioneditemsandamountslargerthanthose
recommended,thestoveissubjectedtoalargeramountofheat,whichresultsina
higherchimneytemperatureandlowerefficiency.Thiscanresultinthestoveand
chimneybecomingdamagedandwouldvoidthewarranty.
Thecalorificvalueofthefirewoodiscloselyconnectedtothemoisturelevel.
Moistfirewoodhasalowheatvalue.Themorewaterthewoodcontains,themore
energyittakesforthiswatertovaporise,resultinginthisenergybeinglost.

ENGLISH RAISmanualforRaisQ20
18
Dryingandstorage
Dryingwoodtakestime:properairdryingtakesapproximately2years.
Herearesometips:
Storethewoodsawn,splitandstackedinanairy,sunnyplace,whichisprotectedagainst
rain(thesouthsideofthehouseisparticularlysuitable).
Storethefirewoodstacksatahand'sbreadthapart,asthisensuresthattheairflowing
throughtakesthemoisturewithit.Avoidcoveringthefirewoodstackswithplastic,asthis
preventsthemoisturefromescaping.Itisagoodideatobringthefirewoodintothehouse
23daysbeforeyouneedit.
Regulatingthecombustionair
AllRAISstovesareequippedwithaonehandedoperatingleverforregulatingthedamper.
Thestovespecificregulatingmechanismscanbeseenonthediagrams.
Primaryairisthecombustionairaddedtotheprimarycombustionzone,i.e.thebedof
glowingembers.Thisair,whichiscold,isonlyusedinthelightingstage.Secondaryairis
theairwhichisaddedinthegascombustionzone,i.e.airwhichcontributestothe
combustionofthepyrolysisgasses(preheatedair,whichisusedforthecleanerglass
systemandcombustion).Thisairissuckedthroughthedamperunderthecombustion
chamberandispreheatedthroughthesidechannelsandthenemittedashotscavenging
airontotheglass.Thehotairrinsestheglassandkeepsitsootfree.
Thetertiarychannel,whichcanbeseenatthetopofthecombustionchambertowardsthe
back,servestocombustthefinalgasresidues.
Bysettingtheintervalbetweenposition1and2,theenergycontentinthefirewoodisused
optimally,asthereisoxygenforcombustionandfortheburningofthepyrolysisgasses.
Whentheflamesareaclearyellowthedamperhasbeensetcorrectly.Findingthecorrect
positioncomeswithtimeafteryouhaveusedforstoveforawhile.
Itisnotrecommendedthatyouturnitdowncompletely.Amistakecommonlymadeis
shuttingthedampertooearlybecauseitfeelstoohot.Thisresultsindarksmokeemanating
fromthechimneyandinthecalorificvalueofthefirewoodnotbeingusedtoitsfullest.
Roomventilationandstoves
Theremustnotbeanextractorfanfittedinthesameroomasthestoveasthiscancause
thestovetoemitsmokeandfumesintotheroom.
Thestoverequiresapermanentandadequateairsupplyinorderforittooperatesafelyand
efficiently.
InaccordancewithcurrentBuildingRegulationstheinstallermayhavefittedapermanentair
supplyventintotheroominwhichthestoveisinstalledtoprovidecombustionair.Thisair
ventshouldnotunderanycircumstancesbeshutofforsealed.
COAlarm
YourinstallershouldhavefittedaCOalarminthesameroomastheappliance.Ifthealarm
soundsunexpectedly,followtheinstructionsgivenunder“ImportantWarningNote”on
page24.

ENGLISH RAISmanualforRaisQ20
19
Usingthewoodburningstove
Adjustingtheairdamper.Thedamperhas3settings.
Position1
Thedamperisalmostclosedmeaning
thatthereisa
minimalairintake.
Position2
Pulltheleveruntilthefirstclick.Thispositiongivesfullsecondaryair.
Duringnormalusetheleverissetbetweenposition1and2.
Whentheflamesareclearandyellow,thedamperissetcorrectly,
i.e.resultinginaslow/optimalburning.
Position3
Pulltheleveruntilthenextclick.
Theairdamperiscompletelyopenandgivesfull
primaryandsecondaryair.Thispositionisforthelightingstageand
isnotusedundernormaloperation.
Control
Iftheashiswhiteandthewallsinthecombustionchamberaresootfreeafterthestove
hasbeenused,theairregulationwassetcorrectlyandthewoodwassufficientlydry.
Firstusage
Acarefulstartpaysoff.Startwithasmallfire,sothatthewoodburningstovecanget
accustomedtothehightemperature.Thisgivesthebeststartandanydamageis
avoided.
Beawarethatastrangebutharmlessodourandsmokeconcoctionmayemanatefrom
thesurfaceofthestove,thefirsttimeyoufireup.Thisisbecausethepaintand
materialsneedtoharden.Theodourdisappearsquickly,butyoushouldcheckthe
ventilationanddraught,ifpossible.Seealso,theIMPORTANTwarningnoticebelow
aboutpersistentfumes.
Duringthisprocessyoumustbecarefulnottotouchthepaintedsurfaces,anditis
recommendedthatyouregularlyopenandclosethedoortopreventthedoorsealfrom
sticking.
Thestovemayalsoproduce"clickingnoises"duringheatingandcooling,causedbythe
largetemperaturedifferenceswhichthematerialissubjectedto.
Neveruseanytypeofliquidfuelforkindlingormaintainingthefire.Youcouldbeatrisk
ofexplosion.

ENGLISH RAISmanualforRaisQ20
20
Beforelightingthestovecheckwiththeinstallerthattheinstallationworkand
commissioningchecksdescribedabovehavebeencarriedoutcorrectlyandthatthe
chimneyhasbeensweptclean,issoundandfreefromanyobstructions.Aspartofthe
stoves’commissioningandhandovertheinstallershouldhaveshownyouhowto
operatethestovecorrectly.
IMPORTANTWarningNote!
Properlyinstalled,operatedandmaintainedthisappliancewillnotemitfumesintothe
dwelling.Occasionalfumesfromdeashingandrefuellingmayoccur.
However,persistentfumeemissionispotentiallydangerousandmustnotbetolerated.
Iffumeemissiondoespersist,thefollowingimmediateactionsshouldbetaken:
(a) Opendoorsandwindowstoventilatetheroomandthenleavethepremises.
(b) Letthefiregoout.
(c) Checkforflueorchimneyblockage,andcleanifrequired.
(d) Donotattempttorelightthefireuntilthecauseofthefumeemissionhasbeen
identifiedandcorrected.Ifnecessaryseekexpertadvice.
Themostcommoncauseofflueemissionisfluewayorchimneyblockage.
Foryourownsafetythesemustbekeptcleanatalltimes.
IMPORTANTWarningNote!
Donotuseanaerosolsprayonornearthestovewhenitisalight.
IMPORTANTSafetyadvice!
Whenusingthestoveinsituationswherechildren,agedand/orinfirmpersonsare
presentafireguardmustbeusedtopreventaccidentalcontactwiththestove.The
fireguardshouldbemanufacturedinaccordancewithBS8423:2002(ReplacesBS
6539).
