RAIS GEO User manual

ENGLISH RAIS - manual for GEO
1
USER MANUAL
RAIS GEO

We cannot be held responsible for any misprints.

ENGLISH RAIS - manual for GEO
3
RAIS GEO
Dato: March 2008
Modified: 1
INTRODUCTION .................................................................................................................................. 4
WARRANTY ......................................................................................................................................... 4
SPECIFICATIONS RAIS GEO 161 og GEO 126........................................................................................ 5
INSTALLATION INSTRUCTION ............................................................................................................... 6
CHIMNEY ........................................................................................................................................... 7
INSTALLATION...................................................................................................................................... 9
INSTALLATION OF SOAPSTONE ................................................................................................... 10-18
INSTALLATION DISTANCE IN CASE OF COMBUSTIBLE WALL ............................................................... 19
GENERAL INSTALLATION .................................................................................................................. 19
(RIGHT ANGLE) SECURE BASE .................................................................................................. 19
CORNER INSTALLATION 45° ..................................................................................................... 20
INSTALLATION DISTANCE IN CASE OF NON-COMBUSTIBLE WALL ...................................................... 21
FOR THE INSTALLER ........................................................................................................................... 22
OPERATING INSTRUCTIONS................................................................................................................ 24
FUEL ........................................................................................................................................... 24-25
DRYING AND STORAGE ........................................................................................................... 25
REGULATION OF COMBUSTION AIR .................................................................................................. 26
USING THE WOOD BURNING STOVE.................................................................................................. 27
ADJUSTMENT OF AIR DAMPER ................................................................................................. 27
CONTROL ................................................................................................................................. 27
FIRST USAGE...................................................................................................................................... 28
LIGHTING AND FUELLING.............................................................................................................. 29-30
CLEANING AND CARE ...................................................................................................................... 31
CLEANING OF THE FLUE WAYS .......................................................................................................... 32
INTERRUPTION OF OPERATION ......................................................................................................... 33
ACCESSORIES AND SPARE PARTS....................................................................................................... 34
SPARE PARTS DIAGRAMS GEO 161............................................................................................... 34-35
SPARE PARTS DIAGRAMS GEO 126............................................................................................... 36-37

ENGLISH RAIS - manual for GEO
4
Introduction
Thank you for purchasing a RAIS wood burning stove. In the UK the stove has been
approved by HETAS Ltd as an intermittent operating appliance for burning wood logs
only.
A RAIS wood burning stove is more than just a heat source: it also shows that you care
about design and quality in your home.
To make the most of your wood burning stove it is important that you read the manual
thoroughly, before installing and using it.
In the case of warranty coverage, and for general queries regarding your wood burning
stove, it is important that you know the stove’s production number.
We therefore recommend that you note down the number in the table below. The pro-
duction number is located on the back of the stove at the bottom.
Warranty
Your RAIS wood burning stove comes with a 5 year warranty. The warranty, however,
does not cover heat-insulating materials, glass and seals.
Any alterations made to the stove will void the warranty.
Distributor:
Date:

ENGLISH RAIS - manual for GEO
5
RAIS GEO 161 RAIS GEO 126
Nominal output (kW): 5 5
Min./Max. output(kW): 3-8 3-8
Heating area (m
2
) ca. 100 ca. 100
Stove’s width/depth/height (mm) 490-490-1610 490-490-1260
Combustion chamber’s width/depth/height (mm) 288-288-500 288-288-500
Recommended amount of wood when fuelling (kg)
(Distributed on 2-3 logs of wood of approx. 25 cm)
1,6 1,6
Min. uptake (Pascal): -12 -12
Weight (kg): 450 330
Smoke gas mass flow (g/s): 5,0 5,0
Smoke gas temperature (°C):
with Nominal output
274 274
Intermittent operation: Fuelling should be undertaken within 3 hours.
Specifications

ENGLISH RAIS - manual for GEO
6
Installation instructions
The following pages give instructions for the safe and proper installation of this heating ap-
pliance in the UK. These instructions cover the basic principles of installation, although detail
may need slight modification to suit particular local site conditions. In all cases the installa-
tion must comply with current UK Building Regulations, Local Authority Byelaws and other
specifications or regulations as they affect the installation of the stove. Please note that it is a
legal requirement under England and Wales Building Regulations that the installation of the
stove is either carried out under Local Authority Building Control approval or is installed by
a Competent Person registered with a Government approved Competent Persons Scheme.
HETAS Ltd operate such a Scheme and a listing of their Registered Competent Persons can
be found on their website at www.hetas.co.uk.
It should be noted that the current Building Regulations requirements are given in Approved
Document J. These requirements may also be met by adopting the relevant recommenda-
tions given in British Standards BS 8303, BS 6461 and BS 7566.
WARNING: Health and Safety Advice Notice
The installation of this heating appliance is governed by the Health and Safety at Work Act
1974. It is the responsibility of the installer to ensure that all requirements of this Act are met
during the installation works. Attention is drawn in particular to the following:
Handling:
The appliance is a heavy item and adequate facilities must be available for loading,
unloading and site handling.
Fire Cement:
Some types of fire cement are caustic and should not be allowed to come into contact
with the skin. Protective gloves should be worn when handling fire cement. In case of
contact with the skin wash immediately with plenty of water.
Asbestos:
This stove contains no asbestos. If there is a possibility of disturbing any asbestos in
the course of installation then please seek specialist guidance and use appropriate
protective equipment.
Metal Parts:
When installing or servicing this stove care should be taken to avoid the possibility of
personal injury.
Important Warning –Preparatory Work and Safety Checks:
This stove must not be installed into a chimney that serves any other heating appliance.•
There must not be an extractor fan fitted in the same room as the stove as this can cause•
the stove to emit fumes into the room.
If this appliance is installed into an existing chimney, the chimney must first be swept•
and examined for soundness and suitability before the appliance is installed (see also
section headed “Chimney”).

ENGLISH RAIS - manual for GEO
7
Chimney
The chimney is the driving force which makes the stove function. In order for the stove to
perform satisfactorily the chimney height must be sufficient to ensure the correct draught
of 14 to 18 Pa so as to clear the products of combustion and prevent problems of smoke
emanating into the room when firing.
NOTE: A chimney height of not less than 4.5 metres measured vertically from the outlet
of the stove to the top of the chimney should be satisfactory. Alternatively the calculation
procedure given in BS 5854:1980 may be used as the basis for deciding whether a particular
chimney design will provide sufficient draught.
The outlet from the chimney should be above the roof of the building in accordance with the
provisions of Building Regulations Approved Document J.
If installation is into an existing chimney then it must be sound and have no cracks or other
faults which might allow fumes into the house. Older properties, especially, may have chim-
ney faults or the cross section may be too large i.e. more than 230 mm x 230 mm. Remedial
action should be taken, if required, seeking expert advice, if necessary. If it is found necessary
to line the chimney then a flue liner suitable for solid fuel must be used in accordance with
Building Regulations Approved Document J.
Any existing chimney must be clear of obstruction and have been swept clean immediately
before installation of the stove. If the stove is fitted in place of an open fire then the chimney
should be swept one month after installation to clear any soot falls which may have occurred
due to the difference in combustion between the stove and the open fire.
If there is no existing chimney then either a prefabricated block chimney in accordance with
Building Regulations Approved Document J or a twin walled insulated stainless steel flue to
BS 4543 can be used. These chimneys must be fitted in accordance with the manufacturer’s
instructions and Building Regulations.
A single wall metal fluepipe is suitable for connecting the stove to the chimney but is not
suitable for using for the complete chimney. The chimney and connecting fluepipe must
have a minimum diameter of 150 mm and its dimension should be not less than the size of
the outlet socket of the stove which is 150 mm in diameter. Any bend in the chimney or con-
necting fluepipe should not exceed 45°. 90°bends should not be used.
Combustible material should not be located where the heat dissipating through the walls
of fireplaces or flues could ignite it. Therefore when installing the stove in the presence of
combustible materials due account must be taken of the guidance on the separation of
combustible material given in Building Regulations Approved Document J and also in these
stove instructions.

ENGLISH RAIS - manual for GEO
8
If it is found that there is excessive draught in the chimney then either an adjustable flue
damper or alternatively a draught stabiliser should be fitted. The adjustable flue damper
should not close off the flue entirely but should in its closed position leave a minimum
continuous opening free area of at least 20 % of the total cross sectional area of the flue or
fluepipe.
Adequate provision e.g. easily accessible soot door or doors must be provided for sweeping
the chimney and connecting fluepipe.
You should also familiarise yourself with the draught conditions for chimneys with 2 flues.
The flue outlet spigot is 150 mm in diameter.
For strong draughts, the chimney or flue should be fitted with a draught stabiliser. In which
case, it is important to ensure that there is a free flow-through area of minimum 20 cm² when
the regulating gate is shut. Otherwise, the fuel energy may not be used optimally. If, at any
time, you are unsure about the condition of the chimney, you should contact a chimney
sweep.
Remember that access to the access door should be kept clear.

ENGLISH RAIS - manual for GEO
9
Manufacturer’s Plate for
GEO









 

























EN 13240:2001+A2:2004 EC.nr. 806
Anordning til intervalfyring
Produktdokumentation
SINTEF
Producent
Afstand til brændbart, bagvæg
Afstand til brændbart, sidevæg
Afstand til brændbart, drejefod :
CO emission
Røggas temperatur
Nominel effekt
Virkningsgrad
Brændsel (Brug kun anbefalede brændsler)
Følg instrukserne i brugermanualen.
Anordningen er egnet til intervalfyring.
RAIS A/S, Industrivej 20, 9900 Frederikshavn, Danmark
110-0217
: 300 mm
: 300 mm
: 0 mm
: 0,13 %
: 274 °C
: 5 kW
: 79 %
: træ
06
GEO
Installation
It is prohibited to carry out unauthorised alterations to the stove.
There must be plenty of fresh air in the room where the stove is being installed, in order to
ensure proper combustion. Note that any mechanical exhaust ventilation - e.g. an extraction
hood - may reduce the air supply. Any air grates must be placed in such a manner, that the
air supply is not blocked.
Building Regulations Approved document J gives specific guidance on the required
permanent ventilation into the room for combustion air of solid fuel appliances.
The floor structure must be able to carry the weight of the wood burning stove, as well as the
weight of a chimney, if necessary.
When you choose where to set up your RAIS wood burning stove, you should consider the
heat distribution to the other rooms. This will enable you to get the best use out of your
stove. The stove should be set up at a safe distance from inflammable materials. See the
manufacturer’s plate on the wood burning stove.

ENGLISH RAIS - manual for GEO
10

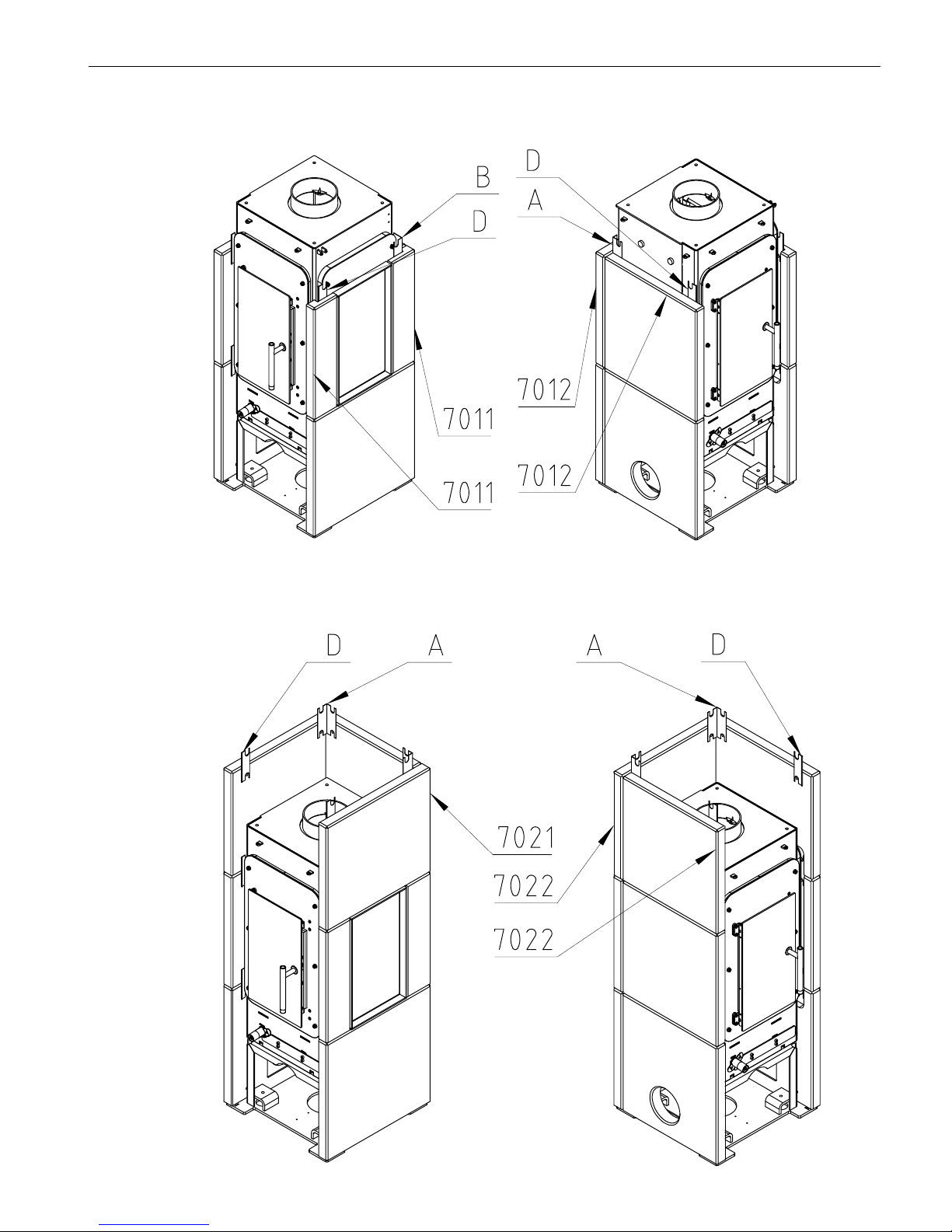

Installation of soapstone
List of materials (individual components for assembling soapstone)
Item number Product designation GEO 161
Number
GEO 126
Number
8060602GREY Topplate with knock-out 1 1
8067002
8067001
8067006
8067011
8067012
8067021
8067022
8067031
8067032
8067036
8067041
Sidestone
Sidestone
Sidestone
Sidestone
Sidestone
Sidestone
Sidestone
Sidestone
Sidestone
Sidestone
Soapstone (inside heat accumulated stone
1
1
1
2
2
1
2
1
2
1
24
1
1
1
2
2
1
2
-
-
-
8
8060113
8060114
8060115
8060116
Mountings
A25x80
Mountings
B25x45x80
Mountings
C 25x53
Mountings
D25x80
4
2
2
6
2
2
2
4
Necessary tools
- Level
- Socket wrench no.17
- Hexagonal wrench no. 4
- Cutting nippers
- Plastic hammer

ENGLISH RAIS - manual for GEO
11
1. Place the stove where you want to install it (it cannot be moved after the soapstone is
installed).
a) Rear exit can be installed when the third row of soapstone is installed - only GEO
161.
The distance at the top between the sides of the stove is 250 mm, and fits the RAIS
flue pipe, which is 150 mm and 90° tee with or without cleaning door.
b) For top exit:
Remove the marked opening with a plastic or rubber hammer.
Installation up at the ceiling:
When using this type of installation, the easiest approach is to use the RAIS sliding
flue system and a 570 mm adapter. The steel top plate should be pushed on the flue.
2. Adjust the legs so they are level.
- Loosen the counter screw
- Adjust the leg
- Tighten the counter screw
3. Place the soapstone as shown on the diagram and screw them together with the
enclosed mountings.
Depending on the choise of flue exit, you are left with either one piece of soapstone
no. 7023 or 7033/7036.
4. Insert the firebox.
a) Ensure that the firebox is centred within the stove (it must not touch the soapstone)
b) If you are using the rear exit, ensure that the exit holes are aligned. If you are using
the top exit, this alignment issue is irrelevant.

ENGLISH RAIS - manual for GEO
12

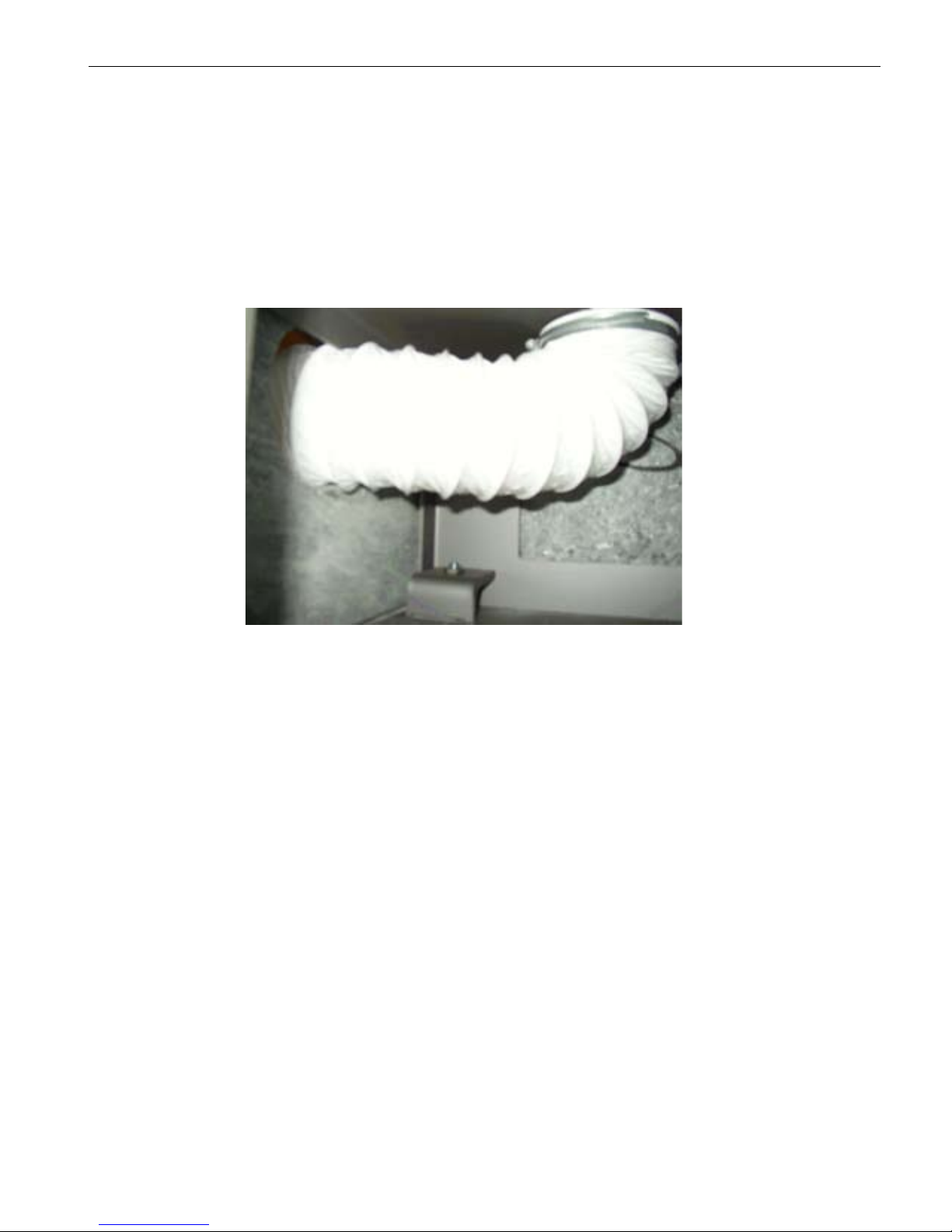

5. With fresh-air intake:
Mount the air supply at the bottom of the stove with a flexi hose and a clamp.
Without fresh-air intake:
Fit the vent grill (see step 5).

ENGLISH RAIS - manual for GEO
13
Mountings (packed with the soapstone)
4 pieces 2 pieces 2 pieces 6 pieces
RAIS GEO 161
Step 1

ENGLISH RAIS - manual for GEO
14
Step 3
Step 2

ENGLISH RAIS - manual for GEO
15
Step 5
Step 4

ENGLISH RAIS - manual for GEO
16
2 pieces 2 pieces 2 pieces 4 pieces
RAIS GEO 126
Step 1
Mountings (packed with the soapstone)

ENGLISH RAIS - manual for GEO
17
Step 3
Step 2

ENGLISH RAIS - manual for GEO
18
Step 5
Step 4

ENGLISH RAIS - manual for GEO
19
Installation distance in case of combustible wall
To find out whether the wall next to where the stove is going to be installed is flammable,
you should contact your building contractor or the local building authorities.
The hearth should be able to accommodate the weight of the stove. The chimney must be
independently supported by wall brackets or a ceiling support plate. The weight of the stove
is indicated in the brochure.
The stove should always be installed on a non-combustible hearth of a size and construction
that is in accordance with the provisions of the current UK Building Regulations Approved
Document J.
If the stove is to be installed on a wooden floor, it must be covered with a noncombustible
material at least 12mm thick, in accordance with UK Building Regulations Approved Docu-
ment J, to a distance of 300 mm in front of the stove and 150 mm to each side measuring
from the door of the combustion chamber.
The clearance distances to combustible material beneath, surrounding or upon the hearth
and walls adjacent to the hearth should comply with the guidance on the separation of com-
bustible material given in UK Building Regulations Approved Document J and also in these
stove instructions.

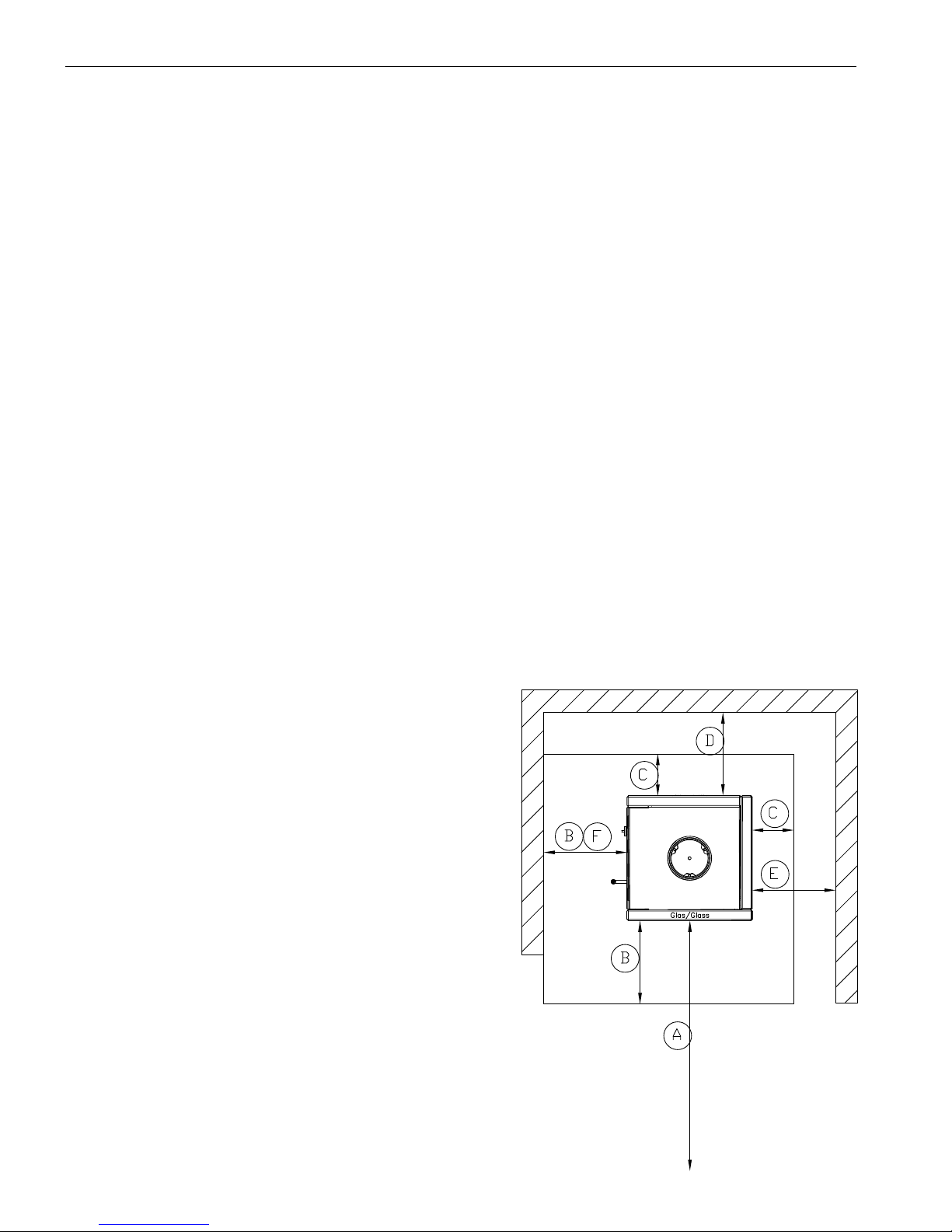

Normal set-up (right-angle) secure base
A. Distance to furniture 950 mm
Distance to flammable materials:
B. - in front (floor) 300 mm
C. - to the side (floor) 150 mm
D. - to the rear (floor) 300 mm
E. - to the side of the wall 400mm
F. - to the side of the wall(door side) 300 mm

ENGLISH RAIS - manual for GEO
20
Corner set-up 45°
A. Distance to furniture 900 mm
Distance to flammable materials:
B. - in front (floor) 300 mm
C. - to the side (floor) 150 mm
D. - to the rear (wall) 100 mm
E. - to the side of the wall 650 mm
F. - to the side of the wall(door side) 250 mm
