RAIS RONDO User manual

USER MANUAL /
MANUAL D’UTILISATION
RAIS Rondo
RAIS Mino II
RAIS Mino II Soapstone / Stéatite

2
US English User Manual for RAIS Rondo, RAIS Mino II and RAIS Mino II Soapstone
Rais Rondo
Rais Mino II
Rais Mino II soapstone / Stéatite
OMNI report no. 138-S-10-2
Revision : 1
September 21, 2006
INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
CONVECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
CHIMNEY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-6
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
INSTALLATION WITH TURNTABLE (RAIS RONDO) . . . . . . . . . . . . . . . . . . . . . 6
NAME TAG. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
ALTERING THE CHIMNEY CONNECTION . . . . . . . . . . . . . . . . . . . . . . . . . . .8-9
INSTALLATION OF SOAPSTONE (RAIS MINO SOAPSTONE) . . . . . . . . . . 10-11
CLEARANCES TO COMBUSTIBLE WALLS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
CLEARANCES TO NON-COMBUSTIBLE WALLS . . . . . . . . . . . . . . . . . . . . . . . . . 12
FLOOR PROTECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
FIREWOOD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
DRYING AND STORING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
CONTROL. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
USING THE STOVE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
ADJUSTING THE AIR CONTROL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
ADJUSTING THE COMBUSTION AIR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
FIRST FIRE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
LIGHTING AND STOKING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
FUEL CAUTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
CARE AND MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
CLEANING THE SMOKE/BAFFLE SYSTEM . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
DISPOSAL OF ASHES. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
TROUBLE SHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
COMPONENTS AND SPARE PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19-20
SPARE PART DRAWINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21-22

3
US English User Manual for RAIS Rondo, RAIS Mino II and RAIS Mino II Soapstone
Rais Rondo
Rais Mino II
Rais Mino II soapstone / Stéatite
Rapport OMNI n0. 138-S-10-2
Révision : 1
21 septembre 2006
INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
GARANTIE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
CONVECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
CHEMINEE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24-25
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
INSTALLATION AVEC PLAQUE TOURNANTE (RAIS RONDO) . . . . . . . . . . . . 25
ETIQUETTE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
MODIFICATION DU BRANCHEMENT DE LA CHEMINEE . . . . . . . . . . . . 27-28
INSTALLATION DE STÉATITE (RAIS MINO STÉATITE) . . . . . . . . . . . . . . . . 29-30
DISTANCES A DES PAROIS COMBUSTIBLES . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
DISTANCES A DES PAROIS NON COMBUSTIBLES . . . . . . . . . . . . . . . . . . . . . . . 31
PROTECTION DE SOL. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
BOIS A BRULER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
SECHAGE ET STOCKAGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
CONTROLE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
UTILISATION DU POELE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
REGLAGE DE L’ARRIVEE D’AIR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
REGLAGE DE LA COMBUSTION D’AIR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
PREMIER FEU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
ALLUMAGE ET ENTRETIEN DU FEU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
PRECAUTIONS A PRENDRE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
ENTRETIEN ET MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
NETTOYAGE DU SYSTEME DE FUMEE/DEFLECTEUR . . . . . . . . . . . . . . . . . . 36
ELIMINATION DES CENDRES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
DEPANNAGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
COMPOSANTS ET PIECES DETACHEES. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38-39
DIAGRAMMES DE PIECES DETACHEES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4
US English User Manual for RAIS Rondo, RAIS Mino II and RAIS Mino II Soapstone
Introduction
Congratulations on the purchase of your new RAIS woodburning
stove.
A RAIS woodburning stove is more than just a source of heat, it is a
symbol of the emphasis you put on decorating your home with superi-
orly designed high-quality products.
PLEASE READ THIS ENTIRE MANUAL BEFORE YOU INSTALL AND
USE YOUR NEW RAIS STOVE. FAILURE TO FOLLOW INSTRUC-
TIONS MAY RESULT IN PROPERTY DAMAGE, BODILY INJURY,
OR EVEN DEATH.SAVE THIS MANUAL AND KEEP IT HANDY FOR
EASY REFERRAL.
Safety and environmental testing
The RAIS Rondo/Mino Series stoves have been tested by OMNI-Test
Laboratories, Inc., Beaverton, Oregon and are listed to UL 1482 and
ULC S627. They are also EPA certified and meet the stringent WA
State Environmental standards.
For future reference, please write down the production number of
your RAIS woodburning stove here. The number must be stated in all
inquiries or complaints concerning this product.
Warranty
We offer a five-year warranty on your RAIS stove. The warranty covers
any defects in materials or workmanship. However, it does not cover
damage from misuse or neglect, and the glass, gaskets and firebricks
are not covered either.
Specifications:
RAIS Mino II RAIS Mino II
Soapstone
RAIS Rondo
Weight 265 lbs (120 kg) 456 lbs (207 kg) 304 lbs (138 kg)
Stove exterior: Width/depth/height (inches) 20.1 / 18.1 / 39.4 21.1 / 19.0 / 40.4 19.3 / 19.3 / 40.6
Firebox interior Width/depth/height (inches) 13.2 / 11.4 / 13.6
Heating capacity at -20°C/-4°F Approximately 100 m² / 1100 Square Feet
Recommended wood quantity: 2-3 logs of 10” in length each
1.5 kg / 3.3 lbs
Intermittent operation: Stoke the stove every three hours
Flue gas mass flow: 4.7 grams per second
Flue gas temperature: 246°C / 475°F
Single wall connector stove pipe: 6” (15 cm)
Chimney pipe - class A, UL-103 HT: 6” (15 cm)
Optimal thermal output : 17 kBTU (5,1 kW)
Min./Max. output (kW): 12 - 23 kBTU (3.4 - 6.6 kW)
Minimum stove draft pressure at above output: 0.048”WC (12 Pa)
Tested EPA emission particulate rate: 4.3 grams/hour

5
US English User Manual for RAIS Rondo, RAIS Mino II and RAIS Mino II Soapstone
Convection
All RAIS stoves are convection stoves, which means that the sides
of the stove never get too hot. Convection works by pulling cold air
into the system at the base of the stove and up through the convec-
tion duct that is located along the combustion chamber of the stove.
The heated air is released from the top of the stove, creating rapid air
circulation in the room.
RAIS stoves are equipped with air-cooled handles, a RAIS specialty,
which means that the handle of the stove can be handled without a
glove, no matter how hot the stove is. Please note that one must al-
ways be very careful when touching any other part of the stove while
it is still hot.
Chimney
RAIS stoves must be installed using a Class A UL 103 HT approved fac-
tory-built chimney system or a code-approved masonry chimney with
a flue liner. In Canada, the installation must conform to CAN/CSA-
B365.
The chimney must extend through the roof at least 3’ (1m), and 2’
(.6m) above any structure within 10’ (3m).
The condition and height of the chimney are very important for opti-
mal use of the stove and we recommend a total minimum height of
10’ (3m).
Note the chimney connector pipe should not pass through an attic,
roof space, closet, concealed space, floor or ceiling.
Do not connect this stove to a chimney flue or air distribution duct or
any system serving another appliance.

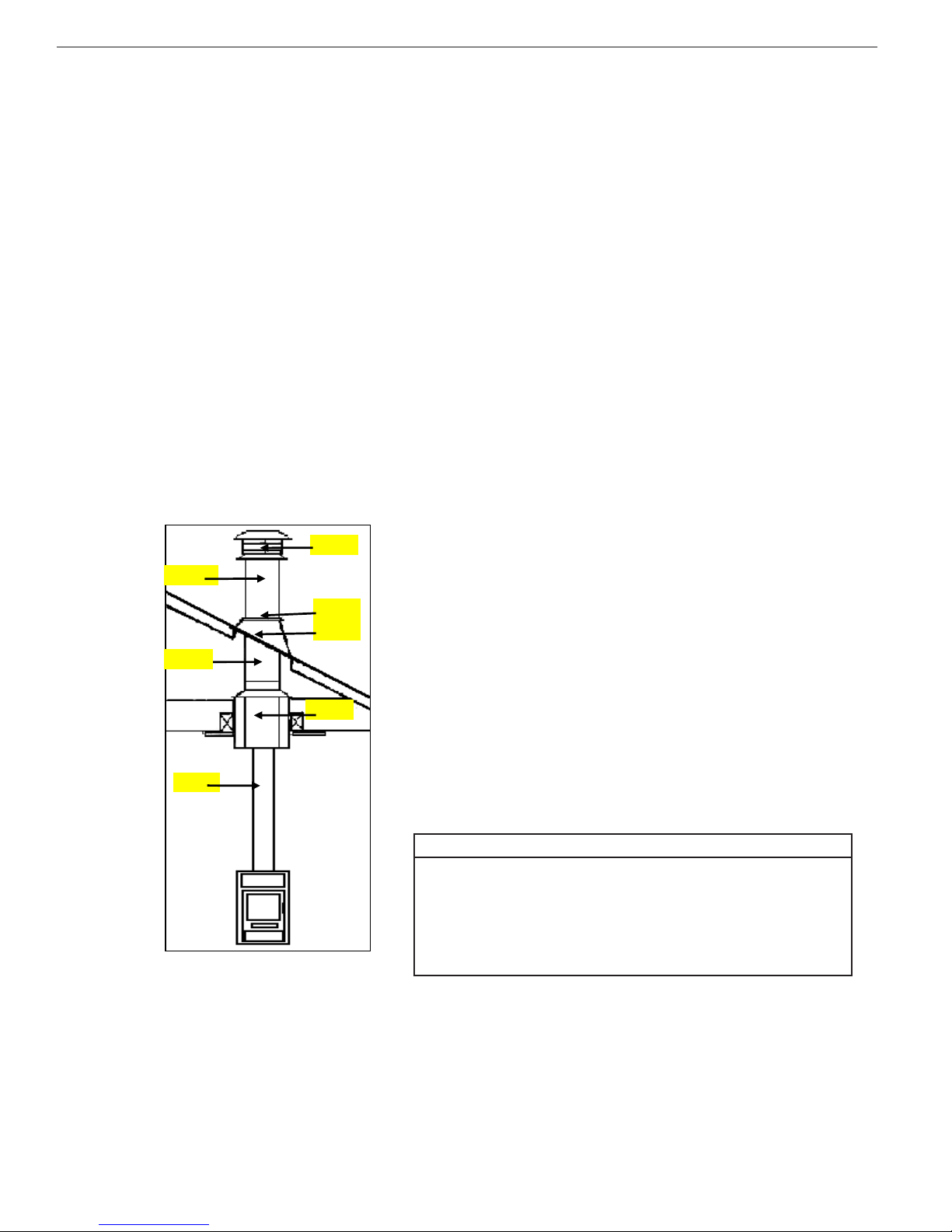

Required Installation Components:
A. Chimney Cap
B. Insulated Chimney
C. Storm Collar
D. Roof Flashing
E. Ceiling Support Box or Joist Shield/Firestop Spacer
F. Chimney Connector
For venting vertically into a Class A chimney, a single wall pipe (at
least 24 gauge) may be used in the room where the stove is installed.
Refer to the manufacturer’s instructions for the connection to the
listed chimney. The chimney/stove pipe must not be smaller than 6”
(15cm) in diameter.
B.
A.
E.
F.
C.
D.
B.

6
US English User Manual for RAIS Rondo, RAIS Mino II and RAIS Mino II Soapstone
For venting directly into a masonry chimney or through a thimble,
the top of the single wall pipe must be at least 18” (46cm) below a
combustible ceiling and must conform to NFPA 211 guidelines and
methods. Please see the diagram to the left.
For rear venting or other unlisted configurations, consult the
local building codes and follow the NFPA 211 guidelines.
If the stovepipe is fitted with a baffle, it must be manually oper-
ated, visibly placed for ease of use, and must not close completely.
Consult your chimney expert if you have any questions.
Important note:
Please ensure that there is easy access to the chimney cleanout
door.
Installation
Precautions and Specifications
Before installation, remember to consult your local building inspec-
tor or fire marshal to determine the need to obtain a permit. Also
enquire about restrictions and installation inspection requirements
in your area.
If utilizing an existing chimney, it is recommended that a profes-
sional mason or stove installer do a complete check-up of the
chimney, liner, and flue beforehand.
In order for the stove to work and draw properly, sufficient air sup-
ply is important. Be especially aware of any mechanical fans (e.g.
kitchen or bathroom exhaust systems) that may affect the proper
draw.
Make sure that the floor and the sub-floor of the room in which
the stove is installed is designed to carry the extra weight of the
stove. The floor protector plate must be made of a non-combus-
tible material.

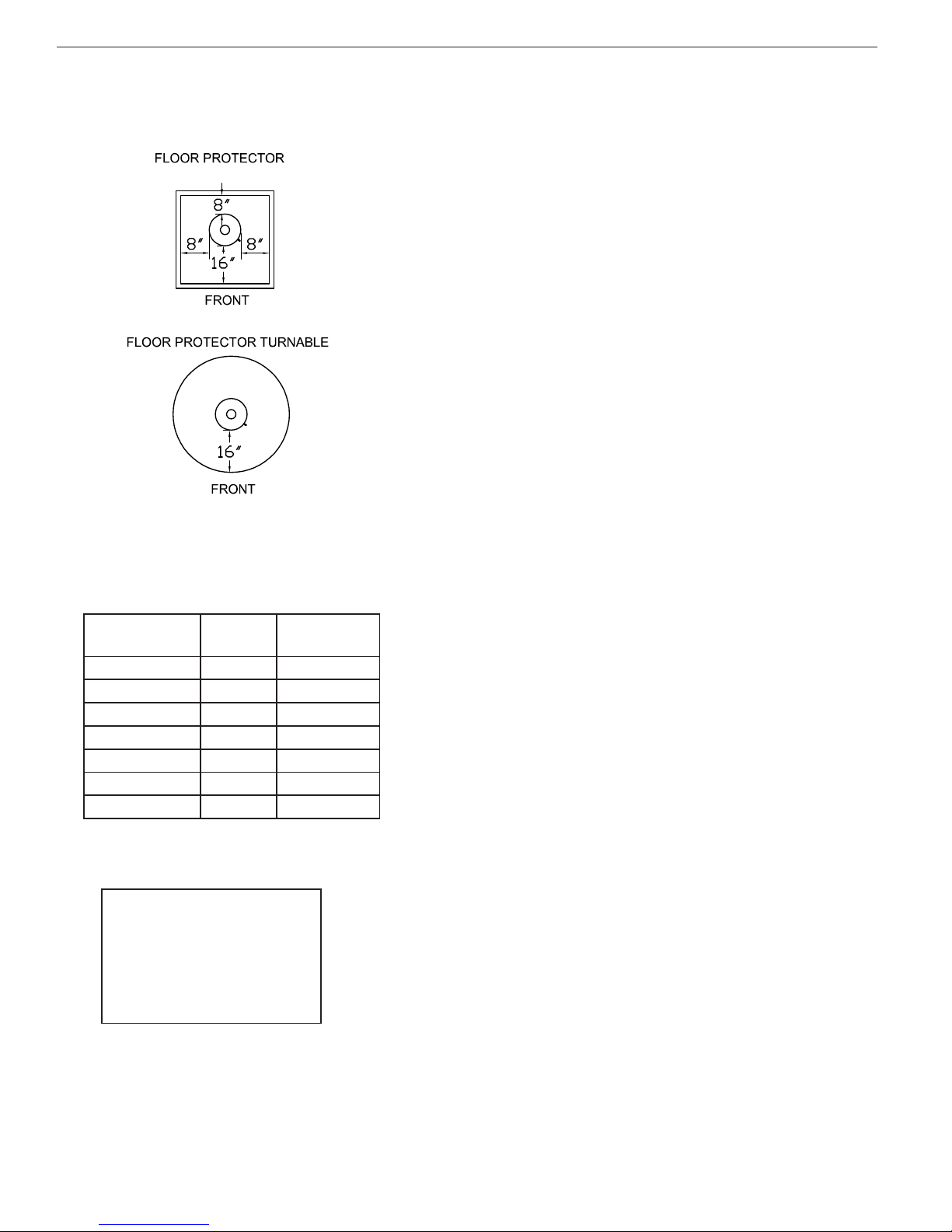

The floor protection plate must lie under the stove and extend
16” (41cm) (18” (45cm) in Canada) in front of the stove door, 8”
(20cm) beyond the sides of the fuel-loading door, and under the
pipe and 2” (5cm) beyond each side for back venting. In Canada,
an 8” (20cm) floor protection is required beyond the sides of the
stove and in the back of the stove (0” in the back for the US).
When deciding where to install your stove, the heat distribution to
other rooms should be taken into consideration. Put the stove at a
safe distance from combustible materials; see the references at the
name tag of the stove.
Installation with turntable (RAIS Rondo)

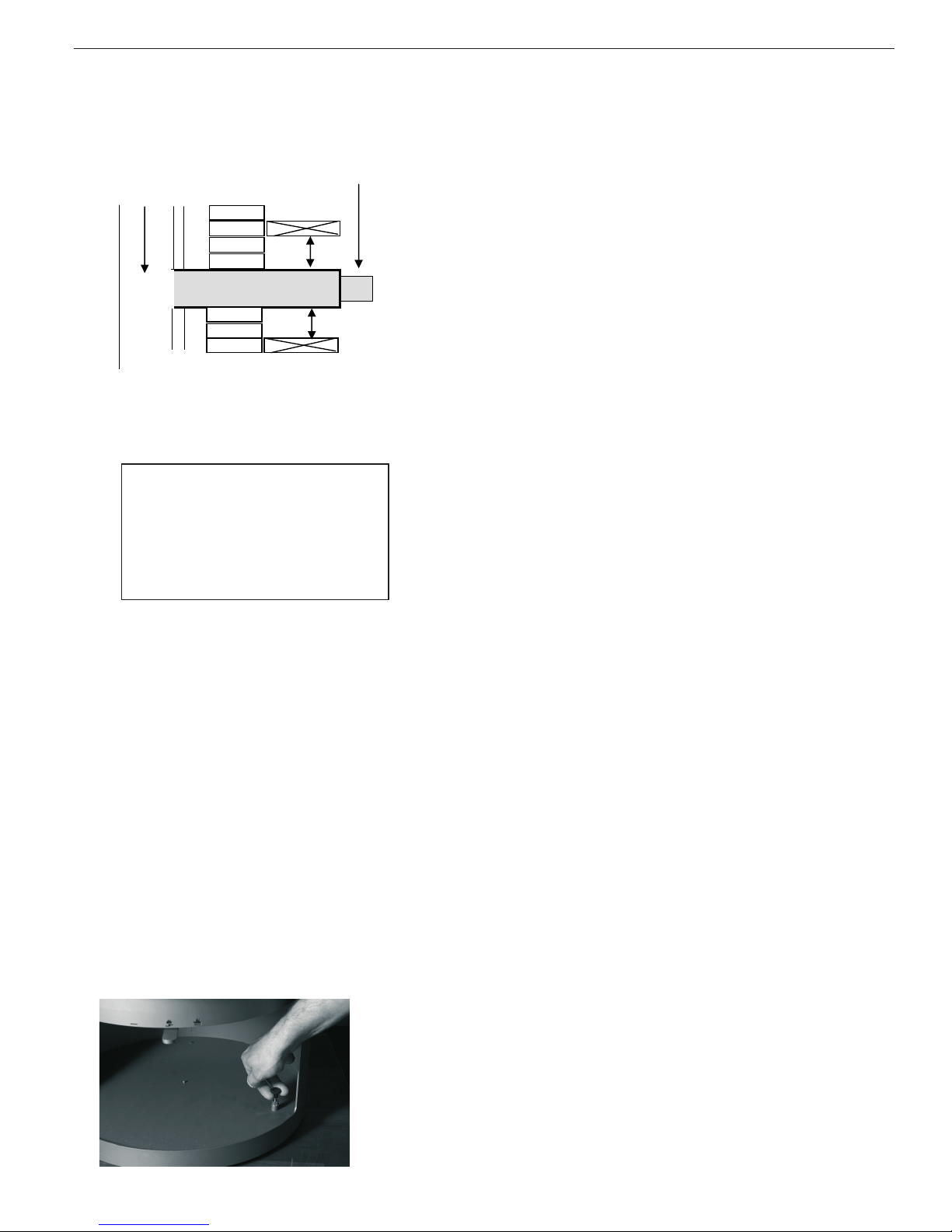

If the stove has a turntable then please do the following:
Lift the positioning bolt and turn the stove in 30° intervals. When
the stove is in the desired position, let go of the positioning bolt
and turn the stove lightly until the positioning bolt slips into place.
Chimney
Flue
Masonry
Insulated
Chimney
Connector Pipe
18” (46cm) below ceiling
Min.
2” (5cm)
Min.
2” (5cm)
IF THIS STOVE IS NOT INSTALLED
PROPERLY, A HOME FIRE MAY RE-
SULT. TO REDUCE THIS RISK, PLEASE
FOLLOW THE DIRECTIONS FOR INSTAL-
LATION CAREFULLY.

7
US English User Manual for RAIS Rondo, RAIS Mino II and RAIS Mino II Soapstone
Tested Beaverton
& Listed by: Oregon USA
OMNI-Test Laboratories, Inc.

8
US English User Manual for RAIS Rondo, RAIS Mino II and RAIS Mino II Soapstone
Altering the chimney connection
When the stove is delivered it has been assembled for topmounting of the chimney connec-
tion, but it can easily be altered for backmounting by doing the following:
Remove the three smoke chicane
plates (Please see the section on
Cleaning and Maintenance).
To remove the top retainer,
unscrew the two M6 nuts with a
wrench.
Now you have free access to the
smoke chamber of the stove.
Please note that the top retainer
is to be remounted to the
rear smoke exit with the flue
collar.

9
US English User Manual for RAIS Rondo, RAIS Mino II and RAIS Mino II Soapstone
Lift up the reflector plate, punch
out the upper cutting and put
the reflector plate back.
Take the cutting out of the
cover.
Take off the the gasket and the
blind plate for the rear smoke
exit and place them in the hole
on the top. Make sure that the
gasket is positioned correctly.
Use three M6 nuts to fasten the
blind plate and gasket onto the
top.
The flue collar is mounted with
the three M6 nuts. The two
lower nuts also hold the top
smoke plate retainer.
The smoke chicane system
is then remounted in reverse
order.

10
US English User Manual for RAIS Rondo, RAIS Mino II and RAIS Mino II Soapstone
Start with the left side. Mount the fitting for soapstone and the spring hold with the enclosed
screws. Ensure that you use the left fittings for the left-side stone.
Assemble the right side in the same way as the left.
Installation of Soapstone Sides
Installation of Soapstone (RAIS Mino II Soapstone)
Cautionary note: Soapstone is fragile, so please handle with care.
Parts list (loose parts for installation of soapstone)
Part No. Part Name No. of
pcs.
9057001/9057002 Top plate without hole/top plate with hole 1/1
9057004 Baking stone 1
5057006 Right-side stone 1
9057007 Left-side stone 1
9050118 grey/black Fitting for soapstone, right 1
9050109 grey/black Fitting for soapstone, left 1
0110-M5x12afst. stang M5x12 distance piece 2
0110-M5 flangemøtrik M5 flange nut 2
0110-M5x40 pinol M5x40 pointed screw 2
0110-M5x10 cyl rå lh M5x10 cylinder screw 4
70-03 Spring hold 2

11
US English User Manual for RAIS Rondo, RAIS Mino II and RAIS Mino II Soapstone

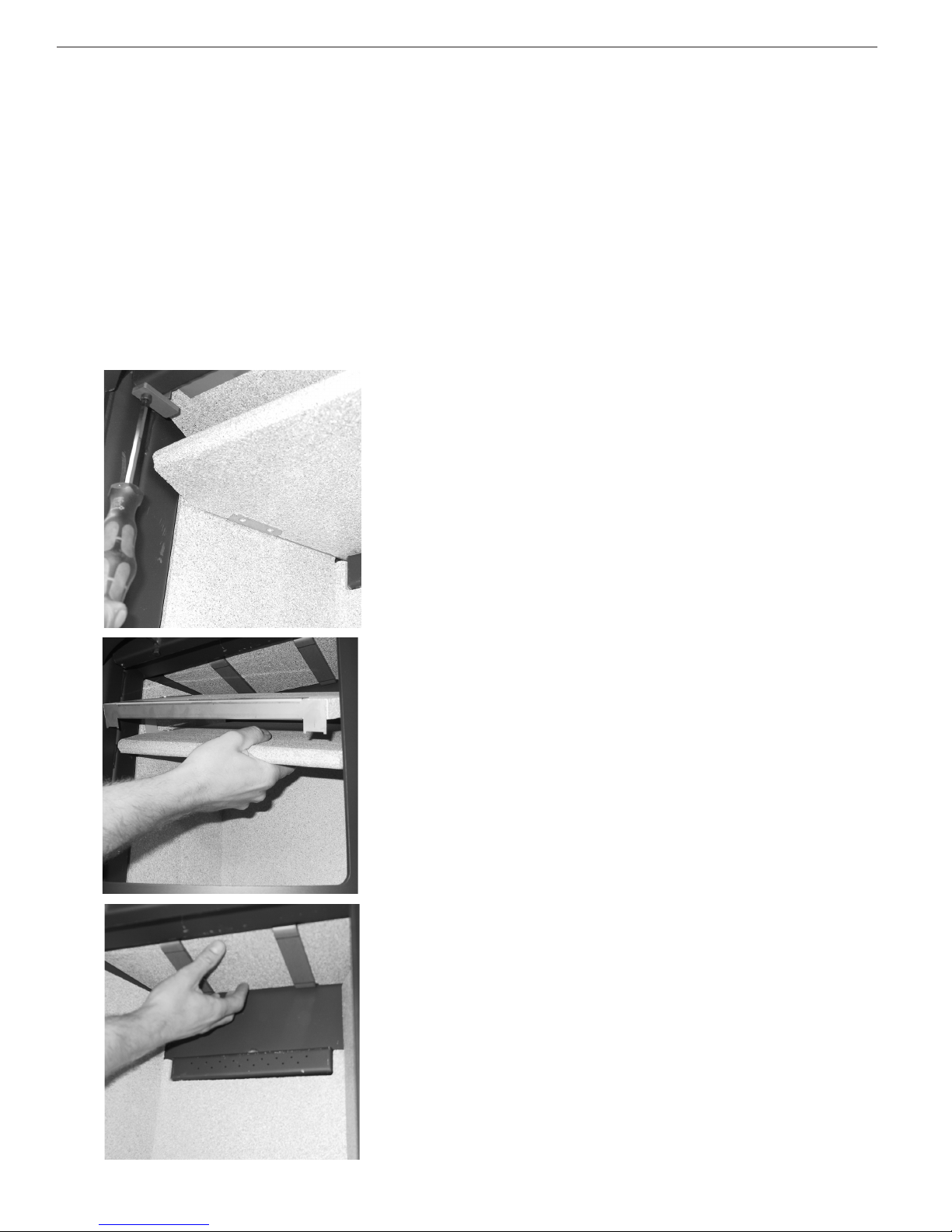

Mount the right and left soapstone with the enclosed pointed screws. Due to the spring hold, the soapstone is
turned into the proper position and the spring is held by the back panel.
Assemble the baking stone and the top plate. The top plate is placed on top of the side stones. In the bottom of the
top plate there are two holes that are placed over the pointed screws. The baking stone is placed in the centre of the bak-
ing shelf.

12
US English User Manual for RAIS Rondo, RAIS Mino II and RAIS Mino II Soapstone
Clearance to combustible walls
To find out whether the wall by which the stove is to be placed is
combustible or not, please contact your architect or the local building
authorities.
If the floor is combustible, the stove must be placed on a non-com-
bustible plate such as steel, glass or stone.
Ref. Description Minimum clearence
A Sidewall to unit 13” (33 cm)
B Backwall to unit 6.5” (16.5 cm)
C Cornerwall to unit 6” (15.2 cm)
D Sidewall to connector 20” (50.8 cm)
E Backwall to connector 12” (30.5 cm)
F Cornerwall to connector 14” (35.6 cm)
G Ceiling to appliance 43,5” (111 cm)
H Backwall to unit 13” (33 cm)
I Backwall to connector 20” (50,8 cm)
J Sidewall to unit 34” (86,4 cm)
K Sidewall to connector 41” (104 cm)
L Distance to frontwall/furnishing 34” (86.4 cm)
M Cornerwall to connector 41” (104 cm)
Clearance to non-combustible wall
We recommend a minimum clearance to non-combustible material of
at least 50 mm so that cleaning is easy. The cleaning door should be
accessible at all times.
Clearances may only be reduced by means approved by the regulatory
authority.
**:
Please refer to NFPA guide-
lines in USA and CAN/CSA
B365-M91 in Canada.

13
US English User Manual for RAIS Rondo, RAIS Mino II and RAIS Mino II Soapstone
Floor protection
Floor protection must be minimum 3/8” non-combustible material
extending beneath the stove, and to the front and sides from door
opening and to the rear as indicated
Floor protection for Canada: 18” (46 cm) from unit to front of floor
protector.
Floor protector must be under connector pipe and 2” (5 cm) to the
side for a thru-the wall configuration.
Firewood
Only burn wood that has been seasoned for at least one full year (two
years is better). If the wood has not been seasoned or dried, energy
will be lost in evaporating the water held in the wood. Furthermore,
condensation or creosote might occur in the stove and pipe when
damp wood is burnt.
Freshly cut wood contains approx. 60-70% water and is completely
unsuited for burning.
Log size should be about 2” (5 cm) less than the width of the
firebox
NEVER BURN TRASH (PLASTIC AND OTHER TYPES OF ARTIFICIAL
MATERIALS EMIT HARMFUL GASES), DRIFTWOOD, TREATED OR
PAINTED WOOD, ARTIFICIAL LOGS OR NON-SEASONED WOOD.
All types of wood heat equally per pound; however, the density of
wood is not the same as is shown in the table below, where the com-
bustible value of wood dried for two years with a moisture of 15-20%
is taken into account. See table to the left.
Drying and storage
Wood to be used for burning in a stove should be dried for two years
to ensure optimal burning.
Here are some storage tips:
• Cut and split the wood before storing.
• Keep the woodpile in a dry sunny place, protected from the rain. Do
not cover the pile with plastic, because that prevents the wood from
drying properly.
• Stack the wood with enough space between the rows to ensure
good air circulation.
• Bring the logs inside the house two-three days prior to use.
Control
If the ashes are white and the combustion chamber walls not covered
with soot, the air adjustment has been correct and the wood suffi-
ciently dry.
Wood type Dry wood
kg/m³
In comparison
to beech
Beech and oak 580 100 %
Ash 570 98 %
Maple 540 93 %
Birch 510 88 %
Mountain pine 480 83 %
Fir 390 67 %
Poplar 380 65 %
DO NOT STORE SOLID FUEL WITHIN
SPACE HEATER INSTALLATION
CLEARANCES OR WITHIN THE SPACE
REQUIRED FOR CHARGING AND
ASH REMOVAL.

14
US English User Manual for RAIS Rondo, RAIS Mino II and RAIS Mino II Soapstone
Using the stove
Only use wood as fuel as described in the firewood section of
this manual.

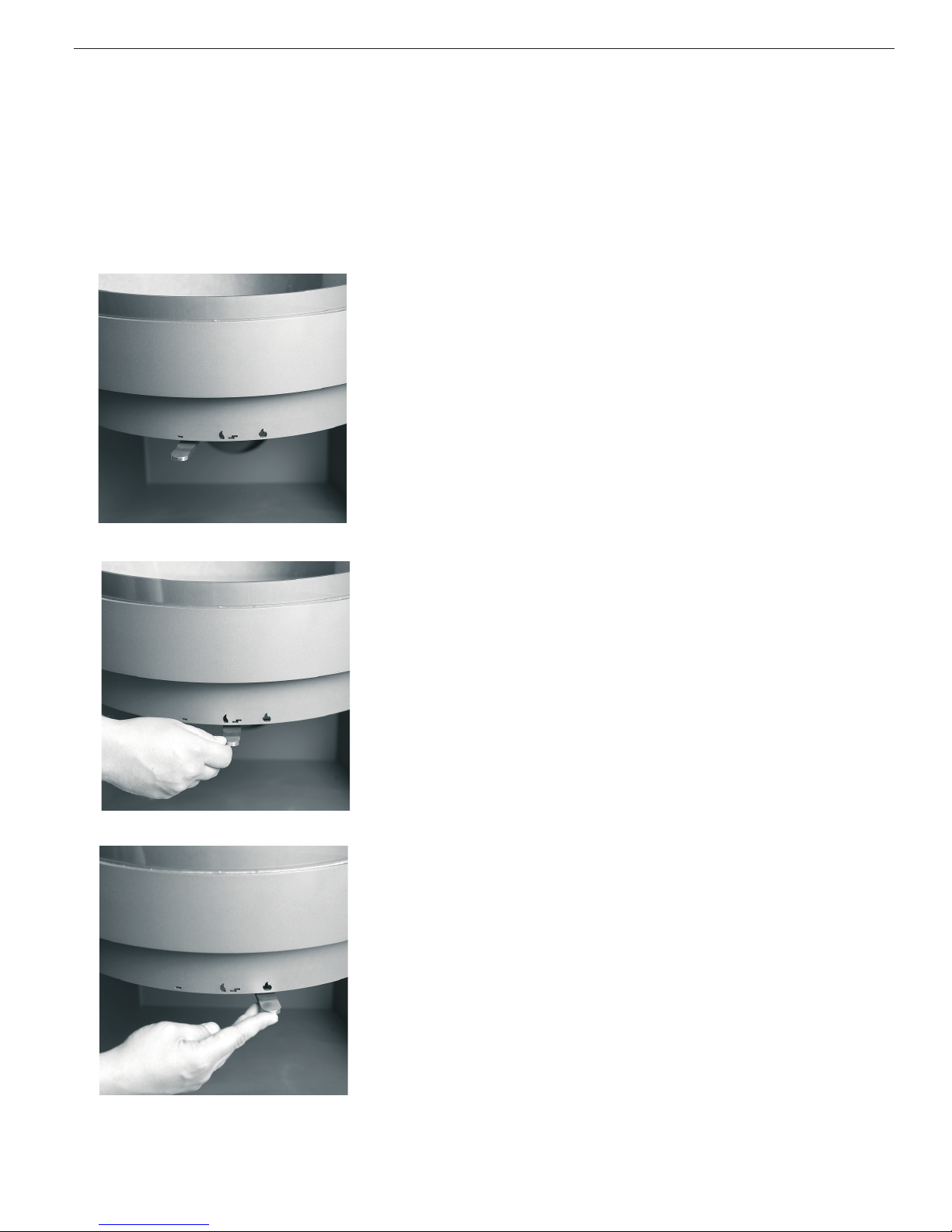

Adjusting the air control
There are three different positions for air control:
Position 1:
The air control is closed, meaning that no air comes into the stove.
Position 2:
Push the handle to the right, until it stops. This position gives full pri-
mary air. For normal combustion the air control should be positioned
somewhere between Pos. 1 and Pos. 2. Proper adjustment ensures
bright yellow flames.
Position 3:
Lift the handle upward and push it to the right. The air control is now
completely open and full start-up and primary air is allowed into the
stove. This position is only used for lighting and kindling a fire and
never during normal operation.
REMEMBER THE STOVE IS HOT WHILE IN OPERATION, SO KEEP CHILDREN,
CLOTHING, AND FURNITURE AWAY. CONTACT WITH A STOVE WHEN BURNING
MAY CAUSE SKIN BURNS.

15
US English User Manual for RAIS Rondo, RAIS Mino II and RAIS Mino II Soapstone
Adjusting the combustion air
All RAIS stoves are equipped with an easy-to-use handle for adjusting the
air control. For the various positions of the control please see the previ-
ous illustrations. To ensure proper combustion process it is very important
to supply the correct quantity of air at the right time and place.
Primary air is defined as combustion air for burning the mass of wood
and stimulates production of volatile gases.
Secondary air is used to burn off the gases at high temperatures (above
1,000°F/540°C) and to keep the glass free of soot. The secondary air
is let through the air control beneath the combustion chamber and is
heated through the side channels, which is then directed to the glass.
The warm air runs along the glass, keeping it free of soot.
At the very back of the combustion chamber there is a tertiary channel at
the top that helps to combust the remaining gases.
When positioning the air control between Pos. 1 and 2 optimum utiliza-
tion of the energy contents of the wood is obtained, because of suf-
ficient oxygen for combustion. When the flames burn bright and yellow,
the control has been adjusted correctly. Finding the correct position takes
some trial and error, but is easy to find.
Never close the air control completely when using the stove. A typical
error is to close the control too soon, because the heat gets too intense.
This results in the appearance of a dark cloud of smoke from the chim-
ney and that means the energy value of the wood is not being used
properly.
First Fire
Your new RAIS should be broken into gently for top performance and
to prevent paint damage, cracks in the firebrick, and excessive wear and
tear. Start with a small fire (never overload the firebox) to allow the ma-
terials to get accustomed to the higher temperatures, and then gradually
increase the intensity. Use up to a maximum of two logs.
For the first few fires you may detect a strange smell that comes from
heat treating the paint and materials. This is normal and will soon disap-
pear. Just ensure there is plenty of fresh air in the room. Furthermore,
during the initial heating up and cooling down, the metal may emanate
some clicking sounds due to being exposed to the large differences in
temperature. This is normal as well.
For wood to burn properly, the right amount of air has to be supplied at
the right time and place.

16
US English User Manual for RAIS Rondo, RAIS Mino II and RAIS Mino II Soapstone

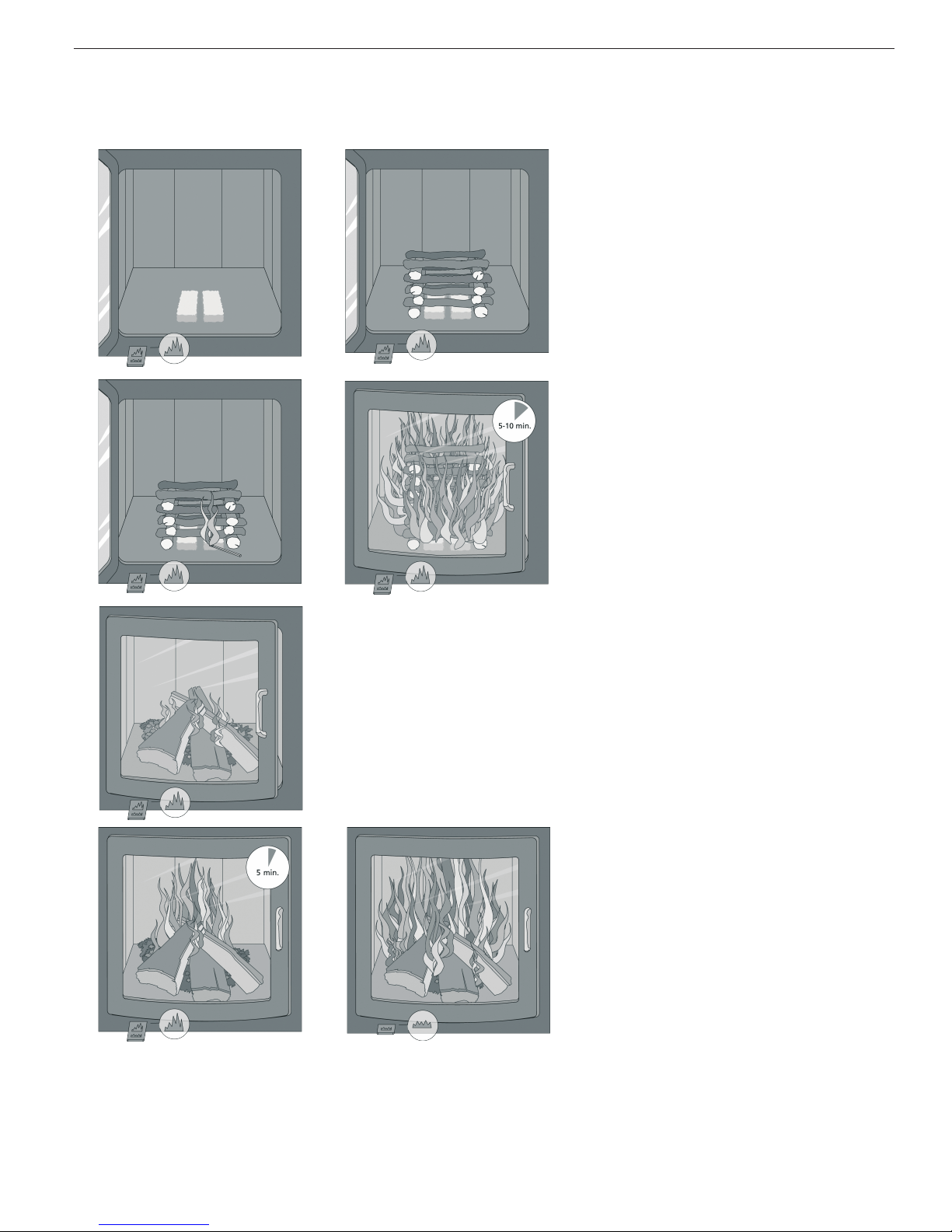

Lighting and Stoking
Step 1 & 2:
To light the fire, use fire starters, newspa-
pers or something similar, as well as 2 kg
of wood split into thin logs for kindling.
The air control must be opened com-
pletely.
DO NOT USE GRATE OR ELEVATE FIRE – BUILD
WOOD FIRE DIRECTLY ON HEARTH.
Step 3 & 4:
Light the fire and close the door, leaving
a 10-15 mm gap (under supervision) until
the flames burn brightly. After approxi-
mately 5 to 10 minutes, close the door
completely.
Adjust the air control later if necessary.
Step 5:
After approximately 10-20 minutes, until
there is a good quantity of embers, add
two or three more logs. (Leave the door
slightly open until they catch fire and
then close the door.)
Step 6 & 7:
Approximately five minutes later, when
the flames burn clear and bright, close
the air control gradually, but not com-
pletely. Never close the air intake com-
pletely, while logs are still burning. This
will cause incomplete combustion, risk of
explosion, and soot on the glass.
DO NOT OVER-FIRE, IF HEATER OR CHIMNEY
CONNECTOR GLOWS YOU ARE OVER-FIRING.
It is a good idea to leave a 3/4” layer of
ashes in the combustion chamber, as this
will act as insulation.
12
67
5
4
3

17
US English User Manual for RAIS Rondo, RAIS Mino II and RAIS Mino II Soapstone
Fuel caution
Do not burn trash (plastic and other artificial materials emit harm-
ful gases), driftwood, treated wood, artificial logs, or non-seasoned
wood.
Never use gasoline, gasoline-type lantern fuel, kerosene, char-
coal lighter fluid, naphtha, engine oil, or similar liquids to start
or freshen up a fire in your RAIS stove. Keep all such liquids
well away form the stove while it is in use.
Care and maintenance
You should have your chimney and stove checked once every
two months during the heating season or at least once a year
by a professional chimney sweep and cleaned as needed.
When cleaning, checking or repairing, the stove must be cold.
If the glass has been covered in soot, here is a simple piece of advice:
• Dampen a piece of paper or newspaper, dip it into the cold ashes
and rub the soot-covered glass.
• Use another piece of paper to polish the glass.
• A good commercial glass cleaner can also be used.
The outer surfaces can be wiped with a soft, dry rag and if needed a
small amount of mild detergent. NEVER scrub the surfaces.
Cleaning the soapstone:
Day-to-day cleaning can be made with a damp rag. If necessary the
soapstone can be carefully cleaned with some paint-thinner from the
hardware store. For difficult stains that cannot be dissolved by the
paint-thinner, lightly sand them.
Cleaning the combustion chamber:
Rake out the ashes and store them in a metal container with a tight-
fitting lid until cooled completely before throwing them in the trash
can.
Remember NEVER to clean all ashes from the combustion chamber.
Leave about a 3/4” layer for better combustion.
Cleaning the smoke chicane system
The smoke chicane system consists of three baffle plates and to steel
retainers. The lower retainer holds two plates. The top plate is held by
its own retainer. The lower retainer is fastened by two screws in the
top/front frame of the burning chamber. Loosen the two screws and
remove the retainer and the two lower plates. Now carfully remove
the top smoke plate downwards by tipping it to vertical.
Remove dirt and dust with a dry brush and put the parts back in
reverse order
Removing the smoke plates:

18
US English User Manual for RAIS Rondo, RAIS Mino II and RAIS Mino II Soapstone
DISPOSAL OF ASHES
ASHES SHOULD BE PLACED IN A METAL CONTAINER WITH A
TIGHTFITTING LID. THE CLOSED CONTAINER OF ASHES SHOULD
BE PLACED ON A NONCOMBUSTIBLE FLOOR OR ON THE
GROUND, WELL AWAY FROM ALL COMBUSTIBLE MATERIALS,
PENDING FINAL DISPOSAL. IF THE ASHES ARE DISPOSED OF
BY BURIAL IN SOIL OR OTHERWISE LOCALLY DISPERSED, THEY
SHOULD BE RETAINED IN THE CLOSED CONTAINER UNTIL ALL
EMBERS HAVE THOROUGHLY COOLED.
The firebox bottom lining is made out of firebrick and the side lining
is made out of vermiculite slab insulation (skamol), which protects the
outer steel plates from overheating. With time small cracks might ap-
pear; this is normal. If it breaks however, it must be replaced. Vermicu-
lite is a porous, high-insulated material and must therefore be handled
with care.
Trouble Shooting
Smoke seeping through the door:
• Not enough draft in the chimney (<12 Pa)
• Check if there are any obstructions in the chimney or the wind pipe
• Check whether the kitchen exhaust fan is in use and if so, turn it off
and open the window for a short period of time
Soot on the glass:
• The wood is too damp
• Make sure that the stove is sufficiently heated up before closing the
door
• The air control has been set too low
The stove burns too quickly:
• Gasket may not be tight, please check and replace if necessary
• Chimney draft maybe too high >22 Pa, if this is the case, please
install a damper
The stove is burning too slowly:
• Not sufficient amount of firewood
• Not enough air is getting into the stove
• Blocked chimney
• Leaking chimney
• Leak between chimney and pipe
If the problems continue we recommend contacting your chimney
sweep or your local RAIS dealer.
Chimney fire:
In case of a fire in the chimney quickly close all doors, dampers, vents
and call your local fire department. NEVER use water to extinguish the
fire.
CREOSOTE
FORMATION AND NEED FOR REMOVAL
WHEN WOOD IS BURNED SLOWLY, IT PRODUCES
TAR AND OTHER ORGANIC VAPORS, WHICH COM-
BINE WITH EXPELLED MOISTURE TO FORM CREOSOTE.
THE CREOSOTE VAPORS CONDENSE IN THE RELA-
TIVELY COOL CHIMNEY FLUE OF A SLOW-BURNING
FIRE. AS A RESULT, CREOSOTE RESIDUE ACCUMU-
LATES ON THE FLUE LINING. WHEN IGNITED, THIS
CREOSOTE MAKES AN EXTREMELY HOT FIRE. THE
CHIMNEY AND CHIMNEY CONNECTOR SHOULD BE
INSPECTED AT LEAST ONCE EVERY TWO MONTHS
DURING THE HEATING SEASON TO DETERMINE IF A
CREOSOTE BUILDUP HAS OCCURRED. IF CREOSOTE
HAS ACCUMULATED, IT SHOULD BE REMOVED TO
REDUCE THE RISK OF A CHIMNEY FIRE.

19
US English User Manual for RAIS Rondo, RAIS Mino II and RAIS Mino II Soapstone
Components and Spare Parts
If components and spare parts not authorized by RAIS are used, the
warranty is void.
RAIS Rondo
Soapstone top plate without hole
Part no.:
505700170
RAIS Rondo
Soapstone top plate with hole
Part no.:
505700270
RAIS Rondo
Soapstone baking plate
Part no.:
505700470
RAIS Mino
Soapstone top plate without hole
Part no.:
905700170
RAIS Mino
Soapstone top plate with hole
Part no.:
905700270
RAIS Mino
Soapstone baking plate
Part no.:
905700470

20
US English User Manual for RAIS Rondo, RAIS Mino II and RAIS Mino II Soapstone
Air-Box
Part no.:
505179090
505179595
RAIS Rondo
Turntable and turntable pipe connection
Part no.:
814753690
814753695
RAIS Rondo & Mino
Gasket set
Part no.:
5055500
All replaceable parts can be obtained as spare parts from your local
RAIS dealer. We also recommend you see the enclosed spare parts
drawings for the individual products.
