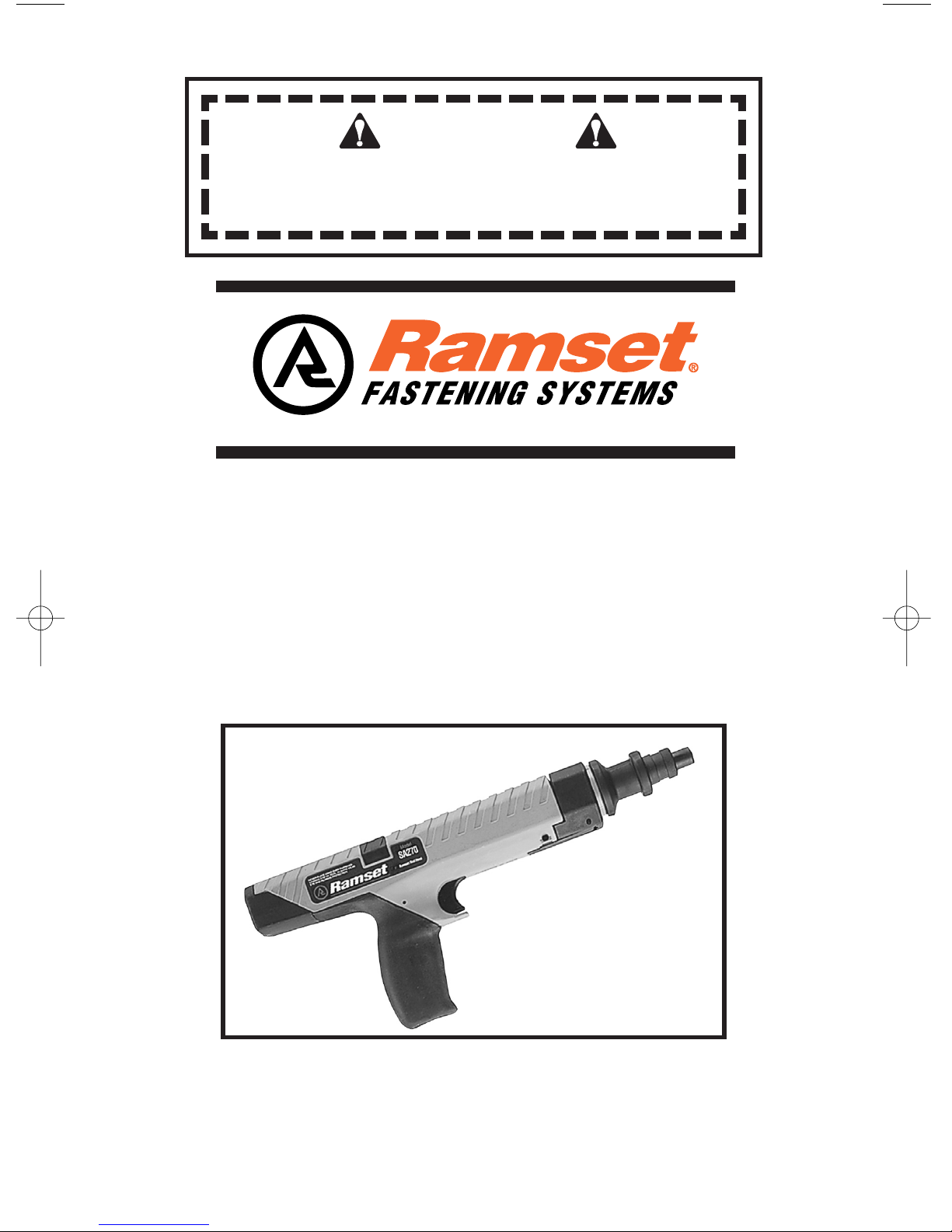

RAMSET SA270 Maintenance and service guide

SA270 TOOL
OPERATOR’S
SAFETY & OPERATING
INSTRUCTION MANUAL
DANGER
THIS TOOL FOR USE BY LICENSED OPERATORS ONLY.
READ AND OBEY ALL SAFETY AND OPERATING
INSTRUCTIONS BEFORE OPERATING TOOL.
SEMI-AUTOMATIC, LOW VELOCITY
PISTON TYPE FASTENING TOOL
SA270_manual.qxd 11/21/06 1:01 PM Page 2

Just as no one can merely read a book about driving an automobile and then hope
to drive one safely, no one should attempt to use any Ramset tool without adequate,
competent personal instruction. And just as one must be licensed to drive an automobile,
one must also be licensed to use a powder actuated tool. No automobile instruction
book or instructor can forewarn a learner against all possibilities and emergencies, nor
can Ramset instructors and printed material detail all possible conditions surrounding the
use of Ramset tools and products.
Responsibility for the safe and proper use of this tool rests with the tool user
and the employer.
SAFETY INTRODUCTION DANGER
THIS TOOL IS TO BE USED ONLY BY PROPERLY TRAINED
AND LICENSED OPERATORS.
YOU MUST SUCCESSFULLY COMPLETE THE
RAMSET TRAINING PROGRAM FOR THE
TOOL AND OBTAIN A CERTIFIED OPERATOR’S LICENSE
BEFORE HANDLING, LOADING OR OPERATING THIS TOOL.
ATTEMPTING TO HANDLE OR OPERATE THIS TOOL
WITHOUT PROPER TRAINING AND LICENSING CAN RESULT IN
SERIOUS INJURY TO THE OPERATOR OR BYSTANDERS.
SAFETY INTRODUCTION DANGER
2
Operator’s and bystanders
must wear eye and hearing
protection.
Never close tool with hand over fastener loading end of the tool.
A serious hand injury from penetration by the piston or a
discharged fastener could result.
Read manual before
operating tool.
DANGER
DANGER
SA270_manual.qxd 11/21/06 1:01 PM Page 3

Preparation
Acceptable Base Materials
Powder actuated fastening is suitable for
use in the following base materials only:
• Poured Concrete
• Structural Steel
• Masonry Joints (see page 8)
Never attempt to fasten into any other
type of material. Fastening into other
materials can cause blindness or other
serious injury.
Unacceptable Base Materials
Never attempt to fasten into very hard or
brittle materials such as cast iron, tile,
glass, or rock of any type. These materials
can shatter, causing the fastener and/or
base material fragments to fly free and
cause serious injury to the tool operator
and others.
Never fasten into soft base materials, such as
drywall or lumber products. These materials
may allow the fastener to travel completely
through and out the other side, endangering
those in the path of the fastener.
Never fasten into any base material that
does not pass the Center Punch test.
Failure to assure the suitability of the base
material can result in serious injury to the
eyes or other body parts.
Center Punch Test
ALWAYS WEAR SAFETY GOGGLES
WHEN PERFORMING THIS TEST.
1. Always check the material being
fastened into for hardness before
attempting any fastening operation.
2. Using a fastener as a center punch,
strike the fastener against the work
surface using an average hammer
blow and check the results.
Center Punch Test Results
1. If the fastener point is flattened,
the material is too hard for a
powder actuated fastening.
2. If the fastener penetrates the
material easily, the material is
too soft.
3. If the material cracks or shatters,
the material is too brittle.
4. If the fastener makes a small
indentation into the material, the
material is suitable for fastening.
DANGER SAFETY INSTRUCTIONS
SAFETY INSTRUCTIONS
DANGER 3
NEVER FASTEN INTO VERY HARD OR
BRITTLE MATERIALS
NEVER FASTEN INTO SOFT MATERIALS
SUCH AS DRYWALL
SA270_manual.qxd 11/21/06 1:01 PM Page 6

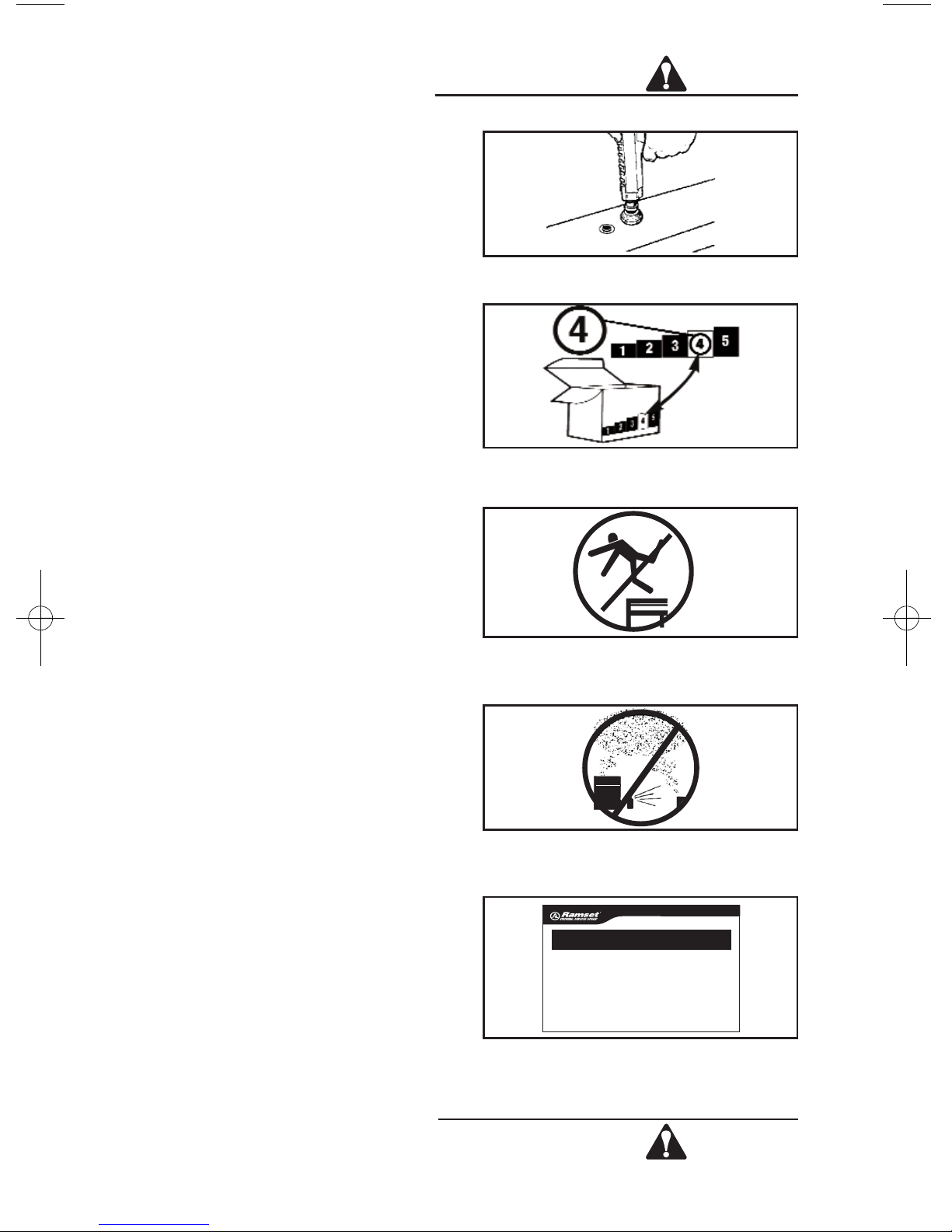

Loads & Load Selection Safety
1. Always make a test fastening after
being sure that the base material
is suitable for powder actuated
fastening. Failure to determine the
correct power level to be used may
result in the use of excessive power,
allowing the fastener to pass completely
through the work material, causing
serious or fatal injuries to others who
may be in the path of the fastener.
2. Color-blind operators must always
select loads by number to prevent
use of an incorrect load for the same
reasons as in #1 above.
Workplace Safety
1. Operators and bystanders must
always wear approved eye protection
and approved hearing protection.
Failure to do so may result in blindness
or serious eye injury from flying debris
and loss of hearing from constant or
repeated unprotected exposure to
fastening noise.
2. Always keep the work area clear of
bystanders and unnecessary materials
that could interfere with safe tool
operation. Operating the tool in a
congested or cluttered area may affect
your ability to operate the tool safely.
3. Never operate tool if flammable
or explosive materials are nearby.
Powder loads burn and create sparks
when fired and could ignite these
materials or fumes.
4. Always post warning signs within
50 ft. of the area where fastening
is to be done. Sign must state:
“WARNING - Powder Actuated Tool
In Use”. Failure to warn others
may result in serious injury to them.
Contact Ramset at 1-800-241-5640
to obtain this sign.
SAFETY INSTRUCTIONS DANGER
SAFETY INSTRUCTIONS DANGER
4
ALWAYS MAKE A TEST FASTENING
COLOR-BLIND OPERATORS MUST
ALWAYS SELECT LOADS BY NUMBER
KEEP WORK AREA CLEAR OF
BYSTANDERS AND CLUTTER
NEVER OPERATE THE TOOL AROUND
FLAMMABLE OR EXPLOSIVE MATERIALS
WARNING
POWDER
ACTUATED
TOOL IN USE
WITHIN 50 FEET
Safety is important – Take proper precautions.
ALWAYS POST WARNING SIGNS
SA270_manual.qxd 1/17/08 9:48 AM Page 7

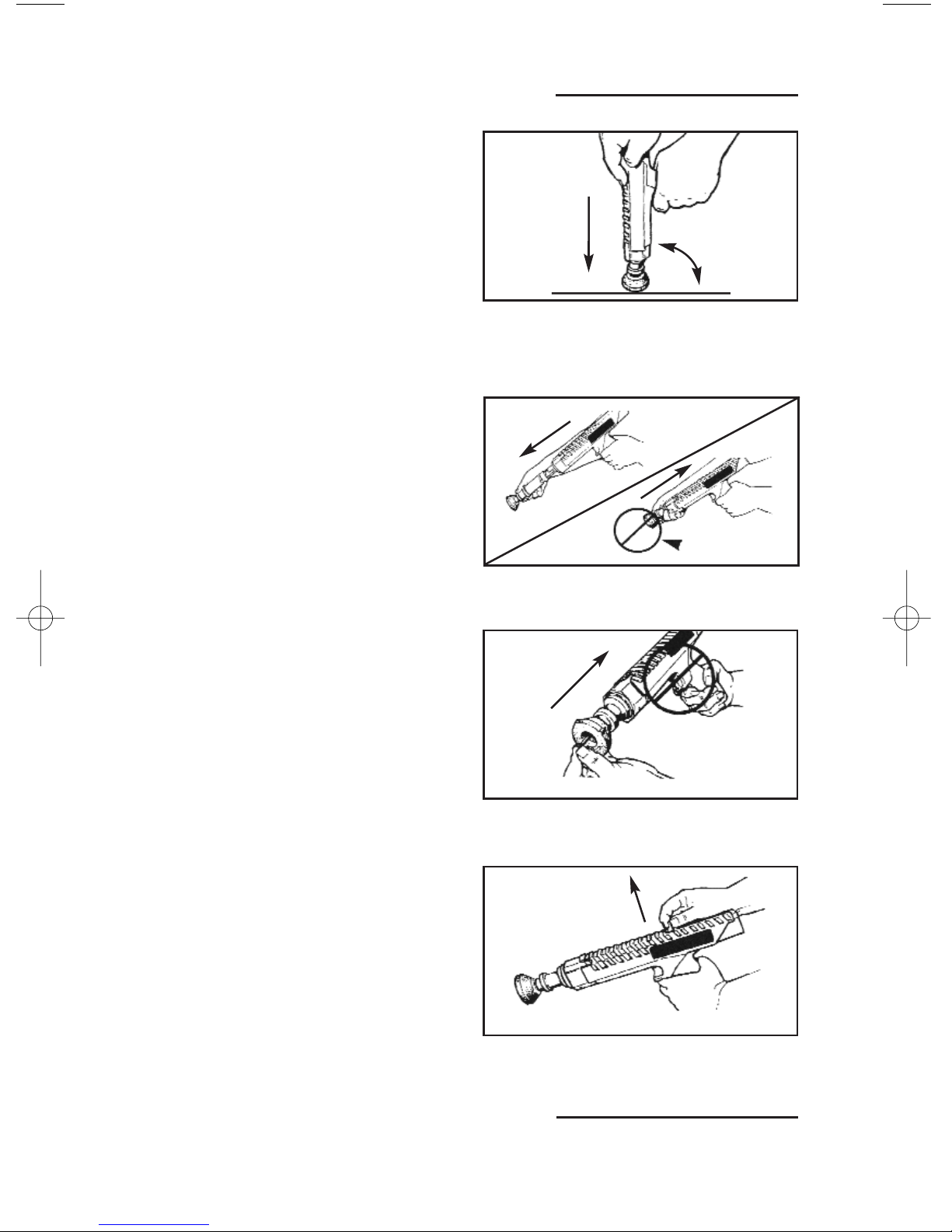

Tool Handling Safety
1. Always be sure tool is operating
properly before attempting to use
it. Follow the “Daily Function Check”
shown to the right and described
on page 9.
2. Always load tool using a strip load
selected directly from a box indicating
the power load type and number.
Never attempt to use loose strip
loads that could be mis-identified.
3. Never carry loose loads in pockets
with pins or other hard objects.
4. Never load a tool unless you intend
to immediately make a fastening.
Loading a tool and leaving it unattended
in the work area can result in the tool
being accidentally discharged by others.
5. Never place your hand or any other
body part over the fastener loading
end of the tool. Serious hand injury
could result from being struck by either
a fastener or the tool piston should the
tool be accidentally fired.
6. Always store the tool unloaded and
keep the tool and the loads securely
locked in a tool box. Keep keys away
f rom children and unlicensed persons.
7. Always keep the tool pointed away
from yourself and others.
8. Never carry a loaded tool around
the work area.
9. Never allow anyone not trained
to use the tool.
10. Never engage in horseplay with
the tool.
11. Using the tool in poorly ventilated
areas, cleaning tool or handling
loads may result in exposure to
lead or other substances known
to cause birth defects, and other
physical harm. Have adequate
ventilation at all times and wash
thoroughly after exposure.
DANGER SAFETY INSTRUCTIONS
SAFETY INSTRUCTIONS
DANGER 5

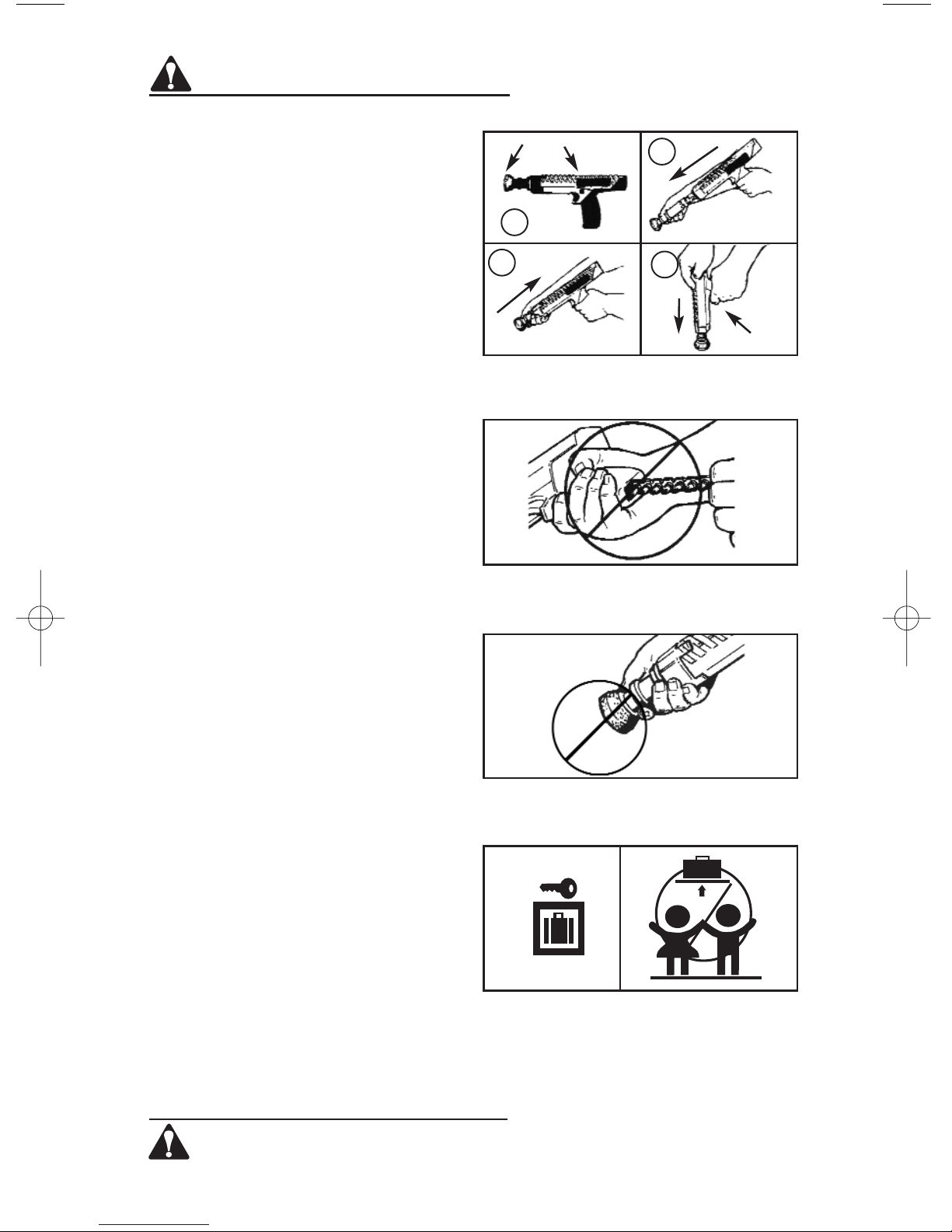

ALWAYS DO A DAILY FUNCTION CHECK
BEFORE LOADING TOOL
NEVER LOAD THE TOOL UNLESS IT IS TO
BE USED IMMEDIATELY
NEVER PLACE HANDS OR BODY OVER
MUZZLE OPENING
KEEP TOOL LOCKED & OUT OF THE
REACH OF CHILDREN
A
CD
B
Empty
1
2
SA270_manual.qxd 11/21/06 1:01 PM Page 10

FAILURE TO FOLLOW
INSTRUCTIONS CAN
CAUSE INJURY TO THE
TOOL OPERATOR OR
TO BYSTANDERS.

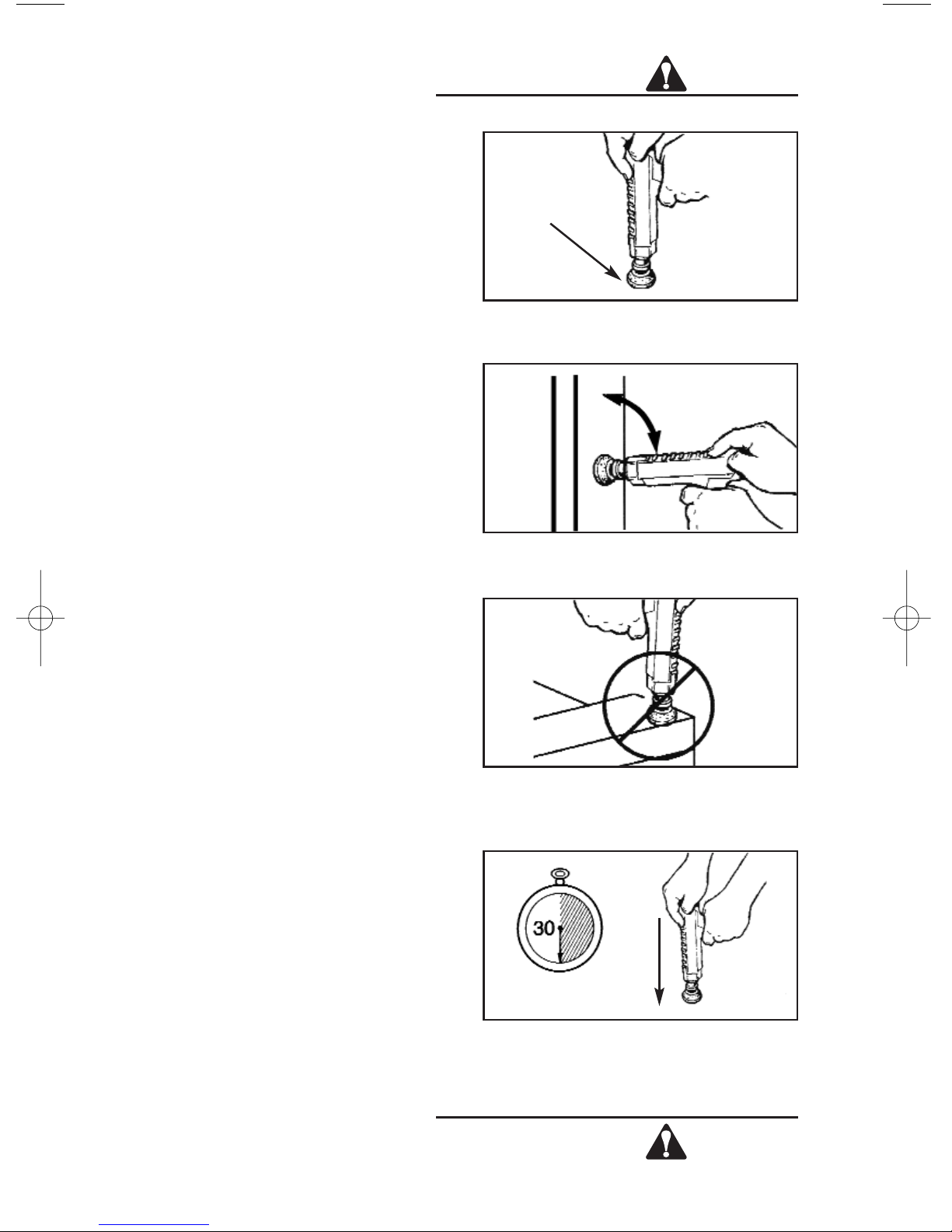

Fastener Driving Safety
1. Only use the tool for fastening into
a suitable base material.
2. Never fire the tool without a fastener.
Firing a tool without a fastener will
cause the piston to strike the work
surface, and may cause serious injury
to you and others in the work area.
3. Always use the spall guard whenever
possible to minimize flying particles
or debris.
4. Always hold the tool perpendicular
to and firmly against the work
surface when making a fastening.
Failure to do so could allow a fastener
to ricochet.
5. Never attempt to drive a fastener
close to an edge or to another
fastener. See page 8 for guidelines.
ALWAYS FOLLOW THE
MISFIRE PROCEDURE.
If the tool does not fire after the normal
firing sequence, continue to hold the
depressed tool against the work surface
for at least 30 seconds. Then carefully lower
the tool, remove the strip load, and put it
in a can of water or other non-flammable
liquid. Never carelessly discard a strip with
live loads into a trash container.
If the tool becomes stuck or jammed with
a live powder load, keep the tool pointed
in a safe direction, and immediately tag it,
“Danger- defective - do not use”. Lock
the tool in a tool box and call your local
Ramset distributor for assistance.
SAFETY INSTRUCTIONS DANGER
SAFETY INSTRUCTIONS DANGER
6
USE SPALL GUARD WHENEVER POSSIBLE
ALWAYS HOLD THE TOOL PERPENDICULAR
TO THE WORK SURFACE
NEVER DRIVE A FASTENER CLOSE TO
AN EDGE
HOLD THE TOOL FIRMLY AGAINST
THE WORK SURFACE FOR AT
LEAST 30 SECONDS
SPALL
GUARD
90°
SA270_manual.qxd 11/21/06 1:01 PM Page 11

FASTENERS /LOADS
FASTENERS /LOADS
7
Your Ramset SA270 Tool uses only the Ramset fasteners and loads shown below or
listed for the tool in the Product Catalog.
FASTENERS
Never use any other types of fasteners or strip loads in the Ramset SA270 Tool. Use of other
types of fasteners or loads may cause unintentional load discharge, damage the tool, cause
poor fastening performance, or create a risk of serious injury to the operator or bystanders.
DANGER
LOADS
Ramset RS27 strip loads are specially made for use in the Ramset SA270 Tool.
The power level of the load is indicated by
the number marked on each box, the color
of the box, and the color on the tip of each
load. As the number increases, the power
level also increases.
Always perform the center punch test
described on page 3 to test the base material.
Always make a test fastening using the
lowest power level first. If more power is
required to set the fastener, use the next
higher power level until the powder level
necessary to drive the fastener is reached.
RS27 10 SHOT STRIP LOAD
POWER CATALOG LOAD CASE
LEVEL NUMBER COLOR COLOR
2 2RS27 Brown Brass
3 3RS27 Green Brass
4 4RS27 Yellow Brass
5 5RS27 Red Brass
.300 HEAD PLASTIC FLUTED DRIVE PINS
.145 Shank Diameter in Shank Lengths from
1/2" to 2-1/2"
.300 HEAD PLASTIC FLUTED DRIVE PINS
WITH 7/8" WASHER
.145 Shank Diameter in Shank Lengths from
1" to 3"
.300 HEAD POWER POINT
PLASTIC FLUTED DRIVE PINS
.150 Straight Shank in Shank Lengths
from 1/2" to 7/8"
.150 /.180 Step Shank in Lengths
from 1" to 1-7/8"
CEILING CLIP ASSEMBLIES
Ceiling Clip with 1" or 1-1/4" premounted
.145 Shank Pin and Ceiling Clip with 1" or
1-1/4" Premounted .150/.180 Shank Pin
1/4" - 20 THREADED STUDS
.145 Shank Diameter in Shank Lengths of 1/2"
and 1" and Thread Lengths of 1/2", 3/4" and 1"
8 mm HEAD TOP-HAT DRIVE PINS
.145 Shank Diameter in Shank Lengths from
1/2" to 1"
CONDUIT CLIP ASSEMBLIES
For 1/2" and 3/4" Diameter Conduit with 1"
Premounted Fastener
SA270_manual.qxd 11/21/06 1:01 PM Page 14

FASTENING APPLICATIONS
Your Ramset tool can be used for a wide
range of fastening needs in a variety of base
materials. Reading and follow these important
fastening guidelines will help you get the best
results from your tool, fasteners, and powder
loads, as well as help you perform these
fastening operations safely and effectively.
Powder actuated fastenings are permanent
fastening so attempting to remove a fastener
from concrete or steel may result in serious
injury.
Fastening to Concrete
When fastening into concrete, always maintain
a minimum spacing of 3" between fastenings
and 3" from any free edge. Concrete thickness
should be at least three times the intended
penetration depth into the concrete. The
primary exception to the 3" edge distance
can occur in a sill plate application where,
by necessity, the edge distance is reduced.
Driving fasteners too close to an edge or too
close to each other can cause the concrete
edge to fail or fasteners to fly free.
Fastening to Concrete Block or
to Masonry Walls
While this application is not recommended,
when used, it is necessary to take care to
observe a 3" edge distance to avoid cracking
the block and over penetration of the fastener
to avoid loss of holding value. Fastening may
be made into the horizontal joint but not into
the vertical joint.
Fastening to Steel
Your Ramset tool can be used for fastening
on the flat surfaces of structural steel. When
fastening into steel, always maintain a mini-
mum spacing of 1-1/2" between fastenings
and 1/2" from any edge.
FASTENING APPLICATIONS
FASTENING APPLICATIONS
8
3"
MIN.
3"
MIN.
SPACING WOOD TO CONCRETE
3" MIN.
PENETRATION — THIN GAUGE
METAL TO CONCRETE
3" MIN.
SPACING — FURRING
STRIP TO CONCRETE
1/2"
MIN.
1-1/2"
MIN.
SPACING — STEEL TO STEEL
SA270_manual.qxd 11/21/06 1:01 PM Page 15

TOOL OPERATION
Daily Function Test
Always check the tool first to make sure
that it does not contain a strip load or
fastener. Test the tool several times by
depressing the muzzle bushing fully on a
hard surface and pulling the trigger. You
should hear an audible click as the firing pin
releases. Let up on the tool and check to be
sure that the barrel has opened to the semi-
open position.
OPERATING THE RAMSET
SA270 TOOL

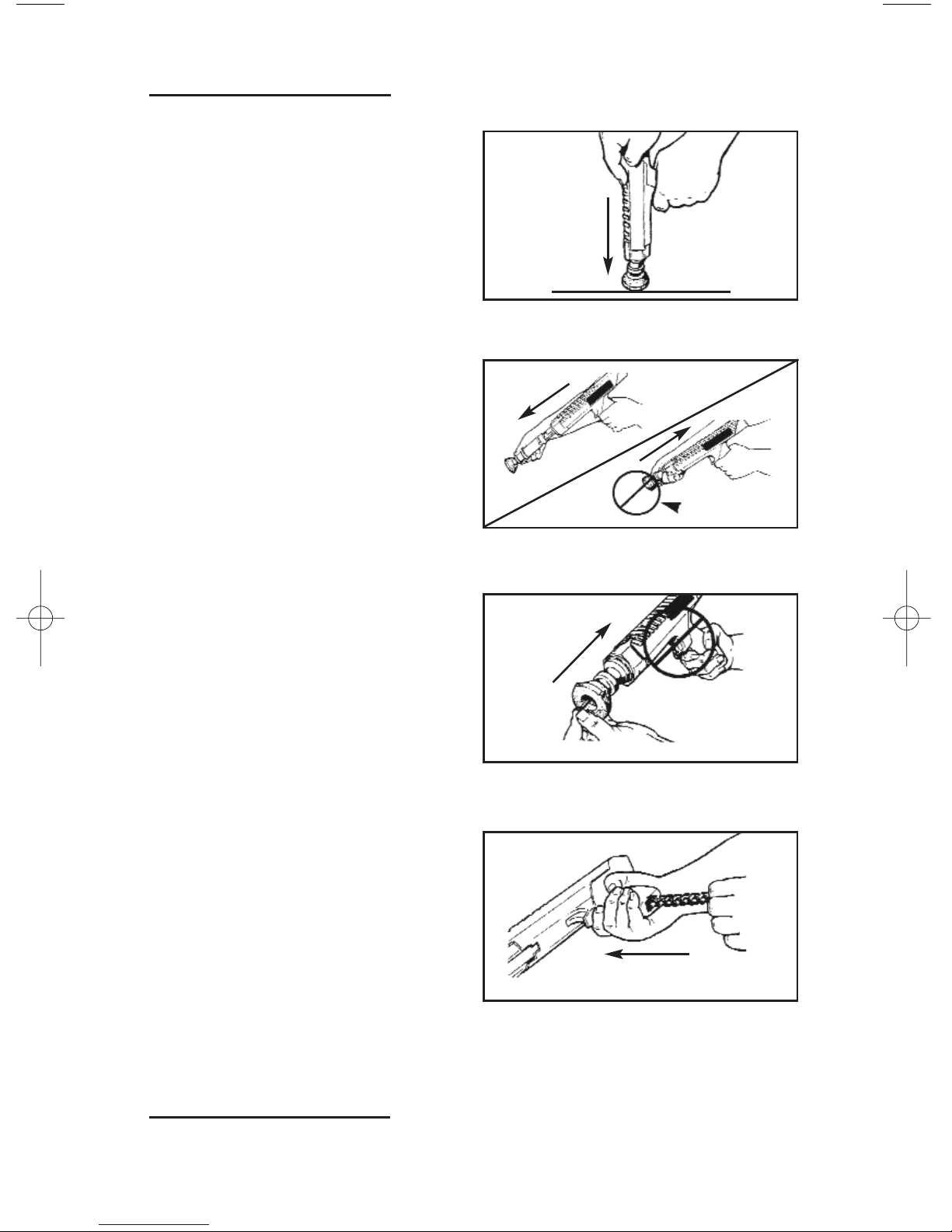

1. After checking to be sure that the tool
is not loaded, point it in a safe direction
and be sure that the barrel is fully
extended and then close the tool to the
semi-closed position. This assures that
the piston is in position for the next
fastening. Use the spall guard every
time possible to minimize the risk of
being struck by flying debris.
2. With finger off the trigger, place the
fastener, point out, into the muzzle
end of the tool until the point end is
inside the muzzle. NEVER load a
fastener with your finger on the trigger.
DO NOT use excessive force when
inserting a fastener. STOP immediately
if excessive force is require, inspect
the barrel to find out why the fastener
is not entering the muzzle freely. DO
NOT continue loading unless the
problem is corrected.
3. With the tool pointed in a safe
direction and finger away from the
trigger, insert a load strip into the
bottom of the handle and push it in
until your finger is in firm contact with
the handle recess.
TOOL OPERATING INSTRUCTIONS
TOOL OPERATING INSTRUCTIONS
9
FULLY OPEN AND CLOSE TOOL TO THE
SEMI-CLOSED POSITION
INSERT FASTENER INTO THE MUZZLE END OF
THE TOOL WITH THE POINT OUT
INSERT LOAD STRIP INTO THE OPENING IN
THE BOTTOM OF THE HANDLE
PERFORM THE FUNCTION TEST WITH EMPTY,
UNLOADED TOOL
Keep hands away
from muzzle
SA270_manual.qxd 11/21/06 1:01 PM Page 18

4. Hold the tool perpendicular (90°) to
the work surface with both hands and
press firmly to fully depress the tool.
Maintain firm downward pressure on
the tool with both hands and pull the
trigger to drive the fastener. DO NOT
DEPRESS THE TOOL AGAINST ANY-
THING OTHER THAN THE INTENDED
WORK SURFACE. Holding the tool firmly
in place will produce more consistent
fastening quality and minimize tool
wear or damage.
5. After making the fastening, fully open
and then close the tool to the semi-
closed position. This resets the piston
and indexes a new load into place for
the next fastening.
6. Insert another fastener in the muzzle
end of the tool as before and the tool
is ready for the next fastening. Keep
your finger off of the trigger until the
tool is in position to drive the fastener.
7. To remove a used or partially used
strip load from the tool, pull the strip
out from the top of the tool. Do not try
to remove the strip by pulling it out from
the bottom of the handle. NEVER
try to remove a jammed or stuck
load strip. Should a “jammed” load
strip occur, call your local Authorized
Ramset Distributor for technical
assistance.
TOOL OPERATING INSTRUCTIONS
TOOL OPERATING INSTRUCTIONS
10
HOLD THE TOOL FIRMLY
AND PERPENDICULAR TO THE
WORK SURFACE
INSERT THE NEXT FASTENER
REMOVE THE LOAD STRIP ONLY FROM
THE TOP OF THE TOOL
90°
FULLY OPEN AND CLOSE TOOL TO THE
SEMI-CLOSED POSITION
Keep hands away
from muzzle
SA270_manual.qxd 11/21/06 1:01 PM Page 19

REFER TO PARTS SCHEMATIC FOR PROPER ASSEMBLY OF PARTS
– Overdriving of fasteners – Excessive power – Change to the next lower
power level load strip
color and number.
– Soft base material – Check base material
(see page 3)
– Tool fails to fire – Failure to depress – See “Tool does not
completely completely depress”
– Excessive dirt buildup on – After following misfire
breech face not allowing procedure, check firing
proper penetration of pin indentation on load.
firing pin Clean breech face
– Firing pin and/or breech – Replace damaged parts
damaged
– Tool does not completely – Misassembled or – Check all parts in the
depress damaged parts receiver for damage or
improper assembly.
– Reduction or loss of power – Piston not being returned – Barrel must be pulled
to the full rear position completely open to
properly position the
piston.
– Worn or damaged – Replace worn or
piston or piston ring damaged parts
– Worn or broken pawls – Replace pawls
– Tool cannot be cocked – Excessive dirt buildup – Clean tool thoroughly
or opened – Damaged or bent piston – Replace piston
– Broken or damaged parts – Tag tool with warning
“Defective–Do Not Use”
Place in a locked container
and contact your local
Ramset representative
for service.
– Failure to index strip – Strip not inserted in tool – Check load strip. Properly
correctly or is damaged dispose of damaged strip.
(See page 6)
– Damaged indexing – Contact your Ramset
mechanism Distributor for assistance
– Failure of tool to stay – Retaining ball missing – Contact your Ramset
closed when pointed in Distributor for assistance
the downward position
TROUBLESHOOTING
TROUBLESHOOTING
11
SA270_manual.qxd 11/21/06 1:01 PM Page 22

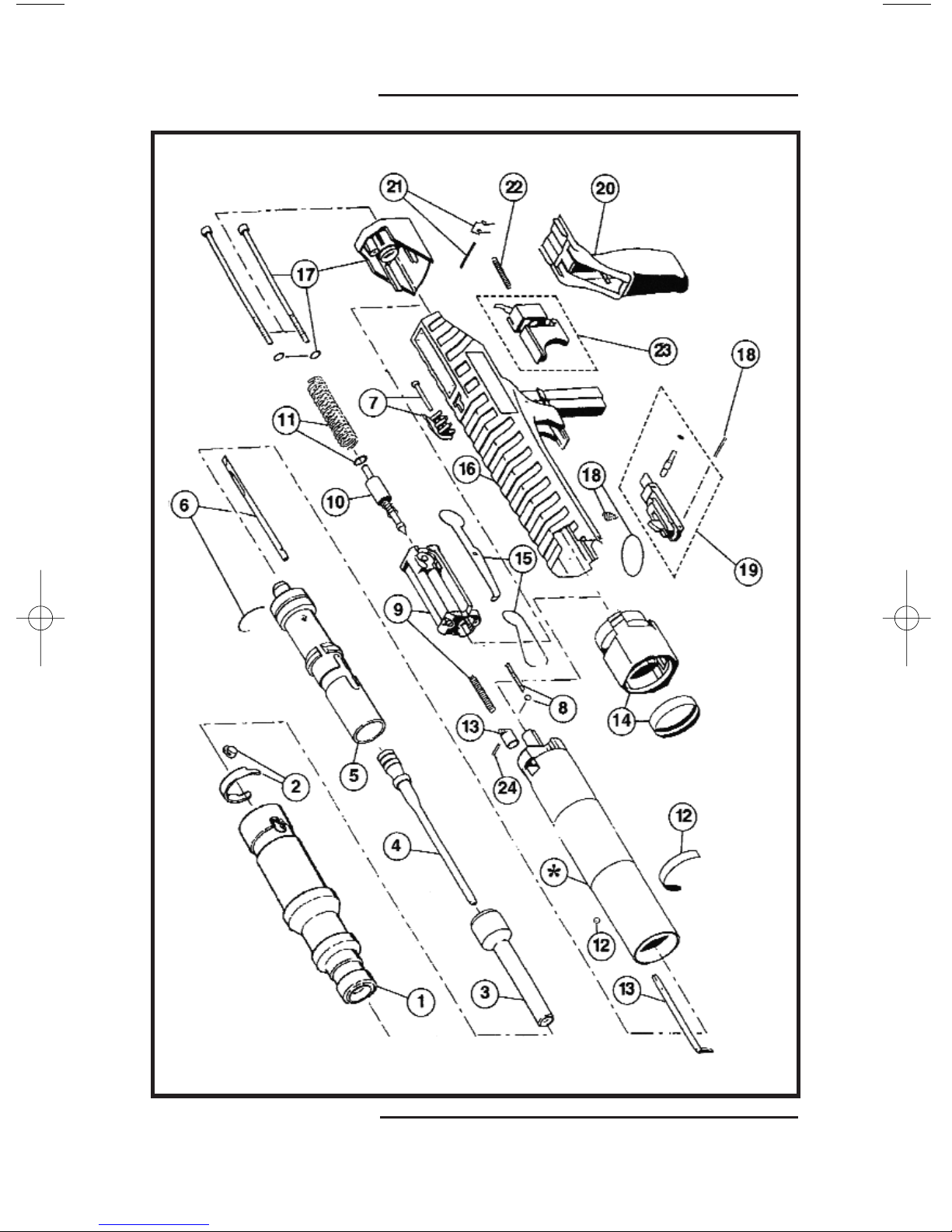

PARTS SCHEMATIC
PARTS SCHEMATIC
12
SA270_manual.qxd 11/21/06 1:01 PM Page 23

PARTS LIST / MAINTENANCE
PARTS LIST / MAINTENANCE
13
Always make sure the tool is not loaded before performing any service or repair and
always wear safety goggles when cleaning or servicing the tool.
NORMAL CLEANING
All front end parts shown in the disassembly section are to be cleaned daily with a good
detergent oil and wire brush. Remove all dirt and carbon buildup and wipe parts dry with
a clean rag. Check all parts for wear or damage before reassembly and replace or repair
any worn or damaged parts.
COMPLETE CLEANING / GENERAL MAINTENANCE
Heavy or constant exposure to dirt and debris may require that the tool be cleaned more
extensively. Complete disassembly and cleaning of all parts may be necessary to restore
the tool to normal operation. General maintenance should be performed every six months
or more often if the tool is subjected to heavy use. Contact your authorized Ramset
Distributor for assistance.
IMPROPERLY MAINTAINED TOOLS CAN CAUSE SERIOUS INJURIES
TO TOOL OPERATOR AND BYSTANDERS
CLEAN TOOL DAILY
ALWAYS FUNCTION TEST THE TOOL AFTER PERFORMING ANY
SERVICE. SEE PAGE 9 FOR DETAILS ON THE FUNCTION TEST.
MAINTENANCE
SA270 TOOL PARTS LIST
KEY PART NO. DESCRIPTION
1 27664 FRONT BARREL
2 27667A BARREL RETAINING CLIP ASSEMBLY
3 27569 MUZZLE BUSHING
4 27921 PISTON WITH RING
5 27662 REAR BARREL
6 27563A LOAD ADVANCE ROD ASSEMBLY
7 27555A SPOOL COVER AND ROD
8 27524A STRIP DETENT SPRING AND BALL
9 27934A MECHANISM HOUSING AND SPRING
10 27931 FIRING PIN ASSEMBLY
11 27578A FIRING PIN SPRING AND WASHER
12 27552A BARREL DETENT CLIP ASSEMBLY
13 27657A COCKING ROD AND ROTARY SEAR
14 27930A FRONT HOUSING AND RETAINING RING
15 27527A ADVANCE LEVER AND SPRING
16 27952 OUTER HOUSING
17 27533A END CAP ASSEMBLY
18 27537A PAWL HOUSING SPRING, O-RING & PIN
19 27923 PAWL HOUSING
20 27532 RUBBER HANDLE
21 27516A TRIGGER MECHANISM PIN & SPRING
22 27514 TRIGGER SPRING
23 27608 TRIGGER ASSEMBLY
24 27519 ROLL PIN
25 27580 SPALL GUARD (NOT SHOWN)
26 24853 PISTON RING (NOT SHOWN)
* The receiver weldment is not available as a spare part
SA270_manual.qxd 11/21/06 1:01 PM Page 26

DISASSEMBLY
14
DISASSEMBLY
TOOL DISASSEMBLY

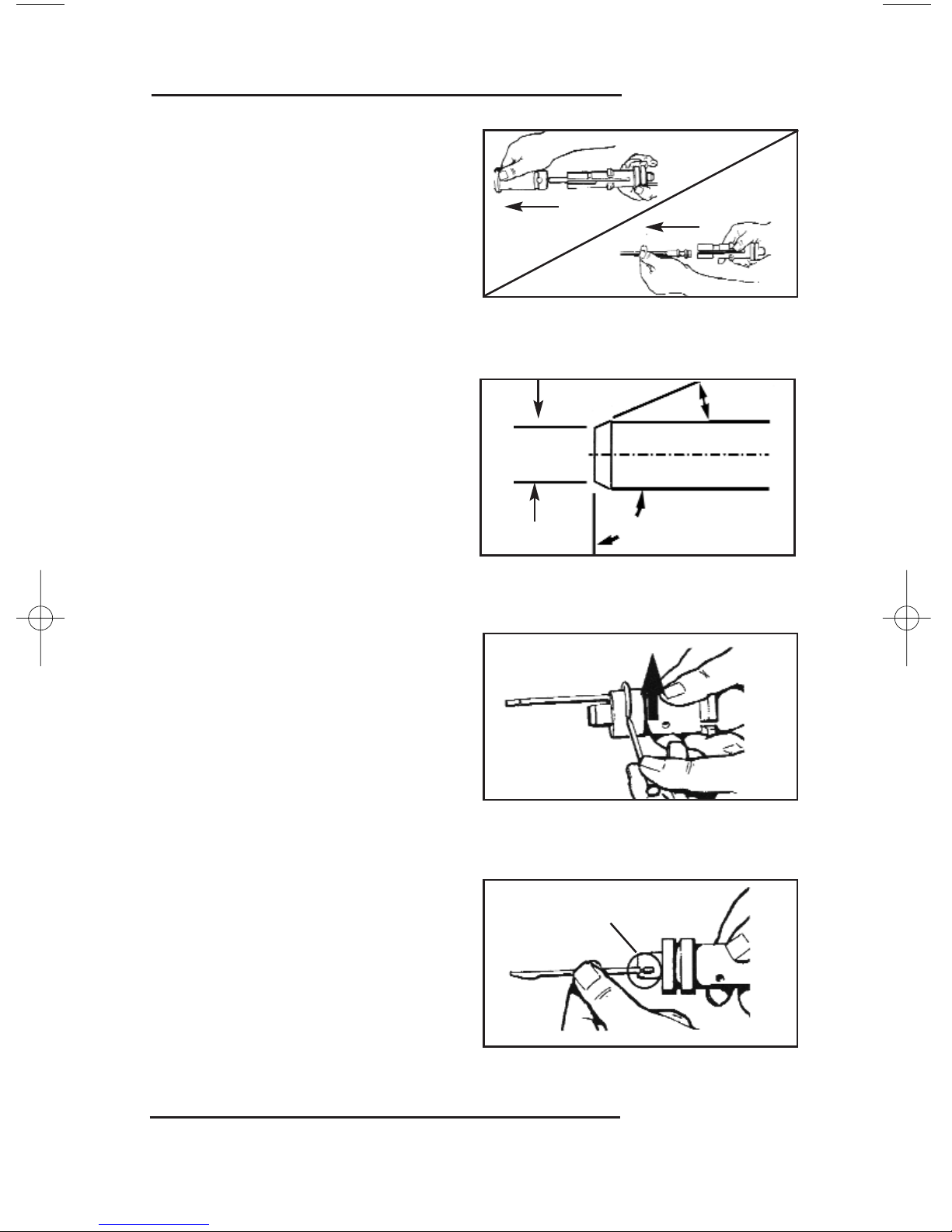

1. Depress the detent pin to release
the pawl.
2. Lift the pawl up to release the barrel
assembly. Check the O-ring around the
pawl housing for damage and replace
as necessary.
3 Slide the barrel assembly out of the
tool body while holding the pawl in
the open position.
4. Slide the front barrel back until the
round shear pin is in line with the
perpendicular slot in the rear barrel.
5. Twist the front barrel in the slot and
rotate it 90°.
DEPRESS DETENT PIN TO RELEASE
THE PAWL
PIVOT PAWL UPWARD
REMOVE THE BARREL ASSEMBLY
ALIGN SHEAR PIN WITH SLOT
TWIST BARREL IN SLOT
AND ROTATE 90°
SA270_manual.qxd 11/21/06 1:01 PM Page 27

DISASSEMBLY
15
DISASSEMBLY
6. Slide the front barrel from the rear
barrel and remove the piston from the
rear barrel.
The tool is now disassembled for
normal cleaning. Inspect all parts for
wear or damage and clean or replace
as required. Use detergent oil and
cleaning brushes to remove dirt and
powder residues. Wipe all parts dry
before reassembly. Wear safety
goggles when cleaning tool parts.
7. Check the piston tip for damage and
grind flat. The tip of the piston must be
90° to the shank. Grinding should only
be done by qualified personnel. The
minimum overall length of the piston
must not be less than 6 5/8" long. When
less than 6 5/8" long, the piston must be
replaced to avoid tool damage.
Reassemble the tool in the reverse
order of disassembly.
Normal front end cleaning may be done
without disassembling the rear barrel. If
it is necessary to disassemble the rear
barrel for part replacement, use a drive
pin or small, flat screwdriver to pry the
retaining clip out of the groove in the
rear barrel to release the load advance
rod. When removing the advance rod,
note the position of the notch in the rod
since the notch must be aligned with
the retaining clip groove for reassembly.
ALWAYS PERFORM THE DAILY
FUNCTION TEST BEFORE USING
THE TOOL AFTER CLEANING OR
SERVICING.
REMOVE THE PISTON AND
FASTENER GUIDE
ALIGN THE FRONT AND
REAR BARREL GROOVES
ALIGN THE BARREL ASSEMBLY
GROOVE WITH THE PAWL OPENING
GRIND THE PISTON TIP FLAT
AND BEVEL THE EDGE
5/16"
18°
90°
NOTE NOTCH
POSITION IN ROD
SA270_manual.qxd 11/21/06 1:01 PM Page 30

WARRANTY
ALL WARRANTIES OF THE PRODUCTS DESCRIBED HEREIN, EXPRESSED
OR IMPLIED, INCLUDING THE WARRANTY OF MERCHANTABILITY AND
FITNESS FOR PARTICULAR PURPOSES, ARE SPECIFICALLY EXCLUDED,
EXCEPT FOR THE FOLLOWING: Ramset will repair or replace, at its sole
option, any tool, part, or fastener which, within 5 years after sale by Ramset
is found by Ramset to be defective in material or workmanship, normal wear
and tear excluded. THIS IS THE SOLE WARRANTY OF RAMSET AND THE
SOLE REMEDY AVAILABLE TO THE BUYER AND IN NO EVENT WILL ANY
DIRECT OR INDIRECT INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR
ANY OTHER DAMAGES, BE AVAILABLE.
Copyright 2008 Ramset
POWDER ACTUATED TOOL
MANUFACTURES' INSTITUTE INC.
TM
Concrete Fastening Systems
Glendale Heights, IL 60139
800-RAMSET6 (1-800-726-7386)
www.ramset.com
Buy with Confidence...
Buy From Your Authorized Distributor
AN ILLINOIS TOOL WORKS COMPANY
© ILLINOIS TOOL WORKS 2008
PRINTED IN THE U.S.A. REVISED 01/08
THE MODEL SA270 TOOL COMPLIES WITH OSHA REQUIREMENTS
AND WITH ANSI A10.3 SPECIFICATIONS
FOR TOOL REPAIR SERVICE CONTACT YOUR LOCAL
AUTHORIZED RAMSET DISTRIBUTOR OR TO FIND
YOUR NEAREST RAMSET TOOL REPAIR CENTER
VISIT OUR WEB SITE AT WWW.RAMSET.COM
OR CALL 800-241-5640
SA270_manual.qxd 1/17/08 9:50 AM Page 31
