Preparation Table Back Mount Worktop models 9000-7
Description:
Self-contained, refrigerator or freezer unit with stainless steel flat
worktop and a 3” high backsplash. Back-mounted removable,
replaceable, R-134a refrigeration. “Front Breathing” system,
requires no side or back clearance. Integrated rubber bumpers
provide 1” rear clearance on models 9802F-7 and 9302F-7. Self-
closing door(s), 6” high adjustable legs, and cordset for 115V
operation. Models range from 27” to 72”, and are 30” deep and
36” high.
model 9604-7
shown
Specifications:
CABINET EXTERIOR: The top, sides, and front are stainless steel.
Bottom and back of unit are corrosion resistant steel. Door
opening frames are ABS and contain magnetic strip for positive
seal of door gaskets. Freezer models with door frame heater to
prevent gasket freezing. Units ship standard on (4) 6” high legs
with adjustable bullet feet.
CABINET INTERIOR: Interior of cabinet is fully coved to meet N.S.F.
standard #7. The Interior bottom, back, and top are anodized
aluminum with coved corners for easy clean-up. The interior ends
are ABS. Two adjustable powder coat finished shelves behind each
door, adjustable on 1” increments. Unit insulated with a minimum
of 2.5” of CFC free, foamed in place polyurethane.
DOORS: Stainless steel front with easy to grasp recessed
handle, mounted on heavy duty concealed hinges. Hinges are
all stainless steel with bronze pivot pin in nylon bushing, spring
loaded to be self-closing. Doors with foamed in place insulation,
press fit magnetic gaskets - (designed for installation & removal
without tools), and deep draw ABS interior liner for maximum
insulation value.
REFRIGERATION: CFC free, R-134a back-mounted refrigeration
system to be self-contained with evaporator blower coil,
compressor, thermostatic control, forced-air condensing coil and
capillary tube contained in removable assembly. Condensate
evaporator provided. Freezer utilizes CFC free, R-404a refrigerant,
and automatic, self-defrosting system for blower coil. Units totally
prewired and to be supplied with 8’ cordset (NEMA 5-15P) for
115V operation. “Front Breathing” refrigeration system, requires
no side or back clearance. Integrated rubber bumpers provide 1”
rear clearance on models 9802F-7 and 9302F-7.
Standard Features:
• Self-contained, removable, replaceable refrigeration
package that utilizes R-134a refrigerant, (R-404a in
freezer models) both are “CFC free”
• “Front Breathing” (on legs/casters) refrigeration system, no side or
back clearance required. Integrated rubber bumpers provide 1” rear
clearance on models 9802F-7 and 9302F-7.
• Stainless steel top, sides, and front
• Fully adjustable shelves behind self-closing door
Stainless steel back panel
Refrigerated drawers
Overshelves (double or single tier)
Casters
Export voltages
Randell Preparation Table, Page 6
Revised 08/05
Options & Accessories:
model 9402-7 9402F-7 9802-7 9802F-7 9302-7 9302F-7
9602-7 9604-7

Randell, Unified Brands
888-994-7636, fax [phone]
Specifications subject to change without notice. For the most current specs, visit unifiedbrands.net.
Models 9000-7 Worktop
Model L D H Doors Storage
Cu. Ft.
Top HP Volt Amps NEMA Ship Wt.
9402-7 27” 30” 36” (1) 27” 5.66 backsplash 1/4 115/60/1 5.5 5-15P 190
9402F-7 27” 30” 36” (1) 27” 5.66 backsplash 1/3 115/60/1 6.8 5-15P 190
9802-7 36” 30” 36” (2) 18” 7.87 backsplash 1/4 115/60/1 5.5 5-15P 220
9802F-7 36” 30” 36” (2) 18” 7.87 backsplash 1/2 115/60/1 8.2 5-15P 220
9302-7 48” 30” 36” (2) 24” 10.82 backsplash 1/4 115/60/1 5.5 5-15P 265
9302F-7 48” 30” 36” (2) 24” 10.82 backsplash 1/2 115/60/1 8.2 5-15P 265
9602-7 60” 30” 36” (2) 27” 13.77 backsplash 1/4 115/60/1 5.5 5-15P 300
9604-7 72” 30” 36” (3) 24” 16.72 backsplash 1/4 115/60/1 5.5 5-15P 330

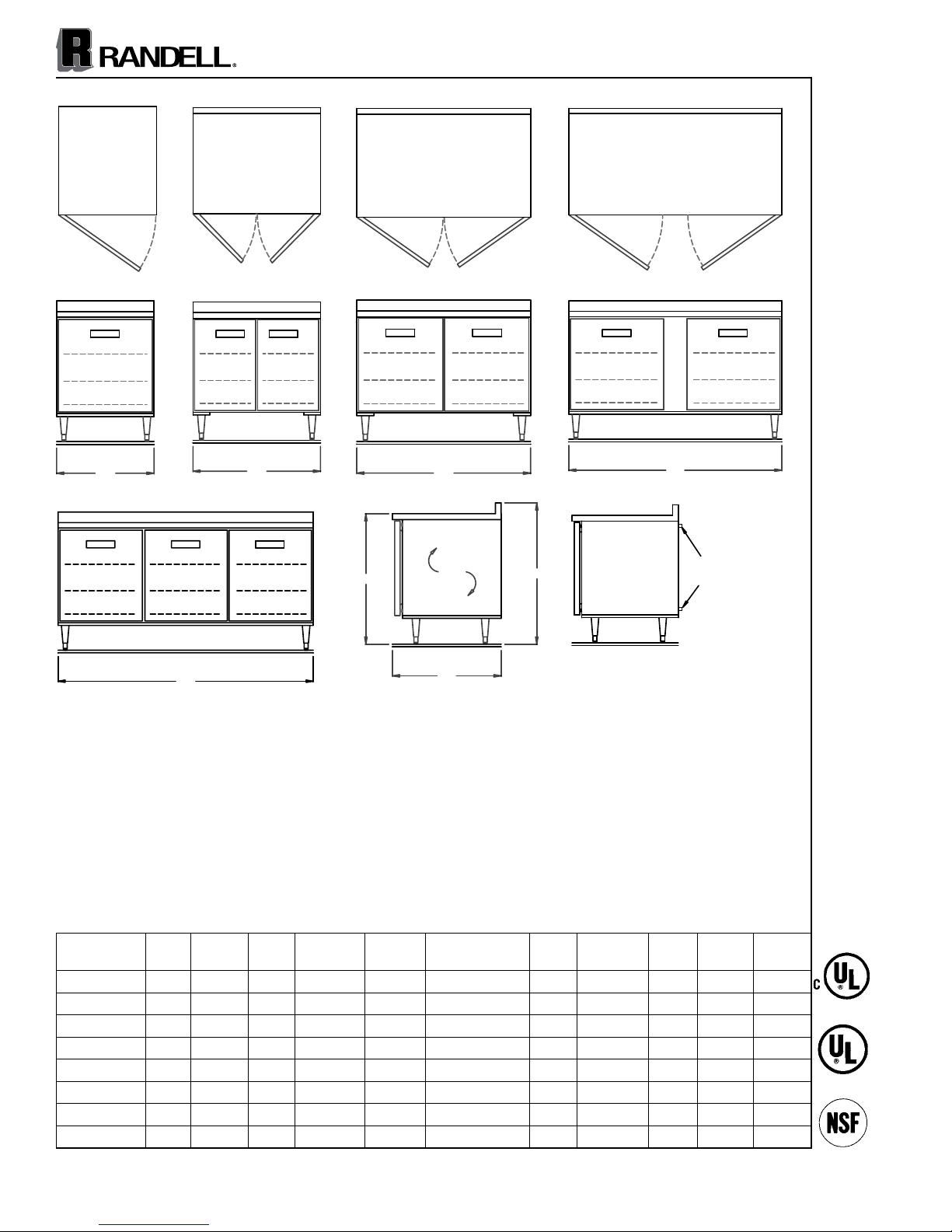

27"REFRIG
18"REFRIG18"REFRIG
*
36"
27"REFRIG
60"
24"REFRIG24"REFRIG
39"
*
S/S
END
48"
36"
30"
27"
27"
24"REFRIG 24"REFRIG 24"REFRIG
72"
(4) 1" RUBBER
BUMPER @ REAR
MUST HAVE 1"
OF CLEARENCE
IN THE REAR FOR
PROPER AIR
FLOW
9302F-7 & 9802F-7 Only
Drawings are to be viewed in the same order as the chart, one drawing to represent refrigerator and freezer units
NOTE: When ordering casters, 6” casters equal 35” height; 4” casters equal 33” height
