Drop-In Hot Food Well models 9560 & 9560N
Description:
Stainless steel drop-in, electrically heated hot food well unit
with individually and thermostatically controlled wells. Separate
control panel for field installation, prewired.

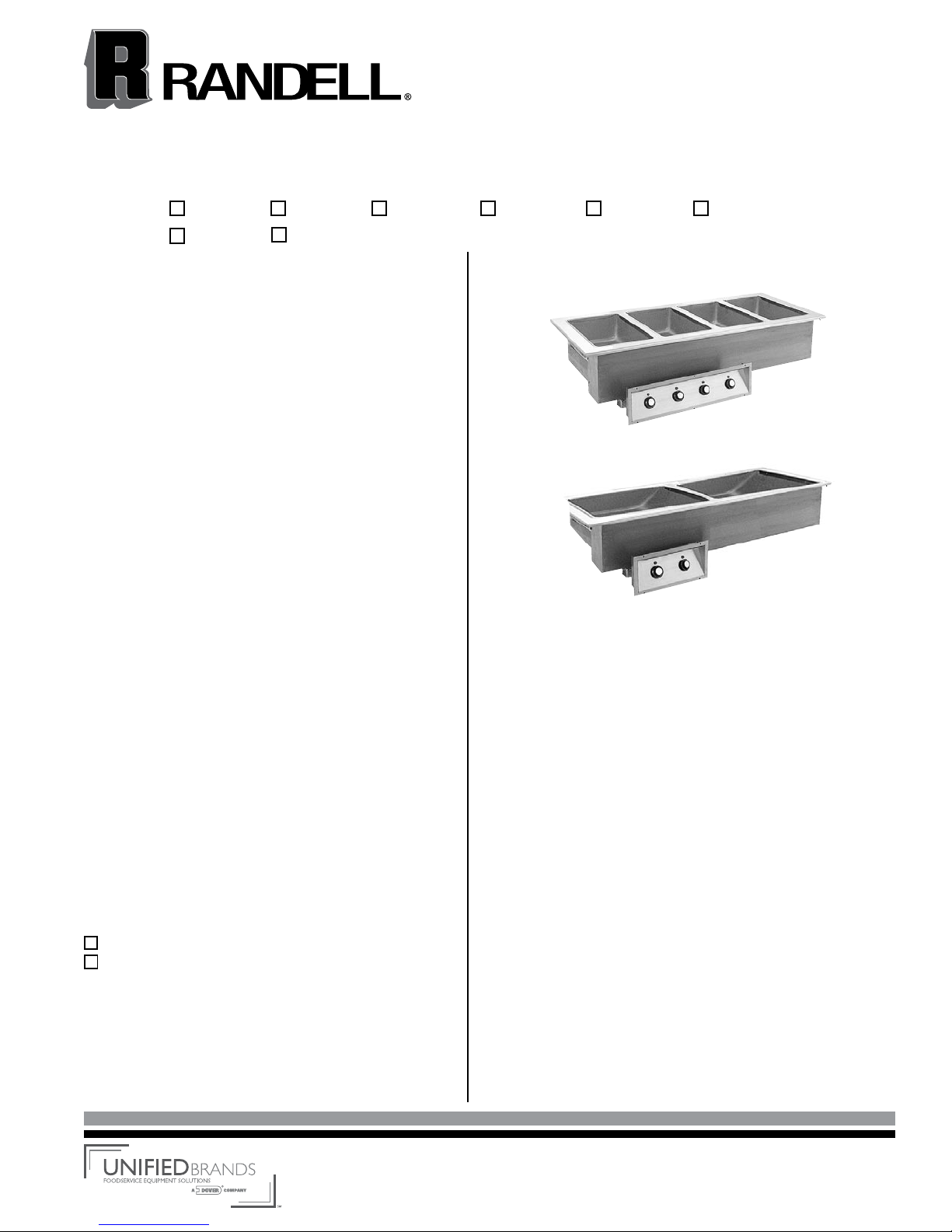

model 9560-4 shown
model 9560-1 9560-2 9560-3 9560-4 9560-4 9560-6
9560-2N 9560-3N
Standard Features:
• Individually controlled wells for maximum
operator control
• True thermostatic control for precise food temperatures
• Drains available as option for wet operation
• Approved for installation in either stainless or laminate
counter work
• Units listed under N.S.F. standard 4
• UL approved
Specifications:
UNIT TOP: Top to be one piece 18 gauge stainless steel. Top
openings to be die-stamped with raised perimeter rims.
FOOD WELLS: Units fitted with compliment of 12" x 20" x 6 1/2"
deep, electrically heated, sealed food wells, individually and
thermostatically controlled. Unit prewired to controls, mounted
on separate stainless steel panel. Note: If optional drains &
manifold are ordered, common gate is provided installed.
UNIT BODY: Fully insulated exterior body of corrosion resistant
steel.
CONTROLS: Controls prewired to junction box mounted on
separate stainless steel panel for field installation in counter
front. Connections to heating elements to be located outside of
heated zone to avoid wiring deterioration. 208/240V operation.
(120V available on request).
model 9560-2N shown
Options & Accessories:
Adaptor bars
Extended thermostatic lead
Randell Drop-In, Page 5
Revised 07/05

Randell, Unified Brands 888-994-7636, fax [phone]
Information contained in this document is known to be current and accurate at the time
of printing/creation. Unified Brands recommends referencing our product line websites,
unifiedbrands.net, for the most updated product information and specifications.
12" x 20" Cut Out Size No. of Amps / 60 / 1 PH
Model L D Pan Cap. Unit Control Panel Elements Watts 120V 208V 240V Ship Wt.
9560-1 18 1/2" 26" 1 16 1/8" x 22 1/2" 14 1/4" x 5 3/4" 1 1100 9.2 5.3 4.6 60
9560-2 31 7/8" 26" 2 29 7/8" x 22 1/2" 14 1/4" x 5 3/4" 2 2200 18.4 10.6 9.2 85
9560-3 45 9/16" 26" 3 43 1/2" x 22 1/2" 20" x 5 3/4" 3 3300 27.6 15.9 13.8 103
9560-4 59 5/16" 26" 4 57 1/8"x 22 1/2" 26" x 5 3/4" 4 4400 36.8 21.2 18.4 170
9560-5 73" 1/16" 26" 5 70 3/4" x 22 1/2" 32" x 5 3/4" 5 5500 46 27.5 23 230
9560-6 86 11/16" 26" 6 84 3/8 x 22 1/2" 38" x 5 3/4" 6 6600 55.2 31.7 27.6 290
9560-2N 47.625" 18.5" 2 45.264" x 16.125" 14.25" x 5.75" 2 2200 18.4 10.6 9.2 108
9560-3N 69.142" 18.5" 3 66.327" x 16.125" 20" x 5.75" 3 3300 27.6 15.9 13.8 175
Power supply requires hard wiring to “J” box.
Models 9560 & 9560N
MODEL # 9560-6
120V/60Hz/1Ph/55.2Amps
(6) ELEMENT, 6600 WATTS
208V/60Hz/1Ph/31.7Amps
240V/60Hz/1Ph/27.6Amps
CHOOSE ONE:
LEGEND FOR
LEGEND FOR
208V/60Hz/1Ph/26.5Amps
240V/60Hz/1Ph/23.0Amps
120V/60Hz/1Ph/46.0Amps
(5) ELEMENT, 5500 WATTS
MODEL # 9560-5
CHOOSE ONE:
240V/60Hz/1Ph/18.4Amps
MODEL # 9560-4
120V/60Hz/1Ph/36.8Amps
(4) ELEMENTS, 4400 WATTS
208V/60Hz/1Ph/21.2Amps
LEGEND FOR
CHOOSE ONE:
LEGEND FOR
CHOOSE ONE:
240V/60Hz/1Ph/13.8Amps
120V/60Hz/1Ph/27.6Amps
(3) ELEMENTS, 3300 WATTS
208V/60Hz/1Ph/15.9Amps
MODEL # 9560-3
208V/60Hz/1Ph/10.6Amps
240V/60Hz/1Ph/9.2Amps
120V/60Hz/1Ph/18.4Amps
(2) ELEMENTS, 2200 WATTS
MODEL # 9560-2
LEGEND FOR
CHOOSE ONE:
MODEL # 9560-1
LEGEND FOR
240V/60Hz/1Ph/4.6Amps
120V/60Hz/1Ph/9.2Amps
(1) ELEMENT, 1100 WATTS
208V/60Hz/1Ph/5.3Amps
CHOOSE ONE:
J
CONTROL PNL.-38" X 5.75"
UNIT-84.375" X 22.5"
J-BOX
CUTOUT DIMENSIONS: 83.875"
86.75"
9" 13.25"
22"
26"
9"
6"
J
73"
CONTROL PNL.-32" X 5.75"
UNIT-70.75" X 22.5"
J-BOX
CUTOUT DIMENSIONS:
73"
9" 13.25"
70.25"
22"
26"
9"
6"
J
CONTROL PNL.-26" X 5.75"
UNIT 57.125" X 22.5"
CUTOUT DIMENSIONS:
J-BOX
26"
22"
56.625"
59.25"
9"
6"
9" 13.25"
J
CONTROL PNL.-20" X 5.75"
UNIT 43.5" X 22.5"
J-BOX
CUTOUT DIMENSIONS:
45.5"
43"
9"
6"
9" 13.25"
26"
22"
J
31.75"
CONTROL PNL.-14.25" X 5.75"
UNIT-29.875" X 22.5"
CUTOUT DIMENSIONS:
J-BOX
31.75"
29.375"
9"
6" 26"
22"
9" 13.25"
J
CONTROL PNL.-14.25" X 5.75"
UNIT-16.125" X 22.5"
J-BOX
CUTOUT DIMENSIONS: 18.5"
13.25"
9"
15.625"
22"
26"
9"
6"
