Range Road EcoPro300 User manual

EcoPro300
Range Road Enterprises Ltd
Box 944
Eckville AB T0M 0X0
www.range-road.ca
Range Road EcoPro300
Firewood Processor
Crated Unit
Assembly Manual

EcoPro300
Range Road Enterprises Ltd
Box 944
Eckville AB T0M 0X0
www.range-road.ca
Crated Unit
1.) Undo 8 -18mm x 19mm Nuts and bolts , 2 on each leg of top frame
2.) Lift top of Metal crate off and move out of work area.
3.) Remove Shrinkwrap.
4.) Remove and Unwrap components
5.) Lift Unit off of the crate, if using straps be careful not to bend or
stress any components

EcoPro300
Range Road Enterprises Ltd
Box 944
Eckville AB T0M 0X0
www.range-road.ca
6.) Insert axle into the square tube at the rear of the processor, centre
the axle in the housing and the tighten the bolts, Make sure the holes in
the axles are facing up, when the bolts are tightened then tighten the nuts
7.) Once the bolts are tight, tighten the nuts to lock the bolts in place
8.) Mount the fenders on the axle, snug the bolts but do not tighten, holes
in the fenders go to the rear
9.) Gently remove dust seals from the rear of the hubs
10.) Grease all 4 bearing cones with wheel bearing grease
11.) Re-install bearings and dust seals
12.) Remove the nuts from the axle shaft
13.) Install wheel and hub onto the axle and install the outside bearing
cones.

EcoPro300
Range Road Enterprises Ltd
Box 944
Eckville AB T0M 0X0
www.range-road.ca
14.) Re-install axle nut and tighten until whell is hard to turn, then
back the nut off until the whell turns freely.
15.) Line up holes and install cotter pin
16.) Install hub cap and tap lightly to get it into place
17.) Torque wheel nuts to 70-80 ft/lbs
18.) Centre fender over tire and tighten the 13mm nuts and bolts
19.) Install tripod leg in front mount and lower processor to the ground
20.) If this unit was supplied with both a spring and a gas cylinder for the
saw return it is up to the assembler which method to use
- If you use the spring continue to 20a and skip 20b
- if using the gas cylinder skip 20a and continue at 20b
20a)- if you decide to use the spring, a 7mm socket on an extension works
to lock the spring in its tab, the 7mm socket fits over the end of the
spring and allows you to safely apply downward pressure to put the spring in
place under the tab

EcoPro300
Range Road Enterprises Ltd
Box 944
Eckville AB T0M 0X0
www.range-road.ca
20b) If you decide to use the gas cylinder, remove the 18mm bolt at the
end of the swivel plate shaft beside the spring
20b) Slide the swivel plate up and remove the spring, slide the plate back
into place and re-tighten the bolt
21.) Mount sawdust chute to side of processor with Allan head boolts and
10mm nuts
22.) Mount small safety cage with 4 13mm nuts and bolts
23.) Remove 2 - 18mm bolts from swivel plate
24.) Mount Chainsaw arm to swivel plate and tighten 2 –18mm bolts
25.) screw the gas cylinder into the swivl head that is already mounted to
the small safety cage (if using gas cylinder to return sawbar and not using
the spring in step 20)
- If you are using the spring skip steps 25 & 26

EcoPro300
Range Road Enterprises Ltd
Box 944
Eckville AB T0M 0X0
www.range-road.ca
26.) Mount gas cylinder to the sawbar handle and tighten nut
27.) Place large safety cage on the end without any bolts, remove all 10mm
nuts & bolts, place blue chainsaw cover on the end of safety cage and line
up the bolt holes, tighten all 10mm nut & bolts
28.) Remove 13mm nuts from bar oil tank and mount tank to the chainsaw
safety cover, tighten 13mm nuts.
29.) Remove 10mm nut & bolt from safety cage pivot point and remove
cotter pin from round bar on safety cage
30.) Set safety cage in place

EcoPro300
Range Road Enterprises Ltd
Box 944
Eckville AB T0M 0X0
www.range-road.ca
31.) Re-install 10mm bolt & nut to hold cage in place, do not tighten as the
safety cage needs to swivel.
32.) Re-install cotter pin in end of safety cage round bar
33.) Remove nut from chainsaw tensioner and put plastic tubing in place, re-
tighten the nut to hold the plastic tubing and seal, do not over tighten.
34.) Run the tubing through the safety cage, make sure cage can open and
close freely, push the end of the tubing into the tank fitting.
35.) Put toolbox into place and tighten 22 –13mm nuts and bolts
36.) Remove the 16mm bolt & 17mm nut from the end of the hitch
drawbar.
37.) Place drawbar in receiver tube by the engine, re-install 16mm bolt and
17mm nut, tighten.
38.) Tighten both 18mm bolts on the receiver tube, tighten the lock nuts.

EcoPro300
Range Road Enterprises Ltd
Box 944
Eckville AB T0M 0X0
www.range-road.ca
39.) Mount the tongue jack and tighten the bolts.
The manual log roller arm mounts in this position.
40.) Remove the cotter pin and slide out the pin & roller.
41.) Line up the tab holes and re-insert the pin and roller
42.) re-insert cotter pin and bend the end of the cotter pin so it stays in
place.
43.) Place the end of the log holder spring in the hole of the log holder and
tighten bolt.
44.) Remove 18mm bolts & 19mm nuts from side of processor.
45.) Assemble wedge adjuster as shown.
46.) The nut goes on a few threads, once everything is in position you can
tighten this to adjust the tension of the wedge adjuster to where you
prefer it.

EcoPro300
Range Road Enterprises Ltd
Box 944
Eckville AB T0M 0X0
www.range-road.ca
47.) Remove the bolt & washer from the end of the swivel bar.
48.) Slide the swivel bar through the mount behind the axle.
49.) Re-install the bolt & washer and tighten.
50.) Install wedge adjustment plate and tighten 2 –18mm bolts & 19mm
nuts.
51.) Pull the adjuster bar into postion.
52.) Tighten the tensioner bolt until the bar has the tension on it that you
prefer.
53.) Mount the battery ground cable to the 10mm ground bolt on the
engine.

EcoPro300
Range Road Enterprises Ltd
Box 944
Eckville AB T0M 0X0
www.range-road.ca
54.) Mount the red battery cable to the lower position of the solenoid on
the engine.
55.) Connect the battery terminals to the other end of the battery cables,
+ to red cable, - to black cable.
56.) Connect terminal to battery and tighten.
57.) Tighten bolts on chain and coupler.

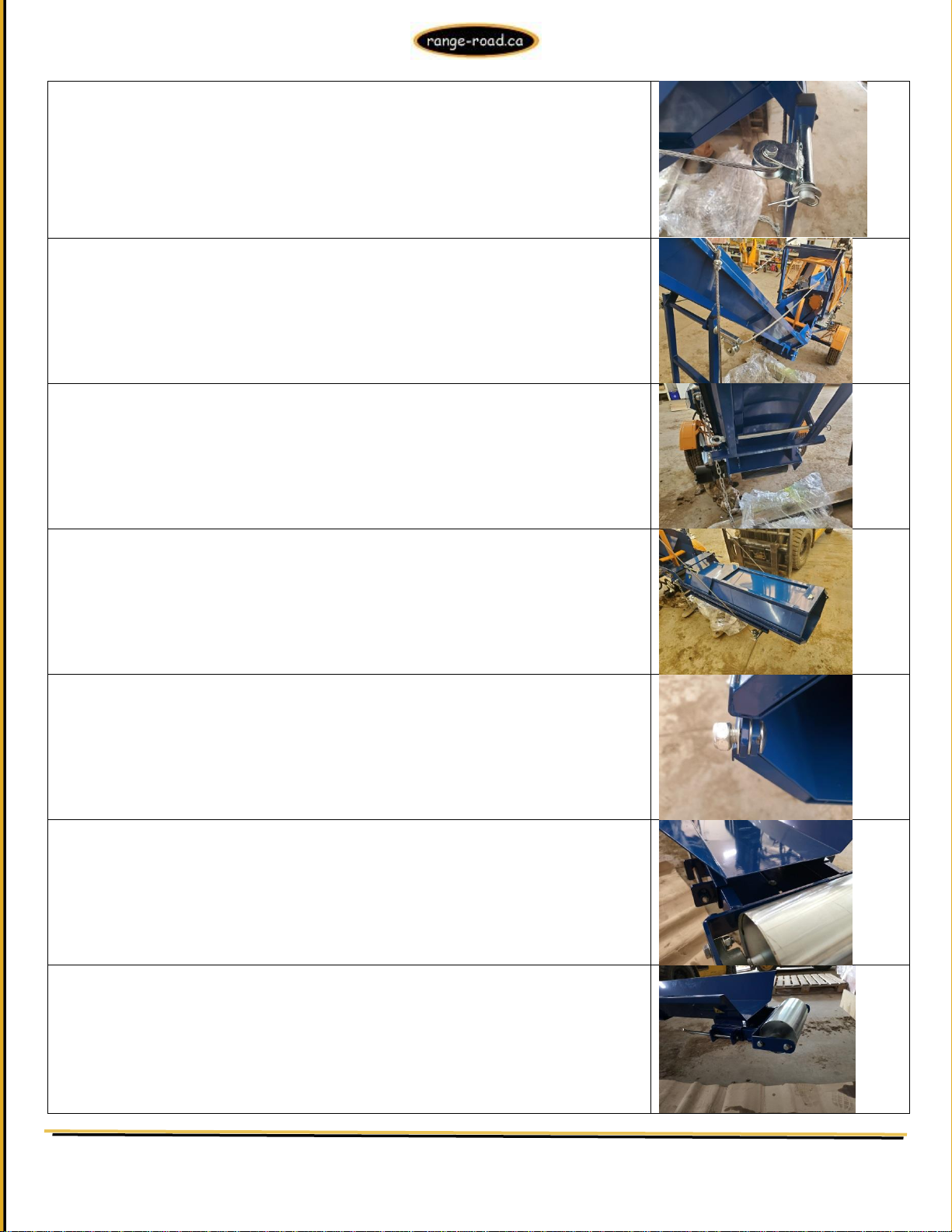

58.) Remove the outfeed conveyor from it’s box.
59.) Unwrap all the components.
60.) Mount the conveyor base section to the rear of the processor using
the 2 bolts provided.
