Raven AutoBoom User manual

AGCO RoGator - 2009
AutoBoom™ Installation Manual
P/N 016-0230-087 Rev E 07/15 E24070
Copyright 2009, 2010, 2011, 2012, 2015

While every effort has been made to ensure the accuracy of this document,
Raven Industries assumes no responsibility for omissions and errors. Nor is any
liability assumed for damages resulting from the use of information contained
herein.
Raven Industries shall not be responsible or liable for incidental or consequential
damages or a loss of anticipated benefits or profits, work stoppage or loss, or
impairment of data arising out of the use, or inability to use, this system or any of
its components. Raven Industries shall not be held responsible for any
modifications or repairs made outside our facilities, nor damages resulting from
inadequate maintenance of this system.
As with all wireless and satellite signals, several factors may affect the availability
and accuracy of wireless and satellite navigation and correction services (e.g.
GPS, GNSS, SBAS, etc.). Therefore, Raven Industries cannot guarantee the
accuracy, integrity, continuity, or availability of these services and cannot
guarantee the ability to use Raven systems, or products used as components of
systems, which rely upon the reception of these signals or availability of these
services. Raven Industries accepts no responsibility for the use of any of these
signals or services for other than the stated purpose.
Disclaimer
©Raven Industries, Inc. 2009, 2010, 2011, 2012, 2015

Table of Contents
Manual No. 016-0230-087 Rev. E i
Chapter 1 Important Safety Information................................................. 1
Hydraulic Safety ........................................................................................................................ 2
Electrical Safety ........................................................................................................................ 2
Chapter 2 Introduction............................................................................. 3
Preparing for Installation ........................................................................................................... 3
Recommendations .............................................................................................................. 4
Point of Reference ............................................................................................................... 4
Hydraulic Fittings ....................................................................................................................... 4
Updates ..................................................................................................................................... 5
Chapter 3 PowerGlide Plus ..................................................................... 7
PowerGlide Plus Kit Contents ................................................................................................... 7
Install the PowerGlide Plus Hydraulic System ....................................................................... 12
Install the Gauge Wheels ........................................................................................................15
Gauge Wheel Mounting Locations .................................................................................... 15
Mount the Gauge Wheels .................................................................................................. 15
120’ Boom Gauge Wheel Mounting .................................................................................. 16
Install the PowerGlide Plus Wiring .......................................................................................... 16
Install the AutoBoom Node ................................................................................................ 17
Connect the Harness to the Boom Function Controls ....................................................... 17
Connect the Harness Cable to the Controller Cable ......................................................... 18
Connect the CAN/Power Cables ....................................................................................... 18
Connect the Power Leads ................................................................................................. 19
PowerGlide Plus Wiring Schematics ....................................................................................... 20
AutoBoom Controller ......................................................................................................... 20
SCS 4000/5000 ................................................................................................................. 21
Viper Pro/Envizio Pro ........................................................................................................ 22
Chapter 4 UltraGlide............................................................................... 23
UltraGlide Kit Contents ............................................................................................................ 23
Install the UltraGlide Hydraulic System .................................................................................. 29
Install the UltraGlide Sensors ..................................................................................................31
Boom Sensor Mounting Locations .................................................................................... 31
Mount the Center Rack Sensor ......................................................................................... 33
Connect the Sensor Cables .............................................................................................. 33
Install the Gauge Wheels - Optional ........................................................................................ 34
Gauge Wheel Mounting Locations .................................................................................... 34
120’ Boom Gauge Wheel Mounting .................................................................................. 35
Install the UltraGlide Wiring ..................................................................................................... 35
Install the AutoBoom Node ................................................................................................ 36
Connect the Harness to the Boom Function Controls ....................................................... 36

Table of Contents
ii RoGator 2009 AutoBoom™ Installation Manual
Install the Center Rack Control ..........................................................................................37
Connect the Harness Cable to the Controller Cable ......................................................... 38
Connect the Harness Cable to the Sensors ...................................................................... 39
Connect the CAN/Power Cables ....................................................................................... 39
Connect the Power Leads ................................................................................................. 40
UltraGlide Wiring Schematics .................................................................................................. 41
AutoBoom Controller ......................................................................................................... 41
SCS 4000/5000 ................................................................................................................. 42
Viper Pro/Envizio Pro ........................................................................................................43
Chapter 5 Replacement Parts ............................................................... 45
Wheels .................................................................................................................................... 45
Sensors ................................................................................................................................... 46

CHAPTER
1
Manual No. 016-0230-087 Rev. E 1
C hapt er 1 Important Safety
Information
Read this manual and the operation and safety instructions included with your implement and/or controller
carefully before installing the AutoBoom™ system.
•Follow all safety information presented within this manual.
•If you require assistance with any portion of the installation or service of your Raven equipment, contact
your local Raven dealer for support.
•Follow all safety labels affixed to the AutoBoom system components. Be sure to keep safety labels in good
condition and replace any missing or damaged labels. To obtain replacements for missing or damaged
safety labels, contact your local Raven dealer.
When operating the machine after installing AutoBoom, observe the following safety measures:
•Be alert and aware of surroundings.
•Do not operate AutoBoom or any agricultural equipment while under the influence of alcohol or an illegal
substance.
•Remain in the operator’s position in the machine at all times when AutoBoom is engaged.
•Disable AutoBoom when exiting from the operator’s seat and machine.
•Do not drive the machine with AutoBoom enabled on any public road.
•Determine and remain a safe working distance from other individuals. The operator is responsible for
disabling AutoBoom when the safe working distance has diminished.
•Ensure AutoBoom is disabled prior to starting any maintenance work on AutoBoom or the machine.
•When starting the machine for the first time after installing AutoBoom, be sure that all persons stand clear,
in case a hose has not been properly tightened.
•The machine must remain stationary and switched off, with the booms unfolded and supported, during
installation or maintenance.
NOTICE
WARNING

Chapter 1
2 RoGator 2009 AutoBoom™ Installation Manual
Hydraulic Safety
•Raven Industries recommends that appropriate protective equipment be worn at all times when working on
the hydraulic system.
•Never attempt to open or work on a hydraulic system with the equipment running. Care should always be
taken when opening a system that has been previously pressurized.
•When disconnecting the hydraulic hoses or purging is required, be aware that the hydraulic fluid may be
extremely hot and under high pressure. Caution must be exercised.
•Any work performed on the hydraulic system must be done in accordance with the machine manufacturer’s
approved maintenance instructions.
•When installing AutoBoom hydraulics or performing diagnostics, maintenance, or routine service, ensure
that precautions are taken to prevent any foreign material or contaminants from being introduced into the
machine’s hydraulic system. Objects or materials that are able to bypass the machine’s hydraulic filtration
system will reduce performance and possibly damage the AutoBoom hydraulic valve.
Electrical Safety
•Always verify that the power leads are connected to the correct polarity as marked. Reversing the power
leads could cause severe damage to the equipment.
•Ensure that the power cable is the last cable to be connected.
CAUTION

CHAPTER
2
Manual No. 016-0230-087 Rev. E 3
C hapt er 2 Introduction
Congratulations on your purchase of the Raven AutoBoom system! This system is designed to provide
automated boom height adjustment for agricultural equipment.
This manual applies to the following machines. For future reference, write your serial number in the space
below.
MAKE: AGCO
MODEL: RoGator
YEAR: 2009
SERIAL NUMBER:

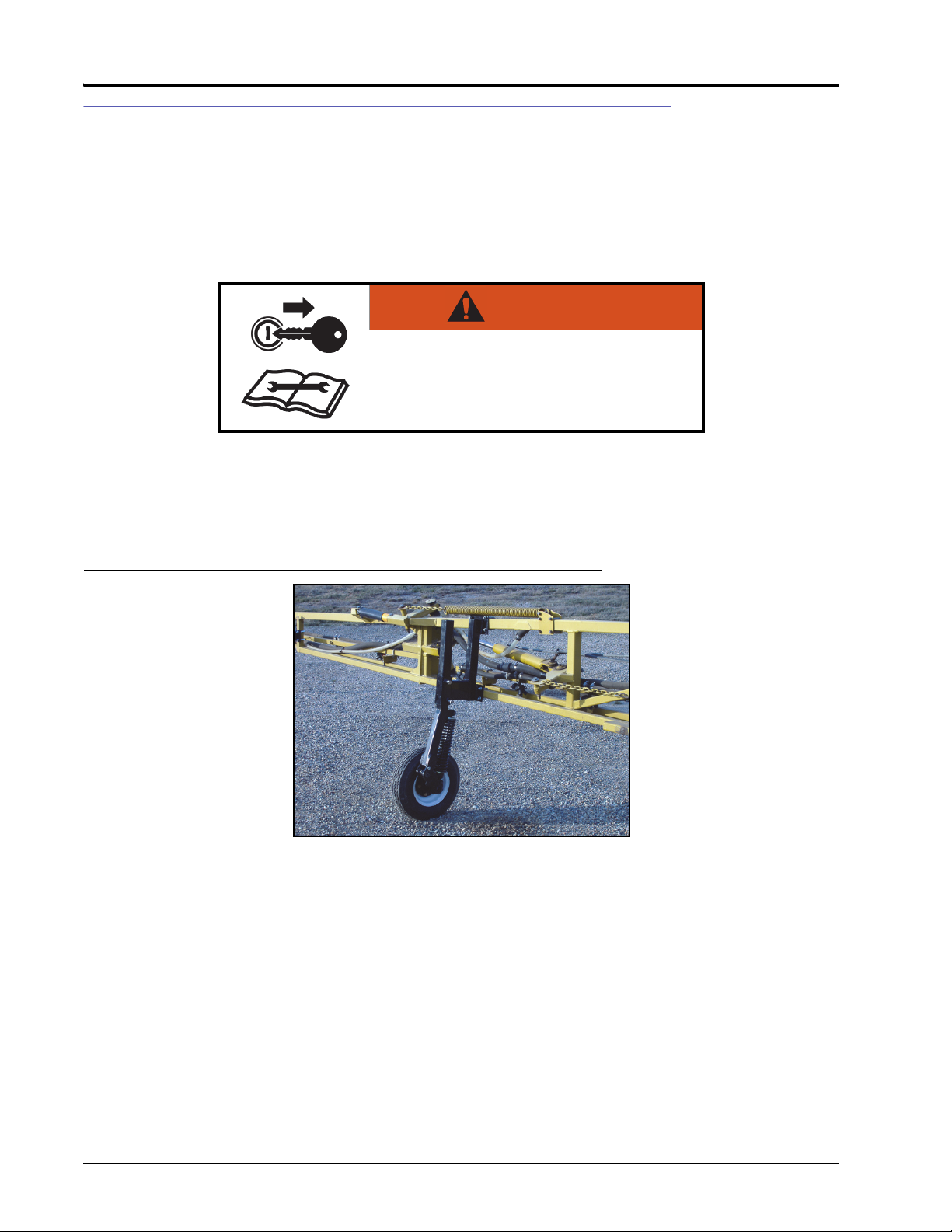

FIGURE 1. 2009 RoGator
Note: This manual contains the installation instructions for the PowerGlide Plus and UltraGlide systems.
Be sure to identify which system you have and follow only the instructions for that system.
Preparing for Installation
Before installing AutoBoom, park the machine where the ground is level, clean, and dry. Leave the machine
turned off for the duration of the installation process.

Chapter 2
4 RoGator 2009 AutoBoom™ Installation Manual
During the installation process, follow good safety practices. Be sure to carefully read the instructions in this
manual as you complete the installation process.
Recommendations
Raven Industries recommends the following best practices before installing or operating the AutoBoom system
for the first time, at the start of the season, or when moving the AutoBoom system to another machine:
•Ensure the machine’s hydraulic filters have been recently changed and there are no issues with the
machine’s hydraulic system (e.g., pump issues, faulty hydraulic motors, fine metal deposits in the hydraulic
hoses, etc.).
•Operate each of the machine’s boom hydraulic functions (i.e., tilt, fold, center rack, tongue extension, or
other hydraulic valve functions) three times to ensure the machine’s hydraulic valve is using fresh oil and
debris is flushed from the hydraulic hoses, valves, and filters.
•Upon installation of the AutoBoom system, operate the boom and center rack raise/lower functions through
the machine’s manual control functions first before operating them via the AutoBoom controller/field
computer to ensure the hydraulic system has been installed correctly and air is released from the system.
Raven Industries recommends the following best practices when installing the AutoBoom system.
•Use part numbers to identify the parts.
•Do not remove the plastic wrap from a part until it is necessary for installation.
•Do not remove plastic caps from a part until it is necessary for installation.
Tools Needed
The following tools are recommended for installation of the AutoBoom system:
•SAE standard-sized wrenches
•Cable ties
•Set of tools
Point of Reference
The instructions in this manual assume that you are standing behind the machine, looking toward the cab.
Hydraulic Fittings
This manual may reference the following types of hydraulic fittings:
•SAE O-ring fittings
•ORFS (O-Ring Face Seal) fittings
•JIC fittings

2
Manual No. 016-0230-087 Rev. E 5
Introduction
Updates
Software and manual updates are available on the Raven Applied Technology website:
http://www.ravenhelp.com
At Raven Industries, we strive to make your experience with our products as rewarding as
possible. One way to improve this experience is to provide us with feedback on this manual.
Your feedback will help shape the future of our product documentation and the overall service
we provide. We appreciate the opportunity to see ourselves as our customers see us and are
eager to gather ideas on how we have been helping or how we can do better.
To serve you best, please send an e-mail with the following information to
[email protected]
-RoGator 2009 AutoBoom™ Installation Manual
-Manual No. 016-0230-087 Rev. E
-Any comments or feedback (include chapter or page numbers if applicable).
-Let us know how long have you been using this or other Raven products.
We will not share your email or any information you provide with anyone else. Your feedback
is valued and extremely important to us.
Thank you for your time.
JIC fitting (M)
ORFS fitting
SAE O-ring fitting

Chapter 2
6 RoGator 2009 AutoBoom™ Installation Manual

CHAPTER
3
Manual No. 016-0230-087 Rev. E 7
C hapt er 3 PowerGlide Plus

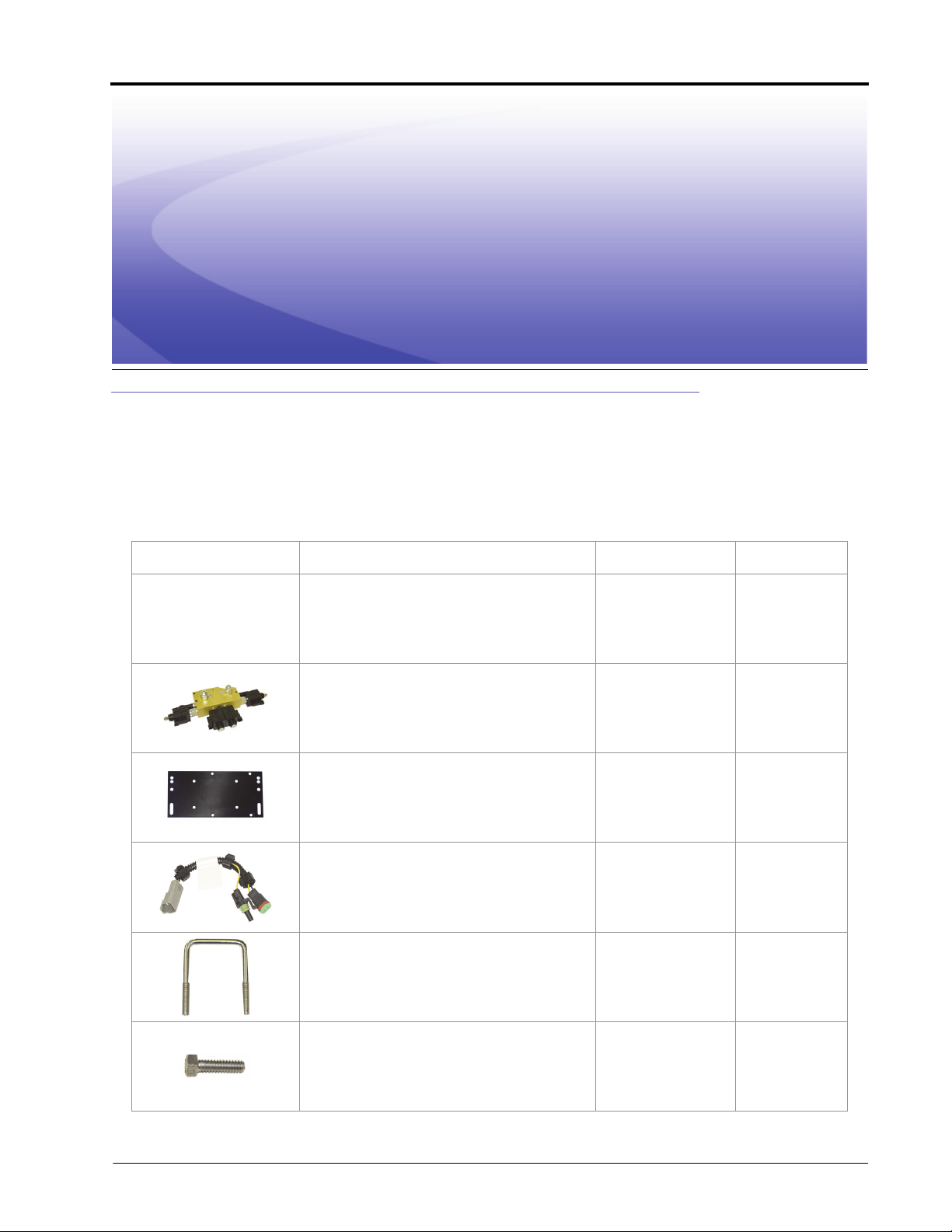

PowerGlide Plus Kit Contents
This section contains a list of the components that are included in the PowerGlide Plus AutoBoom kit. Before
beginning the AutoBoom installation, compare the items in the AutoBoom kit with the components on this list. If
you have questions about the kit, contact your Raven dealer.

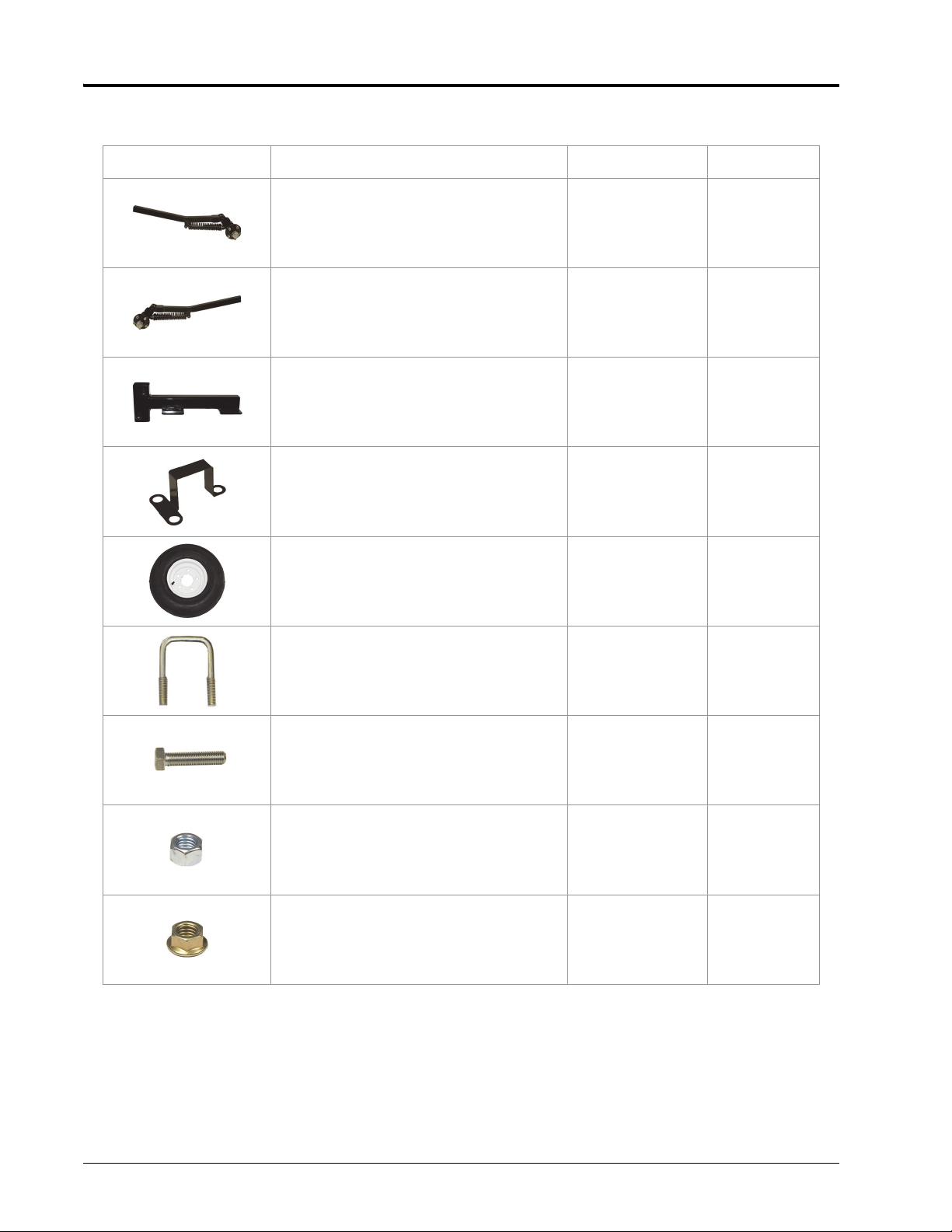

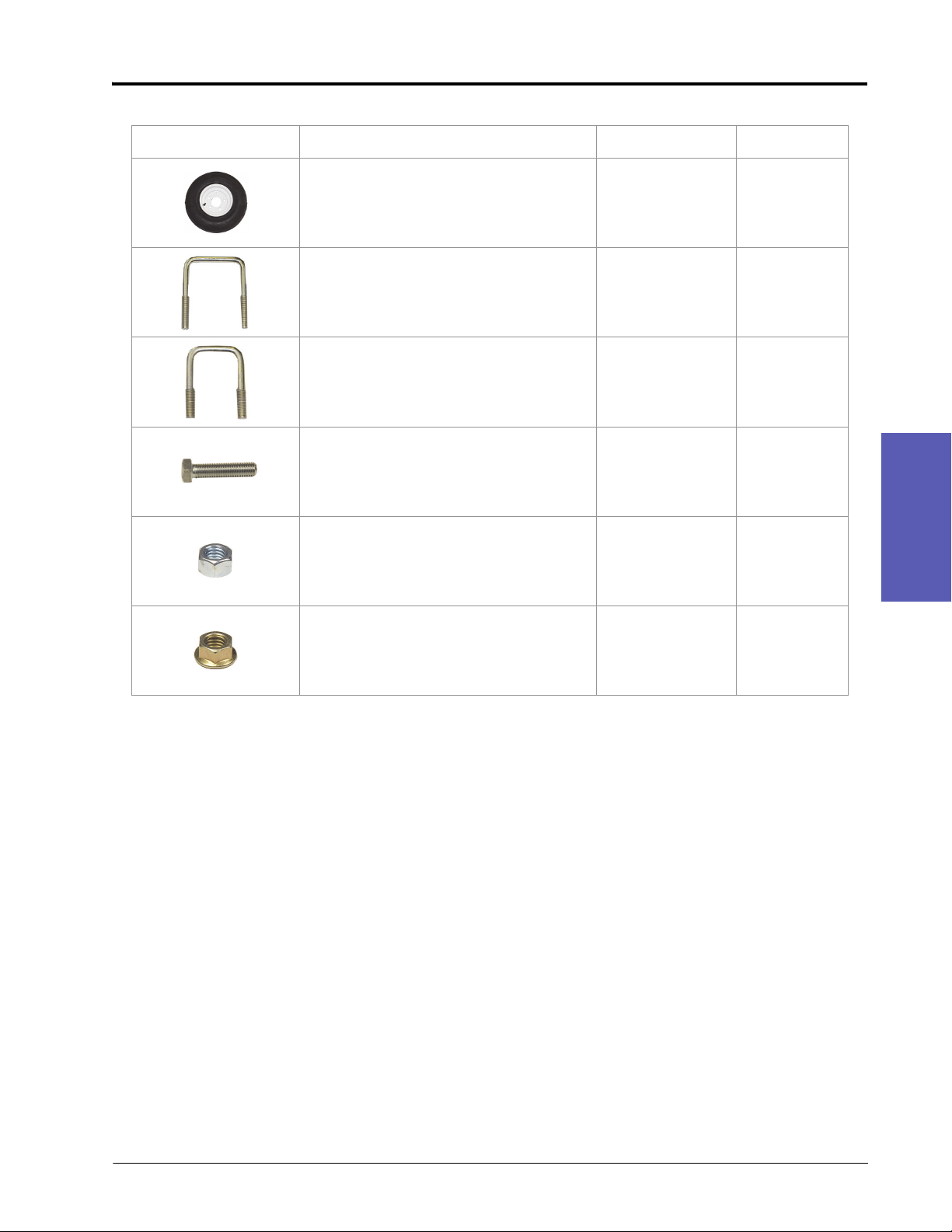

TABLE 1. PowerGlide Plus Installation Kit (P/N 117-0231-087 or 117-0231-113)
Picture Item Description Part Number Qty.
Not Pictured Manual - RoGator 2009 AutoBoom
Installation Manual 016-0230-087 1
Valve - AutoBoom Add-on Hydraulic 063-0131-131 1
Bracket - Hydraulic Valve Mounting 107-0171-619 1
Cable - Boom Sense Adapter 115-0171-546 4
U-Bolt - 2-9/16” W x 3-1/2” L x 3/8” Thread 107-0171-616 2
Bolt - 5/16”-18 x 1-3/4” Hex 311-0052-108 1

Chapter 3
8 RoGator 2009 AutoBoom™ Installation Manual
Bolt - 5/16”-18 x 2-1/2” Hex 311-0052-111 3
Bolt - 3/8”-16 UNC x 1-1/4” Hex 311-0054-106 3
Nut - 3/8”-16 Zinc Flanged Lock 312-1001-164 7
Washer - 5/16” Zinc Plated Lock 313-1000-019 4
O-Ring - 9/16” ID Buna-N 219-0001-015 4
TABLE 2. PowerGlide Plus Wheel Kit (P/N 117-0133-001) Used With P/N 117-0231-087
Picture Item Description Part Number Qty.
Axle Assembly - Right Cushioned AutoBoom 063-0131-585 1
Axle Assembly - Left Cushioned AutoBoom 063-0131-590 1
Bracket - Left Weldment Receiver 116-0159-609 1
Bracket - Right Weldment Receiver 116-0159-610 1
Bracket - Hub Retainer 107-0171-617 2
TABLE 1. PowerGlide Plus Installation Kit (P/N 117-0231-087 or 117-0231-113)
Picture Item Description Part Number Qty.

3
Manual No. 016-0230-087 Rev. E 9
PowerGlide Plus
Wheel 322-0131-003 2
U-Bolt - 2-1/16” W x 3” L x 3/8” Thread 107-0171-609 4
U-Bolt - 1-9/16” W x 2-1/2” L x 3/8” Thread 107-0171-611 4
Bolt - 1/2”-13 x 1-1/2” SS Hex 311-0058-186 4
Nut - 1/2”-13 Zinc Hex 312-1001-043 4
Nut - 3/8”-16 Zinc Flanged Lock 312-1001-164 16
TABLE 2. PowerGlide Plus Wheel Kit (P/N 117-0133-001) Used With P/N 117-0231-087
Picture Item Description Part Number Qty.

Chapter 3
10 RoGator 2009 AutoBoom™ Installation Manual
TABLE 3. Optional Wheel Kit 120’ Booms (P/N 117-0133-085) Used With P/N 117-0231-113
Picture Item Description Part Number Qty.
Axle Assembly - Right Cushioned AutoBoom 063-0131-585 1
Axle Assembly - Left Cushioned AutoBoom 063-0131-590 1
Bracket - Weldment Receiver 116-0159-707 2
Bracket - Hub Retainer 107-0171-617 2
Wheel 322-0131-003 2
U-Bolt - 1-9/16” W x 2-1/2” L x 3/8” Thread 107-0171-611 8
Bolt - 1/2”-13 x 1-1/2” SS Hex 311-0058-186 4
Nut - 1/2”-13 Hex 312-1001-043 4
Nut - 3/8”-16 Zinc Flanged Lock 312-1001-164 16

3
Manual No. 016-0230-087 Rev. E 11
PowerGlide Plus
TABLE 4. AutoBoom PowerGlide Plus, CAN Kit (P/N 117-0137-023)
Install the PowerGlide Plus Hydraulic System
Picture Item Description Part Number Qty.
Not Pictured Manual, CAN AutoBoom Calibration 016-0130-062 1
Node, CAN Control, AutoBoom, PowerGlide
Plus 063-0130-010 1
Not Pictured Cable, 16’ Power/CAN, PowerGlide Plus/
UltraGlide 115-0230-007 1
Not Pictured Cable, 37’, CAN, PowerGlide Plus/
UltraGlide, CRL 115-0230-045 1
WARNING
The machine must remain stationary and
switched off, with the booms folded and in the
transport position, during installation or
maintenance.
Bleed pressure from the hydraulic system by
operating the boom tilt functions while the key is
on, but the machine’s engine is off.
CAUTION
When installing AutoBoom hydraulics or
performing diagnostics, maintenance, or routine
service, ensure precautions are taken to
prevent any foreign material from being
introduced into the machine’s hydraulic system.
Objects or materials that are able to bypass the
machine’s hydraulic filtration system will reduce
performance and possibly damage the
AutoBoom hydraulic valve.

Chapter 3
12 RoGator 2009 AutoBoom™ Installation Manual
Mount the AutoBoom Valve
FIGURE 1. Machine’s Hydraulic Valve Before AutoBoom Installation
1. Strip the factory paint from the top of the machine’s hydraulic valve using a chemical approved for paint
removal.
Important: Do not scrape the paint from the machine’s hydraulic valve. Scraping the paint may cause damage to
the valve.
2. Remove the hydraulic test port fitting and Allen plugs from the machine’s hydraulic valve.
Note: The test port fitting will be installed on the AutoBoom hydraulic valve later in the procedure. Protect
the test port fitting from dust and debris to avoid contamination of the hydraulic system.
3. Clean the remaining paint from the machine’s hydraulic valve, taking care to prevent paint chips from
entering the open hydraulic ports.
NOTICE
The appearance of the AutoBoom hydraulic
valve may vary slightly from the images
contained in this manual. However, the fittings,
hose connections, and cable connections
remain the same.
Before After
Surface
to be
Stripped
Allen
Plugs
Hydraulic
Test Port
Fitting

3
Manual No. 016-0230-087 Rev. E 13
PowerGlide Plus
FIGURE 2. O-Rings Installed on the Machine’s Hydraulic Valve
4. Install 9/16” ID Buna-N O-rings (P/N 219-0001-015) in the open ports of the machine’s hydraulic valve.
Note: Use grease or petroleum jelly to hold the O-rings in place during the AutoBoom valve installation,
taking care to avoid contamination of the inside of the open ports.
5. Blow the hydraulic port threads of any excess oil.
6. Clean excess oil, grease, and debris from the top of the machine’s hydraulic valve.
7. Clean excess hydraulic fluid from the AutoBoom valve (P/N 063-0131-113).
8. Install the supplied 5/1”6-18 x 1-3/4” hex bolts (P/N 311-0052-108) and 5/16”-18 x 2-1/2” hex bolts (P/N 311-
0052-111) in the AutoBoom valve, placing the shorter bolt in the cut-out section of the AutoBoom valve.
FIGURE 3. AutoBoom Valve Mounted to the Machine’s Hydraulic Valve
9. Carefully place the AutoBoom valve on the machine’s hydraulic valve, positioning it so that the cut-out
section faces the accumulator.
10. Alternately tighten each bolt a small amount to a maximum of 15 - 20 ft. lbs. per bolt.
11. Install the hydraulic test fitting in Port GP of the AutoBoom valve.
AccumulatorHydraulic Test Fitting
Installed in Port GP

Chapter 3
14 RoGator 2009 AutoBoom™ Installation Manual
Install the Gauge Wheels
Gauge Wheel Mounting Locations
Wheel mounting locations may be influenced by the boom configuration. Determine the appropriate location for
mounting the wheels on the boom, ensuring the wheels will not interfere with or be damaged while folding or
unfolding the booms. The wheels should be mounted outside of the boom fold, but inside the boom breakaway.
90’ to 100’ Boom Gauge Wheel Mounting
Note: The appearance of the wheel axles may vary.
FIGURE 4. Gauge Wheel Installed
1. Remove the nuts from the right wheel axle (P/N 063-0131-585).
2. Place the wheel (P/N 322-0131-003) on the right wheel axle.
3. Align and place the hub retainer bracket (P/N 107-0171-617) over the wheel.
4. Reinstall the lug nuts on the wheel axle to secure the wheel and hub retainer bracket.
5. Mount the right receiver bracket (P/N 116-0159-610) to the front of the right boom using two 1-9/16” W x 2-
1/2” L x 3/8” thread U-bolts (P/N 107-0171-611), two 2-1/16” W x 3” L x 3/8” thread U-bolts (P/N 107-0171-
609), and eight 3/8”-16 zinc flanged lock nuts (P/N 312-1001-164).
6. Insert the right wheel axle assembly into the mounted receiver bracket, positioning it so that the bottom of
the wheel touches the ground (or nearly so) and the wheel faces away from the machine.
7. Secure the gauge wheel assembly in the wheel mounting bracket by installing two 1/2”-13 x 1-1/2” SS hex
bolts (P/N 311-0058-186) and two 1/2” zinc hex nuts (P/N 312-1001-043).
8. Repeat the steps above to install the left wheel.
WARNING
The machine must remain stationary and
switched off, with the booms unfolded and
supported, during installation or maintenance.

3
Manual No. 016-0230-087 Rev. E 15
PowerGlide Plus
120’ Boom Gauge Wheel Mounting
Note: The appearance of the wheel and axle may vary.
FIGURE 5. Installed Gauge Wheel
1. Remove the nuts from the right wheel axle (P/N 063-0131-585).
2. Place the wheel (P/N 322-0131-003) on the right wheel axle.
3. Align and place the hub retainer bracket (P/N 107-0171-617) over the wheel.
4. Reinstall the light nuts on the wheel to secure the wheel and hub retainer bracket.
5. Secure the receiver bracket (P/N 116-0159-707) to the boom tube using four 1-9/16” x 2-1/2” L x 3/8” thread
U-bolts (P/N 107-0171-611) and eight 3/8” - 16 flanged lock nuts (P/N 312-1001-164).
6. Insert the right wheel assembly into the mounting receiver bracket, positioning it so that the bottom of the
wheel mounting bracket by installing two 1/2” - 13 x 1-1/2 SS hex bolts (P/N 311-0058-186) and two 1/2”
zinc hex nuts (P/N 312-1001-043).
7. Repeat the steps above to install the left gauge wheel on the front of the left boom.
Install the PowerGlide Plus Wiring
Wiring Connections
CAUTION
Always connect the power cable as the last
step in the wiring process and verify that the
power leads are connected with the correct
polarity. Reversing power leads can cause
severe damage to the equipment.

Chapter 3
16 RoGator 2009 AutoBoom™ Installation Manual
For wiring connections made outside the cab, generously apply dielectric silicone grease (P/N 222-0000-006)
on both the male and female ends of the connectors. Application of the grease will prevent corrosion to the
pins and wires.
Install the AutoBoom Node

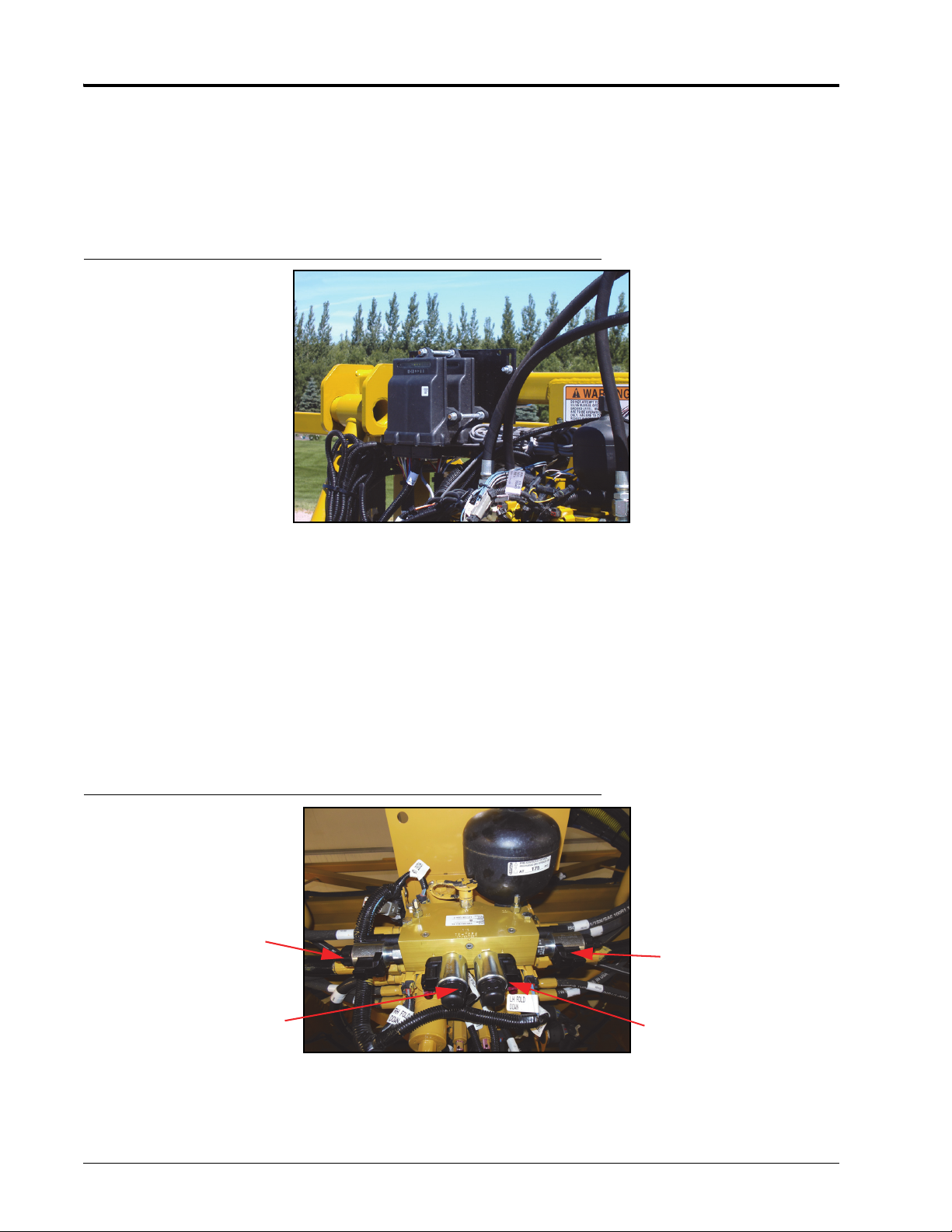

FIGURE 6. AutoBoom Node Installed
1. Mount the AutoBoom node (P/N 063-0130-010) to the mounting plate (P/N 107-0171-619) using three 3/8”-
16 UNC x 1-1/4” hex bolts (P/N 311-0054-106) and three 3/8”-16 zinc flanged lock nuts (P/N 312-1001-164).
2. Secure the mounting plate to the machine’s center rack using two 2-9/16” W x 3-1/2” L x 3/8” thread U-bolts
(P/N 107-0171-616) and four 3/8”-16 zinc flanged lock nuts (P/N 312-1001-164).
Note: Position the node so that the cable connectors face down or to the side.
3. Tighten the bolts on the node connectors to secure the connections.
Connect the Harness to the Boom Function Controls
FIGURE 7. Harness Cabling Connections
1. Locate the Left Press and Right Press connectors on the harness cable (P/N 115-0230-045).
2. Route the connectors to the AutoBoom valve (P/N 063-0131-113).
Left Prop
Left Solenoid
Right Prop Port
Right Solenoid
