Raven Case IH 50 Series User manual

Copyright 2022
Boom Recirculation
Installation and
Operation Manual for
Case IH 50 Series Patriot
Sprayers
016-0171-727 Rev. A 4/2022 E41531

016-0171-686 Rev. A 8/18 E31924
We Solve Great Challenges.
DISCLAIMER
While every effort has been made to ensure the accuracy of this document, Raven Industries assumes no
responsibility for omissions and errors. Nor is any liability assumed for damages resulting from the use of
information contained herein.
Raven Industries shall not be responsible or liable for incidental or consequential damages or a loss of anticipated
benefits or profits, work stoppage or loss, or impairment of data arising out of the use, or inability to use, this
system or any of its components. Raven Industries shall not be held responsible for any modifications or repairs
made outside our facilities, nor damages resulting from inadequate maintenance of this system.
As with all wireless and satellite signals, several factors may affect the availability and accuracy of wireless and
satellite navigation and correction services (e.g. GPS, GNSS, SBAS, etc.). Therefore, Raven Industries cannot
guarantee the accuracy, integrity, continuity, or availability of these services and cannot guarantee the ability to
use Raven systems, or products used as components of systems, which rely upon the reception of these signals or
availability of these services. Raven Industries accepts no responsibility for the use of any of these signals or
services for other than the stated purpose.

Table of Contents
016-0171-727 Rev. A i
Chapter 1 Important Information.......................................................................................... 1
Safety ...............................................................................................................................................................................1
Agricultural Chemical Safety ..............................................................................................................................................2
Electrical Safety .......................................................................................................................................................................2
Recommendations and Best Practices ................................................................................................................3
Hose Routing ...........................................................................................................................................................................3
Harness Routing ......................................................................................................................................................................3
Chapter 2 Introduction............................................................................................................. 5
Theory of Operation ...................................................................................................................................................5
Preparing for Installation ..........................................................................................................................................6
Recommendations .................................................................................................................................................................6
Tools Needed ...........................................................................................................................................................................6
Point of Reference ..................................................................................................................................................................6
Kit Contents ...................................................................................................................................................................7
Updates ...........................................................................................................................................................................9
Chapter 3 Installation ............................................................................................................. 11
Overview .......................................................................................................................................................................11
Assemble and Mount the Return and Throttling Valve .............................................................................12
Plumb the Drain and Tank Return ......................................................................................................................14
Center Boom Sections ............................................................................................................................................17
Boom Plumbing ........................................................................................................................................................21
Boom Plumbing for 5-Section (90’) ...............................................................................................................................22
Boom Plumbing for 6-Section (90’ and 100’) ............................................................................................................24
Boom Plumbing for 7-Section (120’) ............................................................................................................................26
Boom Plumbing for 7-Section (132’) ............................................................................................................................32
Boom Plumbing for 7-Section (135’) ............................................................................................................................36
Tip Protector Bracket ..............................................................................................................................................45
System Drawings ......................................................................................................................................................45
Chapter 4 Setup and Operation........................................................................................... 51
Setup .............................................................................................................................................................................51
Enable Main Product Recirculation ...............................................................................................................................51
Adjust Recirculation Times ...............................................................................................................................................52
Operation ....................................................................................................................................................................52
Required Conditions for Recirculation .........................................................................................................................52
What to Expect While Recirculation is Active ............................................................................................................53

Table of Contents
ii Boom Recirculation Installation and Operation Manual for Case IH 50 Series Patriot Sprayers

CHAPTER
1
Important Information: Safety 1
CHAPTER 1 IMPORTANT INFORMATION
SAFETY
Follow the operation and safety instructions included with the implement and/or controller and read this manual
carefully before installing or operating this Raven system.
• Follow all safety information presented within this manual. Review implement operation with your local dealer.
• Contact a local Raven dealer for assistance with any portion of the installation, service, or operation of Raven
equipment.
• Follow all safety labels affixed to system components. Be sure to keep safety labels in good condition and
replace any missing or damaged labels. Contact a local Raven dealer to obtain replacements for safety labels.
Observe the following safety measures when operating the implement after installing this Raven system:
• Do not operate this Raven system or any agricultural equipment while under the influence of alcohol or an
illegal substance.
• Be alert and aware of surroundings and remain in the operator seat at all times when operating this Raven
system. •Do not operate the implement on any public road with this Raven system enabled.
•Disable this Raven system before exiting the operator seat.
•Determine and remain a safe working distance from obstacles and bystanders. The operator is
responsible for disabling the system when a safe working distance has diminished.
•Disable this Raven system prior to starting any maintenance work on the implement or components
of this Raven system.
• Do not attempt to modify or lengthen any of the system control cables. Extension cables are available from a
local Raven dealer.
NOTICE

CHAPTER 1
2 Boom Recirculation Installation and Operation Manual for Case IH 50 Series Patriot Sprayers
AGRICULTURAL CHEMICAL SAFETY
Follow all federal, state, and local regulations regarding the handling, use, and disposal of agricultural chemicals,
products, and containers. Triple-rinse and puncture or crush empty containers before properly disposing of them.
Contact a local environmental agency or recycling center for additional information.
• Always follow safety labels and instructions provided by the chemical manufacturer or supplier.
• Always wear appropriate personal protective equipment as recommended by the chemical and/or equipment
manufacturer.
• When storing unused agricultural chemicals:
•Store agricultural chemicals in the original container and do not transfer chemicals to unmarked
containers or containers used for food or drink.
•Store chemicals in a secure, locked area away from human and livestock food.
•Keep children away from chemical storage areas.
• Fill, flush, calibrate, and decontaminate chemical application systems in an area where runoff will not reach
ponds, lakes, streams, livestock areas, gardens, or populated areas.
• Follow all label instructions for chemical mixing, handling, and disposal.
• Avoid direct contact with agricultural chemicals or inhaling chemical dust or spray particulate. Seek immediate
medical attention if symptoms of illness occur during, or soon after, use of agricultural chemicals or products.
• After handling or applying agricultural chemicals:
•Thoroughly wash hands and face after using agricultural chemicals and before eating, drinking, or
using the restroom.
•Thoroughly flush or rinse equipment used to mix, transfer, or apply chemicals with water after use
or before servicing any component of the application system.
ELECTRICAL SAFETY
• Always verify that power leads are connected to the correct polarity as marked. Reversing the power leads
could cause severe damage to the Raven system or other components.
• To prevent personal injury or fire, replace defective or blown fuses with only fuses of the same type and
amperage.
• Do not connect the power leads to the battery until all system components are mounted and all electrical
connections are completed.
• Always start the machine before initializing this Raven system to prevent power surges or peak voltage.
• To avoid tripping and entanglement hazards, route cables and harnesses away from walkways, steps, grab bars,
and other areas used by the operator or service personnel when operating or servicing the equipment.
WARNING
CAUTION

Important Information: Recommendations and Best Practices 3
IMPORTANT INFORMATION
RECOMMENDATIONS AND BEST PRACTICES
HOSE ROUTING
The word “hose” is used to describe any flexible, fluid carrying components. Use the following guidelines and
recommendations when connecting and routing hoses while installing or maintaining this Raven system:
• Leave protective caps/covers over hose ends until connecting the end into the hydraulic system to help
prevent contaminants from entering the system.
• Follow existing hose runs already routed on the implement as much as possible. Proper hose routing should:
•Secure hoses and prevent hoses from hanging below the implement.
•Provide sufficient clearance from moving components and operational zones around shafts;
universal joints and suspension components; pulleys, gears, belts, and chains; moving linkages,
cylinders, articulation joints, etc.
•Protect hoses from field debris and surrounding hazards (e.g. tree limbs, fence posts, crop stubble,
dirt clumps or rocks that may fall or be thrown by the implement).
•Protect hoses from sharp bends, twisting, or flexing over short distances and normal implement
operation.
•Ensure sufficient length for free movement of the implement during normal operation and prevent
pulling, pinching, catching, or rubbing, especially in articulation and pivot points. Clamp hoses
securely to force controlled movement of the hose.
•Avoid abrasive surfaces and sharp edges such as sheared or flame cut corners, fastener threads or
cap screw heads, hose clamp ends, etc.
•Avoid areas where the operator or service personnel might step or use as a grab bar.
• Do not over tighten threaded joints.
• Use thread sealant on all threaded joints.
• Do not connect, affix, or allow hoses to come into contact with components with high vibration forces, hot
surfaces, or components carrying hot fluids beyond the temperature rating of hose components.
•Hoses should be protected or shielded if routing requires the hose to be exposed to conditions
beyond hose component specifications.
• Avoid routing hoses in areas where damage may occur due to build up of material (e.g. dirt, mud, snow, ice,
etc.).
HARNESS ROUTING
The word “harness” is used to describe any electrical cables and leads, both bundled and unbundled. Use the
following guidelines and recommendations when connecting and routing harnesses while installing or
maintaining this Raven system:
• Leave protective caps/covers over harness connectors until needed to avoid dirt and moisture from
contaminating electrical circuits.
• Secure the harness to the frame or solid structural members at least every 12 in [30 cm].
• Follow existing harness runs already routed on the implement as much as possible. Proper harness routing
should: •Secure harnessing and prevent the harness from hanging below the implement.
•Provide sufficient clearance from moving components and operational zones around shafts;
universal joints and suspension components; pulleys, gears, belts, and chains; moving linkages,
cylinders, articulation joints, etc.

CHAPTER 1
4 Boom Recirculation Installation and Operation Manual for Case IH 50 Series Patriot Sprayers
•Protect harnessing from field debris and surrounding hazards (e.g. tree limbs, fence posts, crop
stubble, dirt clumps or rocks that may fall or be thrown by the implement).
•Protect harnessing from sharp bends, twisting, or flexing over short distances and normal
implement operation.
•Connectors and splices should not be located at bending points or in harness sections that move.
•Ensure sufficient length for free movement of the implement during normal operation and prevent
pulling, pinching, catching, or rubbing, especially in articulation and pivot points. Clamp harnessing
securely to force controlled movement of the harness.
•Avoid abrasive surfaces and sharp edges such as sheared or flame cut corners, fastener threads or
cap screw heads, hose clamp ends, etc.
• Do not connect, affix, or allow harnessing to come into contact with components with high vibration forces, hot
surfaces, or components carrying hot fluids beyond the temperature rating of harness components.
•Harnessing should be protected or shielded if routing requires the hose to be exposed to
conditions beyond harnessing component specifications.
• Avoid routing harnesses in areas where damage may occur due to build up of material (e.g. dirt, mud, snow,
ice, etc.).
• Avoid routing harnesses in areas where the operator or service personnel might step or use as a grab bar.
IMPORTANT: Avoid applying direct spray or pressure washing of electrical components and connections. High pressure
streams and sprays can penetrate seals, cause corrosion, or otherwise damage electrical components.
When performing maintenance:
• Inspect electrical components and connectors for corrosion, damaged pins or housings, etc. Repair or replace
components or harnessing as necessary.
• Ensure connectors are kept clean and dry. Apply dielectric grease to the sealing surfaces of all connections
exposed to moisture, dirt, debris, and other contaminates. Repair or replace harnessing as necessary.
• Clean electrical components with pressurized air, aerosol electrical cleaning agent, or low pressure rinse.
• Remove visible surface water from electrical components and connections using pressurized air or an aerosol
cleaning agent. Allow components to dry thoroughly before reconnecting cables.

CHAPTER
2
Introduction: Theory of Operation 5
CHAPTER 2 INTRODUCTION
Thank you for purchasing the boom recirculation system. This system is designed to allow the equipment operator
to prime the boom or agitate chemical in the boom plumbing without spraying chemical on the ground. This
system allows the operator to adjust the recirculation flow based upon the spray system or the chemical needs
and will automatically disengage when normal application is started or if a chemical injection system is detected.
This manual applies to the following machines:
Make. Case IH
Model. 3050 and 4050 series sprayer platforms with AIM Command Flex II (ACF II)
Boom Configurations. 90’ - 135’ Booms
System Requirements:
• Must have the CNH RCM-Sprayer ECU
• Boom plumbing kit installed
• Product cable with electronic recirculation valve connection required
• Recirculation authorization code (077-0180-296)
THEORY OF OPERATION
When the recirculation system is active, the spray system is not spraying, and NCVs are off, the electric return valve
opens fully. The main pump circulates the spray liquid from the main tank through the existing supply plumbing to
the section valves.
Section valves actuate open in pairs, starting with the outermost left and right sections and progressing inward.
The section valves turn on and off to circulate fluid for the user-defined auto-operation time for each section of
the spray system. This keeps the liquid circulating, allowing the system to purge any air, break up chemical
deposits, and agitate any separated chemicals through the system without having to spray out of the nozzles.
Product returns through the throttling valve and electric return valve until the electric return valve automatically
turns off when spraying resumes. The throttling valve is used to dampen the pressure spike affects of the electric
return valve closing when spraying resumes. The individual recirculation hand valves should be used to separate
sections when not using NCVs (Bypass and High Flow/High Flow VP Modes) and to isolate boom plumbing
sections if maintenance is required or damage to a plumbing component occurs that causes a leak.

CHAPTER 2
6 Boom Recirculation Installation and Operation Manual for Case IH 50 Series Patriot Sprayers
PREPARING FOR INSTALLATION
Before installing boom recirculation, park the machine where the ground is level, clean, and dry. Leave the
machine turned off with the booms unfolded for the duration of the installation process.
During the installation process, follow good safety practices. Be sure to carefully read the instructions in this
manual as you complete the installation process.
RECOMMENDATIONS
Raven Industries recommends the following best practices before installing or operating the boom recirculation
system for the first time, at the start of the season, or when moving the boom recirculation system to another
machine:
• Visually inspect the system for any damage including cracked or broken fittings, worn or pinched hoses,
corrosion around electronics and cables, etc.
• Set the system to operating position with the hand valves and throttling valve open with the flush valves closed.
Then perform a leak test.
• Rinse the boom and perform a boom air blowout to thoroughly clean the system.
TOOLS NEEDED
The following tools are recommended for installation of the boom recirculation system:
• Tape measure
• Hose cutter for up to 2” OD spray hose
• 2 Slip Joint Pliers (approx. 10” size)
• Metric and Imperial Wrench Set
• 5/16” Nut Drivers for hose and flange clamps
• Side cutters
• Corrosion X-HD spray
POINT OF REFERENCE
The instructions in this manual assume that you are standing behind the machine, looking toward the cab.

Introduction: Kit Contents 7
INTRODUCTION
KIT CONTENTS
This section contains a list of the components that are included in the boom recirculation kit. This kit applies to
machines that do not have boom recirculation installed. Before beginning the boom recirculation installation,
compare the items in the kit with the components on this list. If you have questions about the kit, contact your
Raven dealer.
FIGURE 1. Case IH 50 Series Patriot Sprayer Boom Recirculation Kit Contents (P/N 117-2005-059 Rev. A)
T
H053-0159-400
N
053-0159-079
N
115-2500-040
N
N
107-0172-762
N
107-0172-753
N
107-0172-759
N
107-0172-760
N
107-0172-761
N
N
334-0001-081
N
N
214-3000-001
N
434-2000-011
N
435-1000-041
N
N
053-0159-015
N
107-0172-511
N
312-6001-043N
N
313-6000-016N
N
311-4051-179N
N
312-6001-028N
N
313-6000-013N
N
311-0050-155
N
107-0172-764
N
312-4000-057
N
313-2300-011
N
311-4051-224N
N
N
053-0159-015
N
016-0171-727
N
077-0180-296
BOX, SHIPPING, 17"X16-3/4"X11-1/4" (LABELED 1 OF 3)
CABLE, CASE PATRIOT 50 SERIES, BOOM RECIRC, ADAPTER 3'
ENVELOPE, PLASTIC, 12"X16"
QTY
BRACKET, CASE PATRIOT 50 SERIES, BOOM RECIRC, RETURN
M
BRACKET, CASE PATRIOT 50 SERIES, BOOM RECIRC, CENTER R
A
WASHER, FLAT, STEEL, 1/4", CLASS V
HEX BOLT, ISO4014, M10X1.5, 30MM, 10.9 STEEL, CLASS V
ENVELOPE, PLASTIC, 12"X16"
MANUAL, CASE PATRIOT 50 SERIES, BOOM RECIRCULATION
CODE, AUTHORIZATION, RAVEN RCM-SPRAYER, BOOM RECIR
GUARD, HYDRAULIC HOSE, 6", WITH THREE CABLE TIES
P-CLAMP, 1-3/4" ID, APPROX 1-1/2" CL TO CL, .406 SCREW H
O
TIE, CABLE, BLACK, AERIAL SUPPORT, 17.4"
WASHER, DIN125, M8, STEEL, CLASS V
HEX NUT, NYLOCK, 1/4-20 UNC-2B, GRADE 2, ZINC PLATED
40
BRACKET, CASE PATRIOT 50 SERIES, TIP SHIELD, LEFT
BRACKET, CASE PATRIOT 50 SERIES, TIP SHIELD, RIGHT
30
18
1
DESCRIPTIONPART #
CRATE, SHIPPING
U-BOLT, M10X1.5, 52W X 82L
HEX NUT, NYLOCK, DIN985, M10X1.5, CLASS V
WASHER, DIN125, M10, STEEL, CLASS V
HEX BOLT, ISO4014, M8X1.5, 20MM, 10.9 STEEL, CLASS V
22
1
4
HEX BOLT, 1/4-20 UNC-2A, 1", GRADE 8, CLASS V
U-BOLT, 1/4-20 UNC-2A, 2.375W X 3.75L
1
HEX NUT, NYLOCK, DIN985, M8X1.25, CLASS V
BRACKET, CASE PATRIOT 50 SERIES, TIP SHIELD, MOUNT
VALVE, ASSEMBLY, ON/OFF, POLY, M200, 1" SS BL, CLOSE, FB
32
1
1
1
1
1
1
1
1
1
1
2
9
10
6
6
12
10
6
H
N
117-0171-894
H
H
N
117-0171-895
(LABELED BOX 2 OF 3)
1 KIT, CASE PATRIOT 50 SERIES, BOOM RECIRC, BOOM PLUMBIN
G
(LABELED BOX 3 OF 3)
1 KIT, CASE PATRIOT 50 SERIES, BOOM RECIRC, WILGER PLUMBIN
G

CHAPTER 2
8 Boom Recirculation Installation and Operation Manual for Case IH 50 Series Patriot Sprayers
FIGURE 2. Case IH 50 Series Patriot Sprayer Boom Recirculation Boom Plumbing Kit Contents (P/N 117-
0171-894 Rev. A)
T
H
N
X
N
X
H
H
N
N
X
N
X
N
N
X
N
X
N
X
N
X
N
X
N
X
N
X
N
X
N
X
N
N
X
N
X
N
X
N
X
N
X
N
X
N
X
N
X
N
X
N
X
N
X
N
N
X
N
X
N
X
N
X
H
QTY PART # DESCRIPTION
(BUNDLE HOSE, LEAVE OUTSIDE BOX)
10' BUMBLE BEE NYLON BRAIDED HOSE, 1-1/2"
120' EPDM DOUBLE BRAIDED HOSE, 1-1/4"
(LABELED BOX 1 OF 1)
(BOOM FLANGE FITTINGS)
100 CABLE TIE STRAP, 14-1/4"
25 CABLE TIE STRAP, 36"
20 M100 X 1-1/4" HB
12 M100 X M100 90 ELBOW
4 M100 X M100 45 ELBOW
20 M100 X M100 COUPLING
5 M100 X M100 X M100 TEE
60 FLANGE GASKET, VITON, 1"
90 FLANGE CLAMP, 1"
7 BALL VALVE, 1", FLANGE 1
1 FLANGED POLY CHECK VALVE, 1", 1 PSI
1 FLANGED 4-BOLT VALVE, M200 X M200
3 M200 X M200 X M200 TEE
1 M200 X M200 X M100 TEE
2 M200 X M100 COUPLING
1 M200 X 1-1/4" HB 90 ELBOW
2 M200 X 1-1/4" HB
1 M200 X 1-1/2" HB
3 M200 PLUG
1 M200 X M200 CHECK VALVE
12 FLANGE GASKET, VITON, 2"
12 FLANGE CLAMP, 2"
4 HOSE MENDER, 1-1/4" X 1-1/4"
2 HOSE MENDER ELBOW, 1-1/4" X 1-1/4"
100 HOSE CLAMP - #24, 1-1/4"
4 HOSE CLAMP - #28, 1-1/2"

Introduction: Updates 9
INTRODUCTION
FIGURE 3. Case IH 50 Series Patriot Sprayer Boom Recirculation Wilger Plumbing Kit Contents (P/N 117-
0171-895 Rev. A)
UPDATES
Updates for Raven manuals as well as software updates for Raven consoles, and product controllers are available
at the Applied Technology Division web site:
https://portal.ravenprecision.com
The Raven Service Tool and a laptop PC are required to perform software updates to the ECU. Refer to the Raven
Service Tool Operation manual for additional assistance with updating the ECU.
Sign up for e-mail alerts to receive notifications when updates for your Raven products are available on the Raven
web site.
At Raven Industries, we strive to make your experience with our products as rewarding as
possible. One way to improve this experience is to provide us with feedback on this manual.
Your feedback will help shape the future of our product documentation and the overall service we
provide. We appreciate the opportunity to see ourselves as our customers see us and are eager
to gather ideas on how we have been helping or how we can do better.
To serve you best, please send an email with the following information to
[e-mail]
-Boom Recirculation Installation and Operation Manual for Case IH 50 Series Patriot Sprayers
-016-0171-727 Rev. A
-Any comments or feedback (include chapter or page numbers if applicable).
-Let us know how long have you been using this or other Raven products.
We will not share your email or any information you provide with anyone else. Your feedback is
valued and extremely important to us.
Thank you for your time.
T
H
N
X
N
X
N
X
N
X
QTY PART # DESCRIPTION
(LABELED BOX 1 OF 1)
12 COMBO-RATE BEFV, FLANGE FITTING
24 QF100 X 1-1/4" HB, 90 SWEEP
40 2PC END ADAPTER, CASE IH TWS
40 FLANGE END SEALS, CASE IH TWS

CHAPTER 2
10 Boom Recirculation Installation and Operation Manual for Case IH 50 Series Patriot Sprayers

CHAPTER
3
Installation: Overview 11
CHAPTER 3 INSTALLATION
OVERVIEW
FIGURE 1. 7 Example of the Boom Recirculation Update System
CAUTION
• Use thread sealant on all threaded joints.
• Do not over tighten threaded joints.
• Use provided hose-protectors where sharp
edges contact hoses.
• Hose lengths shown are for reference only.
Ensure hoses are routed to prevent
interference, pinching, or stretching while
folding or unfolding the booms.
Added or
Modified Parts 1
5
23
6
7
888 8888
999999
4
1. Main Tank
2. Main Pump
3. Main Flow Meter
4. Boom Pressure Transducer
5. Drain Valve
6. Electric Return Valve
7. Throttling Valve
8. Section Valves
9. Recirculation Hand Valves

CHAPTER 3
12 Boom Recirculation Installation and Operation Manual for Case IH 50 Series Patriot Sprayers
ASSEMBLE AND MOUNT THE RETURN AND THROTTLING VALVE
FIGURE 2. Assembly of the Throttling and Electric Return Valve
1. Assemble the Electronic Recirculation Valve (P/N 334-0001-081) and throttling valve assembly as shown in
Figure 2 on page 12.
2. Mount the throttling valve to the center rack mounting bracket (P/N 107-0172-753) using two U-bolts with 1/4”
washer and 1/4” lock nuts.
3. Loop the U-bolts over the center M200 tee and secure to bracket.
NOTE: Assemble with the cable of the electronic recirculating valve facing down and the handle of the
throttling valve pointing away from the return valve when in the open position.
4. Once assembly is complete, mount the bracket to the center rack at the rear of the machine using the existing
hardware.
Return and
Throttling
Valve

Installation: Assemble and Mount the Return and Throttling Valve 13
INSTALLATION

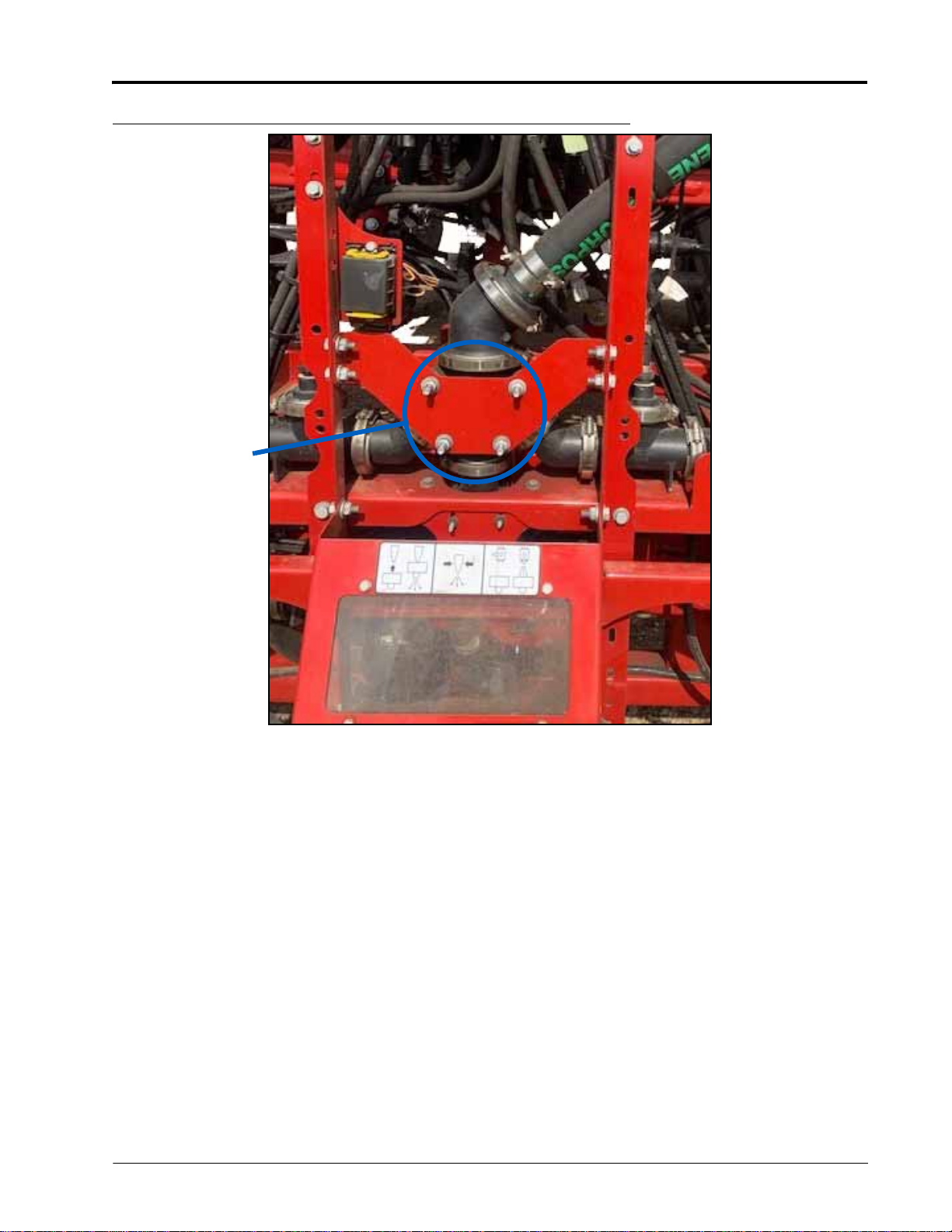

FIGURE 3. Center Rack Return Bracket Mounting Location
4-Bolt Mount
Location

CHAPTER 3
14 Boom Recirculation Installation and Operation Manual for Case IH 50 Series Patriot Sprayers
PLUMB THE DRAIN AND TANK RETURN

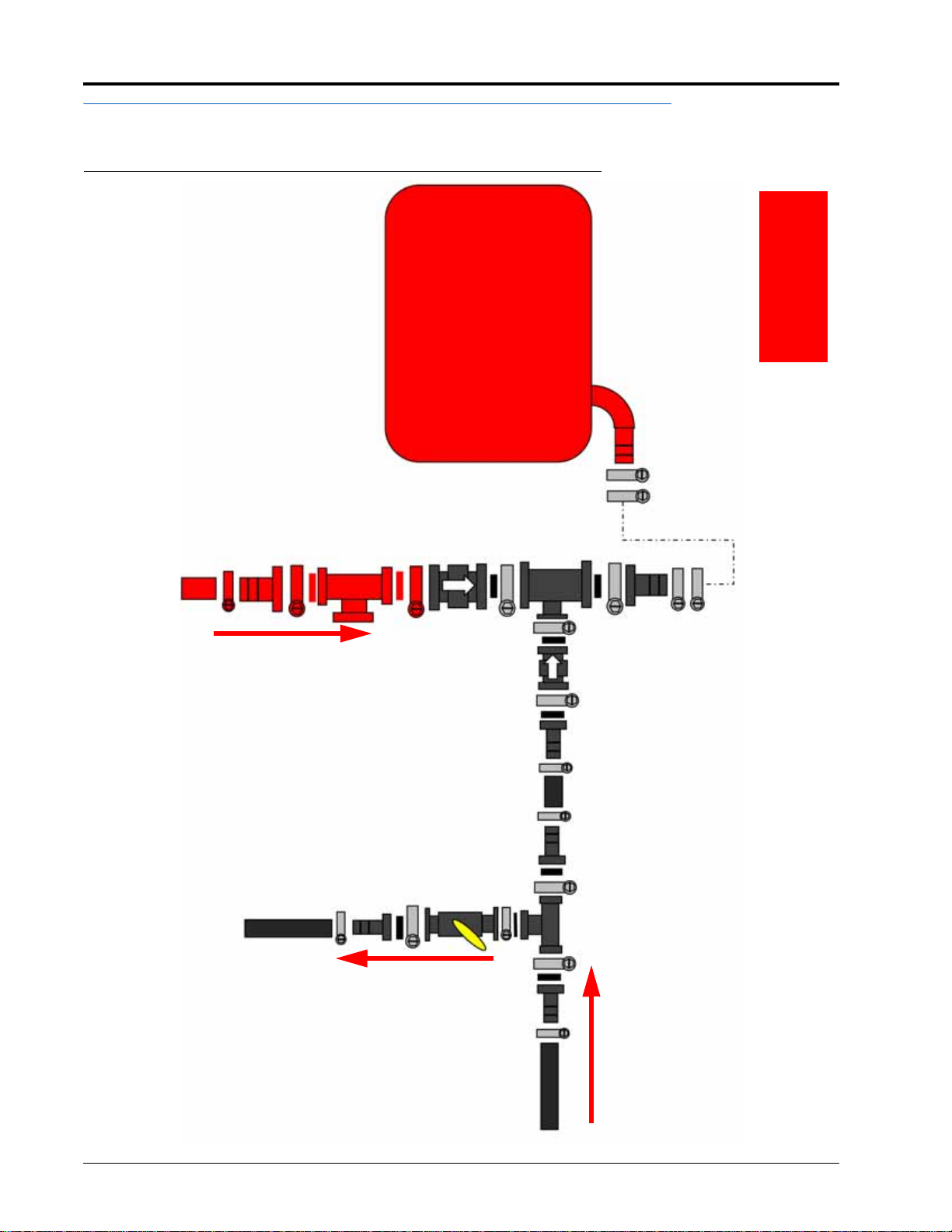

FIGURE 4. Tank and Drain Recirculation Plumbing Diagram
Existing Machine
Parts
Main Product
Tank
From Center Rack
Drain / Reclaim
From Eductor
With factory eductor OR Cap without eductor
Optional Drain Hose

Installation: Plumb the Drain and Tank Return 15
INSTALLATION
1. Mount the M200 x M100 tee to the return mount bracket (P/N 107-0172-764) with two U-bolts, 1/4” washers,
and 1/4” lock nuts.
2. Assemble the 1” check valve to the M100 port of the tee as shown in Figure 4 on page 14.
NOTE: Pay close attention to the arrow on the check valve to allow flow to return from the boom to the tank.
3. Assemble the 2” check valve if the eductor is present. Cap the tee if no eductor is present.
NOTE: If installing the check valve, pay close attention to the arrow for liquid to flow from the eductor to the
tank and block return flow from the boom.
FIGURE 5. Tank Top Hose Barb Outlet
NOTE: Eductor hose may need to be shortened to accommodate assembly.
4. If no eductor is present, route the bumble bee hose from the tee up to the 1.5” steel hose barb outlet located
on the top of the tank.
5. Route the 1.25” boom hose from the 1” check valve across the back of the tank.
6. Plumb in the drain tee and hand valve.
CAUTION
Route hose away from moving parts and pinch
points, generally following existing hose routing.
Install hose protectors as needed along sharp
edges.

CHAPTER 3
16 Boom Recirculation Installation and Operation Manual for Case IH 50 Series Patriot Sprayers
FIGURE 6. Route Return Valve to Drain Valve
7. Route the 1.25” boom hose from the drain tee back to the electric valve on the center rack by following the
product supply hose along the side of the sprayer and onto the center rack.
FIGURE 7. Return Hose Routing
Return
Drain
Return Hose
