Rcom Juragon PX-20R User manual

3. Basic Components
2. Identification of Parts
WATER
Digital Incubator
www.R-com.co.kr
PX-20R



Ver E 3.2
1. Safety Cautions
Electrical hazards Be careful the details below when you use.
Setting Cautions Be careful the details below when you use.
Do not pull the cord when
taking out the power cord,
and keep wet hands away
from connecting plug.
Do not use a damaged
power cord or loose
outlet.
Risk of electric shock or fire.Risk of electric shock or fire.
Do not insert multiple
connecting plugs in an
outlet.
Risk of fire or electrical overload.
Never pull the plug out of
the outlet during the
incubation period.
Incubation will be interrupted.
Do not twist or crush
electric cord.
Risk of electric shock or fire.
Cleaning Cautions
Be sure to disconnect the electric cord
from the outlet before cleaning.
Clean the incubator by a
soft cloth with a neutral
detergent.
Do not spray cleanser
directly on the incubator
surface.
Do not use chemicals like wax,
benzene, alcohol, thinner,
aromatic, or lubricant, etc.
Brush away dust on the
plug with a dry cloth.
For special cleaning of
inner part per year, contact
to the service center.
Do not install under the
direct sunlight.
Do not install in dusty or
dirty environment.
Risk of fire or interference with
the incubation process.
Risk of damage or fire within
the incubator.
Do not install in excessively
cold or hot conditions,
cigarette smoke, etc.
Do not install in moist or
humid environment.
Risk of interference with
the incubation process.
Risk of fire or electric shock.
Do not use any other
non-standard parts
except those provided.
Risk of damage or hatching
failure.
Please ensure that no
small objects get into
the holes on the incubator.
Risk of electric shock or fire.
Do not disassemble or
modify the incubator in
any way.
Risk if electric shock or fire.
If the incubator sounds
strange or emits smoke
contact your service
center.
Risk of electric shock or fire.
If the incubator requires
repair disconnect from the
power supply and please
contact to your service center.
Clean the incubator
thoroughly before storing.
Install away from heat
sources.
Risk of damage to the incubator
case and interference with
the incubation process.
Do not turn the incubator
upside down.
Water will pour out of the incubator,
and view window can be dropped
or damaged.
Ensure that the incubator is
installed on a stable surface
away from edges.
Risk of damage to incubator
and eggs and user from
accidental knocks or drops.
Do not cover the
ventilating opening.
Inner temperature can rise,
interrupting incubation.
Do not install where
children or other people
can touch with easy.
Risk of knocking the incubator
or accidental interference with
the controls.
USER'S MANUAL (Standard)
View Window
Main Body-1
Water Cap
Power Cord
User's Manual
Tray
Main Body-2
View Window
For a clear view of
the incubation process.
( duplicated View Window )
Tray for
vermiculite( incubation sand)
and reptile eggs.
Main Body-1 Main Body-2
Tray
To facilitate water top-up
for the humidity control.
Locking Button
See description of
the function and operation.
Digital Control Center
Power Connecting
(the rear)
For connecting
power cord.
For circulating warm air
For inlet of air
from outside
Water Cap
Air inlet vent
Vents for air circulation
4. How to Assemble 5. How to Replace Fuse
CAL CAL
TEMPERATURE HUMIDITY
TEMP.GAP
HEATING
WATER EMPTY
HUMIDIFICATION
incubator
TEMP +TEMP +
TEMP -TEMP - HUMI -HUMI -
HUMI +HUMI +
D.T.G.D.T.G. SETSET
Daily Temp. Gap Function
Temp. UP Button
Daily Temp. Gap Lamp
Lamp ON when Operation
▶What is Daily Temperature Gap Function?
It is artificial promotion of nature condition of the highest temperature time zone.
By upraising the temperature at the specific time zone, it helps achieving the highest hatching success.
Temp. Display
Temp. DOWN Button
(Lighting when working)
Heater Lamp
Humidity UP Button
Humidity DOWN Button
Setting Button
Humidity Display
(Lighting when working)
Humidification working lamp
(Blink with water shortage)
Water Supplement Lamp
7. Operation Part
8. Easy Function Operation
Daily Temp. Gap ON /
Daily Temp. Gap OFF
(Three hours operation per day)
/ +1.5℃
D.T.G.D.T.G.
Daily Temperature Gap
Setting
Lock the three locking
buttons at the front and rear
of the incubator.
Insert the power cord
in the socket at the back
of the main body.



View Window
Main Body-2
Tray
Main Body-1
ⓐ
ⓑ
900cc
6. Before use
Environment conditions of the incubation room
for the installation of reptile incubator.
( Temp.: 22~25℃ / Humidity: 30~50% )
4. Bury a low half of the eggs into the Vermiculite as[Fig.-1] and fix them.
(Check the conditions of the eggs once a week. Remove unfertilized eggs,
incompletely developed eggs, eggs covered with mold.)
5. Check the water for humidification everyday and fill it up as
shown in Fig - 4.
Stop supply of the water when styrofoam ball floats.
Do not reuse Vermiculite( incubation sand) after hatch.
Remove water from the tank before moving the incubator.
Otherwise the incubator can be out of order.
2. Humidification heater part [ Fig.-5] of the main body-1 should be soaked
inside of water tank when assembling with main body-2.
Be sure to check this, and cover the view window for connecting power cord.



ⓐⓒ
ⓑⓓ
[ Figure - 2 ]
Do not apply force or shock to heater on the upper part of the body.
It may be the cause of failure.
Some foreign body can be stick to the heater part after hatching,
but there is no problem. (Refer to the "How to Clean)
[ Figure - 4 ]
[ Figure - 1 ][ Figure - 6 ]
WaterWater
Vermiculite( incubation sand)Vermiculite( incubation sand)Vermiculite( incubation sand)
75cc 75cc
75cc 75cc
If the incubation room temperature does not meet
the required temperature, it can not be controlled
automatically with the set incubation conditions.
Room temperature should be about 4℃lower
than incubator setting temperature.



[ Figure - 3 ]
③ⓔ
1000cc
1. Before starting incubation, fill water into the water tankⓒ,ⓓof main body-2
as [ Fig.-2 ] for humidification.
If the incubation room is not properly controlled for high humidity (90~95%),
pour 75cc of water into four edges of the tray. ( See Fig. - 6)
And, pour 1000cc of water at the main body-2. [ Fig.- 3 ]
▶ In case of low humidity incubation (70% ~ 85%): Fill the vermiculite( incubation sand)
which is to be purchased separately into the small incubating tray as shown in [Fig.- 1] ⓑ.
▶ In case of high humidity incubation (90% or more): In case the incubating environment is to be maintained 90%
or higher in humidity, fill the small incubating tray with 900cc of water as shown in [Fig.- 1 ]ⓐ and
put the vermiculite into it as shown in [Fig.- 1 ]ⓑ before mixing them.
That would facilitate the control of high humidity and remove the need of water filling.
▶ If you are going to incubate without water in the incubator,
you should turn off humidification function.
(Refer to How to turn off Humidification Function)
3. After setting the incubation environment of the egg, install tray
inside of the incubator and operate it for 30 to 40 minutes
and put eggs into the tray.
"OFF"
SETSET
SETSET
SETSET
SETSET
SETSET
SETSET
HUMI -HUMI -
HUMI -HUMI -
HUMI +HUMI +
TEMP -TEMP -
TEMP -TEMP -
TEMP +TEMP +
TEMP +TEMP +
℃↔℉
How to OperateFunction Explanation
Cels. / Fahr.
interchangable
How to change Cels. or Fahr.
Temp. Setting
Humidity Setting
How to turn off
Humidification Function
Setting of required temp.
Setting of required humidity.
Initialization
※If you want to change setting value, keep pressing "SET" button and change the value.
Incubator Initialization
(Factory Setting)
REFER TO "HOW TO START INCUBATION" FOR MORE INFORMATION.
UNDER 40%
In case of low humidity
incubation



[ Figure - 5]
Humidification
Heater Part
▶Replace with new fuse.
( 250V 2.0A Ø5*20mm )
▶When the machine failed to
power on even if you pluged in,
remove the fixing piece like
the picture by screwdriver.
▶You can find assembled PCB
when open the cover.
Remove faulty fuse with screwdriver.
Power Failure Alarm Function
Blick with power failure
(to remove, press SET button)
(Setting Value check)
AUTOELEXAUTOELEX
AUTOELEXAUTOELEX

Hatching result can be changed by a large number
of factors. Autoelex Co.,Ltd.
will not be held responsible for loss of eggs or reptiles under any circumstances
such as hatching failure, user’s carelessness, power failure, or malfunction.
●COMPANY
●TEL
●FAX
●E-MAIL
: #612 DukAm-Ri, JuChon-Myeon,
: GimHae-City, GyeongNam, KOREA
: 82-55-337-2560
(Direct to sales team)
: 82-55-337-2561-3, 2567 (Office)
: 82-55-337-2568
: [email protected] ( Sales team )

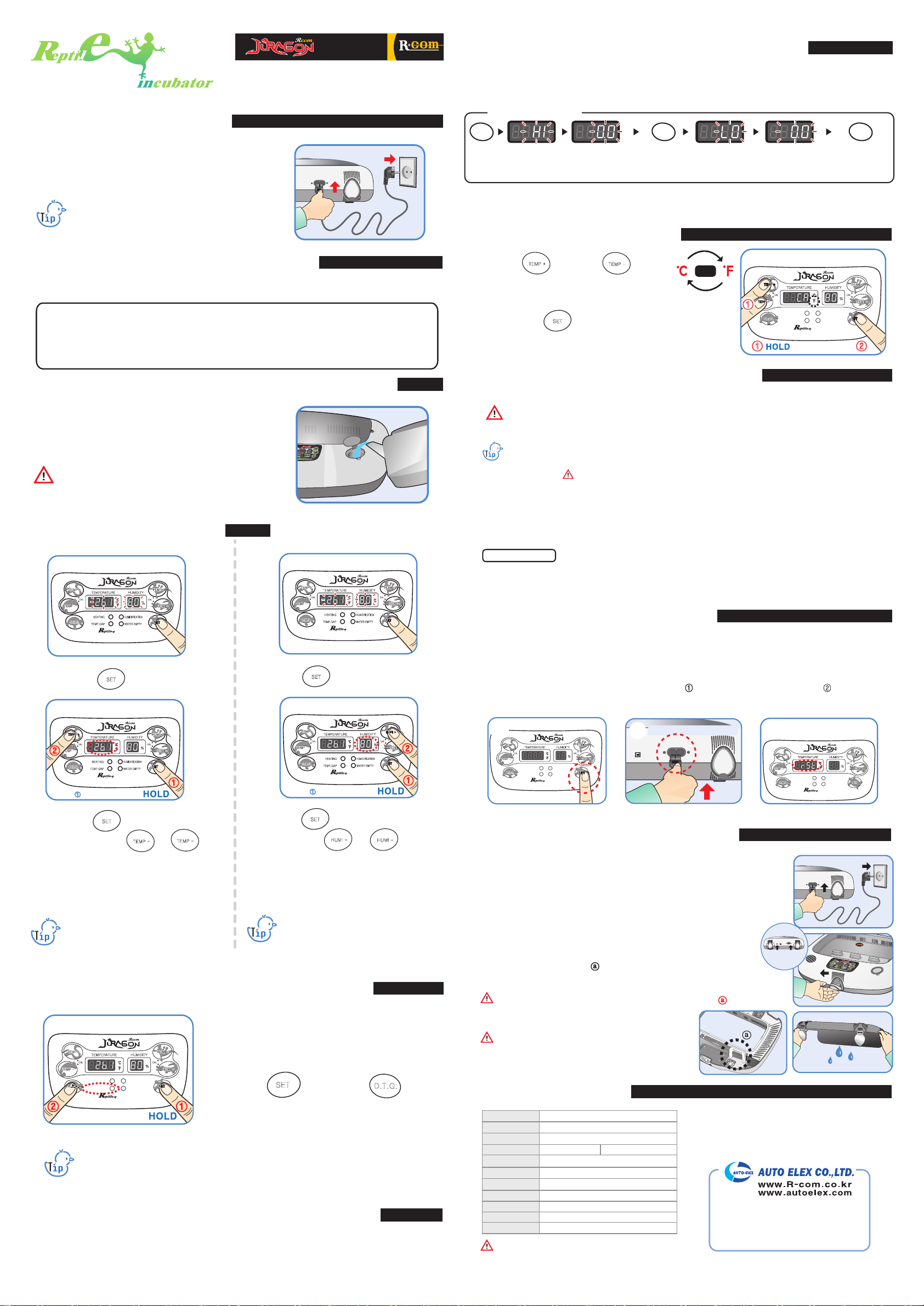

9. How to start incubation
14. How to Turn ON/ OFF Daily Temp. Gap
Digital Incubator
www.R-com.co.kr
PX-20R
Temp. Accuracy
Working Temperature
Ideal : 22℃ ~ 25℃ Min. 20℃ / Max . 26℃
Power
Humidity Limits
± 0.5℃
Temp. limits 20℃ ~ 42℃(68℉~ 107.6℉)
AC 100V~120V, 50/60Hz / AC 220V~240V, 50/60Hz
40% ~ 95% ( It can be changed according to the conditions )
Humidity Accuracy
± 5%
10~120 Eggs Available at once
Capacity
Net Weight
Size
4.35 Kg
Fuse Standard 250V 2.0A (Ø5×20mm)
(W)500×(L)410×(H)160 (mm)
Power Consumption
Average 48W
▶ Check the water everyday, and fill the hole with clean water.
The styrofoam ball floats on and
blocks the hole when full.
▶ If you connect incubator with power cord, it starts incubation
with existing temperature and humidity.
( Factory default setting-Temp.:26.1℃/ Humidity: 80% )
▶ After all eggs are hatched, you should take off the power cord for incubation termination.
If you set the incubator under a direct ray of light or
too cold spot, the incubator temperature
can be high or low than setting temperature .
If you set the incubator under a direct ray of light or
too cold spot, the incubator temperature
can be high or low than setting temperature .
▶If you press button, display will blink.
▶ In a state of button is pressed, adjust the
humidity you want with or button.
Humidity setting will be completed when you remove
your finger from the button, and present inner humidity
will be indicated.
12. How to set Temperature 13. How to set Humidity
Temp. Gap lamp will light on during daily temperature gap is operating.
With this function, the temperature will go up 1.5℃for about 3hours per day.
Ex) If setting temperature is 28.5℃, this function makes the incubator keep 30℃for 3 hours per day.
There can be some odor the first time you use
the incubator, that is normal.
Check water level every day on incubation period,
and refill fully with warm water.
▶Keep pressing SET button, and press HUMI- button until OFF indicated.
(OFF indicated when the humidity is under 40%)
▶If you press button, display will blink.
▶In a state of button is pressed, adjust the
temperature you want with or button.
Temperature setting will be completed when you remove
your finger from the button, and present temperature
will be indicated.
Temperature and humidity can be against
from normal setting extent according to
the surrounding environment.
▶What is Daily Temperature Gap Function?
It is artificial promotion of nature condition of
the highest temperature time zone. By upraising the temperature
at the specific time zone, it helps achieving the highest hatching success.
15. How to turn off Humidification Function
▶ You can turn off humidification function when you don't fill water with your incubation
or when you need low humidity incubaion.
Visit our web site (www.r-com.co.kr) for more information on our
products and other informations.
Update of information : download the necessary information
from resource room in Rcom homepage.
R-com digital reptile incubator is designed for easy and convenient use.
For the improvement of the functions of the incubator, design,
how to use, etc. can be changed without notice in advance.
21. Specification
10. How to Terminate Incubation
11. How to Supply Water for Humidity Maintenance
▶ Keep pressing button and press button.
Then, lamp will light on indicating this function is operating.
If lamp is off, it means this function is turned off.
SETSET
SETSET
SETSET
TEMP -TEMP -
TEMP +TEMP +
SETSET
HUMI -HUMI -
HUMI +HUMI +
CAL CAL
TEMPERATURE HUMIDITY
TEMP.GAP
HEATING
WATER EMPTY
HUMIDIFICATION
incubator
TEMP -TEMP - HUMI -HUMI -
HUMI +HUMI +
D.T.G.D.T.G.
CAL CAL
TEMPERATURE HUMIDITY
TEMP.GAP
HEATING
WATER EMPTY
HUMIDIFICATION
incubator
TEMP +TEMP +
TEMP -TEMP - HUMI -HUMI -
D.T.G.D.T.G.
(Keep pressing the button)
CAL CAL
TEMPERATURE HUMIDITY
TEMP.GAP
HEATING
WATER EMPTY
HUMIDIFICATION
incubator
TEMP +TEMP +
TEMP -TEMP - HUMI -HUMI -
HUMI +HUMI +
D.T.G.D.T.G. SETSET
SETSET D.T.G.D.T.G.
If you leave the incubator alone without drying water after high humidity incubation,
the water inside of incubator condense and make waterdrop at the LCD display or
control device. For preventing this problem, disassemble main body 1 and 2, and
dry completely before storing. ( You can dry the incubator as operating the
incubator for about 1 to 2 hours after removing water.)
( ① Keep pressing the button) (
① Keep pressing the button)
17. Change Cels.&Fahr.
▶ Press button and button
at the same time, and CA will show on Temp. display.
Then, press button. It will change.
repeat
SETSET
TEMP -TEMP -
TEMP +TEMP +
① ②
CAL CAL
TEMPERATURE HUMIDITY
TEMP.GAP
HEATING
WATER EMPTY
HUMIDIFICATION
incubator
TEMP +TEMP +
TEMP -TEMP - HUMI -HUMI -
HUMI +HUMI +
D.T.G.D.T.G. SETSET
①
(Keep pressing the button)
18. How to Calibrate Temp.(Humidity)
How to calibrate : Fill Vermiculite to three fourths of the internal tray. Fix temperature or hygrometer at 2 cm above
the bottom of the tray and operate it for one hour before starting its calibration.
This calibration function is to reset the temperature and humidity of the incubator to correct values using
your thermometer and hygrometer. It is better not to calibrate the incubator as normal thermometer and
hygrometer are not reliable than incubator factory setting.
CAUTIONS
* Be sure to check CAUTIONS before you calibrate temperature or humidity.
▶How to Calibrate Temp. (or Humidity):
Turn on the incubator, and press TEMP+(or HUMI+) and TEMP-( or HUMI-) button at the same time for about 5sec.
Then, "CA" will show on the display. Here, set the required temperature (or humidity)
with TEMP+(HUMI+) or TEMP-(HUMI-) button, and press "SET" button.
- After Calibration -
If you can not rely on your thermometer or hygrometer, you can initialize the incubator to factory setting.
(Refer to Incubator Initialization)
20. How to Clean after Hatching
▶Unlock three of locking buttons at the front and back of incubator,
and disassemble the incubator.
Do not clean the product with organic solvents
such as benzene and paint thinner.
Do not inflict an impact to the humidification heating part ⓐ.
Or, it will be damaged.
▶Pull out the electric cord from connecting jack,
and also take out the plug from the outlet.
▶In case of you operate humidification function, there can be moss on the
humidification heating part ⓐ. It doesn't effect in function,
and you just need to clean it with soft brush after hatching.
▶ Disassemble the incubator. The bottom part shall be thoroughly cleaned
with water and dried.The upper parts shall be naturally dried in order to
remove moisture inside of the incubator.
Assemble the parts in the reverse order of disassembly.
WATER
back
( ALL RESET ) For returning to the factory setting
19. Incubator Initialization
It is for initializing the incubator setting or calibration to factory setting
when you handle improperly so that the value changed.
Unplug the power supply. And, hold SET button as picture①. Re-plug the power supply as picture②.
Then, rSt will show on the display, and the incubator will be initalized to factory setting.
+=
③
CAL CAL
TEMPERATURE HUMIDITY
TEMP.GAP
HEATING
WATER EMPTY
HUMIDIFICATION
incubator
TEMP +TEMP +
TEMP -TEMP - HUMI -HUMI -
HUMI +HUMI +
D.T.G.D.T.G. SETSET
"rSt" will show on the display as below,
and the incubator initialize to factory setting.
HOLD
CAL CAL
TEMPERATURE HUMIDITY
TEMP.GAP
HEATING
WATER EMPTY
HUMIDIFICATION
incubator
TEMP +TEMP +
TEMP -TEMP - HUMI -HUMI -
HUMI +HUMI +
D.T.G.D.T.G. SETSET
①
Keep pressing SET button
②
Re-plug the power supply
16. How to Set Abnormal High or Low Temperatue Alarm
▶What is Abnormal High or Low Temperature Alarm?
It is alarm soulds when incubator temperature is higer or lower than setting value because of various
reasons such as room temperature change or disorder of temperature controlling system.
* Max. abnormal temp. alarm limit (0.0℃~ 5.0℃Default Setting:0.0℃)
* Min. abnormal temp. alarm limit (0.0℃~ -5.0℃Default Setting:0.0℃)
※ How to Set
SET
Press
SET button for
over 5Sec.
Set required
high range with
UP / DOWN button
SET
Set required
high range with
UP / DOWN button
Set required
low range with
UP / DOWN button
SET
Save setting and
pass to current
temp. & humid.
indication
CAL CAL
TEMPERATURE HUMIDITY
TEMP.GAP
HEATING
WATER EMPTY
HUMIDIFICATION
incubator
TEMP +TEMP +
TEMP -TEMP - HUMI -HUMI -
HUMI +HUMI +
D.T.G.D.T.G.
CAL CAL
TEMPERATURE HUMIDITY
TEMP.GAP
HEATING
WATER EMPTY
HUMIDIFICATION
incubator
TEMP +TEMP +
TEMP -TEMP - HUMI -HUMI -
HUMI +HUMI +
D.T.G.D.T.G.
AUTOELEXAUTOELEX
AUTOELEXAUTOELEX
ⓐ
