RealFlame 7100 User manual

Model # 7100
Ashley Fireplace
Lot#:____________
PO#:____________
7100-Ashley-JW-051112
Mantel Assembly Instructions
ventless fireplaces

WARNING !!
Read entire label and all instructions included with fireplace fuel and fireplace
If you have questions please call customer service at: 1-800-654-1704
NOTICE: Buyer assumes all responsibility for safety and use that is not in accordance with these instructions and warnings.
1. Never touch logs, fireplace fuel cans or any other surfaces during or immediately after burning fireplace fuel.
They will be extremely HOT. Allow surfaces to cool for 20 minutes before touching or refuelling.
2. Make sure fireplace is operated on a flat, level and stable surface. Keep fireplace stable at all times
3. WARNING: Never alter or dismantle the fireplace, metal firebox or logset in any manner.
4. Never store or use gasoline or any other flammable vapors, liquids, or materials in the vicinity of the fireplace
and fireplace fuel.
5. Burn only Real Flame® fireplace fuel in this fireplace. Never burn trash, paper, or wood in the fireplace.
5. Never leave a burning fire unattended, especially AROUND CHILDREN OR PETS.
6. Fireplace is not to be operated by anyone below age 18. Keep away from children and pets.
7. Never burn fireplace fuel outside the designated burn areas in metal firebox. Wipe up spills right away with a
paper towel or rag.
8. Do not burn more than three cans of fuel in the firebox at any one time.
9. Do not wear flammable or loose clothing when operating the fireplace.
10. Do not place more than 100 lbs. of weight on the top of the fireplace at anytime.
11. Never move fireplace while in use. Do not attempt to move fireplace until 30 minutes after
fireplace fuel has been extinguished.
12. Do not place fireplace in high traffic areas, such as a hallway or entryway.
13. Exercise the same precautions as you would with any open fire.
Fireplace fuel is flammable. Failure to follow warnings can result in property damage or serious burns.
Do not attempt to pourany kind of fuel on a fire that is already burning. Flare-ups or flashbacks can
occur if you do. Allow unit to cool for 20 minutes before refueling or removing cans of fuel.
Use only Real Flame® Fireplace fuel in this unit. Do not use with any other fuel or flammable material. Do not
attempt to refill cans of fireplace fuel.
Do not store or use gasoline or other flammable materials, including fireplace fuel, near this product. Vapors from
these types of items may collect and increase the risk of fire, explosion or injury.
In case of an emergency use a CO2 extinguisher or baking soda to extinguish the fire.
RF Mantle WARNINGS Rev7 050812
-
-
-
-
-
Using your
Fireplace
-Fireplace is designed to be used indoors, there is no need for ventilation.
-Before using unit, be sure you have read and understood all of the
step-by-step instructions.
-After several burns, soot may develop on the inside of the firebox. Clean with
a damp soapy rag or any household glass cleaner.
-During the initial burn you may experience a slight odor. Odor is temporary
and will be absent on following burns.
FLAMMABLE Real Flame Fireplace Fuel contains isopropyl alcohol.
Avoid contact with eyes, mucous membranes or prolonged contact with skin. May
irritate eyes. Store in a cool, dry place. Keep away from flame, heat or items that
spark. Use in well-ventilated areas. Keep out of reach of children and pets. In case
of fire, use a CO2 fire extinguisher or baking soda.
FIREPLACE
FUEL
If fuel gets in eyes, flush with water for 15 minutes; get medical attention. If ingested,
do not induce vomiting; call a poison control center a doctor.
FIRST AID
HAZARDS
PROPERTY DAMAGE, SERIOUS INJURY OR DEATHmay result if these warnings are not followed
Precautions

3

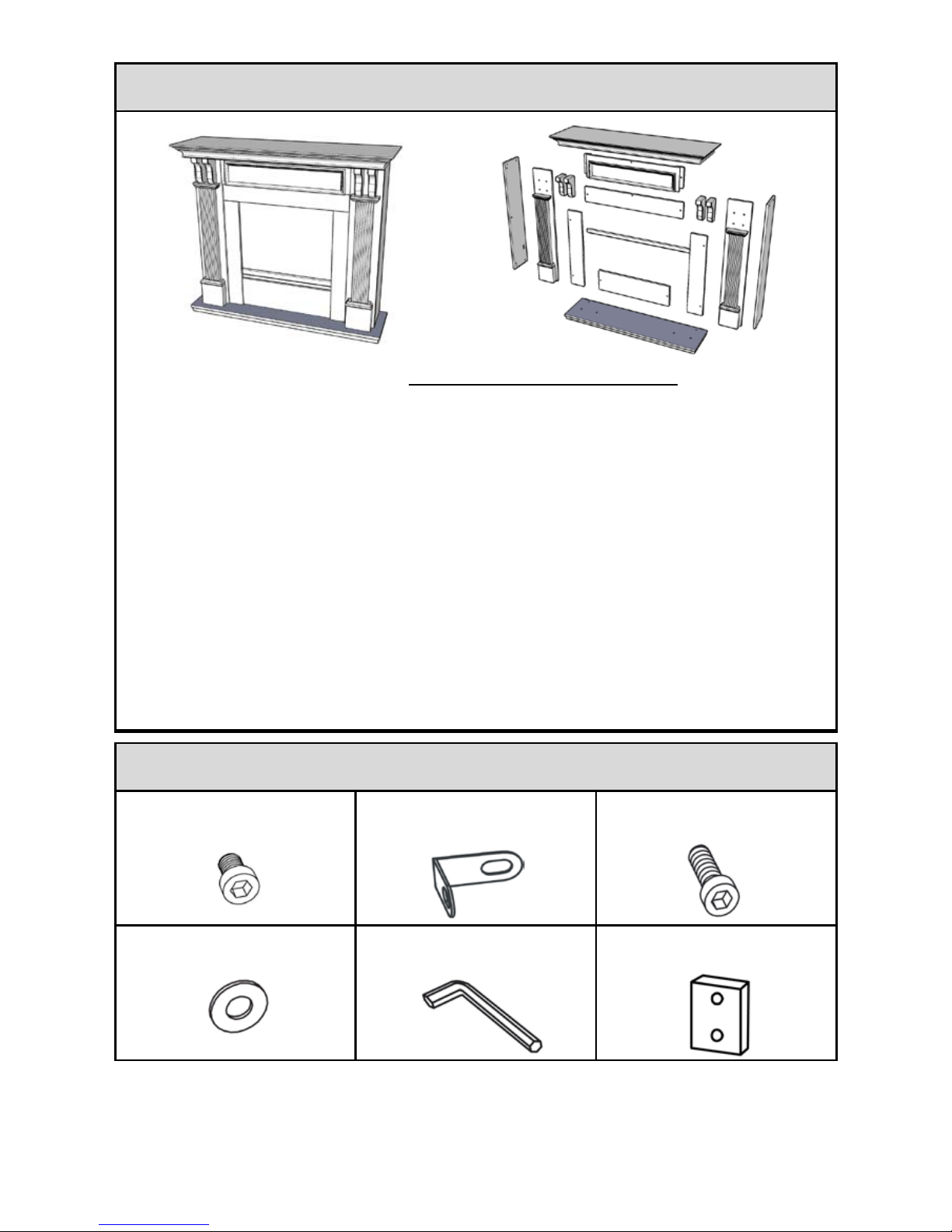

PARTS LIST
HARDWARE KIT - 71000014
A x 24
Short Allen Screw
B x 12
L-Bracket
C x 28
Long Allen Screw
D x 28
Washer
E x 1
Allen Wrench
F x 2
MDF Board
13
12
4
7
8
9
10
11
1
2
3
5
6
12
Number Description Black Wash Mahogany White Quantity
1 Base Panel 71000201 71000401 71000801 1
2 Left Side Panel 71000202 71000402 71000802 1
3 Right Side Panel 71000203 71000403 71000803 1
4 Left Front Panel 71000204 71000404 71000804 1
5 Right Front Panel 71000205 71000405 71000805 1
6 Center Panel 71000206 71000406 71000806 1
7 Top Panel 71000207 71000407 71000807 1
8 Left Firebox Trim 71000208 71000408 71000808 1
9 Right Firebox Trim 71000209 71000409 71000809 1
10 Lower Firebox Trim 71000210 71000410 71000810 1
11 Upper Firebox Trim 71000211 71000411 71000811 1
12 Front Panel Decor 71000212 71000412 71000812 4
13 Firebox Support 71000213 71000413 71000813 1
13 Hardware Kit 71000014 71000014 71000014 1
Part Numbers by Finish

4

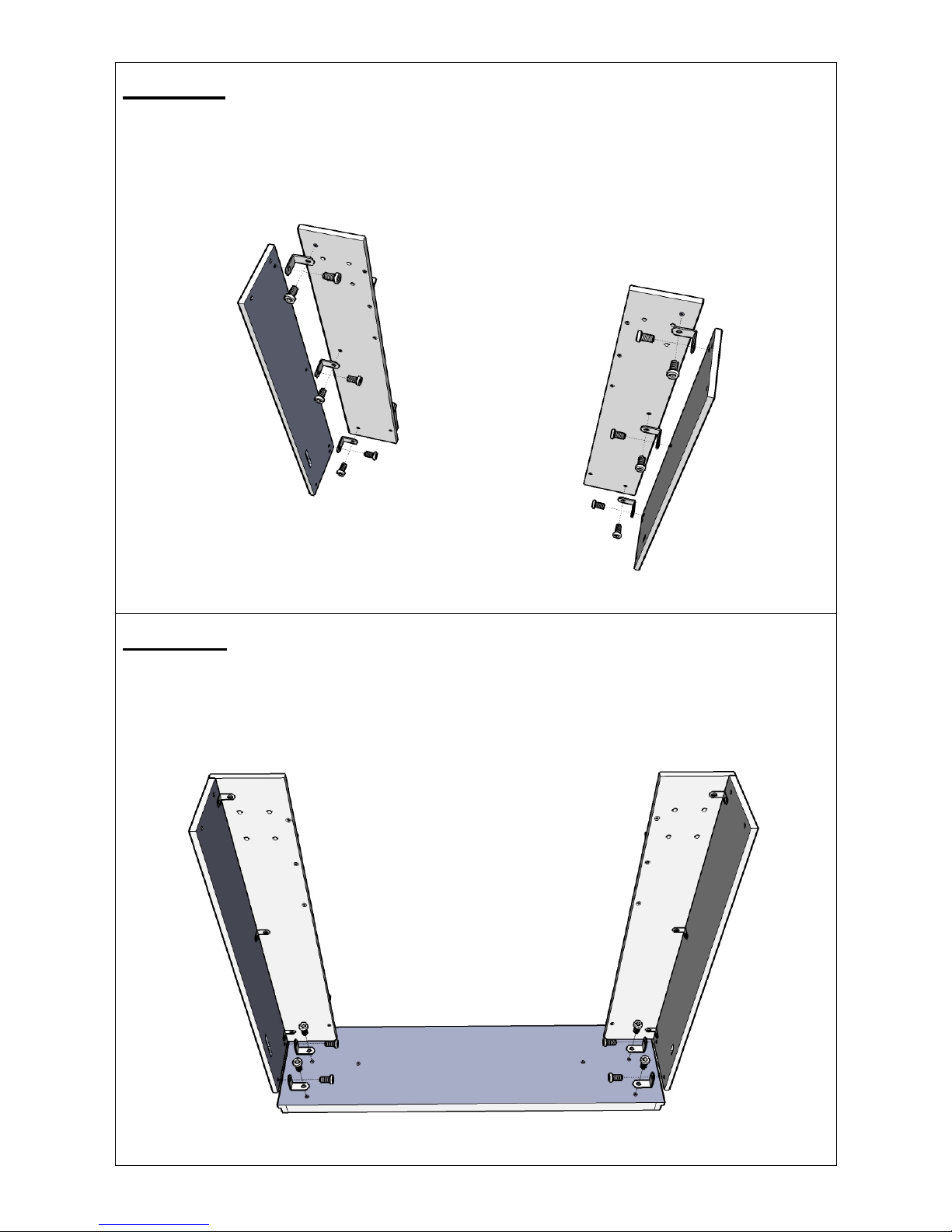

Step One
-Join left side panel (2) with left front panel (4) by securing 6 short allen screws through 3
L-brackets.
-Repeat with right side panel (3) and right front panel (5).
Step Two
-Set base panel (1) on a flat surface as shown.
-Join panel (2) & (4), (3) & (5) by securing 8 short allen screws through 4 L-brackets.
5
3
A
A
B
4
2
A
A
B
3
5 4
2
A
A
B B
A
1
A

5

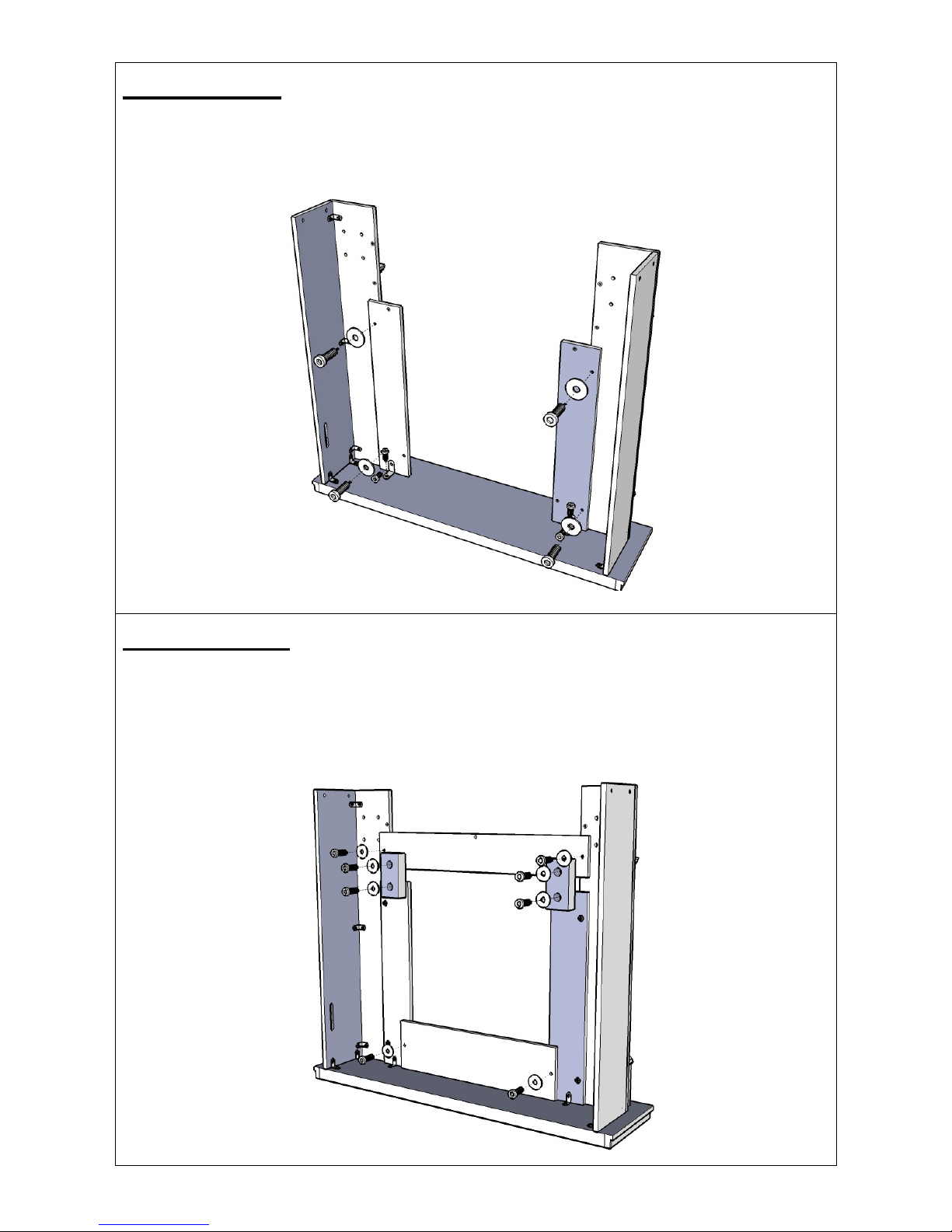

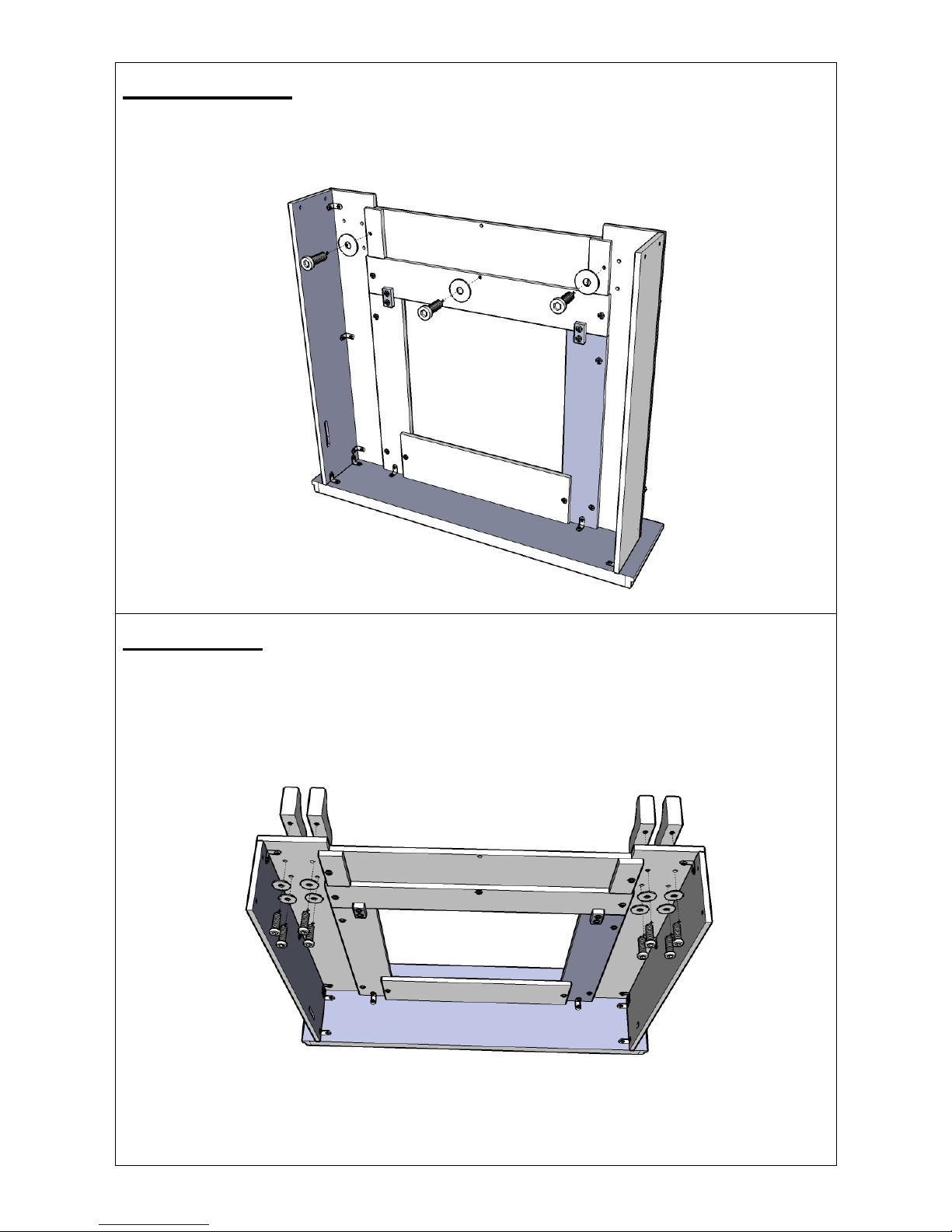

Step Three
-Attach left firebox trim (8) to left front panel (4) by securing 2 long allen screws through 2 washers.
Fit on base panel (1) by securing 2 short allen screws through 1 L-bracket.
-Repeat with right firebox trim (9).
Step Four
-Place lower firebox trim (10) on base panel (1). Attach to the back of left (8) & right (9) firebox trim
by securing 2 long allen screws through 2 washers.
-Attach upper firebox trim (11) to front panel (4) & (5) by securing 2 long allen screws through 2
washers. Fit on left (8) & right (9) firebox trim by securing 4 long allen screws through 4 washers
and 2 MDF boards.

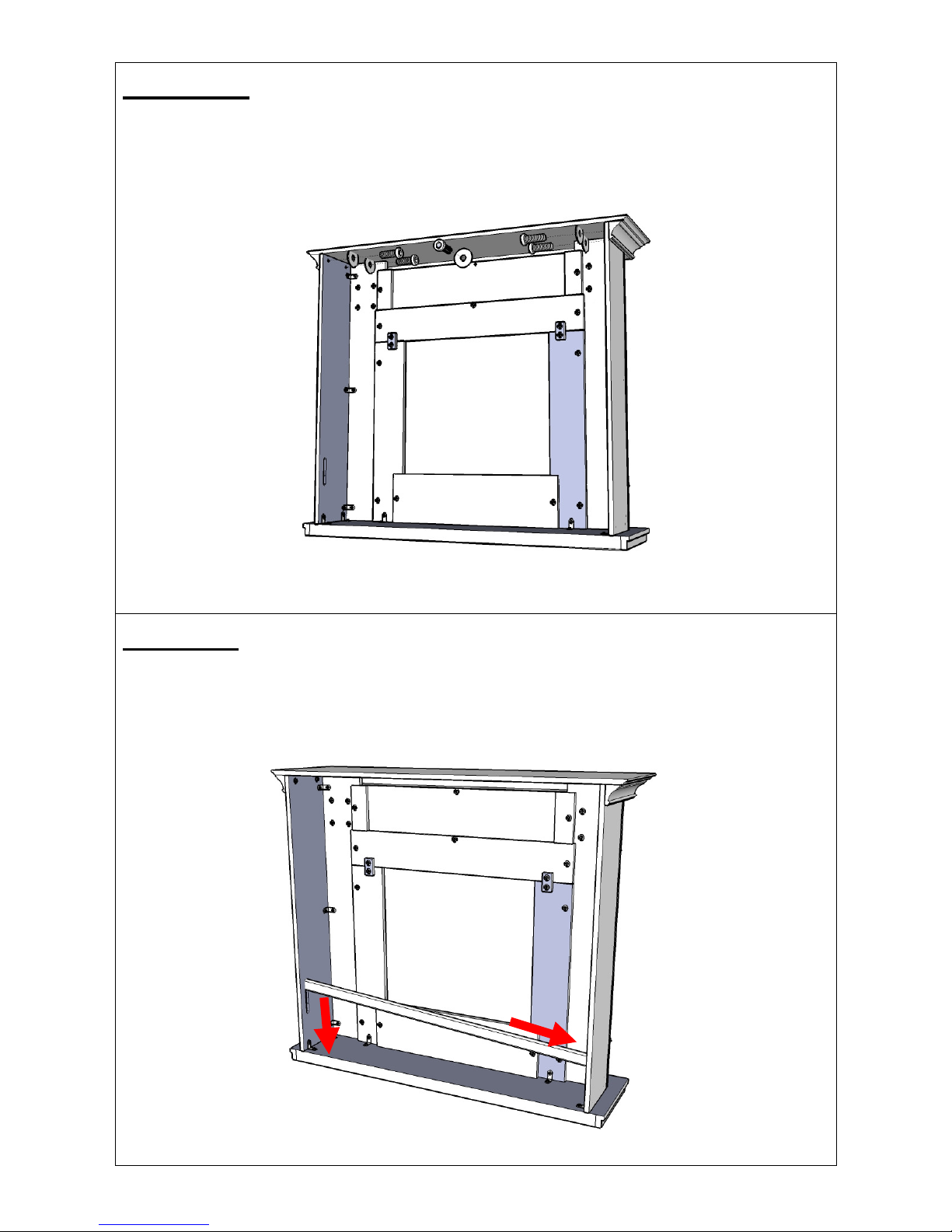

1
9
5
4
C
D
C
D
A
A B
1
10
11
5 4
C D F
C
D
C
D
9 8
