RealFlame Nuvo 1200 User manual

INSTALLATION AND OPERATIONS MANUAL
Version 2
NUVO 1200 & 1800
FLAME EFFECT GAS APPLIANCE
0-50M FLUE CONFIGURATIONS
Consumer safety information: please read this manual before installing and operating this appliance.
Failure to follow these instructions may result in a possible fire hazard and/or injury and will void the
warranty.
The Real Flame Nuvo Gas Appliance is designed to be installed into a frame out installation.
Designed to operate on Natural gas, LPG and ULPG
Approval no. GMK 10795
SCAN FOR THE
LATEST VERSION

2
Page
CONTENTS
WELCOME 3
SPECIFICATIONS 5
OPERATION INSTRUCTIONS
USER INSTRUCTIONS 8
INSTALLATION INSTRUCTIONS
UNIT DIMENSIONS 10
MINIMUM FRAMEOUT DIMENSIONS 11
FINISHING OPTIONS 20
INSTALLING ELECTRIC EQUIPMENT ABOVE FIREPLACE 22
INSTALLATION INSTRUCTIONS 23
INSTALLER INSTALLATION STEP LIST 24
INSTALLATION ACCESS PANEL 25
INSTALLATION RESTRICTIONS 26
TOP STANDOFF FITMENT 27
EXTERNAL WALL MOUNTED FAN MODULE INSTALLATION 28
ROOFTOP TERMINATION WITH EXTERNAL MOTOR 32
FITTING SIDE PANELS 36
FITTING LOWER FRONT TRIM 37
COMMISSIONING PROCEDURE 38
MEDIA INSTALLATION 39
CONVERSION DETAILS 49
PARTS LIST 54
APPENDIX 1- FLUE TERMINATION 55
APPENDIX 2- WIRING DIAGRAMS 56
APPENDIX 3- SETTING FLUE FAN SPEED 57
WARRANTY INFORMATION 58

3
Page
WELCOME
Congratulations on your selection of the elegant Nuvo Gas Fireplace. Enjoy enchanting flame patterns
in an elegant room sealed gas fireplace. The Nuvo Range is simply breathtaking from all angles and
configurations. Nuvo has been designed with fuel beds which have been crafted from bush gathered
from the mountains surrounding Real Flame’s base in Melbourne, Victoria. We hope you create endless
memories in front of this fireplace.
Read this manual before attempting to install or use the fireplace. Always comply with the warnings
and safety instructions contained in this manual to prevent injury or property damage. When using the
fireplace basic precautions should always be followed to reduce the risk of fire and injury.
INSTALLATION NOTICE
The installation of this appliance is only to be carried out by an authorised person in accordance with the Manufacturer’s Instructions,
local gas fitting regulations, AS/NZS5601.1-2013 installation code for gas burning appliances and any other relevant statutory
regulations.
In all cases the installation of this appliance shall meet the requirements as set out in AS/NZS5601.1-2013.
Do not install in a fireplace as a Type 1 installation. Not intended as a fireplace insert.
NOTE: A slight smell may be apparent for the first few hours of use. This is due to the heat resistant paint curing. It is recommended
to open windows in the room for the first lighting of the fire. In some instances a slight discolouration may occur inside the firebox.
This is a normal condition and is not covered by warranty.
WARNING
The Nuvo gas fireplace has a primary safety glass fitted. This safety glass is fitted to this appliance to reduce the risk of injury from
burns and at no time should this glass be permanently removed.
To reduce the risk of fire or injury from burners and for the protection of young children or the infirm, a secondary guard is
recommended.
The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack
of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person
responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
The glass panel gets extremely hot! Precaution should be taken and young children supervised at all times when the heater is
operating.

4
Page
IMPORTANT SAFETY NOTICE
Do not place articles on or against this appliance.
Do not use or store flammable materials in or near this appliance.
Do not spray aerosols in the vicinity of this appliance whilst it is in operation.
Care must be taken to ensure that any return air register or exhaust system does not adversely affect the operation of the appliance
or draught of chimney or flue.
Do not modify this appliance.
Appliance is designed to operate with luminous flames. May exhibit slight carbon deposit.
SERVICING
It is recommended you service your gas fire every 2 years as a minimum.
CORD REPLACEMENT
Electrical cord replacement must be undertaken by qualified and trained personnel only.
NOTE
APPLIANCE IS PRIMARILY A DECORATIVE AND NOT A HEATING APPLIANCE.
INSTALLATIONS OF NUVO IN EXTREME ENVIRONMENTS
Note – The installation of the appliance may not be suitable for use, may have a reduced performance or may have
intermittent operation in some extreme environments.
Extreme environments may be areas or high wind (Approx 65km/hr or higher) including high gust areas, high altitudes,
alpine or snow areas, extreme frost areas, coastal areas, multistory or high rise buildings, exposed alfresco areas and
extreme weather events.
The appliance has been designed and tested to ensure it meets the operational requirements of the Australian standards
AS/NZS5263.1.3 Gas space heaters and will provide reliable operation in most conditions while maintaining
appliance safety in all conditions.
The installation into an extreme environment may exceed the working limits of the appliance and the appliance may
have a reduced output, suffer infrequent stop starting, fail to operate or have a reduced life expectancy when installed
in a corrosive environment.
Finishes in some appliances may also not be suitable for semi exposed or corrosive environments.
When installed as per instructions the appliance will continue to operate safely or will shut down in a safe manner.
Non operation or reduced life expectancy due to extreme conditions is not a failure of the appliance and is not a
warranty defect.
Glen Dimplex Australia must be consulted prior to any installation into an extreme environment.

5
Page
SPECIFICATIONS OF NUVO 1200
Appliance Type Room Sealed Decorative Gas Fireplace
Gas Type Natural Gas LPG ULPG
Gas Input 27 High/21 Low 27 High/22 Low 21.5 High/18.5 Low
Operating Pressure (TPP) 0.85kPa High /
0.50kPa Low
2.1kPa High /
1.50kPa Low
2.00kPa High /
1.50kPa Low
Max - Min Inlet Pressure Range Min 1.13kPa
Max 5.00kPa
Min 2.75kPa
Max 5.00kPa
Min 2.75kPa
Max 5.00kPa
Injector Size 3 x 1.50mm 3 x 0.90mm 3 x 0.75mm
Aeration Settings
Media Setup Natural Gas LPG ULPG
Redgum and Coals 3.5 mm diameter
hole (2 off)
8.0 mm diameter
hole (2 off)
8.0 mm diameter
hole (2 off)
Alpine Forest 3.5 mm diameter
hole (2 off)
8.0 mm diameter
hole (2 off)
8.0 mm diameter
hole (2 off)
Tasman Shoreline 3.5 mm diameter
hole (2 off)
8.0 mm diameter
hole (2 off)
8.0 mm diameter
hole (2 off)
River Gorge 3.5 mm diameter
hole (2 off)
8.0 mm diameter
hole (2 off)
8.0 mm diameter
hole (2 off)
Nordic Pine 3.5 mm diameter
hole (2 off)
8.0 mm diameter
hole (2 off)
8.0 mm diameter
hole (2 off)

6
Page
SPECIFICATIONS OF NUVO 1800
Appliance Type Room Sealed Decorative Gas Fireplace
Gas Type Natural Gas LPG ULPG
Gas Input 35 High/29 Low 35 High/29 Low 28 High/23 Low
Operating Pressure (TPP) 0.75kPa High /
0.50kPa Low
2.35kPa High /
1.70kPa Low
2.20kPa High /
1.70kPa Low
Max - Min Inlet Pressure Range Min 1.13kPa
Max 5.00kPa
Min 2.75kPa
Max 5.00kPa
Min 2.75kPa
Max 5.00kPa
Injector Size 3 x 1.90mm 3 x 1.00mm 3 x 0.90mm
Aeration Settings
Media Setup Natural Gas LPG ULPG
Redgum and Coals 4.0 mm diameter
hole (2 off)
9.0 mm diameter
hole (2 off)
9.0 mm diameter
hole (2 off)
Alpine Forest 4.0 mm diameter
hole (2 off)
9.0 mm diameter
hole (2 off)
9.0 mm diameter
hole (2 off)
Tasman Shoreline 4.0 mm diameter
hole (2 off)
9.0 mm diameter
hole (2 off)
9.0 mm diameter
hole (2 off)
River Gorge 4.0 mm diameter
hole (2 off)
9.0 mm diameter
hole (2 off)
9.0 mm diameter
hole (2 off)
Nordic Pine 4.0 mm diameter
hole (2 off)
9.0 mm diameter
hole (2 off)
9.0 mm diameter
hole (2 off)

7
Page
OPERATION INSTRUCTIONS

8
Page
USER INSTRUCTIONS
• Do not operate if you smell gas. Turn appliance off,
extinguish any open flame. Contact your installer or a
licensed gasfitter.
• Do not use if any part of this appliance has been
submerged in water. Contact your installer or a
qualified service technician.
• Solid fuels must not be burnt in the fire. Leaves, sticks,
wood, paper food or material must be kept away
from the fire.
• Should the appliance fail to ignite or was recently
turned off, allow 5 minutes before attempting to
reignite appliance. In the event of abnormal operation
please contact your licensed gas installer, gas
service personnel or Glen Dimplex Pty Ltd. Abnormal
operation may consist of the following, noisy fan,
excessive or small flame, unusual flame appearance
or colour, excessive sooting or other.
Operating instructions - Wall switch control
• Press wall on/off switch to on, wait 30 seconds and
appliance should start to operate.
• Press high / low wall switch to control flame height.
• Turn appliance off using wall switch. Appliance
will run through a 5 minute cool down cycle. (Note
–appliance will not restart during this period if
appliance is turned back on, after 5minutes appliance
will restart if the switch in the on position.)
CBUS or similar control (Note requires the
appliance to be connected to CBUS or
similar system)
The Nuvo decorative gas fireplace can be easily
controlled by most home automation systems.
The Nuvo appliance is supplied with an on/off switch
and a high/low burner flame switch.
Home automation control can be obtained by either
replacing these switches with home automation relays
(min rating 230VAC 1.5amp) or by keeping the manual
switches and fitting home automation relays in parallel to
the manual switches.
Note – in both install methods an electrical isolation
switch is still required to be installed for servicing /
isolation purposes.

9
Page
INSTALLATION INSTRUCTIONS

10
Page
UNIT DIMENSIONS
K
L
JP
M
A
GAS INLET HOLE
ELECTRICAL CONNECTIONS
(REAR OF TRAY)
E
O
N
F
D
B
C
GAS INLET HOLE
I
G
H
Q
UNIT A B C D E F G H I J
NVS1200 1208 1040 327 314 114 0 34 434 70 339 215
NVS1800 1808 1040 327 314 174 0 34 434 70 339 215
UNIT K L M N O P Q
NVS1200 604 384 14 8 270 220 25 990
NVS1800 904 684 14 8 570 220 25 990

11
Page

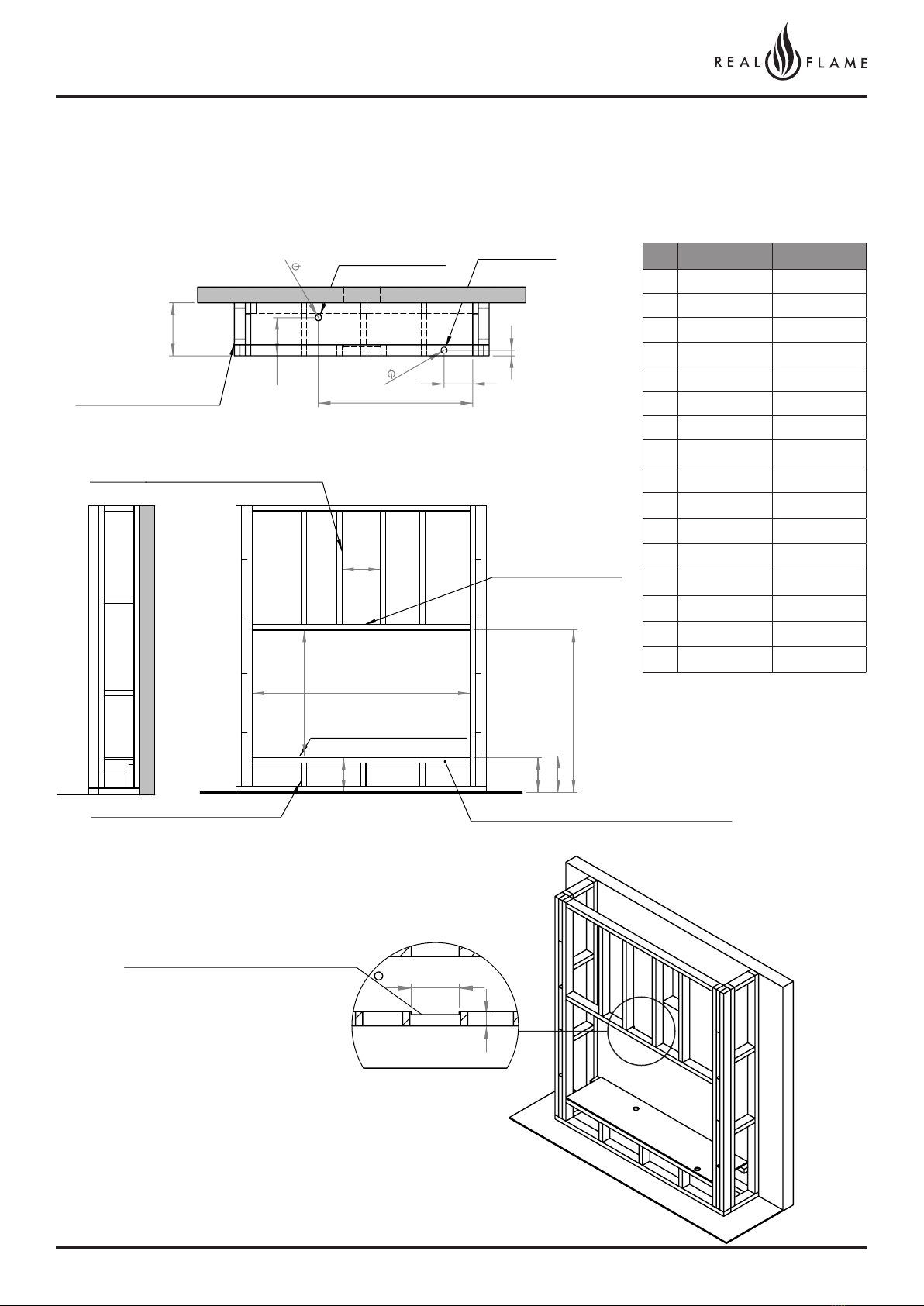

MINIMUM FRAMEOUT DIMENSIONS
SINGLE SIDED
Checkout support 300mm X 20mm
to allow for 25mm clearance for flue
Detail ‘Q’
P
O
435mm Min depth of
frameout without cladding
Centre trimmers to be spaced 320mm
apart min for flue clearance
Timber to be checked
out as per ‘Detail Q’
or 70mm width to
be used to support
beam only
12mm plywood base
‘C’ X depth
5 X Internal support frames 288mm high Drill gas supply hole through ply and bottom bearer
Electrical cable hole Gas supply hole
I
H
N
M
L
A
BC
E
GFD
K
J
NVS 1200 NVS 1800
A320 320
B1050 1050
C12 2 0 182 0
D288 288
E135 0 135 0
F288 288
G300 300
H50 50
I438 438
J313 313
K50 50
L965 1265
M235 235
N48 48
O70 70
P300 300

12
Page

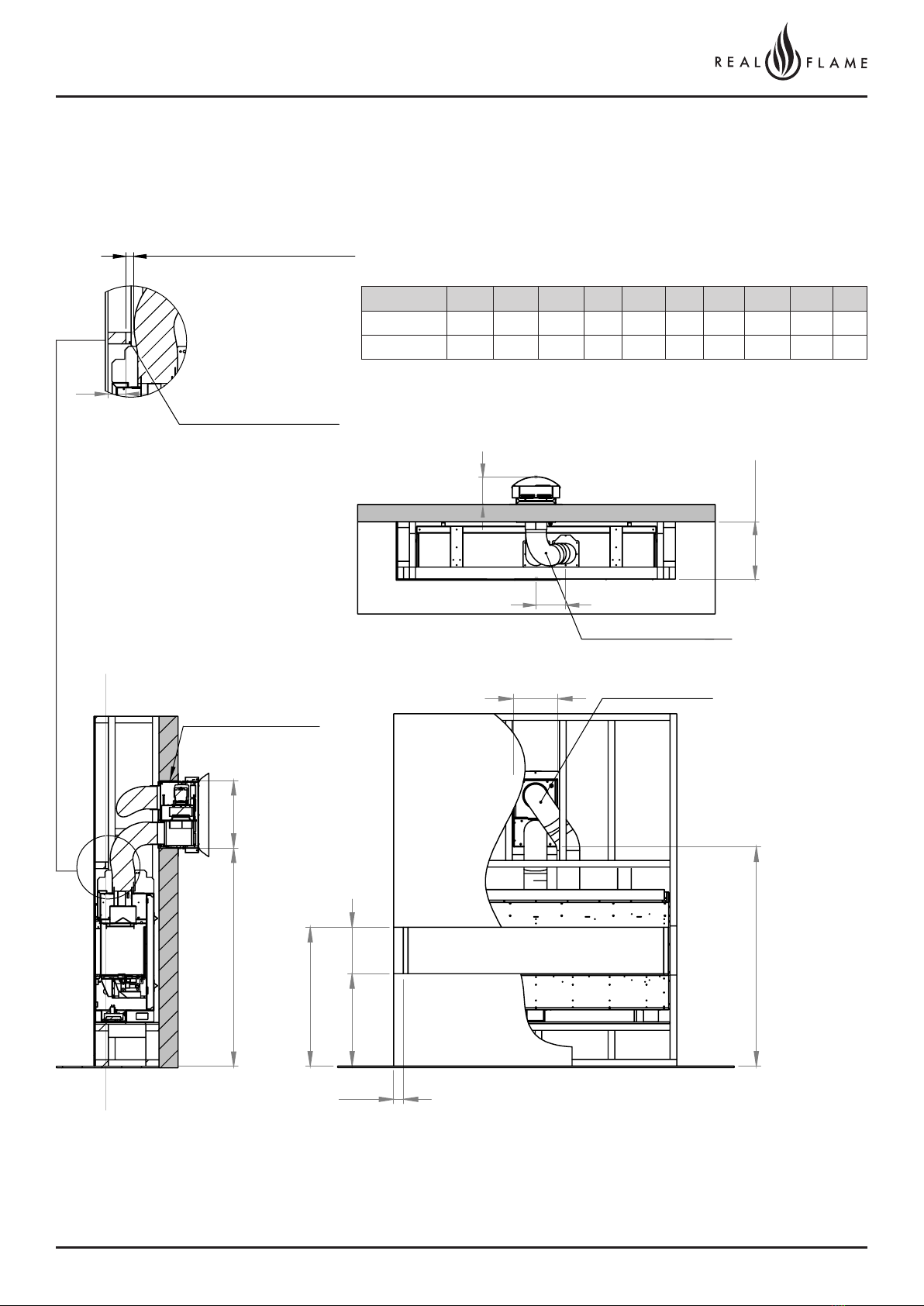

MINIMUM FRAMEOUT DIMENSIONS
SINGLE SIDED WITH APPLIANCE
Wall shown 130mm thickness.
Thinner wall may require fan
module to be spaced out from wall.
Wall termination cutout 300mm X 460mm high
25mm min clearance to exhaust flue
Timber checkout to ensure flue
clearance 25mm maintained.
Cladding thickness
to be added to min
frameout dimensions.
Plaster edging bead to be used.
Marble stone edge to be finished.
Option flange trim kit for bottom
edge available.
H
J
I
NVS 1200 NVS 1800
A300 300
B9 41 9 41
C314 314
D627 627
E114 2 1742
F220 220
G209 209
H1490 1490
I460 460
J70 70
Flue bend radius R175mm
435 min
before
cladding
F
G
150mm flexible flue
185 includes
10mm cladding
1490mm min
height if wall
termination
mounted
directly above
appliance
A
B
C
D
E

13
Page
Centre trimmers to be spaced 320mm
apart min for flue clearance
Timber to be checked
out as per ‘Detail Q’ or
70mm width to be used
to support beam only
12mm plywood base
‘C’ X depth
5 X Internal support frames 288mm high Drill gas supply hole through ply and bottom bearer
A
BC
E
GFD
MINIMUM FRAMEOUT DIMENSIONS
THREE SIDED
Checkout support 300mm X 20mm
to allow for 25mm clearance for flue
P
Note 617mm / 334mm / 90mm
Allows for 10mm cladding to finish
flush with appliance trims.
Where thicker cladding is being used
these dimensions will need to change-
Eg. For 20mm cladding use
607mm / 354mm / 80mm
R
S
T
O
Detail ‘Q’
435mm Min depth of
frameout without cladding
Electrical
cable hole Gas supply hole
I
H
N
M
L
K
J
UNIT A B C D E F G H I J
NVS1200 320 1050 12 2 0 228 13 5 0 288 300 50 438 313
NVS1800 320 1050 182 0 288 135 0 288 300 50 438 313
UNIT K L M N O P R S T
NVS1200 50 965 235 48 70 300 90 334 617
NVS1800 50 1265 235 48 70 300 90 334 617

14
Page
MINIMUM FRAMEOUT DIMENSIONS
THREE SIDED WITH APPLIANCE
Wall shown 130mm thickness.
Thinner wall may require fan module
to be spaced out from wall.
Wall termination cutout
300mm X 460mm high
25mm min clearance to exhaust flue
Flue bend radius R175mm
150mm flexible flue
435 min
before
cladding
Timber checkout
to ensure flue
clearance 25mm
maintained.
Cladding thickness to be added
to min frameout dimensions.
Plaster edging bead to be fitted.
Marble stone edge to be finished.
Option flange trim kit for bottom
edge available.
Frameout dimensions allow for 10mm
plaster to finish ends flush with appliance.
Thicker cladding will require framing
dimensions to be reduced.
1490mm min
height if wall
termination
mounted
directly above
appliance
A
B
C
D
E
F
G
H
J
I
UNIT A B C D E F G H I J
NVS1200 300 9 41 316 625 65 220 209 1490 460 70
NVS1800 300 9 41 316 625 65 220 209 1490 460 70

15
Page
MINIMUM FRAMEOUT DIMENSIONS
THREE SIDED WITH FLANGE KIT
Note 617mm / 334mm / 90mm
Allows for 10mm cladding to finish flush with appliance
trims.
Where thicker cladding is being used these dimensions
will need to change-
Eg. For 20mm cladding use 607mm / 354mm / 80mm
Checkout support 300mm X 20mm
to allow for 25mm clearance for flue
435mm Min depth of
frameout without cladding
Centre trimmers to be spaced 320mm
apart min for flue clearance
Timber to be checked
out as per ‘Detail Q’ or
70mm width to be used
to support beam only
12mm plywood base
‘C’ X depth
5 X Internal support frames 288mm high Drill gas supply hole through ply and bottom bearer
Electrical cable hole Gas supply hole
P
R
S
T
O
I
H
N
M
L
A
BC
E
GFD
K
J
Detail ‘Q’
UNIT A B C D E F G H I J
NVS1200 320 1050 12 2 0 228 135 0 288 300 50 438 313
NVS1800 320 1050 182 0 288 135 0 288 300 50 438 313
UNIT K L M N O P R S T
NVS1200 50 965 235 48 70 300 90 336 615
NVS1800 50 1265 235 48 70 300 90 336 615

16
Page

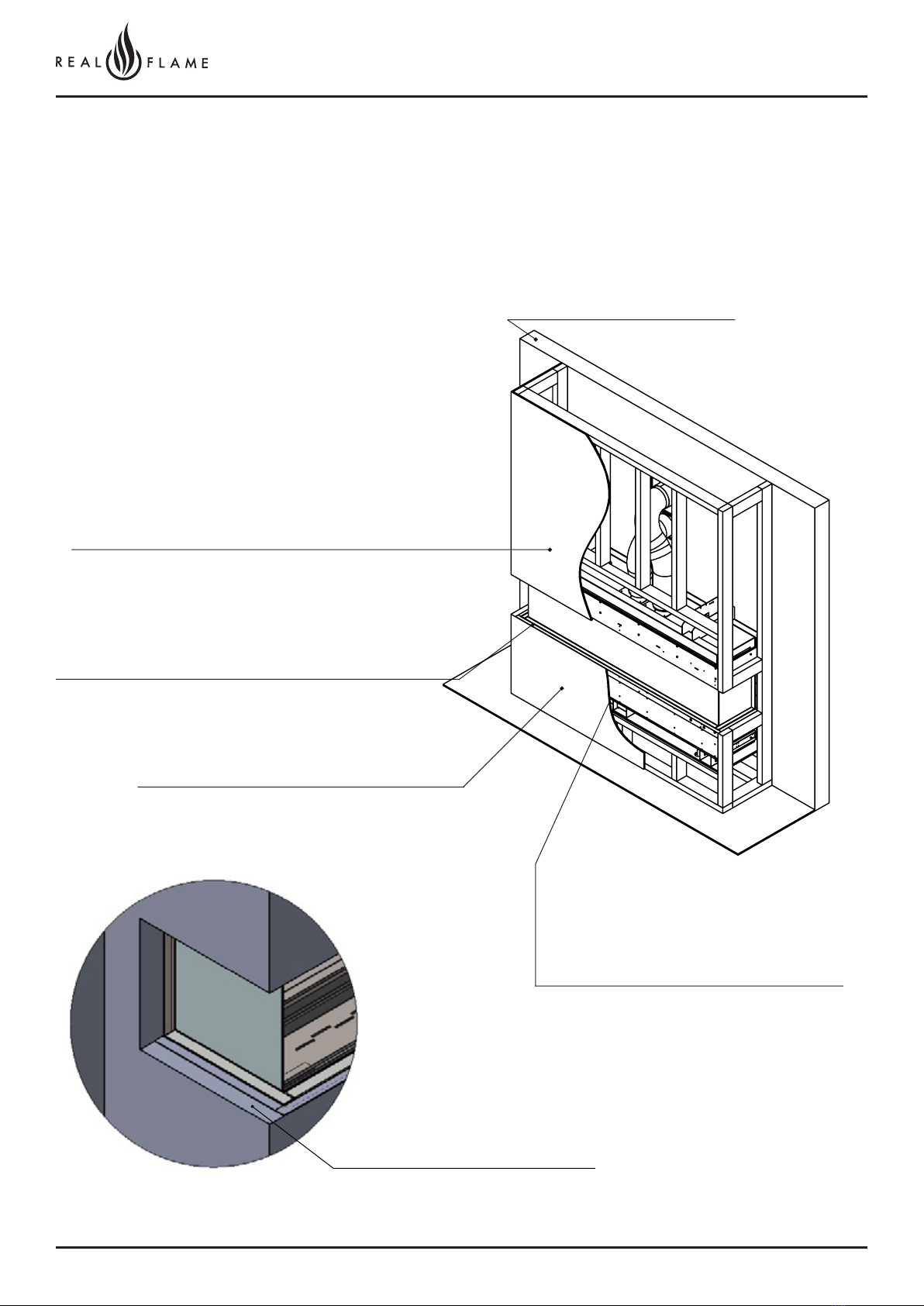

MINIMUM FRAMEOUT DIMENSIONS
THREE SIDED WITH APPLIANCE AND FLANGE KIT
Wall shown 130mm thickness.
Thinner wall may require fan module
to be spaced out from wall.
Cladding thickness to be added
to min frameout dimensions.
Plaster edging bead to be fitted.
Marble stone edge to be finished.
Option flange trim kit for bottom edge available.
Top plaster shown finishing flush with base.
15mm packing required on front face to
match base depth (based on 10mm plaster)
Front plaster to be packed out 15mm if required to
match flange edge.
For protruding flange reduce packing and reduce
side frame depth (based on 10mm plaster)
Where front depth to be larger add thicker packers
or framing and increase side frame depth to suit.
Frameout dimensions allow for 10mm
plaster to finish ends flush with appliance.
Thicker cladding will require framing
dimensions to be reduced.

17
Page
Flue bend radius R175mm
150mm flexible flue
435 min
before
cladding
1490mm min
height if wall
termination
mounted directly
above appliance
A
B
C
D
E
F
G
Wall termination cutout
300mm X 460mm high
25mm min clearance to exhaust flue
Timber checkout to ensure flue
clearance 25mm maintained.
H
J
I
THREE SIDED WITH APPLIANCE AND FLANGE KIT (CONTINUED..)
UNIT A B C D E F G H I J
NVS1200 300 9 41 316 625 65 220 209 1490 460 70
NVS1800 300 9 41 316 625 65 220 209 1490 460 70

18
Page

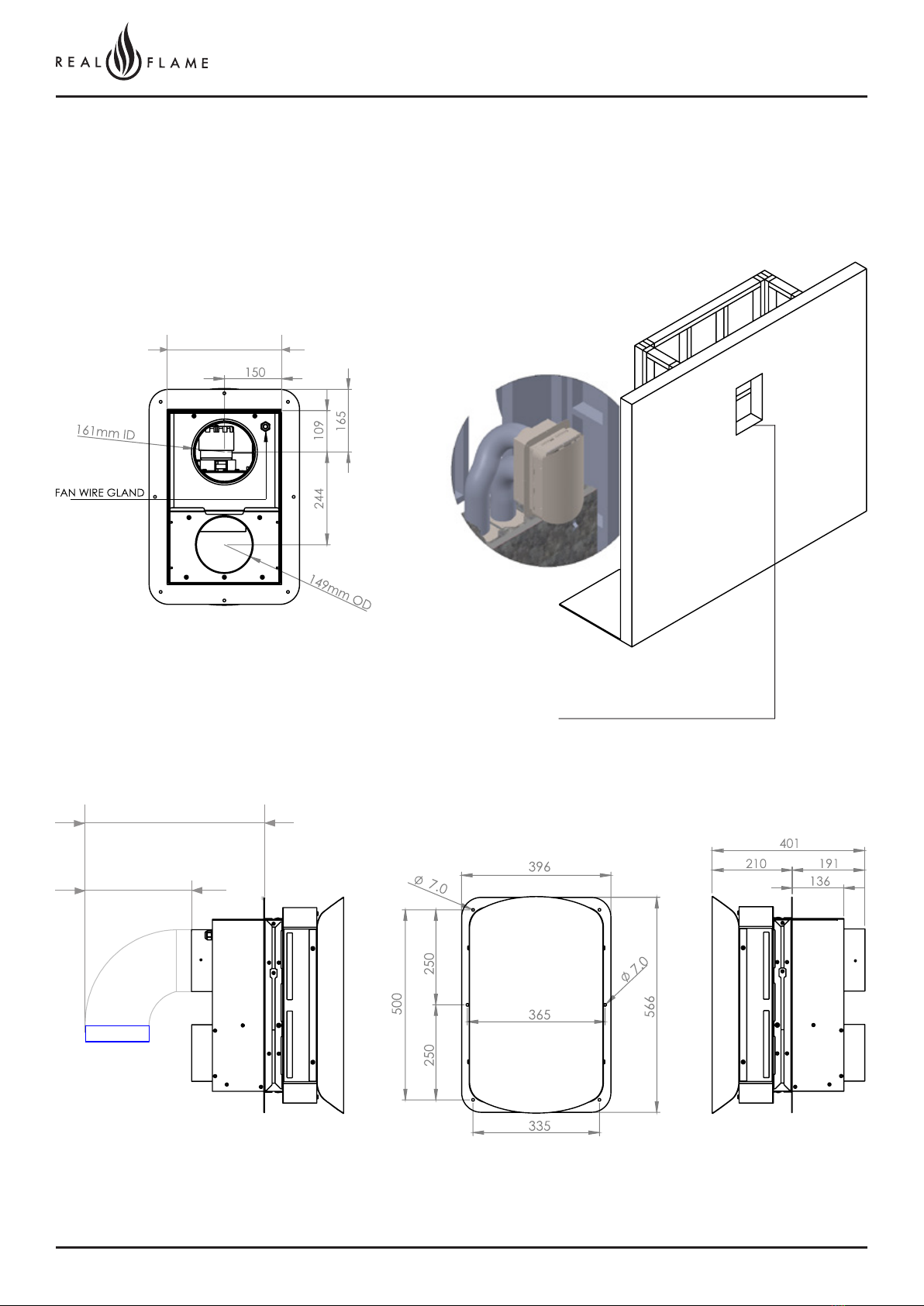

Opening- 300mm (w) X 460mm (h)
MINIMUM FRAMEOUT DIMENSIONS
HORIZONTAL TERM CLADDING
296
450mm MIN
260mm MIN
(175mm centreline radius)

19
Page

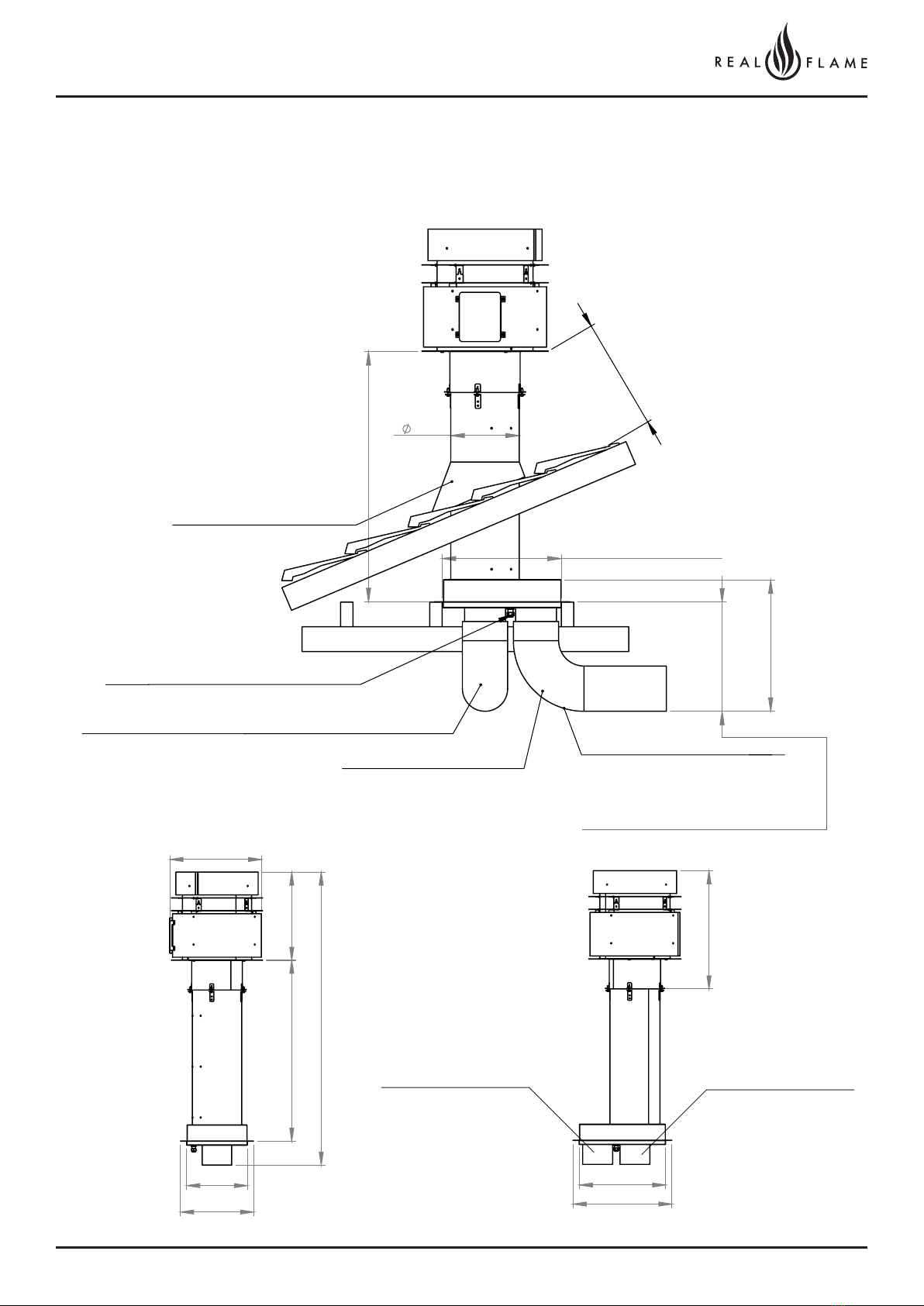

MINIMUM FRAMEOUT DIMENSIONS
VERTICAL TERM INSTALL
Decktite or lead collar flashing
to suit 250mm flue diameter
Loom lead clearance 150mm
from exhaust flue after exiting
rooftop assembly.
Loom to connect appliance
loom.
Exhaust flue
Min 25mm clearance to combustibles (First 20m from appliance)
Inlet Flue
0mm clearance to combustibles
Inlet connection suits
150mm flue
Exhaust connection suits
150mm flue
Flue bend min 175 centreline radius
300mm min clearance
to nearest part of roof
250
463
307 432
495
370
446
596
915
14 81
435mm support spacing
400mm min distance from top
of support to bottom bend
480mm min roof space
915

20
Page
FLUSH PLASTER/MARBLE EDGE
Plaster board to be finished with edge bead
for flush finish.
Marble to be cut to size and edge polished
ALTERNATIVE CLADDING
Sintered stone, quartz, porcelain,
reconstituted stone, tiles and natural stone
of various thickness can be used to finish
to the fireplace. Fiber cement sheet is
recommended as a substrate, consideration
for overall depth and edge of finish material
should be considered.
FINISHING OPTIONS
