Reece Kado Lussi Series User manual

Page 1 of 3
Installation instructions
Kado Lussi Heated Towel Rail Hardwired Wall Mount
1030 x 500mm Chrome
HYDROTHERM
MILAN HEATED WALL MOUNT TOWEL RAILS
page 3 of 5

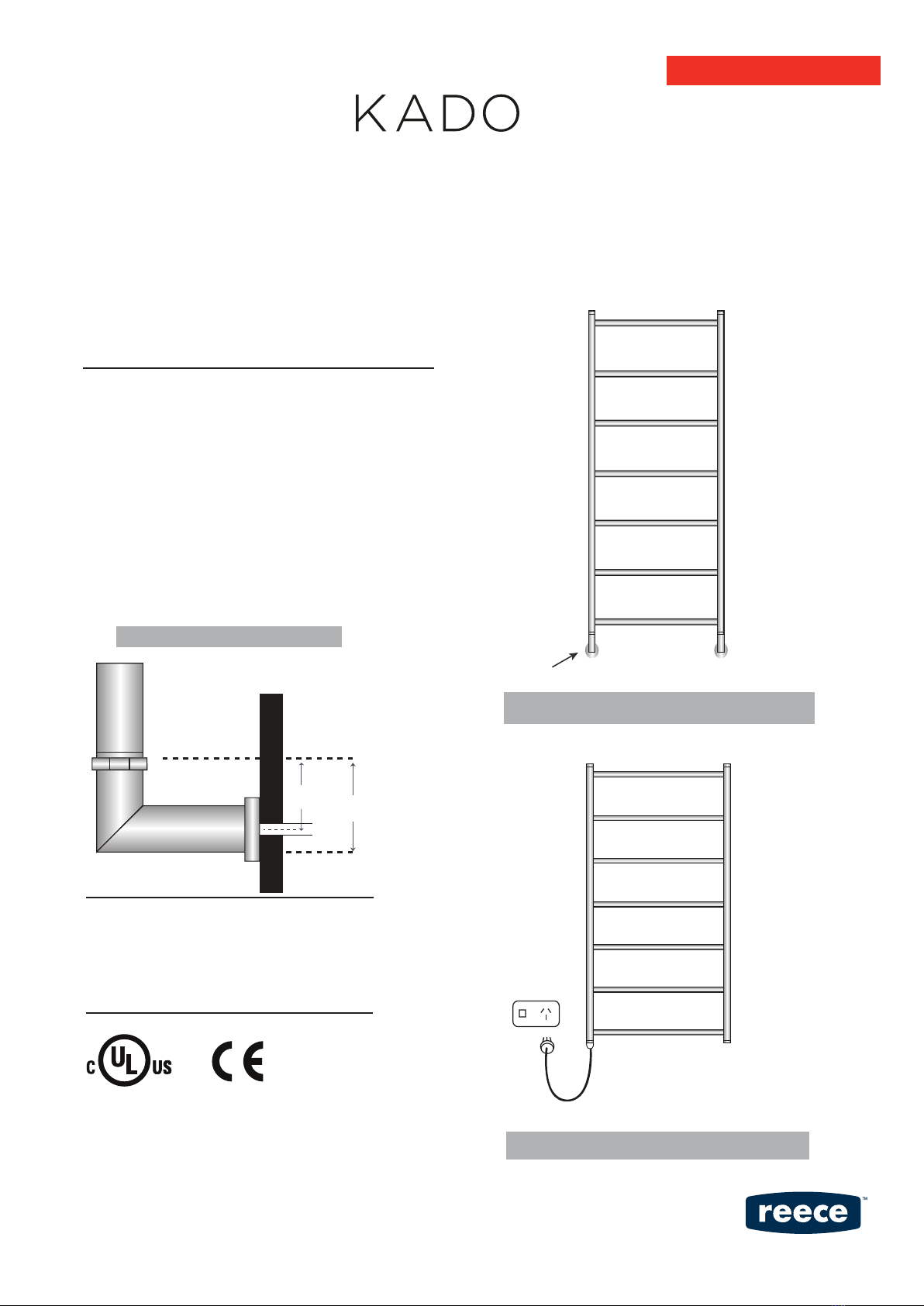

PLUG IN VERSION
DOUBLE HARD-WIRED VERSION
HARD-WIRED VERSION
Hard wire
attachment
(FIG.1)
(FIG.2)
PLUG IN OPTION - REQUEST ONLY
(See Fig. 2)
Plug is supplied with element cable (1200mm long).
Cable may be cut and plug attached to required length.
(See Fig 2)
This option is only available by request.
50mm 70mm
HARD-WIRE ATTACHMENT
L L AW
Cord
All Hydrotherm Elements carry the following approvals.
Elements have a built in thermostat and internal cut out ensuring
safety and energy efficiency.
All Kado Lussi electric elements can be supplied as 240v or 110v
All electric elements are replaceable and can be easily
changed over.
®IP55
(FIG.2)
WIRING OPTIONS
The Kado Lussi Wall Mount Series Electric Towel Rails come pre
filled with water, and with electric elements already fitted
(standard on the left unless otherwise specified)
HARD WIRED - STANDARD OPTION
(See Fig.1 )
The cable may be hard-wired into the wall with an
element attachment. This attachement must be installed
by a qualified electrician.
Two attachments are provided for both the cable side, and non-cable side
so to allow for a symmetrical apperance (see Fig.1).
All hard-wired elements achieve an IPX Rating of IP55.
(IPX5) for use in wet areas. We recommend all electric towel rails be
connected to a timer for convenience, as well as to prolong the life
of the replaceable electric element.

Page 2 of 3
Installation Instructions (continued)
Kado Lussi Heated Towel Rail Hardwired Wall Mount
1030 x 500mm Chrome
HYDROTHERM
MILAN HEATED WALL MOUNT TOWEL RAILS
HARD WIRING
It is recommended that all hard-wired heated towel rails
be connected to a light switch or digital timer. Connecting hard-wired
heated towel rails to a light switch or a timer will prolong the life
of the electric element and reduce energy consumption.
CHANGING ELEMENTS
To change an element from one side to the other, or to replace
an old element is a very simple process.
There are Four Basic Steps:
1. Remove towel rail from brackets (if already installed),
and slip o Hard Wire Attachments
2. Turn the towel rail upside down and with a spanner loosen
the hex nut of the electric element. When the element is
loose, unscrew it by hand. If you are changing the element
from left toright (or vice versa) the internal plug on the
opposite side must also be removed and swapped over with
the element.
3. Swap the element and screw in place.
4. Turn the towel rail the right way up and position back into
brackets and ret grub screws tosecure
Please note:
It is advisedthat the unit be removed from thewall and
turned upside down to ensure that water does not spill.
Ensure element always remains at bottom of towel rail.
page 4 of 5
Element
on left side
Turn rail
upside down
Swap
element over
Element
on right side
t u ow e r c s n u
n iwe r c s
we r c s n u
n iwe r c s
1. 2. 3. 4.

Page 3 of 3
Installation Instructions (continued)
Kado Lussi Heated Towel Rail Hardwired Wall Mount
1030 x 500mm Chrome
Page 1 of 4
Installation instructions
WARNING:
This appliance is not intended for use by young children or infirm persons without supervision.
CAUTION:
The cord extension set must be positioned so that it is not subject to splashing or ingress of moisture.
The supply shall have means for disconnection with an air gap in all active conductors
incorporated in the fixed wiring according to the Wiring Rules in AS/NZS 3000:2000.
CAUTION
WARNING
This product must be installed by a qualified electrician in accordance with AS/NZS 3000 wiring rules. Switch off the electrical
supply at the mains before installation and maintenance. A means of disconnection must be incorporated in the fixed wiring
in accordance with the wiring rules. Suitable for bathroom and non-bathroom/dry areas. Not suitable for above baths, nor
for installation in saunas, steam rooms or shower cubicles. Please consult with a qualified electrician to confirm appropriate
compliant installation location.
Do not connect to a plug and socket outlet. Rated IPX5 and suitable for indoor use only. Do not fix to damp or conductive
surfaces. Site well away from curtains and fabrics. Switch off after use. Do not leave on for prolonged periods. This appliance is
not to be used by persons (including children) with reduced physical, sensory or mental capabilities.
Please consult with a qualified electrician to confirm appropriate compliant installation location.
HYDROTHERM
MILAN HEATED WALL MOUNT TOWEL RAILS
INSTALLATION
•Slide the WALL BRACKET1into the BRACKETARM2
and hold up tothe wall in position.
• With a pencil, outline the WALL BRACKET1in the desired
position and remove from the wall.
• Using apencil and the WALL BRACKET1, mark the centre
screw hole and cross it for accuracy.
• Drill ahole for the SCREW 4and insert nylon plug into tiled
wall (if applicable). Installer may choose to use alternative
screws tosuit the application.
• Position WALL BRACKET1sothat the GRUB SCREW hole
faces directly down towards the floor and place SCREW 4
into the wall.
DO NOT OVERTIGHTEN SCREW - LEAVE SLIGHT
ADJUSTMENT OF THE FLANGE (SLACK) TO ENABLE
MOVEMENT WHEN THE TOWEL RAIL IS POSITIONED.
•When all of the WALL BRACKETS 1are in place, slide
the TOWELRAIL 5into position towards the wall, until
BRACKETARM2reaches the WALL BRACKET1.
•Insert GRUB SCREW 3through BRACKETARM2and into
WALL BRACKET1.
• With the ALLEN KEY 6provided, tighten the GRUB SCREW
until tight toensure that towel rail stays in position.
Please ensure that the measurements are taken accurately and
that the screw is in astud or noggin toprovide support. Do not
overtighten screws.
WARNING
All rails are individually hand made.
Due to this fact some measurments may not be exact.
PLEASE READINSTRUCTIONS CAREFULLY and do
not force towel rail into bracket if position of wall flange is not
accurate.
I N STA LLINGBRACKETS
WARNING
Hydrotherm take pride in the fact that all rails are individually hand made. Due to this fact
some measurements may not be exact. PLEASE READ INSTRUCTIONS CAREFULLY and do not
force towel rail into bracket if position of wall flange is not accurate.
TOWEL RAILS MUSTALWAYS BE INSTALLEDWITHTHE ELEMENT
PLACEDATTHE BOTTOM FOR CORRECT HEATTRANSFER
•
Slide the WALL BRACKET1into the BRACKET ARM 2
and hold up to the wall in position.
•
With a pencil, outline the WALL BRACKET 1in the
desired position and remove from the wall.
•
Using a pencil and the WALL BRACKET 1, mark the
centre screw hole and cross it for accuracy.
•
Drill a hole for the SCREW 4and insert nylon plug into
tiled wall (if applicable). Installer may choose to use
alternative screws to suit the application.
•
Position WALL BRACKET 1so that the GRUB SCREW
hole faces directly down towards the floor and place
SCREW 4into the wall.
DO NOT OVERTIGHTEN SCREW - LEAVE SLIGHT
ADJUSTMENT OF THE FLANGE (SLACK) TO ENABLE
MOVEMENT WHEN THE TOWEL RAIL IS POSITIONED.
•
When all of the WALL BRACKETS 1are in place, slide
the TOWEL RAIL 5into position towards the wall, until
BRACKET ARM 2reaches the WALL BRACKET 1.
•
Insert GRUB SCREW 3through BRACKET ARM 2and
into WALL BRACKET 1.
•
With the ALLEN KEY 6provided, tighten the GRUB
SCREW until tight to ensure that towel rail stays in position.
2
3
2
1
1
3
6
6
4
4
5
5
**INSTALLER MAY CHOOSE NOT TO USE SCREW IF NOT SUITABLE FOR APPLICATION
Wall Bracket Wall Screw**
Hydrotherm Towel Rail
Alen Key & Grub Screw
Bracket Arm
Grub Screw
Hydrotherm will not accept
responsibility for incorrectly
installed brackets.
Please read instructions carefully.
Please ensure that the measurements are taken accurately
and that the screw is in a stud or noggin to provide support.
Do not overtighten screws.
STUD OR
NOGGIN
WALL
I N STA LLINGBRACKETS
TOWEL RAILS
W
LY and do not
force towel rail into bracket if position of wall flange is not accurate.
TOWEL RAILS MUSTALWAYS BE INSTALLEDWITHTHE ELEMENT
PLACEDATTHE BOTTOM FOR CORRECT HEATTRANSFER
•
Slide the WALL BRACKET1into the BRACKET ARM 2
and hold up to the wall in position.
•
With a pencil, outline the WALL BRACKET 1in the
desired position and remove from the wall.
•
Using a pencil and the WALL BRACKET 1, mark the
centre screw hole and cross it for accuracy.
•
Drill a hole for the SCREW 4and insert nylon plug into
tiled wall (if applicable). Installer may choose to use
alternative screws to suit the application.
•
Position WALL BRACKET 1so that the GRUB SCREW
hole faces directly down towards the floor and place
SCREW 4into the wall.
DO NOT OVERTIGHTEN SCREW - LEAVE SLIGHT
ADJUSTMENT OF THE FLANGE (SLACK) TO ENABLE
MOVEMENT WHEN THE TOWEL RAIL IS POSITIONED.
•
When all of the WALL BRACKETS 1are in place, slide
the TOWEL RAIL 5into position towards the wall, until
BRACKET ARM 2reaches the WALL BRACKET 1.
•
Insert GRUB SCREW 3through BRACKET ARM 2and
into WALL BRACKET 1.
•
With the ALLEN KEY 6provided, tighten the GRUB
SCREW until tight to ensure that towel rail stays in position.
2
3
2
1
1
3
6
6
4
4
5
5
**INSTALLER MAY CHOOSE NOT TO USE SCREW IF NOT SUITABLE FOR APPLICATION
Wall Bracket Wall Screw**
Hydrotherm Towel Rail
Alen Key & Grub Screw
Bracket Arm
Grub Screw
Hydrotherm will not accept
responsibility for incorrectly
installed brackets.
Please read instructions carefully.
Please ensure that the measurements are taken accurately
and that the screw is in a stud or noggin to provide support.
Do not overtighten screws.
STUD OR
NOGGIN
WALL
page 2 of 5
1Twin Hole Wall Bracket (BOTTOM) 4Wall Screw *
2Single Hole Wall Bracket (TOP)5HydrothermTowel Rail
3Grub Screw 6Alen Key & Grub Screw
page 2 of 5
Plumbers, please ensure a copy of the installation
instructions is left with the end user for future reference
* Installer may choose not to use screw if not suitable for application.
TOWEL RAILS MUST ALWAYS BE INSTALLED WITH THE ELEMENT
PLACED AT THE BOTTOM FOR CORRECT HEAT TRANSFER
CLEANING RECOMMENDATIONS
We recommend the use of soapy water or approved cleaners.
This product should not be cleaned with abrasive cleaners.
Damage caused by imporper treatment is not covered by the product warranty. Refer to Warranty Conditions.
KADO LUSSI WALL MOUNT HTR
