Instrument Description
1. 3.2” TFT LCD
2. BRIGHT + Backlight Increase
3. BRIGHT - Backlight Decrease
4. Scroll to Previous Image
5. Battery Cover
6. ESC Exit
7. Scroll to Next Image
8. Power ON/OFF
9. OK
1
9
8
7
6
5
4
3
2
Connector with
motherboard socket
Gooseneck
Camera
TV-OUT and earphone
Silica lm
jack block SD card Reset
button hole
USB port and
charging port
Motherboard
socket
Image snapshot
button
Video record
button
Camera
socket
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

reedinstruments
www com
6
Pantone 534 Blue
Pantone 123 Yellow
Pantone 485 Red
Pantone 123 Yellow
Pantone 534 Blue
Black Rich Black -
20/20/20/100
Blue - 100/80/30/5
Yellow - 0/27/100/0
Red - 10/100/100/5
Yellow - 0/27/100/0
Blue - 100/80/30/5
Only if you REALLY need them:
Pantone 534 Blue - 100/80/30/5
Pantone 485 Red - 10/100/100/5
Pantone 123 Yellow - 0/27/100/
Operating Instructions
Hold the power button for three seconds to turn the instrument on.
Hold the power button for three seconds to turn the instrument off.
CMOS Brightness Adjustment
When the instrument is in Camera mode, press the BRIGHT+ button to
increase the backlight level, press the BRIGHT- button to decrease the
backlight level. 10 is the highest brightness level.
Rotation of Images
When the instrument is in Video mode, press the and buttons to
rotate the image currently selected by 180°.
Taking an Image
When the instrument is in Camera mode, press the Photo snap button to
take and save the image.
LED backlight indication
Date & Time
Remaining memory
Image display
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

reedinstruments
www com
7
Pantone 534 Blue
Pantone 123 Yellow
Pantone 485 Red
Pantone 123 Yellow
Pantone 534 Blue
Black Rich Black -
20/20/20/100
Blue - 100/80/30/5
Yellow - 0/27/100/0
Red - 10/100/100/5
Yellow - 0/27/100/0
Blue - 100/80/30/5
Only if you REALLY need them:
Pantone 534 Blue - 100/80/30/5
Pantone 485 Red - 10/100/100/5
Pantone 123 Yellow - 0/27/100/
Taking a Video
When the instrument is in Video mode, hold the Video record button for
three seconds to begin recording video. You will see a ashing video sym-
bol at the top/left of the display. Remaining memory will be displayed at
the bottom/left. To end the recording, press the Video record button. The
video will be saved automatically.
Menu Options
To access the menu, press the OK button, select yes (use the and
buttons), press the OK button again. The following Menu options will
appear: Language, Time, AutoOff, TV-OUT, Memory, Explorer, Set, and
Power mode.
Navigating the menu
Scroll between these menu options by using the and buttons. Use
the OK button to select an option. Continue to use the and buttons
to scroll through listed options. Use the OK button to select an option.
The ESC button will you bring you out of the current screen and back one
level.
Language: Choose the language of your choice: English, German,
Spanish, and French.
Time: Set the date and time by using the the and buttons to go to the
data to be changed. Then use the Image snap and Video record buttons
to change the data.

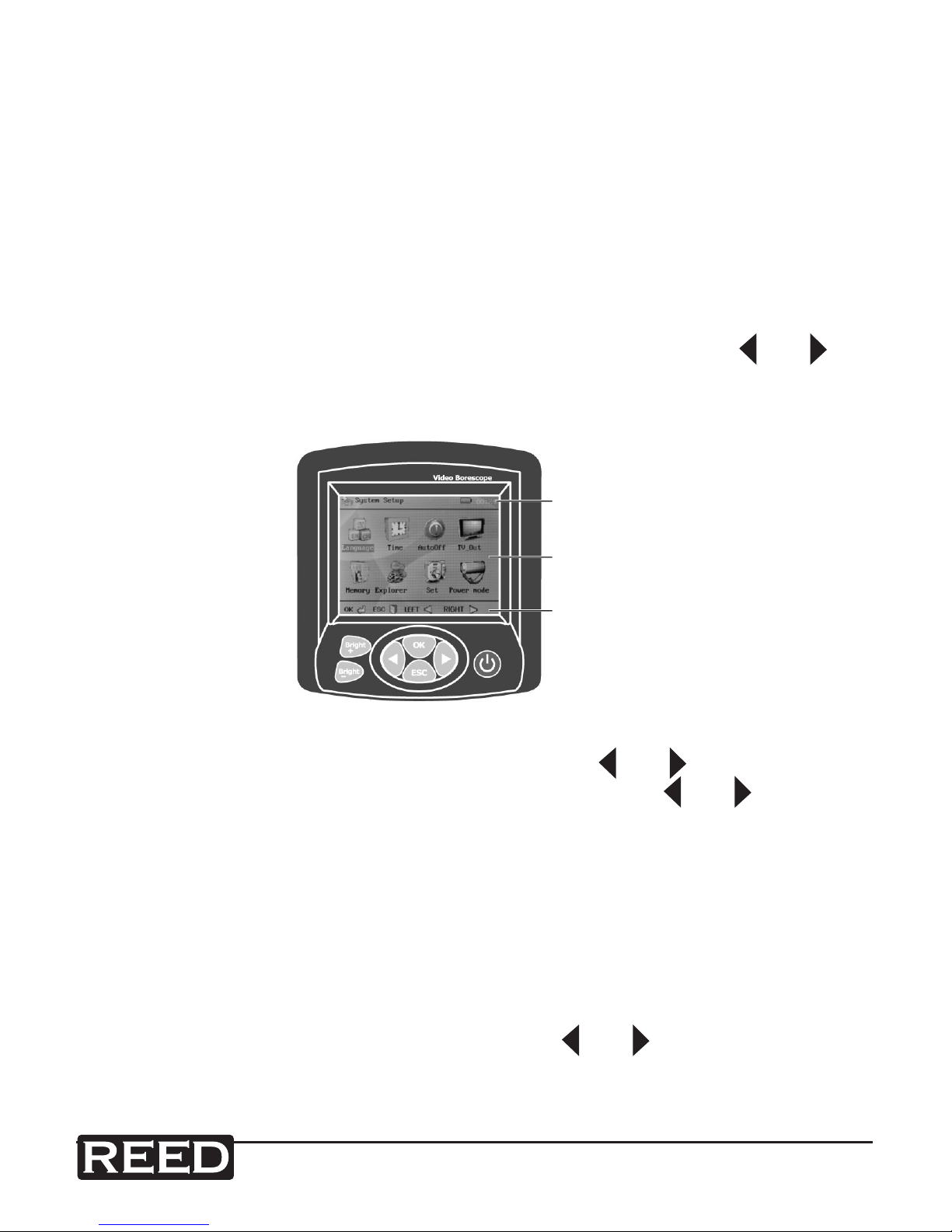

Battery level, date/time,
