REED R8500 User manual

Instruction
Manual
INSTRUMENTS
INSTRUMENTS
Video Inspection Camera
R8500
Model
[e-mail] REED-Direct.com

2
INSTRUMENTS
INSTRUMENTS
Table of Contents
Safety ..........................................................................................................2
Features.......................................................................................................3
Instrument Description ................................................................................4
Specications.......................................................................................... 5-6
Operating Instructions........................................................................... 6-13
Battery Replacement.................................................................................14
Safety
Before rst use please familiarize yourself with proper usage of this
device. Keep these operating instructions for future reference.
Please note the following safety advice to avoid malfunctions, damage or
physical injury:
• Neverspillliquidofanykindonthevideodisplayandthemainbodyof
the unit.
• Donotimmersethecameraandmonitorinwater.Storeitinadryplace.
• Theimageheadandthecablearewaterresistantwhentheunitisfully
assembled.
• Donotusethecameraifcondensationformsinsidethelens.Letthe
waterevaporatebeforeuse.
• Turnofftheunitwhennotinuse.
• Removethebatteriesbeforestoringtheunitforalongperiodoftime.
• Useonlythesizeandtypeofbatteryspecied.
• Besuretoinstallthebatterieswiththecorrectpolarityasindicated.
[e-mail] REED-Direct.com

3
INSTRUMENTS
INSTRUMENTS
Features
• Cameraandvideofunctionssavehighresolutionimagesandvideo
• Comfortablepistolgripdesign
• Highresolution2.5”colorLCDmonitor
• 9mmwaterproof(IP67)camerahead
• Gooseneckcableretainsconguredshape
• Cableexpandableupto30ft.(~9m)withextensions(optional)
• FourhighvisibilityLEDlightsprovideilluminationindimlylit
environments
• Expandablememoryupto32Gb(SDcardsoldseparately)
• 180°mirrorrotationfunction
• Lowbatteryindicatorandautoshutoff
• Includes9mmcamerahead,magnet,hookandmirrorattachments,
batteries,USBcableandhardcarryingcase
[e-mail] REED-Direct.com

4
INSTRUMENTS
INSTRUMENTS
Instrument Description
1.2.5”colorLCDmonitor
2.Powerbutton
3.Increasebrightnessbutton(rotation)
4.Camerabutton
5.Brightnessdownbutton(zoom)
6.Menu/OKbutton
7.Batterycompartment
8.Gooseneckcable
9.CameraandLED’S
10.MiniUSBport
11. SD card slot
12.Cameracableconnector
12
6
53
4
2
1
7
8
9
11
12
[e-mail] REED-Direct.com

5
INSTRUMENTS
INSTRUMENTS
Specifications
LensSensorResolution 640x480
CameraDiameter 0.35”(9mm)
ShortDistanceFocus 1.18to2.36”(3to6cm)
DepthofField 10mmtoinnity
ViewingAngle 0to180°
Display 2.5”ColorTFTLCD
DisplayResolution 480x240
FramesPerSecond(FPS) 30
StandardGooseneck/
CableLength 39”(1m)
RotateDisplay Yes(180°)
Playback Photo(JPEG)andVideo(AVI)
DigitalZoom 4x
Memory SDCard(upto32Gb)
TimeandDateStamp Yes
DataOutput USB/SDCard
LEDBrightness
Adjustment Yes(4whiteLEDs)
LowBatteryIndicator Yes
PowerSupply 4“AA”Batteries
AutoPowerOff Yes(after10minutes)
On-Screen Supported
Languages English,German,French,Spanish
ProductCertications CE,RoHS,IP67(CameraHead)
OperatingTemperature 14to122°F(-10to50°C)
StorageTemperature 14to113°F(-10to45°C)
Operating
HumidityRange 15to85%
Dimensions 6x3x2”(152x76x51mm)
Weight 12.7oz(359g)
[e-mail] REED-Direct.com

6
INSTRUMENTS
INSTRUMENTS
OptionalAccessories 9mmReplacementCameraHead
 (R8500-RCH)
 3mCableExtension(R8500-3MEXT)
 3.9mmCameraHead(R8500-3.9MM)
 9mmCamerawith5mCable
 (R8500-5M9MM)
 9.8mmCameraon20mCableReel
 (R8500-20M)
 5.5mmCamerawithArticulatingHead
 (R8500-ART)
Operating Instructions
Power On/Off
Before using the unit for the rst time:
• Ensurethetimeanddatehavebeenset
• EnsuretheSDcardisinserted
 Pressthepowerbuttontoswitchthedeviceon.
 Thecameraimagewillappearonthescreen.
 Toswitchthedeviceoffpressthepowerbuttonagain.
 Pressthepowerbuttontoswitchthedeviceon.
 Toswitchthedeviceoffpressthepowerbuttonagain.
Battery indicator
Camera
Time/Datestamp
[e-mail] REED-Direct.com

7
INSTRUMENTS
INSTRUMENTS
Camera Illumination
Theinspectioncameraisequippedwith4dimmableLEDlightsinthe
camerahead,whichcanbeadjustedusingthenavigation/brightnesskeys.
Presstoincreasebrightness.
Presstoreducebrightness.
Rotating the display
Pressandholdthebuttonfor1.5secondstorotatethedisplayby
180˚.
Zoom function
Pressandholdthebuttonfor1.5secondstoincreasedigitalZoom
fromx1tox4.
Menu Options
 Themenuoptionsareaccessedbypressingthe 
 MENU/OKbutton.
Toscrollup/downthemenu
presskeys.
Toselectamenuitempressthe
camerabutton.
SelectEXITtoreturntothe  
previousmenuorexitthemenu 
options.
Pressandholdthebuttonfor1.5secondstorotatethedisplayby
Pressandholdthebuttonfor1.5secondstoincreasedigitalZoom
Presstoincreasebrightness.
Presstoreducebrightness.
 Themenuoptionsareaccessedbypressingthe 
 MENU/OKbutton.
presskeys.
presskeys.
[e-mail] REED-Direct.com

8
INSTRUMENTS
INSTRUMENTS
Settings menu map
(10 minutes
power off )
[e-mail] REED-Direct.com

9
INSTRUMENTS
INSTRUMENTS

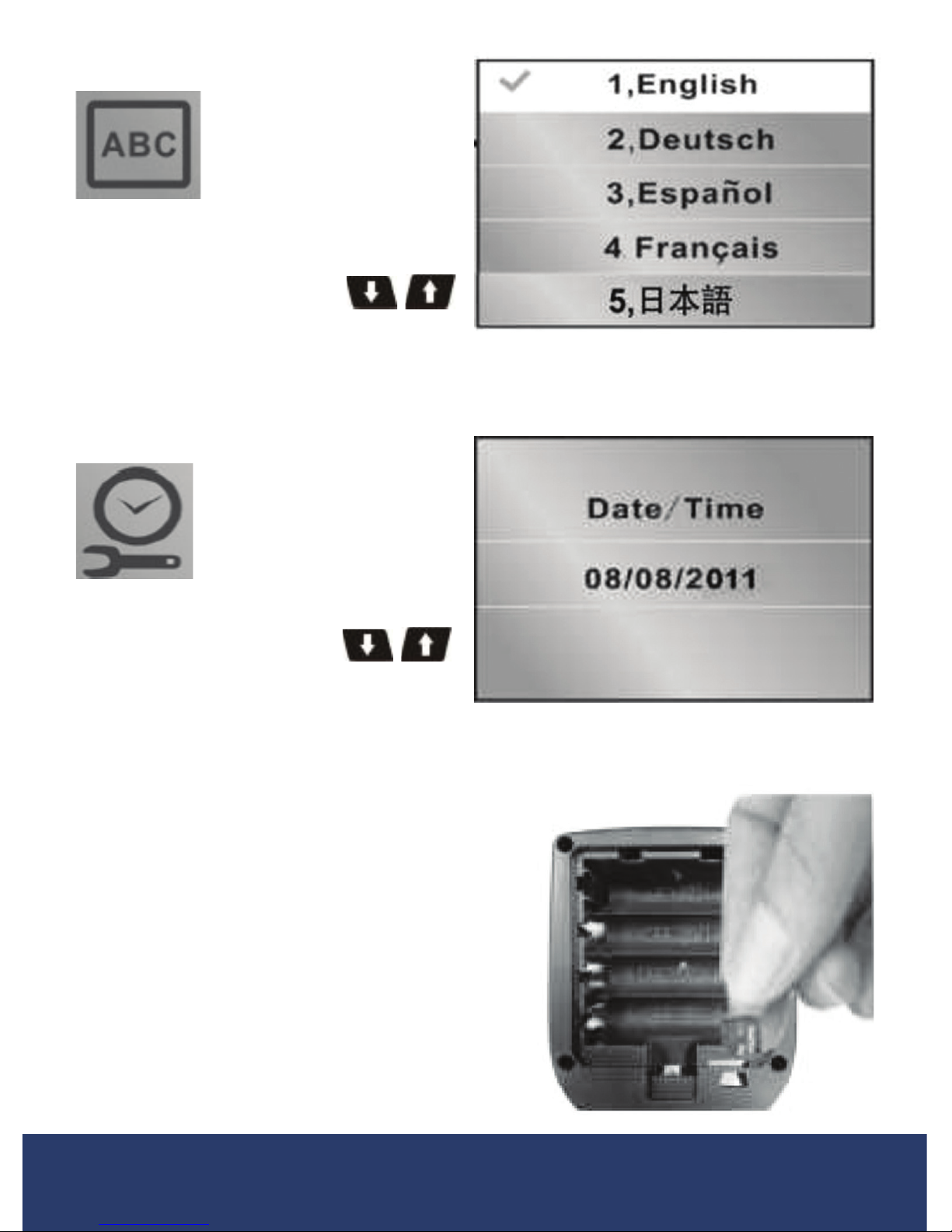

Language Selection
Allowsthelanguagetobeset
for the menu functions.
Usethenavigationkeys
to select from the language
available.
Date / Time
SetDate/Time
Usethenavigationkeys
to edit the time and date.
Camera & Video Operation
Inserting SD card
Before using the camera or video
functionanSDcardmustbe
inserted into the card slot.
Pleasenotethecardmustbe
inserted with contacts facing
upwards.
Usethenavigationkeys
Usethenavigationkeys
[e-mail] REED-Direct.com

10
INSTRUMENTS
INSTRUMENTS
Thescreenwillthenshow
the SD card icon.
Camera
Pressthecamerabuttonto
takeapicture.
DVR
