GETTING STARTED
Check the package content before getting started.
For Quick installation please refer to Quick installation Guide.
important! Save the original box, receipt and packing material for future
shipping needs.
Package Contents
slide s canner
power a dapter
Warning! Using any other power adapter may severely damage the scanner.
USB 2.0 Cable.
CyberView scan software on CD
Printed user’s manual
GENERAL GUIDANCE:
only use the supplied USB-Cable. Connect the computer to the
scanner directly using the USB 2.0 cable.
do not use a Hub or extension cable. only use the usB ports on the rear of
desktop computers.
if there are any other devices (multifunction device, printers, scanners, web-
cam) connected to the computer through USB,disconnect them.
a minimum of 1 GB RAM (Windows/Mac) is required.
no
no
This device
The warran
inapp
device
Manual-RPS10M.indd 4 23.12.2016 10:00:30

4 5
English
Operating Ambient Temperature Range
50º to 104ºF (10º to 40ºC)
note: do not turn on the scanner unless it is within this range. if the scanner
has been stored or transported outside of this range, allow it to return to
within this range before turning it on.
Operating Ambient Humidity Range 15% to 76% relative
humidity (non-condensing)
note: if the scanner is stored or to be transported in cold temperature and then
brought into a warm / humid environment condensation may occur.
This device is designed solely for private use
and is not intended for commercial use.
Manual-RPS10M.indd 5 23.12.2016 10:00:30

6 7
insTAlling sOFTWARE AnD DR i VER
for PC (Windows) User
QuiCk i nst alla tion Guide (Q i G)
WindoWs sYstems installation durinG driVer installation a WarninG
dialoGue BoX maY aPPear, iF t H is is t H e Case Please sele C t “ inst all t H is
driVer an YW a Y s ”.
Be sure to install the application software BeFore installing the scanner
driver CyberView
You may install the scanner driver directly if you have already installed
t W ain compliant application software in your computer. mac users can use
iPhoto for editing.
n otice:
1. in “Found new Hardware Wizard” window, select “search automatically
or Browse computer for driver software.”
2. in “Completing the Found new Hardware Wizard” window, click
“Finish”.
note: not all PC’s will display the found new hardware window, some will install
in the background
insTAlling sOFTWARE AnD DR i VER
Before installing the scanner d river...
if you choose to use the provided application for image editing, install the ap-
plication software (ex: Presto image Folio) by inserting the application Cd into
the computer’s
Cd/dVd drive. Follow the instructions that will be displayed in a
window that opens automatically.
installing scanner Driver
a. insert insert driver Cd into the computer Cd/dVd drive and explore the
contents.
b. double click the ”CyberView” icon to begin the installation process. Follow
the onscreen prompts to complete the installation process.
nOTE: make sure the scanner is
not connected to the computer during the Cyber-
View X 5.0 driver installation.
c. r estart computer once the installation process is complete.
Please note: When installing your new scanner onto a Windows system that already has
English
Manual-RPS10M.indd 6 23.12.2016 10:00:30

7
rninG
all t H is
anner
lled
use
tically
stall
p-
to
in a
he
ollow
yber-
has
be
er to
otoshop
Elements
Photoshop
p-
your
folder
have
le. If
Contact
>\Optional
-Ins\
have
English
installing
h ardware
a. Connect the slide scanner to a power source.
1. Locate the power switch on the lower right side of the scanner. make
sure the scanner is
turned off .
2. Plug the aC adapter into an aC power source
F
irst before plugging it into the scanner.
3. attach the usB cable to the computer using the stadard usB adapter
end.
attach the usB adapter end of the cable to back panel of the
scanner.
Inserting Mounted Slides
attention b efore s canning…
make sure there is no lmstrip inside scanner before you insert the slide and
there is no slide inside scanner before you insert the lmstrip.
Please note the slide and lmstrip cannot be put into the
scanner at the same time.
Mounted Slides
1. insert the slide into the slot on the front of the unit, with the dull (emulsion)
side facing down
Manual-RPS10M.indd 7 23.12.2016 10:00:31

8
English
Inserting Mounted Slides (Continued...)
2. set scan settings and preferences see Page 10
3. see scanning directions on page 10
note: some slide mounts are thin and will require you to apply gentle pressure to the edge
of the mount after insertion for it to register in the scanner, you will know it is detected by
the Preview bar in the user interface, the icons will illuminate in color
no slide detected slide detected
inseeting Filmstrips
1. insert the lmstrip with emulsion side down from the left side
2. scanner will auto load and position the t frame in the center of the
viewing window, if the rst frame is not at the correct position, please move
it by clicking
“FORWARD“ or “REVERSE“ button and you can also move it via
the ne tuning function in CyberView interface. see Page 22
3. see scanning directions on page 10
You can load the lm easily by holding around the 3rd frame of the lmstrip
when inserting, lm strips/rolls are inserted facing dull side (emulsion) down.
Ad
Bu
eje
r e
Fo
sc
O
1.
2.
3.
sca
nO
Manual-RPS10M.indd 8 23.12.2016 10:00:31

9
edge
ed by
move
via
English
Additional features
Buttons on the scanner
eject - ejects the Film strip
r everse - r everses the strip one frame
Forward -
advances the lm one frame
scan - see one Button scanning (below)
One Button s can
1. open the CyberView (see page 10 to acquire the CyberView program)
2. Con gure scan settings (see Page 10-11)
3. select the scan to directory, le format (tiF or JPG, once co gured, Press the
scanner button ( ) to begin scanning.
One Touch Button
NOTE: if you do not open CyberView F irst , the scan button will not function.
Manual-RPS10M.indd 9 23.12.2016 10:00:31

10
English
HOW TO SCAN SLIDES
STEP 1 – Acquire Driver
(For PC u ser)
open CyberView from start –
all Programs –CyberView
(For maC u ser)
open macintosh Hard drive –
applications –CyberView
STEP 2 – select Film Type
select the lm type to be scanned - Positive, negative or B&W (Black and White).
STEP 3 – Optional Prescan
select the “Prescan Current Frame“ to prescan the slide currently loaded into the
scanner or “Prescan
all..“ to prescan an entire negative strip
Pre-scanning should be used to manually adjust color/edit settings for each slide
before doing the nal scan. it’s possible to set dierent settings for each slide to
be scanned.
STEP 4 – set scan s ettings
a. r esolution
t he default scanning resolution is 1000dpi, additional resolution options
are listed below.
Manual-RPS10M.indd 10 23.12.2016 10:00:31

11
s canning
r esolution
Color
d epth
(by RGB
Channel)
Color
mode
File
s ize
ti (no
compres-
sion)
300dpi 8 bit 24-bit ~370 k b
600dpi 8 bit 24-bit ~1.4mB
1800dpi 8 bit 24-bit ~12.9mB
3600dpi 8 bit 24-bit ~52mB
7200dpi 8 bit 24-bit ~208mB
10000dpi 8bit 24-bit ~402mB
English
set scan settings (Continued...)
notice: Higher scanning resolutions result in greater scanning time and hardisk space
requirements.
b. Color d epth
Choose between 8 and 16bit.
a higher color depth setting will result in
a larger range of colors in the nal scanned image.
t he Film scanner color depth is 48 bit true color. t he scanning software has the
capability of selecting 8 bit color mode or 16 bit color mode when scanning,
t his will produce 24 or 48 bit color images, 8 bits or 16 bits per r ed, Green and
Blue color channels.
Example:
8 bit mode = 8
Red, 8 Green, and 8 Blue for a total of 24 bit color
16 bit mode = 16 Red, 16 Green, and 16 Blue for a total of 48 bit color
NOTE: make sure there is enough space available
on the computer when changing the
s canning
r esolution. a high scanning resolution results in
large les that may prove dicult to save.
Color image le size of dierent resolutions
and color depths:
scans include auto Balance and digtal n oise
r eduction on:
Processor:
amd 9650 Quad-Core 2.3GHz
memory: 2GB
system type: Vista 64 bit
scan mode – normal mode produces a scan in jpeg format while Quality pro-
duces a non-compressed,“loss-less”
ti image.
Manual-RPS10M.indd 11 23.12.2016 10:00:31

12
English
STEP 5 – set scan Preferences
select scan - Preference - Film t ype - scan s etting
“Prescan r esolution“ - default pre-scan resolution.
“Color depth“ – default color depth while scanning.
“scan mode“ – default scan mode while scanning.
Conguring scan Preferences
1. select Browse and choose the designated folder to save the scanned
image to
2. enter the le name.
Manual-RPS10M.indd 12 23.12.2016 10:00:31

13
English
set scan Preferences (Continued...)
3. t railing index after Base File name digits: denes the length of the
le name and numbering sequence up to 6 digits example image1 or
image000001.
4. options - use Film index: use the number assigned to the frame on it’s posi-
tion.
user dened start number: enter a specic customizable start number
5. Choose the le type , “tif” or“JPG”. (tif uncompressed or JPG Compressed-
Choose image quality for JPeG. (20-100) 100 oers the least amount of compres-
sion
advanced s etting
”auto exposure” - attempts to nd the correct exposure to get the widest range
of whites and blacks while putting the middle grays at around the middle of the
data range.
”auto Balance” - using the image histogram to balance RGB channels. it estimates
images’color cast and adjust the images accordingly
“auto Contrast” - t he scanner software analyzes the data and automatically
adjusts the setting for the White and Black Points.
”digital noise
r eduction”– applies alter, r educing the lm grain.
”multipass Xposure” -
When enabled multi-exposure performs a triple scan to obtain the best possible
image,
t his process captures the three individual scans, rst a normal passthen two
more scans to highlight the shadow details to expose the darker areas more fully,
t he software then intuitively calculates the nal scan, which now contains the data
from all three scans.
”multiple sampling” -
Congure the settings to scan a single image (multiple times) 2x, 4x, 8x or 16x for
the highest quality output. Please note this greatly increases scan time. With multi-
sampling image noise is a thing of the past.
Manual-RPS10M.indd 13 23.12.2016 10:00:31

14 15
English

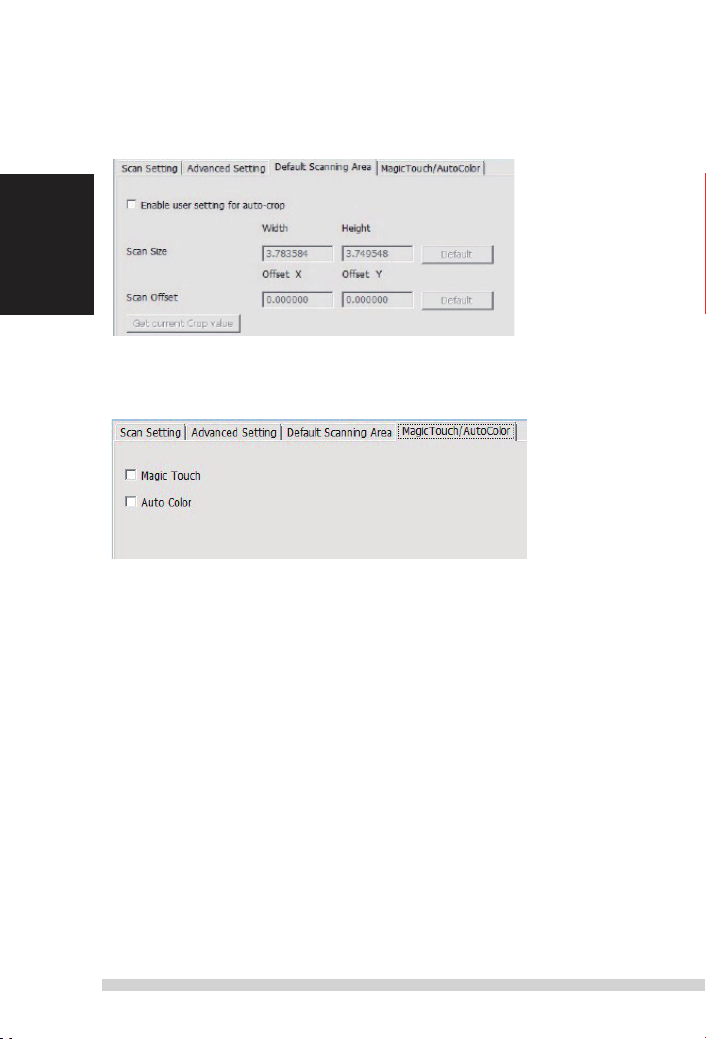

default scanning a rea
adjust the scanning size as well as adjust the “scan offset” setting to move
the image position of slide.
magic t ouch/ a uto Color
enable / disable magic
t ouch and auto Color adjustment to scans.
Magic Touch is a powerful dust and scratch removal technology that does away
with the hassle of learning complex and tedious software techniques. Being
hardware-based, it works seamlessly with the scanning process to ensure the
best possible results when bringing images into the computer. dust, scratches
and other flaws are intelligently detected and eliminated, restoring the image to
its original beauty.
scanning with magic t ouch requires longer scanning times, the feature is turned
off by default.
Auto Color takes the guesswork out of the scanning process to streamline the
workflow and achieve the best results. Proprietary color enhancement
technology is applied to scanned images to provide the most accurate color
adjustment, resulting in vibrant images with optimal brightness, contrast and
saturation.
English
STEP 6 –
s can
scan - scan- scan Current Frame
t his begins the scan to file process
all scaned images will be saved to the directory location set previously,
the factory default locations are:
Windows: C:\users\[Your na me \ d ocuments;
MAC: mac
Hd\users\[Your name]\Pictures\Cyberview i mages),
STEP 7 – Exit
select “scan > exit” to close the driver. scanned image files can be open/edited
with any image editing software.
NOTE: if using the supplied image editor, for help with this application see the users Help
from within the application
Manual-RPS10M.indd 14 23.12.2016 10:00:32

14 15
English
STEP 6 –
s can
scan - scan- scan Current Frame
t his begins the scan to file process
all scaned images will be saved to the directory location set previously,
the factory default locations are:
Windows: C:\users\[Your na me \ d ocuments;
MAC: mac
Hd\users\[Your name]\Pictures\Cyberview i mages),
STEP 7 – Exit
select “scan > exit” to close the driver. scanned image files can be open/edited
with any image editing software.
NOTE: if using the supplied image editor, for help with this application see the users Help
from within the application
Manual-RPS10M.indd 15 23.12.2016 10:00:32

16 17
English
HOW TO USE SHARING FUNCTION
Sharing/CloudStorage:
Simple design and easy to use
Open the
CyberviewX 5 software, you will need to select positive for slides or negative for film strips.
Configure the Scan setting - Scan – Preference - Film Type –
Sharing/Cloud Storage
Note: the tool bar options are disabled until activating in the Settings window
Select your method either Sharing or Cloud
Then Click “OK”
The toolbar icons are now active
Manual-RPS10M.indd 16 23.12.2016 10:00:32

16 17
English
HOW TO USE SHARING FUNCTION
Sharing/CloudStorage:
Simple design and easy to use
Open the
CyberviewX 5 software, you will need to select positive for slides or negative for film strips.
Configure the Scan setting - Scan – Preference - Film Type –
Sharing/Cloud Storage
Note: the tool bar options are disabled until activating in the Settings window
Select your method either Sharing or Cloud
Then Click “OK”
The toolbar icons are now active
English
Scanning into , you must first log out of your account, the scanning function will
require authentication/login on each use

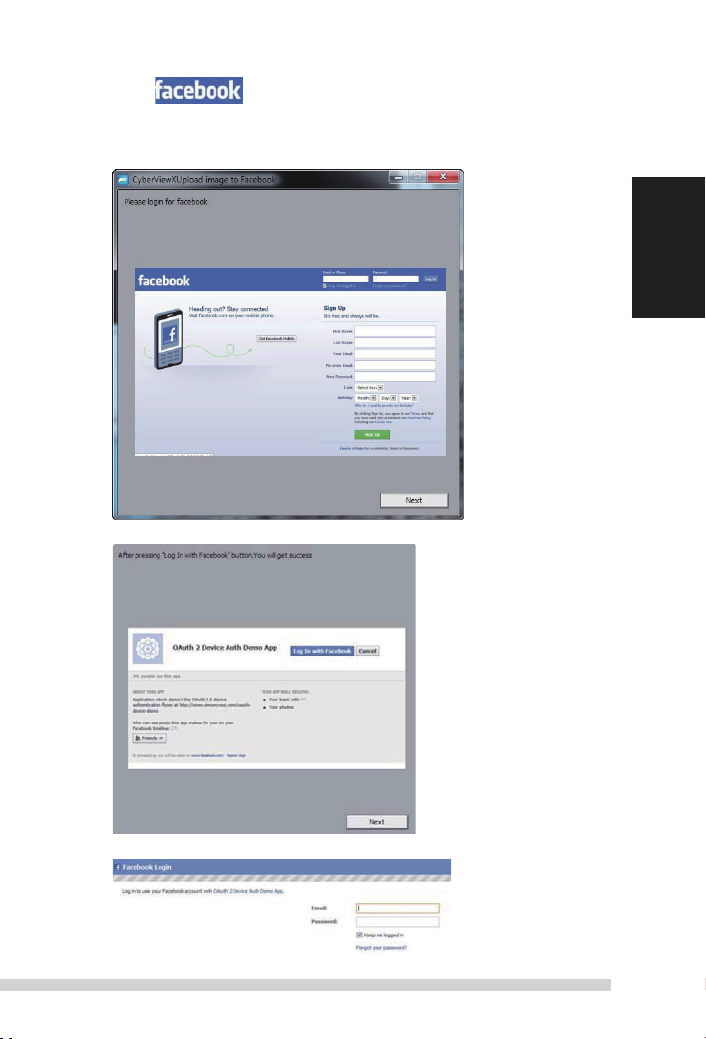

1. Log off of your Facebook account
2. In the Cyberview interface activate Sharing feature as described above
3. Follow the onscreen prompts to log in and authenticate the device
Manual-RPS10M.indd 17 23.12.2016 10:00:32

18 19
Minimize the browser window and on the next CyberView screen, not the Code number you have
been given (this will be a different code every time, make a note of it, yo will need to enter it on the
Facebook website
English
Minimize this browser window

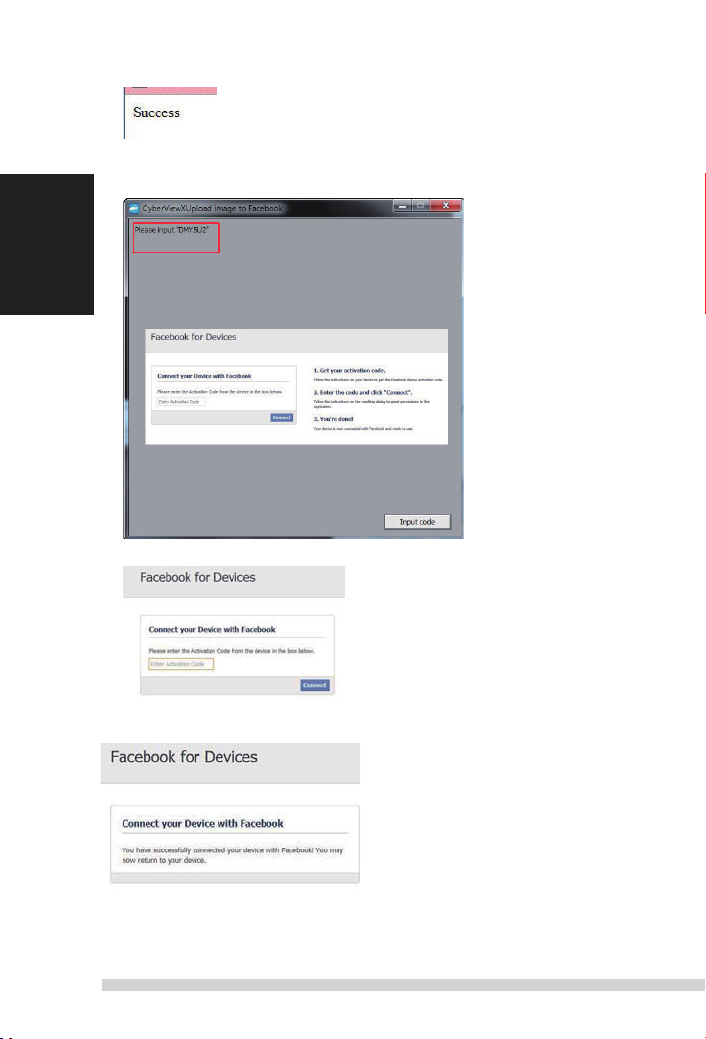

Minimize the browser window and on the next CyberView screen,
4. note the Code number you have been given (this will be a different code every time,
copy it down, you will need to enter it on the Facebook website
5. Enter the code you made a note of earlier, then click
Connect
6. Your scanner is now connected to Facebook
English
To scan to , you must first go here: https://www.dropbox.com/ and sign up for
an
account and download and install their software, if you are not currently a Dropbox member
and would like to use this service.
Once you have created and
installed Dropbox application you will now have a new folder on your
computer that you may select to scan into for automatic sync uploads with your Dropbox account.
To scan into the
Dropbox folder
1. Open
Cyberview X5
2. Next select Scan –
Preference – the film type you wish to scan (Positive or Negative)
3. In this scan settings
window select the Sharing and CloudStorage tab
4. Check the box beside CloudStorage to activate it
NOTE: When selecting the CloudStorage - Dropbox feature the software will automatically scan to
the CyberviewX folder it creates in your Dropbox folder on your computer, ready for synchronization
with your Dropbox account.
5. Click OK to save settings, Once configured you are ready to scan.
6. All the files
scanned will be saved into the Dropbox folder
Synchronization will automatically occur with your online account when active. (Active=Dropbox is
running in the system tray)
Manual-RPS10M.indd 18 23.12.2016 10:00:32

18 19
English
To scan to , you must first go here: https://www.dropbox.com/ and sign up for
an account and download and install their software, if you are not currently a Dropbox member
and would like to use this service.
Once you have created and
installed Dropbox application you will now have a new folder on your
computer that you may select to scan into for automatic sync uploads with your Dropbox account.
To scan into the Dropbox folder
1. Open
Cyberview X5
2. Next select Scan –
Preference – the film type you wish to scan (Positive or Negative)
3. In this scan settings
window select the Sharing and CloudStorage tab
4. Check the box beside CloudStorage to activate it
NOTE: When selecting the CloudStorage - Dropbox feature the software will automatically scan to
the CyberviewX folder it creates in your Dropbox folder on your computer, ready for synchronization
with your Dropbox account.
5. Click OK to save settings, Once configured you are ready to scan.
6. All the files
scanned will be saved into the Dropbox folder
Synchronization will automatically occur with your online account when active. (Active=Dropbox is
running in the system tray)
Manual-RPS10M.indd 19 23.12.2016 10:00:32

20 21
English

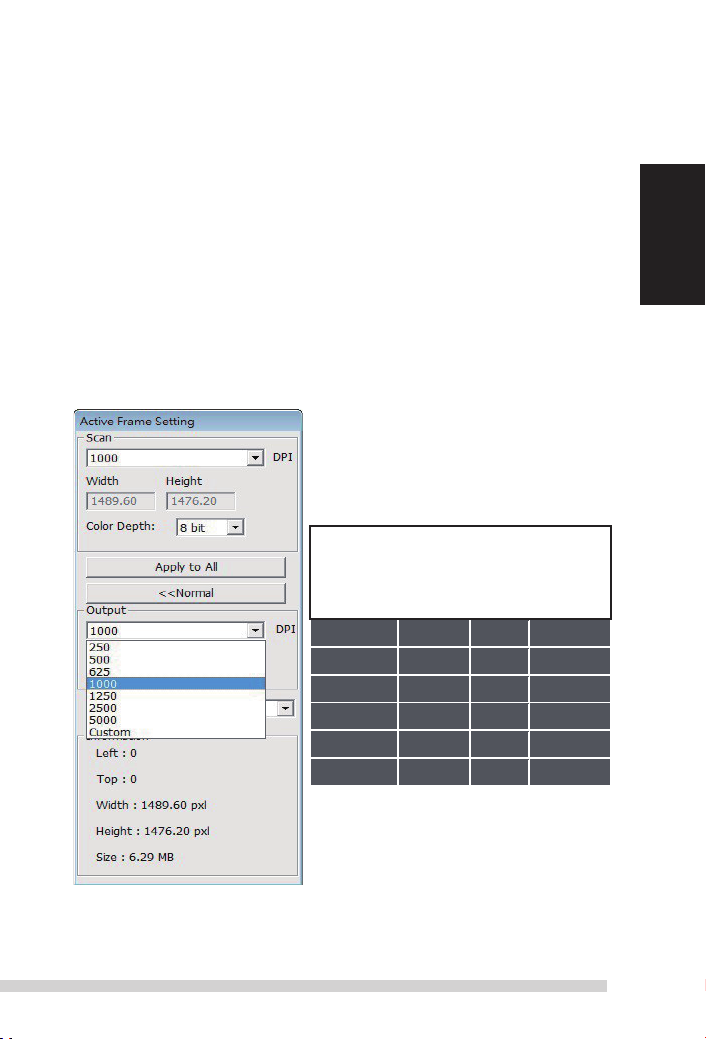

U SER INTERFACE
English
t here are four major parts of theCyberView X 5 user interface:
I. Main Window Area [Fixed Windows]
II. Preview Window Area [Fixed Window]
III. Active Frame Setting Area [Floating Window]
i. Main Window Area [Fixed Windows]
Menu Commands -
s can
Prescan - Prescan Current Frame: Pre-scan the existing slide.
Scan - scan Current Frame - scan selected to File - scan
a ll
Menu Commands - Preview (overview)
Zoom, r otate & Flip features.
Revert
discards all modifications and restores the image back to the original
state.
Preference - see scan setting (see Page 13)
Exit
Closes the CyberView X5 user interface.
t here is a message pop-up “Quit the application prompts to save docu-
ments?“ click “Yes“ to save ,“no“ to discard the current
settings or “Cancel“ to return to Cyber View X.
Manual-RPS10M.indd 20 23.12.2016 10:00:32
