Regency Fireplace Products L390E Quick start guide

FPI FIREPLACE PRODUCTS INTERNATIONAL LTD. 6988 Venture St., Delta, BC Canada, V4G 1H4
919-234b
MODELS: L390E-NG2 / L390EB-NG2 Natural Gas L390E-LP2 / L390EB-LP2 Propane
HZI390E-NG2 / HZI390EB-NG2 Natural Gas HZI390E-LP2 / HZI390EB-LP2 Propane
WARNING:
Improper installation, adjustment, alteration, service or
maintenance can cause injury or property damage. Refer to
this manual. For assistance or additional information consult
an authorized installer, service agency or the gas supplier.
FOR YOUR SAFETY
Do not store or use gasoline or other flammable vapours and
liquids in the vicinity of this or any other appliance.
Installation and service must be performed by an authorized
installer, service agency or the gas supplier.
FOR YOUR SAFETY
What to do if you smell gas:
Do not try to light any appliance
Do not touch any electrical switch:
do not use any phone in your
building.
Immediately call your gas supplier
from a neighbour's phone. Follow
the gas supplier's instructions.
If you cannot reach your gas
supplier, call the fire department.
L390E / HZI390E Gas Insert
Owners &
Installation Manual
Tested by: Installer: Please complete the details on the back cover
and leave this manual with the homeowner.
Homeowner: Please keep these instructions for future reference.
www.regency-fire.com
04/23/14
Horizon HZI390E
Liberty L390E

2L390E-2 / HZI390E-2 Direct Vent Gas Insert
TO THE NEW OWNER
Congratulations! You are the owner of a state-of-the-art Gas Insert by Regency.
The Regency Gas Insert Series of hand crafted appliances has been designed to provide you with all the
warmth and charm of a fireplace, at the flick of a switch. The models L390E / HZI390E of this series have been
approved by Warnock Hersey for both safety and efficiency. As it also bears our own mark, it promises to
provide you with economy, comfort and security for many trouble free years to follow.
Please take a moment now to acquaint yourself with these instructions and the many features of your
Regency Fireplace.
WARNING
HOT GLASS
DO NOT TOUCH
NEVER
WILL
CAUSE BURNS
GLASS
UNTIL COOLED
ALLOW CHILDREN
TO TOUCH GLASS
Horizon HZI390ELiberty Gas
Inserts Benefits Horizon Gas Inserts Benefits Liberty L390E

L390E-2 / HZI390E-2 Direct Vent Gas Insert 3

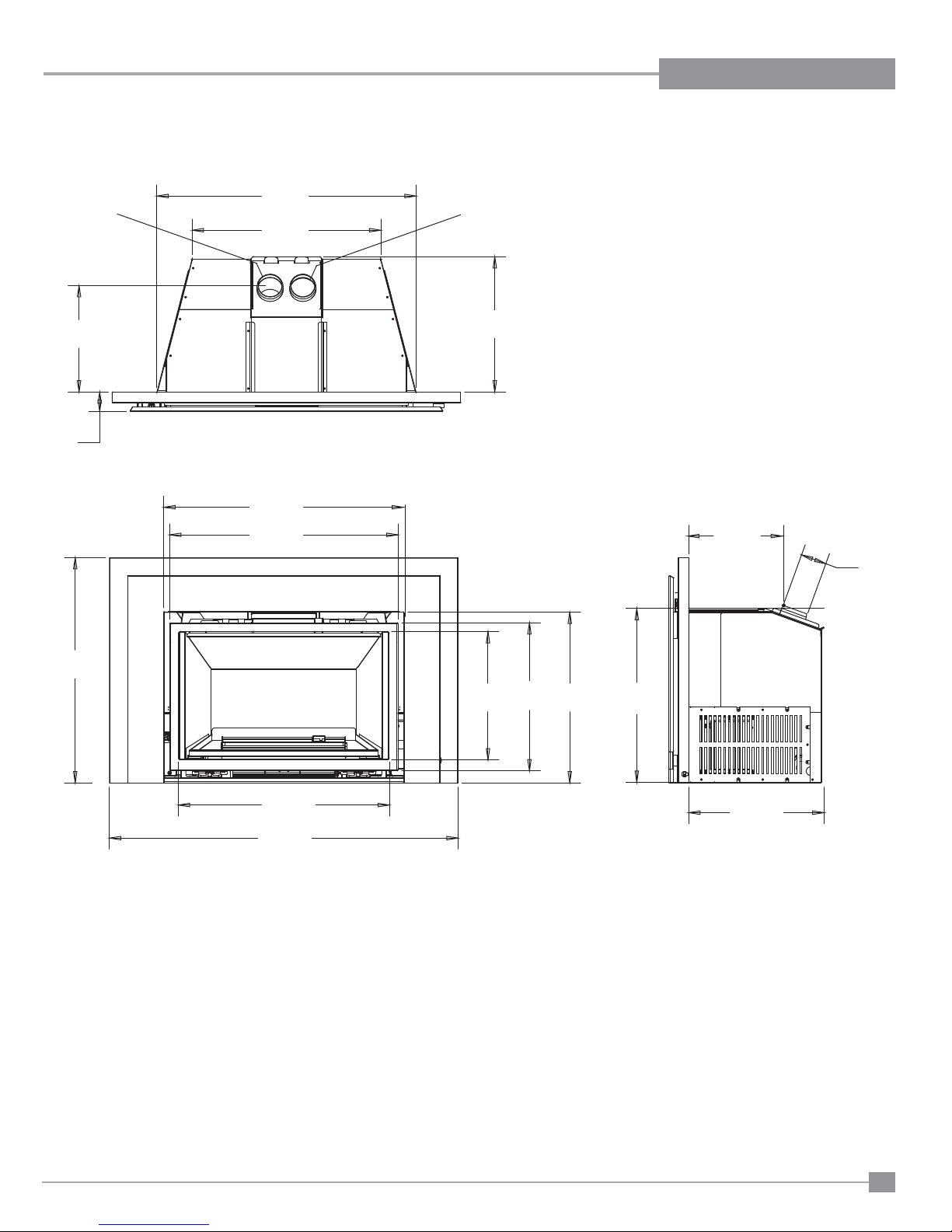

DIMENSIONS
29-5/8”
(752mm)
21-5/8”
(549mm)
12-1/8”
(308mm)
27-1/2”
(699mm)
26-1/8”
(664mm)
25-3/4”
(654mm)
39-7/8”
(1013mm)
24-1/8”
(613mm)
14-3/4”
(375mm)
17”
(432mm)
19-1/2”
(495mm) 20”
(508mm)
10-7/8”
(276mm)
3”
(76mm)
15-3/4”
(400mm)
2-1/4”
(57mm)
15-3/4”
(400mm)
IE
3” Air Inlet
(76mm)
3” Exhaust
(76mm)
UNIT DIMENSIONS

4L390E-2 / HZI390E-2 Direct Vent Gas Insert
DIMENSIONS
25-3/4” (654mm)
24” (610mm)
38-1/8” (968mm)
17-1/4” (438mm)
Dimensions w/Full Screen Doors
Dimensions w/4 sided Faceplate
Dimensions w/Oversized Faceplate
39-15/16” (1014mm)
27-5/16"(693mm)
35-15/16” (911mm)
31-7/16"(797mm)
44"
1118mm
35 7
8
"
910mm
30"
762mm
23 3
4
"
603mm

L390E-2 / HZI390E-2 Direct Vent Gas Insert 55
TABLE OF CONTENTS
Heat exchange return..................................................34
Brick panel installation.................................................35
Enamel panel installation.............................................36
Glass door removal / installation .................................37
3 sided low profile faceplate installation......................38
4 sided low profile faceplate installation......................39
Oversize faceplate installation.....................................40
Optional Hearth Trim installation .................................41
Optional screen installation .........................................42
Optional full screen door installation............................43
OPERATING INSTRUCTIONS
Operating Instructions ................................................44
Lighting Procedure ......................................................44
ShutdownProcedure....................................................44
First Fire ......................................................................44
Automatic Convection Fan Operation.........................44
Normal Operating Sounds Of
Gas Appliances............................................................45
Copy Of Lighting Instruction Plate...............................45
Maintenance Instructions............................................46
Door Glass ..................................................................46
Pilot Adjustment...........................................................47
General Vent
MAINTENANCE
Maintenance................................................................47
Log Replacement ........................................................47
Glass Gasket...............................................................47
Glass crystal burner removal / installation - Hzi390eb 48
Glass Burner Removal ................................................48
Glass Burner install .....................................................48
l390E /l390eb ceramic burner Removal / installation .49
Fan maintenance - with GTMF remote control............50
for L390Eb or Hzi390eb...............................................50
valve replacement .......................................................51
PARTS LIST
Main Assembly ............................................................53
low profile faceplate ....................................................55
WARRANTY
Warranty......................................................................55
DIMENSIONS
Unit dimensions.............................................................3
SAFETY LABEL
Copy of the Safety Label...............................................5
REQUIREMENTS
MA Code - CO Detector.................................................8
INSTALLATION
Important Message ......................................................9
Before You Start ............................................................9
Important Message ....................................................10
For Your Safety............................................................10
Specifications ..............................................................10
Gas Pressure Testing..................................................10
Installation Into A Solid Fuel Burning Fireplace Or
Factory Built Fireplace.................................................10
Before You Start ..........................................................10
Installation Checklist....................................................11
Materials Required ......................................................11

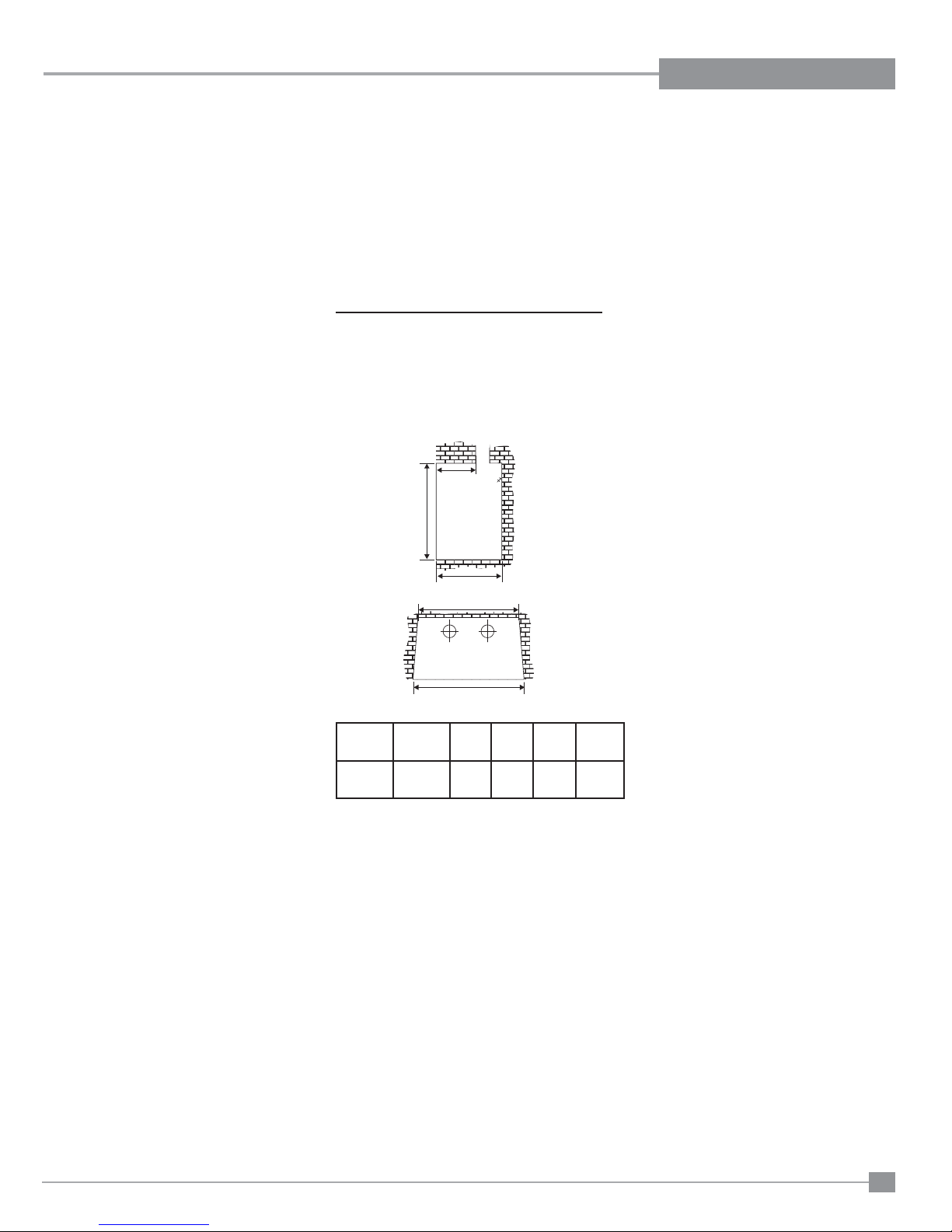

Minimum Fireplace Dimensions ..................................11

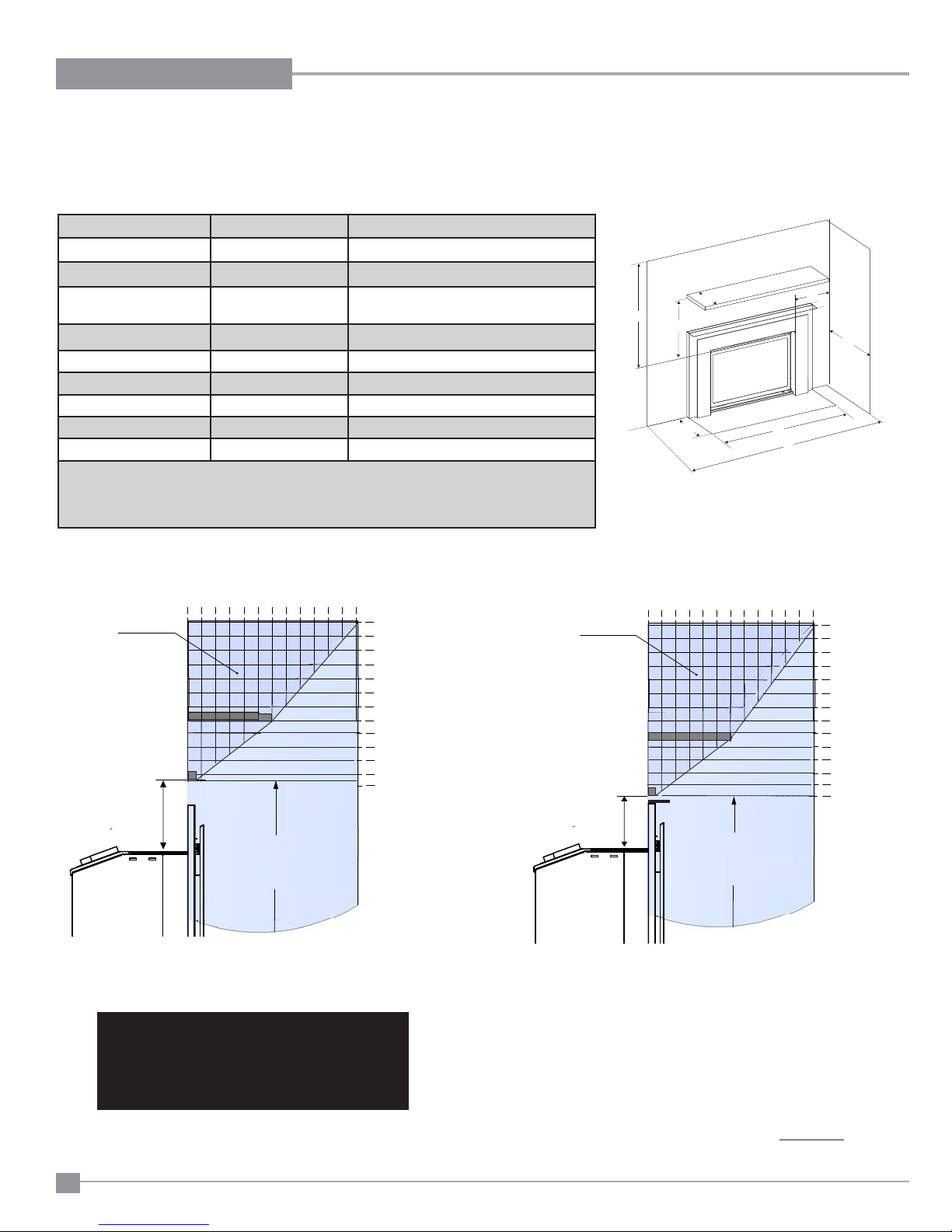

Minimum Clearances to combustibles.........................12
Gas Connection...........................................................13
Venting.........................................................................13
Flue / vent installation..................................................14
Levelling leg adjustment..............................................15

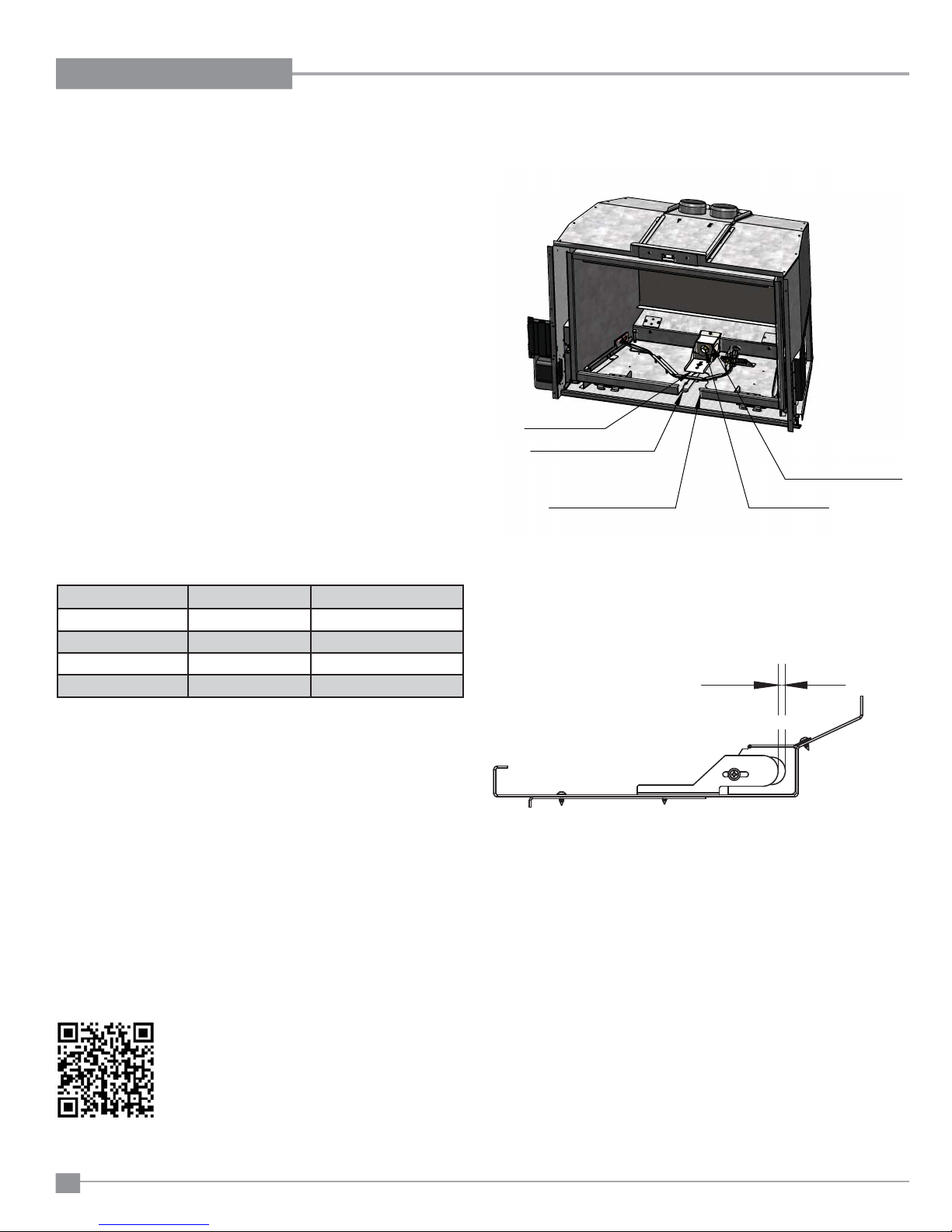

Air shutter Adjustment .................................................16
Conversion from NG to LP ........................................17
High Elevation .............................................................19
Gas Line Installation....................................................19
Gas Pipe Pressure Testing..........................................19

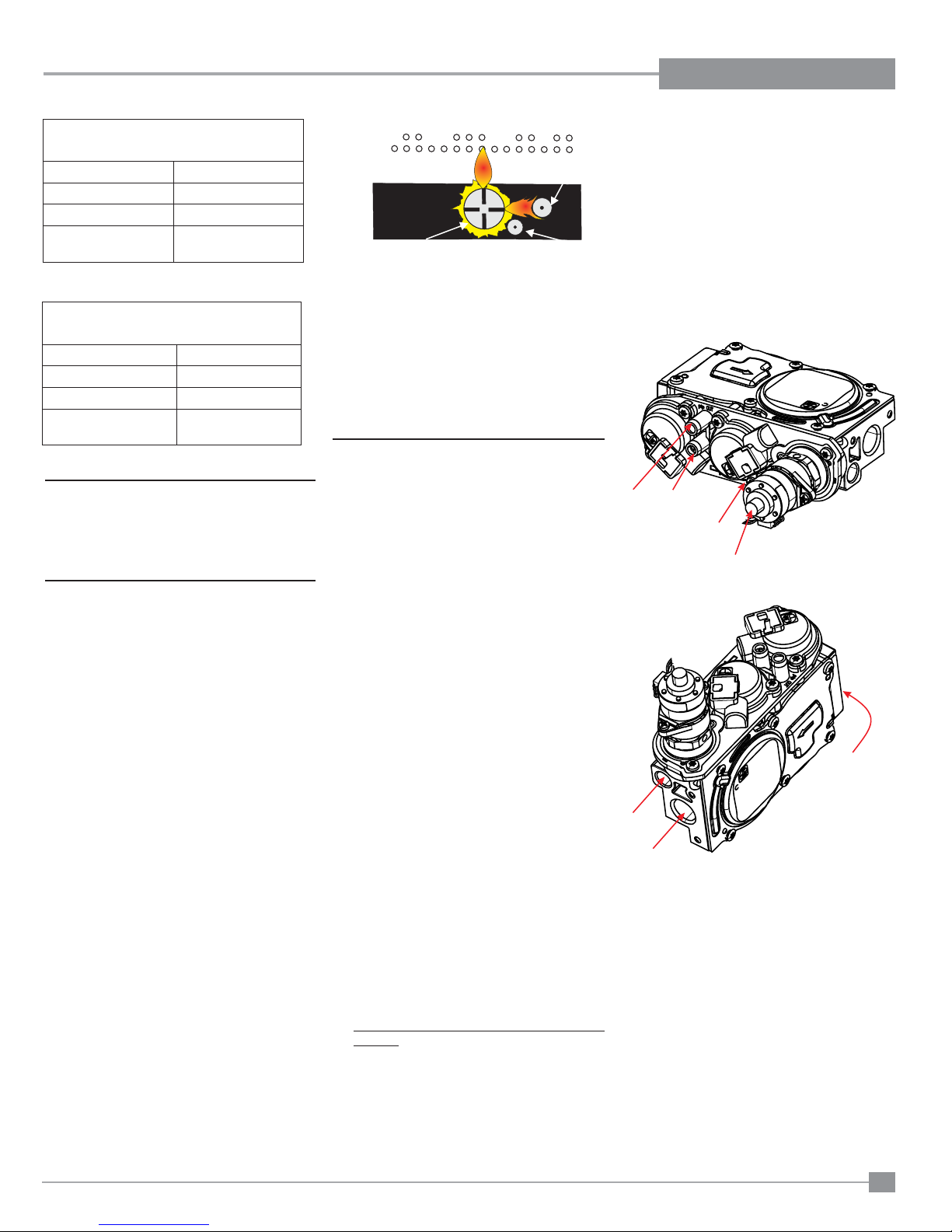

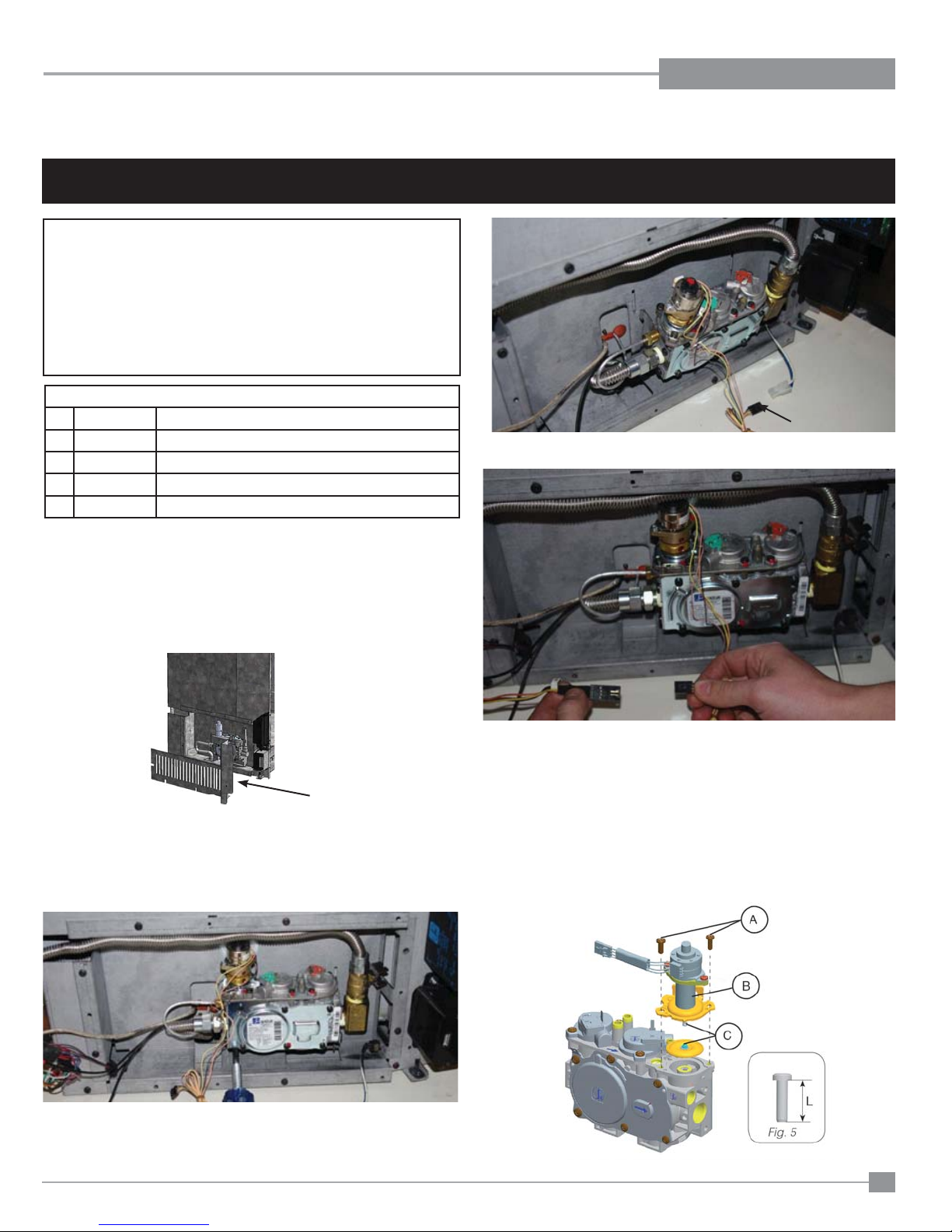

885 S.I.T. Valve Description.........................................19
Fan installation / removal.............................................20
Wiring Diagram............................................................22
Proflame Remote system gtm (L390E / HZI390E)......22
AC power adaptor installation (for surefire systems)...23
Proflame remote system GTMF with fan (L390EB /
HZI390EB)...................................................................24
Fan Wiring Diagram ....................................................25
Optional wall thermostat installation............................26
Glass crystal / ceramic spa stone installation..............27
Optional Pebbles / GLASS crystal Installation for Fire-
box Base (AROUND BURNER) ..................................27
HZI390E optional log set installation...........................29
L390E log set installation ...........................................31
Standing pilot ..............................................................34

6L390E-2 / HZI390E-2 Direct Vent Gas Insert

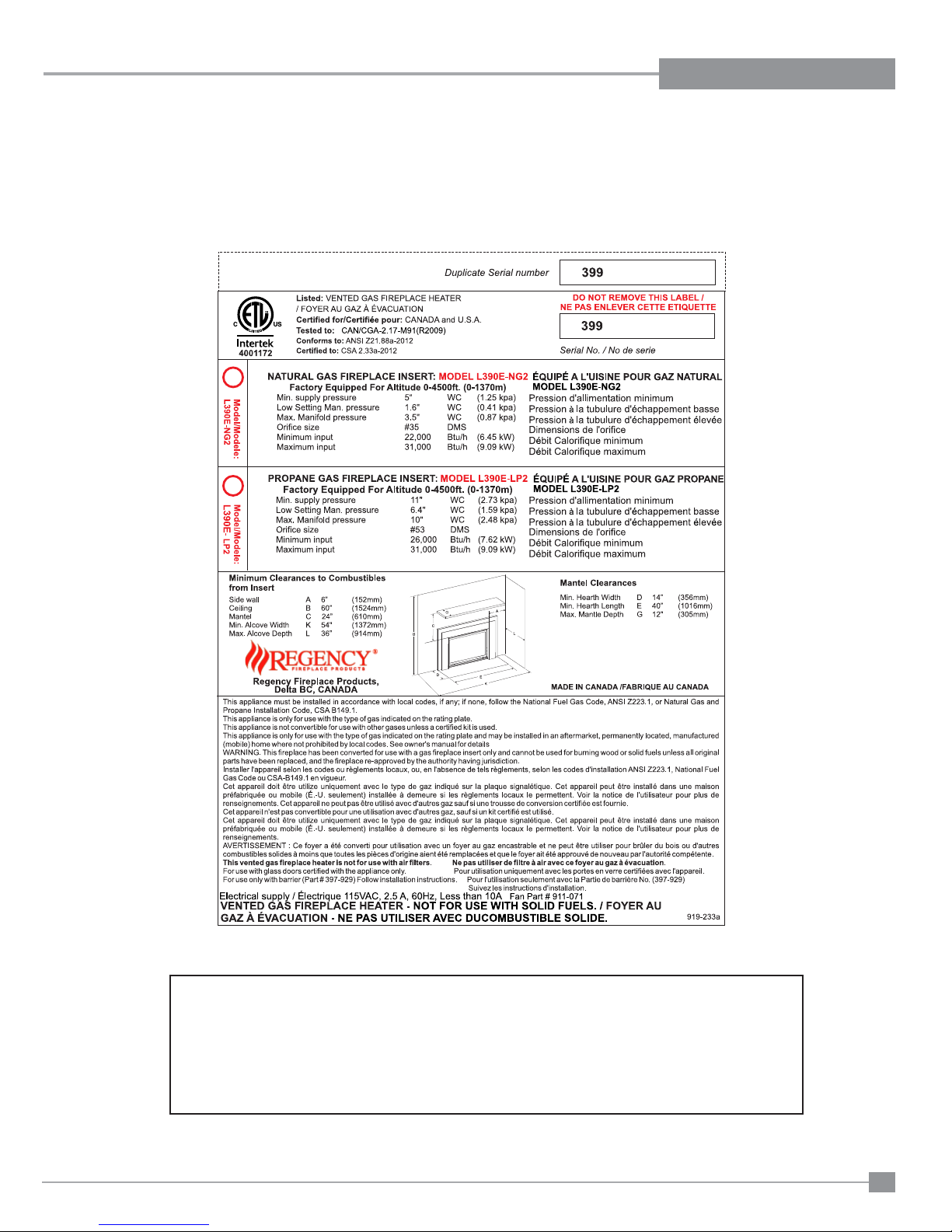

SAFETY LABEL
This is a copy of the labels that accompany each L390E Gas Insert. We
have printed a copy of the contents here for your review.
NOTE: Regency units are constantly being improved. Check the
label on the unit and if there is a difference, the label on the unit is
the correct one.
NATURAL GAS FIREPLACE INSERT:
Factory Equipped For Altitude 0-4500ft. (0-1370m)
Min. supply pressure 5“ WC (1.25 kpa)
Low Setting Man. pressure 1.6" WC (0.41 kpa)
Max. Manifold pressure 3.5" WC (0.87 kpa)
Orifice size #35 DMS
Minimum input 22,000 Btu/h (6.45 )
Maximum input 31,000 Btu/h (9.09 kW)
kW
Min. supply pressure 11" WC (2.73 kpa)
Low Setting Man. pressure 6.4" WC (1.59 kpa)
Max. Manifold pressure 10" WC (2.48 kpa)
Orifice size #53 DMS
Minimum input
PROPANE GAS FIREPLACE INSERT:
Factory Equipped For Altitude 0-4500ft. (0-1370m)
26,000 Btu/h (7.62 kW)
Maximum input 31,000 Btu/h (9.09 kW)
MODEL HZI390E-NG2
MODEL HZI390E-LP2
Model/Modele:
HZI390E-NG2
919-235a
DO NOT REMOVE THIS LABEL /
NE PAS ENLEVER CETTE ETIQUETTE
Serial No. / No de serie
398
398
Duplicate Serial number
This appliance must be installed in accordance with local codes, if any; if none, follow the National Fuel Gas Code, ANSI Z223.1, or Natural Gas and
Propane Installation Code, CSA B149.1.
This appliance is only for use with the type of gas indicated on the rating plate.
This appliance is not convertible for use with other gases unless a certified kit is used.
This appliance is only for use with the type of gas indicated on the rating plate and may be installed in an aftermarket, permanently located, manufactured
(mobile) home where not prohibited by local codes. See owner's manual for details
WARNING.This fireplace has been converted for use with a gas fireplace insert only and cannot be used for burning wood or solid fuels unless all original
parts have been replaced, and the fireplace re-approved by the authority having jurisdiction.
Installer l'appareil selon les codes ou règlements locaux, ou, en l'absence de tels règlements, selon les codes d'installation ANSI Z223.1, National Fuel
Gas Code ou CSA-B149.1 en vigueur.
AVERTISSEMENT : Ce foyer a été converti pour utilisation avec un foyer au gaz encastrable et ne peut être utiliser pour brûler du bois ou d'autres
combustibles solides à moins que toutes les pièces d'origine aient été remplacées et que le foyer ait été approuvé de nouveau par l'autorité compétente.
For use with glass doors certified with the appliance only.
This vented gas fireplace heater is not for use with air filters. Ne pas utiliser de filtre à air avec ce foyer au gaz à évacuation.
For use only with barrier (Part # 397-929) Follow installation instructions. Pour l'utilisation seulement avec la Partie de barrière No. (397-929)
Suivez les instructions d'installation.
Cet appareil doit être utilize uniquement avec le type de gaz indiqué sur la plaque signalétique. Cet appareil peut être installé dans une maison
préfabriquée ou mobile (É.-U. seulement) installée à demeure si les règlements locaux le permettent. Voir la notice de l'utilisateur pour plus de
renseignements. Cet appareil ne peut pas être utilisé avec d'autres gaz sauf si une trousse de conversion certifiée est fournie.
Cet appareil n'est pas convertible pour une utilisation avec d'autres gaz, sauf si un kit certifié est utilisé.
Cet appareil doit être utilize uniquement avec le type de gaz indiqué sur la plaque signalétique. Cet appareil peut être installé dans une maison
préfabriquée ou mobile (É.-U. seulement) installée à demeure si les règlements locaux le permettent. Voir la notice de l'utilisateur pour plus de
renseignements.
Pour utilisation uniquement avec les portes en verre certifiées avec l'appareil.
Listed:
Certified for/Certifi e pour: CANADA and U.S.A.
VENTED GAS FIREPLACE HEATER
/
Tested to:
FOYER AU GAZ À ÉVACUATION
é
CAN/CGA-2.17-M91(R2009)
Conforms to:
Certified to:
ANSI Z21.88a-2012
CSA 2.33a-2012
VENTED GAS FIREPLACE HEATER - NOT FOR USE WITH SOLID FUELS. /
NE PAS UTILISER AVEC DUCOMBUSTIBLE SOLIDE.
FOYER AU
GAZ À ÉVACUATION -
Model/Modele:
LP2
HZI390E-
ÉÉQUIP A L'UISINE POUR GAZ PROPANE
MODEL HZI390E- LP2
ÉÉQUIP A L'UISINE POUR GAZ NATURAL
MODEL HZI390E- NG2
Pression d'allimentation minimum
Pression la tubulure d' chappement basse
Pression la tubulure d' chappement lev e
Dimensions de l'orifice
D bit Calorifique minimum
D bit Calorifique maximum
à
à
é
ééé
é
é
Pression d'allimentation minimum
Pression la tubulure d' chappement basse
Pression la tubulure d' chappement lev e
Dimensions de l'orifice
D bit Calorifique minimum
D bit Calorifique maximum
à
à
é
ééé
é
é
Min. Hearth Width D 14” (356mm)
Min. Hearth Length E 40” (1016mm)
Max. Mantle Depth G 12" (305mm)
.
Mantel Clearances
Side wall A 6” (152mm)
Ceiling B 60" (1524mm)
Mantel C 24” (610mm)
Min. Alcove Width K 54" (1372mm)
Max. Alcove Depth L 36” (914mm)
Regency Fireplace Products,
Delta BC, CANADA
A
C
B
E
K
D
L
G
MADE IN CANADA /FABRIQUE AU CANADA
Minimum Clearances to Combustibles
from Insert
4001172
Electrical supply / Électrique 115VAC, 2.5 A, 60Hz, Less than 10A Fan Part # 911-071
A
C
B
E
K
D
L
G
For the State of Massachusetts, installation and repair must be done by a plumber or gasfitter licensed in the Commonwealth of
Massachusetts.
For the State of Massachusetts, flexible connectors shall not exceed 36 inches in length.
For the State of Massachusetts, the appliances individual manual shut-off must be a t-handle type valve.
The State of Massachusetts requires the installation of a carbon monoxide alarm in accordance with NFPA720 and a CO alarm with
battery back up in the same room where the gas appliance is installed.

L390E-2 / HZI390E-2 Direct Vent Gas Insert 7
SAFETY LABEL
This is a copy of the labels that accompany each HZI390E Gas Insert.
We have printed a copy of the contents here for your review.
NOTE: Regency units are constantly being improved. Check the
label on the unit and if there is a difference, the label on the unit is
the correct one.
For the State of Massachusetts, installation and repair must be done by a plumber or gasfitter licensed in the Commonwealth of
Massachusetts.
For the State of Massachusetts, flexible connectors shall not exceed 36 inches in length.
For the State of Massachusetts, the appliances individual manual shut-off must be a t-handle type valve.
The State of Massachusetts requires the installation of a carbon monoxide alarm in accordance with NFPA720 and a CO alarm with
battery back up in the same room where the gas appliance is installed.

8L390E-2 / HZI390E-2 Direct Vent Gas Insert
REQUIREMENTS
5.08: Modifications to NFPA-54, Chapter 10
(2) Revise 10.8.3 by adding the following additional requirements:
(a) For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in whole or in part for
residential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent termination is less than
seven (7) feet above finished grade in the area of the venting, including but not limited to decks and porches, the following requirements shall
be satisfied:
1. INSTALLATION OF CARBON MONOXIDE DETECTORS. At the time of installation of the side wall horizontal vented gas fueled
equipment, the installing plumber or gasfitter shall observe that a hard wired carbon monoxide detector with an alarm and battery back-up is
installed on the floor level where the gas equipment is to be installed. In addition, the installing plumber or gasfitter shall observe that a battery
operated or hard wired carbon monoxide detector with an alarm is installed on each additional level of the dwelling, building or structure
served by the side wall horizontal vented gas fueled equipment. It shall be the responsibility of the property owner to secure the services of
qualified licensed professionals for the installation of hard wired carbon monoxide detectors
a. In the event that the side wall horizontally vented gas fueled equipment is installed in a crawl space or an attic, the hard wired carbon
monoxide detector with alarm and battery back-up may be installed on the next adjacent floor level.
b. In the event that the requirements of this subdivision can not be met at the time of completion of installation, the owner shall have a period of
thirty (30) days to comply with the above requirements; provided, however, that during said thirty (30) day period, a battery operated carbon
monoxide detector with an alarm shall be installed.
2. APPROVED CARBON MONOXIDE DETECTORS. Each carbon monoxide detector as required in accordance with the above provisions
shall comply with NFPA 720 and be ANSI/UL 2034 listed and IAS certified.
3. SIGNAGE. A metal or plastic identification plate shall be permanently mounted to the exterior of the building at a minimum height of eight
(8) feet above grade directly in line with the exhaust vent terminal for the horizontally vented gas fueled heating appliance or equipment. The
sign shall read, in print size no less than one-half (1/2) inch in size, "GAS VENT DIRECTLY BELOW. KEEP CLEAR OF ALL
OBSTRUCTIONS".
4. INSPECTION. The state or local gas inspector of the side wall horizontally vented gas fueled equipment shall not approve the installation
unless, upon inspection, the inspector observes carbon monoxide detectors and signage installed in accordance with the provisions of 248 CMR
5.08(2)(a)1 through 4.
(b) EXEMPTIONS: The following equipment is exempt from 248 CMR 5.08(2)(a)1 through 4:
1. The equipment listed in Chapter 10 entitled "Equipment Not Required To Be Vented" in the most current edition of NFPA 54 as adopted by
the Board; and
2. Product Approved side wall horizontally vented gas fueled equipment installed in a room or structure separate from the dwelling, building or
structure used in whole or in part for residential purposes.
(c) MANUFACTURER REQUIREMENTS - GAS EQUIPMENT VENTING SYSTEM PROVIDED. When the manufacturer of Product
Approved side wall horizontally vented gas equipment provides a venting system design or venting system components with the equipment, the
instructions provided by the manufacturer for installation of the equipment and the venting system shall include:
1. Detailed instructions for the installation of the venting system design or the venting system components; and
2. A complete parts list for the venting system design or venting system.
(d) MANUFACTURER REQUIREMENTS - GAS EQUIPMENT VENTING SYSTEM NOT PROVIDED. When the manufacturer of a
Product Approved side wall horizontally vented gas fueled equipment does not provide the parts for venting the flue gases, but identifies
"special venting systems", the following requirements shall be satisfied by the manufacturer:
1. The referenced "special venting system" instructions shall be included with the appliance or equipment installation instructions; and
2. The "special venting systems" shall be Product Approved by the Board, and the instructions for that system shall include a parts list and
detailed installation instructions.
(e) A copy of all installation instructions for all Product Approved side wall horizontally vented gas fueled equipment, all venting instructions,
all parts lists for venting instructions, and/or all venting design instructions shall remain with the appliance or equipment at the completion of
the installation.
MA Code - CO Detector
(for the State of Massachusetts only)

L390E-2 / HZI390E-2 Direct Vent Gas Insert 9
INSTALLATION
IMPORTANT MESSAGE
SAVE THESE
INSTRUCTIONS
TheL390E / HZI390E Gas Inserts must be installed
in accordance with these instructions.Carefully read
all the instructions in this manual first. Consult the
"authority having jurisdiction" to determine the need
for a permit prior to starting the installation. It is the
responsibility of the installer to ensure this fireplace
is installed in compliance with manufacturers
instructions and all applicable codes.
BEFORE YOU START
Safe installation and operation of this appliance
requires common sense, however, we are required
by the Canadian Safety Standards and ANSI
Standards to make you aware of the following:
CLOTHING OR OTHER FLAMMABLE
MATERIAL SHOULD NOT BE PLACED
ON OR NEAR THE APPLIANCE.
CHILDREN AND ADULTS SHOULD BE
ALERTED TO THE HAZARDS OF HIGH
SURFACE TEMPERATURES, ESPE-
CIALLY THE FIREPLACE GLASS, AND
SHOULD STAY AWAYTO AVOID BURNS
OR CLOTHING IGNITION.
INSTALLATION AND REPAIR SHOULD
BE DONE BY AN AUTHORIZED
SERVICE PERSON. THE APPLIANCE
SHOULD BE INSPECTED BEFORE
USE AND AT LEAST ANNUALLY BY A
PROFESSIONAL SERVICE PERSON.
MORE FREQUENT CLEANING MAY
BE REQUIRED DUE TO EXCESSIVE
LINT FROM CARPETING, BEDDING
MATERIAL,ETC.IT IS IMPERATIVETHAT
CONTROL COMPARTMENTS, BURNERS
AND CIRCULATING AIR PASSAGEWAYS
OF THE APPLIANCE BE KEPT CLEAN.
DUE TO HIGH TEMPERATURES, THE
APPLIANCE SHOULD BE LOCATED
OUT OF TRAFFIC AND AWAY FROM
FURNITURE AND DRAPERIES.
WARNING: FAILURE TO INSTALL THIS
APPLIANCE CORRECTLY WILL VOID
YOUR WARRANTY AND MAY CAUSE A
SERIOUS HOUSE FIRE.
YOUNG CHILDREN SHOULD BE CARE-
FULLY SUPERVISED WHEN THEY ARE
IN THE SAME AREA AS THE APPLI-
ANCE. TODDLERS,YOUNG CHILDREN
AND OTHERS MAY BE SUSCEPTIBLE
TO ACCIDENTAL CONTACT BURNS. A
PHYSICAL BARRIERS IS RECOMMEND-
ED IFTHERE ARE AT RISK INDIVIDUAL
INTHE HOUSE. TO RESTRICT ACCESS
TO A FIREPLACE OR STOVE, INSTALL
AN ADJUSTABLE SAFETY GATE TO
KEEP TODDLERS, YOUNG CHILDREN
AND OTHER AT RISK INDIVIDUALS OUT
OF THE ROOM AND AWAY FROM HOT
SURFACES.

10 L390E-2 / HZI390E-2 Direct Vent Gas Insert
INSTALLATION
IMPORTANT MESSAGE
SAVE THESE
INSTRUCTIONS
The Regency Gas Insert must be installed in
accordance with these instructions. Carefully read
all the instructions in this manual first. Consult the
building authority having jurisdiction to determine
the need for a permit prior to starting the installation.
NOTE: Failure to follow the instructions could cause
a malfunction of the heater which could result in
death, serious bodily injury, and/or property damage.
Failure to follow these instructions may also void
your fire insurance and/or warranty.
FOR YOUR SAFETY
This appliance requires air for proper combustion.
Always provide adequate combustion and ventilation
air. Follow instructions and information in CAN/CGA
B149 (in Canada) or the National Fuel Gas Code
ANSI Z223.1 (in the USA), regarding requirements
for combustion and ventilation air.
SPECIFICATIONS
At pressures over 1/2 psig, the pipe to the unit must
be disconnected.
Gas Input Capacity:
Natural Gas 31,000 Btu/h
Propane 31,000 Btu/h
Min. Input
(with Proflame GTM or GTMF remote)
Natural Gas 22,000 Btu/h
Propane 26,000 Btu/h
Fuels: Approved for use with both natural gas,
and propane. Approved as is for use at 0' to 4,500'
(0-1370m).
Electrical: 120V A.C. system.
Circulation Fan: Variable speed, 140 CFM.
Log Set: Ceramic fibre, 6 per set - L390E
Glass Crystals: 7lbs of glass crystals - HZI390E
Optional Log Set: Ceramic fibre, 6 per set + 5lbs
of glass crystals - HZI390E
Vent System: 3" co-linear aluminum flex.
The efficiency rating of the appliance is a
product thermal efficiency rating determined
under continuous operating conditions and was
determined independent of any installed system.
GAS PRESSURE
TESTING
The appliance must be isolated from the gas sup-
ply piping system by closing its individual manual
shut off valve during any pressure testing of the
gas supply piping system at test pressures equal
to or less than 1/2 psig. (3.45 kPa).
INSTALLATION INTO A
SOLID FUEL BURNING
FIREPLACE OR
FACTORY BUILT
FIREPLACE
The L390E / HZI390E Gas Inserts have been
tested and approved to be vented into any
masonry fireplace or approved solid fuel burning
factory built fireplace that will allow the insert to
physically fit into the firebox. Refer to "Minimum
Fireplace Dimensions" section for minimum
fireplace clearances.
If the factory built fireplace* height is too low for
your Insert, you may remove the smoke baffle
plate, damper, refractory (firebricks), glass doors,
screen rails, screen mesh and log grates from the
factory built fireplace as long as these items are
saved and are reinstalled in the event that the
Insert is removed.
Smoke shelves, shields and baffles may be
removed if attached by mechanical fasteners.If any
part is removed it must not weaken the structural
integrity of the factory built fireplace.
NOTE: Any alterations made to the listed solid
fuel burning factory built fireplace may void the
listing of the fireplace.
*Check with your local inspector before
commencing with this installation.
BEFORE YOU START
Safe installation and operation of this appliance
requires common sense, however, we are required
by the Canadian Safety Standards and ANSI
Standards to make you aware of the following:
General Safety Information
1) The appliance installation must conform
with local codes or in the absence of local
codes, with CAN/CGA B149 (in Canada) or
the National Fuel Gas Code ANSI Z223.1 in
the U.S.A.This appliance should be installed
by a qualified gas fitter technician only.
2) Installation and repair should be done
by a qualified service person.
3) The appliance should be inspected before
use and at least annually by a professional
service person. More frequent cleaning
may be required due to excessive lint from
carpeting, bedding material, animal hair, etc.
It is imperative that control compartments,
burners and circulating air passageways of
the appliance be kept clean.
4) See general construction and assembly
instructions. This appliance may only be
installed in a vented, noncombustible
fireplace.
5) This appliance is Listed for bedroom
installations when used with a Listed Millivolt
Thermostat. Some areas may have further
requirements, check local codes before
installation.
6) Always connect this insert to a vent system
venting to the outside of the building
envelope. Never vent to another room or
inside a building. Make sure that the vent
is properly sized and is of adequate height
to provide the proper draft.
7) Inspect the venting system annually for
blockage and any signs of deterioration.
8) Any glass removed for servicing must be
replaced prior to operating the appliance.
9) To prevent injury, do not allow anyone who
is unfamiliar with the operation to use the
fireplace.
10) Due to high temperatures, the appliance
should be located out of high traffic areas
and away from furniture and draperies.
Children and adults should be alerted to
the hazards of high surface temperatures,
especially the fireplace glass and gold
trims, and should stay away to avoid burns
or clothing ignition. Young children should
be carefully supervised when they are in
the same room as the appliance. Clothing
or other flammable material should not be
placed on or near the appliance.
Emissions from burning wood or gas could
contain chemicals known to the State of
California to cause cancer, birth defects
or other reproductive harm.
Installer must mechanically attach the supplied
label to the inside of the firebox of the fireplace
into which the gas fireplace insert is installed.
"WARNING: This fireplace has been
converted for use with a gas fireplace insert
only and cannot be used for burning wood or
solid fuels unless all original parts have been
replaced, and the fireplace re-approved by the
authority having jurisdiction."

L390E-2 / HZI390E-2 Direct Vent Gas Insert 11
INSTALLATION
A
B
D
E
C
MATERIALS REQUIRED
No electrical power supply is required for the gas
control to operate. A 120 Volt AC power cord is
hooked up to the fan(if installed). Plug the 3 wire
cord into a suitable receptacle. Do not cut the
ground terminal off under any circumstances.
When connected with 120 volts, the appliance must
be electrically grounded in accordance with local
codes, current version of CSA C22.1 (in Canada)
or in the absence of local codes, with the National
Electrical Code ANSI/NFPA 70-1987.
INSTALLATION
CHECKLIST
Before installing vent system ensure that the damper
plate is open and secure to prevent the damper plate
from falling down and crushing the liner.
The Regency Gas Insert is installed as listed.
1) Check all clearances to combustibles, (Refer to
sections "Minimum Fireplace Dimensions and
Clearances to Combustibles)
2) Make the gas connection.(Refer to section "Gas
Connection")
3) Install the two 3" flue liners (intake and exhaust)
to the sliding connector plate. (Refer to section
"Flue Liner Installation.")
4) Slide the unit half way into the fireplace.
5) Pull the vent connector plate through the tapered
brackets and fasten to the front plate. Refer to
section "Flue Liner Installation.")
6) Slide the unit fully into the fireplace. Level if
necessary.
7) Install 4-AA batteries into receiver or optional
AC power adaptor.
8) Test gas pressure (Refer to section "Gas Pipe
Pressure Testing"). Check aeration system
(Refer to section "Gas Insert Aeration System").
9) Install standard and optional features. Refer to
the following sections:
a. Brick Panels
b. Enamel Panels
c. Log Set
d. Glass Crystals
e. Spa stones
f. Low Profile Faceplate
g. Optional Screen
10) Final check: Before leaving this unit with the
customer, the installer must ensure that the
appliance is firing correctly. This includes:
a) Clockingtheappliance toensurethecorrect
firing rate.
b) Adjusting the primary air, if required, to
ensurethattheflamedoesnotcarbon. See
"Gas Insert Aeration System" section.
c) Ensuring that the appliance is venting
correctly.
MINIMUM FIREPLACE
DIMENSIONS
The minimum fireplace clearances & dimensions
for the Regency gas insert are shown in the
following diagrams:
MaxLentil
BarDepth
AHeight BDepth C
Width
(rear)
D
Width
(front)
E
Low
Profile
Faceplate
10" 20" 15.75" 22" 30"

12 L390E-2 / HZI390E-2 Direct Vent Gas Insert
INSTALLATION
Diagram 1
Diagram3
Diagram 2
Note: A 3-1/2" mantel deflector to reduce
mantelheightto32" from bottom of unit
@ 1"depth.
A noncombustible mantel may be
installed at a lower height if the framing
is made of metal studs covered with a
noncombustible board.
Note: All material used must be completely
non-combustible.
MINIMUM CLEARANCES TO COMBUSTIBLES
The clearances listed below are Minimum distances unless otherwise stated:
A major cause of fires is failure to maintain required clearances (air space) to combustible materials. It is of the greatest importance that this
decorative gas appliance be installed only in accordance with these instructions.
Clearance: Dimension Measured From:
A: Sides 6" / 152 mm From inside edge of faceplate / doors
B: Ceiling 60" / 1524 mm From top of unit
C: Mantel (Min. Height) *12" / 305mm
15" / 381mm
From top of unit, or 32" from bottom of unit
From top of unit, or 35" from bottom of unit
D:Min. Hearth Depth 14" / 356mm
E: Min. Hearth Length 40"/ 1016mm
G: Max. Mantle Depth 0 -12" / 305 mm @ 44" (1118mm) from bottom of unit
K: Min. Alcove Width 54" / 1372 mm
L: Max. Alcove Depth 36" / 914 mm
M: Mantel Deflector 3-1/2"/ 89mm
NOTE: 40” (1016MM) wide x 14” (356mm) deep hearth is required, unless the unit is raised
6” (152.4 mm) off the floor surface.
*An optional 3-1/2" deflector, reduces the mantel height to 32" from bottom of unit
@ 1"depth.
A
C
B
E
K
D
L
GM
Door
Opening
15" Min
From Top of
24
26
28
30
32
34
36
38
0
2
4
6
8
10
12
14
16
18
20
22
24
Allowable
Mantel Area
35"
From bottom
of unit
22
20
18
16
14
Door
Opening
12" Min
From Top of
24
26
28
30
32
34
36
38
0
2
4
6
8
10
12
14
16
18
20
22
24
Allowable
Mantel Area
32"
From bottom
of unit
22
20
18
16
14
12
MANTEL CLEARANCES WITHOUT DEFLECTOR MANTEL CLEARANCES WITH 3-1/2" DEFLECTOR
WARNING
Although this appliance passes safety
certification, the hearth in front of the fireplace
becomes very hot when the fireplace heats. Do
not use the hearth as a seat or shelf.

L390E-2 / HZI390E-2 Direct Vent Gas Insert 13
INSTALLATION
VENTING
THE APPLIANCE MUST NOT BE
CONNECTED TO A
CHIMNEY FLUE SERVING A
SEPARATE SOLID FUEL
BURNING APPLIANCE.
This appliance is designed to be attached to two
3" (76mm) co-linear aluminium flex running the full
length of the chimney. The flue length must be a
minimum length of 8 ' (2.44m) and a maximum of
35' (10.7m). See chart for minimum distances from
roof.Periodically check that the vent is unrestricted.
Masonry chimneys may take various contours which
the flexible liner will accommodate. However, keep
the flexible liner as straight as possible, avoid
unnecessary bending.
GAS CONNECTION
1) If the appliance is to be installed into an existing
chimney system, thoroughly clean the masonry
or factory built fireplace.
2) The appliance is provided with an opening on
the left hand side of the control compartment.
A 3/8" NPT gas supply pipe must be brought
near this inlet hole.
3) Locate the center point where the vent will pass
through the chimney above the appliance. Move
the appliance into the exact location where it is
to be installed. Ensure that the Insert is level.
4) Do not cut any sheet-metal parts of the fire-
place, in which the gas fireplace insert is to
be installed.
5) If the factory-built fireplace has no gas access
hole(s) provided, an access hole of 1-1/2"
(37.5mm) or less may be drilled though the
lower sides or bottom of the firebox in a
proper workmanship like manner. This access
hole must be plugged with a non-combustible
insulation after the gas supply line has been
installed. Alternate Approved Caps
46DVA-VC Vertical Termination Cap
46DVA-VCH High Wind Cap
46DVA-GK 3" Co-linear Adaptor with flashing
In areas of consistently high winds, we recommend
using the Simpson Dura-Vent System (46DVA-GK
adapter and 46DVA-VCH high-wind cap).
The Air Intake pipe must be attached to the inlet
air collar of the termination cap.
GAS CONNECTION WARNING:
Only persons licensed to work
with gas piping may make the
necessary gas connections
to this appliance.
Air
Intake Exhaust
Flue
The Air Intake pipe must be attached to the inlet
air collar of the termination cap.
Part # Description
948-305 3" Flex - 35 ft.
946-529 Co-linear DV Vertical
Termination Cap
Gas & Electrical Connections

14 L390E-2 / HZI390E-2 Direct Vent Gas Insert
INSTALLATION
Intake Liner
Exhaust Liner
Gear Clamps
Vent Connectors
Flue Connector
Plate Gasket
Flue Connector
Plate Guides
Flue Connector
Slide Tool
Flue Connector
Screws
Flue Connector
Plate
Properly installed Flue
Connector Plate
Rear tabs fully engaged
1) Detach the Flue Connector Plate from the unit by removing the
Connector Plate Screws and sliding the Flue Connector Plate forward
and off the unit.
NOTE: Flue Plate Connector Gasket
must not be damaged or removed.
Care must be taken to ensure that this
gasket remains intact to prevent flue
leakage.
5) When the Flue Connector Plate is close to the front of the unit, engage
the Flue Connector Screws and carefully tighten the Flue Connector
Plate the final amount.
** Make sure the Rear Tabs connect into their respective slots in the Flue
Connector Plate. Failure to do so will result in flue gas leakage and
degrade the operation of the unit ** (See diagram below of location.)
The Flue connection is complete when the Flue Connector Plate is fully
forward and the Rear Tabs are fully engaged.
6) Remove the Flue Connector Tool and store for future use.
2) Attach the Flue Liners onto the Flue Connector Plate using sealant and
gear clamps, then fasten with 3 screws.
See the section in this manual on Venting installation.
3) Position the unit in front of the fireplace opening, start the Flue Connec-
tor Plate into the Flue Connector Plate Guides.
Flue Connector Plate
Flue Connector Slide Tool
Connector plate screws
4) Use the Flue Connector Slide Tool to slowly pull the Flue Connector
Plate forward as you move the Insert rearward into the Fireplace Chase.
FLUE / VENT INSTALLATION
WARNING:
Failure to position the parts in accordance with these diagrams or failure
to use only parts specifically approved with this appliance may result in
property damage or personal injury.
Connecting the Vent Liners

L390E-2 / HZI390E-2 Direct Vent Gas Insert 15
INSTALLATION

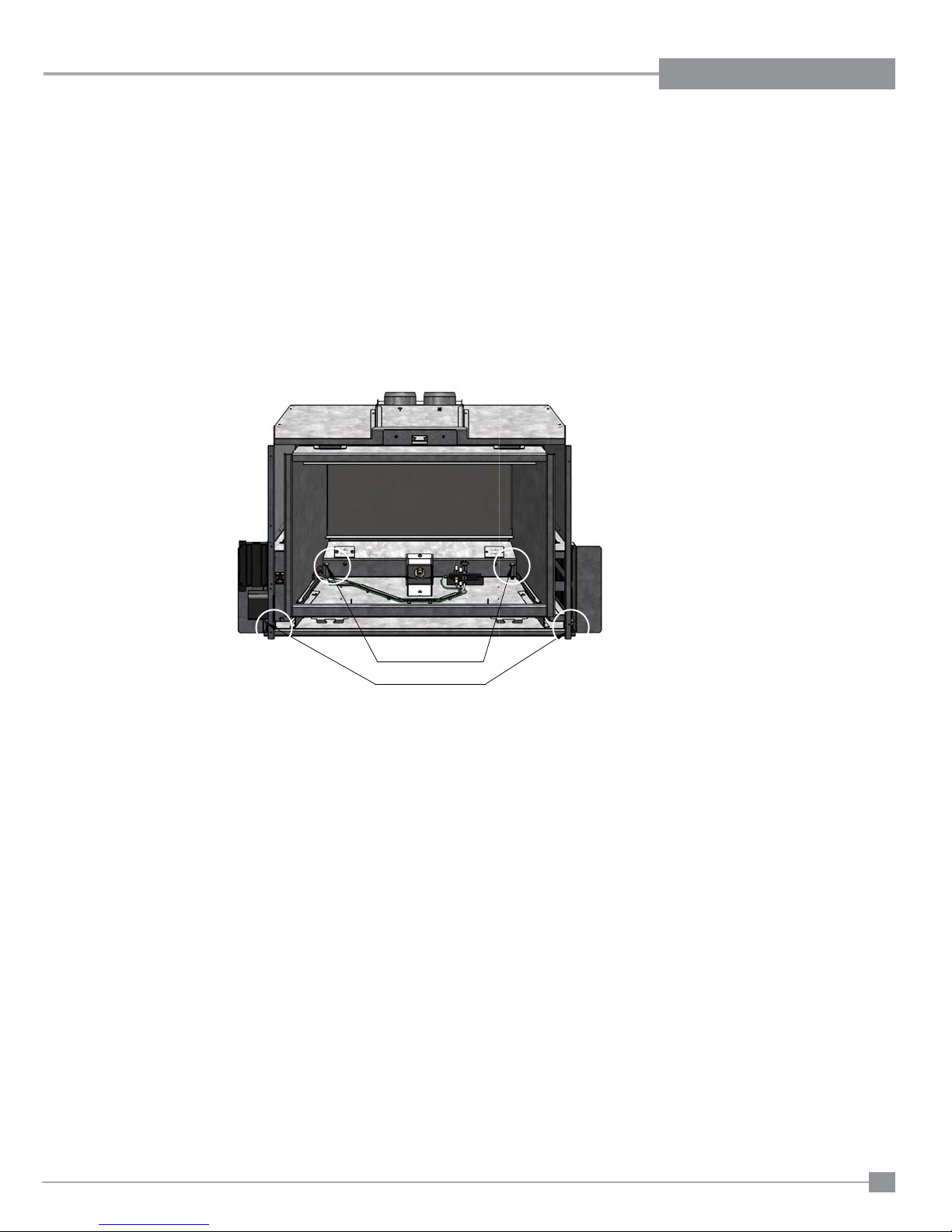

LEVELLING LEG ADJUSTMENT
The L390E / HZI390E inserts are equipped with 4 levelling legs that are accessible while the appliance is in its final installation position. The unit can be
adjusted up to 2" (51mm). The faceplate must not be installed to do this adjustment, if installed, remove faceplate.
Remove left and right side filler pieces.The rear levelling bolts are located in the back corners of the firebox and can be adjusted using a 7/16" wrench.
Rotate the bolts clockwise to raise the rear of the firebox.
The front levelling bolts are adjusted before installing the faceplate. Located on the left on right of the outer shell, they can also be adjusted using a 7/16"
deep socket with extension.
When the appliance is in position, adjust the bolts to level the appliance, making sure that the appliance is also level and is sitting on all 4 bolts to prevent
rocking.
Leveling Legs Rear
Leveling Legs Front

16 L390E-2 / HZI390E-2 Direct Vent Gas Insert
INSTALLATION
Air Shutters are required to increase or decrease the amount of air that is
mixed with the fuel before combustion. This will have an affect on how well
the fuel combusts and how the flame physically appears.
Low primary air will leave a taller, yellower flame while higher primary air will
leave a lower, bluer flame.
This setting is largely for appearance, however, not enough primary air may
lead to carboning, sooting or a flame that reaches the top of the firebox.
Situations that may require more primary air are; units that are burning
propane, units installed at higher elevations or units that are run on high
most of the time.
The L390E / HZI390E is equipped with an air shutter that is accessible from
outside the firebox and can be adjusted during operation.
Aeration adjustments should only be made after the unit has been on for 30
minutes to 1 hour.
Slide the Air Shutter Lever towards you to increase the primary air setting.
Slide the Air Shutter away from you to decrease the primary air setting.
Below you will see a chart showing the minimum primary air settings.
These are set from the factory, but due to fuel conversions or installation
conditions, the air setting may need to be adjusted.
Close Open
Unit Fuel Type Min. Air Setting
L390E NG 3/16" (5mm)
L390E LP 1/4" (6mm)
HZI390E NG 3/16" (5mm)
HZI390E LP 1/4" (6mm)
AIR SHUTTER ADJUSTMENT
Air Shutter
Burner Mounting
Bracket
Gas Orifice
Air Shutter Lever
Firebox cut-away
to show location
of the Air Shutter
1) Slide the Air Shutter Lever towards you to increase the primary air set-
ting.
2) Slide the Air Shutter away from you to decrease the primary air setting.
Below you will see a chart showing the minimum primary air settings.
CAUTION: Carbon will be produced if air shutter is closed too much.
Note: any damage due to carboning resulting from improperly setting
the aeration controls is NOT covered under warranty.
Note: Aeration Adjustment should only be performed by an authorized
Regency Installer at the time of installation or service.
Push to close - Pull to open
Unit Front
Unit Back
First Fire & Aeration

L390E-2 / HZI390E-2 Direct Vent Gas Insert 17
INSTALLATION
Before you begin:
Shut off the gas supply to the unit.
Disconnect all electrical supply to the unit.
Always let the appliance cool to room temperature before servicing.
1) Remove the left side control cover.
2) Loosen both screws at the top of the valve about ½ way out. Lift the
valve body and lean outward. The Valve Brackets will rest open as
shown on the right.
3) Disconnect the Cable coming from the Pressure Regulator Motor.
WARNING
This conversion kit shall be installed by a qualified service agency in
accordance with the manufacturer’s instructions and all applicable codes
and requirements of the authority having jurisdiction. If these instructions
is not followed exactly, a fire, explosion or production of carbon monoxide
may result causing property damage, personal injury or loss of life. The
qualified service agency is responsible for the proper installation of this
kit. The installation is not proper and complete until the operation of the
converted appliance is checked as specified in the manufacturer’s instruc-
tions supplied with the kit.
THIS CONVERSION MUST BE DONE BY A QUALIFIED GAS FITTER
IF IN DOUBT DO NOT DO THIS CONVERSION!
Side control cover
Cable from motor
The valve in the L390E is attached using 2 screws and 2 hooks located
below the valve. Loosening the screws part way and lift the valve to
disengage the hooks.
The valve will then hinge outward allowing access to the components
and pressure taps located on the top of the valve without completely
removing the valve.
Conversion Kit 396-972 includes:
1 911-011 Stepper Motor LP for 885 SIT
1 904-947 Orifice #53
1 910-101 Orifice #35
1 918-590 Decal - Conversion to LP
1 908-528 Label Propane
4) Remove and discard 2 Pressure regulator screws A (T20 or slot), Pres-
sure Regulator B, Spring and Diaphragm C.
5) Ensure the rubber gasket, which is prefitted as part of the Assembly,
is properly positioned. Install the new Pressure Regulator using the 2x
M4 x .7 screws supplied. Tighten the screws to 25lb-in. In the event that
the screw threads are cross threaded or stripped, replace the valve
assembly.
Install the enclosed propane identification label to the valve body where it
can be easily seen.
CONVERSION FROM NG TO LP
L390E-2/HZI390E-2 using SIT 885 NOVAGas Valve

18 L390E-2 / HZI390E-2 Direct Vent Gas Insert
INSTALLATION
6) Ensure the rubber gasket, which is prefitted as part of the Assembly,
is properly positioned. Install the new Pressure Regulator using the 2x
M4 x .7 screws supplied. Tighten the screws to 25lb-in. In the event that
the screw threads are cross threaded or stripped, replace the valve
assembly.
Install the enclosed propane identification label to the valve body where it
can be easily seen.
7) Re-attach the Pressure Regulator wire, and re-situate the Gas Valve,
secure the screws that fasten the Gas Valve Mounting Brackets.
8) Remove burner (see burner removal section in manual).
13) Ensure the pilot light is in the correct orientation to the Burner.
Reconnect the gas and electrical supply to the appliance. Start the
appliance. (see section on Lighting Instructions) Ensure that pilot and
burner ignition is completed without delay. Check both your inlet and
outlet pressures at full load. With a soapy solution, leak test the entire
system. Verify both the correct flame and pilot appearance.
14) See Gas Pipe Pressure Testing in manual.
15) Adjust aerations settings - see Air Shutter Adjustment section in the
manual.
11) Remove pilot retainer clip with pliers and pull off the pilot cap to expose
the pilot orifice.
12) Unscrew the pilot orifice with the allen key; then replace with the LPG
pilot orifice and the pilot cap, provided in the kit.
Installer Notice:
These instructions must be left
with the a
pp
liance.
Pilot retainer clip
10) Using a 3/8” socket wrench, loosen and remove the main gas orifice.
Replace with the LP gas orifice. Confirm the orifice size marked on the
Orifice with the Rating Label on the appliance
Screw Locations
Top Bracket
Important: FOR NG UNITS ONLY:
9) If top bracket is installed.
a) Loosen 3 screws on the bottom bracket (see below for location).
b) Slide the top bracket off the screws, retighten the screws.
c) Discard top bracket.

L390E-2 / HZI390E-2 Direct Vent Gas Insert 19
INSTALLATION
GAS PIPE PRESSURE
TESTING
The appliance must be isolated from the gas sup-
ply piping system by closing its individual manual
shut-off valve during any pressure testing of the
gas supply piping system at test pressures equal
to or less than 1/2 psig. (3.45 kPa). Disconnect
piping from valve at pressures over 1/2 psig.
The manifold pressure is controlled by a regulator
built into the gas control, and should be checked
at the pressure test point.
Note: To properly check gas pressure, both
inlet and manifold pressures should be
checked using the valve pressure ports
on the valve.
1) Make sure the valve is in the "OFF" position.
2) Loosen the "IN" and/or "OUT" pressure tap(s),
turning counterclockwise with a
1/8" wide flat screwdriver.
3) Attach manometer to "IN" and/or "OUT" pressure
tap(s) using a 5/16" ID hose.
4) Light the pilot and turn the valve to "ON" position.
5) The pressure check should be carried out with
the unit burning and the setting should be within
the limits specified on the safety label.
6) When finished reading manometer, turn off the
gas valve, disconnect the hose and tighten the
screw (clockwise) with a 1/8" flat screwdriver.
Note:Screw should be snug,but do not over
tighten.
HIGH ELEVATION
This unit is approved for altitude 0 to 4500 ft.(CAN1
2.17-M91).
GAS LINE
INSTALLATION
Since some municipalities have additional local
codes it is always best to consult with your local
authorities and the CAN/CGA B149 installation
code.
For USA installations follow local codes and/or the
current National Fuel Gas Code, ANSI Z223.1.
When using copper or flex connectors use only
approved fittings. Always provide a union so that
gas lines can be easily disconnected for servicing.
Flare nuts for copper lines and flex connectors are
usually considered to meet this requirement.
NOTE: A shutoff / dante valve should be sup-
plied in or near the unit (or as per local codes)
for ease of servicing this appliance.
IMPORTANT: Always check for gas leaks with
a soap and water solution or gas leak detector.
Do not use open flame for leak testing.
L390E-2 NG / HZI390E-2 NG
SYSTEM DATA
Min. Supply Pressure 5" WC (1.25 kpa)
Manifold Pressure 3.5" WC (0.87 kpa)
Orifice Size #35 DMS
Maximum Input 31,000 Btu/h
(9.09 kW)
L390E-2 LP / HZI390E-2 LP
SYSTEM DATA
Min. Supply Pressure 11" WC (2.73 kpa)
Manifold Pressure 10" WC (2.49 kpa)
Orifice Size #53 DMS
Maximum Input 31,000 Btu/h
(9.09 kW)
Note: If you have an incorrect flame pattern,
contactyourRegency®dealerforfurther
instructions.
Incorrect flame pattern will have small,probably
yellow flames, not coming into proper contact
with the rear burner or flame sensor.
Burner
Flame Sensor
Pilot Ignitor
885 S.I.T. VALVE
DESCRIPTION
1) 6 Stage flame adjustment
2) Pilot adjustment
3) Outlet Pressure Tap
4) Inlet Pressure Tap
5) Pilot Outlet
6) Main Gas Outlet
7) Main Gas Inlet
1
2
3
4
6
5
7

20 L390E-2 / HZI390E-2 Direct Vent Gas Insert
INSTALLATION
GTMF REMOTE SYSTEM - IMPORTANT: The 120V fan control module serves as the power source for this unit. The AA batteries in the
receiver only serve as a backup in case 120 volt power lost within the home.
PROFLAME REMOTE SYSTEM GTMF WITH FAN (L390EB / HZI390EB)
CAUTION:Labelallwirespriortodisconnection
whenservicingcontrols.Wiringerrorscancause
improper and dangerous operation.
Ground Green
Neutral
Live
Black Red
Fan Thermodisc
(normally open)
Ground
ON OFF
Fan Speed
Controller
120V AC
60 Hz
Fan
Black
Black
Red
Black
Proflame System
Configuration
886 GTMF
Wire Diagram
SureFire™ Switch
0.584.907
880
Caution: Ensure that the wires do not touch any
hot surfaces and are away from sharp edges.
Thermostat
(Optional)
See optional wall thermostat
installation in this manual.
Proflame Remote
Operation
Proflame Remote
Battery Change
