Regency Fireplace Products P121-NG Quick start guide

STYLE MODEL
See Thru P121-NG P121-LPG
Left Corner P121LC-NG P121LC-LPG
Right Corner P121RC-NG P121RC-LPG
Pier P131-NG P131-LPG
09/11/12
Zero Clearance Room Sealed
Gas Fireplace
FOR YOUR SAFETY
What to do if you smell gas:
Donottrytolightanyappli-
ance
Do not touch any electri-
cal switch: do not use any
phone in your building.
Immediately call your gas
supplierfromaneighbour's
phone. Follow the gas sup-
plier's instructions.
If you cannot reach your
gas supplier, call the fire
department.
WARNING:
Improper installation, adjustment, altera-
tion, service or maintenance can cause
injury or property damage. Refer to this
manual. For assistance or additional in-
formation consult an authorized installer,
service agency or the gas supplier.
FOR YOUR SAFETY
Do not store or use gasoline or other flam-
mable vapours and liquids in the vicinity of
this or any other appliance.
Installation and service must be performed
byan authorizedinstaller, service agency or
the gas supplier.
PLEASE KEEP THESE INSTRUCTIONS
FOR FUTURE REFERENCE
Owners &
Installation
Manual
918-536a
LISTINGS AND CODE APPROVALS
These gas appliances have been tested in
accordance with AS4553-2000, NZS 5262
andhavebeencertifiedbytheAustralianGas
Association for installation and operation as
described in these Installation and Operating
Instructions.
Your unit should be serviced annually by
an authorised service person.

Regency®P121/P121LC/P121RC/P131 Zero Clearance Room Sealed Gas Fireplace
2
To the New Owner:
Congratulations!
You are the owner of a state-of-the-art Gas Fireplace by REGENCY®. The P121/P121LC/P121RC/
P131 is a hand crafted appliance and has been designed to provide you with all the warmth and
charm of a wood fireplace at the flick of a switch. The model P121/P121LC/P121RC/P131 has
been approved by the Australian Gas Association for both safety and efficiency. As it also bears
our own mark, it promises to provide you with economy, comfort and security for many trouble free
years to follow. Please take a moment now to acquaint yourself with these instructions and the
many features of your Regency®Fireplace.
IMPORTANT:
If the unit is to be installed into a bathroom, optional Neo ceramic glass Part# 360-946 Front or
Part# 360-948 Side must be purchased and installed in place of the tempered glass supplied with
the unit.

Regency®P121/P121LC/P121RC/P131 Zero Clearance Room Sealed Gas Fireplace 3
TABLE OF CONTENTS
Operating Instructions
Operating Instructions .............................................. 30
Lighting Procedure ................................................... 30
Shutdown Procedure................................................ 30
First Fire ................................................................... 30
Normal Operating Sounds of
Gas Appliances.................................................. 30
Aeration Adjustment ................................................. 30
Lighting Plate Instructions ........................................ 31
Maintenance
Maintenance Instructions ......................................... 31
General Flue Maintenance....................................... 31
Log Replacement ..................................................... 32
Thermopile/Thermocouple........................................ 32
Glass Gasket............................................................ 32
Door Glass................................................................ 32
Gold-Plated Accessories .......................................... 32
Removing Valve........................................................ 32
Installing Valve.......................................................... 33
Parts List
Replacement/Spare Parts List.................................. 34
Warranty
Warranty................................................................... 39
Safety Label
Safety Label................................................................ 4
Installation
Important Message..................................................... 5
Before You Start ......................................................... 5
General Safety Information......................................... 5
Installation Checklist................................................... 5
Specifications ............................................................. 6
Locating Your Fireplace.............................................. 8
Clearances ................................................................. 9
Combustible Mantel Clearances ................................ 9
Framing and Finishing.............................................. 10
Facing and Finishing Requirements..........................11
Unit Assembly Prior to Installation
Top Standoff Assembly........................................11
Flueing Introduction...................................................11
Exterior Flue Termination Locations......................... 12
Flueing: Direct Vent System (Flex)........................... 13
Flueing: Simpson Dura-Vent Direct Vent GS ........... 14
Flueing: Simpson Dura-Vent Components List......... 14
Flueing Arrangements
Horizontal Terminations ..................................... 15
Vertical Terminations.......................................... 17
Flueing - Dura-Vent Horizontal Installations............. 19
Flueing - Dura-Vent Vertical Termination.................. 20
Flueing - Installation Procedures for Direct Vent
System (Flex)..................................................... 21
Converion to LPG..................................................... 22
System Data............................................................. 24
Gas Line Installation................................................. 24
Pilot Adjustment........................................................ 24
Gas Pipe Pressure Test............................................ 24
S.I.T. Valve Description............................................. 24
Log Set Installation................................................... 25
Glass Door Removal ................................................ 26
Finishing Trim........................................................... 27
Louvers and Grills..................................................... 27
Remote Control (optional) ........................................ 28
Remote Wall Switch (optional) ................................. 28
Wall Thermostat (optional)........................................ 28
Wiring Diagram......................................................... 29

Regency®P121/P121LC/P121RC/P131 Zero Clearance Room Sealed Gas Fireplace
4
SAFETY LABEL
DO NOT
DO NOT
DO NOT
DO NOT
DO NOT
DO NOT
OPERATE THIS APPLIANCE BEFORE READING THE
INSTRUCTIONS BOOKLET.
PLACE ARTICLES ON OR AGAINST THIS APPLIANCE
STORE CHEMICALS OR FLAMMABLE MATERIALS
SPRAY AEROSOLS IN THE VICINITY OF THIS
APPLIANCE WHILE IN OPERATION.
OPERATE WITH PANELS, COVERS OR GUARDS
REMOVED FROM THIS APPLIANCE.
ENCLOSE THIS APPLIANCE.
DO NOT MODIFY THIS APPLIANCE.
NEAR THIS APPLIANCE.
DO NOT
908-602a
This is a copy of the label that accompanies
eachREGENCYP121/P121LC/P121RC/P131
Zero Clearance Room Sealed Gas Fireplace.
We have printed a copy of the contents here
for your review. The safety label is located on
the front inside base of the unit, visible when
the bottom louver is open.
NOTE: Regency®units are constantly being
improved. Check the label on the unit and if
there is a difference, the label on the unit is
the correct one.
Gas Type NG LPG NG LPG
Model
Gas Consumption
Manifold Pressure
Injector Size
P121-NG P121-LPG P131-NG P131-LPG
41mj. 38mj. 41mj. 38mj.
1.00kPa 2.65kPa 1.00kPa 2.65kPa
1x#31 1x#50 1x#31 1x#50
Electrical: 240VAC 50Hz 1.0 amp max.
Serial
Number
918-181c
Model
N2134
3.05mm 1.78mm 3.05mm 1.78mm
AGA 6379G
AS4553
Regency Gas Fireplace
248
Distributed by:
Western Australia:
To be installed by an authorised person in
accordance with installation instructions
provided with the appliance.
Air Group Australia
28-30 Division St
Welshpool, WA 6106
Fireplace Products
Australia Pty. Ltd.
21-23 South Link Blvd.
Dandenong, VIC 3175
Eastern Australia:

Regency®P121/P121LC/P121RC/P131 Zero Clearance Room Sealed Gas Fireplace 5
INSTALLATION
INSTALLATION
CHECKLIST
1) Locate appliance
a) Room location, page 8.
b) Clearances to Combustibles,
page 9.
c) Mantle Clearances, page 9.
d) Framing & Finishing Requirements,
page 10.
e) Flueing Requirements, pages 11-19.
2) Assemble Top Standoffs, page (NOTE:
page 11 must be done before installing
unit into fireplace.)
3) Install flue, pages 19-21.
4) Makegasconnections.Testthepilot.Must
be as per diagram. Page 22.
5) Install log set where indicated on
page 24-25.
6) GlassDoorRemoval(page26),Louversor
Grills (page 26), and Finishing Trim (page
26).
7) Install optional Wall Switch, Remote Con-
trol, or Wall Thermostat, page 27.
8) Final check.
Before leaving this unit with the customer,
the installer must ensure that the appliance is
firing correctly and operation fully explained
to customer.
This includes:
1) Clockingtheappliancetoensurethecorrect
firingrate(ratenotedonlabel40,000Btu/h
NG, and 39,000 Btu/h LPG) after burning
appliance for 15 minutes.
2) If required, adjusting the primary air to
ensure that the flame does not carbon.
First allow the unit to burn for 15-20 min.
to stabilize.
CAUTION:Anyalterationtotheproductthat
causes sooting or carboning that results
in damage is not the responsibility of the
manufacturer.
IMPORTANT:
SAVE THESE
INSTRUCTIONS
The Regency®P121/P121LC/P121RC/P131-
NG or P121/P121LC/P121RC/P131-LPG
Room Sealed Gas Fireplace must be installed
in accordance AS5601-2004 and NZS 5261
and with these instructions. Carefully read all
the instructions in this manual first. Consult the
"authority having jurisdiction" to determine the
needforapermitpriortostartingtheinstallation.
It is the responsibility of the installer to ensure
this fireplace is installed in compliance with
manufacturer's instructions and all applicable
codes.
BEFORE YOU START
Safeinstallationandoperationofthisappliance
requires common sense, however, we are re-
quired to make you aware of the following:
GENERAL SAFETY
INFORMATION
1) The appliance shall be installed in accord-
ance with the manufacturer's installation
instructions, local gas fitting regulations,
municipal building codes, water supply
regulations, electrical wiring regulations,
with AG 5601-2004 (AGA gas installation
code) NZS 5261 (New Zealand).
2) See general construction and assembly
instructions. The appliance and flue should
be enclosed.
3) This appliance must be connected to the
specified flue and termination cap to the
outsideofthebuildingenvelope.Never flue
to another room or inside a building. Make
sure that the flue is fitted as per Flueing
instructions.
4) Inspect the flueing system annually for
blockage and any signs of deterioration.
5) Flueingterminalsshallnotberecessedinto
a wall or siding.
6) Any safety glass removed for servicing
must be replaced prior to operating the
appliance.
7) To prevent injury, do not allow anyone who
is unfamiliar with the operation to use the
fireplace.
8) Wear gloves and safety glasses for protec-
tion while doing required maintenance.
9) Be aware of electrical wiring locations in
walls and ceilings when cutting holes for
termination.
10) Under no circumstances should this ap-
pliance be modified. Parts that have to be
removed for servicing should be replaced
prior to operating this appliance.
11) Installationandanyrepairstothisappliance
should be done by a authorized service
person.Aauthorizedservicepersonshould
becalledtoinspectthisapplianceannually.
Make it a practice to have all of your gas
appliances checked annually.
12) Do not slam shut or strike the glass door.
13) Under no circumstances should any solid
fuels (wood, paper, cardboard, coal, etc.)
be used in this appliance.
INSTALLATIONANDREPAIRSHOULD
BE DONE BY A AUTHORIZED SERV-
ICE PERSON. THE APPLIANCE
SHOULD BE INSPECTED BEFORE
USE AND AT LEAST ANNUALLY BY
A AUTHORIZED SERVICE PERSON.
MORE FREQUENT CLEANING MAY
BE REQUIRED DUE TO EXCESSIVE
LINT FROM CARPETING, BEDDING
MATERIAL, ETC. IT IS IMPERATIVE
THAT CONTROL COMPARTMENTS,
BURNERS AND CIRCULATING AIR
PASSAGEWAYSOFTHEAPPLIANCE
BE KEPT CLEAN.
DUE TO HIGH TEMPERATURES, THE
APPLIANCE SHOULD BE LOCATED
OUT OF TRAFFIC AND AWAY FROM
FURNITURE AND DRAPERIES.
WARNING:FAILURETOINSTALLTHIS
APPLIANCE CORRECTLY WILLVOID
YOUR WARRANTY AND MAY CAUSE
A SERIOUS HOUSE FIRE.
CLOTHING OR OTHER FLAMMABLE
MATERIALSHOULDNOTBEPLACED
ON OR NEAR THE APPLIANCE.
CHILDREN AND ADULTS SHOULD
BE ALERTED TO THE HAZARDS OF
HIGHSURFACETEMPERATURES,ES-
PECIALLY THE FIREPLACE GLASS,
AND SHOULD STAY AWAY TOAVOID
BURNS OR CLOTHING IGNITION.
YOUNG CHILDREN SHOULD BE
CAREFULLY SUPERVISED WHEN
THEY ARE IN THE SAME ROOM AS
THE APPLIANCE. Emissions from burning wood or gas could
contain chemicals known to the State of Cali-
fornia to cause cancer, birth defects or other
reproductive harm.
Note: These units are
non-load bearing.
14) The appliance area must be kept clear and
free of combustible materials, (gases and
other flammable vapours and liquids).

Regency®P121/P121LC/P121RC/P131 Zero Clearance Room Sealed Gas Fireplace
6

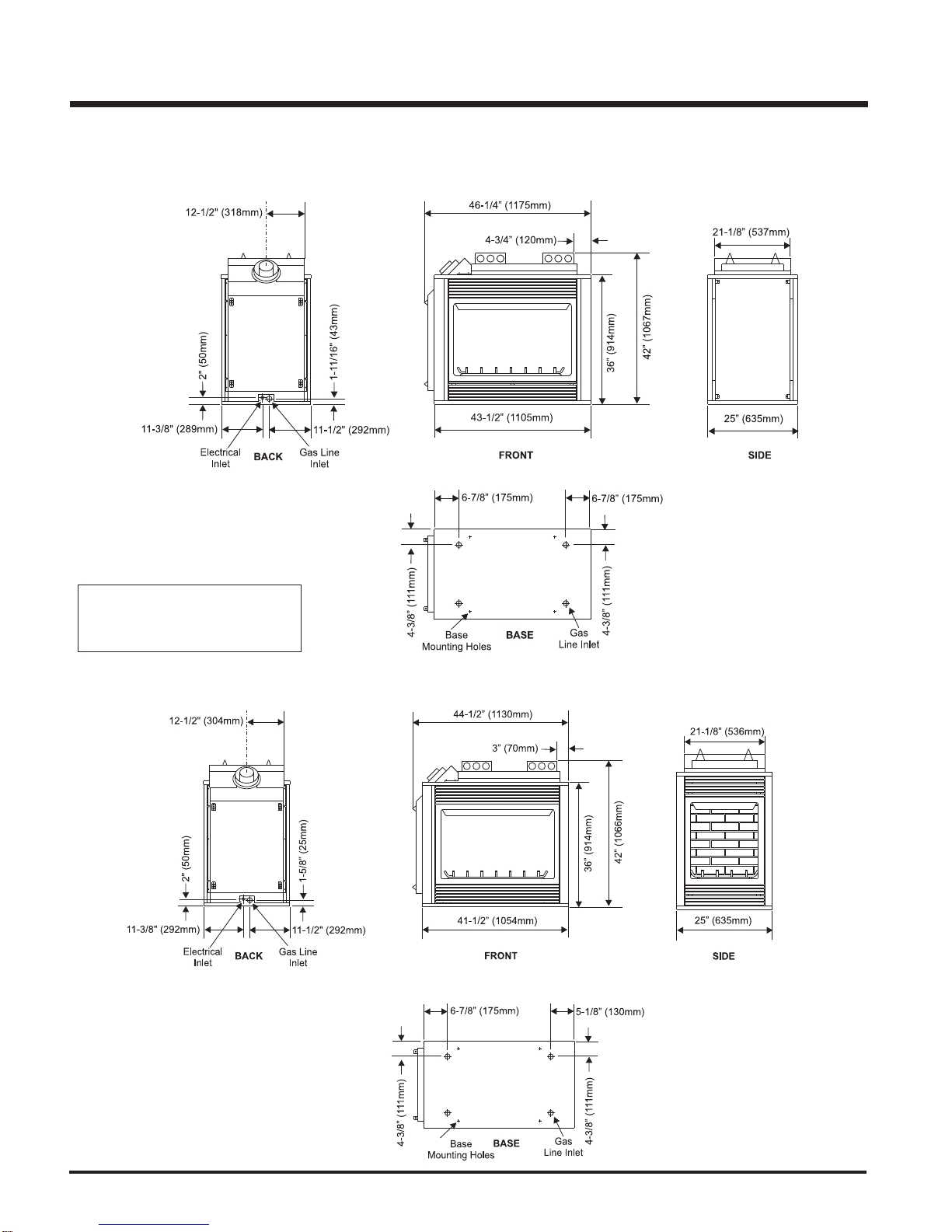

INSTALLATION
SPECIFICATIONS
P121 - See Thru
P131 - Pier
Note: These units are
non-load bearing.

Regency®P121/P121LC/P121RC/P131 Zero Clearance Room Sealed Gas Fireplace 7
P121LC - Left Corner Unit
P121RC - Right Corner Unit
INSTALLATION
Note: These units are
non-load bearing.

Regency®P121/P121LC/P121RC/P131 Zero Clearance Room Sealed Gas Fireplace
8
LOCATING YOUR
GAS FIREPLACE
1) When selecting a location for your stove,
ensure that the clearances are met as
outlined on page 9.
2) Provide adequate clearances for servic-
ing.
3) The appliance must be installed on a flat,
solid,continuoussurface(e.g.wood,metal,
concrete).Thismaybethefloor,orraisedup
on a platform to enhance its visual impact.
If the appliance is going to be installed on
carpeting,combustiblelinoleumtileorother
combustiblematerialotherthanwoodfloor-
ing, the appliance must be installed on a
metalorwoodpanelextendingthefullwidth
and depth of the appliance.
4) The Room Sealed Gas Fireplace can be
installed as follows:
Model # Position
A) P121: See Thru
B) P131: Pier
C) P121LC: Left Corner
D) P121RC: Right Corner
5) ThisapplianceisListedforbedroom instal-
lations when used with a Listed Millivolt
Thermostat. Some areas may have further
requirements, check local codes before
installation.
6) The P121/P121LC/P121RC/P131 Room
SealedGasFireplaceisapprovedforalcove
installations, which meet the clearances
listed on this page.
7) We recommend that you plan your instal-
lation on paper using exact measurements
for clearances and floor protection before
actually installing this appliance. Have a
authorized inspector, dealer, or installer
review your plans before installation.
Note: For Exterior Flue Termination
Locations see page 12.
.
INSTALLATION
A) P121 - See Thru
B) P131 - Pier
C) P121LC - Left Corner
D) P121RC - Right Corner

Regency®P121/P121LC/P121RC/P131 Zero Clearance Room Sealed Gas Fireplace 9
INSTALLATION
COMBUSTIBLE MANTELS
CLEARANCES
The clearances listed below are Minimum distances unless otherwise stated (refer to diagrams on page 8):
WARNING:
Fire hazard is an extreme risk
if these clearances (air space)
to combustible materials are
not adhered to. It is of greatest
importance that this fireplace
and flue system be installed
only in accordance with these
instructions.
Clearance to Combustibles from:
Back 0" (0mm)
Side 0" (0mm)
Floor 0" (0mm)
CAUTION REQUIREMENTS: The top, back and sides of the fireplace are defined by
standoffs. The metal ends of the standoffs may NOT be recessed into combustible
construction.
Determine the total thickness of the finished floor (eg. tile, carpet, slate) to allow the
finished surface to be flush with the base of the unit.
Ceiling Height from Floor 72" (1828mm)
Mantel Height from Base of Unit:
39" min. (991mm)
Horizontal Flue Clearances:
Top 2-1/2"(64mm)
Side 1-1/2"(38mm)
Bottom 1-1/2"(38mm)
Vertical Flue Clearances 1-1/4" (32mm)
Becauseof theextremeheat thisfireplace emits, themantel clearancesare
critical. Combustible mantel clearances from top of unit are shown in Diagram
to the right.
Note: A non-combustible mantel may be installed at a lower height if the
framing is made of metal studs covered with a non-combustible
board.
This drawing is to scale at 1:6 (one inch = 6 inches)
Mantel can be installed anywhere in shaded area or higher using this scale.
Caution: Ensure the paint that is used on the mantel and the facing is
"heat resistant" or the paint may discolour.
* If the 3" (76mm) metal extension trim is removed it must be replaced with a 8"
(203mm) non-combustible material.
Mantel Clearances

Regency®P121/P121LC/P121RC/P131 Zero Clearance Room Sealed Gas Fireplace
10
B
C
A
FRAMING AND FINISHING
CAUTION: The unit does not have to be completely enclosed in a
chase. The clearance on top of the unit is 0" to the standoffs so
combustible building materials can be laid directly on top of the
standoffs.Youmustmaintain clearancefromthefluetocombustible
materials for both rigid and flex, see Flue Clearances, page 9.
P121 - See Thru
P131 - Pier
Framing Dimensions
P121 (See Thru) P131 (Pier) P121LC / P121RC
(Corner Unit)
A25"(635mm) 25"(635mm) 26-13/13"(660mm)
minus two times minus two times minus two times
the finishing the finishing the finishing
material thickness* material thickness* material thickness*
B42-1/2"(1080mm) 42-1/2"(1080mm) 42-1/2"(1080mm)
C46-3/4"(1187mm) 45" (1143mm) 45"(1143mm)
minus one time minus one time
the finishing the finishing
material thickness* material thickness*
Note: These units are
non-load bearing.
P121LC - Corner Unit
* Finish material thickness includes: drywall, ceramic tile, slate, etc.
1) Forease ofinstallation, frameyour fireplaceafter itis positionedand
the flue system is installed. Remember to install the top standoffs.
See page 11 for assembly. Use 2x4's and frame to local building
codes.
2) When locating your appliance on an exterior wall or in a chase, apply
a vapour barrier and drywall, as per local building codes. DO NOT
INSULATE THE FIREPLACE ITSELF.
CAUTION: Verify your fireplace dimensions, framing methods and
finished wall facing details before framing. Determine the total
thickness of facing material - drywall plus ceramic tiles, slate, etc.
Allow the finish surface to be flush with the front or side of the
unit. Total facing thickness can vary from 1/2" (13mm) to 1-1/4"
(32mm) thick.
P121RC - Corner Unit
INSTALLATION

Regency®P121/P121LC/P121RC/P131 Zero Clearance Room Sealed Gas Fireplace 11
FLUEING
INTRODUCTION
The P121/P121LC/P121RC/P131 uses the
"balanced flue" technology Co Axial system.
The inner liner flue products of combustion to
the outside while the outer liner draws outside
combustion air into the combustion chamber
thereby eliminating the need to use heated
room air for combustion and losing warm room
air up the chimney.
Note: These flue pipes must not be con-
nected to any other appliance.
The gas appliance and flue system must be
flueed directly to the outside of the building,
and never be attached to a chimney serving a
separate solid fuel or gas burning appliance.
Eachdirectfluegasappliancemustuseit'sown
separate flue system. Common flue systems
are prohibited.
INSTALLATION
UNIT ASSEMBLY
PRIOR TO
INSTALLATION
The 4 Top Standoffs must be correctly positioned and attached to the top before unit is slipped
into position.
Top Standoff Assembly
The top standoffs are shipped in a flat position and must be folded into shape and attached.
1) Remove the standoffs from the fireplace
top.
2) Take each standoff and bend into the cor-
rect shape. Bend up at the bend lines until
the screw holes in the standoff and the
pre-punched screw holes on the fireplace
top line up.
3) Attach the standoff securely to the top
with 4 screws per standoff (on opposite
corners).
FACING & FINISHING REQUIREMENTS
This fireplace is supplied with a 3" metal extension trim above the fireplace. The extension trim may be replaced if the framing is faced with a non-
combustible material placed flush with the front and side face of the unit and extending from the top of the unit. (ie. tile, slate, etc.)

Regency®P121/P121LC/P121RC/P131 Zero Clearance Room Sealed Gas Fireplace
12
INSTALLATION
EXTERIOR FLUE TERMINATION LOCATIONS
Minimum clearances required for balanced flue terminals or
the flue terminals of outdoor appliances
according to AG 5601-2004 (AGA gas installation code) or NZS 5261 (New Zealand)
Minimum
Clearance (mm)
a Below eaves, balconies or other projections:
- Appliances up to 50 MJ/h input 300
- Appliances over 50 MJ/h input 500
b From the ground or above a balcony 300
c From a return wall or external corner 500
d From a gas meter (M) 1000
e From an electricity meter or fuse box (P) 500
f From a drain or soil pipe 150
g Horizontal from any building structure (unless appliance is approved
for closer installation) or obstruction facing a terminal 500
h From any other flue terminal, cowl or combustion air intake 500
j Horizontally from an openable window, door, or non-mechanical air inlet, or
any other opening into a building, with the exception of sub-floor ventilation
(see also Note (I)):
- Appliances up to 150 MJ/h input 500
- Appliances over 150 MJ/h input 1500
k Vertically below an openable window, door, or non-mechanical air inlet,
or any other opening into a building, with the exception of sub-floor ventilation
(see also Note (I)): see table below
Clearance 'k' in mm
Space Heaters All Other Appliances
Up to 50 MJ/h Up to 50 MJ/h input Over 50 MJ/h input Over 150 MJ/h input
input to 150 MJ/h input
150 500 1000 1500
NOTES:
(I) For mechanical air inlets, including spa blowers, the clearance 'j' and 'k' shall be 1500 mm in all cases.
(II) All distances shall be measured vertically or horizontally along the wall to a point in line with the nearest par to of the terminal.
(III)Prohibited area below electricity meter or fuse box extends to ground level.
(IV)Aflue terminal of this type shall not be located under a roofed area unless the roofed area is fully open on at least two sides and
a free flow of air at the appliance is achieved.

Regency®P121/P121LC/P121RC/P131 Zero Clearance Room Sealed Gas Fireplace 13

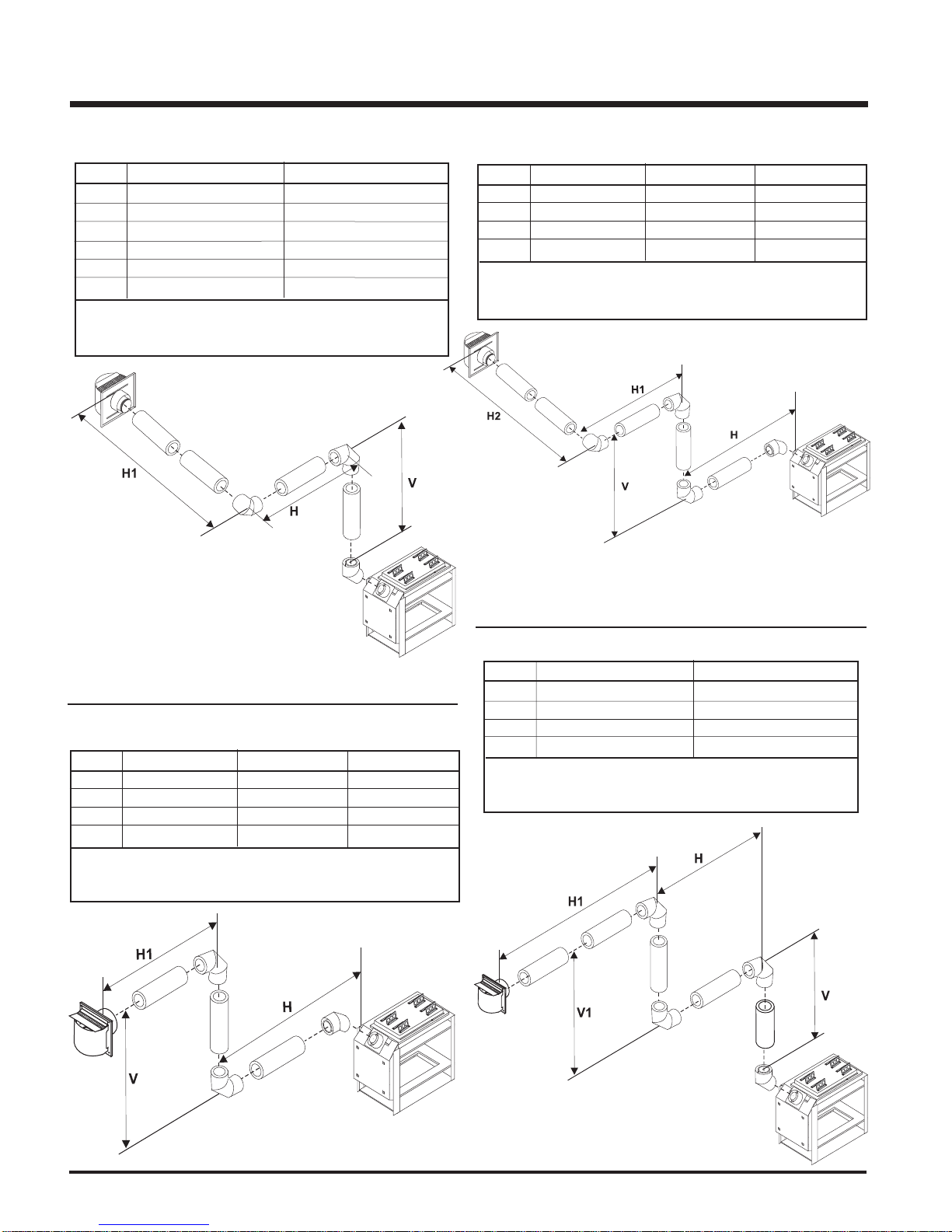

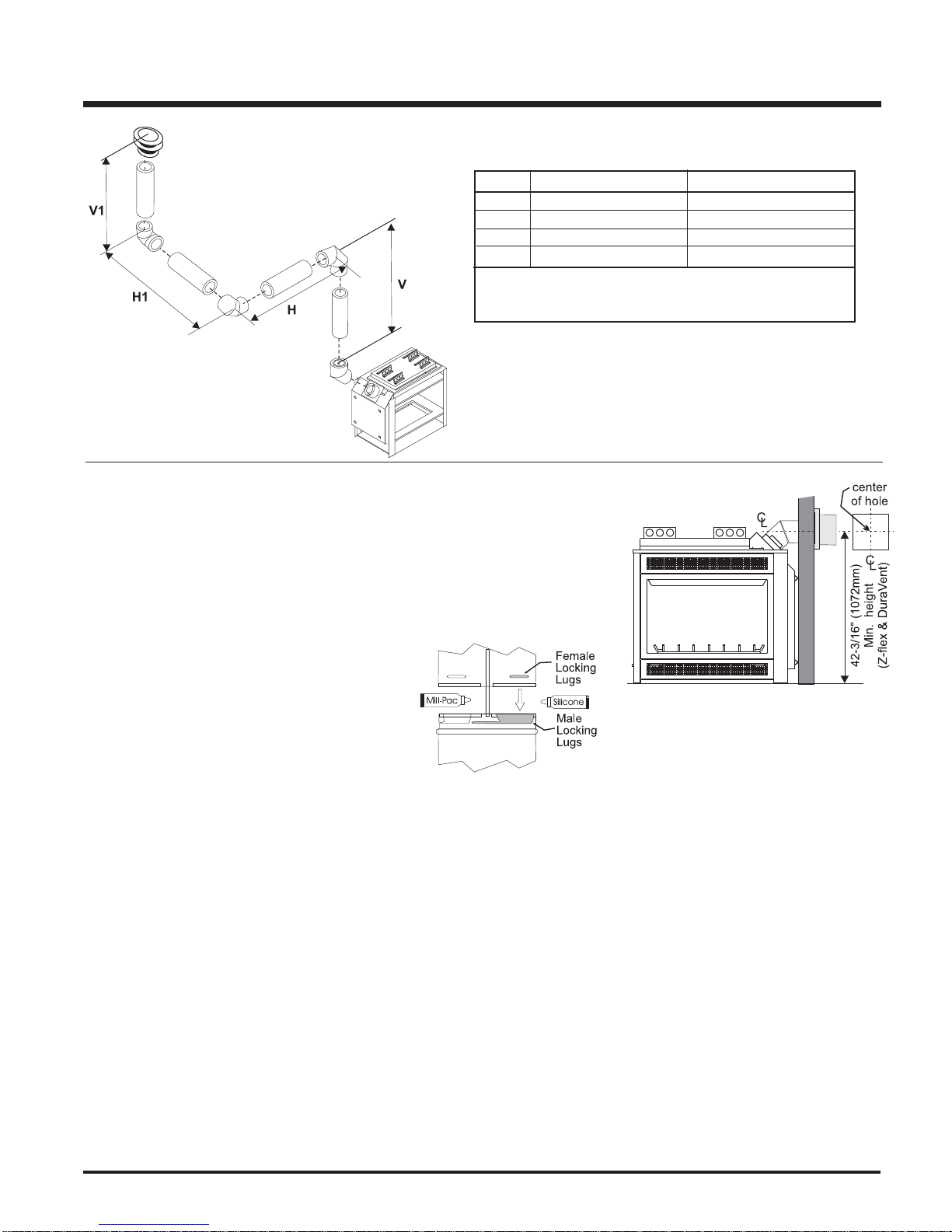

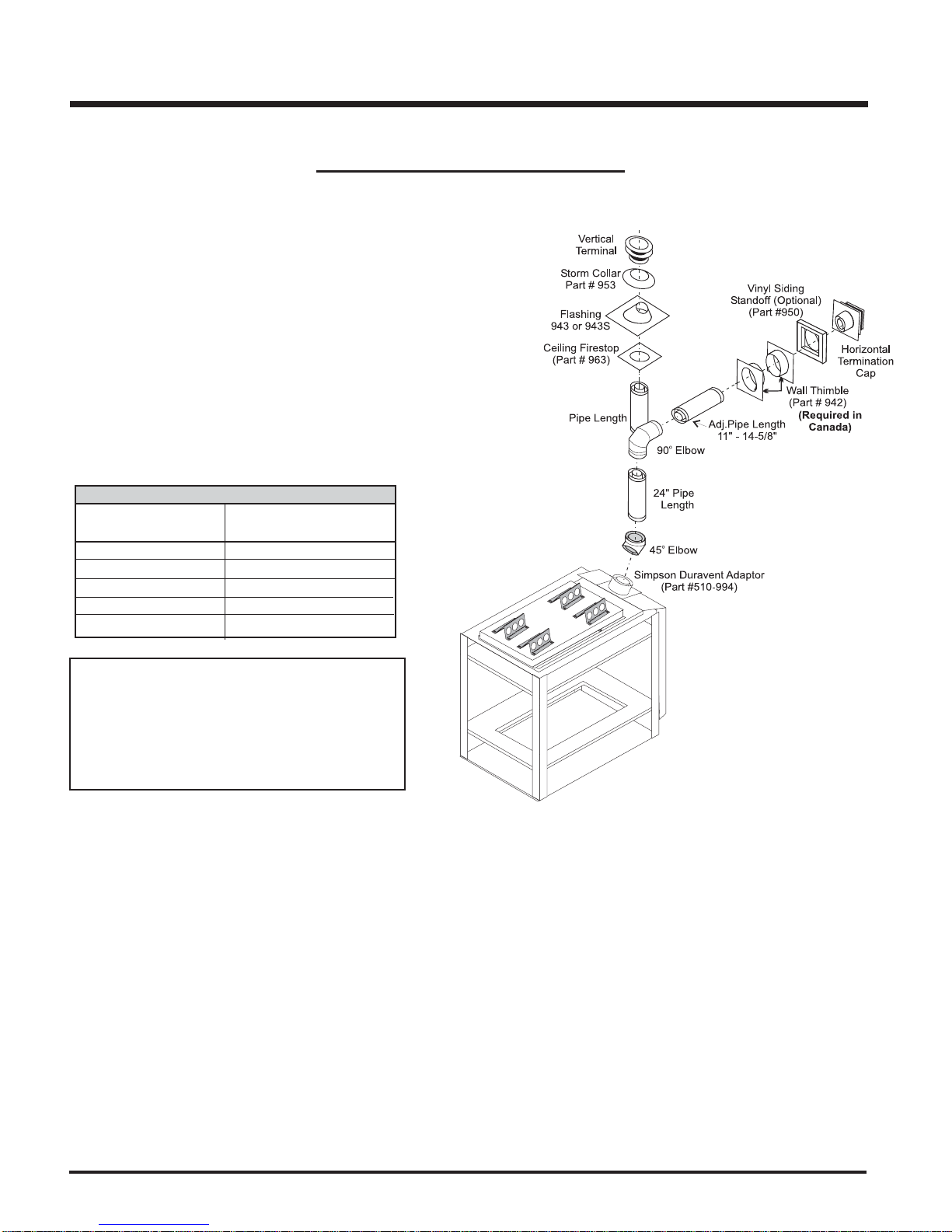

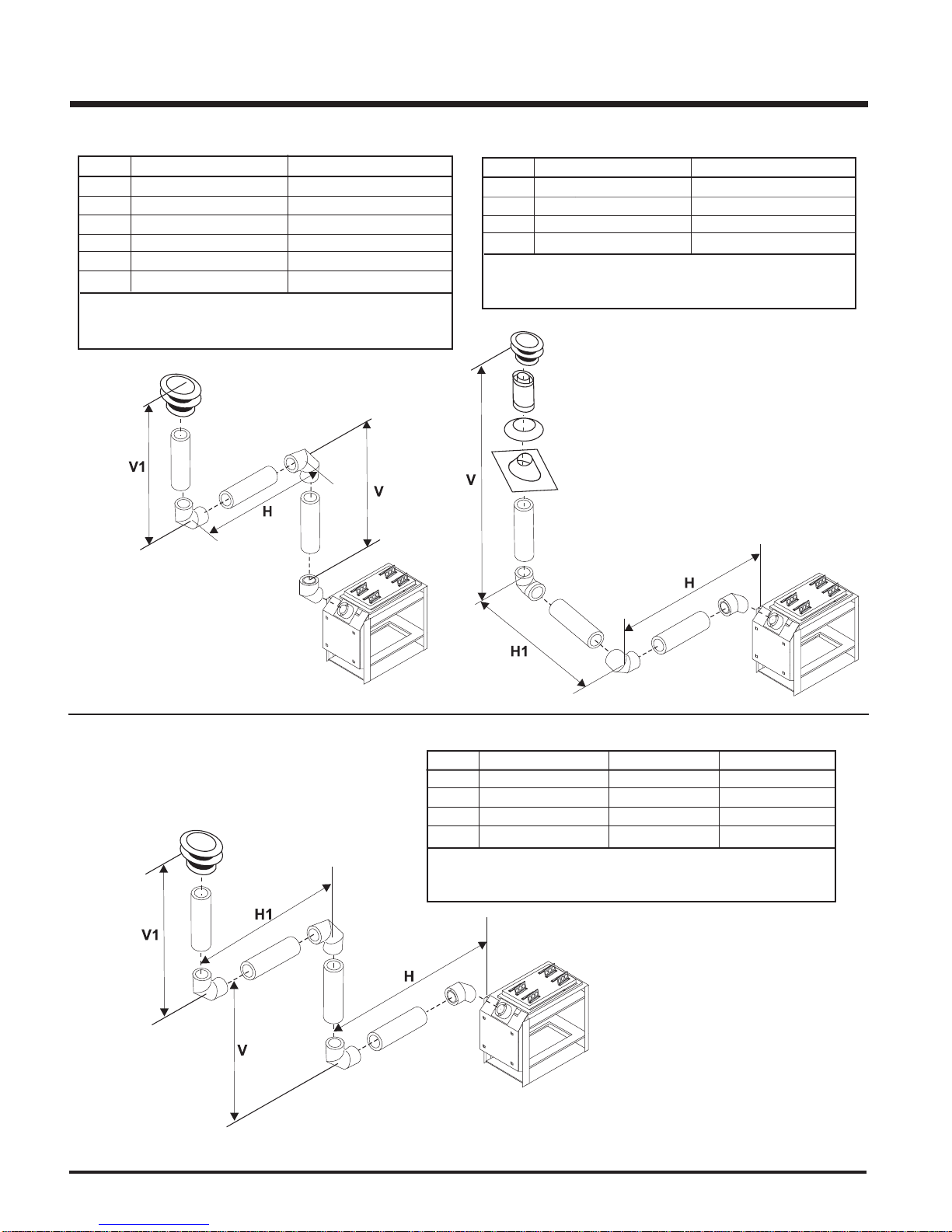

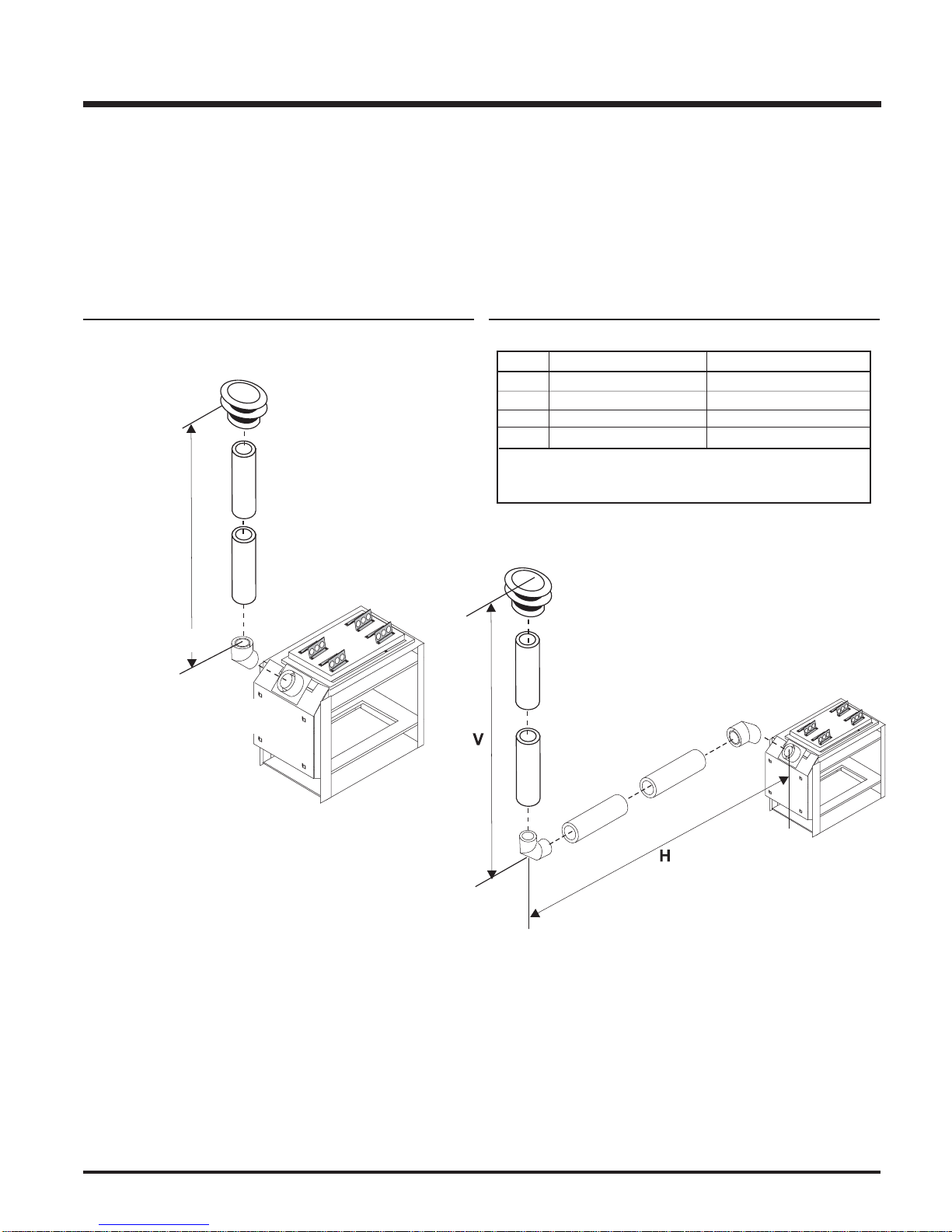

FLUEING ARRANGEMENT - HORIZONTAL TERMINATIONS
Regency®Direct Vent System (Flex) Horizontal Terminations Only
These flueing systems, in combination with the P121/P121LC/P121RC/P131 Direct Vent Gas Fireplace, have been tested and listed as a direct flue
heater system by Warnock Hersey. The location of the termination cap must conform to the requirements in the Vent Terminal Locations diagram
on page 12.
Regency®Direct Vent (Flex) System Termination Kit (Part# 946-513) includes all the parts needed to install the P121/P121LC/P121RC/P131
with a maximum run of 2 feet.
1) 6-7/8" dia. flexible liner (2 ft. length)
2) 4" dia. flexible liner (2 ft. length)
3) spring spacers (3)
4) thimble (2)
5) AstroCap termination cap (1)
6) screws (12)
7) tube of Mill Pac (1)
8) plated screws (8)
9) screws #8 x 1-1/2" drill point, stainless steel (4)
Notes:
1) Liner sections should be continuous without any joints or seams.
2) Only Flex pipe purchased from Regency®may be used for Flex installations.
3) Regency®Direct Vent System (Flex) is only approved for horizontal terminations.
INSTALLATION

Regency®P121/P121LC/P121RC/P131 Zero Clearance Room Sealed Gas Fireplace
14
Simpson
Dura-Vent
Direct Vent GS
SIMPSON DURA-VENT FLUEING COMPONENTS LIST
All Simpson Dura-Vent components are available directly from Regency®.
Part # Description Part # Description Part # Description
SIMPSON DURA-VENT FLUEING
Horizontal or Vertical Terminations
The Simpson Dura-Vent Direct Vent System offers a complete line of component parts for installation of both horizontal and vertical installations.
Many items are offered in decorative black, as well as galvanized finish. We recommend using the galvanized finish for installation with the P121/
P121LC/P121RC/P131.
Theminimumcomponents requiredfor abasic
horizontal termination are:
1 Simpson Duravent Adaptor
1 Horizontal Termination Cap
1 45oElbow
1 Flue Adaptor
1 Wall Thimble
1 Length of pipe to suit wall thickness
(see chart)
Wall thickness is measured from the back
standoffs to the inside mounting surface of ter-
minationcap.Forsidingother thanvinylfurring
strips may be used, instead of the vinyl siding
971 Horiz.TerminationKit includes:
90oblackelbow,wallthimblecover,horiz.square
termination cap, 24" black pipe, and 11" -14"
5/8" adjustable black pipe
970Basic Horiz. Termination. Kit includes:
90
oblack elbow, wall thimble cover,
horiz. square termination cap
978Vert. Termination Kit includes 0/12 -
6/12 pitch adjustable flashing, storm
collar, low profile term. cap
908B 6" Pipe Length - Black
907B 9" Pipe Length - Black
90612" Pipe Length - Galv.
906B 12" Pipe Length - Black
90424" Pipe Length - Galv.
904B 24" Pipe Length - Black
90336" Pipe Length - Galv.
903B 36" Pipe Length - Black
90248" Pipe Length - Galv.
902B 48" Pipe Length - Black
911B 11"-14 5/8" Adjustable Pipe Length
- Black
917B 17"- 24" Adjustable Length - Black
94545O Elbow - Galv.
945B 45OElbow - Black
945G 45O Elbow - Swivel - Galv.
945BG 45OElbow - Swivel - Black
99090O Elbow - Galv.
990B 90OElbow - Black
990G 90O Elbow - Swivel - Galv.
990BG 90OElbow - Swivel - Black
991High Wind Termination Cap (Vertical)
980Vertical Termination Cap
984Horizontal Square Termination Cap
985Horiz. Square High Wind Termination
Cap
982Snorkel - 14" Rise Termination Cap
981Snorkel - 36" Rise Termination Cap
940Wall Thimble - Support/Box
941Cathedral/Ceiling - Support/Box
3951 Brass Trim for Wall Thimble/Ceiling
Sup.
963Firestop Spacer
943Flashing 0/12-6/12
943S Flashing 7/12-12/12
953Storm Collar
950Vinyl Siding Standoff
988Wall Strap
942Wall Thimble
Parts not supplied by Dura-Vent
946-506/P Vent Guard (Optional)
510-994 Dura-Vent Flue Adaptor
640-530/P Riser Vent Terminal
946-205 VinylSidingShieldforRiserVent
Terminal
946-206 AstroCap Standoff
standoff, to create a level surface
to mount the vent terminal. The
Terminalmustnotberecessedinto
siding.Measurethewallthickness
including furring strips.
IfaVinylSidingStandoffisrequired
(it must be used with vinyl siding),
measuretooutsidesurfaceofwall
without siding and add 2 inches.
INSTALLATION
Flat Wall Installation
Wall Thickness Vent Length
(inches) Required (inches)
4" - 5-1/2" 6"
7" - 8-1/2" 9"
10" - 11-1/2" 12"
9" - 14-1/2" 11" - 14-5/8" Adj. Pipe
15" - 23-1/2" 17" - 24" Adj. Pipe
The Regency®AstroCapTM is certified for installations using FPI
venting systems as well as Simpson Dura-Vent® and Direct
Vent GS.
Regency®, and Regency®AstroCapTM are the proprietary trade-
marks of FPI Fireplace Products International Ltd.
Dura-Vent® and DirectVentGSareregisteredand/or proprietary
trademarks of Simpson Dura-Vent Co. Inc.

Regency®P121/P121LC/P121RC/P131 Zero Clearance Room Sealed Gas Fireplace 15
INSTALLATION
FLUEING ARRANGEMENTS - HORIZONTAL TERMINATIONS
SIMPSON DURA-VENT DIRECT VENT GS SYSTEM (LPG & NG)
The diagram below shows examples of horizontal termination arrangements using one, two, or three 90oelbows (two 45o elbows equal one 90o
elbow).
Note:
1) A maximum of three 90oelbows are permitted.
2) Minimum distance between elbows is 1 ft. (305mm).
• Maintain clearances to combustibles as listed on page 9.
• Horizontal flue must be supported every 3 feet.
• Firestops are required at each floor level and whenever passing through a wall.
• Must use optional flue adapter (Part# 510-994) when using Simpson Dura-Vent pipe.
• A vent guard should be used whenever the termination is lower than the specified minimum or as per local codes.
Simpson Dura-Vent
4" inner diameter
6-5/8" outer diameter
Straight Out Horizontal Flueing Horizontal Flueing with One (1) 90oElbow
Option VH
A) 1' (305mm) Minimum 3' (914mm) Maximum
B) 2' (610mm) Minimum 6' (1.86m) Maximum
C) 3' (914mm) Minimum 9' (2.7m) Maximum
D) 4' (1.22m) Minimum 12' (3.6m) Maximum
E) 5' (1.5m) Minimum 15' (4.5m) Maximum
F) 6' (1.86m) Minimum 17' (5.1m) Maximum
Diagram 1
Diagram 2
Withtheaboveoptions,maximumtotalpipelengthif37feetwithmini-
mum of 6 feet total vertical and maximum 17 feet total horizontal.
Please note minimum 1 foot between 90oelbows is required.
Please note the minimum centerline for
basic install shown above.

Regency®P121/P121LC/P121RC/P131 Zero Clearance Room Sealed Gas Fireplace
16
INSTALLATION
Diagram 3
Horizontal Flueing with Two (2) 90oElbows
Option V H + H1
A) 1' (305mm) Minimum 2' (610mm) Maximum
B) 2' (610mm) Minimum 5' (1.5m) Maximum
C) 3' (914mm) Minimum 8' (2.4m) Maximum
D) 4' (1.22m) Minimum 11' (3.35m) Maximum
E) 5' (1.5m) Minimum 14' (4.27m) Maximum
F) 6' (1.86m) Minimum 15' (4.5m) Maximum
Horizontal Flueing with Two (2) 90oElbows
Option V H H + H1
A) 1' (305mm) Min. 1' (305mm) Max. 3' (914mm) Max.
B) 2' (610mm) Min. 3' (0.91m) Max. 6' (1.86m) Max.
C) 3' (914mm) Min. 5' (1.5m) Max. 9' (2.7m) Max.
D) 5' (1.5m) Min. 8' (2.4m) Max. 12' (3.6m) Max.
Horizontal Flueing with Three (3) 90oElbows
Horizontal Flueing with Three (3) 90oElbows
Diagram 5
Diagram 4 Diagram 6
Withtheaboveoptions,maximumtotalpipelengthif37feetwithmini-
mum of 6 feet total vertical and maximum 15 feet total horizontal.
Please note minimum 1 foot between 90oelbows is required.
Option V H H + H1 + H2
A) 2' (610mm) Min. 1' (305mm) Max. 3' (914mm) Max.
B) 3' (914mm) Min. 3' (914mm) Max. 6' (1.86m) Max.
C) 4' (1.22mm) Min. 5' (1.5m) Max. 9' (2.7m) Max.
D) 5' (1.5m) Min. 7' (2.13m) Max. 12' (3.6m) Max.
Withtheaboveoptions,maximumtotalpipelengthif37feetwithmini-
mum of 5 feet total vertical and maximum 12 feet total horizontal.
Please note minimum 1 foot between 90oelbows is required.
Withtheaboveoptions,maximumtotalpipelengthif37feetwithmini-
mum of 5 feet total vertical and maximum 12 feet total horizontal.
Please note minimum 1 foot between 90oelbows is required.
Option V + V1 H + H1
A) 2' (610mm) Minimum 3' (914mm) Maximum
B) 3' (914mm) Minimum 6' (1.86m) Maximum
C) 4' (1.22m) Minimum 9' (2.7m) Maximum
D) 5' (1.5m) Minimum 12' (3.6m) Maximum
Withtheaboveoptions,maximumtotalpipelengthif37feetwithmini-
mum of 5 feet total vertical and maximum 12 feet total horizontal.
Please note minimum 1 foot between 90oelbows is required.

Regency®P121/P121LC/P121RC/P131 Zero Clearance Room Sealed Gas Fireplace 17
INSTALLATION
FLUEING ARRANGEMENTS - VERTICAL TERMINATIONS
SIMPSON DURA-VENT DIRECT VENT GS SYSTEM (LPG & NG)
• Flue must be supported at offsets
• Maintain clearances to combustibles as listed on page 9.
• Firestops are required at each floor level and whenever passing through a wall.
• Must use optional flue adapter when using Simpson Dura-Vent pipe (Part# 510-994).
TheP121/P121LC/P121RC/P131is approvedfora maximum35 ft. (10.7m)straight vertical,withSimpson Dura-Vent Direct Vent GS flue systems
for LPG and NG, as per diagram 7 below.
Diagram 7
Diagram 8
Straight Up Vertical Flueing
Maximum 35'(10.7m)
Minimum 6' 6”(2.0m)
45° Elbow
Rigid Pipe Adapter
Part # 510-994
Vertical Flueing with One (1) 90oElbow
Option V H
A) 1' (305mm) Minimum 2' (610mm) Maximum
B) 2' (610mm) Minimum 4' (1.22m) Maximum
C) 3' (914mm) Minimum 6' (1.86m) Maximum
D) 4' (1.22m) Minimum 8' (2.4m) Maximum
Withtheaboveoptions,maximumtotalpipelengthif37feetwithmini-
mum of 4 feet total vertical and maximum 8 feet total horizontal.
Please note minimum 1 foot between 90oelbows is required.

Regency®P121/P121LC/P121RC/P131 Zero Clearance Room Sealed Gas Fireplace
18
INSTALLATION
Vertical Flueing with Two (2) 90oElbows
Option V H
A) 1' (305mm) Minimum 4' (1.22m) Maximum
B) 2' (610mm) Minimum 6' (1.86m) Maximum
C) 3' (914mm) Minimum 9' (2.7m) Maximum
D) 4' (1.22m) Minimum 12' (3.6m) Maximum
E) 5' (1.5m) Minimum 15' (4.5m) Maximum
F) 6' (1.86m) Minimum 17' (5.1m) Maximum
Vertical Flueing with Two (2) 90oElbows
Vertical Flueing with Three (3) 90oElbows
Diagram 9 Diagram 10
Diagram 11
Option V + V1 H H + H1
A) 2' (610mm) Min. 1' (305mm) Max. 2' (610mm) Max.
B) 3' (914mm) Min. 4' (1.22m) Max. 5' (1.5m) Max.
C) 4' (1.22mm) Min. 6' (1.86m) Max. 8' (2.4m) Max.
D) 5' (1.5m) Min. 8' (2.4m) Max. 12' (3.6m) Max.
Withtheaboveoptions,maximumtotalpipelengthif37feetwithmini-
mum of 6 feet total vertical and maximum 17 feet total horizontal.
Please note minimum 1 foot between 90oelbows is required.
Option V H + H1
A) 1' (305mm) Minimum 2' (610mm) Maximum
B) 2' (610mm) Minimum 4' (1.22m) Maximum
C) 3' (914mm) Minimum 6' (1.86m) Maximum
D) 4' (1.22m) Minimum 8' (2.4m) Maximum
Withtheaboveoptions,maximumtotalpipelengthif37feetwithmini-
mum of 4 feet total vertical and maximum 8 feet total horizontal.
Please note minimum 1 foot between 90oelbows is required.
Withthe aboveoptions,maximumtotalpipe lengthif 37feetwith mini-
mum of 5 feet total vertical and maximum 12 feet total horizontal.
Please note minimum 1 foot between 90oelbows is required.

Regency®P121/P121LC/P121RC/P131 Zero Clearance Room Sealed Gas Fireplace 19
INSTALLATION
HORIZONTAL
INSTALLATIONS
Install the flue system according to the
manufacturer's instructions included with
the components.
1) Set the unit in its desired location. Check to
determine if wall studs or roof rafters are in
thewaywhentheflueingsystemisattached.
If this is the case, you may want to adjust
the location of the unit. Rough in the gas.
2) DirectFluepipeandfittingsaredesignedwith
specialtwist-lockconnectionstoconnectthe
flueingsystemtotheappliance flueoutlet.A
twist-lock appliance adaptor is an available
option that must be used in conjunction
with the Simpson Dura-Vent Direct Vent GS
system.
3) Putabeadofsiliconeinsidetheoutersection
of the adapter and a bead of Mill Pac on the
innercollar.Sliptheadapterovertheexisting
inner and outer flue collar and fasten to the
outer collar only with the 3 supplied screws
(drilling pilot holes will make this easier).
Level the fireplace and fasten it to the fram-
ingusingnails or screwsthrough the nailing
strips.
4) Assemble the desired combination of pipe
and elbows to the appliance adaptor and
twist-lock for a solid connection.
Note:
a) Twist-lockprocedure:Fourindentations,
locatedon thefemaleendsofpipesand
fittings, are designed to slide straight
onto the male ends of adjacent pipes
and fittings, by orienting the four pipe
indentations so they match and slide
in to the four entry slots on the male
ends,Diagram1.Pushthepipesections
completely together, then twist-lock
Diagram 1
5) Mark the wall for a 10" x 10" square hole.
The center of the square hole should line
up with the centerline of the horizontal
pipe. Cut and frame the 10 inch square
hole in the exterior wall where the flue will
be terminated. If the wall being penetrated
isconstructedofnon-combustiblematerial,
i.e.masonryblockorconcrete,a7"(178mm)
dia. (7-1/2"(191mm) dia. for flex) hole is
acceptable.
Note: With Dura-Vent, the minimum height
isachievedbyinstallinga45oelbowdirectly
to the flue adaptor.
Note:
a) Thehorizontalrunoffluemustbelevel,
or have a 1/4 inch rise for every 1 foot
of run towards the termination. Never
allow the flue to run downward. This
Diagram 2
could cause high temperatures and
may present the possibility of a fire.
b) Thelocationofthehorizontalfluetermi-
nationonan exterior wallmust meet all
local and national building codes, and
mustnotbeblockedor obstructed. For
External Flue Terminal Locations, see
diagram on page 12.
6) Thearrowonthefluecapshouldbepoint-
ing up. Insure that the 1-1/2" clearances
to combustible materials are maintained
(Diagram3onpage16).Installthetermina-
tion cap.
The four wood screws provided should
be replaced with appropriate fasteners for
stucco, brick, concrete, or other types of
sidings.
Note: If installing termination on a siding
covered wall, a vinyl siding standoff
or furring strips must be used to
ensure that the termination is not
recessed into the siding.
7) Beforeconnecting thehorizontalrunofflue
pipe to the flue termination, slide the Wall
Thimble (Part # 942) over the flue pipe.
b) Horizontal runs of flue must be sup-
ported every three feet. Wall straps are
available for this purpose.
Diagram 12
Vertical Flueing with Three (3) 90oElbows
Option V + V1 H + H1
A) 2' (610mm) Minimum 3' (914mm) Maximum
B) 3' (914mm) Minimum 6' (1.86m) Maximum
C) 4' (1.22m) Minimum 9' (2.7m) Maximum
D) 5' (1.5m) Minimum 12' (3.6m) Maximum
one section clockwise approximately
one-quarter turn, until the two sections
arefullylocked.Thefemalelockinglugs
will not be visible from the outside, on
the Black Pipe or fittings. They may be
located by examining the inside of the
female ends.
Note: Applysealant"Mill-Pac"toinnerpipe
and high temperature silicone seal-
ant to outer pipe on every twist-lock
joint.
Withthe aboveoptions, maximumtotal pipelength if37 feetwithmini-
mum of 5 feet total vertical and maximum 12 feet total horizontal.
Please note minimum 1 foot between 90oelbows is required.

Regency®P121/P121LC/P121RC/P131 Zero Clearance Room Sealed Gas Fireplace
20
Diagram 3
Diagram 5
Diagram 1
Diagram 2
Note: Applysealant"Mill-Pac"toinnerpipe
and high temperature silicone seal-
ant to outer pipe on every twist-lock
joint.
VERTICAL
TERMINATION
1) Maintain the 1-1/4" clearances
(air spaces) to combustibles when
passing through ceilings, walls,
roofs, enclosures, attic rafter, or
othernearbycombustiblesurfaces.
Do not pack air spaces with insu-
lation. Check pages 17-19 for the
maximumverticalrise oftheflueing
systemandthemaximumhorizontal
offset limitations.
will penetrate the ceiling. Drill a small hole
at his point. Next, drop a plumb bob from
the roof to the hole previously drilled in the
ceiling,andmarkthespotwherethefluewill
penetratetheroof.Determineifceilingjoists,
roofraftersorotherframingwillobstructthe
flueingsystem.Youmay wish
to relocate the
appliance or to
offset,asshown
in Diagram 2
to avoid cutting
load bearing
members.
3) A Firestop spacer must be installed in the
floor or ceiling of every level. To install the
Firestop spacer in a flat ceiling or wall, cut
a 10 inch square hole. Frame the hole as
shown in Diagram 3 and install the fire-
stop.
4) Assemble the desired lengths of pipe and
elbows.Ensurethatallpipesandelbowcon-
nectionsareinthefullytwist-lockedposition
and sealed.
5) Cut a hole in the roof centered on the small
drilled hole placed in the roof in Step 2. The
hole should be of sufficient size to meet
the minimum requirements for clearance
to combustibles of 1-1/4". Slip the flashing
underthe shingles(shingles shouldoverlap
half the flashing) as per Diagram 4.
Roof Pitch Minimum Vent Height
Feet Meters
flat to 7/12 2 0.61
over 7/12 to 8/12 2 0.61
over 8/12 to 9/12 2 0.61
over 9/12 to 10/12 2.5 0.76
over 10/12 to 11/12 3.25 0.99
over 11/12 to 12/12 4 1.22
over 12/12 to 14/12 5 1.52
over 14/12 to 16/12 6 1.83
over 16/12 to 18/12 7 2.13
over 18/12 to 20/12 7.5 2.29
over 20/12 to 21/12 8 2.44
Diagram 4: The upper half of the flashing is
installed under the roofing material and not
nailed down until the chimney is installed. This
allows for small adjustments.
6) Continue to assemble pipe lengths.
Note: If an offset is necessary in the attic
toavoid obstructions, itisimportant
to support the flue pipe every 3 feet,
to avoid excessive stress on the el-
bows,andpossibleseparation. Wall
straps are available for this purpose
(Diagram 2).
Galvanized pipe is desirable above the roof-
line due to its higher corrosion resistance.
Continue to add pipe sections through the
flashinguntiltheheightof thefluecap meets
theminimumheightrequirementsspecified
in Diagram 5 or local codes. Note that for
2) Set the gas appliance
in its desired location.
Drop a plumb bob down
from the ceiling to the
position of the appliance
flue exit, and mark the
location where the flue
Diagram 3
Diagram 4
Diagram 5
8) Slide the appliance and flue assembly
towards the wall carefully inserting the flue
pipeintothefluecapassembly.Itisimportant
that the flue pipe extends into the flue cap
sufficient distance so as to result in a mini-
mum pipe overlap of 1-1/4 inches. Secure
the connection between the flue pipe and
thefluecapbyattachingthetwosheetmetal
stripsextendingfrom thefluecapassembly
into the outer wall of the flue pipe. Use the
twosheetmetalscrewsprovidedtoconnect
the strips to the pipe section. See Diagram
4.
9) Install wall thimble in the center of the 10"
square and attach with wood screws (Dia-
gram 5).
INSTALLATION
