Regency Fireplace Products GFI300LNG-R Quick start guide

Models: GFI300LNG-R
GFI300LLP-R
GFI300LULPG-R
Owners &
Installation
Manual
02/26/14
LISTINGS AND CODE APPROVALS
These gas appliances have been tested in
accordance with AS4553, NZS 5262 and
have been certified by the Australian Gas
Associationforinstallationandoperationas
describedintheseInstallationandOperating
Instructions.
Yourunitshouldbeserviced annuallyby
an authorised service person.
919-293
GFI300L Gas Inbuilt
FOR YOUR SAFETY
What to do if you smell gas:
Do not try to light any appli-
ance
Do not touch any electrical
switch:donotuseanyphone
in your building.
Immediately call your gas
supplier from a neighbour's
phone. Follow the gas sup-
plier's instructions.
Ifyou cannotreachyourgas
supplier, call the fire depart-
ment.
WARNING:
Improper installation, adjustment, altera-
tion, service or maintenance can cause
injury or property damage. Refer to this
manual. For assistance or additional in-
formation consult an authorised installer,
service agency or the gas supplier.
FOR YOUR SAFETY
Do not store or use gasoline or other flam-
mable vapours and liquids in the vicinity of
this or any other appliance.
Installation and service must be performed
byan authorisedinstaller,serviceagency or
the gas supplier.
PLEASE KEEP THESE INSTRUCTIONS
FOR FUTURE REFERENCE

REGENCY
GAS FIREPLACE INBUILT FIREPLACE
TO THE NEW OWNER
Congratulations! You are the owner of a state-of-the-art Gas Inbuilt Fireplace by Regency
Industries.TheRegencyGasFireplaceSeriesofhandcraftedapplianceshasbeendesigned
to provide you with all the warmth and charm of a fireplace, at the flick of a switch. The
modelGFI300LofthisserieshasbeenapprovedbyAustralianGasAssociationforbothsafety
and efficiency. As it also bears our own mark, it promises to provide you with economy,
comfort and security for many trouble free years to follow. Please take a moment now to
acquaint yourself with these instructions and the many features of your Regency Fireplace.

Regency GFI300L Gas Fireplace Inbuilt 33
TABLE OF CONTENTS
Safety Label.................................................................3
Unit Dimensions ..........................................................5
Installation
For Your Safety............................................................6
Specifications ..............................................................5
Installation Checklist....................................................5
Materials Required .....................................................5
Minimum Fireplace Dimension....................................7
Clearances to Combustibles........................................8
Mantel Leg Clearances................................................8
Framing Dimensions....................................................9
Framing and Finishing...............................................10
Gas Connection.........................................................12
Flueing ...............................................................12
Test for Flue Spillage.................................................12
High Elevation Gas Line Installation..........................13
Gas Pipe Pressure Testing........................................13
845 S.I.T Valve Description.......................................13
Aeration Adjustment ..................................................13
Optional Enamel Panel .............................................14
Log Installation ..........................................................15
Glass Door Installation ..............................................17
Faceplate & Trim .......................................................18
Glass Guard Installation............................................19
- Optional Mesh Guard ...........................................19
Wiring Diagram..........................................................20
Operating Instructions
Operating Instructions ...............................................21
Lighting Procedure ....................................................21
Shutdown Procedure.................................................21
First Fire ...............................................................21
Summary of Controls.................................................21
Fan Operation............................................................21
Copy of Lighting Plate Instructions............................21
Normal Operating Sounds of Gas Appliances...........22
Resetting the Unit......................................................22
Maintenance
Maintenance..............................................................23
- Log Replacement..............................................23
- Door Glass Replacement..................................23
- Glass Gasket....................................................23
- Fan Maintenance..............................................23
Trouble Shooting ......................................................23
Parts
Main Assembly ..........................................................25
Warranty
Warranty ...............................................................31

4Regency GFI300L Gas Fireplace Inbuilt
INSTALLATION
(Australia Only)
This is a copy of the label that accompanies
each Regency GFI300L Gas Inbuilt fireplace.
We have printed a copy of the contents here
for your review.
DATABADGENOTE:Regencyunitsareconstantly
being improved. Check the label on the unit and
if there is a difference, the label on the unit is the
correct one.
DO NO T
DO NO T
DO NO T
DO NO T
DO NO T
DO NO T
OPERATE THIS APPLIANCE BEFORE READING THE
INSTRUCTIONS BOOKLET.
PLACE ARTICLES ON OR AGAINST THIS APPLIANCE
STORE CHEMICALS OR FLAMMABLE MATERIALS
SPRAY AEROSOLS IN THE VICINITY OF THIS
APPLIANCE WHILE IN OPERATION.
OPERATE WITH PANELS, COVERS OR GUARDS
REMOVED FROM THIS APPLIANCE.
ENCLOSE THIS APPLIANCE.
MODIFY THIS APPLIANCE.
NEAR THIS APPLIANCE.
DO NO T
908-602a

Regency GFI300L Gas Fireplace Inbuilt 5
INSTALLATION
UNIT DIMENSIONS
236mm
362mm
584mm
288 mm
38mm
908mm
682mm
683 mm
362 mm
100 mm
flue

6Regency GFI300L Gas Fireplace Inbuilt
INSTALLATION
IMPORTANT:
SAVE THESE
INSTRUCTIONS
The Regency Gas Fireplace must be installed in
accordancewiththeseinstructions.Carefullyread
all the instructions in this manual first.
Note: Failuretofollowtheseinstructionscould
causeamalfunctionoftheheaterwhich
could result in death, serious bodily in-
jury,and/orpropertydamage. Failureto
followthese instructions mayalsovoid
your fire insurance and/or warranty.
FOR YOUR SAFETY
This appliance requires air for proper combus-
tion. Always provide adequate combustion and
ventilation air. Follow instructions and information
in the current AS5601-2013, NZS 5261 or local
codes. Consult the "authority having jurisdiction"
to determine the need for a permit prior to starting
the installation.
GAS PIPE TESTING
The appliance must be isolated from the gas
supply piping system by closing its individual
manualshutoffvalveduringanypressuretesting
ofthegassupplypipingsystemattestpressures
equal to or less than 3.45 kPa.
Specifications:
Fuel: NG, Propane, or ULPG
Electrical:240 volt 50 hz system
Fan/Blower: 3-speed
Log Sets: Ceramic fibre
BEFORE YOU START
Installation is to be carried out ONLY by an
authorised person.
1) The appliance shall be installed in accord-
ance with the manufacturer's installation
instructions,local gas fitting regulations,
municipal building codes, water supply
regulations,electricalwiringregulations,with
AS5601-2013.(AGA gas installation code)
NZS 5261(New Zealand)
2) InstallationandrepairshouldbedoneONLY
by an authorised person.
3) The appliance should be inspected before
use and at least annually by an authorised
service person. More frequent cleaning may
be required due to excessive lint from carpet-
ing, bedding material, etc. It is imperative that
controlcompartments,burners and circulating
airpassagewaysoftheappliancebekeptclean
and free from excessive lint from carpeting.
4) Seegeneralconstructionandassemblyinstruc-
tions.This appliancemay only beinstalled in a
flued,non-combustiblefireplace.Theappliance
and flue should be enclosed when installed or
passing through a living area, where children
may come in contact with it.
5) Alwaysconnectthisspaceheatertoachimney
andfluetotheoutsideofthebuildingenvelope.
Never flue to another room. Make sure that
the flue is properly sized and is of adequate
height to provide the proper draft.
6) Inspecttheflueingsystemannuallyforblockage
and any signs of deterioration.
7) Any safety glass removed for servicing must
be replaced prior to operating the appliance.
8) To prevent injury, do not allow anyone who is
unfamiliarwiththeoperationtousethefireplace.
9) Assemble and install the faceplate and trim.
10) Install the glass front.
11) Install bottom louvres and flush front.
12) Install Optional Remote Control.
13) Final check: Before leaving this unit with the
customer, the installer must ensure that the
appliance is firing correctly. This includes:
a) Clockingtheappliance toensurethecorrect
firing rate.
b) Adjusting the primary air, if required, to en-
sure that the flame does not carbon. See
page 7.
c) Ensuring that the appliance is flueing cor-
rectly. See page 7.
INSTALLATION
CHECKLIST
TheRegencyGasInsertisinstalledaslistedbelow.
1) Unit Location - check Clearances to Combus-
tibles.
2) Make the gas connections.
3) Installtheflueorlinertotheslidingdraftdiverter.
4) Install Flueing. Slide the unit into the fireplace.
Attach draft diverter to the insert.
5) Test gas pressure. Check aeration.
6) Test for flue spillage.
7) Install the optional panels.
8) Install the log set.
WARNING: This fireplace has been converted
for use with a gas fireplace insert only and
cannot be used for burning wood or solid fuels
unless all original parts have been replaced,
and the fireplace re-approved by the authority
having jurisdiction.”.

Regency GFI300L Gas Fireplace Inbuilt 7
INSTALLATION
MINIMUM FIREPLACE DIMENSIONS
The below minimum cavity requirements are to be maintained to ensure safe
and proper operation of the appliance. Ensure all construction conforms to
local building codes.
MASONRY INSTALLATION:
The minimum fireplace dimensions for a masonry installation are shown in
the diagrams below.
367mm
590mm
688mm
367mm
238mm125mm

8Regency GFI300L Gas Fireplace Inbuilt
INSTALLATION
12" 6"
(152mm)
12" (305mm)
0
21-1/4"
(540mm)
10"
(254mm)
26"
(660mm)
To p o f
Fireplace
Opening
20"
(508mm)
(305mm)
13"
(330mm)
1"
(25mm)
Top of Faceplate
MINIMUM
CLEARANCES TO
COMBUSTIBLES
Theminimum fireplaceclearancesfor theRegency gasspaceheater are
shown in the following diagrams:
From Unit
Sides A464 mm
Ceiling B860 mm
Mantle C see Mantel Clearances
Min. Alcove Width E1924 mm
Max. Alcove Depth F 914 mm
D
E
C
A
B
F
4"
(102mm)
Allowable mantel
leg projection
7-1/8” (181mm)
10”(203mm)
13 ”(279mm)
1.5" (38mm)
MANTEL LEG
7”(178mm)
MANTEL LEG CLEARANCES
Combustible mantel leg clearances as per diagram:

Regency GFI300L Gas Fireplace Inbuilt 9
INSTALLATION
Framing
Dimensions Description GFI300L
A Framing Height 25-5/8” (650mm)
B Framing Width 31-1/2" (800mm)
C*Framing Depth 16-1/2" (420mm)
E Corner Wall Depth 39-9/16" (1006mm)
F Corner Facing Wall Width 56" (1422mm)
I Gas Connection Opening Height 2" (51mm)
J Gas Connection Height 2-5/8" (67mm)
K Gas Connection Inset 3-11/16" (99mm)
L Gas Connection Opening Width 2-1/2" (64mm)
A
B
C
Timber
Studs
F
E
I
J
K
L
Finished Floor
C
C
Note: All framing may
be of wood construction.
MOCK FIREPLACE (ZERO CLEARANCE) DIMENSIONS (NO MASONRY CHIMNEY)

10 Regency GFI300L Gas Fireplace Inbuilt
INSTALLATION
MOCK FIREPLACE (ZERO CLEARANCE) INSTALLATION
Diagram 1
Diagram 2
Diagram 3
Diagram 4

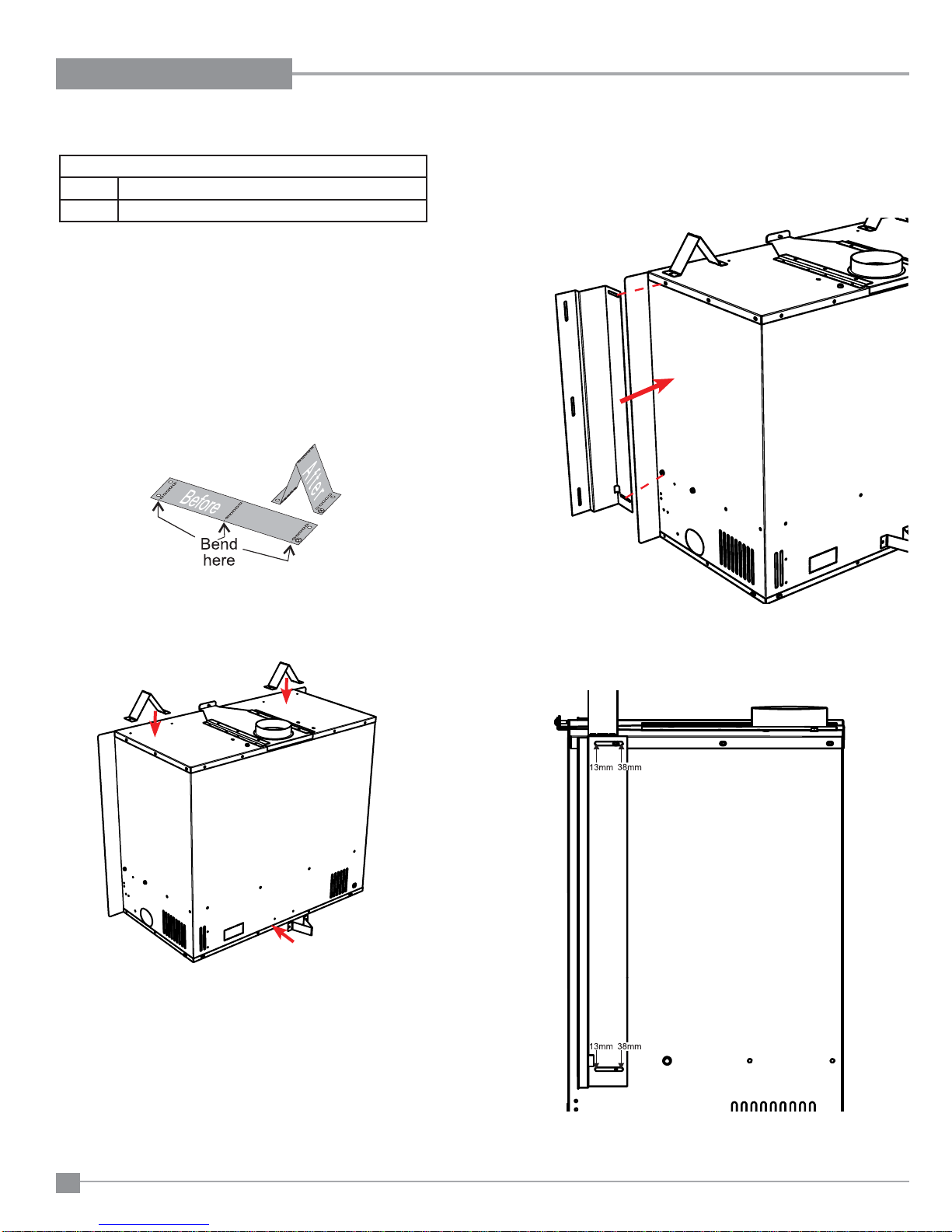

STANDOFF ASSEMBLY
The top, side, rear and bottom standoffs are shipped in a flat position and
must be folded into shape and attached - see Diagram 1.
1. Remove the standoffs from the unit.
2. Take each standoff and bend into the correct shape. Bend up at the bend
linesuntilthescrewholesinthestandoffandthepre-punchedscrewholes
on the unit line up.
3. Install left and right nailing brackets. Remove existing screws from the
outside of the unit - line up bracket with holes in the unit and secure with
2 removed screws.
See framing clearance dimensions in the installation manual.
Mock Fireplace (zero clearance) Kit Contents
3 Standoffs
2 Side brackets
Note: Side brackets can be adjusted between 13 mm to 38 mm.This adjustment
must be done before unit is moved into framed opening.

Regency GFI300L Gas Fireplace Inbuilt 11
INSTALLATION
FRAMING & FINISHING
1) Frame in the enclosure for the unit with framing material.
Note: When constructing the framed opening, please ensure there
is access to install the gas lines when the unit is installed.
2) The unit does not have to be completely enclosed in a chase. You
mustmaintainclearancesfromthe ventto combustiblematerials:See
"Clearances" section. Combustible materials can be laid against the
side and back standoffs and the stove base.
3) Finishing material may be brought to the side and top of the framing.
do not bring combustible material beyond the framed opening. This
is both for safety and servicing of the appliance.
Unit shown with Fascia
800mm
650mm
Finished Wall
Framed Opening

12 Regency GFI300L Gas Fireplace Inbuilt
INSTALLATION

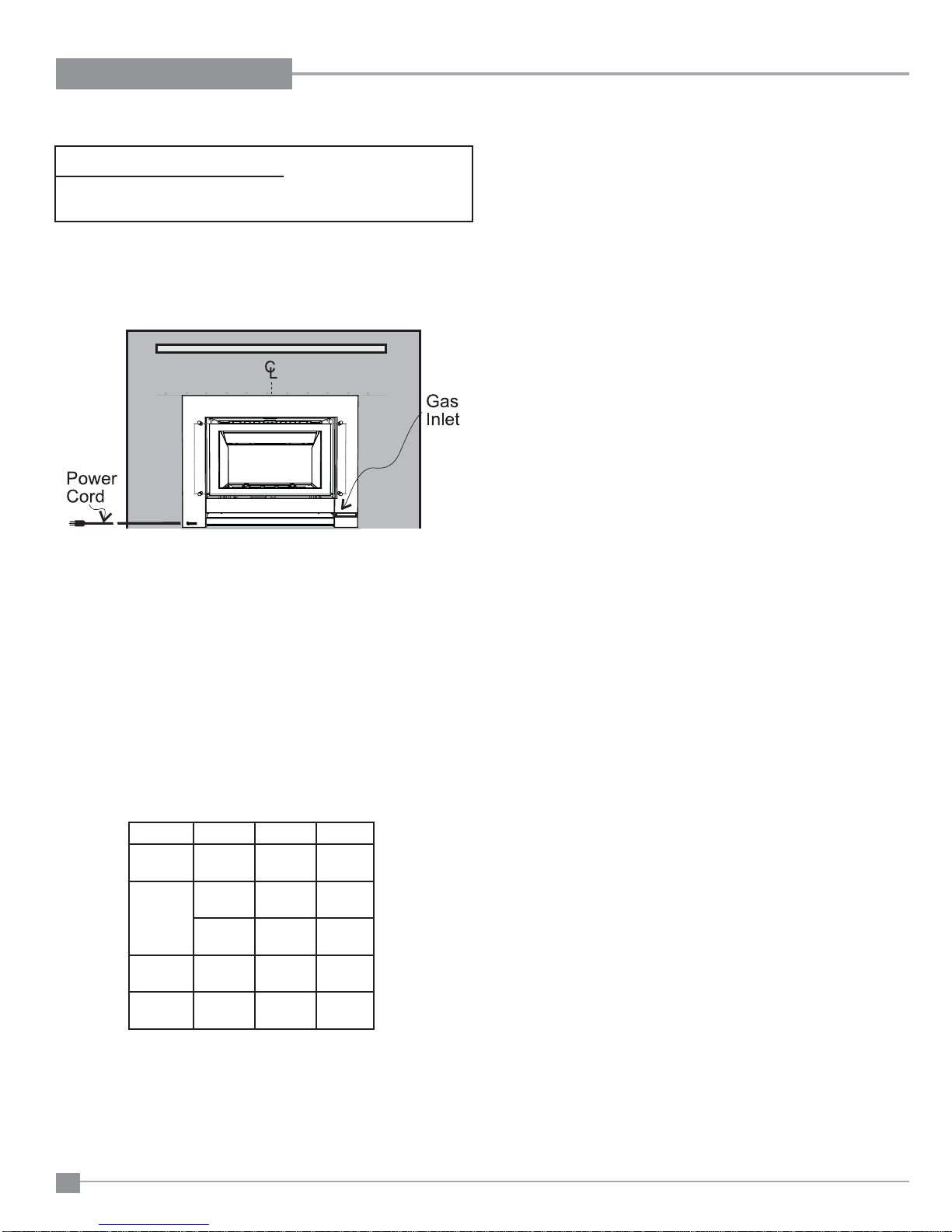

GAS CONNECTION
3) Locatethecenter pointwherethefluewillpassthroughthe chimneyabove
the appliance. Move the appliance into the exact location where it is to be
installed. Ensure that the Insert is level.
4) The installer must provide a valve with a plugged tapping, accessible for
test gaugeconnection,immediatelyupstreamofthegassupplyconnection
to the appliance.
CAUTION: If the glass is removed or opened for servicing, it must be
replaced and closed prior to operating the appliance. The glass must be
fixed in the door when operating.
SPECIFICATIONS
NG LP ULPG
Injector
Size
#40 #53 #55
Input
Rating
Max. 30
mj
Max. 27
mj
Max. 24
mj
Min.
20mj
Min. 22
mj
Min. 19
mj
Manifold
Pressure
0.87 kPa 2.3 kPa 2.3 kPa
Aeration
Setting
5 mm 13 mm full
open
GAS CONNECTION WARNING:
Only persons licensed to work with gas piping may make
the necessary gas connections to this appliance.
1) Iftheapplianceistobeinstalledintoanexistingchimneysystem,thoroughly
clean the masonry or factory built fireplace.
2) The gas connection is 12" BSP.

Regency GFI300L Gas Fireplace Inbuilt 13
INSTALLATION
Diagram 1
Diagram 2
GAS CONNECTION
GAS CONNECTION WARNING:
Only persons licensed to work with
gas piping may make the necessary
gas connections to this appliance.
1) Iftheapplianceistobeinstalledintoanexisting
chimneysystem,thoroughlycleanthemasonry
or factory built fireplace.
2) The gas connection is 12" BSP.
3) Locatethecenter point where the fluewillpass
throughthechimneyabovetheappliance. Move
the appliance into the exact location where it is
to be installed. Ensure that the Insert is level.
4) Theinstallermustprovideavalvewithaplugged
tapping,accessiblefor test gauge connection,
immediately upstream of the gas supply con-
nection to the appliance.
CAUTION:Iftheglassisremovedoropened for
servicing, it must be replaced and closed prior
to operating the appliance. The glass must be
fixed in the door when operating.
FLUEING
THE APPLIANCE MUST NOT BE CONNECTED
TO A CHIMNEY FLUE SERVING A SEPARATE
SOLID FUEL BURNING APPLIANCE.
This appliance is designed to attach to a 100
mm diameter twin skin or listed gas fuel type
flueliner runningthe full lengthof thechimney.
A minimum flue height of 0.6 m. is required for
masonryapplications.TheRegencyInbuiltFireplace
incorporates its own internal draft diverter, so no
additional external draft diverter is required.
Periodically check that the flue is unrestricted and
an adequate draft is present when the unit is in
operation. (See page 7 for spillage test.)
Beforeinstallingfluesystemensurethatthedamper
plateisopenandsecuretopreventthedamperplate
from falling down and crushing the liner.
InstalltoAS5601-2004,(Australia)NZS5261 (New
Zealand).
Combustion and Ventilation Air
WARNING: Thisapplianceneedsfresh
air for safe operation and must be
installedwithprovisionsforadequate
combustion and ventilation air avail-
able to the room in which it is to be
operating.
Air for combustion is drawn in through the front of
theunit, therefore,the frontof theunitmustbekept
clear of any obstructions.
DRAFT DIVERTER
CONNECTION
1) Attach the flue to the flue collar on the detach-
able draft diverter. The flue collar of the appli-
ance will fit inside a standard flue and may be
fastened directly to the flue by sheet metal
screw. Diagram 1.
2) Beforepushingtheapplianceintopositioninside
the fireplace, align the draft diverter with the
guidesontheinserttopandpushforward.While
pushingtheunitbackintoplacekeeppullingthe
draft diverter forward until the screw hole in the
spill tube aligns with the screw hole in the top
ofthe firebox.The screwis securedthrough the
inside top of the firebox into the bottom of the
spill tube. (If screw holes do not line up then
draft diverter is not positioned correctly.)
Diagram 2.
NOTE:Finalgasconnectionshouldbeafterunit
is in place to avoid damage to line when
pushing the unit into position.
TEST FOR FLUE
SPILLAGE
A " spillage" test must be made before the
installedunitisleftwiththecustomer.Follow
the procedure below:
1) Start all exhaust fans in the home and then
close all external doors and windows in the
house.
2) Light the unit and set controls to maximum.
Turn fan off.
3) After five minutes, test that there is a “pull”
on the flue by placing a smoke match, or
similardevicewhichgivesoffsmoke,inboth
sides of the unit. See diagram 1.
Flue spillage
test location area
normal draft
downdraft
or block flue
Diagram 1
For wind turbulent sites, a wind cap may remedy
the problem. These caps are not included with the
standard flue kit and will need to be purchased
separately.
The smoke should be drawn into the unit. If the
smoke is still not drawn into the spill tube, turn the
unit off and check for the cause of the lack of draft.
If necessary, rectify.

14 Regency GFI300L Gas Fireplace Inbuilt
INSTALLATION
AERATION ADJUSTMENT
The burner aeration is factory set but may need
adjusting due to either the local gas supply or
altitude. Open the air shutter for a blue flame or
close for a more yellow flame.
Minimum Air Shutter Opening:
NG 3/16" (5mm)
LPG 1/2" (13mm)
ULPG Full Open
Note: Anydamagedue tocarboningresulting
from improperly setting the aeration
controlsisNOTcoveredunderwarranty.
GAS PIPE PRESSURE
TESTING
The appliance must be isolated from the gas sup-
ply piping system by closing its individual manual
shut-off valve during any pressure testing of the
gassupplypiping system at testpressuresequal
to or less than 1/2 psig. (3.45 kPa). Disconnect
piping from valve at pressures over 1/2 psig.
The manifold pressure is controlled by a regulator
built into the gas control, and should be checked
at the pressure test point.
Note: To properly check gas pressure, both
inlet and manifold pressures should be
checked using the valve pressure ports
on the valve.
1) Make sure the unit is in the "OFF" position.
2) Loosen the "IN" and/or "OUT" pressure tap(s),
turning counterclockwise with a
1/8" wide flat screwdriver.
3) Attachmanometerto"IN"and/or"OUT"pressure
tap(s) using a 5/16" ID hose.
4) Turn the unit on with the remote or wall switch
5) The pressure check should be carried out with
theunitburningandthesettingshouldbewithin
the limits specified on the safety label.
6) When finished reading manometer, turn off
the unit, disconnect the hose and tighten the
screw (clockwise) with a 1/8" flat screwdriver.
Note:Screwshouldbesnug,butdonotover
tighten.
Note: If you have an incorrect flame pattern,
contactyourRegency®dealerforfurther
instructions.
Incorrectflamepatternwillhavesmall,probably
yellow flames, not coming into proper contact
with the rear burner or flame sensor.
Burner
Flame Sensor
Pilot Ignitor
PILOT ADJUSTMENT
Periodicallycheckthepilotflames.Correctflame
pattern has three strong blue flames: 1 flowing
around the flame sensor and 1 flowing across
the burner (it does not have to be touching the
burner), and 1 opposite the flame sensor.

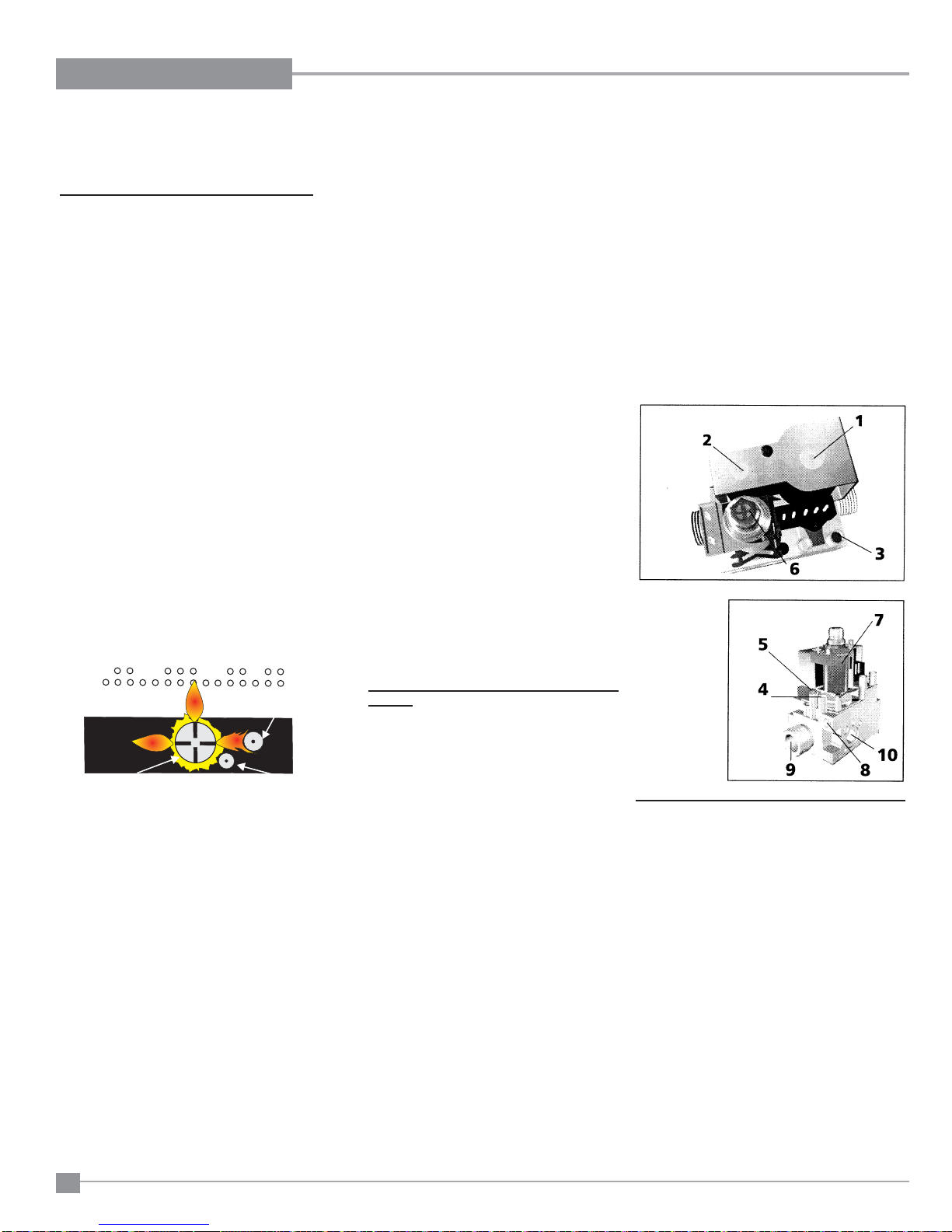

845 S.I.T. VALVE
DESCRIPTION
1) On-Off Solenoid Valve EV1
2) On-Off Solenoid Valve EV2
3) Inlet Pressure Test Point
4) Outlet Pressure Test Point
5) ConnectionforPressureRegulator/Combustion
Chamber Compensation
6) PressureRegulatorforMinimumandMaximum
Outlet Pressure
7) Gas Outlet Pressure Electric Modulator
8) Pilot Outlet
9) Main Gas Outlet
HIGH ELEVATION
This unit is approved for altitude 0 to 1372m.
GAS LINE
INSTALLATION
Sincesomemunicipalitieshaveadditionallocal
codesitisalwaysbesttoconsult withyour local
authorities.
When using copper or flex connectors use only
approved fittings. Always provide a union so
that gas lines can be easily disconnected for
servicing. Flare nuts for copper lines and flex
connectors are usually considered to meet this
requirement.
NOTE: A shutoff / dante valve should be
supplied in or near the unit (or as per local
codes) for ease of servicing this appliance.

Regency GFI300L Gas Fireplace Inbuilt 15
INSTALLATION
Conversion Kit for LP to ULPG Model
THIS CONVERSION MUST BE DONE BY A QUALIFIED GAS FITTER IF IN DOUBT DO NOT DO THIS CONVERSION !!
Conversion Kit Contains:
Qty. Part # Description
1 904-575 Burner Orifice #55
1 908-273 Red ULPG Label
1 918-272 Label "Converted to ULPG"
1 919-346 Instruction Sheet
1. Shut off the gas supply and unplug the power
cord.
2. Remove the primary guard and faceplate.
Unplug polarized plug for the switches.
3. Remove the glass door.
4. Remove logs.
5. Remove the burner and adjust the aeration
setting to 15 mm fully open.
6. Remove burner orifice with a 1/2" wrench and
discard. Use a wrench to hold on to the elbow
behind the orifice.
7. Reinstall new burner orifice LPG stamped #55
and tighten.
8. Stick the conversion label "This unit has been
converted to ULPG" over top of the serial
number decal.
9. Replacethered"LP"labelwiththered"ULPG"
label.
10. Reverse steps 5-2.
11 Adjusting the Outlet Pressure
All the adjustments must be carried out
in the following order:
Remove the modulator plastic cap (A) using
needle nose pliers.
Maximum pressure: Turn unit "ON" to it's
highestinputratingbysettingtheburnerswitch
to "HIGH" Screw in the nut (B) to increase the
outlet pressure and screw it out to decrease
it. Use a 10 mm wrench.
NOTE: The outlet pressure must be set to
maximum 2.3 kPa.
WARNING: When adjusting maximum pres-
sure do not screw the nut in fully.
If unable to obtain 2.3kPa outlet,
check inlet pressure is adequate.
Damagemayoccurtothegasvalve
ifmaximumpressureadjustmentis
fully screwed in.
Installer Notice:
These instructions must be left
with the appliance.
Minimum pressure: Turn unit "ON" to it's
lowest input rating by setting the burner
switch to "LOW". While holding the nut (B)
with a wrench, screw in the screw (C) to
increase the pressure and screw it out to
decrease it. Use a screwdriver 6 x 1 blade.
NOTE: The outlet pressure must be set to
minimum 1.60 kPa.
Aftercarryingoutalladjustments,blockthe
settingscrewswith paint, takingcarenot to
obstructthebreatherorificeofthepressure.
Put back the modulator plastic cap.
WARNING: To ensure the correct opera-
tion of the modulator it is necessary that
the plastic cap (A) is returned to its original
location.
12. Turn on gas supply and plug in power cord.
13. At the end of all setting and adjustment
operations,checkelectricalinstallationand
gas leaks.
14. Check operation of flame control.
15. Check for proper flame appearance and
glow on logs.
C
BA
Figure 1

16 Regency GFI300L Gas Fireplace Inbuilt
INSTALLATION
OPTIONAL ENAMEL PANELS
1) Unwrap the panels from the protective wrapping.
2) Remove the glass front if already installed (see manual).
3) Put the rear panel flat against the back of the unit.
4) Before installing the side panels, loosen the screws for the tabs enough
so that you can slide the tabs on to the screws easily but that the tabs are
secure. For the location of the side tab screws see diagram 2.
5) Slide the side panels into position and tighten the screw to secure the
tab - repeat to install panel on opposite side of unit.
6) Reinstall glass door (see manual).

Regency GFI300L Gas Fireplace Inbuilt 17
1
1
1
3
4
7
6
8
5
2
32
2
Read the instructions below carefully and refer to the images. If the logs are broken do not use the unit until they are replaced. Broken logs can
interfere with pilot operation.
Improper positioning of the logs may create carbon build-up and can alter the unit's performance which is not covered under warranty.
*For Touch Ups: Dark Brown Paint is included for log set.
1 Rear Log
2 Right Log
3 Centre Log
4 Left Log
5 Right Upright Cross Log
6 Left Upright Cross Log
7 Left Front Log Piece
8 Centre Front Log Piece
1. Line up pin holes on the bottom of Log 1 with pins behind burner as
shown below. 2
1
2. Locate pin hole on Log 2 and line up with pin on the right side of the
burner. The left end of Log 2 will rest against a tab in location shown
below.
3. Place Log 3 on the centre of the burner, rest the log against the centre
tabs.
INSTALLATION
LOG SET INSTALLATION
Logs 1 - fits over pins behind
burner
Logs 2 - fits over pin on left side
- rests against tab on right
Logs 2 in position
Logs 3 - place in centre of
burner, resting against tabs
Logs 1 - in position

18 Regency GFI300L Gas Fireplace Inbuilt
5
1
2
4
3
7
6
32
3
42
5 mm
61
4
In position, the bark pattern on Log 3 should line up with the pattern on
Log 2. It should appear as if one log has split during burning.
4. Place Log 4 on the burner, rest the back of Log 4 on the tab located on
the left side of the burner.
IMPORTANT: A 5 mm gap must be maintained between Logs 3 and 4 to
ensure proper burner function.
5. Place Log 5 across Logs 1 and 2. The left side of the "Y" in Log 5 fits into
the notch in Log 1. The other end of the Log 5 will rest on the burner tray,
covering the hole as shown below.
6. Place Log 6 across Logs 1 and 4. The top part of Log 6 fits into the notch
on the left hand side of Log 1. The bottom end of Log 6 should sit so it
covers a screw on the burner tray.
7. Place Log 7 on the left hand side of the burner, Log 7 will sit in a notch
on Log 6 and the bottom of Log 7 will rest on a tab located on the burner.
INSTALLATION
Log 6 fits in notch on Log 1
Log 7 fits in notch on Log 6
Log 7 in position
Logs 2 & 3 - continuous bark line
Log 4 rests against tab on burner
5 mm gap between Logs 3 & 4
Log 5 covers hole on burner
tray trim

Regency GFI300L Gas Fireplace Inbuilt 19
8
7
8. Log 8 will cover pilot assembly, resting on pilot assembly bracket and trim
of the burner tray as shown below.
INSTALLATION
Final Install
Log 8 covers Pilot Assembly
Log 7 in position
GLASS DOOR INSTALLATION
1. Lift glass door and slot keyhole in glass door over screw installed in unit
body.
2. Once in position, slide glass door down and secure with 2 screws at the
bottom of the door as shown below, and tighten the top 2 (two) screws.
3. To remove- reverse steps.

20 Regency GFI300L Gas Fireplace Inbuilt
INSTALLATION
FACEPLATE & TRIM INSTALLATION
1. Hang trim over glass door frame and lower gently. 3. Secure Faceplate with 2 screws in locations shown below.
4. Proceed to glass or optional mesh guard installation.
2. Lift Faceplate over brackets on top of unit - hook faceplate over brackets
and lower gently.
