- Do not store or use gasoline or other ammable vapors and liquids in the vicinity of this or any other
appliance.
- WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch: do not use any phone in your building.
Leave the building immediately.
• Immediately call your gas supplier from a neighbour's phone. Follow the gas supplier's
instructions.
• If you cannot reach you gas supplier, call the re department.
- Installation and service must be performed by a qualied installer, service agency or the gas supplier.
WARNING
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly could result in serious
injury, death, or property damage.
REGENCY FIREPLACE PRODUCTS. 6988 Venture St., Delta, BC Canada, V4G 1H4
919-399a 09.02.15
Panorama®P36 Zero Clearance
Direct Vent Gas Fireplace
Owners & Installation Manual
Tested by:
Installer: Please complete the details on the back cover
and leave this manual with the homeowner.
Homeowner: Please keep these instructions for future reference.
MODELS: P36-NG10 Natural Gas P36-LP10 Propane
P36 Video

2| P36-10 Zero Clearance Direct Vent Gas Fireplace
|
2
To the New Owner:
Congratulations!
You are the owner of a state-of-the-art Gas Fireplace by REGENCY FIREPLACE PRODUCTS. The
P36 has been designed to provide you with all the warmth and charm of a wood fireplace at the flick of
a switch. The model P36 has been approved by Warnock Hersey / Intertek for both safety and efficiency.
As it also bears our own mark, it promises to provide you with economy, comfort and security for many
trouble free years to follow. Please take a moment now to acquaint yourself with these instructions and
the many features of your Regency Fireplace.

P36-10 Zero Clearance Direct Vent Gas Fireplace | 3
| 3
INFORMATION FOR MOBILE/MANUFACTURED HOMES AFTER FIRST SALE
This Regency product has been tested and listed by Intertek as a Vented Gas Fireplace Heater to the following standards: CAN/CGA-2.17-M91, and ANSI
Z21.88-2014 • CSA 2.33-2014.
This Direct Vent System Appliance must be installed in accordance with the manufacturer's installation instructions and the Manufactured Home Construction
and Safety Standard, Title 24 CFR, Part 3280, or the current Standard of Fire Safety Criteria for Manufactured Home Installations, Sites, and Communities
ANSI/NFPA 501A, and with CAN/CSA Z240-MH Mobile Home Standard in Canada.
This appliance installation must comply with the manufacturer's installation instructions and local codes, if any. In the absence of local codes follow the current
National Fuel Gas Code, ANSI Z223.1 and the current National Electrical Code ANSI/NFPA 70 in the U.S.A., and the current CAN/CGA B149 Gas Installation
Code and the current Canadian Electrical Code CSA C22.1 in Canada.
This Regency Mobile/Manufactured Home Listed appliance
comes factory equipped with a means to secure the unit.
P36 Video
This Regency Mobile/Manufactured Home listed appliance
comes equipped with a dedicated #8 ground lug to which
an 18 gauge copper wire from the steel chassis ground
must be attached.
This appliance may only be installed in an aftermarket
permanently located, manufactured (mobile) home,
where not prohibited by local codes.
This appliance is only use with the type of gas indicated
on the rating plate. This appliance is not convertible
for use with other gases, unless a certified kit is used.
Nailing Strip
Nailing Strip
#8 Mobile Home Ground
Nailing Strip

4| P36-10 Zero Clearance Direct Vent Gas Fireplace
|
4table of contents
Gas Pipe Pressure Testing ..........................................35
SIT 829 Valve Description ...........................................35
Conversion from NG to LP .......................................36
Optional Brick Panels ..................................................37
Log Set Installation......................................................38
Standard Flush Door ...................................................41
Vignette faceplate and safety screen installation ........42
Optional Vignette inlay installation...............................43
Vignette nishing trim installation ................................44
Optional Finishing Trim................................................45
Safety screen installation - must be used with optional
louvers.........................................................................46
Optional Flush Louvers installation - Used with safety
screen # 515-506.........................................................46
Wall Thermostat (Optional)..........................................47
DC Spark Igniter..........................................................47
Battery Installation.......................................................47
Wiring Diagrams .........................................................48
Optional Wall Thermostat Installation..........................49
Optional Fan Installation..............................................50
Operating Instructions .................................................51
Lighting Procedure ......................................................51
Shutdown Procedure...................................................51
Copy of the Lighting Plate Instructions........................52
First Fire ......................................................................53
Aeration Adjustment ....................................................53
Normal Operating Sounds Of Gas Appliances ............53
Maintenance Instructions.............................................54
General Vent Maintenance..........................................54
Log Replacement ........................................................54
Thermopile/Thermocouple...........................................54
Glass Gasket...............................................................54
Door Glass...................................................................54
Removing Valve...........................................................55
Installing Valve.............................................................56
Main Assembly ............................................................56
Burner Assembly & Log Set.........................................58
Vignette faceplate and nishing trim............................59
Safety screen and louvers...........................................60
Warranty ......................................................................63
MA Code - CO Detector.................................................6
(for the State of Massachusetts only)............................6

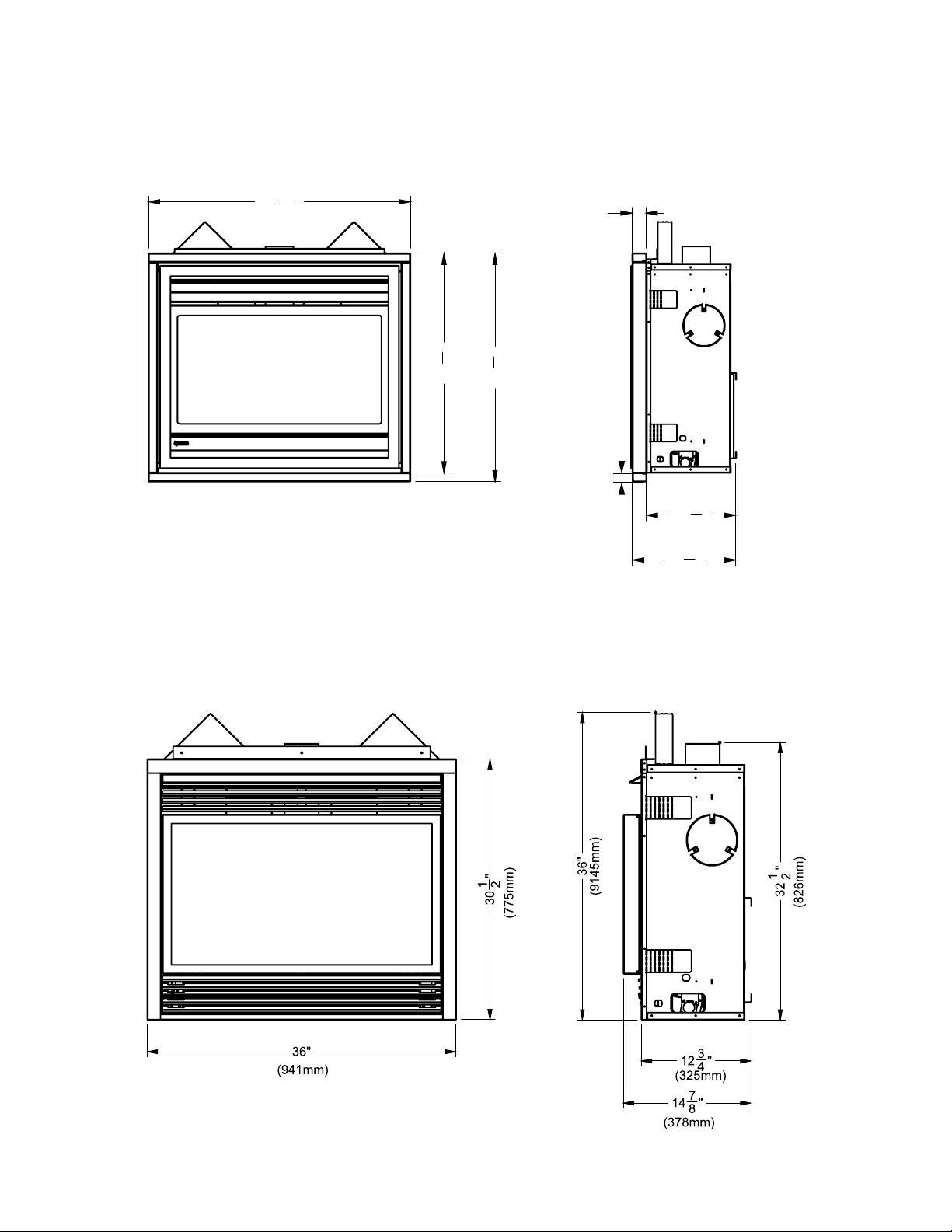

Unit Dimensions with vignette .......................................7
Unit Dimensions with vignette and
vignette nishing trim.....................................................8
Unit Dimensions with safety screen (#515-506) and
optional louvers .............................................................8
Important Message ......................................................9
Before You Start ............................................................9
General Safety Information............................................9
Installation Checklist....................................................10
Locating Your Gas Fireplace .......................................10
Manufactured Mobile Home Additional Requirements 10
Heatwave Duct System ...............................................10
Heat Release kit ..........................................................10
Clearances .................................................................. 11

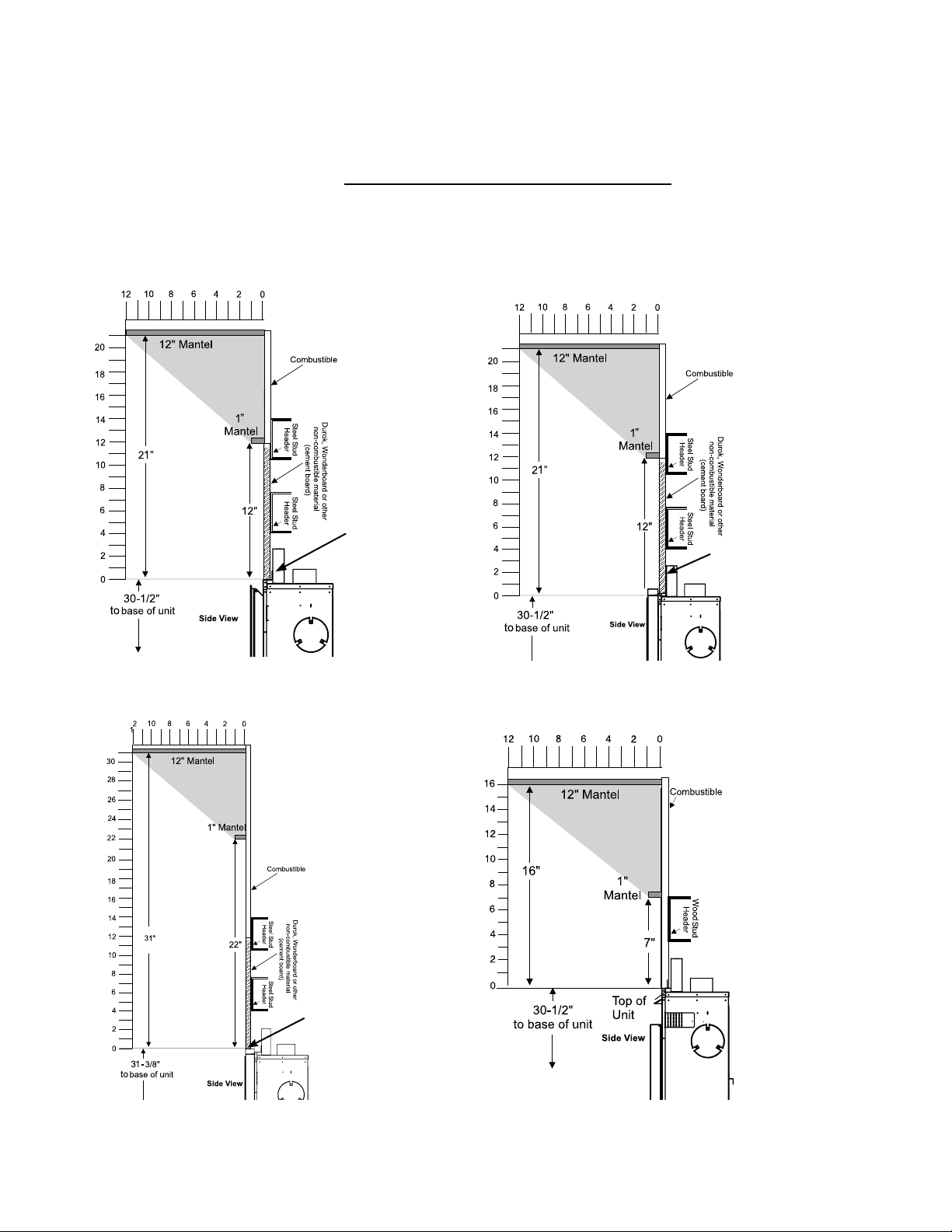

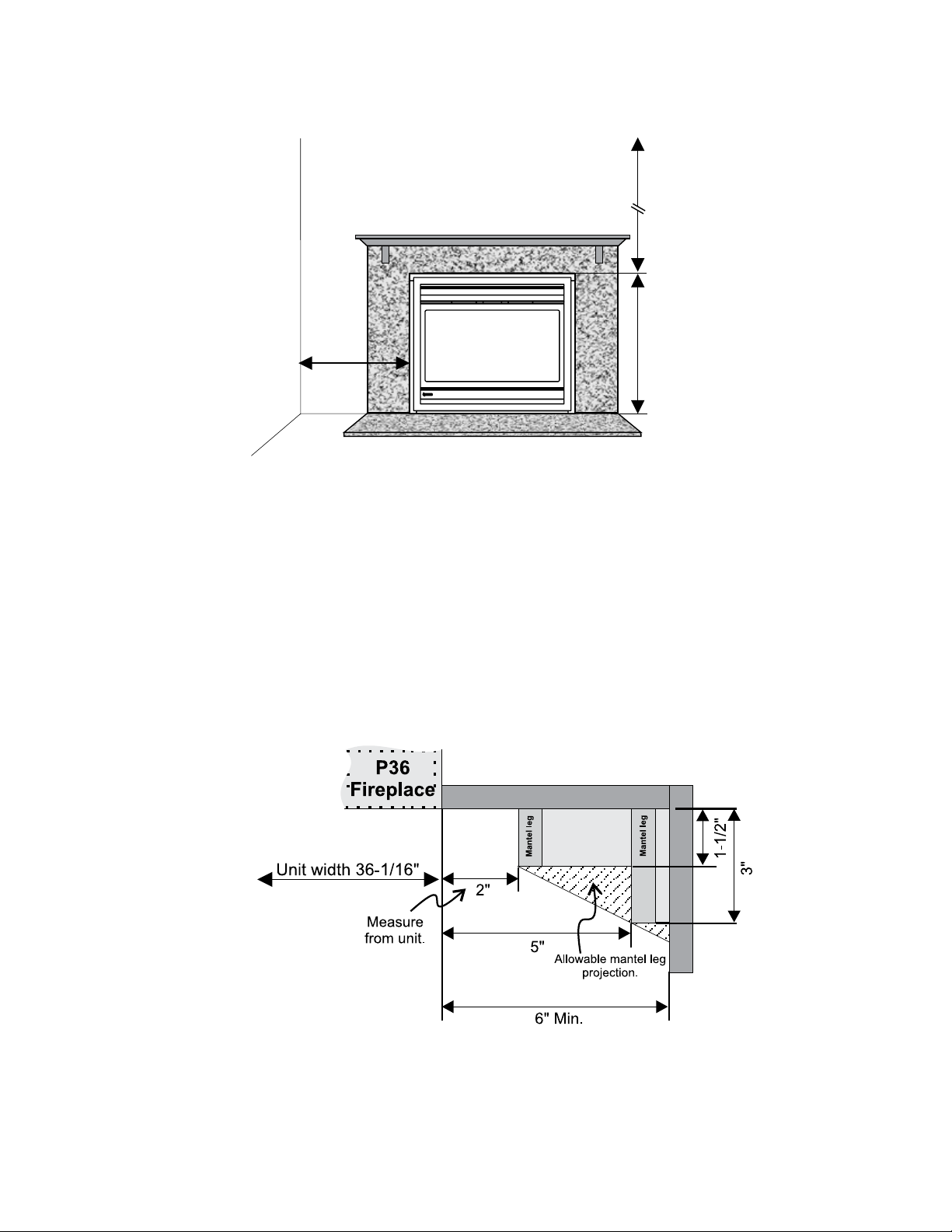

Mantel Leg Clearances................................................12
Framing .......................................................................14
Framing with vignette faceplate...................................15
Framing with vignette faceplate & nishing trim
nished ush................................................................15
Framing with louvers and safety screen......................15
Finishing ......................................................................16
wall mount On / Off Switch installation ........................17
Unit Assembly Prior To Installation ..............................18
Venting Introduction.....................................................18
Exterior Vent Termination Locations ............................19
Venting.........................................................................20
4” x 6-5/8” Rigid Pipe Cross Reference Chart.............21
Rigid Pipe Venting Arrangements ...............................24
Vertical Termination - Co-linear Flex System into a ma-
sonry chimney ............................................................29
Venting Arrangements - Vertical Termination...............30
Dura-Vent Horizontal terminations...............................31
Dura-Vent Vertical Terminations ..................................32
Direct Vent System (Flex) Installation Procedures ......33
High Elevation .............................................................34
Gas Line Installation....................................................34
Pilot Adjustment...........................................................35

P36-10 Zero Clearance Direct Vent Gas Fireplace | 5
| 5

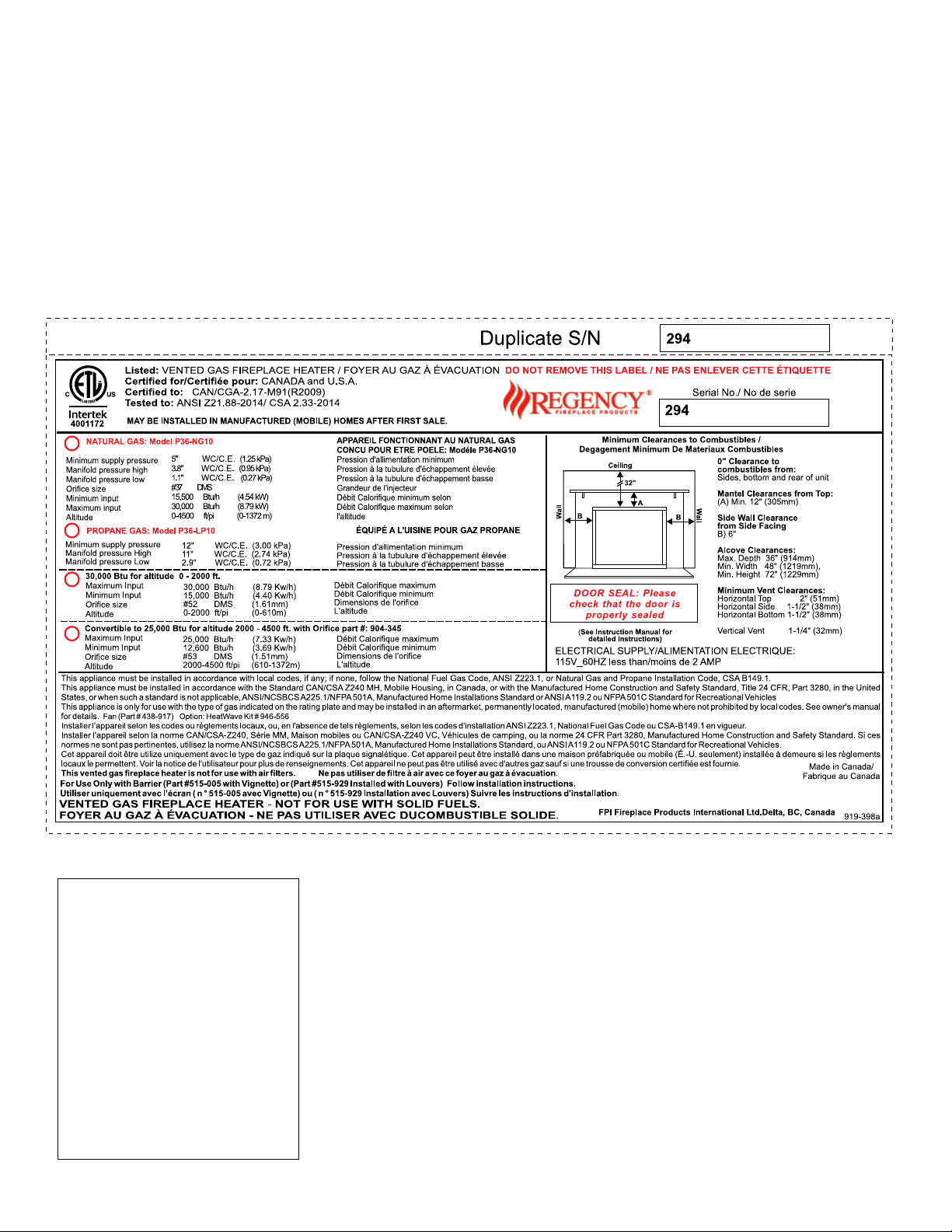

safety decal
This is a copy of the label that accompanies
each P36 Zero Clearance Direct Vent Gas
Fireplace. We have printed a copy of the
contents here for your review. The safety
label is located on the front inside base
of the unit.
NOTE: Regency units are constantly being
improved. Check the label on the unit and
if there is a difference, the label on the unit
is the correct one.
For the State of Massachusetts, installation
and repair must be done by a plumber or
gasfitter licensed in the Commonwealth of
Massachusetts.
For the State of Massachusetts, flexible con-
nectors shall not exceed 36 inches in length.
For the State of Massachusetts, the appli-
ances individual manual shut-off must be a
t-handle type valve.
The State of Massachusetts requires the
installation of a carbon monoxide alarm in
accordance with NFPA 720 and a CO alarm
with battery back up in the same room where
the gas appliance is installed.

6| P36-10 Zero Clearance Direct Vent Gas Fireplace
|
6installation
5.08: Modifications to NFPA-54, Chapter 10
(2) Revise 10.8.3 by adding the following additional requirements:
(a) For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in whole or in part for
residential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent termination is less than
seven (7) feet above finished grade in the area of the venting, including but not limited to decks and porches, the following requirements shall
be satisfied:
1. INSTALLATION OF CARBON MONOXIDE DETECTORS. At the time of installation of the side wall horizontal vented gas fueled
equipment, the installing plumber or gasfitter shall observe that a hard wired carbon monoxide detector with an alarm and battery back-up is
installed on the floor level where the gas equipment is to be installed. In addition, the installing plumber or gasfitter shallobserve that a battery
operated or hard wired carbon monoxide detector with an alarm is installed on each additional level of the dwelling, building or structure
served by the side wall horizontal vented gas fueled equipment. It shall be the responsibility of the property owner to secure the services of
qualified licensed professionals for the installation of hard wired carbon monoxide detectors
a. In the event that the side wall horizontally vented gas fueled equipment is installed in a crawl space or an attic, the hard wired carbon
monoxide detector with alarm and battery back-up may be installed on the next adjacent floor level.
b. In the event that the requirements of this subdivision can not be met at the time of completion of installation, the owner shall have a period of
thirty (30) days to comply with the above requirements; provided, however, that during said thirty (30) day period, a batteryoperated carbon
monoxide detector with an alarm shall be installed.
2. APPROVED CARBON MONOXIDE DETECTORS. Each carbon monoxide detector as required in accordance with the above provisions
shall comply with NFPA 720 and be ANSI/UL 2034 listed and IAS certified.
3. SIGNAGE. A metal or plastic identification plate shall be permanently mounted to the exterior of the building at a minimum height of eight
(8) feet above grade directly in line with the exhaust vent terminal for the horizontally vented gas fueled heating appliance or equipment. The
sign shall read, in print size no less than one-half (1/2) inch in size, "GAS VENT DIRECTLY BELOW. KEEP CLEAR OF ALL
OBSTRUCTIONS".
4. INSPECTION. The state or local gas inspector of the side wall horizontally vented gas fueled equipment shall not approve the installation
unless, upon inspection, the inspector observes carbon monoxide detectors and signage installed in accordance with the provisions of 248 CMR
5.08(2)(a)1 through 4.
(b) EXEMPTIONS: The following equipment is exempt from 248 CMR 5.08(2)(a)1 through 4:
1. The equipment listed in Chapter 10 entitled "Equipment Not Required To Be Vented" in the most current edition of NFPA 54 as adopted by
the Board; and
2. Product Approved side wall horizontally vented gas fueled equipment installed in a room or structure separate from the dwelling, building or
structure used in whole or in part for residential purposes.
(c) MANUFACTURER REQUIREMENTS - GAS EQUIPMENT VENTING SYSTEM PROVIDED. When the manufacturer of Product
Approved side wall horizontally vented gas equipment provides a venting system design or venting system components with the equipment, the
instructions provided by the manufacturer for installation of the equipment and the venting system shall include:
1. Detailed instructions for the installation of the venting system design or the venting system components; and
2. A complete parts list for the venting system design or venting system.
(d) MANUFACTURER REQUIREMENTS - GAS EQUIPMENT VENTING SYSTEM NOT PROVIDED. When the manufacturer of a
Product Approved side wall horizontally vented gas fueled equipment does not provide the parts for venting the flue gases, butidentifies
"special venting systems", the following requirements shall be satisfied by the manufacturer:
1. The referenced "special venting system" instructions shall be included with the appliance or equipment installation instructions; and
2. The "special venting systems" shall be Product Approved by the Board, and the instructions for that system shall include a parts list and
detailed installation instructions.
(e) A copy of all installation instructions for all Product Approved side wall horizontally vented gas fueled equipment, all venting instructions,
all parts lists for venting instructions, and/or all venting design instructions shall remain with the appliance or equipmentat the completion of
the installation.
MA Code - CO Detector
(for the State of Massachusetts only)

P36-10 Zero Clearance Direct Vent Gas Fireplace | 7
| 7
dimensions
UNIT DIMENSIONS WITH VIGNETTE
36 1
16
"
30-1/2
36"
33
1
8
"
12 13
16
"
32 3
8
"
23
16
"
15"
(841mm)
(914mm)
(775mm)
(916mm) (381mm)
(325mm)
(56mm)
(813mm)
34-3/16
(864mm)
28-15/16
Optional 3 sided finishing trim (not shown) 38" W x 33-3/4" H

8| P36-10 Zero Clearance Direct Vent Gas Fireplace
|
8dimensions
UNIT DIMENSIONS WITH SAFETY SCREEN (#515-506) AND OPTIONAL LOUVERS
UNIT DIMENSIONS WITH VIGNETTE AND VIGNETTE FINISHING TRIM
37 1
2"
32 5
8
"
31 3
8
"
12 3
4"
14 3
4"
2"
(953mm)
(324mm)
(375mm)
(829mm)
(797mm)
1-1/4”
(26mm)

P36-10 Zero Clearance Direct Vent Gas Fireplace | 9
| 9
installation
IMPORTANT MESSAGE
SAVE THESE
INSTRUCTIONS
The P36-NG10 or P36-LP10 Direct Vent Fireplace
must be installed in accordance with these
instructions. Carefully read all the instructions in
this manual first. Consult the "authority having
jurisdiction" to determine the need for a permit prior
to starting the installation. It is the responsibility of
the installer to ensure this fireplace is installed in
compliance with manufacturer's instructions and all
applicable codes.
BEFORE YOU START
Safe installation and operation of this appliance
requires common sense, however, we are required
by the Canadian Safety Standards and ANSI
Standards to make you aware of the following:
GENERAL SAFETY
INFORMATION
1) The appliance installation must conform with lo-
cal codes or, in the absence of local codes, with
the current Canadian or National Gas Codes,
CAN1-B149 or ANSI Z223.1 Installation Codes.
2) The appliance when installed, must be electri-
cally grounded in accordance with local codes,
or in the absence of local codes with the current
National Electrical Code, ANSI/NFPA 70 or CSA
C22.1 Canadian Electrical Code.
3) See general construction and assembly in-
structions. The appliance and vent should be
enclosed.
4) This appliance must be connected to the speci-
fied vent and termination cap to the outside of
the building envelope. Never vent to another
room or inside a building. Make sure that the
vent is fitted as per Venting instructions.
5) Inspect the venting system annually for blockage
and any signs of deterioration.
6) Venting terminals shall not be recessed into a
wall or siding.
7) Any safety glass removed for servicing must be
replaced prior to operating the appliance.
8) To prevent injury, do not allow anyone who is
unfamiliar with the operation to use the fireplace.
9) Wear gloves and safety glasses for protection
while doing required maintenance.
10) Be aware of electrical wiring locations in walls
and ceilings when cutting holes for termination.
11) Under no circumstances should this appliance
be modified. Parts that have to be removed for
servicing should be replaced prior to operating
this appliance.
12) Installation and any repairs to this appliance
should be done by a qualified service person.
A professional service person should be called
to inspect this appliance annually. Make it a
practice to have all of your gas appliances
checked annually.
13) Do not slam shut or strike the glass door.
14) Under no circumstances should any solid fuels
(wood, paper, cardboard, coal, etc.) be used in
this appliance.
15) The appliance area must be kept clear and
free of combustible materials, (gases and other
flammable vapours and liquids).
Emissions from burning wood or gas could
contain chemicals known to the State of
California to cause cancer, birth defects or
other reproductive harm.
CHILDREN AND ADULTS SHOULD BE
ALERTED TO THE HAZARDS OF HIGH
SURFACE TEMPERATURES, ESPE-
CIALLY THE FIREPLACE GLASS, AND
SHOULD STAY AWAYTO AVOID BURNS
OR CLOTHING IGNITION.
INSTALLATION AND REPAIR SHOULD
BE DONE BY AN AUTHORIZED
SERVICE PERSON. THE APPLIANCE
SHOULD BE INSPECTED BEFORE
USE AND AT LEAST ANNUALLY BY A
PROFESSIONAL SERVICE PERSON.
MORE FREQUENT CLEANING MAY
BE REQUIRED DUE TO EXCESSIVE
LINT FROM CARPETING, BEDDING
MATERIAL,ETC.IT IS IMPERATIVETHAT
CONTROLCOMPARTMENTS,BURNERS
AND CIRCULATING AIR PASSAGEWAYS
OF THE APPLIANCE BE KEPT CLEAN.
DUE TO HIGH TEMPERATURES, THE
APPLIANCE SHOULD BE LOCATED
OUT OF TRAFFIC AND AWAY FROM
FURNITURE AND DRAPERIES.
WARNING: FAILURE TO INSTALL THIS
APPLIANCE CORRECTLY WILL VOID
YOUR WARRANTY AND MAY CAUSE A
SERIOUS HOUSE FIRE.
CLOTHING OR OTHER FLAMMABLE
MATERIAL SHOULD NOT BE PLACED
ON OR NEAR THE APPLIANCE.
YOUNG CHILDREN SHOULD BE CARE-
FULLY SUPERVISED WHEN THEY ARE
IN THE SAME AREA AS THE APPLI-
ANCE. TODDLERS,YOUNG CHILDREN
AND OTHERS MAY BE SUSCEPTIBLE
TO ACCIDENTAL CONTACT BURNS. A
PHYSICAL BARRIERS IS RECOMMEND-
ED IFTHERE ARE AT RISK INDIVIDUAL
INTHE HOUSE. TO RESTRICT ACCESS
TO A FIREPLACE OR STOVE, INSTALL
AN ADJUSTABLE SAFETY GATE TO
KEEP TODDLERS, YOUNG CHILDREN
AND OTHER AT RISK INDIVIDUALS OUT
OF THE ROOM AND AWAY FROM HOT
SURFACES.
ANY SAFETY SCREEN, GUARD, OR
BARRIER REMOVED FOR SERVICING
THE APPLIANCE,MUST BE REPLACED
PRIORTOOPERATINGTHEAPPLIANCE.
IFTHE BARRIER BECOMES DAMAGED,
THE BARRIER SHALL BE REPLACED
WITHTHEMANUFACTURER'SBARRIER
FOR THIS APPLIANCE.
A BARRIER DESIGNED TO REDUCE
THE RISK OF BURNS FROM THE HOT
VIEWING GLASS IS PROVIDED WITH
THIS APPLIANCE AND SHALL BE
INSTALLED FOR THE PROTECTION
OF CHILDREN AND OTHER AT-RISK
INDIVIDUALS

10 | P36-10 Zero Clearance Direct Vent Gas Fireplace
|
10 installation
HEATWAVE
DUCT SYSTEM
OPTIONAL KIT #946-556
The HeatWave Air Duct Kit increases the
effectiveness of your fireplace by dispersing warm
air from the fireplace to remote locations in the same
room or other rooms in your home.
Up to two kits may be installed on the fireplace.
Please Note: Only 1 HeatWave kit may be oper-
ated at one time. This includes the internal blower
option as well.
Diagram 1
This includes:
1) Clocking the appliance to ensure the correct
firing rate (rate noted on label 30,000 Btu/h)
after burning appliance for 15 minutes.
2) If required, adjusting the primary air to ensure
that the flame does not carbon. First allow the
unit to burn for 15-20 min. to stabilize.
CAUTION:
Any alteration to the product that causes sooting
or carboning that results in damage is not the
responsibility of the manufacturer.
7) We recommend that you plan your installation on
paper using exact measurements for clearances
and floor protection before actually installing this
appliance. Have a qualified inspector, dealer, or
installer review your plans before installation.
Note: For vent terminations see the
"Exterior Vent Termination
Locations" section.
MANUFACTURED
MOBILE HOME
ADDITIONAL
REQUIREMENTS
1) Ensure that structural members are not cut or
weakened during installation.
2) Ensure proper grounding using the #8 ground
lug provided. See the "Alternate Wiring Diagram
for Wall Switch" section.
5) This appliance is Listed for bedroom installations
when used with a Listed Millivolt Thermostat.
Some areas may have further requirements,
check local codes before installation.
6) The P36 Direct Vent Gas Fireplace is approved
for alcove installations, which meet the
clearances listed on this page.
A) Flat on Wall
B) Flat on Wall Corner
C) Recessed into Wall/Alcove
D) Corner
OPTIONAL
HEAT RELEASE KIT
#946-570
The Heat Release Kit expels warm air from the
fireplace to the outside of the building, allowing
the fireplace to be operated with less heat entering
the room. The kit may be used on either the left or
right side.
The HeatWave Duct Kit has different
clearance and framing requirements, check
the HeatWave manual for details.
INSTALLATION
CHECKLIST
1) Locate appliance. Refer to the following
sections:
a) Locating Your Gas Fireplace
b) Clearances
c) Combustible Mantel Clearances
d) Framing & Finishing
e) Venting
2) Assemble Top Standoffs and Top Facing
Support and Side Nailing Strips (Refer to the
"Unit Assembly Prior to Installation" section).
NOTE: Must be done before installing unit into
fireplace.
3) Install vent (Refer to the "Venting" sections).
4) Install 4-AA batteries into receiver. Hook
receiver to wire marked receiver. This will
enable operation of the appliance manually
when positioned in the "ON" position.
5) Make gas and electrical connections. Test the
pilot. Must be as per diagram (Refer to the "Pilot
Adjustment " section).
Convert to propane if desired (Refer to the "SIT
Valve Description" section).
6) Install standard and optional features. Refer
to the following sections where applicable:
a. Optional Brick Panels
b. Log Set Installation
c. Standard Flush Door
d. Vignette Faceplate
e. Remote Control
f. Remote Receiver & Wall Switch
g. Fan Installation
h. Louvers and Safety Screen
7) Final check.
Before leaving this unit with the customer, the
installer must ensure that the appliance is firing
correctly and operation fully explained to
customer.
LOCATING YOUR
GAS FIREPLACE
1) When selecting a location for your fireplace,
ensure that the clearances outlined on this page
are met.
2) Provide adequate clearances for servicing.
3) The appliance must be installed on a flat, solid,
continuous surface (e.g. wood, metal, concrete).
This may be the floor, or raised up on a platform
to enhance its visual impact. If the appliance is
going to be installed on carpeting, combustible
linoleum tile or other combustible material other
than wood flooring, the appliance must be
installed on a metal or wood panel extending
the full width and depth of the appliance.
4) The P36 Direct Vent Gas Fireplace can be
installed in a recessed position or framed out
into the room as in A, B, C, D. See
Diagram 1.

P36-10 Zero Clearance Direct Vent Gas Fireplace | 11
| 11
installation
WARNING: Fire hazard is an extreme risk if these clearances are not adhered to.
The clearances listed below are Minimum distances unless otherwise stated:
A major cause of chimney related fires is failure to maintain required clearances (air space) to combustible materials. It is of the greatest
importance that this fireplace and vent system be installed only in accordance with these instructions.
Clearance to Combustibles from:
Back 0" (0mm)
Side 0" (0mm)
Floor 0" (0mm)
NOTE: The minimum oor clearance must be maintained from the top surface of the carpeting, tile, etc.
Minimum Clearance from Top of Unit to:
Ceiling from top of unit. 32" (1016mm)
Side Wall Clearances 6"* (152mm)
* Measured from edge of unit.
Horizontal Vent Clearances:
Top 2" (51mm)
Side 1-1/2" (38mm)
Bottom 1-1/2" (38mm)
Vertical Vent Clearances 1-1/4" (32mm)
Alcove Clearances**:
Max. Depth 36" (914mm)
Min. Width 48" (1219mm)
Min. Height 72" (1829mm)
The HeatWave Duct Kit and the Heat
Release Kit have different clearance
and framing requirements, check the
HeatWave and Heat Release manual
for details.
Heat Release Kit
CLEARANCES

12 | P36-10 Zero Clearance Direct Vent Gas Fireplace
|
12 installation
Min. 6"
(152mm)
30-1/2" (775mm)
Top of Unit
Min. 32" (1016mm)
to Ceiling"
CLEARANCES
MANTEL LEG CLEARANCES
Combustible mantel leg clearances as per diagram:
Maximum 1-1/2" projection at 2" minimum clearance.

P36-10 Zero Clearance Direct Vent Gas Fireplace | 13
| 13
installation
COMBUSTIBLE MANTEL CLEARANCES
MANTEL CLEARANCES WITH
SAFETY SCREEN AND LOUVERS
Because of the extreme heat this replace emits, the mantel clearances are critical.
Combustible mantel clearances from top of unit are shown in the diagram below.
Note: Mantel starts at *1" deep and ends at *12" deep. **For Vignette with Vignette Finishing Trim ush nish, all materials (framing & nishing) below
the mantel and the width of the Vignette nishing trim, (37 1/2") must be non-combustible if a lower mantel is desired.
Note: Ensure the paint that is used on the mantel and the facing is "heat resistant" or the paint may discolour.
No Vignette nishing
trim. Finished ush to the
appliance
MANTEL CLEARANCES WITH
VIGNETTE ONLY (No Vignette Finishing Trim)
MANTEL CLEARANCES WITH VIGNETTE +
VIGNETTE FINISHING TRIM STEPPED FINISH
Vignette nishing
trim stepped nish.
Finished material
ush to appliance
MANTEL CLEARANCES WITH
VIGNETTE + VIGNETTE FINISHING TRIM
FLUSH FINISH
Vignette nishing
trim, ush nish.
Finished material
ush to Vignette
nishing trim.

14 | P36-10 Zero Clearance Direct Vent Gas Fireplace
|
14 installation
Install Side Nailing Strips, Top Facing
Support, and Top Standoffs before unit is
slipped into position. See the "Unit As-
sembly Prior to Installation" section for
assembly details.
FRAMING
3) For exterior walls, insulate the enclosure to the
same degree as the rest of the house, apply
vapour barrier and drywall, as per local instal-
lation codes. (Do not insulate the fireplace
itself.)
4) The top of the unit must not be closer than 32"
(813mm) to the ceiling.
Note: Secure the non-combustible board (supplied)
directly above the unit as shown. Install a steel stud
directly above the unit as shown to secure the non
-combustible material.
3 - /8"1 3
(82 mm)2
37-7/16"
(951mm)
Non-combustible
Material (supplied)
Steel stud on edge
2nd Steel stud on edge
(install after unit in place)
12"
(305mm)
Wood stud
Wood stud
Drywall
Diagram 1 Diagram 2
Diagram 4 Diagram 5
Vignette + Vignette Finishing Trim Flush Finished
Vignette + Vignette Finishing Trim or Vignette Only
NOTE: If using ush louvers and safety screen the steel studs and non-combustible material are not required. Wood studs and drywall
may be used. See framing and nishing for details.
Non- combustible
1) Determine the total thickness of facing material (e.g. non combustible plus ceramic tiles) to allow the nished surface to be ush with the front of the unit.
Total facing thickness can vary from 1/2" (13mm) to 1-1/4" (32mm) thick with Vignette only, Vignette + Vignette Finishing Trim Stepped Finish and Safety
Screen and Louvers. When installing the Vignette + Vignette Finishing Trim Flush Finish the facing thickness is up to maximun of 3".
2) Add a second steel stud at midpoint for ease of installation/securing the non combustible board. See Diagrams 1 & 2.
Shown with Vignette Faceplate
Only. No Vignette Finishing Trim
Shown with Vingette and
Vignette Finishing Trim,
Flush Finished

P36-10 Zero Clearance Direct Vent Gas Fireplace | 15
| 15
installation
Frame in the enclosure for the unit with framing
material. The framed opening is 40-3/4" high
x 36-1/4" wide x 12-3/4" deep (1036mm high
x 921mm wide x 324mm deep).
Frame in the enclosure for the unit with framing
material. The framed opening is 41-5/8" high x
38" wide x 14-3/4" deep (1057mm high x 965mm
wide x 375mm deep).
All other framing may be of combustible
materials, i.e. 2 x 4, 2 x 6
All other framing may be of combustible
materials, i.e. 2 x 4, 2 x 6
Vignette Framing Dimensions
ABCD
36-1/4" 40-3/4" 12-3/4" 46"*
921mm 1036mm 324mm 1168mm*
* 'D' is Minimum height to combustible materials
including the Minimum 2" (51mm) Top clearance
to the Horizontal Vent.
Vignette + Finishing Trim - Flush Finish
Framing Dimensions
ABCD
38" 41-5/8" 14-3/4" 46"*
965mm 1057mm 375mm 1168mm*
* 'D' is Minimum height to combustible materials
including the Minimum 2" (51mm) Top clearance
to the Horizontal Vent.
Safety Screen + Louvers
Framing Dimensions
ABCD
36-1/4" 36-1/4" 12-3/4" 46"*
921mm 921mm 324mm 1168mm*
* 'D' is Minimum height to combustible materials
including the Minimum 2" (51mm) Top clearance
to the Horizontal Vent.
Diagram 1 Diagram 3 Diagram 5
Diagram 6
Diagram 2 Diagram 4
B
Steel stud on edge
A
C
D
*Minimum Height
to Combustible
Material
Steel stud on
edge
B
Steel stud on edge
A
C
D
*Minimum Height
to Combustible
Material
Frame in the enclosure for the unit with framing
material. The framed opening is 36-1/4" high
x 36-1/4" wide x 12-3/4" deep (921mm high x
921mm wide x 324mm deep).
FRAMING WITH
VIGNETTE FACEPLATE/VIGNETTE
FINISHING TRIM, STEPPED FINISH
FRAMING WITH VIGNETTE
FACEPLATE & FINISHING TRIM
FINISHED FLUSH
FRAMING WITH
LOUVERS AND SAFETY SCREEN
NOTE: If using the optional Vignette nishing trim, this can be installed as a 3-sided or 4 sided nish trim. If choosing to use this as a 4 sided nish trim the
framing would need to be increased by 1-1/4" inches minimum in order for this to t. This must be to the nished oor. (Eg: Diagram 2 B= 40-3/4" framing
height + 1-1/4". Bottom of 4-sided nishing trim +1/2 thick nished oor = 42-1/2".
If choosing to nish this appliance as a ush nish (Diagram 4) when using the Vignette along with the Vignette nishing trim, see installation
instructions in this manual for details on installation,framing and nishing.

16 | P36-10 Zero Clearance Direct Vent Gas Fireplace
|
16 installation
FINISHING
Non-combustible
Material
J-styleTrim
or metal corner bead
may be used to nish these
edges
Combustible
Material
Combustible
Material
Diagram 2
IMPORTANT FINISHING DETAIL NOTE:
Before placing unit into nal position - it is important to know the total
thickness / height of nished hearth (tile, carpet, etc.) The base of the
replace should be level or higher than the nished hearth height.
Diagram 3 Shown with optional nishing trim
Note: All non-combustible and combustible facing material should
butt up cleanly to the anges around the rebox opening.
Rough edges will be visible from the front view with the Vignette
faceplate - if not using the optional nishing trim.
To maintain a clean nished edge - it is recommended to install
the combustible facing material with the nished edge against the
replace / nailing strips.
Alternatively, you can use J Style Trim or Metal Corner Bead
to cover cut edges of the non-combustible facing material.
38
"
33 3
4
"
Diagram 1
Note: 40-1/2" (1029mm) is the minimum height
for both ex termination or rigid pipe
venting.
Note: The unit does not have to be completely
enclosed in a chase. The clearance on
top of the unit is 0" to the standoffs so
combustible building materials can be
laid directly on top of the standoffs. You
must maintain 1-1/2" (38mm) clearance
from the vent to combustible materials
for ex (1-1/4" for Rigid Pipe).
Use steel studs for framing where the 1-1/2"
(38mm) clearance from the vent to combustible
material cannot be maintained, e.g. front top
header.
Diagram 3

P36-10 Zero Clearance Direct Vent Gas Fireplace | 17
| 17
installation
WALL MOUNT ON / OFF SWITCH AND REMOTE RECEIVER INSTALLATION
REQUIRED FOR ALL INSTALLATIONS - INCLUDING PROFLAME REMOTE CONTROLS
J-Box
Receiver
Wall Plate
Slider Switch
Low Voltage Junction Box
Diagram 1
10 ft. wire harness with
12 pin connector
IMPORTANT INSTALLATION NOTE:
The Receiver must be placed inside the supplied (Low Voltage)
junction type wall box and installed into the wall only.
DO NOT INSTALL WITHIN THE CONFINES OF THE FIREPLACE.
Remote Receiver Installation
1. Install the low voltage junction box to the framing, at desired location within 10 ft. from fi replace.
2. Feed the 12 pin connector through the opening at back of junction box.
3. Connect the 12 pin connector to the back of the receiver.
4. Install the Receiver in the Low Voltage Junction box.
5. Insert the 4 AA type batteries in the battery compartment with the correct polarity.
6. Place the slider into the cover plate.
7. Put the Receiver switch in the “OFF” position, to allow correct lineup for slider switch.
8. Make sure the Receiver and cover plate words “ON” and “UP” are on the same side.
9. Align the slider with the switch on the Receiver and couple the switch into the slider.
10. Align the screw holes.
11. Using the two (2) screws provided secure the cover plate to the Receiver.
Proflame Receiver

18 | P36-10 Zero Clearance Direct Vent Gas Fireplace
|
18 installation
Side
Nailing Strips
"C" Screw Position:
For a facing material depth of 1-1/4" (32mm), the
top facing support must be reversed.
UNIT ASSEMBLY
PRIOR TO
INSTALLATION
The Top Facing Support, the Side Nailing Strips
and the 2 Top Standoffs must be correctly
positioned and attached to the top before unit
is slipped into position.
Top Standoff Assembly
The top standoffs are shipped in a flat position
and must be folded into shape and attached.
1) Remove the standoffs from the fireplace top.
2) Take each standoff and bend into the correct
shape. Bend up at the bend lines until the
screw holes in the standoff and the pre-
punched screw holes on the fireplace top
line up.
3) Attach the standoff securely to the top with
2 screws per standoff (on opposite corners).
VENTING
INTRODUCTION
The P36-10 uses the "balanced flue"
technology Co-Axial system. The inner liner vents
products of combustion to the outside while the
outer liner draws outside combustion air into the
combustion chamber thereby eliminating the
need to use heated room air for combustion and
losing warm room air up the chimney.
Note: These flue pipes must not be
connected to any other appliance.
The gas appliance and vent system must be
vented directly to the outside of the building,
and never be attached to a chimney serving a
separate solid fuel or gas burning appliance.
Each direct vent gas appliance must use it's own
separate vent system. Common vent systems
are prohibited.
NAILING STRIPS
Determine the total thickness of facing material
(e.g. non combustible plus ceramic tiles) to allow
the finished surface to be flush with the front of
the unit. Total facing thickness can vary from
1/2" (13mm) to 1-1/4" (32mm) thick.
The Top Facing Support can be mounted in 3
different positions depending on the thickness
of the facing material.
Side
Nailing Strips
2) Fold out the two nailing strips on each side.
If finishing flush with the VIgnette Finishing Trim
-bend nailing strips around side trim pieces as
shown below.
1) Mount Top Facing Support using the
3 supplied screws into the three pre-
punched screw holes on the top front of
the unit. Use hole positions A, B, or C
depending on your facing depth.
Screw
Position
Facing Material
Depth
A 1/2" / 13mm
B 7/8" / 22mm
C* 1-1/4" / 32mm
* For "C" screw position the top facing
support is reversed.
NOTE:
If finishing flush with the VIgnette Finishing Trim -
remove top nailing strip (facing support) if already
installed and use the nailing strip supplied with
the Trim.
Nailing strip
supplied with
trim
Remove
Nailing strip
from unit if
installed
Side
nailing
strips bent.

P36-10 Zero Clearance Direct Vent Gas Fireplace | 19
| 19
installation
EXTERIOR VENT TERMINATION LOCATIONS
Minimum Clearance Requirements Canada1USA2
AClearance above grade, veranda, porch, deck, or balcony 12"(30cm) 12"(30cm)
BClearance to window or door that may be opened 12"(30cm) 9" (23cm)
CClearance to permanently closed window * *
DVertical clearance to ventilated soffit located above the terminal within a horizontal distance of 2 feet (61cm)
from the center line of the terminal (check with the local code)
18"(46cm) 18"(46cm)
EClearance to unventilated soffit 15"(38cm) 15"(38cm)
FClearance to outside corner: with AstroCap Termination Cap. 6"(15cm) 6"(15cm)
Clearance to outside corner: with all other approved Termination Caps. 14"(36cm) 14"(36cm)
GClearance to inside corner: with AstroCap Termination Cap 6"(15cm) 6"(15cm)
Clearance to inside corner: with all other approved Termination Caps. 12"(30cm) 12"(30cm)
HClearance to each side of center line extended above meter/regulator assembly 36"(90cm)a*
JClearance to service regulator vent outlet 36"(90cm) *
KClearance to non-mechanical air supply inlet to building or the combustion air inlet to any other appliance 12"(30cm) 9" (23cm)
LClearance to a mechanical air supply inlet
#3' (91cm) above if within 10' (3m) horizontally.
72"(1.8m) 36"(90cm)b
MClearance above paved sidewalk or a paved driveway located on public property 84"(2.1m)┼*
NClearance under veranda, porch, deck, or balcony 12"(30cm)‡*
1 In accordance with current CSA B149.1, Natural Gas and Propane Installation Code
2 In accordance with the current ANSI Z223.1/NFPA 54, National Fuel Gas Code
┼ A vent shall not terminate directly above a sidewalk or paved driveway which is located between two single family dwellings and serves both dwellings.
‡ Permitted only if veranda, porch, deck, or balcony is fully open on a minimum of two sides beneath the floor.
* Clearance in accordance with local installation codes and the requirements of the gas supplier
a 3 feet (91cm) within a height of 15 feet (4.5m) above the meter / regulator assembly
b 3 feet (91cm) above - if within 10 feet (3m) horizontally

20 | P36-10 Zero Clearance Direct Vent Gas Fireplace
|
20 installation
VENTING
DIRECT VENT SYSTEM (FLEX)
HORIZONTAL TERMINATIONS ONLY
These venting systems, in combination with the P36 Direct Vent Gas Fireplace, have been tested and listed as a direct vent heater system by
Warnock Hersey. The location of the termination cap must conform to the requirements in the Vent Terminal Locations diagram in the "Exterior Vent
Termination Locations" section.
Regency Direct Vent (Flex) System Termination Kit (Part # 946-515) includes all the parts needed to install the P36 with a maximum run
of 4 feet.
1) 6-7/8" dia. flexible liner (4 ft. length)
2) 4" dia. flexible liner (4 ft. length)
3) spring spacers (4)
4) thimble (2)
5) AstroCap termination cap (1)
6) screws (12)
7) tube of Mill Pac (1)
8) plated screws (8)
9) screws #8 x 1-1/2" Drill Point, Stainless
Steel (4)
1) 6-7/8" dia. flexible liner (10 ft. length)
2) 4" dia. flexible liner (10 ft. length)
3) spring spacers (7)
4) thimble (2)
5) AstroCap termination cap (1)
6) screws (12)
7) tube of Mill Pac (1)
8) plated screws (8)
9) screws #8 x 1-1/2" Drill Point, Stainless
Steel (4)
If longer runs are needed, the Regency Direct
Vent system (Flex) # 946-516 includes all
the parts needed to install the P36 with a
maximum 10' run.
Notes:
1) Liner sections should be continuous without any joints or seams.
2) Only Flex pipe purchased from Regencymay be used for Flex installations.
3) If you are installing the P36 into a Regency Cabinet Mantel Kit, use the minimum horizontal vent height (centre-line of 40-1/2").
Remember to include the mantel base (3" in height) in your calculations and to maintain the 2" clearance to the underside of the
mantel top.
