Regency Fireplace Products DVi34L Series Quick start guide

PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE
REFERENCE
Models: DVi34LNG
DVi34LLPG
DVi34LULPG
Owners &
Installation
Manual
06/05/20
LISTINGS AND CODE APPROVALS
These gas appliances have been tested in
accordance with AS/NZS 5263.0 & AS/NZS
5263.1.3 and have been certied by the
Australian GasAssociation for installation and
operation as described in these Installation
and Operating Instructions. Must be installed
as per AS/NZS5601.
Your unit should be serviced annually by
an authorised service person.
920-236b
DVi34L GAS INBUILT
FOR YOUR SAFETY
What to do if you smell gas:
Do not try to light any appli-
ance
Do not touch any electri-
cal switch: do not use any
phone in your building.
Immediately call your gas
supplier from a neighbour's
phone. Follow the gas sup-
plier's instructions.
If you cannot reach your
gas supplier, call the re
department.
WARNING:
Improper installation, adjustment, altera-
tion, service or maintenance can cause
injury or property damage. Refer to this
manual. For assistance or additional in-
formation consult an authorised installer,
service agency or the gas supplier.
FOR YOUR SAFETY
Do not store or use gasoline or other am-
mable vapours and liquids in the vicinity of
this or any other appliance.
Installation and service must be performed
by an authorised installer, service agency or
the gas supplier.

2Regency DVi34L Gas Inbuilt Fireplace
REGENCY
GAS INBUILT FIREPLACE
TO THE NEW OWNER
Congratulations! You are the owner of a state-of-the-art Gas Inbuilt Fireplace by FPI. The Regency
Gas Fireplace Series of appliances has been designed to provide you with all the warmth and
charm of a fireplace, at the flick of a switch. The model DVi34L of this series has been approved
by Australian Gas Association for both safety and efficiency. As it also bears our own mark, it
promises to provide you with economy, comfort and security for many trouble free years to follow.
Please take a moment now to acquaint yourself with these instructions and the many features of
your Regency Fireplace.
PAIRING YOUR REMOTE CONTROL
The control box will only learn the Remote ID codes during the first 30 seconds after power is applied
and will ignore this special command from the Remote after the first 30 seconds.
To match the control box to the remote, follow the steps below :
1. Remove a battery from the remote handset.
2. Remove main power to the control box by turning off the isolation switch or switch on the GPO to
the heater.
3. Wait 30 seconds (approx.).
4. Reconnect main power to the control box.
5. Immediately put the battery back in the remote & point the remote in the direction of the heater.
6. Press and hold the PROG and FAN buttons simultaneously. The
letters “LC” will appear on the display indicating the ID codes have
been transmitted.
7. Release both buttons.
8. The display will revert back to the normal off mode display. The
heater should light – spark, burner, etc even though the remote
screen says the heater is off.
9. Press the Off button on the remote. The heater should turn off.
10. Wait approx. 30 seconds turn the on again & check all the functions
work – fan speed can be adjusted, flame height can be adjusted, etc.
Note: To view a step-by-step pairing video please visit
regency-fire.com.au/Customer-Care/Fireplace-Care-Videos
Note: The Remote Control Handset has a set of unique ID codes that is
pre-programmed into its memory. This set of ID codes helps to differen-
tiate one Remote Control Handset from another so that only the control
box with a matching ID code will respond to the appropriate Remote
Control Handset.
regency.com.au
The control box will only learn the remote ID codes during the first 30
seconds after power is applied. After the first 30 seconds, the control
box will ignore this special command.
The remote control handset has a set of unique ID codes that are pre-
programmed into its memory. This set of ID codes helps differentiate one
remote control handset from another; only the control box with a matching
ID code will respond to the appropriate remote control handset.
To match the control box, follow these steps:
1. Ensure the remote is siwtched off.
2. Remove the main power to the control box.
3. Reconnect the main power to the control box.
4. Press and hold the PROG and FAN buttons simultaneously. The tem-
perature display will show the letters "LC", indicating the ID codes were
transmitted, then revert to the normal off mode display.
5. Release the PROG and FAN buttons.
The control box will only learn the remote ID codes during the first 30 sec-
onds after power is applied and will ignore this special command from the
remote afterward.
Note: The pairing process can be carried out by anyone.
Note: Please visit www.regency-fire.com.au to see the pairing video.
Fan Operation
The fan must be on at all times while the unit is in operation. This model
offers a two-speed fan.
PAIRING YOUR REMOTE CONTROL

3
Regency DVi34L Gas Inbuilt Fireplace

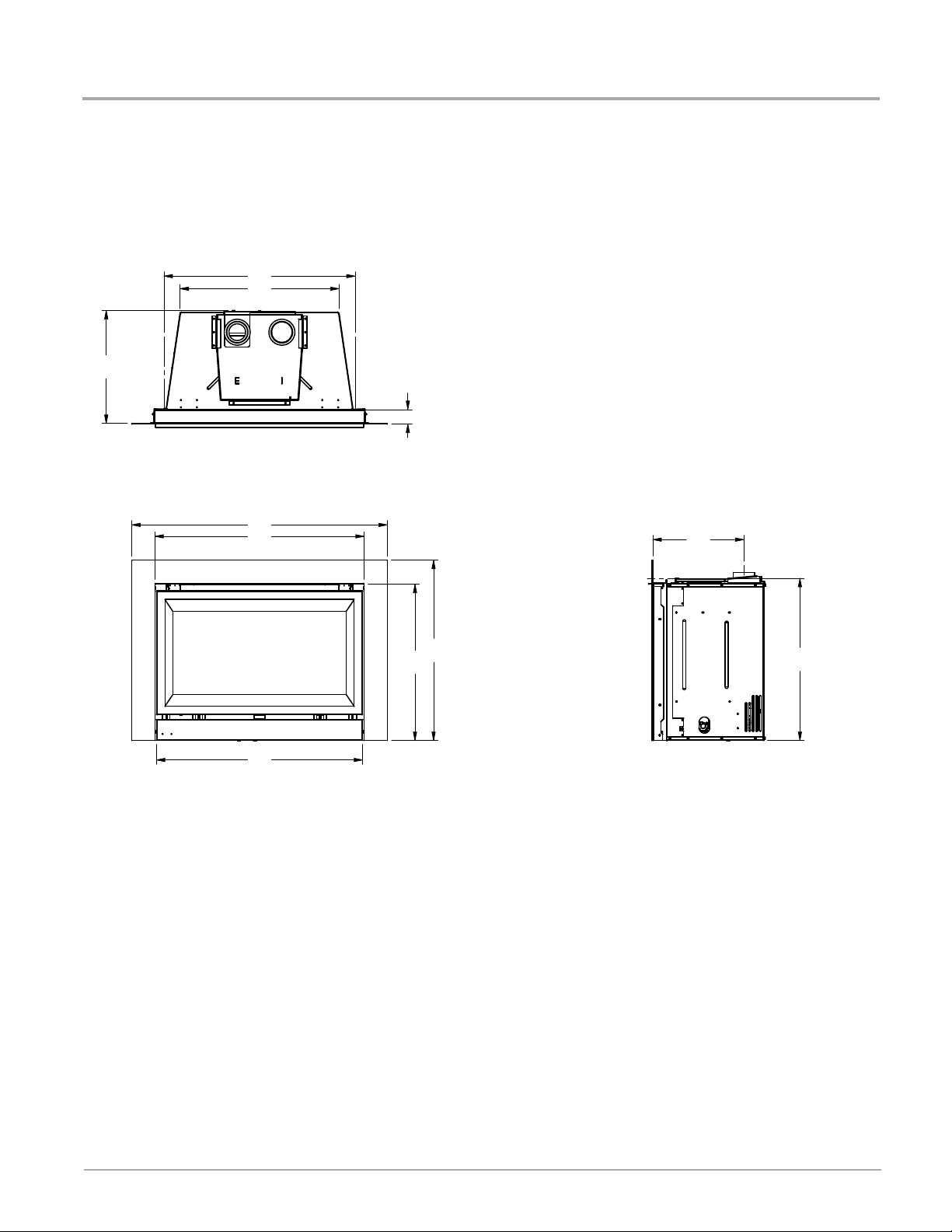

UNIT DIMENSIONS - FLUSH INSTALL
CHK
PROCESS :
SCALE:
DWN
BLANK SIZE :
SIGNC.N. DATE
THIS DRAWING IS THE PROPERTY OF FPI LTD., IT MAY NOT BE COPIED IN WHOLE OR IN PART, OR DISCLOSED TO A THIRD PARTY WITHOUT OUR PRIOR WRITTEN CONSENT.
CURRENT REVISION
PREVIOUS REVISION
PART :
MAT'L :
ANGULAR =
INSIDE BEND RADII =
UNITS IN INCHES
DIMENSIONS =
TOLERANCES UNLESS
OTHERWISE STATED
SCALE
DO NOT
PROJECTION
3RD ANGLE
MODEL # QTY.
REV.
±1°
±0.031
PART
NO.
FIREPLACE PRODUCTS INTERNATIONAL
7/4/2019
SEE ABOVE
SHEAR/ PUNCH/ FORM
337-500
PY
337-500
DVi34 GAS INSERT
-
1:12
680
324
565
401
52
576
555
909
640
733
744
DIMENSIONS

4Regency DVi34L Gas Inbuilt Fireplace
UNIT DIMENSIONS - WITH SPACER
CHK
PROCESS :
SCALE:
DWN
BLANK SIZE :
SIGNC.N. DATE
THIS DRAWING IS THE PROPERTY OF FPI LTD., IT MAY NOT BE COPIED IN WHOLE OR IN PART, OR DISCLOSED TO A THIRD PARTY WITHOUT OUR PRIOR WRITTEN CONSENT.
CURRENT REVISION
PREVIOUS REVISION
PART :
MAT'L :
ANGULAR =
INSIDE BEND RADII =
UNITS IN INCHES
DIMENSIONS =
TOLERANCES UNLESS
OTHERWISE STATED
SCALE
DO NOT
PROJECTION
3RD ANGLE
MODEL # QTY.
REV.
±1°
±0.031
PART
NO.
FIREPLACE PRODUCTS INTERNATIONAL
7/4/2019
SEE ABOVE
SHEAR/ PUNCH/ FORM
337-500
PY
337-500
DVi34 GAS INSERT
-
1:12
680
324
555
909
640
733
744
565
401
52
576
DIMENSIONS

5
Regency DVi34L Gas Inbuilt Fireplace
TABLE OF CONTENTS
OWNER'S INFORMATION
Paring Your Remote Control ..........................................2
UNIT DIMENSIONS
Unit Dimensions-Flush Install .......................................3
Unit Dimensions-With Spacer ........................................4
DATA BADGE
Copy of Data Badge .....................................................6
INSTALLATION
Important Message ........................................................7
Before You Start .............................................................7
Installation Checklist ......................................................7
For Your Safety ..............................................................7
Materials Required ........................................................7
Minimum Fireplace Opening ..........................................8
Clearances To Combustibles .........................................9
Gas Connection ............................................................9
Flueing ...........................................................................9
Flue Liner Installation ..................................................10
Gas Pipe Pressure Testing ..........................................10
Installation in Masonry or Zero Clearance Chimney ....11
System Data ................................................................12
Aeration Settings .........................................................12
Conversion from NG to Propane/ULPG.......................13
Log Set Installation ......................................................14
Glass Door installation .................................................18
Faceplate & Safety Screen Installation ........................19
Optional Spacer Installation .........................................20
Final Check ..................................................................21
Wiring ..........................................................................21
OPERATING INSTRUCTIONS
Operating Instructions .............................................22
Lighting Instructions .................................................22
Shutdown Instructions ..............................................22
First Fire ...................................................................22
Remote Control .......................................................22
Summary of Controls ...............................................22
Fan Operation ...........................................................22
Adjusting Flame Height ............................................22
Copy Of Lighting Instruction Plate ............................23
Normal Operating Sounds Of Gas Appliances .........23
Resetting the unit ......................................................23
MAINTENANCE
Maintenance Instructions .........................................24
Log Replacement .....................................................24
Door Glass Replacement .........................................24
Glass Gasket ............................................................24
Fan Maintenance ......................................................25
Valve Assembly Replacement ..................................26
Inner Panel Removal and Installation .......................27
PARTS LIST
Electronic Components Parts List ............................28
Main Assembly .........................................................29
Faceplate Assembly .................................................31
WARRANTY
Warranty ...................................................................32

6Regency DVi34L Gas Inbuilt Fireplace
DATA BADGE
This is a copy of the label that accompanies each Regency DVi34L
Gas Inbuilt replace. We have printed a copy of the contents here for
your review.
DATA BADGE NOTE: Regency units are constantly being improved.
Check the label on the unit and if there is a di󰀨erence, the label on the
unit is the correct one.
Part #: 920-243a
Colour: Black on Grey
Size: 100%
Mar. 26/20 - created decal
Apr 30/20 updated MJ/h to kPa for min supply pressure
Electrical: 240VAC 50Hz 1.0 amp
Serial
Number
920-243a
N2134
Regency Gas Fireplace
Gas Type NG PROPANE ULPG
Model DVi34LNG DVi34LLP DVi34LULPG
Gas Consumption High 31.7 MJ/h 30.6 MJ/h 26.4 MJ/h
Gas Consumption Low 21.1 MJ/h 25.1 MJ/h 20.9 MJ/h
Min. Supply Pressure 1.13 kPa 2.75 kPa 2.75 kPa
Manifold Pressure High 0.87 kPa 2.51 kPa 2.51 kPa
Manifold Pressure Low 0.40 kPa 1.6 kPa 1.6 kPa
Injector Size 1 x #37 1 x #52 1 x #53
2.64 mm 1.61 mm 1.51 mm
Model
Approval No. AGA 7469 G SUITABLE ONLY FOR INDOOR INSTALLATION
539
Western Australia:
Air Group Australia
28 Division St
Welshpool, WA 6106
Eastern Australia
Fireplace Products
Australia Pty. Ltd.
1 Conquest Way
Hallam, VIC 3803
New Zealand:
Aber Holdings
17 Main Street Place
Te Rapa, HA 3200
To be installed by an authorised person in accordance
with installation instructions provided with the
appliance.
AS/NZS 5263.0 & AS/NZS 5263.1.3

7
Regency DVi34L Gas Inbuilt Fireplace
INSTALLATION
IMPORTANT MESSAGE
The Regency Gas Inbuilt must be installed in
accordance with these instructions. Carefully
read all the instructions in this manual rst.
Note: Failure to follow these instructions
could cause a malfunction of the
heater which could result in death,
serious bodily injury, and/or prop-
erty damage. Failure to follow these
instructions may also void your re
insurance and/or warranty.
FOR YOUR SAFETY
This appliance requires air for proper combus-
tion. Always provide adequate combustion and
ventilation air. Follow instructions and informa-
tion in the current AS/NZS5601 or local codes.
Consult the "authority having jurisdiction" to
determine the need for a permit prior to starting
the installation.
BEFORE YOU START
Installation is to be carried out ONLY by an
authorised person.
1) The appliance shall be installed in accord-
ance with the manufacturer's installation
instructions, local gas tting regulations,
municipal building codes, water supply
regulations, electrical wiring regulations,
with AS/NZS5601.
2) Installation and repair should be done
ONLY by an authorised person.
3) The appliance should be inspected before
use and at least annually by an authorised
service person. More frequent cleaning may
be required due to excessive lint from carpet-
ing, bedding material, etc. It is imperative
that control compartments, burners and
circulating air passageways of the appliance
be kept clean and free from excessive lint
from carpeting.
4) See general construction and assembly
instructions. This appliance may only be in-
stalled in a ued, non-combustible replace.
The appliance and ue should be enclosed
when installed or passing through a living
area, where children may come in contact
with it.
5) Always connect this space heater to a chim-
ney and ue to the outside of the building
envelope. Never ue to another room. Make
sure that the ue is properly sized and is of
adequate height to provide the proper draft.
6) Inspect the ueing system annually for
blockage and any signs of deterioration.
7) Any safety glass removed for servicing must
be replaced prior to operating the appliance.
8) To prevent injury, do not allow anyone who
is unfamiliar with the operation to use the
replace.
MATERIALS REQUIRED
A 240 Volt AC power cord is hooked up to the
unit. Plug 3 wire cord into a suitable receptacle.
Do not cut the ground terminal o󰀨 under any
circumstances.
When connected with 240 volts, the appliance
must be electrically grounded in accordance
with local codes.
This unit is polarity sensitive and will not
operate if polarity is incorrect.
WARNING:
Suitable for installation into a masonry
replace only.
INSTALLATION
CHECKLIST
Before installing vent system ensure that the
damper plate is open and secure to prevent the
damper plate from falling down and crushing
the liner.
The FPI Gas Inbuilt is installed as listed.
1) Check all clearances to combustibles, (Refer
to sections "Minimum Fireplace Dimensions
and Clearances to Combustibles)
2) Make the gas connection. (Refer to section
"Gas Connection")
3) Install the 3" (76.2mm) ue liner to the sliding
connector plate. (Refer to section "Flue Liner
Installation.")
4) Slide the unit half way into the replace.
5) Pull the vent connector plate through the
tapered brackets and fasten to the front plate.
Refer to section "Flue Liner Installation.")
6) Slide the unit fully into the replace.
7) Test gas pressure (Refer to section "Gas
Pipe Pressure Testing"). Check aeration
system (Refer to section "Gas Insert Aeration
System").
8) Install standard and optional features. Refer
to the following sections:
a. Log Set
b. Faceplate & Door Trim
c. Inner Stainless Panels
9) Final check: Before leaving this unit with the
customer, the installer must ensure that the
appliance is ring correctly. This includes:
a) Clocking the appliance to ensure the
correct ring rate.
b) Adjusting the primary air and restrictor
settings, if required, to ensure that the
ame does not carbon.
NOTE:
TO BE INSTALLED ON A
NON- COMBUSTIBLE FLOOR.
PACKAGING: The unit and its contents are
packaged to prevent damage during trans-
port. After unboxing, remove the cardboard
spacers and plastic wrap and recycle or
dispose of them properly. Carefully remove
the logs from inside the unit before commis-
sioning it; unwrap each log and set aside.
Refer to subsequent instructions on proper
set up and safety check before commission-
ing the unit.

8Regency DVi34L Gas Inbuilt Fireplace
Lintel Depth (mm)
-A-
Height (mm)
-B-
Width Front (mm)
-C-
Depth (mm)
-D-
Width-Back (mm)
-E-
Fascia flush (no spacer) 275 586 780 406 600
Fascia with spacer 223 586 680 353 600
Lintel depth
-A-
Height
-B-
Width
-
Front
-C-
Depth
-D-
Width
-
Back
-E-
Fascia flush
273
586
780
406
6
00
Fascia With
Spacer
223
586
68
0
35
3
600
Minimum fireplace Opening
Date: 21/11/2019
MINIMUM FIREPLACE OPENING
The minimum replace openings for the Regency DVi34L gas space heater are shown below:
INSTALLATION

9
Regency DVi34L Gas Inbuilt Fireplace
Air
Intake
Minimum 2.4 m
Maximum 10.7 m
Exhaust
Flue
April 13/99
revised as per Joe G.
June 10/99 revised as per Jan. S.
Oct.22/99: removed "Canadian Installations from Ventng2.eps
Canadian Installations
Check local
codes whether
a continuous
length is
required or if
certified joiner
kits may
be used.
#948-640
Termination
Cap (46DVA-VCH)
Adaptor (46DVA-GK)
FLUEING
This appliance is designed to be attached to two
76 mm co-linear aluminium ex running the full
length of the chimney. The ue length must be
a minimum length of 2.44 m and a maximum of
10.7 m. See chart below for minimum distances
from roof. Periodically check that the vent is
unrestricted.
Masonry chimneys may take various contours
which the exible liner will accommodate.
However, keep the exible liner as straight as
possible, avoid unnecessary bending.
The Air Intake pipe must be attached to the inlet
air collar of the termination cap.
GAS CONNECTION
GAS CONNECTION WARNING:
Only persons licensed to work
with gas piping may make the
necessary gas connections
to this appliance.
1) If the appliance is to be installed into an
existing chimney system, thoroughly clean
the masonry replace.
2) The appliance is provided with an opening
on the right hand side of the control
compartment. The 9.5 mm exible gas hose
provided needs to be brought in from behind
this opening. Ensure all gas connections
are tight.
3) Locate the center point where the vent
will pass through the chimney above the
appliance. Move the appliance into the
exact location where it is to be installed.
Ensure that the Insert is level.
INSTALLATION
305 mm Mantel
89 mm
Mantel
535 mm
610 mm
to floor
Top
Faceplate
51
0
305 152 102
203
254
51
0
305
152
406
102
356
203
457
254
Side View
330 mm
508
559
Mantel Clearances
Note: A non-combustible mantel may be
installed at a lower height if the fram-
ing is made of metal studs covered
with a non-combustible board.
CLEARANCES TO
COMBUSTIBLES
Minimum Clearances to Combustibles
From Unit
Sides A 255 mm
Ceiling B 1205 mm
Mantel C 330 mm
Max. Mantle Depth E 305 mm
(see Dia. 2)
Min. Alcove Width F 1220 mm
Max. Alcove Depth G 915 mm
*No hearth required.
C
L
Gas
Inlet
WARNING
DO NOT USE AN UNLINED
MASONRY CHIMNEY AS THE
FLUE FOR THIS APPLIANCE.
THE APPLIANCE MUST NOT
CONNECT TO A CHIMNEY
FLUE SERVING A SEPARATE
SOLID FUEL BURNING APPLI-
ANCE AND MUST NOT BE
TERMINATED TO THE
OUTDOORS.
Note: When installing the flueing, identify
the flues. Mark one exhaust and one
intake as indicated on the top of the
unit.
Air
Intake
Minimum 2.4 m
Maximum 10.7 m
Exhaust
Flue
Flashing
April 13/99
revised as per Joe G.
June 10/99 revised as per Jan. S.
Oct.22/99: removed "Canadian Installations from Ventng2.eps
Canadian Installations
Co-linear DV
Vertical Termination
Cap #946-549
Check local
codes whether
a continuous
length is re-
quired or if
certified joiner
kits may
be used.
#948-640
Part # Description
948-640 76 mm Flex - 12.2 m
946-549 Co-linear DV Vertical
Termination Cap
Alternate Termination Cap/Adaptor
Part # Description
46DVA-GK Simpson Duravent Adaptor
46DVA-VCH Simpson Vertical High Wind
Cap

10 Regency DVi34L Gas Inbuilt Fireplace
INSTALLATION
GAS PIPE PRESSURE
TESTING
The appliance must be isolated from the gas
supply piping system by closing its individual
manual shut-o󰀨 valve during any pressure
testing of the gas supply piping system at
test pressures equal to or less than 3.45 kPa.
Disconnect piping from valve at pressures
over 3.45 kPa.
The manifold pressure is controlled by a
regulator built into the gas control, and should
be checked at the pressure test point.
Note: To properly check gas pressure,
both inlet and manifold pressures
should be checked using the valve
pressure ports on the valve.
1) Make sure the valve is in the "OFF"
position.
2) Loosen the "IN" (# 3) and/or "OUT" (# 4)
pressure tap(s), turning counterclockwise
with a small, wide, at screwdriver.
3) Attach manometer to "IN" and/or "OUT"
pressure tap(s) using an 8 mm ID hose.
4) Seal and or check the pilot outlet (# 8)
5) The pressure check should be carried out
with the unit burning and the setting should
be within the limits specied on the safety
label.
6) When nished reading manometer, turn
o󰀨 the gas valve, disconnect the hose
and tighten the screw (clockwise) with a
small, at screwdriver. Screw should be
snug, but do not over tighten.
S.I.T. Valve Description
1) On-O󰀨 Solenoid Valve EV1
2) On-O󰀨 Solenoid Valve EV2
3) Inlet Pressure Test Point
4) Outlet Pressure Test Point
5) Connection for Pressure Regulator/
Combustion Chamber Compensation
6) Pressure Regulator for Minimum and
Maximum Outlet Pressure
7) Gas Outlet Pressure Electric Modulator
8) Pilot Outlet
9) Main Gas Outlet
10) Side Outlet

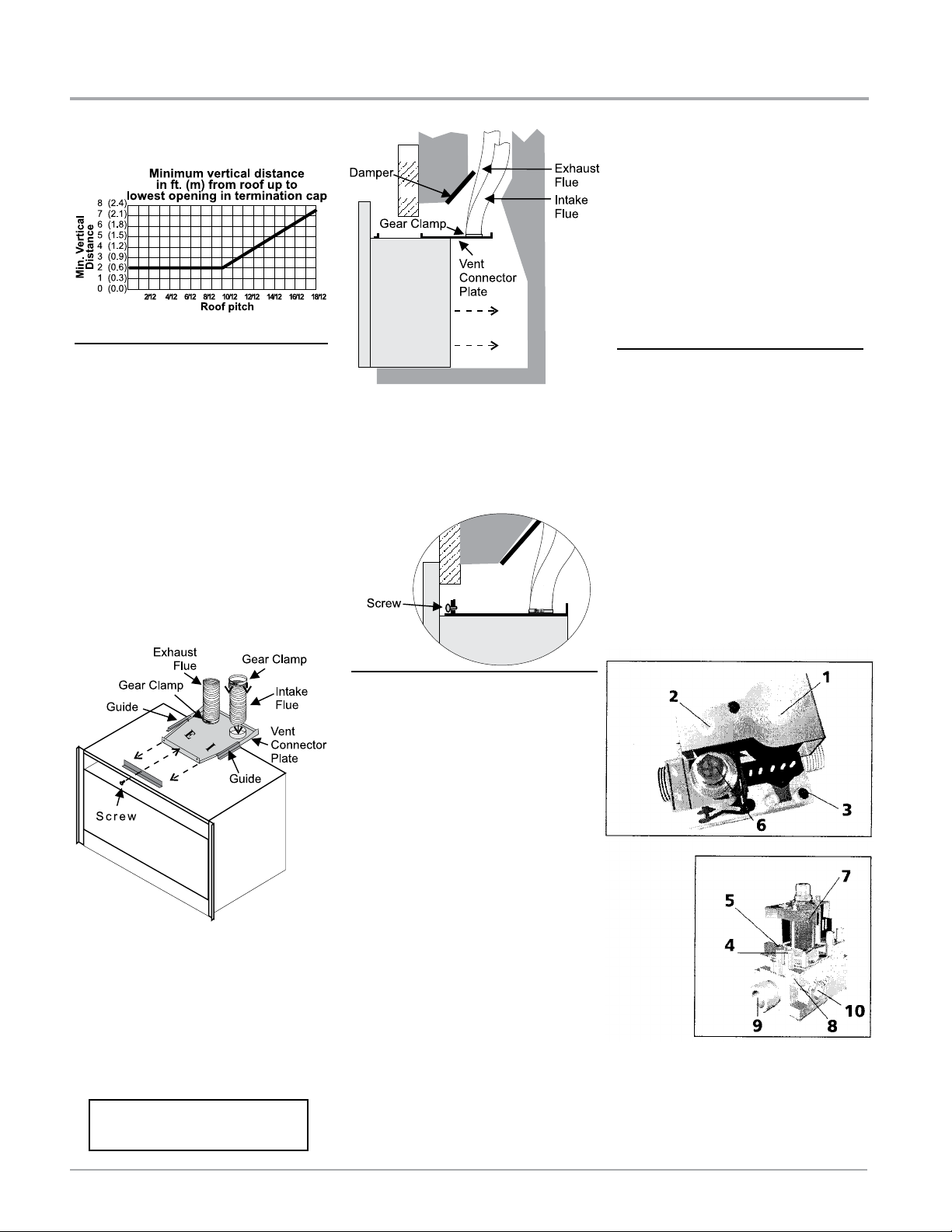

FLUE LINER
INSTALLATION
1) Cut the ex liner as required.
2) Mark the end of one liner to indicate Inlet.
3) Connect the other end of the above liner to
the inlet side of the termination adaptor, seal
connection with high temperature silicone.
Secure with gear clamp.
4) Connect the 2nd liner to the exhaust side
of the adaptor, seal connection with high
temperature silicone. Secure with gear
clamp.
5) Install ashing.
6) Insert both liners into chimney, passing
through the damper opening.
7) Install termination cap.
8) Connect the marked end of the liner to the inlet
collar of the vent connector plate marked with
an "I", seal connection with high temperature
silicone. Secure with gear clamp.
The Air Intake pipe must be attached to the
inlet air collar of the termination cap.
9) Connect the 2nd liner to the exhaust collar
marked with an "E", seal connection with
high temperature silicone. Secure with gear
clamp.
Be careful not to damage thermal insula-
tion when sliding on vent connector plate.
This could cause blockage.
Install to AS5601 (Australia) /
NZS 5262 (New Zealand)

11
Regency DVi34L Gas Inbuilt Fireplace
INSTALLATION
INSTALLATION IN MASONRY OR ZERO CLEARANCE CHIMNEY
1) Measure and record dimensions to determine total
Flex Liner length requirements (see instructions below
for details).
2) Carefully feed the liner down the chimney (masonry
or zero clearance) and out through the damper. One
person should feed the liner through the chimney, and
another person should pull the liner from the bottom.
3) After carefully feeding the Flex Liner down the chim-
ney to the bottom, form and angle to line up the Flex
Liner with the vent opening on the appliance.
Important: Do not let the Flex Liner sag below the level
at which it will connect to the appliance or connector.
This could allow hot gas to become trapped and poten-
tially become a re hazard. The Flex Liner path should
always be sloped up toward the Termination Cap.
4) Temporarily secure the Flex Liner at the top of the
chimney. Be sure to leave 76 mm of ex above the
existing chimney to allow for connection to the Termina-
tion Kit (Baseplate and Adaptor).
5) Repeat Steps 1-4 for second length of Flex Liner.
6) At the top of the chimney, slide the Baseplate over
the tow ends of the Flex Liner and secure it to the sur-
rounding masonry using masonry anchor bolts. Before
installing the baseplate, run a bead of non-hardening
seal and between the Baseplate and the masonry to
prevent moisture from entering the chimney.
Note: Verify that there is su󰀩cient room to mount the
Baseplate on to the masonry. You must have a level
surface in order to install the Baseplate properly.
7) Attach the Flex Liner ends at the top of the chimney
to the Co-Linear to Co-Axial Adaptor. Use four sheet
metal screws to connect each Flex Liner run to the
Adaptor.
8) Twist lock the Vertical Termination Cap to the Adap-
tor.
Note: If you are planning to extend the height of the
chimney using Direct Vent GS Pipe, please refer to the
Direct Vent Installation Instructions for information con-
cerning the proper procedure and restrictions of Direct
Vent Pipe.
Also, consult the appliance manufacturer for any height
restrictions of the chimney.
9) Connect the Co-Linear Flex to the two outlets on the
top of the appliance using four sheet metal screws each.
See the appliance manufacturer's instructions for de-
tails. Make sure the Flex Liners do not sag behind the
appliance. Finally, move the appliance into its appropri-
ate place. Mount the Adaptor to the Baseplate using
sheet metal screws.
51-76mm
Flex
Liners
Existing
Chimney

12 Regency DVi34L Gas Inbuilt Fireplace
AERATION SETTINGS
The burner aeration is factory set but may need adjusting due to either the local gas supply, air supply or altitude. This adjustment is performed by
the installer. (Close the aeration for a more yellow ame, or open it to make the ame bluer).
NG: 13mm open
Propane: 13mm open
ULPG: 13mm open
Note: Any damage due to carboning resulting from improperly setting the aeration and restrictor setting controls is NOT covered
under warranty.
INSTALLATION
DVi34LNG: For 0 to 610 meters altitude
DVi34LLPG: For 0 to 610 meters altitude
DVi34LULPG: For 0 to 610 meters altitude
Burner Inlet Orice Sizes:
NG Propane ULPG
Burner #37 #52 #53
Max. Input
NG 31.7 MJ/h
Propane 30.6 MJ/h
ULPG 26.4 MJ/h
Min. Input
NG 21.1 MJ/h
Propane 25.1 MJ/h
ULPG 20.9 MJ/h
Supply Pressure
NG 1.13 kPa
Propane 2.75 kPa
ULPG 2.75 kPa
Manifold Pressure HIGH LOW
NG 0.87 kPa 0.4 kPa
Propane 2.51 kPa 1.6 kPa
ULPG 2.51 kPa 1.6 kPa
Electrical: 240 V. 50Hz.
Circulation: High/O󰀨/LO speed fan,
150/89 CFM.
Log Set: Ceramic ber, 7 per set.
Aeration Setting
NG 13 mm open
Propane 13 mm open
ULPG 13 mm open
System Data
DVi34L

13
Regency DVi34L Gas Inbuilt Fireplace
INSTALLATION

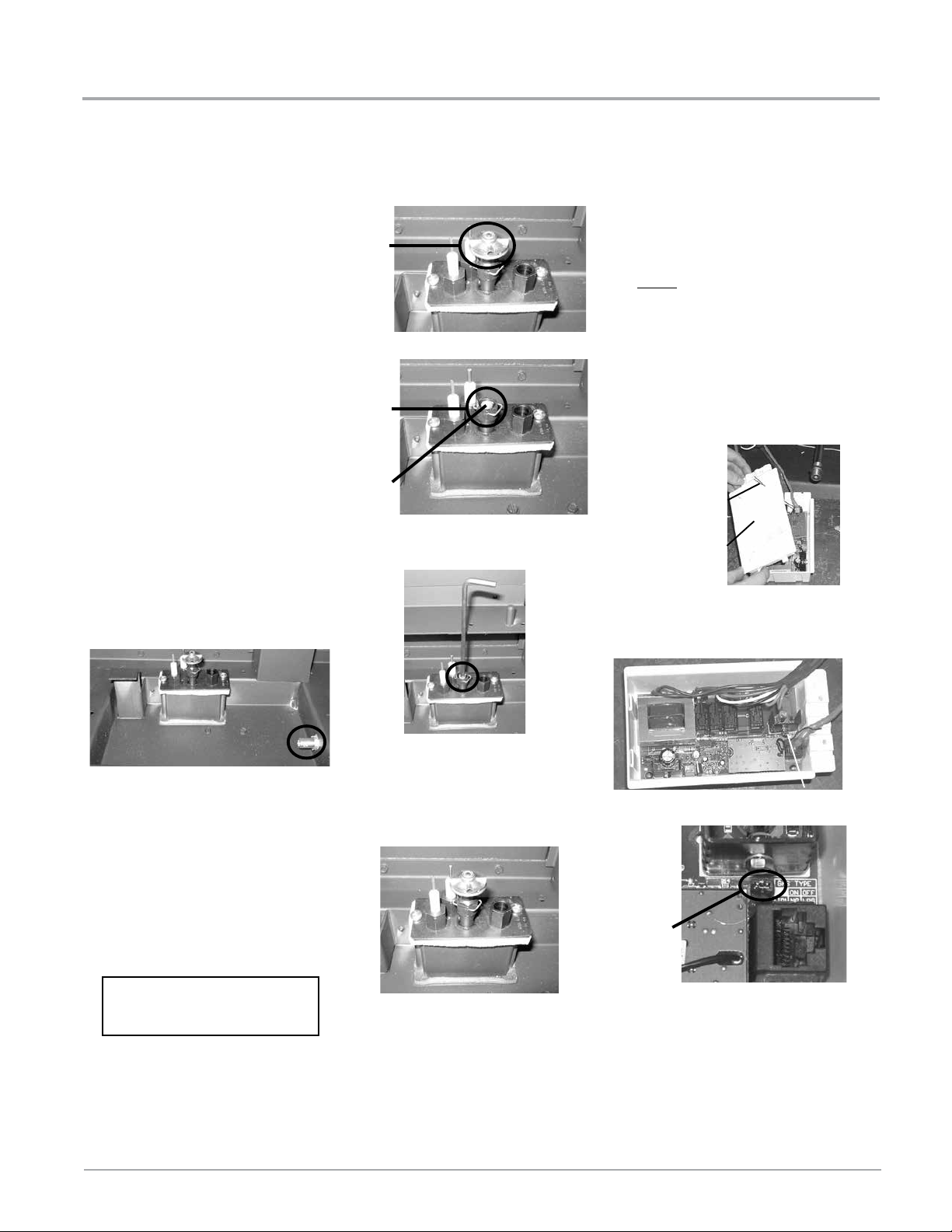

Conversion Kit #337-968 from NG to Propane/ULPG Model
DVi34
Conversion Kit #337-968 for NG to Propane/ULPG Model
103.25.20
920-237
THIS CONVERSION MUST BE DONE BY A QUALIFIED GAS FITTER
IF IN DOUBT DO NOT DO THIS CONVERSION !!
Conversion Kit Contains:
Qty. Part # Description
1 904-390 LP Burner Orifice #52
1 904-345 ULPG Buner Orifice #53
1 918-728 Orange "PROPANE" Label
1 918-272 Label "Converted to LPG"
1 910-037 Propane Pilot Injector
1 920-237 Instruction Sheet
1) Shut off the gas supply and unplug
the power cord.
2) Remove the glass door, logs and
lava rock.
3) Remove the rear log tray by remov-
ing the 2 screws. (Log tray must be
rotated to clear the burner.)
4) Remove the grate.
5) Remove the burner and ensure the
aeration setting is 13 mm open.
6) Remove burner orifice with a 1/2"
wrench and discard. Use a wrench
to hold on to the elbow behind the
orifice.
Control Box
Cover
Antenna
Jumper Location
16) Remove the jumper using a plier.
7) Reinstall new burner orifice Propane
stamped #52 OR ULPG stamped
#53 and tighten
8) Apply the conversion label "This
unit has been converted to ULPG"
over top of the serial number decal.
12) Replace the black "NATURAL GAS"
label with either orange "PROPANE"
label OR red "UNIVERSAL LPG"
label.
13) Carefully pull out the control box.
NOTE: The control box is held in
place with velcro.
14) Remove the heat shield from the
control box by removing the 2
screws.
15) Remove the control box cover by
undoing the 3 screws.
Manoeuvre through antenna.
17) Reverse steps 15, 14, 13, 6, 5, 4, 3
& 2.
Note: Aeration settings do not need
to be adjusted.
Burner Orifice
9) Pull out the pilot hood by hand.
Pilot
Hood
11) Put in the new pilot orifice with the
allen key. Then put back the pilot
hood.
Pilot
Hood
removed
10) Remove the pilot orifice with the
allen key.
Pilot
Orifice
Jumper

14 Regency DVi34L Gas Inbuilt Fireplace
INSTALLATION
DVi34
203.25.20
920-237
Installer Notice:
These instructions must be left
with the appliance.
After carrying out all adjustments, block the setting screws
with paint, taking care not to obstruct the breather orifice
of the pressure.
Put back the modulator plastic cap.
WARNING: To ensure the correct operation of the modu-
lator it is necessary that the plastic cap (A) is returned to
its original location.
20) Turn on gas supply and plug in power cord.
21) At the end of all setting and adjustment operations, check
electrical installation and gas leaks.
22) Check operation of flame control.
23) Check for proper flame appearance and glow on logs.
C
B
A
18) Turn on gas supply and plug in power cord.
19) Adjusting the Outlet Pressure
All the adjustments must be
carried out in the following order:
Remove the modulator plastic cap (A) using needle nose
pliers.
Maximum pressure: Turn the unit ON to its highest input
rating. Screw in the nut (B) to increase the outlet pressure
and screw it out to decrease it. Use a 10 mm wrench.
NOTE: The outlet pressure must be set to maximum 2.51
kPa.
Minimum pressure: Remove one of the cables connect-
ed to the electric modulator. While holding the nut (B) with
a wrench, screw in the screw (C) to increase the pressure
and screw it out to decrease it. Use a screwdriver 6 x 1
blade.
NOTE: The outlet pressure must be set to minimum 1.6
kPa.
Cable
Electric
Modulator

15
Regency DVi34L Gas Inbuilt Fireplace
INSTALLATION
LOG SET INSTALLATION
GAS INSERT
908-783a 03/30/09
U31-2 / IG34
Page 1 of 3
LOG SET INSTALLATION
Read the instructions below carefully and refer to the diagrams. If logs are broken do not use the unit until
they are replaced. Broken logs can interfere with the pilot operation.
The gas log kit (part # 402-935) contains the following:
a) 02-43 Rear Log
b) 02-45 Front Right Log
c) 02-56 Middle Left Log
d) 02-46 Left Top Log
e) 02-47 Center Log
f) 02-48 Middle Right Log
g) 02-44 Front Left Log
h) 902-154 Embers
i) 902-153 Rockwool
j) 902-179/P Vermiculite
k) 946-669 Platinum Embers
(supplied with packaged manual)
Note: Install Optional Brick Panels prior to installing logs.
1) Carefully remove the logs from the box and unwrap
them. The logs are fragile, handle with care - do not
force into position.
2) Sprinklethevermiculitearoundthereboxbase.Take
some of the embers (approx. 1/3 of the bag) and
sprinkle over the vermiculite.
3) Place Rear Log A)02-43 on the two pins on the rear
log support.
Vermiculite
and embers Vermiculite
and embers
Vermiculite
and embers
Pins on Rear Log Support
4) Place Front Right Log B)02-45 on the two pins as
shown.
A)02-43
B)02-45
The "02" refer numbers (i.e. 02-43) are
molded into the rear of each log.

16 Regency DVi34L Gas Inbuilt Fireplace
INSTALLATION
908-783a 03/30/09
GAS INSERT U31-2 / IG34
Page 2 of 3
Logs D)02-46 and E)02-47 in position.
6) Place the Left Top Log D)02-46 on the pin on Log
C)02-56 and on top of the cutout on Log A)02-43.
7) Place the notch in Center Log E)02-47 over Log B)02-
45 and across the cutout on Log A)02-43.
Cutout
Pin
Cutout
Notch
8) Position notch in Front Right Log F)02-48 on Log
E)02-47 and push the bottom right edge against the
bracket on the burner tray and the front edge of the
rear burner.
Notch
Bracket
D)02-46
E)02-47
F)02-48
C)02-56
A)02-43
B)02-45
A)02-43
B)02-45
E)02-47
Logs A)02-43, C)02-56, and B)02-45 in position
C)02-56
5) Place the Middle Left Log C)02-56 on the two pins as
shown.

17
Regency DVi34L Gas Inbuilt Fireplace
INSTALLATION
GAS INSERT
908-783a 03/30/09
U31-2 / IG34
10) Place the embers and Rockwool on the exposed front
burner tray.
9) Place Front Left Log G)02-44 onto the 2 front pins as
shown.
G)02-44
F)02-48
B)02-45
Bracket
A)02-43
Front edge of
rear burner
The bottom right edge of Log F)02-48 must sit snugly against
the bracket and the front edge of the rear burner.
Side View
Page 3 of 3
11)Separate platinum embers and place on and around
the embers and rockwool on the burner tray. Avoid
stacking platinum embers.
12) 7HVW¿UHWRHQVXUHSURSHUOLJKWRIIPDNHVXUHÀDPH
ÀRZVVPRRWKO\IURPRQHHQGRIEXUQHUWRWKHRWKHU,I
WKHUHLVDQ\ÀDPHKHVLWDWLRQFKHFNWKDWDUHDIRUDQ\
blockage of the burner port.
The "02" refer numbers (i.e. 02-43) are
molded into the rear of each log.
A) 02-43 D) 02-46 G) 02-48
C) 02-44 B) 02-56 F) 02-47 E)
02-45

18 Regency DVi34L Gas Inbuilt Fireplace
INSTALLATION
GLASS DOOR INSTALLATION
STANDARD FLUSH DOOR
The standard ush door comes with a black frame. To install the frame
and glass door, simply hook the top door ange onto the top of the unit
and swing the door towards the unit, diagram 1. Be careful that the glass
gasket does not roll up; there must be a gap between the gasket and the
door lip to ensure that the door sits securely on the unit. See Diagram 2.
Use the hook to pull the spring out until you can put the hook
into the slot on the bottom door bracket. Repeat for 2nd spring.
See diagram 3.
To remove the ush door, reverse the above steps.
To remove the ush door, reverse the above steps.
Diagram 2
Diagram 1
Diagram 3

19
Regency DVi34L Gas Inbuilt Fireplace
INSTALLATION
FACEPLATE & SAFETY SCREEN INSTALLATION
DVi34
FACEPLATE AND SAFETY SCREEN INSTALLATION (PART #337-914)
103.26.20
920-239
1) Position faceplate on unit lining up screw holes
on faceplate with screw holes on unit - secure
with 4 screws.
2) Install the bottom Hinges on unit - secure with
4 screws.
INSTALLATION
FACEPLATE AND SAFETY SCREEN INSTALLATION (***-***)
102/04/13 918-825c
IG34
FACEPLATE & OPTIONAL PLINTH TRIM ASSEMBLY
DVi34L Faceplate Assembly
1 Faceplate
2 Safety Screen
3 Lip
4Mesh Bottom Screen
5 Hinge and Hinge support
6Bottom Door
1)Position faceplate on unit lining up screw holes on
faceplate with screw holes on unit - secure with 4 screws.
2)Install the bottom Hinges on unit - secure with 4 screws.
3)Install Mesh bottom screen below glass door - secure with 4 screws.
4) Install the Safety screen by hooking the top flange over the top of the
glass door.
5)Install the bottom door
6)Flip bottom louver up to close.
Completed Faceplate & Safety Screen
Installation
7) Insert the lip into the unit.
3) Install Mesh bottom screen below glass door -
secure with 4 screws.
4) Install the Safety screen by hooking the top flange
over the top of the glass door.
INSTALLATION
FACEPLATE AND SAFETY SCREEN INSTALLATION (***-***)
102/04/13 918-825c
IG34
FACEPLATE & OPTIONAL PLINTH TRIM ASSEMBLY
DVi34L Faceplate Assembly
1 Faceplate
2 Safety Screen
3 Lip
4Mesh Bottom Screen
5 Hinge and Hinge support
6Bottom Door
1)Position faceplate on unit lining up screw holes on
faceplate with screw holes on unit - secure with 4 screws.
2)Install the bottom Hinges on unit - secure with 4 screws.
3)Install Mesh bottom screen below glass door - secure with 4 screws.
4) Install the Safety screen by hooking the top flange over the top of the
glass door.
5)Install the bottom door
6)Flip bottom louver up to close.
Completed Faceplate & Safety Screen
Installation
7) Insert the lip into the unit.
INSTALLATION
FACEPLATE AND SAFETY SCREEN INSTALLATION (***-***)
102/04/13 918-825c
IG34
FACEPLATE & OPTIONAL PLINTH TRIM ASSEMBLY
DVi34L Faceplate Assembly
1 Faceplate
2 Safety Screen
3 Lip
4Mesh Bottom Screen
5 Hinge and Hinge support
6Bottom Door
1)Position faceplate on unit lining up screw holes on
faceplate with screw holes on unit - secure with 4 screws.
2)Install the bottom Hinges on unit - secure with 4 screws.
3)Install Mesh bottom screen below glass door - secure with 4 screws.
4) Install the Safety screen by hooking the top flange over the top of the
glass door.
5)Install the bottom door
6)Flip bottom louver up to close.
Completed Faceplate & Safety Screen
Installation
7) Insert the lip into the unit.
INSTALLATION
FACEPLATE AND SAFETY SCREEN INSTALLATION (***-***)
102/04/13 918-825c
IG34
FACEPLATE & OPTIONAL PLINTH TRIM ASSEMBLY
DVi34L Faceplate Assembly
1 Faceplate
2 Safety Screen
3 Lip
4Mesh Bottom Screen
5 Hinge and Hinge support
6Bottom Door
1)Position faceplate on unit lining up screw holes on
faceplate with screw holes on unit - secure with 4 screws.
2)Install the bottom Hinges on unit - secure with 4 screws.
3)Install Mesh bottom screen below glass door - secure with 4 screws.
4) Install the Safety screen by hooking the top flange over the top of the
glass door.
5)Install the bottom door
6)Flip bottom louver up to close.
Completed Faceplate & Safety Screen
Installation
7) Insert the lip into the unit.
5) Install the bottom door.
INSTALLATION
FACEPLATE AND SAFETY SCREEN INSTALLATION (***-***)
102/04/13 918-825c
IG34
FACEPLATE & OPTIONAL PLINTH TRIM ASSEMBLY
DVi34L Faceplate Assembly
1 Faceplate
2 Safety Screen
3 Lip
4Mesh Bottom Screen
5 Hinge and Hinge support
6Bottom Door
1)Position faceplate on unit lining up screw holes on
faceplate with screw holes on unit - secure with 4 screws.
2)Install the bottom Hinges on unit - secure with 4 screws.
3)Install Mesh bottom screen below glass door - secure with 4 screws.
4) Install the Safety screen by hooking the top flange over the top of the
glass door.
5)Install the bottom door
6)Flip bottom louver up to close.
Completed Faceplate & Safety Screen
Installation
7) Insert the lip into the unit.
6) Flip bottom louver up to close.
INSTALLATION
FACEPLATE AND SAFETY SCREEN INSTALLATION (***-***)
102/04/13 918-825c
IG34
FACEPLATE & OPTIONAL PLINTH TRIM ASSEMBLY
DVi34L Faceplate Assembly
1 Faceplate
2 Safety Screen
3 Lip
4Mesh Bottom Screen
5 Hinge and Hinge support
6Bottom Door
1)Position faceplate on unit lining up screw holes on
faceplate with screw holes on unit - secure with 4 screws.
2)Install the bottom Hinges on unit - secure with 4 screws.
3)Install Mesh bottom screen below glass door - secure with 4 screws.
4) Install the Safety screen by hooking the top flange over the top of the
glass door.
5)Install the bottom door
6)Flip bottom louver up to close.
Completed Faceplate & Safety Screen
Installation
7) Insert the lip into the unit.
7) Insert the lip into the unit.
INSTALLATION
FACEPLATE AND SAFETY SCREEN INSTALLATION (***-***)
102/04/13 918-825c
IG34
FACEPLATE & OPTIONAL PLINTH TRIM ASSEMBLY
DVi34L Faceplate Assembly
1 Faceplate
2 Safety Screen
3 Lip
4Mesh Bottom Screen
5 Hinge and Hinge support
6Bottom Door
1)Position faceplate on unit lining up screw holes on
faceplate with screw holes on unit - secure with 4 screws.
2)Install the bottom Hinges on unit - secure with 4 screws.
3)Install Mesh bottom screen below glass door - secure with 4 screws.
4) Install the Safety screen by hooking the top flange over the top of the
glass door.
5)Install the bottom door
6)Flip bottom louver up to close.
Completed Faceplate & Safety Screen
Installation
7) Insert the lip into the unit.
INSTALLATION
FACEPLATE AND SAFETY SCREEN INSTALLATION (***-***)
102/04/13 918-825c
IG34
FACEPLATE & OPTIONAL PLINTH TRIM ASSEMBLY
DVi34L Faceplate Assembly
1 Faceplate
2 Safety Screen
3 Lip
4Mesh Bottom Screen
5 Hinge and Hinge support
6Bottom Door
1)Position faceplate on unit lining up screw holes on
faceplate with screw holes on unit - secure with 4 screws.
2)Install the bottom Hinges on unit - secure with 4 screws.
3)Install Mesh bottom screen below glass door - secure with 4 screws.
4) Install the Safety screen by hooking the top flange over the top of the
glass door.
5)Install the bottom door
6)Flip bottom louver up to close.
Completed Faceplate & Safety Screen
Installation
7) Insert the lip into the unit.
DVi34L Faceplate Assembly (Part #337-914)
1 Faceplate
2 Safety Screen
3 Lip
4 Mesh Bottom Screen
5 948-042 Hinge and Hnge Support
6 Bottom Door

20 Regency DVi34L Gas Inbuilt Fireplace
INSTALLATION
OPTIONAL SPACER INSTALLATION (PART #337-918)
DVi34
OPTIONAL SPACER INSTALLATION PART #337-918
103.26.20
920-238
1) Place the spacer on a soft cloth on the floor.
Slide the Right and left spacer into the top
spacer (see image #1 below). Secure with 2
screws on each side (see image #2 below).
INSTALLATION
OPTIONAL SPACER INSTALLATION (***-***)
102/04/13 918-825c
IG34
FACEPLATE & OPTIONAL PLINTH TRIM ASSEMBLY
1) Place the spacer on a soft cloth on the floor.
Slide the Right and left spacer into the top spacer. secure with 2
screws on each side. (see image #1 below)
2) Place the faceplate on a soft cloth on the floor.
Attach the spacer to the back of the faceplate with 2 screws on
each side.
3) Spacer flange must be placed inside the faceplate flange. (see picture
4) Secure the spacer clip at the bottom of the faceplate with 1
screw each side.
Completed Faceplate & Spacer
Assembly
below)
5)For faceplate installation see page --.
2) Place the faceplate on a soft cloth on the floor.
Attach the spacer to the back of the faceplate
with 2 screws on each side.
INSTALLATION
OPTIONAL SPACER INSTALLATION (***-***)
102/04/13 918-825c
IG34
FACEPLATE & OPTIONAL PLINTH TRIM ASSEMBLY
1) Place the spacer on a soft cloth on the floor.
Slide the Right and left spacer into the top spacer. secure with 2
screws on each side. (see image #1 below)
2) Place the faceplate on a soft cloth on the floor.
Attach the spacer to the back of the faceplate with 2 screws on
each side.
3) Spacer flange must be placed inside the faceplate flange. (see picture
4) Secure the spacer clip at the bottom of the faceplate with 1
screw each side.
Completed Faceplate & Spacer
Assembly
below)
5)For faceplate installation see page --.
INSTALLATION
OPTIONAL SPACER INSTALLATION (***-***)
102/04/13 918-825c
IG34
FACEPLATE & OPTIONAL PLINTH TRIM ASSEMBLY
1) Place the spacer on a soft cloth on the floor.
Slide the Right and left spacer into the top spacer. secure with 2
screws on each side. (see image #1 below)
2) Place the faceplate on a soft cloth on the floor.
Attach the spacer to the back of the faceplate with 2 screws on
each side.
3) Spacer flange must be placed inside the faceplate flange. (see picture
4) Secure the spacer clip at the bottom of the faceplate with 1
screw each side.
Completed Faceplate & Spacer
Assembly
below)
5)For faceplate installation see page --.
3) Spacer flange must be placed inside the face-
plate flange (see picture below).
INSTALLATION
OPTIONAL SPACER INSTALLATION (***-***)
102/04/13 918-825c
IG34
FACEPLATE & OPTIONAL PLINTH TRIM ASSEMBLY
1) Place the spacer on a soft cloth on the floor.
Slide the Right and left spacer into the top spacer. secure with 2
screws on each side. (see image #1 below)
2) Place the faceplate on a soft cloth on the floor.
Attach the spacer to the back of the faceplate with 2 screws on
each side.
3) Spacer flange must be placed inside the faceplate flange. (see picture
4) Secure the spacer clip at the bottom of the faceplate with 1
screw each side.
Completed Faceplate & Spacer
Assembly
below)
5)For faceplate installation see page --.
Faceplate flange
Faceplate flange
INSTALLATION
OPTIONAL SPACER INSTALLATION (***-***)
102/04/13 918-825c
IG34
FACEPLATE & OPTIONAL PLINTH TRIM ASSEMBLY
1) Place the spacer on a soft cloth on the floor.
Slide the Right and left spacer into the top spacer. secure with 2
screws on each side. (see image #1 below)
2) Place the faceplate on a soft cloth on the floor.
Attach the spacer to the back of the faceplate with 2 screws on
each side.
3) Spacer flange must be placed inside the faceplate flange. (see picture
4) Secure the spacer clip at the bottom of the faceplate with 1
screw each side.
Completed Faceplate & Spacer
Assembly
below)
5)For faceplate installation see page --.
4) Secure the spacer clip at the bottom of the
faceplate with 1 screw each side.
INSTALLATION
OPTIONAL SPACER INSTALLATION (***-***)
102/04/13 918-825c
IG34
FACEPLATE & OPTIONAL PLINTH TRIM ASSEMBLY
1) Place the spacer on a soft cloth on the floor.
Slide the Right and left spacer into the top spacer. secure with 2
screws on each side. (see image #1 below)
2) Place the faceplate on a soft cloth on the floor.
Attach the spacer to the back of the faceplate with 2 screws on
each side.
3) Spacer flange must be placed inside the faceplate flange. (see picture
4) Secure the spacer clip at the bottom of the faceplate with 1
screw each side.
Completed Faceplate & Spacer
Assembly
below)
5)For faceplate installation see page --.
5) For faceplate installation see page .
INSTALLATION
OPTIONAL SPACER INSTALLATION (***-***)
102/04/13 918-825c
IG34
FACEPLATE & OPTIONAL PLINTH TRIM ASSEMBLY
1) Place the spacer on a soft cloth on the floor.
Slide the Right and left spacer into the top spacer. secure with 2
screws on each side. (see image #1 below)
2) Place the faceplate on a soft cloth on the floor.
Attach the spacer to the back of the faceplate with 2 screws on
each side.
3) Spacer flange must be placed inside the faceplate flange. (see picture
4) Secure the spacer clip at the bottom of the faceplate with 1
screw each side.
Completed Faceplate & Spacer
Assembly
below)
5)For faceplate installation see page --.
Image #2
Image #1
