Regency Fireplace Products Panorama PG36 Series Quick start guide

Models: PG36NG-6
PG36LP-6
Owners &
Installation
PLEASE KEEP THESE INSTRUCTIONS
FOR FUTURE REFERENCE
Manual
01.09.20
LISTINGS AND CODE APPROVALS
These gas appliances have been tested in
accordance with AS/NZS 5263.0 & AS/NZS
5263.1.3 and have been certified by the
Australian Gas Association for installation
and operation as described in these Instal-
lation and Operating Instructions. Must be
installed as per AS/NZS5601.
Your unit should be serviced annually
by an authorised service person.
920-108
Panorama®PG36 Gas Log Fireplace
WARNING:
Improper installation, adjustment, alteration,
service or maintenance can cause injury or
property damage. Refer to this manual. For
assistance or additional information consult
an authorised installer, service agency or the
gas supplier.
FOR YOUR SAFETY:
Do not store or use gasoline or other flammable
vapours and liquids in the vicinity of this or
any other appliance.
Installation and service must be performed by
an authorised installer, service agency or the
gas supplier.
FOR YOUR SAFETY:
What to do if you smell gas:
Do not try to light any
appliance
Do not touch any electrical
switch:do not use any phone
in your building.
Immediately call your gas
supplier from a neighbour's
phone. Follow the gas
supplier's instructions.
If you cannot reach your
gas supplier, call the fire
department.

2| Regency® PG36 Gas Fireplace
TO THE NEW OWNER:
Congratulations!
You are the owner of a state-of-the-art Gas Log Fireplace by FPI FIREPLACE PRODUCTS INTERNATIONAL
LTD. The PG36 has been designed to provide you with all the warmth and charm of a wood fireplace
at the flick of a switch. The model PG36 has been approved by the Australian Gas Association for both
safety and efficiency. As it also bears our own mark, it promises to provide you with economy, comfort
and security for many trouble free years to follow. Please take a moment now to acquaint yourself with
these instructions and the many features of your Regency® Fireplace.

Regency® PG36 Gas Fireplace | 3
dimensions

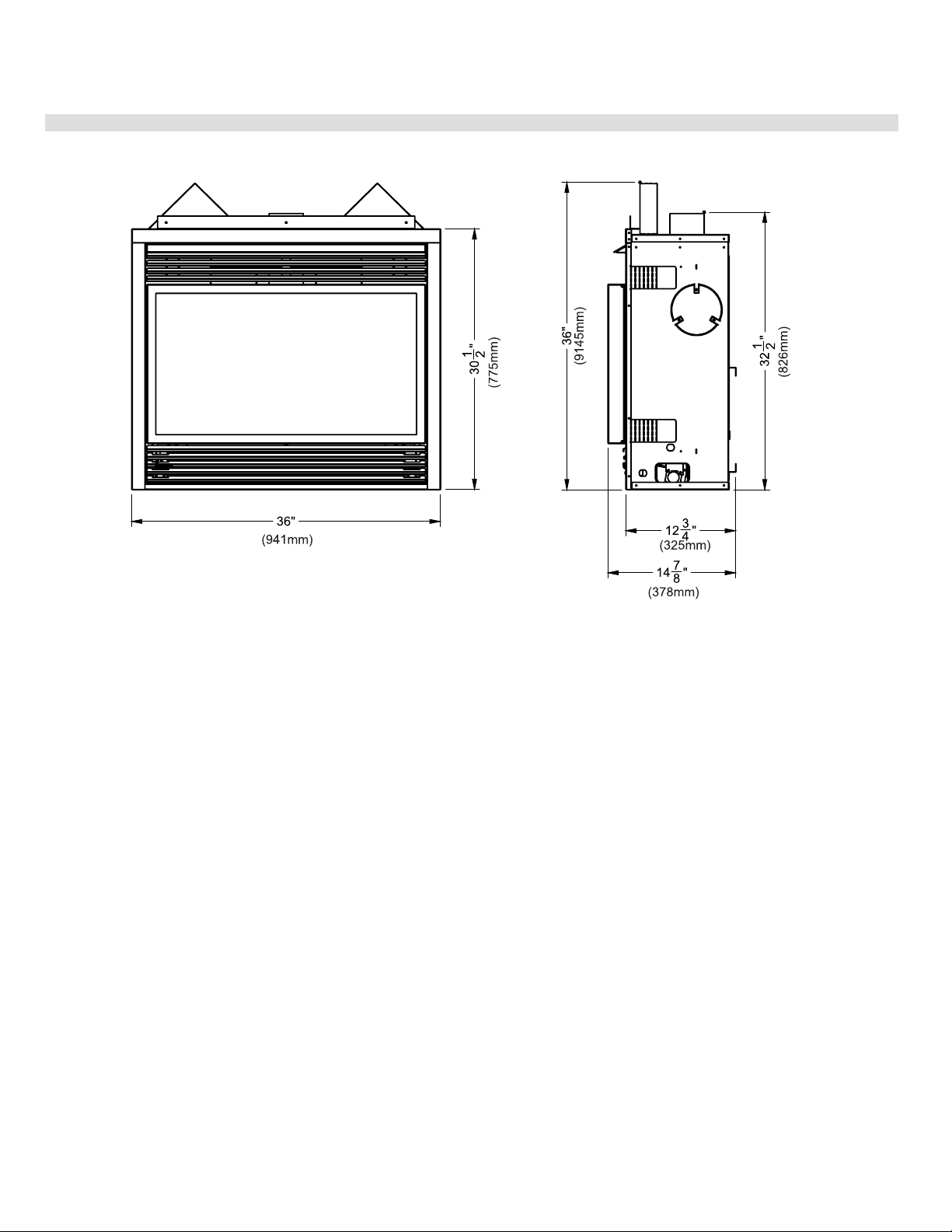

Unit Dimensions

4| Regency® PG36 Gas Fireplace
table of contents
Premium Flush Front Installation .................................27
Wiring Diagram ............................................................28
Remote Control ..........................................................29
Operating Instructions ................................................29
Lighting Instructions ....................................................29
Resetting the Unit ........................................................29
Shutdown Instructions .................................................29
First Fire ......................................................................29
Adjusting Flame Height ...............................................30
Summary of Controls ..................................................30
Pilot Adjustment ...........................................................30
Normal Operating Sounds of Gas Appliances .............30
Copy of the Lighting Plate Instructions .......................31
Maintenance Instructions ............................................32
General Flue Maintenance ..........................................32
Log Replacement ........................................................33
Glass Gasket ...............................................................33
Door Glass ...................................................................33
Flush Glass Replacement ...........................................33
Removing Valve Tray ...................................................34
Fan Replacement ........................................................35
Manual Control Switch Replacement ..........................36
Electronic Components Parts List ...............................37
Main Assembly ............................................................38
Burner Assembly & Log Set ........................................39
Flush Front Accessories ..............................................40
Premium Flush Front Assembly ...................................41
Warranty .....................................................................42
Unit Dimensions ............................................................3
Data Badge ....................................................................5
Important Message ........................................................6
Before You Start .............................................................6
General Safety Information ............................................6
Installation Checklist ......................................................6
Locating Your Fireplace .................................................7
Clearances ....................................................................7
Combustible Mantels .....................................................8
Mantel Leg Clearances ..................................................9
Framing and Finishing ...................................................9
Unit Assembly Prior to Installation ...............................10
Top Facing Support Side Nailing Strips .......................10
Premium Flush Front Spacer Installation.....................10
Flueing Introduction .....................................................10
Exterior Flue Termination Locations ............................11
Flueing .........................................................................12
Horizontal or Vertical Terminations ..............................13
Flueing Arrangements - Horizontal Terminations.........14
Flueing Arrangements - Vertical Terminations .............16
Direct Flue Zero Clearance Top Exit Vertical
Flue Kit Installation Instructions ...................................18
Horizontal Terminations ...............................................19
Vertical Terminations ...................................................20
Gas Connection ...........................................................21
Gas Pipe Pressure Testing ..........................................21
SIT 845 Valve Description ...........................................21
Aeration Adjustment ....................................................21
Conversion From NG to Propane Kit ...........................22
Log Set Installation ......................................................24
Standard Flush Door ...................................................26
Installation
Operating Instructions
Maintenance
Parts
Safety

Regency® PG36NG5-R Gas Fireplace | 5
data badge

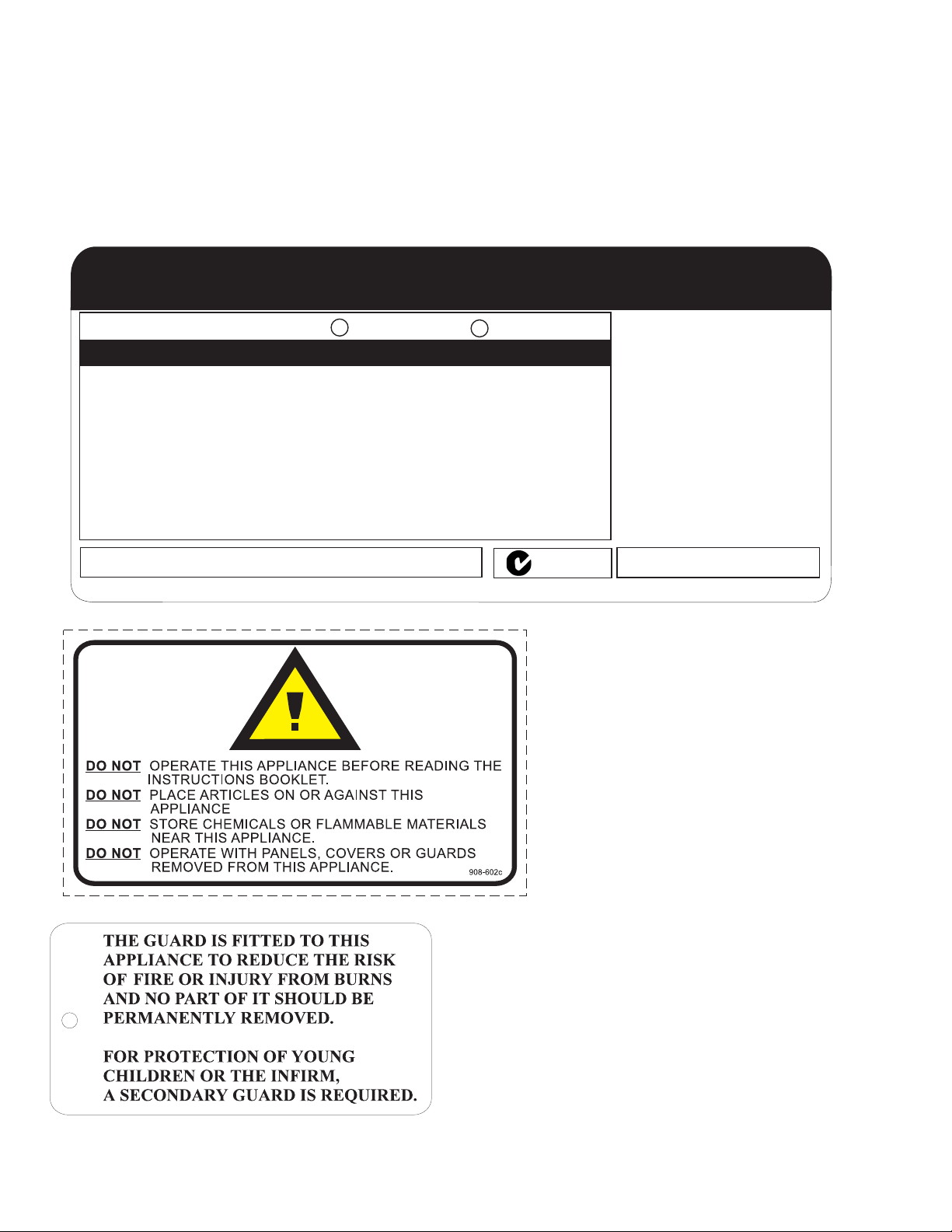

This is a copy of the label that accompanies
each PG36 Zero Clearance Room Sealed Gas
Fireplace. We have printed a copy of the contents
here for your review.
The label is located on the front inside base of
the unit, visible when the bottom louvre is open.
DATA BADGE NOTE: Regency® units are
constantly being improved. Check the label on
the unit and if there is a difference, the label on
the unit is the correct one.
Part #: 920-107
Colour: Black on Grey
Size: 100%
May 8/19: Created decal
Electrical:240VAC50Hz1.0ampmax.
Serial
Number
920-107
Model
N2134
Regency Gas Fireplace
2.65mm 1.61mm
526
Distributed by:
Western Australia:
Air Group Australia
28 Division St
Welshpool, WA 6106
Eastern Australia
Fireplace Products
Australia Pty. Ltd.
1 Conquest Way
Hallam, VIC 3803
To be installed by an authorised person in
accordance with installation instructions
provided with the appliance.
Approval No. AGA 5815 G
AS/NZS 5263.0 & AS/NZS 5263.1.3
PG36NG-6 PG36LP-6
Gas Type NG Propane
Gas Consumption High 33 MJ/h 31 MJ/h
Gas Consumption Low 20 MJ/h 18 MJ/h
Min. Supply Pressure 1.13 kPa 2.75 kPa
Manifold Pressure High 0.9 kPa 2.6 kPa
Manifold Pressure Low 0.27 kPa 0.72 kPa
Injector Size 1 x #37 1 x #52

6| Regency® PG36 Gas Fireplace
installation
Installation Checklist
1. Locate appliance. Refer to the following sections:
a) Locating Your Gas Fireplace
b) Combustible Mantels
c) Mantel Leg Clearances
d) Framing and Finishing
e) Flueing

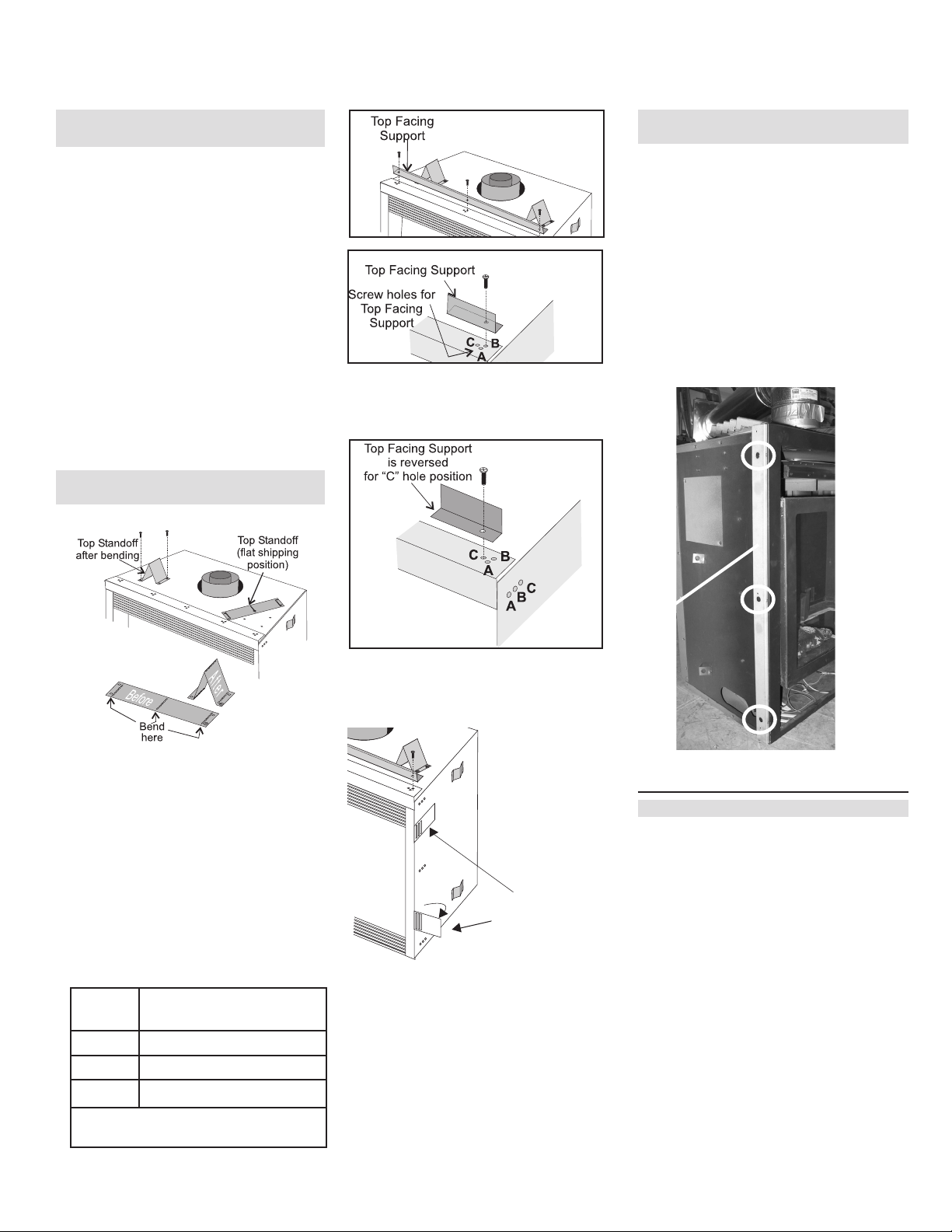

2. Assemble Top Standoffs and Top Facing Support
and Side Nailing Strips. Refer to the "Unit
Assembly Prior to Installation" section. (NOTE:
must be done before installing unit into fireplace.)
3. Install flue, refer to the "Horizontal Termination"
& "Vertical Termination" sections.
4. Make gas and electrical connections. Test the
pilot. Must be as per diagram. Refer to the " Pilot
Adjustment" section.
5. Install standard and optional features. Refer to
the following sections where applicable:
a. Log Set Installation
b. Flush Door
c. Premium Flush Front
d. Remote Controls
6. Final check.
Before leaving this unit with the customer, the installer
must ensure that the appliance is firing correctly and
operation fully explained to customer.
This includes:
1. Clocking the appliance to ensure the correct
firing rate (rate noted on label 33 MJ/h) after
burning appliance for 15 minutes.
2. If required, adjusting the primary air to ensure
that the flame does not carbon. First allow the
unit to burn for 15-20 min. to stabilize.
CAUTION: Any alteration to the product that
causes sooting or carboning that results
in damage is not the responsibility of the
manufacturer.
Important Message
SAVE THESE INSTRUCTIONS
The PG36NG-6 or PG36LP-6 Room Sealed
Fireplace must be installed in accordance with AS/
NZS5601 and these instructions. Carefully read
all the instructions in this manual first. Consult the
"authority having jurisdiction" to determine the need
for a permit prior to starting the installation. It is the
responsibility of the installer to ensure this fireplace
is installed in compliance with manufacturer's
instructions and all applicable codes.
Before You Start
NOTE:
NOT INTENDED AS A FIREPLACE INSERT.
DUE TO HIGH TEMPERATURES, THE
APPLIANCE SHOULD BE LOCATED OUT
OFTRAFFIC AND AWAY FROM FURNITURE
AND DRAPERIES.
INSTALLATION AND REPAIR SHOULD
BE DONE BY A AUTHORISED SERVICE
PERSON. THE APPLIANCE SHOULD BE
INSPECTED BEFORE USE AND AT LEAST
ANNUALLY BY AN AUTHORISED SERVICE
PERSON. MORE FREQUENT CLEANING
MAY BE REQUIRED DUE TO EXCESSIVE
LINT FROM CARPETING, BEDDING
MATERIAL, ETC. IT IS IMPERATIVE THAT
CONTROL COMPARTMENTS, BURNERS
AND CIRCULATING AIR PASSAGEWAYS OF
THE APPLIANCE BE KEPT CLEAN.
WARNING: FAILURE TO INSTALL THIS
APPLIANCE CORRECTLY WILL VOID YOUR
WARRANTY AND MAY CAUSE A SERIOUS
HOUSE FIRE.
CHILDREN AND ADULTS SHOULD BE
ALERTED TO THE HAZARDS OF HIGH
SURFACE TEMPERATURES, ESPECIALLY
THE FIREPLACE GLASS, AND SHOULD
STAYAWAYTOAVOIDBURNSORCLOTHING
IGNITION.
YOUNG CHILDREN SHOULD BE
CAREFULLY SUPERVISED WHEN
THEY ARE IN THE SAME AREA AS
THE APPLIANCE. TODDLERS, YOUNG
CHILDREN AND OTHERS MAY BE
SUSCEPTIBLE TO ACCIDENTAL
CONTACT BURNS. A PHYSICAL
BARRIERS IS RECOMMENDED IF
THERE ARE AT RISK INDIVIDUAL IN
THE HOUSE. TO RESTRICT ACCESS
TO A FIREPLACE OR STOVE, INSTALL
AN ADJUSTABLE SAFETY GATE TO
KEEP TODDLERS, YOUNG CHILDREN
AND OTHER AT RISK INDIVIDUALS
OUT OF THE ROOM.
CLOTHING OR OTHER FLAMMABLE
MATERIAL SHOULD NOT BE PLACED
ON OR NEAR THE APPLIANCE. DO NOT
USE AEROSOLS INTHE VICINITY OF THIS
APPLIANCE.
General Safety Information
1. The appliance shall be installed in accordance
with the manufacturer's installation
instructions,local gas fitting regulations,
municipal building codes, water supply
regulations, electrical wiring regulations, with
AS/NZS5601
2. Installation and repair should be done ONLY
by an authorised person.
3. THIS APPLIANCE IS NOT INTENDED AS A
FIREPLACE INSERT. DO NOT CONNECTTO
MASONRY FLUE.
4. This appliance must be connected to the
specified flue and termination cap to the
outside of the building envelope.Never flue
to another room or inside a building. Make
sure that the flue is fitted as per Flueing
instructions.
5. Inspect the flueing system annually for blockage
and any signs of deterioration.
6. Flueing terminals shall not be recessed into a
wall or siding.
7. Any safety glass removed for servicing must
be replaced prior to operating the appliance.
8. To prevent injury, do not allow anyone who is
unfamiliar with the operation to use the fireplace.
9. Wear gloves and safety glasses for protection
while doing required maintenance.
10. Be aware of electrical wiring locations in walls
and ceilings when cutting holes for termination.
11. Under no circumstances should this appliance
be modified. Parts that have to be removed for
servicing should be replaced prior to operating
this appliance.
12. Installation and any repairs to this appliance
should be done by an authorised service
person. An authorised service person should be
called to inspect this appliance annually. Make
it a practice to have all of your gas appliances
checked annually.
13. Do not slam shut or strike the glass door.
14. Under no circumstances should any solid fuels
(wood, paper, cardboard, coal, etc.) be used
in this appliance.
15. The appliance area must be kept clear and
free of combustible materials, (gases and other
flammable vapours and liquids).
This appliance will shut down during a
power supply interruption and/or if there
is insufficient voltage to the appliance.
"This unit must always terminate /flue
directly to the outdoors."

Regency® PG36 Gas Fireplace | 7
installation
Clearances for Flush Front
NOTE:The minimum floor clearance must
be maintained from the top surface of the
carpeting, tile, etc.
Minimum Clearance from Top of Unit to:
Mantel* Minimum 178 mm
Ceiling from top of unit. 813 mm
Side Wall Clearance
Flush Front 152 mm
Horizontal Flue Clearances
Top 51 mm
Side 38 mm
Bottom 38 mm
Vertical Flue Clearances 32 mm
Alcove Clearances**:
Max. Depth 914 mm
Min. Width 1219 mm
Min. Height 1829 mm
* see mantel clearance instructions
(Refer to the "Combustible Mantels," & "Mantel Leg
Clearances" sections.)
Clearances
The clearances listed below are Minimum distances
unless otherwise stated:
A major cause of chimney related fires is failure
to maintain required clearances (air space)
to combustible materials. It is of the greatest
importance that this fireplace and flue system
be installed only in accordance with these
instructions.
Diagram 1
Locating Your Fireplace
1. When selecting a location for your fireplace,
ensure that the clearances outlined on this page
are met.
2. Provide adequate clearances for servicing.
3. The appliance must be installed on a flat, solid,
continuous surface (e.g. wood, metal, concrete).
This may be the floor, or raised up on a platform
to enhance its visual impact. If the appliance is
going to be installed on carpeting, combustible
linoleum tile or other combustible material other
than wood flooring, the appliance must be
installed on a metal or wood panel extending
the full width and depth of the appliance.
4. The PG36 Co-Axial Flue Gas Fireplace can be
installed in a recessed position or framed out
into the room as in A, B, C, D. See Diagram 1.
5. The PG36 Co Axial Flue Gas Fireplace is
approved for alcove installations, which meet
the clearances listed on this page.
6. We recommend that you plan your installation
on paper using exact measurements for
clearances and floor protection before actually
installing this appliance. Have an authorized
inspector, dealer, or installer review your plans
before installation.
Note: For flue terminations see the
"Exterior Flue Termination
Locations" section.
A) Flat on Wall
B) Flat on Wall Corner
C) Recessed into Wall/Alcove
D) Corner
WARNING
Fire hazard is an extreme risk if
these clearances are not adhered
to.
Min.
152mm
775mm
Top of Unit
813 mm
to Ceiling
PACKAGING:
The unit and its contents are packaged
to prevent damage during transport.
After unboxing, remove and dispose of
the cardboard spacers, plastic wrap, and
protective film on the glass door.
Before commissioning of the unit, carefully
remove the logs from inside the unit and set
them aside.
Refer to subsequent instructions on proper
setup and safety check before commissioning
the unit.

8| Regency® PG36 Gas Fireplace
installation

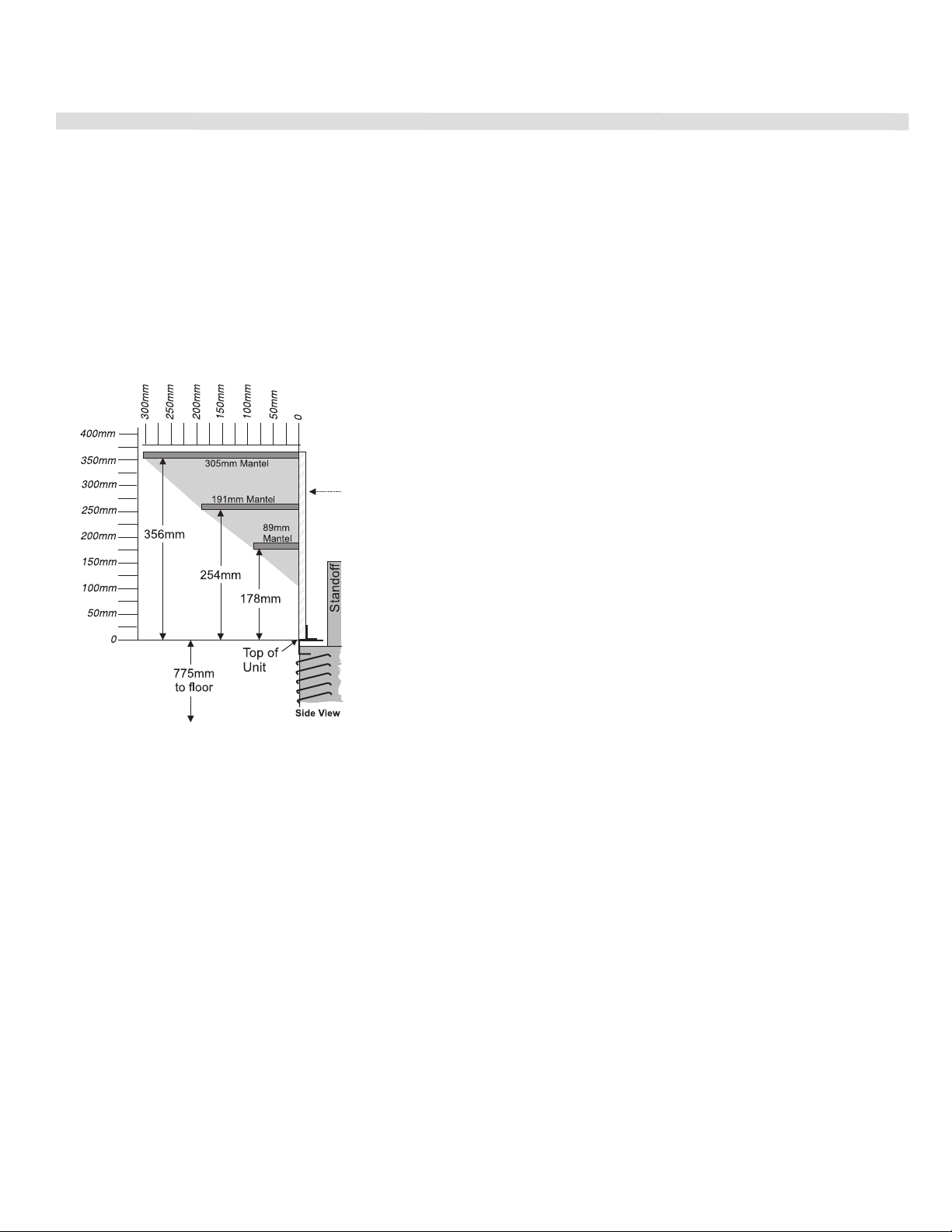

Due to the extreme heat this fireplace emits, the mantel clearances are critical. Combustible mantel clearances from the top of unit are shown in the
diagrams below.
Combustible Mantels
Note: Ensure the paint that is used on the mantel and the facing
is "heat resistant" or the paint may discolour.
Note: A non-combustible mantel may be installed at a
lower height if the framing is made of metal studs
covered with a non-combustible board.
152mm
Mantel Clearances with Flush Louvres - Black
OR
Premium Flush Front
Plasterboard
OR
Non Combustible
(see page 9)

Regency® PG36 Gas Fireplace | 9
installation

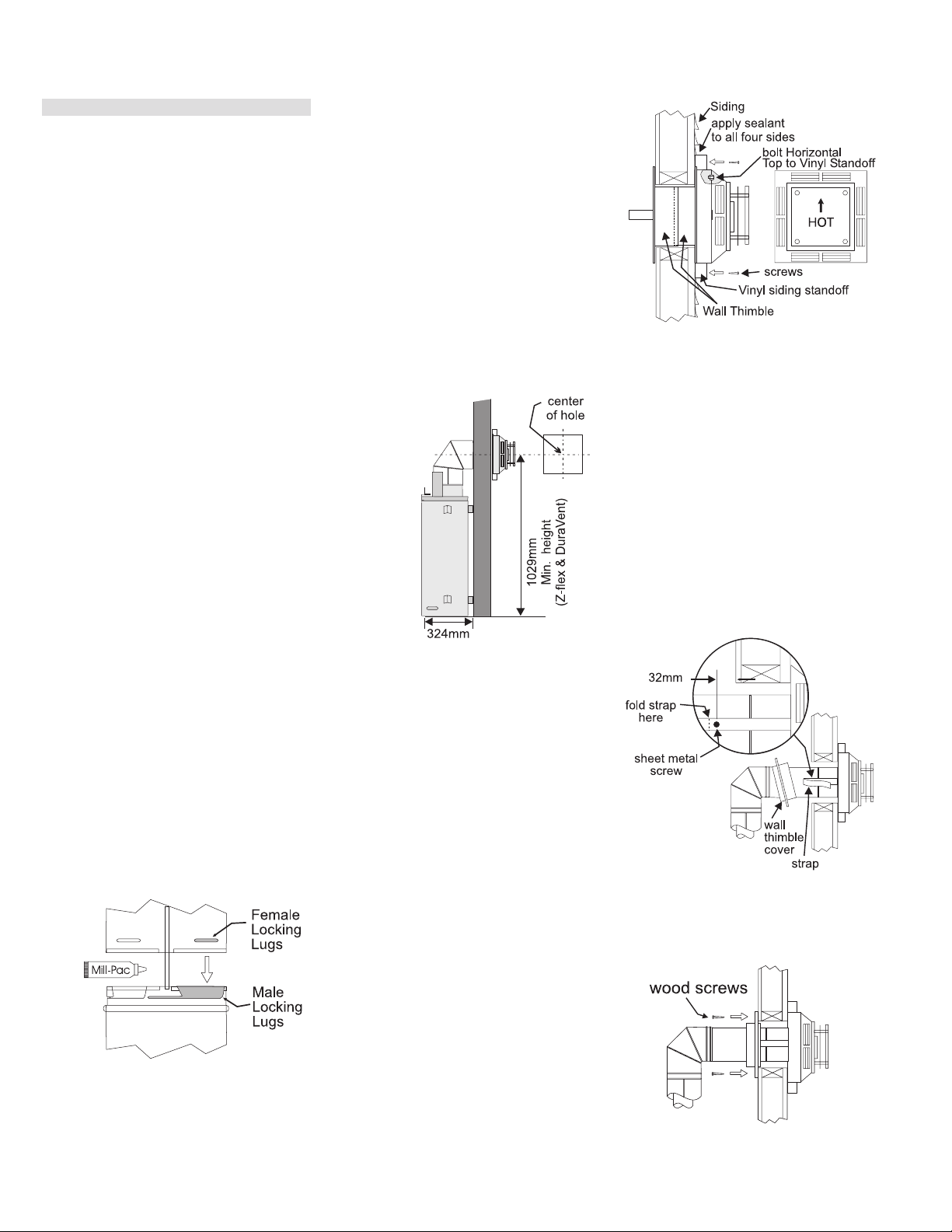

Note: 1029mm is the minimum height for
both flex termination or Simpson
Dura-Vent flueing.
Mantel Leg Clearances
Combustible mantel leg clearances as per diagram
below:
Maximum 38mm projection at 51mm minimum
clearance.
the unit. Total facing thickness can vary from
13mm to 32mm thick.
2. Frame in the enclosure for the unit with framing
material.
Note:The unit does not have to be completely
enclosed in a chase. The clearance on
top of the unit is 0mm to the standoffs so
combustible building materials can be laid
directly on top of the standoffs.You must
maintain (38mm) clearance from the flue
to combustible materials for flex (32mm)
for Simpson Dura-Vent).
152mmSid eWalll
127mm
51mm
Mantel leg
Mantel leg
P36G
Fireplace
Allowable mantelleg
projection.
76 mm
38 mm
Mntleg2.eps
Framing and Finishing
1. Determine the total thickness of facing material
(e.g. plasterboard plus ceramic tiles) to allow
the finished surface to be flush with the front of
B
Wood stud on edge
A
C
D
*Minimum Height
to Combustible
Material
3. Use steel studs for framing where the
38mm clearance from the flue to combustible
material cannot be maintained, e.g. front top
header.
324mm
89mm 102mm
51mm
1029mm
914mm
826mm
254mm dia. hole
through wall for Flex
or for DuraVent
TopHeader
Opening for gas
connection
13mm
Plasterboard
Install Side Nailing Strips, Top Facing
Support, andTop Standoffs before unit is
slipped intoposition. See "UnitAssembly
Prior to Installation" section for assembly
details.
NOTE:
When using the Premium Flush Front
option, a finishing trim (962mm cover)
needs to be installed to cover the spacers.
Maintain a physical gap between lining
and spacers 2-5mm. (5mm clearance to
framing each side).
Standard Framing Dimensions
A B C D
921mm 921mm 324mm 1169mm*
Framing Dimensions with Premium
Flush Front Option
A B C D
944mm 946mm 432mm 1182mm*
* 'D' is Minimum height to combustible ma-
terials including the Minimum 51mm Top
clearance to the Horizontal Flue, see flue
clearances in section "Clearances."
4. For exterior walls, insulate the enclosure to
the same degree as the rest of the house,
apply vapour barrier and plasterboard, as per
local installation codes. (Do not insulate the
fireplace itself.)
5. The top of the unit must not be closer than
813mm to the ceiling.
Premium Flush Front Framing
Do not use combustible material as lining (eg.
timber) around the fireplace as shown in the
shaded area in the diagram below.
MINIMUM THICKNESS OF THE FINISHING
MATERIAL: 12 mm

10 | Regency® PG36 Gas Fireplace
installation

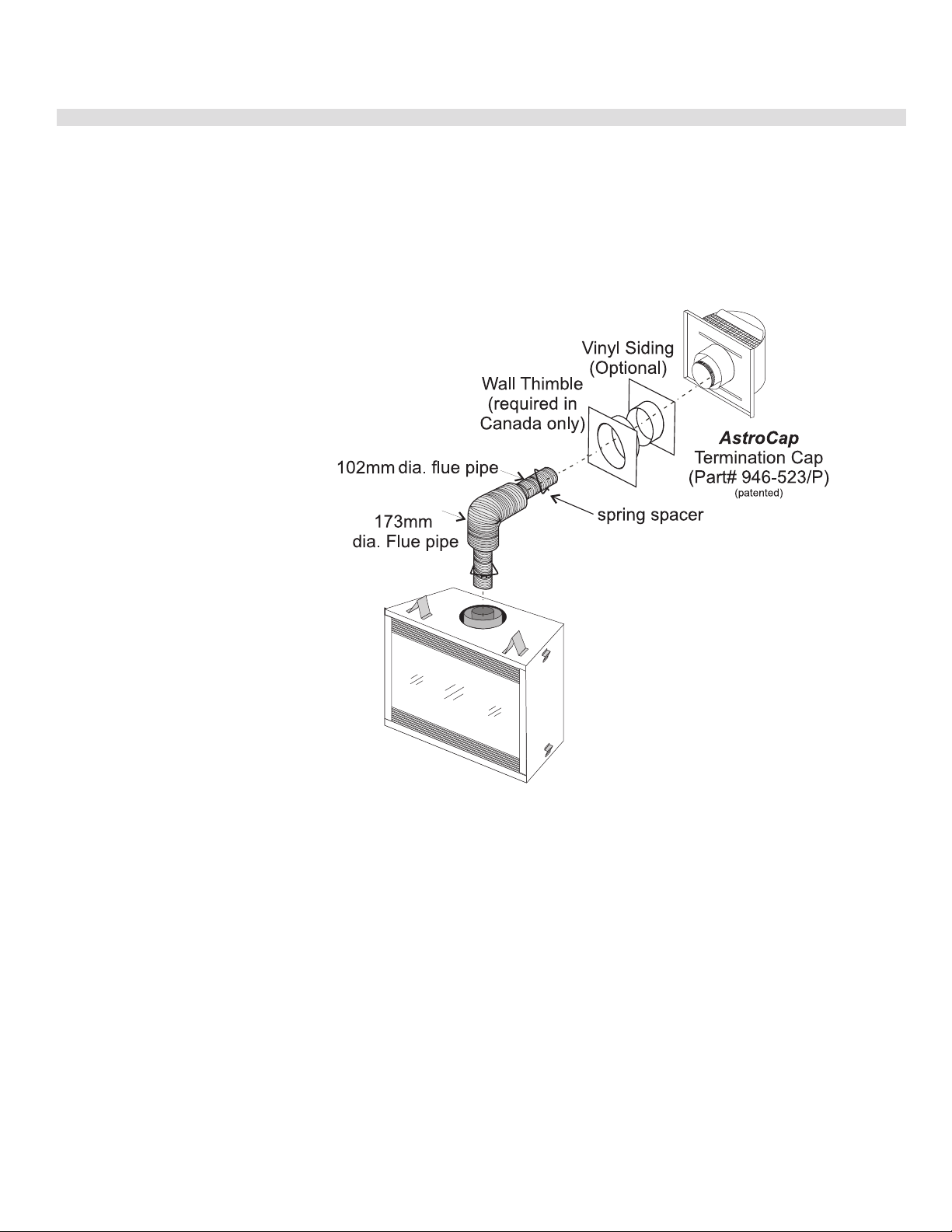

Flueing Introduction
The PG36 uses the "balanced flue" technology
Co Axial system. The inner liner flues products of
combustion to the outside while the outer liner
draws outside combustion air into the combustion
chamber thereby eliminating the need to use heated
room air for combustion and losing warm room air
up the chimney.
Note: These flue pipes must not be connected
to any other appliance.
The gas appliance and flue system must be flued
directly to the outside of the building, and never be
attached to a chimney serving a separate solid fuel
or gas burning appliance. Each Co Axial Flue gas
appliance must use it's own separate flue system.
Common flue systems are prohibited.
Before the unit is slid into position, install the
provided spacers to the side of the fireplace
as follows;
1. Align the screw locations on spacer with screw
locations on the side of the firebox and secure
in place using 3 screws.
2. Repeat for other side.
NOTE:The side nailing strips are to be in-
stalled to the spacer after the spacer
is attached to the unit.
Spacer
Left Side Shown
Premium Flush Front Spacer
Installation
Side
Nailing Strips
"C" Screw Position:
For a facing material depth of 32mm, the top facing
support must be reversed.
Unit Assembly Prior to
Installation
The Top Facing Support, the Side Nailing Strips and
the 2 Top Standoffs must be correctly positioned
and attached to the top before unit is slipped into
position.
Top Standoff Assembly
The top standoffs are shipped in a flat position and
must be folded into shape and attached.
1. Remove the standoffs from the fireplace top.
2. Take each standoff and bend into the correct
shape. Bend up at the bend lines until the screw
holes in the standoff and the pre-punched screw
holes on the fireplace top line up.
3. Attach the standoff securely to the top with 2
screws per standoff (on opposite corners).
Top Facing Support Side Nailing
Strips
Determine the total thickness of facing material
(e.g. plasterboard plus ceramic tiles) to allow the
finished surface to be flush with the front of the
unit. Total facing thickness can vary from 13mm
to 32mm thick.
The Top Facing Support can be mounted in 3
different positions depending on the thickness of
the facing material.
1. Mount Top Facing Support using the 3 supplied
screws into the three pre-punched screw holes
on the top front of the unit. Use hole positions A,
B, or C depending on your facing depth.
Side
Nailing Strips
2. Fold out the two nailing strips on each side.
Screw
Position
Facing Material
Depth
A 13mm
B 22mm
C* 32mm
* For "C" screw position the top facing support
is reversed.

Regency® PG36 Gas Fireplace | 11
installation
Exterior Flue Termination Locations
Minimum clearances required for balanced flue terminals or
the flue terminals of outdoor appliances
according to AS5601-2004 (AGA gas installation code) or NZS 5261 (New Zealand)
Minimum
Clearance (mm)
a Below eaves, balconies or other projections:
- Appliances up to 50 MJ/h input 300
- Appliances over 50 MJ/h input 500
b From the ground or above a balcony 300
c From a return wall or external corner 500
d From a gas meter (M) 1000
e From an electricity meter or fuse box (P) 500
f From a drain or soil pipe 150
g Horizontal from any building structure (unless appliance is approved
for closer installation) or obstruction facing a terminal 500
h From any other flue terminal, cowl or combustion air intake 500
j Horizontally from an openable window, door, or non-mechanical air inlet, or
any other opening into a building, with the exception of sub-floor ventilation
(see also Note (I)):
- Appliances up to 150 MJ/h input 500
- Appliances over 150 MJ/h input 1500
k Vertically below an openable window, door, or non-mechanical air inlet,
or any other opening into a building, with the exception of sub-floor ventilation
(see also Note (I)): see table below
Clearance 'k' in mm
Space Heaters All Other Appliances
Up to 50 MJ/h Up to 50 MJ/h input Over 50 MJ/h input Over 150 MJ/h input
input to 150 MJ/h input
150 500 1000 1500
NOTES:
(I) For mechanical air inlets, including spa blowers, the clearance 'j' and 'k' shall be 1500 mm in all cases.
(II) All distances shall be measured vertically or horizontally along the wall to a point in line with the nearest par to of the terminal.
(III) Prohibited area below electricity meter or fuse box extends to ground level.
(IV) A flue terminal of this type shall not be located under a roofed area unless the roofed area is fully open on at least two sides and a free flow
of air at the appliance is achieved.

12 | Regency® PG36 Gas Fireplace
installation
Flueing
Regency®Direct Vent System (Flex)
Horizontal Terminations Only
These flueing systems, in combination with the PG36 Room Sealed Gas Fireplace, have been tested and listed as a Direct Vent type flue system by the
Australian Gas Association. The location of the termination cap must conform to the requirements in the Flue Terminal Locations diagram in the "Exterior
Flue Termination Locations" section.
Regency®DirectVent (Flex) SystemTermination Kit (Part # 946-515) includes all the parts needed to install the PG36 with a maximum run of 1200 mm.
1) 175 mm dia. flexible liner (1200mm length)
2) 102 mm dia. flexible liner (1200mm length)
3) spring spacers (4)
4) thimble
5) AstroCap termination cap (1)
6) screws (12)
7) tube of Mill Pac (1)
8) plated screws (8)
9) screws #8 x 38 mm Drill Point, Stainless
Steel (4)
If longer runs are needed, the Regency®
DirectVent system (Flex) # 946-516 includes
all the parts needed to install the PG36 with
a maximum 3.0m run.
1) 175 mm dia. flexible liner (3.0m length)
2) 102 mm dia. flexible liner (3.0m length)
3) spring spacers (7)
4) thimble
5) AstroCap termination cap (1)
6) screws (12)
7) tube of Mill Pac (1)
8) plated screws (8)
9) screws #8 x 38 mm Drill Point, Stainless
Steel (4)
Notes:
1) Liner sections should be continuous without any joints or seams.
2) Only Flex pipe purchased from Regency®may be used for Flex installations.

Regency® PG36 Gas Fireplace | 13
installation
Horizontal or Vertical Terminations
Simpson Dura-vent Flueing
The Simpson Dura-Vent Co Axial Flue System offers a complete line of component parts for installation of both horizontal and vertical installations. Many items
are offered in decorative black, as well as galvanized finish. We recommend using the galvanized finish for installation with the PG36.
The minimum components required for a basic
horizontal termination are:
1 Horizontal Termination Cap
1 90o Elbow
1 Flue Adaptor
1 Wall Thimble
1 Length of pipe to suit wall thickness
(see chart)
If a Vinyl Siding Standoff is required (it must be
used with vinyl siding), measure to outside surface
of wall without siding and add 2 inches.
Flat Wall Installation
Wall Thickness
(mm)
Vent Length Required
(mm)
102mm - 140mm 152mm
178mm - 216mm 229mm
254mm- 38mm 305mm
229mm - 368mm 279 - 371mm Adj. Pipe
381mm - 597mm 432- 610mm Adj.Pipe
Corner Installation
Wall Thickness
(mm)
Vent Length Required
(mm)
83mm - 171mm 279 - 371mm Adj. Pipe
197mm - 413mm 432- 610mm Adj.Pipe
184mm - 222mm 152mm + 305mm
229mm + 229mm
108mm- 146mm 152mm + 305mm
Wall thickness is measured from the back standoffs
to the inside mounting surface of termination cap. For
siding other than vinyl furring strips may be used,
instead of the vinyl siding standoff, to create a level
surface to mount the flue terminal. The Terminal
must not be recessed into siding. Measure the wall
thickness including furring strips.
Rigid Pipe Adaptor
Pipe Length
Vertical
Termination
Cap
Storm Collar
Flashing
Length
Adj.Pipe Length
90 Elbow
o
Horizontal
Termination
Cap
Wall Thimble
Vinyl Siding
Standoff (Optional)
Pipe
Not supplied by FPI

14 | Regency® PG36 Gas Fireplace
installation
vent-a r3.eps
18
20
24
22
2
0
12
6
16
26
28
30
32
34
36
38
4
14
8
10
Vertical Height (Feet)
2 0
4
Horizontal (Feet)
20"
(0.5m)
Maximum: 37 ft. (11.3m)
Minimum: 8 ft. 4-1/2in. (2.6m)
NOTE: If installation requires more
than a 20" hori
zontal offset, see dia. 3.
5
2
0
3.5
1
5.5
4
4.5
1.5
0.5
3
2.5
2
0
3.5
1
1.5
0.5
3
2.5
Vent-hr2.eps
1029mm
Minimum
Height
Requirement
Meters
Meters
Restrictor #1

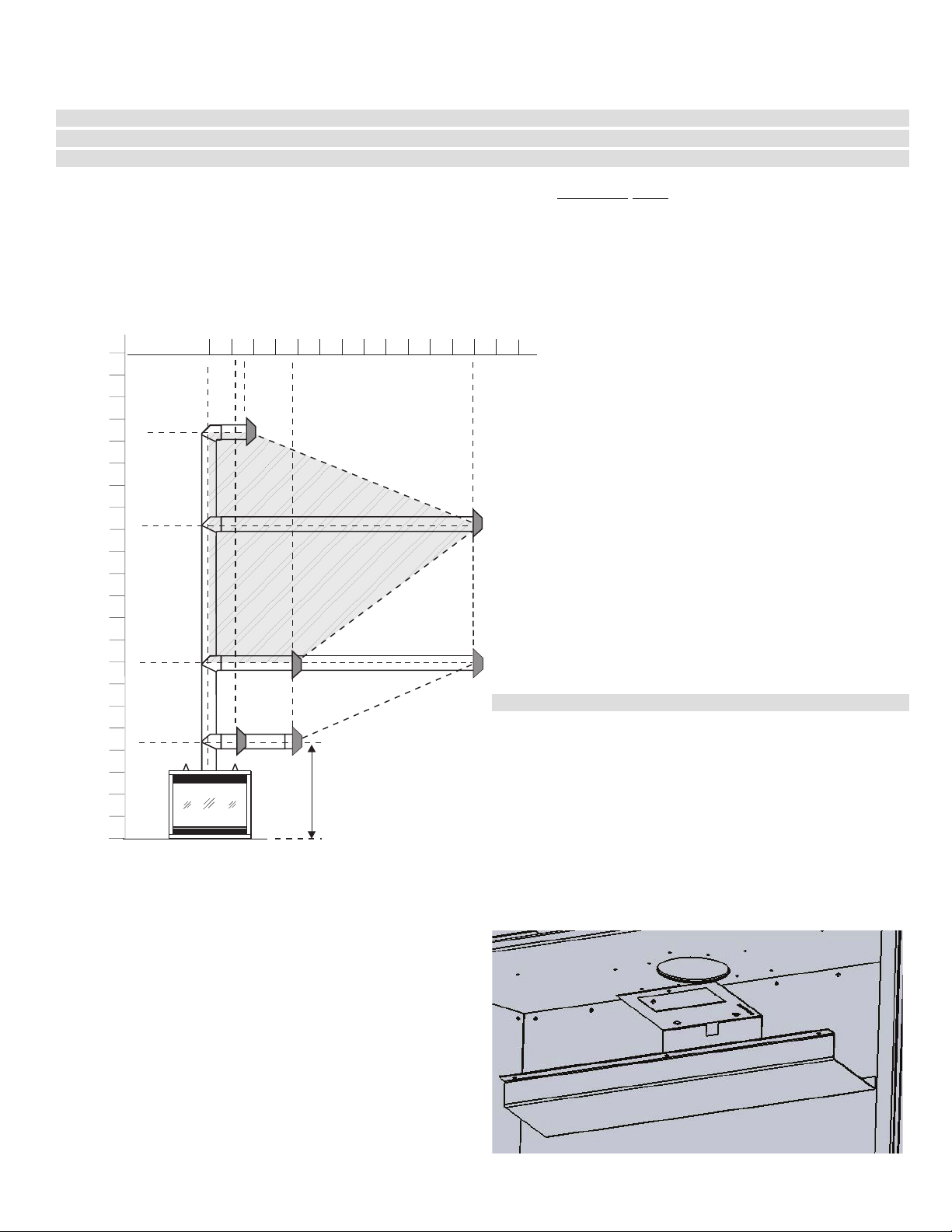

Flueing Arrangements - Horizontal Terminations
SIMPSON DURA-VENT DIRECT FLUE GS SYSTEM and
REGENCY® DIRECT FLUE SYSTEM (FLEX) (Propane & NG)
The diagram shows all allowable combinations of vertical runs with horizontal terminations, using one 90o elbow (two 45o elbows equal
one 90o elbow).
Note: Must use optional flue adapter (Part # 510-994) when using Simpson Dura-Vent pipe.
Simpson Dura-Vent
102mm inner diameter
168mm outer diameter
Regency® Flex Vent
102mm inner diameter
175mm outer diameter
• Maintain clearances to combustibles as listed in the "Clearances,"
"Locating Your Gas Fireplace," "Combustible Mantels," "Mantel Leg
Clearances" & "Framing and Finishing" sections.
• Horizontal flue must be supported every 0.9 meters.
A flue guard should be used whenever
the termination is lower than the
specified minimum or as per local
codes.
Note: Regency®Co Axial Flue
System (Flex) is only approved
for horizontal terminations.
Check the vent diagrams to determine whether the vent restrictor is needed
for your vent configuration.
The vent restrictor is packaged with the manuals inside the firebox.
If restrictor is required:
1) Remove the top louver.
2) Open and remove the glass door front.
3) Remove the internal baffle (3 screws) at the top of the firebox.
4) Place the restrictor on the baffle plate (see diagram below) and re-install
the internal baffle plate.
Vent Restrictor Installation

Regency® PG36 Gas Fireplace | 15
installation

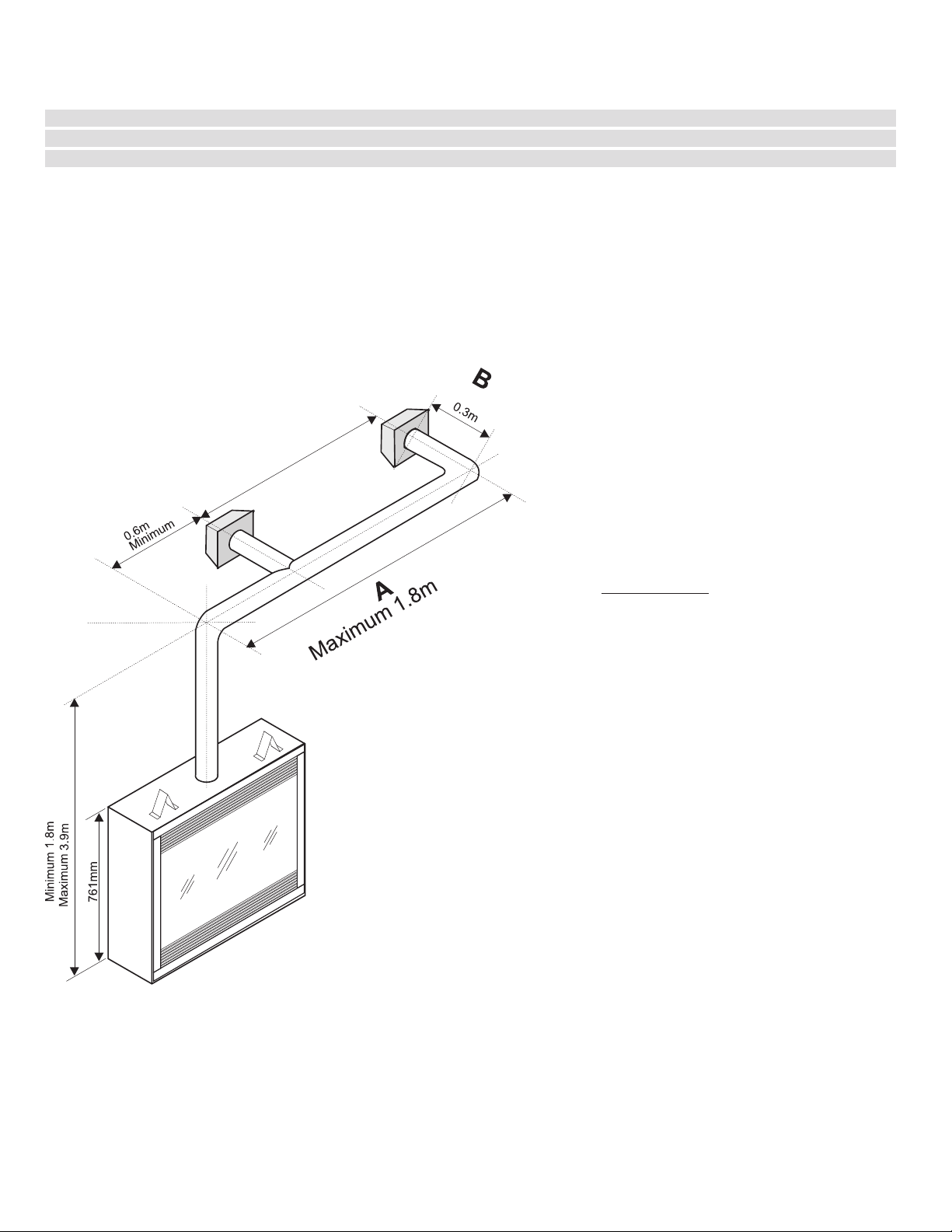

Flueing Arrangements - Horizontal Terminations
SIMPSON DURA-VENT DIRECT FLUE GS SYSTEM and
REGENCY® CO AXIAL FLUE SYSTEM (FLEX) (Propane & NG)
The diagram below shows examples of horizontal termination arrangements using two 90o elbows (two 45o elbows equal one 90o elbow).
Note: 1) A maximum of two 90o elbows are permitted.
2) A minimum of 1.8m vertical from base of unit is required if two 90o elbows are used.
3) Minimum distance between elbows is 0.6m.
4) Determine the permitted range of horizontal termination arrangements by using chart in the "Simpson Dura-Vent
Flueing" section and deducting 0.9m from the maximum horizontal distance for the second 90o elbow.
Simpson Dura-Vent
102mm inner diameter
168mm outer diameter
• Maintain clearances to combustibles as listed in the "Clearances," "Locating Your Gas Fireplace," "Combustible Mantels," "Mantel Leg Clearances"
& "Framing and Finishing" sections.
• Horizontal flue must be supported every 0.9 meters.
A flue guard should be used whenever the
termination is lower than the specified minimum
or as per local codes.
If length "B" is increased, length "A" must
be decreased by a corresponding amount.

16 | Regency® PG36 Gas Fireplace
installation

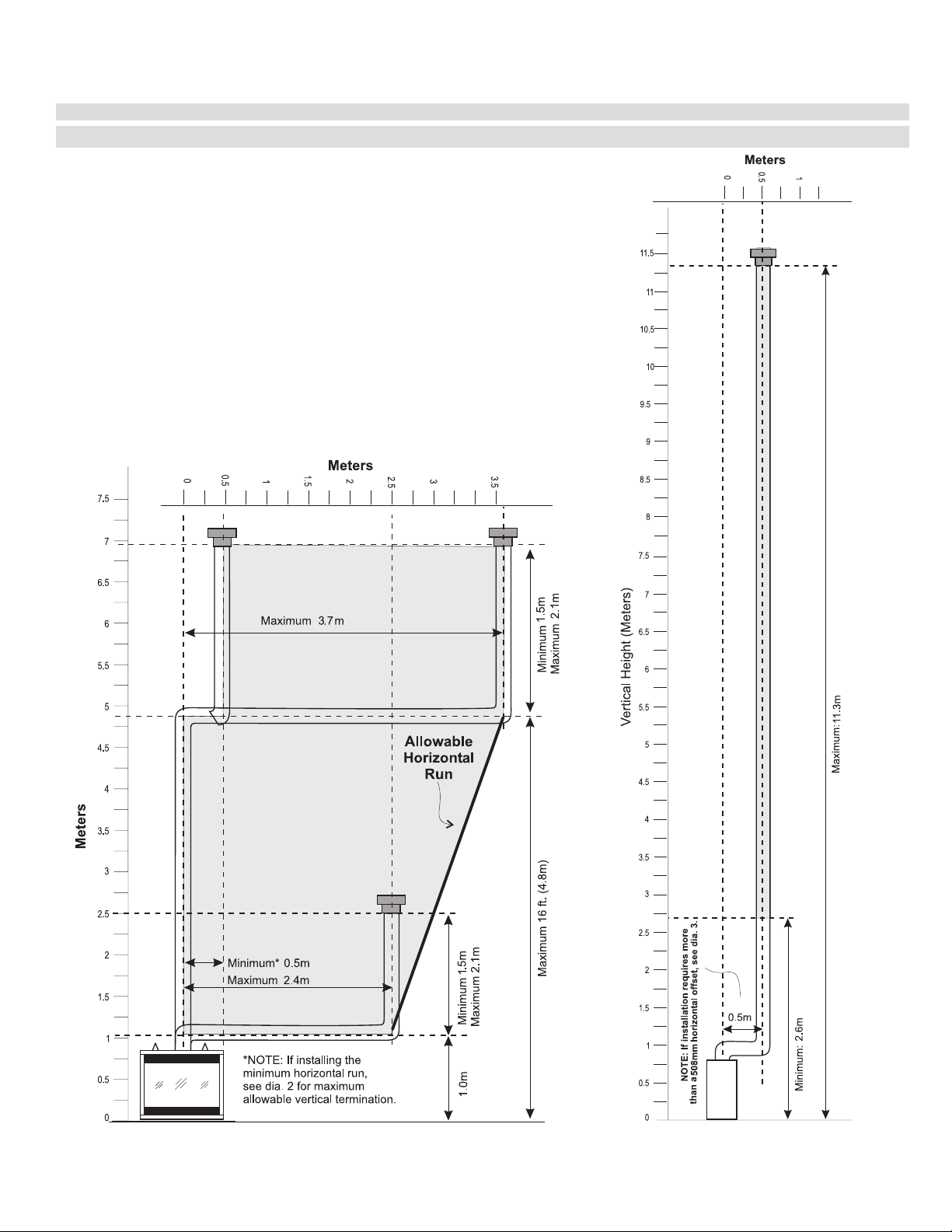

Flueing Arrangements - Vertical Terminations
SIMPSON DURA-VENT CO AXIAL FLUE GS SYSTEM (Propane & NG)
The PG36 is approved for a 7.0m vertical, with a maximum 3.7m horizontal offset using two 90o elbows
(two 45o elbows equal one 90o elbow) with Simpson Dura-Vent Co Axial Flue GS flue systems for
Propane and NG, as per diagram 1.
The PG36 is approved for a 11.3m straight vertical, including a 0.5m horizontal offset using two 90o
elbow (two 45o elbows equal one 90o elbow) with Simpson Dura-Vent Co Axial Flue GS flue systems
for Propane and NG, as per the diagram 2.
• Flue must be supported at offsets
• Maintain clearances to combustibles as listed in the "Clearances," "Locating Your Gas Fireplace,"
"Combustible Mantels," "Mantel Leg Clearances" & "Framing and Finishing" sections.
Note: Must use optional flue adapter when using Simpson Dura-Vent pipe
(Part # 510-994).
Note: Regency®Co Axial Flue System (Flex) is only approved for horizontal terminations.
Diagram 1 Diagram 2

Regency® PG36 Gas Fireplace | 17
installation

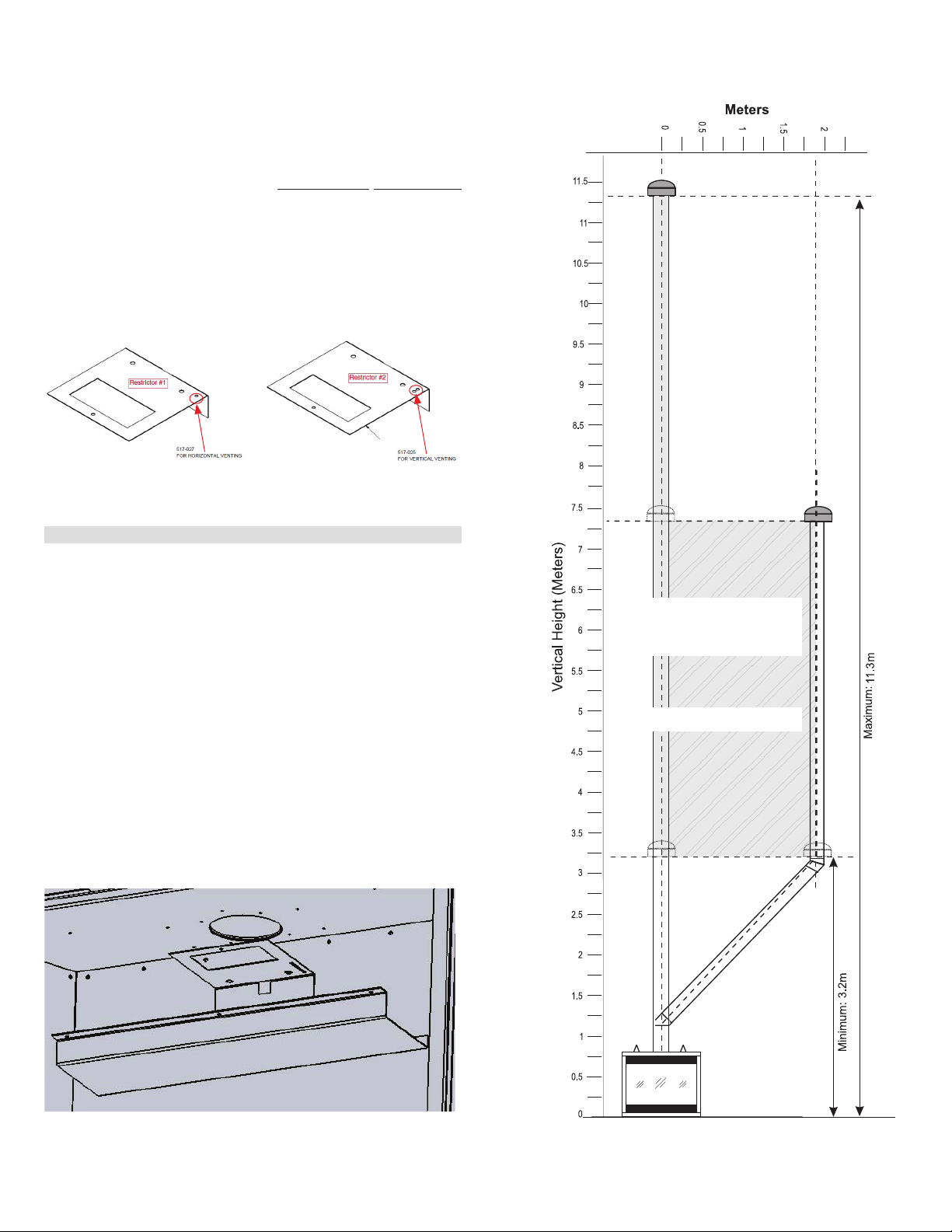

The PG36 is approved for a 37 ft. (11.3 m) straight vertical, with Simpson Dura-
Vent Co Axial Flue GS flue systems for Propane and NG, as per diagram 3.
The shaded area in diagram 3 shows all allowable combinations of straight
vertical and offset to vertical terminations with Simpson Dura-Vent Co Axial
Flue GS flue systems for Propane and NG. Maximum two 45o elbows allowed.
• The vent restrictor must be used in the shaded area. Vent restrictors are
shown in images below.
• Flue must be supported at offsets
• Firestops are required at each floor level and whenever passing through
a wall.
• Maintain clearances to combustibles as listed in the "Clearances," "Locating
Your Gas Fireplace," "Combustible Mantels," "Mantel Leg Clearances" &
"Framing and Finishing" sections.
Diagram 3
Vent Restrictor Installation
Check the vent diagrams to determine whether the vent restrictor is needed
for your vent configuration.
The vent restrictor is packaged with the manuals inside the firebox.
If restrictor is required:
1) Remove the top louver.
2) Open and remove the glass door front.
3) Remove the internal baffle (3 screws) at the top of the firebox.
4) Place the restrictor on the baffle plate (see diagram below) and re-install
the internal baffle plate.
5) Replace the door and louvers.
6) Fire up the unit and check for proper flame appearance and glow on logs.
The vent restrictor must
be used in the shaded
area only
Restrictor #2

18 | Regency® PG36 Gas Fireplace
installation
Direct Flue Zero Clearance Top Exit Vertical Flue Kit
Installation Instructions
This flue kit has been manufactured for use with PG36 and to be installed in
accordance with AS/NZS 5601. To ensure safety and correct unit operation
this flue kit must be installed as outlined in these instructions. Heater and
flue clearances from combustible materials must be in accordance with these
instructions and AS/NZS 5601.
1. Locate the heater in its proposed position and mark the point for penetra-
tion directly above the centre of the heater flue outlet. Check the heater
location allows the outer flue to clear all structural timber and combustible
surfaces as per the manual.
2. If the enclosure consists of a ceiling – cut a 240 mm square hole (minimum)
for the flue to penetrate, cut hole through roofing material and prepare
flashing for termination.
3. Starting at the heater, install first length of inner pipe, crimped end down,
using Mill-Pac sealant and self-tapping screws (or rivets). Note – first length
of inner pipe has a swage only.
4. Continue assembling flue pipes inner and outer, ensuring each inner join
is sealed using Mill-Pac sealant and self-tapping screws (or rivets). Outer
flue pipe is to be installed with crimped end up then sealed and fixed
together also.
5. If required, fix outer flue in the ceiling space using non-combustible brac-
ing to stop movement. On penetration of roof, fit an appropriate flashing
or weather seal to suit the roofing material, ensure all joints outside are
sealed with appropriate sealer.
6. Fit gas cowl (46DVA-VCH/9) or flomet cap (946-651) ensuring inner and
outer flue pipes are sealed.
7. Start heater and run for at least 15 minutes to check flue seal. If operational
issues are noted, check flue again to ensure proper seal of inner pipe.
SUPPLIED Mill-Pac SEALANT MUST BE USED OR WARRANTY WILL BE
VOID – IF REQUIRED, MORE SEALANT CAN BE PURCHASED USING
PART NUMBER 948-128
Gas cowl part number 46DVA-VCH/9 or Flomet cap part number (946-651)
SCREWS SUPPLIED FOR INNER FLUE CONNECTION
45º bends (if required) part number 946-648 – Note: if bends are used at
the start of flue run, a deeper crimp may be required at the unit for inner pipe
fitment. Can be crimped on site and sealed with Mill-Pac sealant and self-
tapping screws (or rivets).
Note – It is the installers responsibility to ensure the installation complies with
AS/NZS 5601 and all local and building codes.
NOTE:
USE A MINIMUM OF 3 SCREWS
EQUIDISTANT TO SECURE EVERY
INNER FLUE PIPE JOINT AS WELL
AS MILL-PAC SEALANT
Mill-Pac SEALANT
INNER FLUE
Screws
1st Length Inner Flue
has Deep Crimp
and is marked (crimp down)
Outer Heat Shield
174mm dia x 900mm x 4
100mm dia x 900mm x 4
If required 45° Heat Shield and
Inner
Install with pop rivets or self tapping screws
and seal with Milpac
OR
Duravent Gas Cowl
46DVA-VCH/9+
Adaptor 946-725 (Not Shown)
GF900C/GF950L Flomet Cap
Part Number: 946-651
Inner Flue

Regency® PG36 Gas Fireplace | 19
installation
Diagram 5
7) Before connecting the horizontal run of flue pipe
to the flue termination, slide the Wall Thimble
(Part # 46DVA-WT) over the flue pipe.
8) Slide the appliance and flue assembly towards
the wall carefully inserting the flue pipe into the
flue cap assembly. It is important that the flue
pipe extends into the flue cap sufficient distance
so as to result in a minimum pipe overlap of
1-1/4 inches. Secure the connection between
the flue pipe and the flue cap by attaching the
two sheet metal strips extending from the flue
cap assembly into the outer wall of the flue
pipe. Use the two sheet metal screws provided
to connect the strips to the pipe section. See
Diagram 4.
Horizontal Terminations
Install the flue system according to the
manufacturer's instructions included with the
components.
1) Set the unit in its desired location. Check to
determine if wall studs or roof rafters are in
the way when the flueing system is attached.
If this is the case, you may want to adjust the
location of the unit. Rough in the gas preferably
on the right side of the unit and the electrical
(junction block is on the left side) on the left.
2) Simpson Dura-vent Co Axial Flue pipe and
fittings are designed with special twist-lock
connections to connect the flueing system to
the appliance flue outlet. A twist-lock appliance
adaptor is an available option that must be used
in conjunction with the Simpson Dura-Vent Co
Axial Flue GS system.
3) Put a bead of high-temp silicone inside the outer
section of the adapter and a bead of Stove Mate
on the inner collar. Slip the adapter over the
existing inner and outer flue collar and fasten to
the outer collar only with the 3 supplied screws
(drilling pilot holes will make this easier). Level
the fireplace and fasten it to the framing using
nails or screws through the nailing strips.
4) Assemble the desired combination of pipe and
elbows to the appliance adaptor and twist-lock
for a solid connection.
Note:
a) Twist-lock procedure: Four indentations,
located on the female ends of pipes and
ttings, are designed to slide straight onto
the male ends of adjacent pipes and ttings,
by orienting the four pipe indentations so
they match and slide in to the four entry slots
on the male ends, Diagram 1. Push the pipe
sections completely together, then twist-
lock one section clockwise approximately
one-quarter turn, until the two sections are
fully locked. The female locking lugs will not
be visible from the outside, on the Black
Pipe or ttings. They may be located by
examining the inside of the female ends.
Diagram 1
Note: Apply sealant "Mill-Pac" to inner
pipe and high temperature silicone
sealant to outer pipe on every twist-
lock joint.
b) Horizontal runs of ue must be supported
every three feet. Wall straps are available
for this purpose.
5) Mark the wall for a 254mm x 254mm square
hole. The center of the square hole should line
up with the centerline of the horizontal pipe.
Cut and frame the 254mm square hole in the
exterior wall where the flue will be terminated.
If the wall being penetrated is constructed of
non-combustible material, i.e. masonry block or
concrete, a 178mm dia. 191mm dia. (for flex)
hole is acceptable.
Diagram 2
Note:
a) The horizontal run of ue must be level, or
have a 1/4 inch (6mm) rise for every 1 foot
(.3m) of run towards the termination. Never
allow the ue to run downward. This could
cause high temperatures and may present
the possibility of a re.
b) The location of the horizontal flue
termination on an exterior wall must meet all
local and national building codes, and must
not be blocked or obstructed. For External
Flue Terminal Locations, see diagram in
the "Exterior Flue Termination Locations"
section.
6) The arrow on the flue cap should be pointing
up. Insure that the 1-1/2" clearances to
combustible materials are maintained. Install
the termination cap, diagram 5.
The four wood screws provided should be
replaced with appropriate fasteners for stucco,
brick, concrete, or other types of sidings.
Note: If installing termination on a siding
covered wall,a vinyl siding standoff
or furring strips must be used to
ensure that the termination is not
recessed into the siding.
Note: With Dura-Vent,
the minimum
height is
achieved by
installing a 90o
elbow directly
to the flue
adaptor.
Diagram 4
Diagram 3
9) Install wall thimble in the center of the 10" square
and attach with wood screws (Diagram 5).

20 | Regency® PG36 Gas Fireplace
installation
Galvanized pipe is desirable above the roofline
due to its higher corrosion resistance. Continue
to add pipe sections through the flashing until
the height of the flue cap meets the minimum
height requirements specified in Diagram 5 or
local codes. Note that for steep roof pitches,
the vertical height must be increased. A poor
draft, or down drafting can result from high wind
conditions near big trees or adjoining roof lines,
in these cases, increasing the flue height may
solve the problem.
7. Ensure flue is vertical and secure the base of
the flashing to the roof with roofing rails, slide
storm collar over the pipe section and seal with
a mastic.
8. Install the vertical termination cap by twist-
locking it.
Note: Any closets or storage spaces,
which the flue passes through must
be enclosed.
Diagram 5
Diagram 1
Diagram 2
Note: Apply sealant "Mill-Pac" to inner
pipe and high temperature silicone
sealant to outer pipe on every twist-
lock joint.
Vertical Terminations
1) Maintain the 32mm clearances (air spaces)
to combustibles when passing through
ceilings, walls, roofs, enclosures,
attic rafter, or other nearby
combustible surfaces. Do not
pack air spaces with insulation.
Check section"Simpson Dura-
vent Flueing" for the maximum
vertical rise of the flueing system
and the maximum horizontal offset
limitations.
2. Set the gas appliance in
its desired location. Drop a
plumb bob down from the
ceiling to the position of
the appliance flue exit, and
mark the location where
the flue will penetrate the
ceiling. Drill a small hole
at his point. Next, drop a
plumb bob from the roof
to the hole previously
drilled in the ceiling, and
mark the spot where the
flue will penetrate the
roof. Determine if ceiling
joists, roof rafters or
other framing will obstruct
the flueing system. You
may wish to
relocate the
appliance
or to offset,
as shown in
Diagram 2 to
avoid cutting
load bearing
members.
4. Assemble the desired lengths of pipe and
elbows. Ensure that all pipes and elbow
connections are in the fully twist-locked position
and sealed.
5. Cut a hole in the roof centered on the small
drilled hole placed in the roof in Step 2. The hole
should be of sufficient size to meet the minimum
requirements for clearance to combustibles
of 38mm. Slip the flashing under the shingles
(shingles should overlap half the flashing) as
per Diagram 4.
Diagram: The upper half of the ashing is installed
under the roong material and not nailed down
until the chimney is installed. This allows for small
adjustments.
6. Continue to assemble pipe lengths.
Note: If an offset is necessary in the attic
to avoid obstructions,it is important
to support the flue pipe every metre,
to avoid excessive stress on the
elbows, and possible separation.
Wall straps are available for this
purpose (Diagram 2).
plumber's
tape
connected
to wall strap
Ruban de
plombier
relié à
l’attache
murale
wall
strap
Attache
murale
45o
Elbows
Coudes de 45o
Firestop
Spacer
Espaceur
coupe-feu
walstrp.eps
walstrpf.eps
french
