Regency Fireplace Products Bellavista B41XTCE-NG10 Quick start guide

FPI FIREPLACE PRODUCTS INTERNATIONAL LTD. 6988 Venture St., Delta, BC Canada, V4G 1H4
919-375 10.09.14
Owners &
Installation Manual
Tested by:
Installer: Please complete the details on the back cover
and leave this manual with the homeowner.
Homeowner: Please keep these instructions for future reference.
MODELS: B41XTCE-NG10
B41XTCE-LP10
www.regency-re.com
Regency Bellavista™B41XTCE
Gas Fireplace
Bellavista B41XTCE Video
- Do not store or use gasoline or other ammable vapors and liquids in the vicinity of this or any other
appliance.
- WHAT TO DO IF YOU SMELL GAS
•
Do not try to light any appliance.
• Do not touch any electrical switch: do not use any phone in your building.
Leave the building immediately.
• Immediately call your gas supplier from a neighbour's phone. Follow the gas supplier's
instructions.
• If you cannot reach you gas supplier, call the re department.
- Installation and service must be performed by a qualied installer, service agency or the gas supplier.
WARNING
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly could result in serious
injury, death, or property damage.

2| Regency Bellavista™ B41XTCE-10 Gas Fireplace
|
2
To the New Owner:
Congratulations!
You are the owner of a state-of-the-art Gas Fireplace by REGENCY®. The Bellavista™
B41XTCE has been designed to provide you with all the warmth and charm of a wood
replace at the ick of a switch. The Bellavista™ B41XTCE has been approved by Warnock
Hersey/Intertek for both safety and efciency. As it also bears our own mark, it promises to
provide you with economy, comfort and security for many trouble free years to follow. Please
take a moment now to acquaint yourself with these instructions and the many features of
your Regency®Fireplace.

Regency Bellavista™ B41XTCE-10 Gas Fireplace | 3
| 3
MANUFACTURED MOBILE HOME REQUIREMENTS
INFORMATION FOR MOBILE/MANUFACTURED HOMES AFTER FIRST SALE
This Regency® product has been tested and listed by Warnock Hersey as a Direct Vent Wall Furnace to the following standards:
VENTED GAS FIREPLACE HEATERS ANSI Z21.88-2014 • CSA 2.33-2014 and GAS-FIRED APPLIANCES FOR USE AT HIGH
ALTITUDES CAN / CGA 2.17-M91.
This Direct Vent System Appliance must be installed in accordance with the manufacturer's installation instructions and the Manufactured
Home Construction and Safety Standard, Title 24 CFR, Part 3280, or the current Standard of Fire Safety Criteria for Manufactured
Home Installations, Sites, and Communities ANSI/NFPA 501A, and with CAN/CSA Z240-MH Mobile Home Standard in Canada.
This appliance installation must comply with the manufacturer's installation instructions and local codes, if any. In the absence of local
codes follow the current National Fuel Gas Code, ANSI Z223.1 and the current National Electrical Code ANSI/NFPA 70 in the U.S.A.,
and the current CAN/CGA B149 Gas Installation Code and the current Canadian Electrical Code CSA C22.1 in Canada.
This appliance comes equipped with a dedicated #8 Ground Lug for attachment of the ground wire to the steel chassis as applicable
to local codes.
The appliance, when installed, must be electrically grounded in accordance with local codes or, in the absence of local codes, with
the National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical Code, CSA C22.1.
This appliance may only be installed in an aftermarket permanently located, manufactured (U.S.A only) or mobile home, where not
prohibited by local codes.
This appliance can only be used with the type of gas indicated on the rating plate. This appliance is not convertible for use with other
gases.
Ensure that structural members are not cut or weakened during installation.
Bellavista
B41XTCE Video
Bellavista B36XT
Gas Fireplace Benets

4| Regency Bellavista™ B41XTCE-10 Gas Fireplace
|
4table of contents
Massachusetts only Code - CO Detector ......................6
Unit Dimensions ............................................................7
Important Message ......................................................8
Before You Start ............................................................8
General Safety Information............................................8
Installation Checklist.....................................................9
Locating Your Gas Fireplace .........................................9

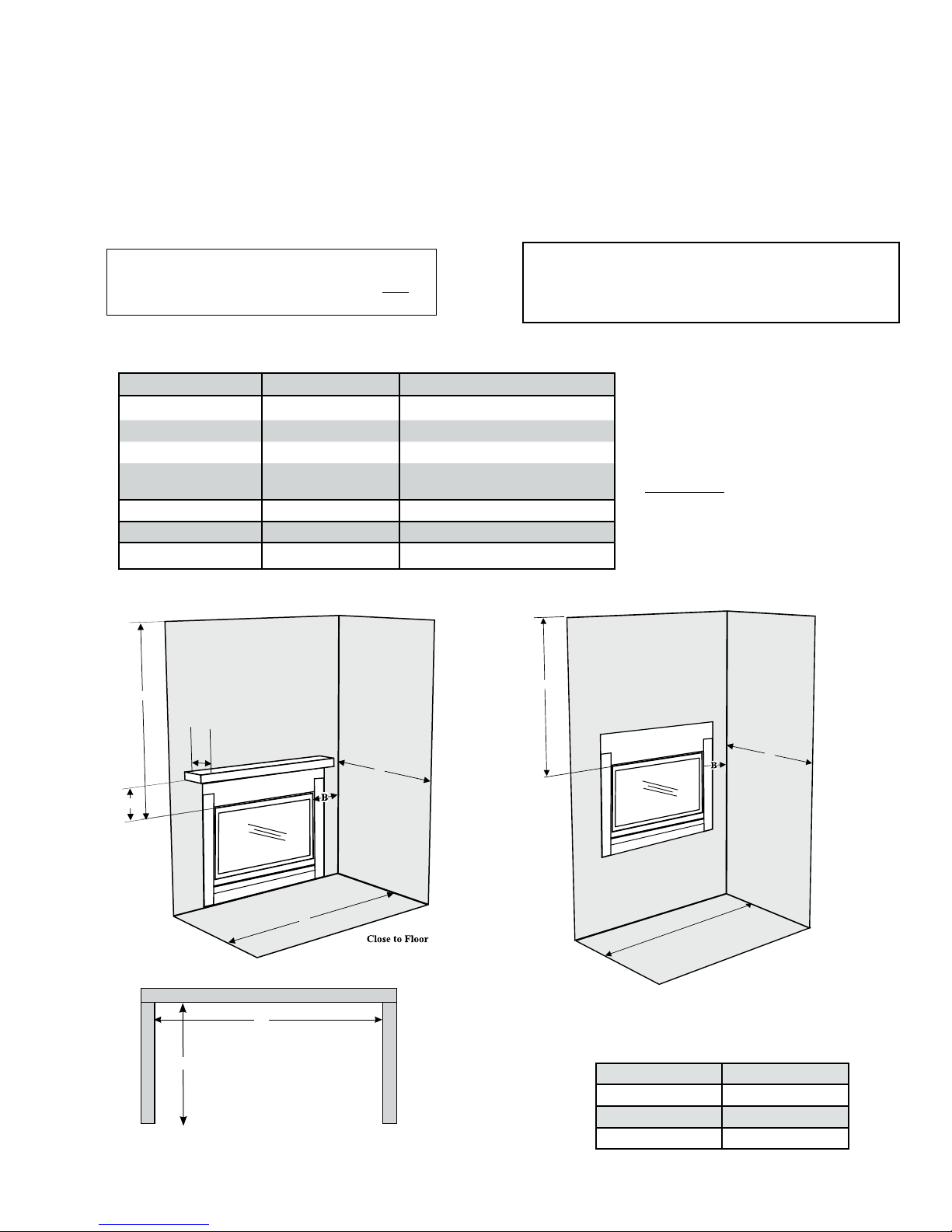

Clearances ..................................................................10
Mantel Clearances....................................................... 11
Mantel Leg Clearances................................................12
Non-Combustible Requirements .................................12
Framing ......................................................................13
Wall Mount On/Off Switch & Remote Receiver Install..14
Finishing Detail Note ...................................................15
Unit Assembly Prior to Installation...............................16
Top Standoff Assembly ................................................16
Top Facing Support......................................................16
Side Nailing Strips .......................................................16
Conversion to Top Vent................................................17
Venting Introduction.....................................................19
Vent Restrictor & Bafe Installation .............................19
Exterior Vent Termination Requirements .....................20
5" x 8" Rigid Pipe Cross Reference Chart ..................21
Venting Arrangements for Horizontal Terminations ....23
Rear Venting Deector Installation ..............................23
Horizontal Terminations Flex Vent ...............................24
Horizontal Terminations Corner Install.........................26
Venting Arrangements For Horizontal Termination ......27
Rigid Pipe Venting Systems ........................................28
Horizontal Terminations Two (2) 90o Elbows................29
Horizontal Terminations Three (3) 90oElbows ............29
Venting Arrangements for Vertical Terminations..........30
Vertical terminations Three (3) 90oElbows..................31
Unit Installation with Horizontal Termination Rigid ......32
Unit Installation with Horizontal Termination Flex ........33
Unit installation with Vertical Termination ....................34
Gas Line Installation....................................................34
Pilot Adjustment...........................................................35
High Elevation .............................................................35
885 S.I.T. Valve Description.........................................35
Gas Pipe Pressure Testing ..........................................35
Brick Panel Installation ................................................36
Optional Black Enamel Panel Installation....................37
Log Set Installation......................................................39
Wiring Diagram............................................................43
AC adapter Installation.................................................44
Optional Fan installation..............................................45
Wiring Diagram w/ Optional Fan..................................46
Optional Accent Light Installation ................................47
Flush Glass Door Installation.......................................50
Finishing Trim Installation ............................................50
Vignette Frame adn Mesh Installation..........................51
Operating Instructions .................................................52
First Fire ......................................................................52
Normal Operating Sounds of Gas Appliances.............52
Aeration Adjustment ....................................................52
Lighting Procedure ......................................................53
Shutdown Procedure...................................................53
Copy of Lighting Plate Instructions..............................54
Maintenance Instructions.............................................55
Log Replacement ........................................................55
Door Glass...................................................................55
Accent Light Bulb Replacement ..................................56
Valve Replacement......................................................57
Installing Valve.............................................................57
Main Assembly ............................................................58
Burner Assembly .........................................................59
Accessories..................................................................60
The Warranty: Limited Lifetime ...................................64

Regency Bellavista™ B41XTCE-10 Gas Fireplace | 5
| 5
safety decal
This is a copy of the label that accompanies each Bellavista™ B41XTCE Direct Vent Gas Fireplace. We have printed a copy of the contents here for your
review.
NOTE: Regency® units are constantly being improved. Check the label on the unit and if there is a difference, the label on the unit is the correct one.
For the State of Massachusetts, installation
and repair must be done by a plumber or
gas tter licensed in the Commonwealth of
Massachusetts.
For the State of Massachusetts, exible
connectors shall not exceed 36 inches in
length.
For the State of Massachusetts, the appli-
ances individual manual shut-off must be a
t-handle type valve.
The State of Massachusetts requires the
installation of a carbon monoxide alarm in
accordance with NFPA 720 and a CO alarm
with battery back up in the same room where
the gas appliance is installed.

6| Regency Bellavista™ B41XTCE-10 Gas Fireplace
|
6requirements
5.08: Modifications to NFPA-54, Chapter 10
(2) Revise 10.8.3 by adding the following additional requirements:
(a) For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in whole or in part for
residential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent termination is less than
seven (7) feet above finished grade in the area of the venting, including but not limited to decks and porches, the following requirements shall
be satisfied:
1. INSTALLATION OF CARBON MONOXIDE DETECTORS. At the time of installation of the side wall horizontal vented gas fueled
equipment, the installing plumber or gasfitter shall observe that a hard wired carbon monoxide detector with an alarm and battery back-up is
installed on the floor level where the gas equipment is to be installed. In addition, the installing plumber or gasfitter shallobserve that a battery
operated or hard wired carbon monoxide detector with an alarm is installed on each additional level of the dwelling, building or structure
served by the side wall horizontal vented gas fueled equipment. It shall be the responsibility of the property owner to secure the services of
qualified licensed professionals for the installation of hard wired carbon monoxide detectors
a. In the event that the side wall horizontally vented gas fueled equipment is installed in a crawl space or an attic, the hard wired carbon
monoxide detector with alarm and battery back-up may be installed on the next adjacent floor level.
b. In the event that the requirements of this subdivision can not be met at the time of completion of installation, the owner shall have a period of
thirty (30) days to comply with the above requirements; provided, however, that during said thirty (30) day period, a batteryoperated carbon
monoxide detector with an alarm shall be installed.
2. APPROVED CARBON MONOXIDE DETECTORS. Each carbon monoxide detector as required in accordance with the above provisions
shall comply with NFPA 720 and be ANSI/UL 2034 listed and IAS certified.
3. SIGNAGE. A metal or plastic identification plate shall be permanently mounted to the exterior of the building at a minimum height of eight
(8) feet above grade directly in line with the exhaust vent terminal for the horizontally vented gas fueled heating appliance or equipment. The
sign shall read, in print size no less than one-half (1/2) inch in size, "GAS VENT DIRECTLY BELOW. KEEP CLEAR OF ALL
OBSTRUCTIONS".
4. INSPECTION. The state or local gas inspector of the side wall horizontally vented gas fueled equipment shall not approve the installation
unless, upon inspection, the inspector observes carbon monoxide detectors and signage installed in accordance with the provisions of 248 CMR
5.08(2)(a)1 through 4.
(b) EXEMPTIONS: The following equipment is exempt from 248 CMR 5.08(2)(a)1 through 4:
1. The equipment listed in Chapter 10 entitled "Equipment Not Required To Be Vented" in the most current edition of NFPA 54 as adopted by
the Board; and
2. Product Approved side wall horizontally vented gas fueled equipment installed in a room or structure separate from the dwelling, building or
structure used in whole or in part for residential purposes.
(c) MANUFACTURER REQUIREMENTS - GAS EQUIPMENT VENTING SYSTEM PROVIDED. When the manufacturer of Product
Approved side wall horizontally vented gas equipment provides a venting system design or venting system components with the equipment, the
instructions provided by the manufacturer for installation of the equipment and the venting system shall include:
1. Detailed instructions for the installation of the venting system design or the venting system components; and
2. A complete parts list for the venting system design or venting system.
(d) MANUFACTURER REQUIREMENTS - GAS EQUIPMENT VENTING SYSTEM NOT PROVIDED. When the manufacturer of a
Product Approved side wall horizontally vented gas fueled equipment does not provide the parts for venting the flue gases, but identifies
"special venting systems", the following requirements shall be satisfied by the manufacturer:
1. The referenced "special venting system" instructions shall be included with the appliance or equipment installation instructions; and
2. The "special venting systems" shall be Product Approved by the Board, and the instructions for that system shall include a parts list and
detailed installation instructions.
(e) A copy of all installation instructions for all Product Approved side wall horizontally vented gas fueled equipment, all venting instructions,
all parts lists for venting instructions, and/or all venting design instructions shall remain with the appliance or equipmentat the completion of
the installation.
MA Code - CO Detector
(for the State of Massachusetts only)

Regency Bellavista™ B41XTCE-10 Gas Fireplace | 7
| 7
dimensions
UNIT DIMENSIONS
28-1/2"
38-3/8"
22.674
46-11/16"
25-9/16"
16-7/16"
32-5/8"
38-1/4"
36-3/8"
26-3/16"
3-1/4"
49-1/4"
11-5/8"
7-5/16"
1-9/16"
1-1/2"
35"
44-1/4"
3-5/8" 29-1/8"
23-7/16"
38-7/16"
[1185mm]
[974mm]
46-11/16"
[1185mm]
[976mm]
[889mm]
[738mm]
[92mm]
[594mm]
[649mm]
[664mm]
[1251mm]
[38mm]
[1123mm]
[417mm]
[829mm]
[185mm]
[294mm]
[724mm]
[39mm]
[923mm]
[971mm]

8| Regency Bellavista™ B41XTCE-10 Gas Fireplace
|
8installation
3) See general construction and assembly
instructions. The appliance and vent should
be enclosed.
4) This appliance must be connected to the
specied vent and termination cap to the
outside of the building envelope. Never vent
to another room or inside a building. Make
sure that the vent is tted as per Venting
instructions.
5) Inspect the venting system annually for
blockage and any signs of deterioration.
6) Venting terminals shall not be recessed into
a wall or siding.
7) Any safety glass removed for servicing must
be replaced prior to operating the appliance.
8) To prevent injury, do not allow anyone who
is unfamiliar with the operation to use the
replace.
9) Wear gloves and safety glasses for protection
while doing required maintenance.
10) Be aware of electrical wiring locations in
walls and ceilings when cutting holes for
termination.
11) Under no circumstances should this appliance
be modied. Parts that have to be removed
for servicing should be replaced prior to
operating this appliance.
12) Installation and any repairs to this appliance
should be done by a qualied service person.
A professional service person should be called
to inspect this appliance annually. Make it a
practice to have all of your gas appliances
checked annually.
13) Do not slam shut or strike the glass door.
14) Under no circumstances should any solid
fuels (wood, paper, cardboard, coal, etc.) be
used in this appliance.
15) The appliance area must be kept clear and
free of combustible materials, (gases and
other ammable vapours and liquids).
Emissions from burning wood or gas could
contain chemicals known to the State of
California to cause cancer, birth defects or
other reproductive harm.
IMPORTANT MESSAGE
SAVE THESE
INSTRUCTIONS
The B41XTCE Gas Fireplace must be installed
in accordance with these instructions. Carefully
read all the instructions in this manual rst.
Consult the "authority having jurisdiction" to
determine the need for a permit prior to starting
the installation. It is the responsibility of the
installer to ensure this replace is installed in
compliance with manufacturers instructions and
all applicable codes.
BEFORE YOU START
Safe installation and operation of this appliance
requires common sense, however, we are
required by the Canadian Safety Standards
and ANSI Standards to make you aware of
the following:
GENERAL SAFETY
INFORMATION
1) The appliance installation must conform
with local codes or, in the absence of local
codes, with the current Canadian or National
Gas Codes, CAN1-B149 or ANSI Z223.1
Installation Codes.
2) The appliance when installed, must be
electrically grounded in accordance with local
codes, or in the absence of local codes with
the current National Electrical Code, ANSI/
NFPA 70 or CSA C22.1 Canadian Electrical
Code.
CLOTHING OR OTHER FLAMMABLE
MATERIAL SHOULD NOT BE PLACED
ON OR NEAR THE APPLIANCE.
CHILDREN AND ADULTS SHOULD
BE ALERTED TO THE HAZARDS OF
HIGH SURFACETEMPERATURES,ES-
PECIALLY THE FIREPLACE GLASS,
AND SHOULD STAY AWAY TO AVOID
BURNS OR CLOTHING IGNITION.
INSTALLATION AND REPAIR SHOULD
BE DONE BY AN AUTHORIZED
SERVICE PERSON. THE APPLIANCE
SHOULD BE INSPECTED BEFORE
USE AND AT LEAST ANNUALLY BY A
PROFESSIONAL SERVICE PERSON.
MORE FREQUENT CLEANING MAY
BE REQUIRED DUE TO EXCESSIVE
LINT FROM CARPETING, BEDDING
MATERIAL, ETC. IT IS IMPERATIVE
THAT CONTROL COMPARTMENTS,
BURNERS AND CIRCULATING AIR
PASSAGEWAYS OF THE APPLIANCE
BE KEPT CLEAN.
DUE TO HIGH TEMPERATURES, THE
APPLIANCE SHOULD BE LOCATED
OUT OF TRAFFIC AND AWAY FROM
FURNITURE AND DRAPERIES.
WARNING:FAILURETO INSTALLTHIS
APPLIANCE CORRECTLY WILL VOID
YOUR WARRANTY AND MAY CAUSE
A SERIOUS HOUSE FIRE.
YOUNG CHILDREN SHOULD BE CARE-
FULLY SUPERVISEDWHENTHEY ARE
IN THE SAME AREA AS THE APPLI-
ANCE. TODDLERS,YOUNG CHILDREN
AND OTHERS MAY BE SUSCEPTIBLE
TO ACCIDENTAL CONTACT BURNS.
A PHYSICAL BARRIERS IS RECOM-
MENDED IF THERE ARE AT RISK INDI-
VIDUAL IN THE HOUSE. TO RESTRICT
ACCESS TO A FIREPLACE OR STOVE,
INSTALL AN ADJUSTABLE SAFETY
GATE TO KEEP TODDLERS, YOUNG
CHILDREN AND OTHER AT RISK IN-
DIVIDUALS OUT OF THE ROOM AND
AWAY FROM HOT SURFACES.
IF THE BARRIER BECOMES
DAMAGED, THE BARRIER
SHALL BE REPLACED WITH THE
MANUFACTURER'S BARRIER FOR
THIS APPLIANCE.
ANY SAFETY SCREEN, GUARD, OR
BARRIER REMOVED FOR SERVICING
THE APPLIANCE, MUST BE
REPLACED PRIOR TO OPERATING
THE APPLIANCE.
A BARRIER DESIGNED TO REDUCE
THE RISK OF BURNS FROMTHE HOT
VIEWING GLASS IS PROVIDEDWITH
THIS APPLIANCE AND SHALL BE
INSTALLED FOR THE PROTECTION
OF CHILDREN AND OTHER AT-RISK
INDIVIDUALS

Regency Bellavista™ B41XTCE-10 Gas Fireplace | 9
| 9
installation
This includes:
1) Clocking the appliance to ensure the correct
ring rate (rate noted on label), after burning
appliance for 15 minutes.
2) If required, adjusting the primary air to ensure
that the ame does not carbon. First allow
the unit to burn for 15-20 min. to stabilize.
CAUTION: Any alteration to the product that
causes sooting or carboning that results
in damage is not the responsibility of the
manufacturer.
LOCATING YOUR
GAS FIREPLACE
A) Flat on Wall
B) Flat on Wall Corner
C) Recessed into Wall/Alcove
D) Corner
Diagram 1
1) When selecting a location for your replace,
ensure that the clearances are met.
2) The appliance must be installed on a at,
solid, continuous surface For example a
wood, metal or concrete oor or in a raised (on
the wall) application. The appliance must be
installed on a metal or wood panel extending
the full width and depth of the appliance.
3) The B41XTCE Gas Fireplace can be installed
in a recessed position or framed out into the
room as in A, B, C and D. See Diagram 1.
INSTALLATION
CHECKLIST
1) Locate appliance
a) Room location (Refer to "Locating Your
Gas replace" section)
b) Clearances to Combustibles (Refer to
"Clearances" section)
c) Mantle Clearances (Refer to "Combustible
Mantel Clearances" section)
d) Framing & Finishing Requirements (Refer
to "Framing & Finishing" section)
e) Venting Requirements (Refer to "Venting"
section)
2) Assemble Top Standoffs and Top Facing
Support and Side Nailing Strips (Refer to
"Unit Assembly Prior to Installation" Section).
Note: Must be done before installing unit into
place.
3) Install vent (Refer to "Venting" sections).
4) Make gas connections. Test the pilot. Must be
as per diagram (Refer to "Pilot Adjustment"
section).
5) Make electrical connections to receptacle
supplied with unit (recommended).
6) Install standard and optional features. Refer
to the following sections:
a. Plug AC adaptor into 120V receptacle
b. Install 4AA batteries into battery pack
(optional)
c. Inner Panels or Brick Panels (Required)
d. Log Set Installation
e. Standard Flush Door
e. Remote Control
f. Fan Installation (Optional)
g. Light Installation (Optional)
7) Final check.
4) This appliance is Listed for bedroom
installations using the standard Remote
(millivolt thermostat system). Some areas
may have further requirements, check local
codes before installation.
5) The B41XTCE Gas Fireplace are approved
for alcove installations, see "Clearances"
section for details.
6) We recommend that you plan your installation
on paper using exact measurements for
clearances and floor protection before
actually installing this appliance. Have an
authorized inspector, dealer, or installer
review your plans before installation.
Note: For vent terminations refer to
"Exterior Vent Termination Locations"
section.

10 | Regency Bellavista™ B41XTCE-10 Gas Fireplace
|
10 installation
Caution Requirements
The top, back and sides of the replace are dened by
standoffs. The metal ends of the standoff may NOT be
recessed into combustible construction.
WARNING
Fire hazard is an extreme risk
if these clearances (air space) to combustible materials are not
adhered to. It is of greatest importance that this replace and vent
system be installed only in accordance with these instructions.
CLEARANCES
The clearances listed below are Minimum distances unless otherwise stated:
A major cause of chimney related res is failure to maintain required clearances (air space) to combustible materials. It is of the greatest
importance that this replace and vent system be installed only in accordance with these instructions.
B41XTCE Clearance Requirements
Horizontal Top 3" (76mm)
Horizontal Side 2 " (51mm)
Horizontal Bottom 2" (51mm)
Vertical Vent 2" (51mm)
NOTE: A 16" deep non-combustible hearth pad is
recommended for hardwood ooring and carpet.
Clearance: Dimension Measured From:
A: Mantel Height (min.) 17-9/16" (446mm) Top of Fireplace Opening
B: Sidewall 9" (229mm) Side of Fireplace Opening
C: Ceiling 36-5/8" (930mm) Top of Fireplace Opening
D: Mantel Depth (max.) 12" (304mm) 25-13/16" (651mm)
from Top of Fireplace Opening
E: Alcove Width 60" (1524mm) Wall to Wall (Minimum)
F: Alcove Depth 36" (914mm) Front to Back Wall (Maximum)
Notes: 0" No Hearth Required
Minimum Vent Clearances
to Combustibles
Alcove
E
F
C
D
A
E
F
C
Close to Ceiling
F
E

Regency Bellavista™ B41XTCE-10 Gas Fireplace | 11
| 11
installation
MANTEL CLEARANCES
Note: Ensure the paint that is used on the mantel and the facing is "heat resistant" or the paint may discolour.
Due to the extreme heat this replace emits, the mantel clearances are critical. Combustible mantel clearances from top of front facing are
shown in the diagram on the right.
Note: A non-combustible mantel may be installed at a lower height if the framing is made of metal studs covered with a non-combustible
board.
Mantel Clearances
B41XTCE
A B C D
From Top of
Fireplace Opening
32-11/16"
(830mm)
25-13/16"
(656mm)
22-1/16"
(560mm)
17-9/16"
(446mm)
Combustible
Mantel Clearances
2
0
12 64
810
0
Top of
Fireplace
Opening
12”
1"
7”
A
BC
Non-combustible
Header
(steel stud)
on edge
14
To Floor
12
24
Inches
D
6” Non-combustible
Standoff

12 | Regency Bellavista™ B41XTCE-10 Gas Fireplace
|
12 installation
MANTEL LEG CLEARANCES
NON-COMBUSTIBLE REQUIREMENTS
38-7/16"
976mm
29"
[737mm]
NO FACING OR
FINISHING MATERIAL
IN THIS AREA
No Combustible
Materials in this Area
44-1/4"
[1124mm]
46-11/16"
[1186mm]
3-9/16"
[91mm]
11-5/8"
[295mm]
4-1/8"
[105mm]
6" [152mm]
50-1/4"
[1276mm]
NON-COMBUSTIBLE BOARD SUPPLIED W/UNIT
9” Side Wall
(Measured from side of
Fireplace Opening)
7”
4”
Mantel leg
Mantel leg
Allowable mantel leg
projection.
3"
1-1/2"
NOTE: The 6" x 46-11/16" supplied with the unit is secured directly above the unit as shown above.
**All other non-combustible material is supplied by others.

Regency Bellavista™ B41XTCE-10 Gas Fireplace | 13
| 13
installation
FRAMING
Framing Dimensions Description B41XTCE
MFraming Width 47-1/4"(1200mm)
N Framing Height 49-1/2" (1257mm)
O (Rear Vent) Framing Depth - Rear Vent 26-1/2" (673mm)
O (Top Vent) Framing Depth - Top Vent 25-7/8" (657mm)
P Corner Facing Wall Width 65-1/4" (1657mm)
Q Corner Facing Wall Width 91-11/16" (2329mm)
R (Rear Vent) Framed Chase Ceiling - Rear 49-1/2" (1257mm)
R (Top Vent) Framed Chase Ceiling - Top 54-1/2" (1384mm)
S (Rear Vent) Vent Centerline Height - Rear 28-1/2" (724mm)
S (Top Vent) Vent Centerline Height - Top 47-1/2" (1207mm) Rigid / Flex
T Gas Connection Height 1-1/2" (38mm)
UGas Connection Inset 5" (127mm)
V Gas Connection Width 3-1/4" (82mm)
WNon-Combustible Top Height 13-1/2" (343mm)
** Important: Framing height requires consideration of the hearth depth. Dimension N = N + the thickness of the installed hearth.
M
N
O
Q
P
R
U
V
T
Opening for gas
connection
11" (279mm)
dia. Hole through
wall Vent.
Non-Combustible
Header
(steel stud) on edge
Drywall
(or other
facing)
WNon-Combustible Facing
S
S
Non-Combustible
Header
(steel stud)
on edge

14 | Regency Bellavista™ B41XTCE-10 Gas Fireplace
|
14 installation
FRAMING & FINISHING
1. Frame in the enclosure for the unit with framing material.
Note: When constructing the framed opening, please ensure there is access to install the gas lines when the unit is installed.
2. For exterior walls, insulate the enclosure to the same degree as the rest of the house; apply vapour barrier and drywall, as per local installation codes.
(Do not insulate the replace itself.)
WARNING: Failure to insulate and add vapor barriers to the inside of the exterior wall will result in operational and performance problems
including, but not limited to: excessive condensation on glass doors, poor ame package, carbon, blue ames etc. These are not product
related issues.
3. The unit does not have to be completely enclosed in a chase. You must maintain clearances from the vent to combustible materials: See "Clearances"
section. Combustible materials can be laid against the side and back standoffs and the stove base.
4. Tile Finish Option 1: Drywall may be installed onto the unit as shown below to create a surface to apply finishing materials such as tile, slate, etc.
Drywall cannot extend beyond the metal surface of the unit.
5. Tile Finish Option 2: If applying a non-combustible finishing material (tile,slate,etc) the material can be installed directly onto the metal surface (clean
front) of the unit in the area shown below.
1/2" DRYWALL
NON-COMBUSTIBLE FACING
FOR CLEAN LOOK (ie. painted finish)
(SUPPLIED BY OTHERS)
46-11/16"
[1186mm]
1/2" DRYWALL
DO NOT EXTEND
DRYWALL ONTO METAL
SURFACE OF UNIT.
WOOD STUD
44-1/4"
[1124mm]
6"
[152mm] NON COMBUSTIBLE BOARD SUPPLIED W/UNIT
38-7/16"
976mm
29"
[737mm]
Combustible and Non-combustible Facing and Finishing
Materials around unit.
CLEAN FINISH
TILE FINISH
6. If applying a non-combustible facing it may be installed over the metal surface (clean front) of the unit in the area shown below.
Combustible
Material
Non-combustible
Finishing Materia
l(ie. tile)
Non-combustible Material (6" x 46-11/16")
Finishing Material
(ie. tile)
Nailing Strip -1/2" back from unit face
Combustible
Material
Non-combustible Supplied with Unit
1-1/2
(38mm)
Ensure finished
material is
brought to lip
Combustible
Material
Non-combustible
Finishing Material
Non-combustible Material (6" x 46-11/16")
Finishing Material Nailing Strip-flush with unit face
Combustible
Material
Non-combustible Supplied with Unit
1-1/2
(38mm)
Ensure finished
material is
brought to lip
NOTE: The 6" x 46-11/16" non combustible material supplied with this unit can be replaced if trying to achieve a clean finish. A large piece of non
combustible material (ie. 4' x 8' x 1/2" can be used to eliminate taped seams on or near unit.

Regency Bellavista™ B41XTCE-10 Gas Fireplace | 15
| 15
installation
38-7/16"
976mm
29"
[737mm]
NO FACING OR
FINISHING MATERIAL
IN THIS AREA
No Combustible
Materials in this Area
44-1/4"
[1124mm]
46-11/16"
[1186mm]
3-9/16"
[91mm]
11-5/8"
[295mm]
4-1/8"
[105mm]
6" [152mm]
50-1/4"
[1276mm]
NON-COMBUSTIBLE BOARD SUPPLIED W/UNIT
J Style trim or metal
corner bead may be
used to finish edges
No Combustible
Materials in this Area
29"
[737mm]
38-7/16"
976mm
7. Non-combustible material (ie. tile, slate, etc) may be brought up to the edge of the glass door of the unit. Minimum clearances must be adhered to, this
will assure ease of glass door removal and access to the lower panel.
NOTE: Non-combustible finishing materials may be of any thickness desired.
Minimum Clearances for Finishing Materials Trim materials
Note: All non-combustible facing material should butt up cleanly
to the flanges around the firebox opening.
Rough edges may be visible from an angle.
To maintain a clean finished edge - facing material edges
may be finished with a J-style trim or metal cornerbead (both
materials available at your local building or hardware store).
IMPORTANT: Materials used must be NON-COMBUSTIBLE.
IMPORTANT FINISHING DETAIL NOTE:
Before placing unit into nal position - it is important to know the total
thickness / height of nished hearth (tile, carpet, etc.) The base of the
replace, 4 sided faceplate or mantel should be level or higher than the
nished hearth height.

16 | Regency Bellavista™ B41XTCE-10 Gas Fireplace
|
16 installation
UNIT ASSEMBLY PRIOR TO INSTALLATION
BEFORE YOU START
The Top Nailing Support, the Side Nailing Strips, the 2 Top Standoffs and the Flue Collar must be correctly positioned and attached before the replace
is moved into position.
Nailing strip for
Tile Finish (set
back 1/2")
Nailing strip for
Clean Finish (set
ush with unit)
1. There are 8 (eight) side nailing strips and one top nailing strip available on the unit. One set of four (4) are for a clean finish installation, the other
set are for a tile finish installation as they are set back 1/2" (13mm). The top nailing strip is adjustable to 1/2" (13mm).
2. Bend the required four (4) nailing strips to 90º.
3. Attach top nailing strip with one (1) screw (located at the back of the nailing strip). Adjust to required position, flush or back 1/2" and tighten screw.
Nailing strip for
Tile Finish (set
back 1/2")
Nailing strip for
Clean Finish (set
ush with unit)
Adjustable Top
Nailing Strip
NAILING STRIPS
TOP STANDOFF ASSEMBLY
The top standoffs are shipped in a at position and must be folded into shape and attached.
1) Remove the standoffs from the replace top.
2) Take each standoff and bend into the correct shape. Bend up at the bend lines until
the screw holes in the standoff and the pre-punched screw holes on the replace
top line up.
3) Attach the standoff securely to the top with 2 screws per standoff (on opposite
corners).

Regency Bellavista™ B41XTCE-10 Gas Fireplace | 17
| 17
installation
CONVERSION TO TOP VENT
Note: This conversion must be done prior to the unit being placed in position.
The unit comes equipped as a rear vent unit. These instructions are to be used, only if the unit is going to be top vented.
Top Collar Assembly Kit Includes:
1Intake Collar Assembly with Gasket
1Intake Cover Plate with Gasket
1Top/Rear Exhaust Assembly with Gasket
1Bafe Plate
29 1/4" x 1/2" Screws (4 spares)
1 Restrictor
1Intake Collar Gasket (spare)
1Exhaust Assembly Gasket (spare)
1 Insulation Plate Cover
1 Insulation Filling
1) Remove the door by releasing the spring hooks at the bottom and lifting
the door up off the door frame.
2) From inside the rebox, remove the bafe plate by removing 4 screws
- remove top front screw rst.
Bafe Plate
3) From the inside of the rebox, remove the exhaust assembly by remov-
ing the 10 screws.
7) From the outside top of the rebox - remove the intake cover plate by
removing the 4 - 1/4" x 1/2 " screws.
5) From the outside top of the rebox - remove top insulation cover plate
- by removing 2 screws as shown and discard.
4) From the outside rear of the rebox, remove the intake collar assembly.
Remove the 4 - 1/4" x 1/2" screws.
Exhaust
Assembly
Intake Collar
Assembly
Before proceeding to Step 8, inspect condition of all gaskets.
DO NOT install parts with damaged gaskets. Replace if necessary with
spare gaskets supplied.
Flush
Door
Swing door out
from
the bottom
and lift up off
of door frame
6) From the outside top of the rebox - slide the square piece of insulation
out and discard.

18 | Regency Bellavista™ B41XTCE-10 Gas Fireplace
|
18 installation
10) From the inside of the rebox, place the exhaust assembly into position
as shown in Diagram 1 and secure with 10 - 1/4" x 1/2" screws (Diagram
2). Ensure all screws are tight, but do not over tighten.
All 10 screws must be used.
Diagram 1
Diagram 2
12) From the outside rear of the rebox, install the intake cover plate with
4 - 1/4" x 1/2" screws. Ensure all screws are tight, but do not over tighten.
All 4 screws must be used.
13) Set vent restrictor accordingly - see next page.
14) From inside the rebox, re-install the bafe plate from step 2.
11) From the outside top of the rebox, install the intake collar assembly.
Secure with 4 - 1/4" x 1/2" screws. Ensure all screws are tight, but do not
over tighten. All 4 screws must be used.
Intake Collar
Assembly
Exhaust
Assembly
8) From the outside top of the rebox - completely remove the insulation
under the cover plate as shown and discard.
9) From the outside back of the rebox - locate the insulation deector
and bend completely upwards at against the back of rebox.
IMPORTANT: If the insulation deector is not bent at against the back of
the rebox this will block air intake which will affect the unit's performance.
View Front of Firebox
Insulation Deector
15) From inside the rebox, reinstall the top heat deector by placing 2 screws.
Heat Deector Diagram 2
16) From inside the rebox, reinstall the bafe plate by placing 4 screws -
replace top front screw rst. Leave loose - until rear screws installed.
See Diagram 3.
Bafe Plate Diagram 3
Note: Reuse existing screw holes - do not make new holes. Tighten screws.

Regency Bellavista™ B41XTCE-10 Gas Fireplace | 19
| 19
installation
VENT RESTRICTOR & BAFFLE INSTALLATION
NOTE: THE VENT RESTRICTOR & BAFFLE MUST BE INSTALLED PRIOR TO OPTIONAL PANEL INSTALLATION.
Diagram 2: Vent Restrictor installed on
Top Exhaust Assembly
6) From inside the rebox, install the bafe plate with 4 - 1/4" x 1/2 "
screws. Ensure all screws are tightly secure, but do not over tighten.
1) Determine the venting conguration.
2) Go to venting arrangements section to determine if a vent restrictor
setting is required.
Note: The vent restrictor does not apply to rear vent applications.
3) Remove bafe plate. See Diagram 3.
4) Align the vent restrictor plate to the required vent restrictor position
as per diagram 1.
5) Once the vent restrictor plate is in the required position, secure with
2 - 1/4" x 1/2" screws. Ensure all screws are tight, but do not over
tighten. (See diagram 2).
SET 3
THIS HOLE SETS THE
VENT RESTRICTOR
AT 1-1/2”
SET 2
THIS HOLE SETS THE
VENT RESTRICTOR
AT 2-1/2”
SET 1
THIS HOLE SETS THE
VENT RESTRICTOR
AT 3-1/2”
NO VENT RESTRICTOR
Factory setting
Bafe Plate Diagram 3
Diagram 1
VENTING INTRODUCTION
The B41XTCE uses the "balanced ue" technology Co-Axial system. The inner liner vents products of combustion to the outside while the outer
liner draws outside combustion air into the combustion chamber thereby eliminating the need to use heated room air for combustion and losing
warm room air up the chimney.
Note: Theseuepipesmustnotbeconnectedtoanyotherappliance.
The gas appliance and vent system must be vented directly to the outside of the building, and never be attached to a chimney serving a separate
solid fuel or gas burning appliance. Each direct vent gas appliance must use it's own separate vent system. Common vent systems are prohibited.

20 | Regency Bellavista™ B41XTCE-10 Gas Fireplace
|
20 installation
EXTERIOR VENT TERMINATION REQUIREMENTS
Minimum Clearance Requirements Canada1USA2
A Clearance above grade, veranda, porch, deck, or balcony 12"(30cm) 12"(30cm)
B Clearance to window or door that may be opened 12"(30cm) 9" (23cm)
C Clearance to permanently closed window * *
DVertical clearance to ventilated soft located above the terminal within a horizontal distance of 2 feet (61cm)
from the center line of the terminal (check with the local code)
24"(60cm) 24"(60cm)
EClearance to unventilated soft 19-1/2"(50cm) 20"(51cm)
F Clearance to outside corner: with AstroCap XL Termination Cap. 13"(33cm) 13"(33cm)
Clearance to outside corner: with all other approved Termination Caps. 13"(33cm) 13"(33cm)
G Clearance to inside corner: with AstroCap XL Termination Cap 5-1/2"(14cm) 5-1/2"(14cm)
Clearance to inside corner: with all other approved Termination Caps. 7"(18cm) 7"(18cm)
H Clearance to each side of center line extended above meter/regulator assembly 36"(90cm)a*
J Clearance to service regulator vent outlet 36"(90cm) *
K Clearance to non-mechanical air supply inlet to building or the combustion air inlet to any other appliance 12"(30cm) 9" (23cm)
L Clearance to a mechanical air supply inlet #3' (91cm) above if within 10' (3m) horizontally. 72"(1.8m) 36"(90cm)b
M Clearance above paved sidewalk or a paved driveway located on public property 84"(2.1m)┼*
N Clearance under veranda, porch, deck, or balcony 12"(30cm)‡*
1In accordance with current CSA B149.1, Natural Gas and Propane Installation Code
2In accordance with the current ANSI Z223.1/NFPA 54, National Fuel Gas Code
┼A vent shall not terminate directly above a sidewalk or paved driveway which is located between two single family dwellings and serves both dwellings
‡ Permitted only if veranda, porch, deck, or balcony is fully open on a minimum of two sides beneath the oor
* Clearance in accordance with local installation codes and the requirements of the gas supplier
a3 feet (91cm) within a height of 15 feet (4.5m) above the meter / regulator assembly
b3 feet (91cm) above - if within 10 feet (3m) horizontally
