Regency Classic F1100 Quick start guide

FPI FIREPLACE PRODUCTS INTERNATIONAL LTD. 6988 Venture St., Delta, BC Canada, V4G 1H4
908-288c
MODELS: F1100S F3100L
Freestanding Woodstoves
11/12/09
Owners &
Installation Manual
Tested by: Installer: Please complete the details on the back cover
and leave this manual with the homeowner.
Homeowner: Please keep these instructions for future reference.
www.regency-fire.com

Regency Freestanding Woodstove
2
Thank-you for purchasing a
REGENCY FIREPLACE PRODUCT.
Theprideofworkmanshipthatgoesintoeachofourproductswillgiveyouyearsoftrouble-freeenjoyment. Shouldyou
have any questions about your product that are not covered in this manual, please contact the REGENCY DEALER
in your area.
Keep those REGENCY FIRES burning.
SAFETY NOTES:
If this woodstove is not properly installed, a house fire may result. For your safety, follow the installation instructions,
contact local building or fire officials about restrictions and installation inspection requirements in your area.
This appliance needs fresh air for safe operation and must be installed with adequate combustion air available to the
room in which it is to be operating. Air starvation or icing of the chimney system may result.

Regency Freestanding Woodstove 3
TABLE OF CONTENTS
SAFETY LABEL
Safety Label For F1100S...............................................4
Safety Label For F3100L...............................................5
DIMENSIONS
F1100S Unit Dimensions...............................................6
F3100L Unit Dimensions...............................................6
INSTALLATION
Residential Installation...................................................7
Room Air .......................................................................7
Modular Installation Options..........................................7
Minimum Clearance To Combustible Materials.............8
Stove Assembly Prior To Installation ...........................10
Step By Step Chimney And Connector Installation .....11
Masonry Chimney........................................................12
Masonry Fireplace.......................................................12
Factory Built Chimney .................................................12
Combustible Wall Chimney
Connector Pass-throughs............................................13
Recommended Heights For Woodstove Flue..............14
Mobile Home Installation.............................................14
Listed Components For Mobile Home Installation.......15
Brick Flue Baffle & Secondary Air Tube Installation ....16
Brick Installation ..........................................................17
Door Handle ................................................................17
Glass Installation.........................................................17
Optional Accessories...................................................17
Screen Door ................................................................17
OPERATING INSTRUCTIONS
Operating Instructions .................................................19
First Fire ......................................................................19
Draft Control................................................................19
Ash Disposal................................................................20
Safety Guidelines And Warnings.................................20
Fan Operation..............................................................20
Creosote......................................................................21
Latch Adjustment.........................................................21
Door Gasket ................................................................21
Glass Maintenance......................................................21
MAINTENANCE
Maintenance................................................................21
Maintenance Of Gold-plated Doors.............................21
PARTS LIST
F1100 & F3100 Stove Main Assembly.........................22
Pedestal, Bottom Shield & Leg Options ......................23
Firebrick.......................................................................24
WARRANTY
Warranty......................................................................27

Regency Freestanding Woodstove
4
HOT WHILE IN OPERATION DO NOT TOUCH. KEEP CHILDREN,
CLOTHING AND FURNITURE AWAY. CONTACT MAY CAUSE
SKIN BURNS. READ NAMEPLATE AND INSTRUCTIONS.
DO NOT REMOVE THIS LABEL
FLOOR
PROTECTION*
F1100S WITH
AIRMATE SHIELD
LISTED SPACE HEATER, SOLID FUEL TYPE, ALSO
SUITABLE FOR MOBILE HOME INSTALLATION
MODEL: REGENCY SMALL FREESTANDING STOVE - F1100S
TESTED TO: ULC S627-00 / UL 1482-1998 / UL 737-2000 REPORT NO.6621 (MAY 1993)
F1100S WITHOUT
AIRMATE SHIELD
INSTALL AND USE ONLY IN ACCORDANCE WITH THE MANUFACTURER'S INSTALLATION AND
OPERATING INSTRUCTIONS. CONTACT LOCAL BUILDING OR FIRE OFFICIALS ABOUT RESTRICTIONS
AND INSTALLATION INSPECTION IN YOUR AREA. USE 150 MM (6 IN.) DIAMETER MINIMUM 24 MSG
BLACK OR 25 MSG BLUED STEEL CONNECTOR WITH LISTED FACTORY-BUILT CHIMNEY SUITABLE
FOR USE WITH SOLID FUELS OR MASONRY CHIMNEY.
SEE LOCAL BUILDING CODE AND MANUFACTURER'S INSTRUCTIONS FOR PRECAUTIONS REQUIRED
FOR PASSING A CHIMNEY THROUGH A COMBUSTIBLE WALL OR CEILING. DO NOT PASS CHIMNEY
CONNECTOR THROUGH COMBUSTIBLE WALL OR CEILING. DO NOT CONNECT THIS UNIT TO A
CHIMNEY FLUE SERVING ANOTHER APPLIANCE.
K 405 mm / 16 in
L 150 mm / 6 in
M 150 mm / 6in
COMPONENTS REQUIRED FOR MOBILE HOME INSTALLATION: OUTSIDE AIR KIT AND ONE OF THE FOLLOWING DOUBLE WALL CONNECTOR
IN CANADA: LISTED SECURITY MODEL DP, OR OLIVER MACLEOD PRO-VENT PV DOUBLE WALLED CONNECTOR WITH LISTED CHIMNEY SYSTEM:
SECURITY MODEL S2100, ICC EXCEL 2100 .
IN USA: LISTED DOUBLE WALL CONNECTORS SECURITY MODEL DP, SELKIRK MODEL DS, OLIVER MACLEOD PRO VENT PV, SIMPSON DURA
VENT MODEL DVL, GSW SUPER PIPE 6, METAL-FAB DOUBLE WALL. CONNECTED TO ONE OF THE FOLLOWING COMPATIBLE CHIMNEY SYSTEMS
SECURITY MODEL S2100 OR MODEL ASHT, SELKIRK MODEL SSII, OLIVER MACLEOD PRO JET 3103, SIMPSON DURA PLUS, GSW MODEL SC OR
METAL-FAB TEMP/GUARD, AMERI-TEC HS, ICC EXCEL 2100 . USE CHIMNEY COMPONENTS AS SPECIFIED IN INSTALLATION INSTRUCTIONS.
CERTIFIED TO COMPLY WITH JULY 1990,
PARTICULATE EMISSION STANDARDS.
UNITED STATES ENVIRONMENTAL
PROTECTION AGENCY
FOR USE WITH SOLID WOOD FUEL ONLY. USE OF OTHER FUELS MAY DAMAGE HEATER AND CREATE AHAZARDOUS CONDITION. DO NOT OBSTRUCT
COMBUSTION AIR OPENINGS. OPERATE ONLY WITH FIREBRICKS IN PLACE. OPERATE ONLY WITH DOOR CLOSED - OPEN FEED DOOR TO FEED
FIRE ONLY. DO NOT USE GRATE OR ELEVATE FIRE. BUILD WOOD FIRE DIRECTLY ON HEARTH. DO NOT OVERFIRE - IF HEATER OR CHIMNEY
CONNECTOR GLOWS YOU ARE OVERFIRING. INSPECT AND CLEAN CHIMNEY AND CONNECTOR FREQUENTLY. UNDER CERTAIN CONDITIONS OF
USE CREOSOTE BUILDUP MAY OCCUR RAPIDLY. KEEP FURNISHINGS AND OTHER COMBUSTIBLE MATERIAL AWAY FROM HEATER. REPLACE
GLASS ONLY WITH NEOCERAM GLASS. COMBUSTIBLE FLOOR MUST BE PROTECTED BY NON-COMBUSTIBLE MATERIAL EXTENDING BENEATH
THE HEATER AND TO THE FRONT AND SIDES AS INDICATED OR TO THE NEAREST PERMITTED COMBUSTIBLE MATERIAL.
OPTIONAL COMPONENT: FAN, ELECTRICAL RATING: VOLTS 115, 60 HZ, 2 AMPS, SCREEN DOOR
MINIMUM CLEARANCES TO COMBUSTIBLE MATERIALS
F1100S WITH AIRMATE SHIELD F1100S WITHOUT AIRMATE SHIELD
RESIDENTIAL INSTALLATION USING
SINGLE WALL CONNECTOR
MEASURE FLUE
FROM HEATER CENTER-LINE
RESIDENTIAL INSTALLATION USING
SINGLE WALL CONNECTOR
SIDEWALL A 380 mm /15 in D 685 mm / 27 in
BACKWALL B 265 mm / 10.5in E 430 mm / 17 in
CORNER C 280 mm / 11 in F 585 mm / 23 in
INSTALLATION USING LISTED DOUBLE WALL
CONNECTOR - MOBILE HOME
SIDEWALL A 330 mm / 13 in D 635 mm / 25 in
BACKWALL B 125 mm / 5 in E 290 mm / 11.5in
CORNER C 230 mm / 9 in F 535 mm / 21 in
INSTALLATION USING LISTED DOUBLE WALL
CONNECTOR - RESIDENTIAL CLOSE CLEARANCE
SIDEWALL A 345 mm / 13.5in D 650 mm / 25.5 in
BACKWALL B 125 mm / 5 in E 290 mm / 11.5in
CORNER C 125 mm / 5 in F 430 mm / 17 in
INSTALLATION USING LISTED DOUBLE WALL
CONNECTOR - ALCOVE
SIDEWALL A 330 mm / 13 in D 635 mm / 25 in
BACKWALL B 280 mm / 11 in E 445 mm / 17.5 in
CORNER C 205 mm / 8 in F 510 mm / 20 in
INSTALLATION USING LISTED DOUBLE WALL
CONNECTOR - MOBILE HOME
SIDEWALL A 280 mm / 11 in D 585 mm / 23 in
BACKWALL B 150 mm / 6 in E 320 mm / 12.5 in
CORNER C 150 mm / 6 in F 460 mm / 18 in
SIDEWALL A 230 mm / 9 in D 535 mm / 21 in
BACKWALL B 125 mm / 5 in E 290 mm / 11.5in
CORNER C 75 mm / 3 in F 380 mm / 15 in
INSTALLATION USING LISTED DOUBLE WALL
CONNECTOR - RESIDENTIAL CLOSE CLEARANCE
SIDEWALL G 280 mm / 11 in I 585 mm / 23 in
BACKWALL H 180 mm / 7 in J 345 mm / 13.5 in
INSTALLATION USING LISTED DOUBLE WALL
CONNECTOR - ALCOVE
SIDEWALL G 330 mm / 13 in I 635 mm / 25 in
BACKWALL H 125 mm / 5 in J 290 mm / 11.5in
MINIMUM ALCOVE CEILING HEIGHT: 2.15 M / 7 FT MAXIMUM ALCOVE DEPTH 915 MM / 36 IN.
MINIMUM CLEARANCES FOR HORIZONTAL CONNECTOR TO CEILING: 455 MM / 18"
THE SPACE BENEATH THE HEATER MUST NOT BE OBSTRUCTED. OPERATE ONLY WITH FIREBRICKS IN PLACE.
MEASURE FLUE
FROM HEATER CENTER-LINE
MADE IN CANADA
JAN FEB MAR APR MAY JUN JUL AUG SEPT OCT NOV DEC
CAUTION
DATE OF MANUFACTURE
2008 2010
2009
908-281a
MANUFACTURED BY: FPI FIREPLACE PRODUCTS INTERNATIONAL LTD.
6988 VENTURE ST.
DELTA, BC V4G 1H4
duplicate serial number
100
100
* In Canada, floor protection must
extend 18" to the front and 8" to
each side of the stove.
This is a copy of the label that accompanies
each Regency Small Freestanding Woodstove
(F1100S).
We have printed a copy of the contents here
for your review.
SAFETY LABEL
NOTE: Regency units are constantly being
improved. Check the label on the unit and if
there is a difference, the label on the unit is the
correct one.
COPY OF SAFETY LABEL FOR F1100S

Regency Freestanding Woodstove 5
This is a copy of the label that accompanies
eachRegencyLargeFreestandingWoodstove
(F3100L).
We have printed a copy of the contents here
for your review.
SAFETY LABEL
NOTE: Regency units are constantly being
improved. Check the label on the unit and if
there is a difference, the label on the unit is the
correct one.
UNITED STATES ENVIRONMENTAL
PROTECTION AGENCY
F3100L WITH
AIRMATE SHIELD
MINIMUM CLEARANCES TO COMBUSTIBLE MATERIALS
F3100L WITH AIRMATE SHIELD
RESIDENTIAL INSTALLATION USING
SINGLE WALL CONNECTOR
SIDEWALL A 460 mm / 18 in D 810 mm / 32 in
BACKWALL B 305 mm / 12 in E 470 mm / 18.5in
CORNER C 215 mm / 8.5 in F 560 mm / 22 in
INSTALLATION USING LISTED DOUBLE WALL
CONNECTOR - MOBILE HOME
SIDEWALL A 460 mm / 18 in D 810 mm / 32 in
BACKWALL B 240 mm / 9.5 in E 405 mm / 16 in
CORNER C 255 mm / 10 in F 595 mm / 23.5in
INSTALLATION USING LISTED DOUBLE WALL
CONNECTOR - RESIDENTIAL CLOSE CLEARANCE
SIDEWALL A 405 mm / 16 in D 760 mm / 30 in
BACKWALL B 240 mm / 9.5 in E 405 mm / 16 in
CORNER C 215 mm / 8.5 in F 560 mm / 22 in
SIDEWALL G 405 mm / 16 in I 760 mm / 30 in
BACKWALL H 240 mm / 9.5 in J 405 mm / 16 in
MEASURE FLUE
FROM HEATER CENTER-LINE
COMPONENTS REQUIRED FOR MOBILE HOME INSTALLATION: OUTSIDE AIR KIT AND ONE OF THE FOLLOWING DOUBLE WALL CONNECTOR
IN CANADA: LISTED SECURITY MODEL DP, OR OLIVER MACLEOD PRO-VENT PV DOUBLE WALLED CONNECTOR WITH LISTED CHIMNEY SYSTEM:
SECURITY MODEL S2100, ICC EXCEL 2100.
IN USA: LISTED DOUBLE WALL CONNECTORS SECURITY MODEL DP, SELKIRK MODEL DS, OLIVER MACLEOD PRO VENT PV, SIMPSON DURA
VENT MODEL DVL, GSW SUPER PIPE 6, METAL-FAB DOUBLE WALL. CONNECTED TO ONE OF THE FOLLOWING COMPATIBLE CHIMNEY SYSTEMS
SECURITY MODEL S2100 OR MODEL ASHT, SELKIRK MODEL SSII, OLIVER MACLEOD PRO JET 3103, SIMPSON DURA PLUS, GSW MODEL SC OR
METAL-FAB TEMP/GUARD, AMERI-TEC HS, ICC EXCEL 2100 . USE CHIMNEY COMPONENTS AS SPECIFIED IN INSTALLATION INSTRUCTIONS.
MINIMUM CLEARANCE BETWEEN HORIZONTAL CHIMNEY CONNECTOR AND COMBUSTIBLE MATERIALS - 460 MM (18 IN.). CLEARANCE MAY BE
REDUCED BY THE USE OF LISTED PIPE SHIELDS, WALL PROTECTORS OR OTHER MEANS APPROVED BY LOCAL BUILDING OR FIRE OFFICIALS.
COMBUSTIBLE FLOOR MUST BE PROTECTED BY NON-COMBUSTIBLE MATERIAL EXTENDING BENEATH THE HEATER AND TO THE FRONT AND
SIDES AS INDICATED OR TO THE NEAREST PERMITTED COMBUSTIBLE MATERIAL.
FOR USE WITH SOLID WOOD FUEL ONLY. USE OF OTHER FUELS MAY DAMAGE HEATER AND CREATE A HAZARDOUS CONDITION. DO NOT OB-
STRUCT COMBUSTION AIR OPENINGS. OPERATE ONLY WITH FIREBRICKS IN PLACE. OPERATE ONLY WITH DOOR CLOSED - OPEN FEED DOOR TO
FEED FIRE ONLY. DO NOT USE GRATE OR ELEVATE FIRE. BUILD WOOD FIRE DIRECTLY ON HEARTH. DO NOT OVERFIRE - IF HEATER OR CHIMNEY
CONNECTOR GLOWS YOU ARE OVERFIRING. INSPECT AND CLEAN CHIMNEY AND CONNECTOR FREQUENTLY. UNDER CERTAIN CONDITIONS OF
USE CREOSOTE BUILDUP MAY OCCUR RAPIDLY. KEEP FURNISHINGS AND OTHER COMBUSTIBLE MATERIAL AWAY FROM HEATER. REPLACE
GLASS ONLY WITH NEOCERAM GLASS.
OPTIONAL COMPONENT: FAN, ELECTRICAL RATING: VOLTS 115, 60 HZ, 2 AMPS, SCREEN DOOR
INSTALLATION USING LISTED DOUBLE WALL
CONNECTOR - ALCOVE
HOT WHILE IN OPERATION DO NOT TOUCH. KEEP CHILDREN,
CLOTHING AND FURNITURE AWAY. CONTACT MAY CAUSE
SKIN BURNS. READ NAMEPLATE AND INSTRUCTIONS.
DO NOT REMOVE THIS LABEL
102
CERTIFIED TO COMPLY WITH JULY 1990,
PARTICULATE EMISSION STANDARDS.
JAN FEB MAR APR MAY JUN JUL AUG SEPT OCT NOV DEC
CAUTION
DATE OF MANUFACTURE
908-351a
INSTALL AND USE ONLY IN ACCORDANCE WITH THE MANUFACTURER'S INSTALLATION AND OPER-
ATING INSTRUCTIONS. CONTACT LOCAL BUILDING OR FIRE OFFICIALS ABOUT RESTRICTIONS AND
INSTALLATION INSPECTION IN YOUR AREA. USE 150 MM (6 IN.) DIAMETER MINIMUM 24 MSG BLACK
OR 25 MSG BLUED STEEL CONNECTOR WITH LISTED FACTORY-BUILT CHIMNEY SUITABLE FOR USE
WITH SOLID FUELS OR MASONRY CHIMNEY.
SEE LOCAL BUILDING CODE AND MANUFACTURER'S INSTRUCTIONS FOR PRECAUTIONS REQUIRED
FOR PASSING A CHIMNEY THROUGH A COMBUSTIBLE WALL OR CEILING. DO NOT PASS CHIMNEY
CONNECTOR THROUGH COMBUSTIBLE WALL OR CEILING. DO NOT CONNECT THIS UNIT TO A CHIM-
NEY FLUE SERVING ANOTHER APPLIANCE.
F3100L WITHOUT
AIRMATE SHIELD
F3100L WITHOUT AIRMATE SHIELD
MEASURE FLUE
FROM HEATER CENTER-LINE
RESIDENTIAL INSTALLATION USING
SINGLE WALL CONNECTOR
SIDEWALL A 510 mm / 20 in D 860 mm / 34 in
BACKWALL B 355 mm / 14 in E 520 mm / 20.5 in
CORNER C 265 mm / 10.5in F 610 mm / 24 in
INSTALLATION USING LISTED DOUBLE WALL
CONNECTOR - MOBILE HOME
SIDEWALL A 510 mm / 20 in D 860 mm / 34 in
BACKWALL B 305 mm / 12 in E 470 mm / 18.5 in
CORNER C 255 mm / 10 in F 595 mm / 23.5 in
INSTALLATION USING LISTED DOUBLE WALL
CONNECTOR - RESIDENTIAL CLOSE CLEARANCE
SIDEWALL A 510 mm / 20 in D 860 mm / 34 in
BACKWALL B 305 mm / 12 in E 470 mm / 18.5 in
CORNER C 215 mm / 8.5 in F 560 mm / 22 in
ALCOVE INSTALLATION
REQUIRES AIRMATE SHIELD
FLOOR
PROTECTION*
K 405 mm / 16 in
L 150 mm / 6 in
M 150 mm / 6 in
LISTED SPACE HEATER, SOLID FUEL TYPE, SUITABLE FOR
MOBILE HOME INSTALLATION
MODEL: REGENCY LARGE FREESTANDING STOVE - F3100L
MANUFACTURED BY: FPI FIREPLACE PRODUCTS INTERNATIONAL LTD.
6988 VENTURE ST.
DELTA, BC V4G 1H4
MADE IN CANADA
TESTED TO: ULC S627-00 / UL 1482-1998 / UL 737-2000 REPORT NO.6623 (MAY 93)
102
* In Canada, floor protection must
extend 18" to the front and 8" to
each side of the stove.
2008 2009 2010
COPY OF SAFETY LABEL FOR F3100L

Regency Freestanding Woodstove
6
UNIT DIMENSIONS
F1100S Dimensions F3100L Dimensions
25-1/4”(641mm)
DIMENSIONS

Regency Freestanding Woodstove 7
RESIDENTIAL
INSTALLATION
1) Read all instructions before installing your
Regency Stove. Install and use only in ac-
cordancewiththeseinstallationandoperating
instructions. Be aware that local Codes and
Regulations may override some items in this
manual. Check with your local inspector.
2) Select a position for your Regency Stove.
Consult the minimum clearance chart for your
model and set the stove in place. For close
clearance installation use listed double wall
connector systems (refer to Combustible Wall
Chimney Connector Pass - Throughs).
3) To insure vertical alignment, suspend a plumb
bob from the ceiling over the exact center of
your stove flue and mark a spot on the ceiling
to indicate the center of the chimney.
4) Check that the area above the ceiling is clear
for cutting. Re-confirm the clearance from the
stove to combustibles to insure that they are
within the prescribed limits.
5) Install chimney according to chimney manu-
facturersinstructions.Theperformanceofyour
woodstove is governed to a very large part by
the chimney system. Too short a chimney can
cause difficult start-up, dirty glass, backsmok-
ingwhendoorisopen, and even reduced heat
output. Too tall a chimney may prompt exces-
sive draft which can result in very short burn
timesandexcessiveheatoutput.Theuseofan
inexpensive flue pipe damper may be helpful
in reducing excessive draft.
CAUTION: The chimney should be the same
sizeastheflueoutletonthestove.Thechimney
must be listed as suitable for use with solid
fuels. For other types of chimneys check with
your local building code officials. Do not con-
fuseachimneywith a type “B” VentingSystem
usedforgasappliancesas suitable for a wood
burning appliance (refer to the Mobile Home
installations section).
6) Mark the location of the pedestal base or legs
on the floor, then move the stove aside and
mark the position of the floor protector.
7) Thefloorprotectormustbeofnon-combustible
material and must extend 16" in front of the
door opening and 6" to the sides and rear of
theunit. Someareasmayrequire alargersize
floor protector. See your local inspector. For
outside air installation refer to Mobile Home
section.
8) Whenthefloorprotectioniscomplete,position
the stove with the flue collar centered under
the installed chimney.
9) In seismically active areas, Regency recom-
mends that your unit is secured to the floor by
using the bolt down holes inside the pedestal
(the same ones used in Mobile Home instal-
lations).
10) For residential installations using "C" Vent
(single wall) the chimney connector must be
atleast 24 gauge steel.Do notuse galvanized
pipe. For Mobile Home installation refer to the
Mobile Home installation section.
11) Do not connect this unit to a chimney serving
another appliance unless approved by your
local building authority.
12) A chimney connector cannot pass through an
attic or roof space, closet or similar concealed
space, or a floor, ceiling, wall or partition of
combustible construction. In Canada, if pas-
sagethroughawall,or partition of combustible
construction is desired, the installation shall
conform to CAN/CSA-B365, Installation Code
for Solid-Fuel-Burning Appliances and Equip-
ment.
13) YourRegencyWoodstoveisnottobeconnected
to any air distribution duct.
ROOM AIR
IMPORTANT
For installation using room air for combustion,
remove knockout from the pedestal, and/or from
the bottom if using a heat shield.
Mobile home installations require the use of out-
side air.
On pedestal units there are two locations where
outside air may be adapted to the unit. If using the
bottomofthepedestal,donotremoveknockoutfrom
therearofthepedestal.Onlyremoverearknockout
if outside air will be brought in from the rear.
Onleg units outside aircan onlybe broughtin from
the bottom of the heat shield.
Note: Oncetheknockoutisremovedthereare
twotabsremaining. Bend both tabs out
for ease of installation when attaching
outside air.
MODULAR INSTALLATION OPTIONS
Modular Part Things to consider when choosing options:
OPTIONS: These can be installed at time of installation or added later:
F1100 & F3100 only:
Airmate OR
Rear Heat Deflector
(all units)
Pedestal OR
Legs
The following items are required when assembling your Regency Stove. F1100 and F3100 units - the Rear Heat Deflector is supplied with the
stove, but if you choose not to use it you must use the Airmate instead.
Clearances are different. See chart on pages 7 and 8. Generally you can get closer clearances with the airmate than
with the rear heat deflector.
Convection heat with Airmate vs. Radiant Heat with Rear Heat Deflector. The airmate pushes heat forward and into
the room, the rear heat deflector deflects the heat upward. See installation instructions.
There are no performance differences with either the pedestal or legs. It is primarily a personal preference. Legs can
be either painted cast or gold plated cast.
Leg installation requires the bottom shield. See installation instructions.
Emissions from burning wood or gas could
contain chemicals known to the State of Cali-
fornia to cause cancer, birth defects or other
reproductive harm.
NOTE: In Canada, floor protection must ex-
tend 18" to the front and 8" to each
side of the stove.
Modular Option
Blower/Fan
Ash Drawer Kit
Screen Door
Things to consider when choosing options
Adding the blower will increase the area heated by the stove, it can move warm air beyond the room where the stove
is installed. Installation instructions.
Adding the Ash Drawer Kit makes cleaning ashes out of the stove easier and cleaner. Installation instructions.
A simple add-on option that will allow you to enjoy the sound, warmth and view of an open fire.
INSTALLATION

Regency Freestanding Woodstove
8
INSTALLATION
MINIMUM CLEARANCE TO
COMBUSTIBLE MATERIALS
Please read the section below carefully as clearances depend on whether the airmate or the rear heat deflector is installed on the stove.
Measurements "From Unit" are from the top plate of the stove to a side wall or to a corner, and from the rear heat shield to a back wall.
Mobile Home Close Clearance (To be installed with required pipe components)
"C" Vent single wall pipe is not approved for Mobile Home installations. (Refer to Mobile Home Instructions.)
Unit From Unit From Corner From Flue Center-line
A B C D E F
Small F1100S with Airmate 11" 6" 6" 23" 12.5" 18"
with Rear Deflector 13" 5" 9" 25" 11.5" 21"
Large F3100L with Airmate 18" 9.5" 10" 32" 16" 23.5"
with Rear Deflector 20" 12" 10" 34" 18.5" 23.5"
NOTE: Be aware that local Codes and Regulations may override some clearances listed in this manual.
Check with your local inspector.
Residential Installation “C” Vent (Single Wall)
Unit From Unit From Corner From Flue Center-line
A B C D E F
Small F1100S with Airmate 13" 11" 8" 25" 17.5" 20"
with Rear Deflector 15" 10.5" 11" 27" 17" 23"
Large F3100L with Airmate 18" 12" 8.5" 32" 18.5" 22"
with Rear Deflector 20" 14" 10.5" 34" 20.5" 24"
Residential Close Clearance (To be installed with required pipe components)
When the stove is installed as a close clearance residential unit, a listed double wall connector is required from the stove
collar to the ceiling level.
Unit From Unit From Corner From Flue Center-line
A B C D E F
Small F1100S with Airmate 9" 5" 3" 21" 11.5" 15"
with Rear Deflector 13.5" 5" 5" 25.5" 11.5" 17"
Large F3100L with Airmate 16" 9.5" 8.5" 30" 16" 22"
with Rear Deflector 20" 12" 8.5" 34" 18.5" 22"

Regency Freestanding Woodstove 9
Minimum Alcove Clearance to Combustible Materials
The Regency Freestanding models have been alcove approved and must be installed
with a listed double wall connector to the ceiling level.
Note: Minimum alcove ceiling height - 84"
Maximum depth of alcove - 36"
Minimum Overall Width (X) of Floor
Protector for all installations:
Small Stove F1100S 36"
Large Stove F3100L 40"
INSTALLATION
*The rear clearance to combustibles is less than 6" (152mm), for corner installations the rear corners may be angled to take advantage of the
closer clearances.
Floor Protection
Acombustible floor must be protected by a non-combustible material (like tile,
concrete board, or certified to UL-1618 or as defined by local codes) extend-
ing beneath the heater and a minimum of 6" from each side and minimum
16" from the front face of the stove and minimum 6" (or the rear clearance to
combustibles whichever is smaller) from the rear of the stove.
NOTE: In Canada, floor protection must extend 18" to the front and 8" to each side of the stove.
From From Flue Min. Min.Hearth
Unit Unit Center-line Width to Rear Wall
G H I J K L
Small F1100S with Airmate 11" 7" 23" 13.5" 46" 39"
with Rear Deflector 13" 5" 25" 11.5" 50" 37"
Large F3100L with Airmate 16" 9.5" 30" 16" 60" 46.5"
with Rear Deflector (not approved for Alcove)
Minimum Overall Depth (Y) of Floor Protector
Residential Residential Mobile Home Alcove
Unit "C" Vent Close Clearance Close Clearance
Y Z Y Z Y Z Y Z
Small F1100S with Airmate 38" 6" 37"* 5" 38" 6" 38" 6"
with Rear Deflector 38" 6" 37"* 5" 37"* 5" 37"* 5"
Large F3100L with Airmate 43" 6" 43" 6" 43" 6" 43" 6"
with Rear Deflector 43" 6" 43" 6" 43" 6" n/a n/a

Regency Freestanding Woodstove
10
Diagram 4
Diagram 2
Diagram 3
STOVE ASSEMBLY
PRIOR TO
INSTALLATION
All units require either the pedestal or 4 legs at-
tachedtothebase.TheF1100andF3100stoves
requireeithertheAirmateorRearHeatDeflector
on top of the stove. Clearances to combustible
materialsvarydependingonwhethertheairmate
or rear heat deflector is installed, so be sure to
check the Minimum Clearance to Combustible
Materials section.
Airmate Assembly
for F1100 & F3100
Small 850-105
Large 850-305
1) The airmate sits on top of the stove with
the slots in the sides fitting over the curved
deflectorontherearstovetop.Seediagram
1. Discard the Rear Heat Deflector that is
suppliedwiththe unit, itis notrequired ifthe
airmate is installed.
2) Centertheairmateandpushitforwardtothe
front of the stove. The back of the airmate
should be level with the back and sides of
the rear heat shield. See Diagrams 2 & 3.
Diagram 1
Rear Heat Deflector Assembly
for F1100 & F3100
Small 815-555
Large 815-556
Therearheatdeflectorissuppliedwiththestove
andmustbeinstalledunlesstheoptionalairmate
hasbeenselected.Itstopstheheatradiatedfrom
thefluecollarfromoverheatingtherearwall.The
rear heat deflector is installed on top of the rear
heat shield, as shown in Diagram 4.
Pedestal Assembly
Small 850-115
Large 850-315
1) For easier assembly, tip the stove on its
back(ontoasoftsurfacetopreventscratch-
ing).
Hint: If you have chosen the Ash Drawer
option, remove the ash dump cover plates
before attaching the pedestal (refer to the
Ashdrawer Kit Installation section).
2) Remove the blanking plate if:
a) youarenotinstallingoutsidecombustion
air or
b) outside air is to be brought in from the
rear of the stove.
3) Unscrewthe 4boltsin theunder-sideof the
stove. Align the holes in the corners of the
pedestal top with the corresponding holes
inthe baseof the stove.Fasten usingabolt
and washer for each corner.
4) Push the Regency logo
into the two holes in
thefrontbottom
left corner of
the pedestal
cover plate.
Note: Any paint touch up should be done
prior to placing logo on pedestal.
5) If not using ash drawer, then cover plate must
beinstalled.Ifusingashdrawer,thendisregard
cover plate.
INSTALLATION

Regency Freestanding Woodstove 11
Horizontal Installation
Standard Ceiling Installation
8) Tocompleteyourchimneyinstallation,install
the double wall connector pipe from the
stove’s flue collar to the chimney support
device.
9) If you are using a horizontal connector,
the chimney connector should be as high
as possible while still maintaining the 18"
(457mm) minimum distance from the hori-
zontal connector to the ceiling.
10) NOTE: Residential Close Clearance and
Alcoveinstallationsrequirealisteddou-
ble wall connector from the stove collar
to the ceiling level.
The diagrams below illustrate one way to in-
stall your unit into a standard ceiling or with a
horizontal connector. Check with your dealer
or installer for information on other options
available to you.
STEP BY STEP
CHIMNEY AND
CONNECTOR
INSTALLATION
Note: These are a generic set of chimney
installationinstructions. Alwaysfol-
low the manufacturers own instruc-
tions explicitly. Check the Minimum
Recommended Flue Heights section
(Table 1).
1) With your location already established, cut
and frame the roof hole. It is recommended
that no ceiling support member be cut for
chimney and support box installation. If it is
necessary to cut them, the members must
be made structurally sound.
2) Install radiant shield and support from
above.
3) Stack the insulated pipe onto your finish
supporttoaminimumheightof3feetabove
the roof penetration, or 2 feet above any
point within 10 feet measured horizontally.
There must be at least 3 feet of chimney
above the roof level.
Note: Increasingthechimneyheightabove
this minimum level will sometimes
help your unit to “breathe” better
by allowing a greater draft to be cre-
ated. Thisgreaterdraftcandecrease
problemssuchas,difficultstart-ups,
back-smokingwhendoorisopen,and
dirty glass. It might be sufficient to
initiallytrywiththeminimumrequired
height, and then if problems do arise
add additional height at a later date.
4) Slide the roof flashing over your chimney
andseal theflashingto theroofwith roofing
compound. Securetheflashingtoyourroof
with nails or screws.
5) Place the storm collar over the flashing,
sealing the joints with a silicone caulking.
6) Fasten the raincap with spark screens (if
required) to the top of your chimney.
7) For optimum efficiency when installing into
a masonry chimney, size accordingly, i.e.
the 6" (152mm) flue dia. is 28.28 sq.in.
Leg and Bottom Shield Assembly
Bottom Shield
Small 850-121
Large 850-321
Legs (set of 4)
Cast - Painted Black 850-126
Cast - Gold Plated 850-127
Theinstructionsbelowapplytothepaintedcast
leg and the gold plated cast leg. It will be easier
to attach the legs to the stove if the stove is
tipped on its back (preferably on a soft surface
to prevent scratching). Ensure to be extremely
careful when tipping stove.
1) Remove the 4 bolts from underside of the
base of the pedestal and discard. Also
remove cover plate and put to the side.
2) Line up the heat shield with the bottom of
the unit.
3) Startthreadingtheboltandwasher(supplied
with the bottom shield) for about 1/4 of the
waythrough theleg withthe washersbeing
underneath the legs. Ensure that the legs
are properly aligned with heat shield and
tighten the bolts.
4) Level the stove by adjusting the levelling
bolts in the bottom of each leg.
5) Reinstall cover plate.
6) Installlogoplateontoheatshieldby placing
in 2 holes as shown in diagram.
Ifyouareinstallingoutsidecombustionair,bend
the tabs out 90 degrees. Pipe fresh air into the
bottom shield by using a minimum 4" duct pipe
with a mesh grill at the outside termination. At-
tach the pipe to the 2 tabs with screws.
INSTALLATION

Regency Freestanding Woodstove
12
FACTORY
BUILT CHIMNEY
When a metal prefabricated chimney is used, the manufacturer's installation instructions must be followed. You must also purchase and install the
ceiling support package or wall pass-through and "T" section package, firestops (where needed), insulation shield, roof flashing, chimney cap, etc.
Maintain proper clearance to the structure as recommended by the manufacturer. The chimney must be the required height above the roof or other
obstructions for safety and proper draft operation. The space heater is to be connected to a factory-built chimney conforming to CAN/ULC-S629,
Standard for 6500C Factory-Built Chimneys.
MASONRY
CHIMNEY
Ensurethatamasonrychimneymeetsthemini-
mum standards of the National Fire Protection
Association (NFPA) by having it inspected by
a professional. Make sure there are no cracks,
loose mortar or other signs of deterioration and
blockage. Have the chimney cleaned before
the stove is installed and operated. When
connecting the stove through a combustible
wall to a masonry chimney, special methods
are needed.
Ensure that an effective vapour barrier at the
locationwherethechimneyorothercomponent
penetrates to the exterior of the structure.
MASONRY
FIREPLACE
Therearelistedkitsavailabletoconnectastove
to a masonry fireplace. The kit is an adapter
that is installed at the location of the fireplace
damper. The existing damper may have to be
removed to allow installation.
Ensure that an effective vapour barrier at the
locationwherethechimneyorothercomponent
penetrates to the exterior of the structure. Liner
Listed
When referencing installation or connec-
tion to masonry fireplaces or chimneys, the
masonry construction must or shall be code
complying.
When referencing installation or connec-
tion to masonry fireplaces or chimneys, the
masonry construction must or shall be code
complying.
INSTALLATION

Regency Freestanding Woodstove 13
Method A: 12" (304.8 mm) Clearance to Combustible Wall Member:
Using a minimum thickness 3.5" (89 mm) brick and a 5/8" (15.9 mm)
minimum wall thickness clay liner, construct a wall pass-through. The
clay liner must conform to ASTM C315 (Standard Specification for
Clay Fire Linings) or its equivalent. Keep a minimum of 12" (304.8
mm) of brick masonry between the clay liner and wall combustibles.
The clay liner shall run from the brick masonry outer surface to the
inner surface of the chimney flue liner but not past the inner surface.
Firmly grout or cement the clay liner in place to the chimney flue liner.
Method B: 9" (228.6 mm) Clearance to Combustible Wall Member:
Using a 6" (152.4 mm) inside diameter, listed, factory-built Solid-Pak
chimney section with insulation of 1" (25.4 mm) or more, build a wall
pass-through with a minimum 9" (228.6 mm) air space between the
outerwallofthechimneylengthandwallcombustibles. Usesheetmetal
supportsfastenedsecurely to wallsurfaces onall sides,to maintainthe
9" (228.6 mm) air space. When fastening supports to chimney length,
do not penetrate the chimney liner (the inside wall of the Solid-Pak
chimney). The inner end of the Solid-Pak chimney section shall be
flush with the inside of the masonry chimney flue, and sealed with a
non-water soluble refractory cement. Use this cement to also seal to
the brick masonry penetration.
Minimum
12 in. (304.8mm)
to combustibles
Masonry chimney
Chimney Flue
Minimum chimney clearance to brick
and combustibles 2 in. (50.8mm)
Minimum clearance
12 in. (304.8mm)
of brick
Chimney
connector
Fire clay
liner
Method C: 6" (152.4 mm) Clearance to Combustible Wall Member:
Startingwith aminimum24 gage(.024"[.61 mm])6"(152.4 mm)metal
chimney connector, and a minimum 24 gage ventilated wall thimble
which has two air channels of 1" (25.4 mm) each, construct a wall
pass-through.Thereshallbeaminimum6"(152.4)mmseparationarea
containingfiberglassinsulation,fromtheoutersurfaceofthewallthimble
to wall combustibles. Support the wall thimble, and cover its opening
with a 24-gage minimum sheet metal support. Maintain the 6" (152.4
mm) space. There should also be a support sized to fit and hold the
metalchimney connector. Seethat thesupports arefastened securely
to wall surfaces on all sides. Make sure fasteners used to secure the
metal chimney connector do not penetrate chimney flue liner.
Method D: 2" (50.8 mm) Clearance to Combustible Wall Member:
Start with a solid-pak listed factory built chimney section at least 12"
(304 mm) long, with insulation of 1" (25.4 mm) or more, and an inside
diameterof 8"(2 inches[51 mm]larger thanthe 6"[152.4 mm] chimney
connector). Use this as a pass-through for a minimum 24-gage single
wall steel chimney connector. Keep solid-pak section concentric with
and spaced 1" (25.4 mm) off the chimney connector by way of sheet
metal support plates at both ends of chimney section. Cover opening
with and support chimney section on both sides with 24 gage minimum
sheet metal supports. See that the supports are fastened securely to
wallsurfaces onall sides.Makesure fastenersused tosecurechimney
flue liner.
COMBUSTIBLE WALL CHIMNEY
CONNECTOR PASS-THROUGHS
INSTALLATION

Regency Freestanding Woodstove
14
TABLE 1
MINIMUM RECOMMENDED FLUE HEIGHTS IN FEET
(Measured from the top of the unit)
# OF ELBOWS
ELEVATION (FT)
ABOVE SEA LEVEL 0 2 x 15o4 x 15o2 x 30o4 x 30o2 x 45o4 x 45o
0-1000 12.0 13.0 14.0 15.0 18.0 16.0 20.0
1000-2000 12.5 13.5 14.5 15.5 19.0 16.5 21.0
2000-3000 13.0 14.0 15.0 16.0 19.5 17.0 21.5
3000-4000 13.5 14.5 15.5 17.0 20.0 18.0 22.5
4000-5000 14.0 15.0 16.0 17.5 21.0 18.5 23.0
5000-6000 14.5 15.5 17.0 18.0 21.5 19.0 24.0
6000-7000 15.0 16.0 17.5 18.5 22.5 20.0 25.0
7000-8000 15.5 16.5 18.0 19.0 23.0 20.5 25.5
8000-9000 16.0 17.0 18.5 20.0 24.0 21.0 26.5
9000-10000 16.5 17.5 19.0 20.5 24.5 22.0 27.0
NOTE: No more than two offsets (four elbows) allowed.Two 45oelbows equal one 90oelbow.
MOBILE HOME INSTALLATION
RECOMMENDED
HEIGHTS FOR
WOODSTOVE FLUE
Simple rules on draft. See Table 1.
1) At sea level minimum height is 12'
straight.
2) Addthefollowingverticalheighttocompen-
sate for:
45 deg. elbow = 1 ft.
90 deg. elbow = 2 ft.
"T" = 3 ft.
Each foot of horizontal run = 2 ft.
3) Add 4% overall for each 1000' above sea
level.
Example: a)
1-1/2 ft. of horizontal run = 3 ft.
one "T" = 3 ft.
Total Addition (at sea level) = 6 ft.
Example: b)
One 90 deg. elbow = 2 ft.
2 ft. of horizontal run = 4 ft.
one "T" = 3 ft.
Total Addition (at sea level) = 9 ft.
Recommended Flue Height
Elevation Example a) Example b)
0' 18' 21'
1000' 18.72' 21.84'
2000' 19.44' 22.68'
5000' 21.60' 25.20'
8000' 23.76' 27.72'
Once you have properly marked the position
of your unit and the floor protection as outlined
in the Residential Installation items #1 through
#8, a supply of fresh air has to be supplied to
your unit. Cut a minimum 4 inch diameter hole
throughyourfloorprotectorandthefloordirectly
under your pedestal base to the outside. Use
4" duct pipe with a mesh grill to pipe fresh air
into the pedestal area. Block off the hole in the
back of the pedestal with the square plate and
the two 1/2" screws provided.
Place your unit in position and secure it to the
floor using two lag bolts 3/8" x 3-1/2" through
the two holes inside the pedestal base. It is
important to maintain the structural integrity
of the Mobile Home floor, walls and roof when
installing your unit.
For Mobile Home units installed in the U.S. the
unit must be grounded using a #8 ground wire
with approved termination and star washer.
WARNING:
Minimum height requirements
must be met. Safe removal of
the chimney system must be
adhered to when transporting the
mobile home.
WARNING: Operate only with door fully
closed - open feed door to feed fire only.
INSTALLATION

Regency Freestanding Woodstove 15
SIMPSON DURA-PLUS
Qty.Part # Description
1 6DVL8693 Connector Kit
1 6DP-MH9096 Mobile Home Kit
ICC EXCEL 2100
Qty.Part # Description
1 6CL48 48" Chimney length (also in
12",18", 24" lengths.
1 6RC Rain Cap
1 6RCS Spark Screen (for rain cap)
1 6RDS/SQS Round/Square support box
1 6VF Flashing
1 6UBA "Ultrablack" Close Clearance
Connector
Canadian Installations*
SECURITY S2100 (see above for details)
ICC EXCEL 2100 (see above for details)
*The use of alternate pitch flashings, support
box extensions, additional chimney lengths,
and additional chimney bracing, may be used
oneachofthepreviouslylistedsystems. These
parts though must be from the same system
as listed, and must be a similar and/or compli-
mentary part.
CAUTION:Atnotimeuseunlabelled
parts, or substitute parts made for
another chimney system.
Install as per chimney manufacturer's installa-
tion instructions.
LISTED COMPONENTS FOR
MOBILE HOME INSTALLATION
The Regency Small and Large Freestanding pedestal units are approved for installation in a Mobile Home if one of the following pipe systems is
used.
U.S. Installation*
METALBESTOS SSII
Qty. Part # Description
1 6DS-VK Connector Kit
1 6TMH Shield/Support
1 6TAF-6 Flashing
1 6T-36 Chimney Length
1 6T-18 Chimney Length
1 6T-CT Rain Cap
PRO-JET 3103
Qty.Part # Description
1 PV06-TK Connector
1 CSB Shield/Support
1 RRS Radiation Shield
1 LFR03 Flashing
1 SL3 Chimney Length
1 SL1 Chimney Length
1 RCSA Rain Cap
SECURITY ASHT
Qty.Part # Description
1 DL42A-6 Connector Kit
1 6SS Shield/Support
1 6FAMH Flashing
1 6L3 Chimney Length
1 6L1 Chimney Length
1 CPE Rain Cap
SECURITY S2100
Qty.Part # Description
1 DL42A-6 Connector Kit
1 6XSF Support
1 6XFA Flashing
1 6XL3 Chimney Length
1 6XL18 Chimney Length
1 6XCPE Rain Cap
METAL-FAB TEMP/GUARD 2100
Qty.Part # Description
1 6DWBK Connector
1 6TGRS Roof Support
1 6TGG36 Chimney Length
1 6TGG12 Chimney Length
1 6TGF Flashing
1 6TGC Rain Cap
AMERI-TEC HS
Qty.Part # Description
1 6DCC Connector
1 6HSRS-12 Roof Support (6PLRS-12-BK)
1 6F Flashing
1 6HS-36 Chimney Length
1 6HS-18 Chimney Length
1 6HS-RCS Rain Cap (6PL-MPC)
INSTALLATION

Regency Freestanding Woodstove
16
Side View
Front View
Front View
4) Installthethird airtubeintothe holesonthe
side channels. The notch goes on the right
hand side with the air holes facing forward
toward the door opening. If the tube will
not slide in easily, simply use a pair of vise
grips or pliers and tap it into place with a
hammer. A tighter fit will ensure the tube
will not move when the unit is burning.
Note: When cleaning the chimney reverse
the above procedures, removing
the air tube and baffle bricks and
then replace them when cleaning is
completed.
Large Stove F3100L
The unit arrives with the third air tube (from the
front) and the 2 baffle bricks on the floor of the
firebox.Thebafflebricksarepositionedfirstand
then the air tubes are installed.
1) Slide the left baffle brick over the two rear
air tubes and then push it all the way to the
left side of the firebox.
Front View
2) TiltthefirstBaffleBrickdownandthenslide
the2ndBaffleBrickupandback. Reposition
both baffle bricks flat on the air tubes.
3) Important: push both baffle bricks so
they are tight against the side walls.
Side View
BRICK FLUE BAFFLE &
SECONDARY AIR TUBE
INSTALLATION
Thefluebafflesystemlocatedintheupperarea
of the firebox is removable to make cleaning
your chimney system easier. The brick baffles
mustbe installedpriorto yourfirst fire. Smoke
spillageanddraftproblemsmayoccurif the
bafflesareimproperlypositioned. Checkthe
positionofthebrickbafflesonaregularbasisas
they can be dislodged if too much fuel is forced
into the firebox.
The Large Stoves F3100L and S3100L are
shipped with one of the secondary air tubes
loose inside the firebox. It needs to be installed
after the brick baffle are installed. Follow the
directions below.
Small Stove F1100S
1) Ifthe twoairtubes areinstalledcontinue on
toStep2),ifnot,followtheinstructionsbelow.
Install the air tube into the holes in the side
channels.Thenotch goesonthe righthand
sidewiththeairholesfacingtowardthedoor.
Slide the tube into the left hand side, as far
as possible and then bring it back into the
hole on the right hand side until it locks into
position. If the tube will not slide in easily
simply use a pair of vise grips or pliers and
tap it into place with a hammer. A tighter fit
will ensure the tube will not move when the
unit is burning. Refer to the Mobile Home
Installation section, though there are only
two air tubes in the small units.
2) Slide the left baffle brick over the front air
tube and then slide it back over the rear air
tube.
3) Tilt the left baffle brick up on top of the side
channel and it will leave enough room to
position the right baffle brick in the same
manner as Step 1 above. Then reposition
the left baffle brick flat on the air tube.
4) Important: push both baffle bricks so
they are tight against the side walls.
Note: When getting the chimney cleaned,
remove the baffle bricks for access
to the flue, then replace them when
cleaning is completed.
INSTALLATION

Regency Freestanding Woodstove 17
OPTIONAL
ACCESSORIES
The pieces listed below can be purchased and
installed during the initial installation or added
on later.
Freestanding - Large F3100
DOOR HANDLE
Attach spring handle by rotating counter
clockwise onto rod. Ensure that the rod fits
into the entire length of the spring handle. See
Diagram below.
GLASS INSTALLATION
Your Regency stove is supplied with 5 mm
Neoceram ceramic glass that will withstand
the highest heat that your unit will produce. In
the event that you break your glass by impact,
purchase your replacement from an authorized
Regency dealer only.
Remove the door from the stove and remove
theglassretainer.Positiontheglassinthedoor,
makesure thatthe glassgasketingwill properly
sealyourunit,andreplacetheretainer,itshould
restonthegasketnottheglass.Tightensecurely,
butdonotwrenchdownontheglassasthismay
cause the glass to break.
Refer to the Ash Drawer Operating section.

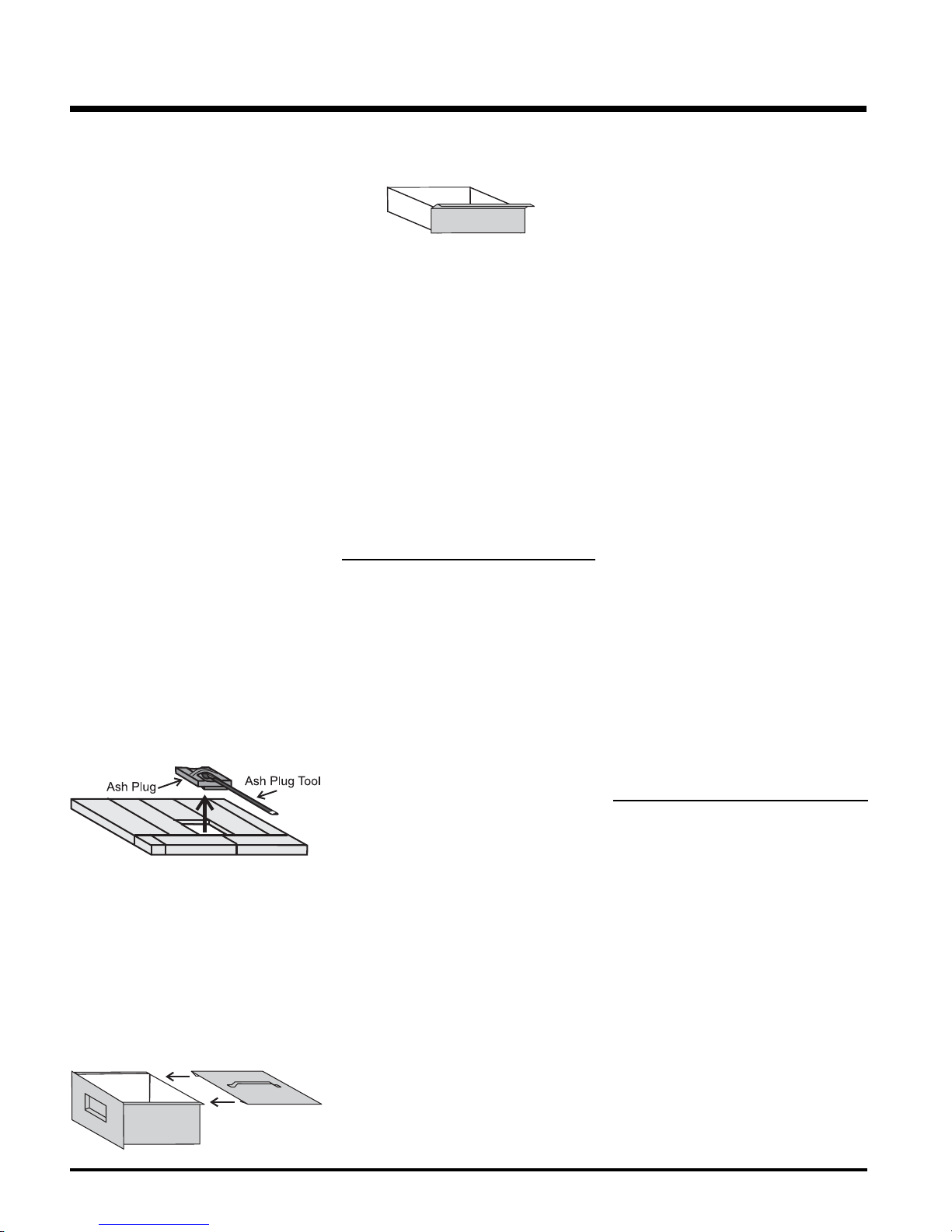

Bottom Shield Ash Drawer Kit
(850-101 )
1) Remove the bricks from the floor of the
firebox.
2) Remove and discard the cover plate by
removing the two screws on the front of the
Bottom Shield.
3) Remove the ash dump cover plates (one
insidethe fireboxand oneon the underside
of the firebox) by removing the two nuts
andbolts holdingthe 2platestogether from
inside the firebox.
4) Push the ash plug into the hole inside the
firebox and replace all the bricks except
for the brick over the ash plug. See brick
diagrams.
5) Place the ash plug tool beside the lid, then
slide the ash drawer inside.
Refer to the Ash Drawer Operating section.
Freestanding - Small F1100
Pedestal Ash Drawer Kit (850-100)
1) Remove the bricks from the floor of the
firebox.
2) If using ashdrawer, discard cover plate.
3) Remove the ash dump cover plates (one
insidethe fireboxand oneon the underside
of the firebox) by removing the two nuts
andbolts holdingthe 2platestogether from
inside the firebox.
4) Push the ash plug into the hole inside the
firebox and replace all the bricks except
for the brick over the ash plug. See brick
diagrams.
5) Placetheashdrawerlidinsidethepedestal,
and the ash plug tool beside the lid, then
slide the ash drawer inside so it sits on top
of the lid.
BRICK INSTALLATION
Firebrick is included to extend the life of your
stove and radiate heat more evenly. Check to
see that all firebricks are in their correct posi-
tions and have not become misaligned during
shipping.
The "AD" brick in the drawings above is the
brick covering the Ash Dump hole that is used
when the Ash Drawer Kit is installed (refer to
theListedComponentsfor MobileHome Instal-
lation section).
SCREEN DOOR
Hook screen to the inside on the right side
of the firebox door opening. Lock in place by
turning handle.
Back Side of Screen Shown
Handle Lock
Hooks
NOTE: The handle must be positioned at 10
o'clock when closed to avoid the handle from
getting hot and to ensure the screen stays in
place.
Handle at 10 o'clock position.
INSTALLATION

Regency Freestanding Woodstove
18
Blower/Fan (846-515)
1) Remove the two screws from the top of the
fan housing.
2) Slide the fan up into the rear heat shield.
3) Afteraligningholes,securethefantotherear
heat shield using the two screws removed
earlier.
Note: The connection cord should not be
in contact with any hot surfaces.
Read the operating instructions for the fan
before using.
INSTALLATION
Ground
Fan Fan
Ground Green
Neutral
Live
White
Fan
Switch
Manual/
Auto
Switch
Black Black
High (Black)
Low (Red)
Black
Fan Thermodisc
(normally open)
120V AC
60 Hz
Blower/Fan Wiring Diagram
CAUTION: Labelallwirespriortodisconnection
whenservicingcontrols.Wiringerrorscancause
improper and dangerous operation.
WARNING: Electrical Grounding Instructions
This appliance is equipped with a three pronged
(grounding) plug for your protection against shock
hazard and should be plugged directly into a properly
groundedthree-prongreceptacle.Donotcutorremove
the grounding prong from this plug.
NOTE:Thisappliance,wheninstalled,must
be electrically grounded in accordance
with local codes or, in the absence of local
codes, with the National Electrical Code,
ANSI/NFPA 70, or the Canadian Electrical
code, CSA C22.1.

Regency Freestanding Woodstove 19
OPERATING INSTRUCTIONS
good updraft in the flue to establish the fire.
(Leavingthedoorslightlyopenwillhelpyour
fire start more rapidly.)
CAUTION: Never leave unit unattended
ifdoor is leftopen. This procedureis for
fire start-up only, as unit may overheat if
door is left open for too long.
3) With the draft still in the fully open position
addtwo orthree seasonedlogs toyour fire.
Form a trench in the ash bed to allow air to
reach the rear of the firebox prior to closing
the door.
4) After about 15 to 20 minutes, when your
wood has begun to burn strongly, adjust
your draft control down to keep the fire at a
moderate level.
WARNING: Never build a roaring fire in
a cold stove. Always warm your stove
up slowly!
5) Once a bed of coals has been established,
you may adjust the draft control to a low
settingtooperatetheunitatitsmostefficient
mode.
6) Duringthefirstfewfires,keepthecombustion
rateatamoderatelevelandavoidalargefire.
Only after 5 or 6 such fires can you operate
the stove at its maximum setting, and only
after the metal has been warmed.
7) Forthefirstfewdays,thestovewillgiveoffan
odourfrom thepaint. Thisis tobe expected
asthehightemperaturepaintbecomessea-
soned.Windowsand/ordoorsshouldbeleft
open to provide adequate ventilation while
thistemporaryconditionexists. Burningthe
stoveataveryhightemperaturethefirstfew
times may damage the paint. Burn fires at
a moderate level the first few days.
8) Do not place anything on the stove top dur-
ing the curing process. This may result in
damage to your paint finish.
9) During the first few days it may be more
difficult to start the fire.As you dry out your
firebrick and your masonry flue, your draft
will increase.
10) Forthoseunitsinstalledathigherelevations
or into sub-standard masonry fireplaces,
drafting problems may occur. Consult an
experienced dealer or mason on methods
of increasing your draft.
11) Some crackingand popping noisesmay be
experiencedduringtheheatingupprocess.
Thesenoiseswillbeminimalwhenyourunit
reaches temperature.
12) Before opening your door to reload, open
draftfullyforapproximately10to15seconds
until fire has been re-established. This will
minimize any smoking.
OPERATING
INSTRUCTIONS
Withyourunitnowcorrectlyinstalledandsafety
inspected by your local authority, you are now
ready to start a fire. Before establishing your
firstfire, itis importantthatyou fullyunderstand
the operation of your draft control.
Pull - Open Push - Closed
WARNING: To build a fire in ignorance or to
disregard the information contained in this
section can cause serious permanent dam-
age to the unit and void your warranty!!
FIRST FIRE
When your installation is completed and in-
spected you are ready for your first fire.
1) Open control fully.
2) Open firebox door and build a small fire
using paper and dry kindling. Secure door
on the firebox and wait a few minutes for a
13) Allfuelburningappliancesconsumeoxygen
during operation. It is important that you
supply a source of fresh air to your unit
while burning. A slightly opened window is
sufficient for the purpose. If you also have
a fireplace in your home, a downdraft may
be created by your Regency Stove causing
a draft down your chimney. If this occurs,
slightly open a window near your unit.
CAUTION: If the body of your unit,
flue baffle or any part of the chim-
ney connector starts to glow, you
are overfiring. Stop loading fuel
immediatelyandclosethedraftcon-
trol until the glow has completely
subsided.
14) Greenor wetwoodis notrecommendedfor
yourunit. Ifyou mustaddwetor greenfuel,
open the draft control fully until all moisture
has been dispersed by the intense fire.
Once all moisture has been removed, the
draft control may be adjusted to maintain
the fire.
15) Ifyouhavebeenburningyourstoveonalow
draft, use caution when opening the door.
After opening the damper, open the door
a crack, and allow the fire to adjust before
fully opening the door.
16) The controls of your unit or the air supply
passages should not be altered to increase
firing for any reason.
17) If you burn the unit too slowly or at too low
a setting your unit will not be operating as
efficiently as it can. An easy rule of thumb
saysthatifyourglassisclean,thenyourflue
iscleanandyourexhaustisclean. Burnthe
stove hot enough to keep your glass clean
and you won't need to clean your flue as
often.
NOTE: If using a smoke detector, select an
area in the room where the appliance
is located that will not prematurely set
off the smoke detector.
WARNING
Fireplace Stoves equipped with doors
shouldbeoperatedonlywithdoorsfully
closed. If doors are left partly open,
gas and flame may be drawn out of the
fireplace stove opening, creating risks
from both fire and smoke.
When operated with doors open the
manufacturer supplied screen must
be used.
DRAFT CONTROL
Boththeprimaryandairwashdraftsarecontrol-
led by the control rod located on the left side
of the unit (when facing the unit). To increase
your draft - pull open, and to decrease - push
closed. Allunitshaveasecondarydraftsystem
that continually allows combustion air to the
induction ports at the top of the firebox, just
below the flue baffle.
Important: If you are using room air for com-
bustion, make sure that the back cover plate
at the rear of the pedestal is not installed. The
cover plate must be installed on the unit if your
stove is located in a mobile home or if using
outside air.

Regency Freestanding Woodstove
20
ASH DISPOSAL
Duringconstantuse,ashes shouldberemoved
everyfewdays.The AshDraweroptionfeatures
aconvenientashdumpforeasyremovalofash,
refer to the "Modular Options" section.
Safety Precautions
1) Donotallowashestobuilduptotheloading
doors! Onlyremoveasheswhenthefirehas
died down. Even then, expect to find a few
hot embers.
2) Please take care to prevent the build-up of
ash around the start-up air housing located
insidethestovebox,undertheloadingdoor
lip.
3) Never start a fire if the ash plug and ash
drawer are not in place. This will cause
overfiringwhichcancauseexcessivewarp-
ing of the stove. Evidence of overfiring can
void the warranty on your stove.
4) Thefirebricksarebrittleandcanbedamaged
if the plug is replaced carelessly or pieces
that are too large are forced through the
hole.
Ash Drawer Operating Guideline
1) Only clean ashes out of the stove when the
unit has cooled down. Remove the plug by
liftingonthehandle usingthe toolprovided.
The plug may still be warm, use caution.
Push the ashes down the hole into the ash
drawer, the large pieces can be left in the
firebox and burned during the next fire or
removed through the door opening.
OPERATING INSTRUCTIONS
2) Always leave 1/2 to 1 inch of ash in the
bottom of the firebox. This helps in easier
starting and a more uniform burn of your
fire. Replace ash plug when ashes have
been removed.
3) Pedestal Units:
To remove the drawer, lift slightly and slide
it out. When the drawer is completely out,
slide the cover plate over the ash drawer
and carry away.
Bottom Shield (with Legs) Units:
To remove the drawer, lift slightly and slide
it out, and carry it away.
4) When emptying the ash drawer, make sure
theashesarecold.Ashesshould beplaced
in a metal container with a tight fitting lid.
The closed container of ashes should be
placed on a non - combustible floor or on
the ground, well away from all combustible
materials,pendingfinaldisposal. Iftheashes
aredisposedofbyburialinsoilorotherwise
locallydispersed,theyshouldberetainedin
the closed container until all cinders have
thoroughly cooled. Other waste should not
be placed in the ash container.
5) Before putting the ash drawer back into
place, make sure the ash plug is back in
place.
Pedestal Units: make sure the cover lid is
off.
SAFETY GUIDELINES
AND WARNINGS
1) Never use gasoline, gasoline type lantern
fuels, kerosene, charcoal lighter fuel, or
similar liquids to start or ‘freshen up’ a fire
in your heater. Keep all such liquids well
away from the heater while it is in use.
2) Keep the door closed during operation and
maintain all seals in good condition.
3) Do not burn any quantities of paper, gar-
bage,andneverburnflammablefluidssuch
as gasoline, naptha or engine oil in your
stove.
4) Ifyouhavesmokedetectors,preventsmoke
spillage as this may set off a false alarm.
5) Do not overfire heater. If the chimney con-
nector, flue baffle or the stove top begin to
glow,youareoverfiring.Stopaddingfueland
closethedraftcontrol. Overfiringcancause
extensive damage to your stove including
warpage and premature steel corrosion.
Overfiring will void your warranty.
6) Do not permit creosote or soot build-up
in the chimney system. Check and clean
chimney at regular intervals. Failure to do
so can result in a serious chimney fire.
7) Your Regency stove can be very hot. You
may be seriously burned if you touch the
stove while it is operating, keep children,
clothing and furniture away. Warn children
of the burn hazard.
8) The stove consumes air while operating,
provide adequate ventilation with an air
duct or open a window while the stove is in
use.
9) Do not connect this unit to a chimney flue
serving another appliance.
10) Do not use grates or andirons or other
methods for supporting fuel. Burn directly
on the bricks.
11) Open the draft control fully for 10 to 15
seconds prior to slowly opening the door
when refuelling the fire.
12) Do not connect your unit to any air distribu-
tion duct.
13) Your woodstove should burn dry, standard
firewood only. The use of cut lumber,
plywood, “mill ends”, coal, charcoal etc. is
prohibited as this fuel can easily overheat
your woodstove. Evidence of excessive
overheatingwillvoidyourwarranty. Aswell,
alargeportionofsawmillwasteischemically
treated lumber, which is illegal to burn in
manyareas. Salt driftwood andchemically
treated fire logs also must not be burned in
your woodstoves.
14) Do not store any fuel closer than 2 feet
from your unit. Do not place wood, paper,
furniture,drapesorothercombustiblesnear
the appliance.
15) WARNING: Donotoperatewithouteither
the Ash Plug properly seated or the Ash
DumpPlatesscrewed inplace,excessive
temperatures will result.
16) Do not operate with broken glazing.
FAN OPERATION
Automatic
Tooperatethefanautomatically,pushthebottom
switch on the side of the fan housing to "AUTO"
and the top switch to either "HIGH" or "LOW"
for fan speed.
This will allow the fan to turn on as the stove
has come up to operating temperature. It will
also shut the fan system off after the fire has
gone out and the unit cooled to below a useful
heat output range.
Manual
Tomanuallyoperatethefansystempushthebot-
tomswitchto "MAN" andthe topswitch toeither
"HIGH" or "LOW". This will bypass the sensing
device and allow full control of the fan.
Switching from "AUTO" to "MAN" or "HIGH" to
"LOW" may be done anytime.
