Power
Assisted
Wheelchair
Systems
PAWS User’s manual (EN)

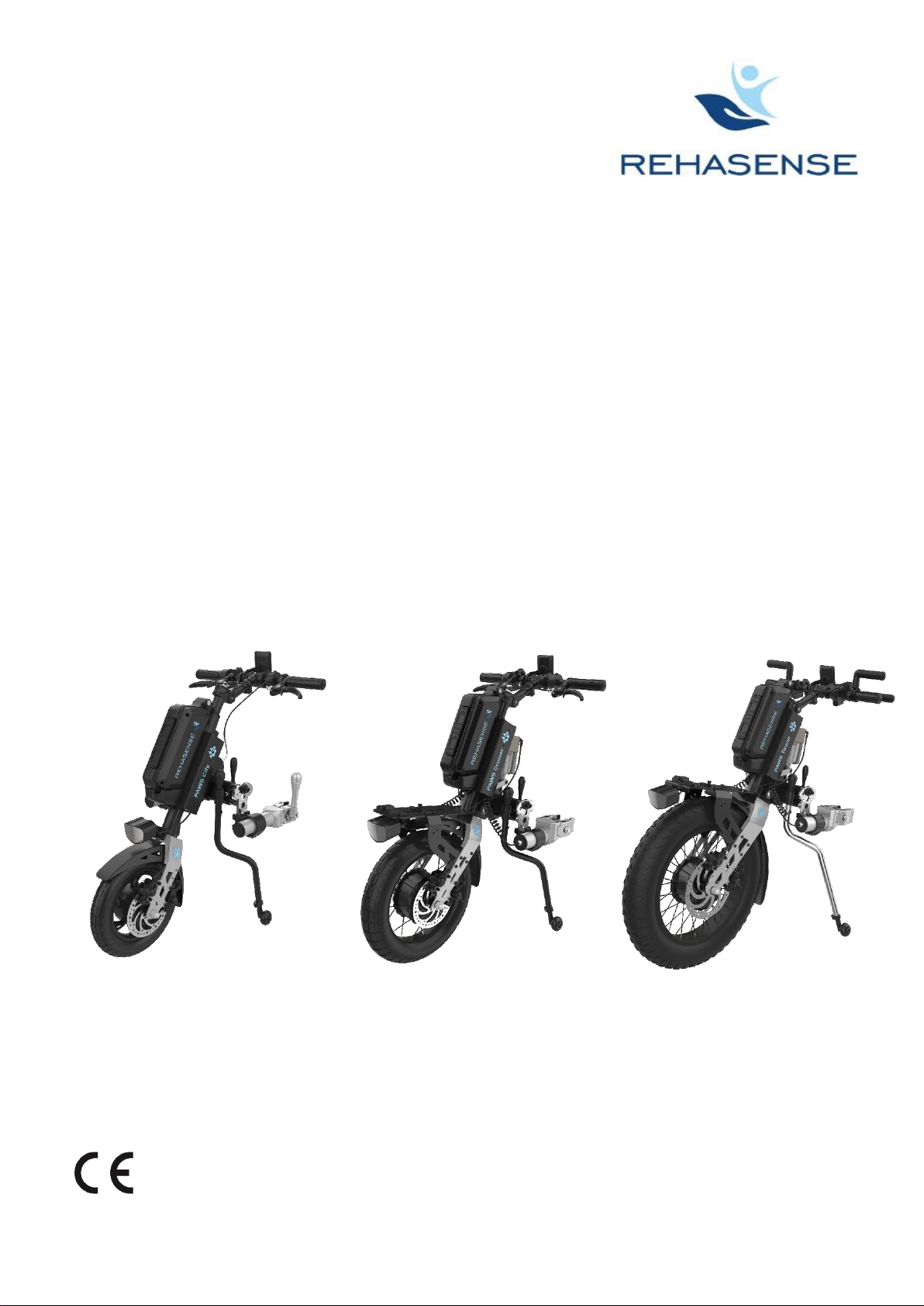

City, Cruiser and Tourer Series
City 12”/14” Cruiser 16” Tourer 20”
more than mobility

Version 01/22 Page 2 of 52 PAWS UM EN
INDEX
Section Topic Page
1. General Information, Intended Use and Quality Standards
2. Safety Warnings and Recommendations
3. General description
4. Cleaning
5. Transport and Storage
6. Recycling and Disposal
7. Maintenance and Service
8. Reuse
9. Warranty and Liability
10. Scope of Delivery and Identification
11. Product Specification
12. Configurations, Controls and Display
13. Device Assembly
13.1 Naming of Parts
13.2 Assembly –Manual Clamp and Lift
13.3 Assembly –Auto Clamp and Lift
13.4 Assembly - Auto Clamp and Manual Lift
14. Operating
15. Accessories
16. Appendices
16.1 Appendix 1: Battery and Charger
16.2 Appendix 2: Headlight
16.3 Appendix 3: Smart Tyre Inflator
17. Contact details of distributor, manufacturer
3
4
7
8
8
9
9
12
12
16
18
20
24
24
25
30
35
43
44
44
47
48
51

Version 01/22 Page 3 of 52 PAWS UM EN
1. General Information, Intended Use and Quality Standards.
Thank you for choosing a PAWS Power Add-On Scooter for manual wheelchair. This user manual contains a
description of the device and important guidelines to ensure a correct and safe usage.
Please read this manual carefully. It is especially important to read the safety requirements and to follow these.
In this User Manual, we use the following terminology: -
Device –refers to the PAWS Power Add-On Device.
User –refers to the person using the device.
Chair –the chair that is used with the device.
Kerb –the edging of a pavement or sidewalk. Spelt “Curb” in Canada and the USA,
Set-up –the way the device is configured according to the Users requirements.
Docking/Undocking –the process of connecting/disconnecting and lifting/lowering the device to the chair.
QR –refers to Quick Release, pertaining to the clamp housing and the device proper.
The manufacturer continuously develops its devices and reserves the right to change specifications and functions of
devices without notice.
If you have concerns or queries, please contact your dealer or the manufacturer directly. The contact data is located on
the last page of this manual.
Intended use and indications for use.
Intended use: The device is intended to be used as an auxiliary drive unit for folding and rigid frame chairs. Any other
use is prohibited.
Indications: The device is indicated for individuals who require power assistance in propelling the chair in a seated
position. Specifically, for: -
who have been instructed in its handling,
can move and coordinate both hands and arms without major restrictions,
have the physical and mental ability to operate the wheelchair and device in all possible situations.
Contra-indications: This type of device must not be used by persons with cognitive or processing limitations that would
prevent them from using the device as intended.
Use by people with partial or complete flaccid paralysis must be determined by a qualified chair fitting expert with
advice from a physician and/or an occupational or physical therapist.
The ability to safely control the device is essential to its use.
Chair pairing: It is important that the chair used can withstand the forces generated by clamping and driving with the
device. Significant stresses may be applied to the chair beyond what it was originally designed for. Please consult with
the supplier of the device before changing to chairs other than what the device was fitted to at the time of delivery.
Refer to your Authorised PAWS Dealer for interface options for fibre composite frames
Quality standards.
The Device has passed all necessary tests and it is in conformity with following European Standards:
ISO 14971 ; ISO 20417 ; EN 12184 ; EN 12182 ; ISO 7176 -Part 1, 2, 3, 4, 5, 8, 9, 10.

Version 01/22 Page 4 of 52 PAWS UM EN
It also fulfils all CE requirements implemented by the 2006/42/EC (Machinery), 2014/35/EU (Low Voltage), 2014/30/EU
(Electromagnetic Compatibility) Medical Devices Directive.
2. Safety Warnings & Recommendations.
This manual points out the most common procedures and techniques involved in the safe operation and maintenance
of the device. It is important to practice and master these safe techniques until users are comfortable in maneuvering
around the frequently encountered architectural barriers.
Users and assistants must be aware that the handling and maneuverability characteristics of device are inherently
different from manual wheelchairs. Handling and maneuverability differences will be most noticeable when traveling
down declines (example: ramps and slopes) or over obstacles and rough terrain as this may shift the users center of
mass forward resulting in decreased stability. ALWAYS reduce speed when driving under these conditions.
REHASENSE recognizes and encourages each individual to try what works best for him/her in overcoming architectural
obstacles that they may encounter. However all warnings and cautions given in this manual MUST be followed.
Techniques in this manual are a starting point for the new user and assistant with “safety” as the most important
consideration for all.
It is important for the User to recognize and understand that there is a danger of personal injury from falling from the
device or colliding with objects if it is not handled or set-up correctly.
Therefore, it is very important that a thorough understanding of the use and limitations of the device is reached by the
User before using the device. Following are some points that are important to read and understand.
If there are any areas where the concepts are not clear, please contact your authorized The Manufacturer Dealer or The
Manufacturer directly ([e-mail]) for further clarification.
Consult –talk to a person qualified in supplying, fitting, and servicing the device.
Before deciding which model to choose, communicate with authorized The Manufacturer dealer –do
not purchase this device from non-qualified suppliers or in the open market.
As this is a powered device, it is important to consult with a physician and or therapist to determine if
the user has the physical and mental capabilities to control the device.
A one-to-one instruction session on handling and operating of device is included in the scope of
delivery.
Read –read the User Manual.
Make sure that this user manual is read by all persons using the device. The Manufacturer does not take
any responsibility for damages and/or injuries, caused by the fact that the user manual has not been
followed.
Follow the instructions and warnings on all device labels.
All “Attention” in UM should be carefully reviewed and understood.
Driving Environment –be aware of the conditions in which the device is used or exposed.
All wheels should ALWAYS be in contact with the floor during use. This will ensure the device is properly
balanced and should avoid incidents.
The device must only be used on a stable surface.

Version 01/22 Page 5 of 52 PAWS UM EN
Do not use device in escalators or moving walkways.
It is not recommended to use the device on sand, in mud or in extreme weather conditions unless the
model indicates that this is an approved use environment.
The temperature range for use is between -25 degrees Celsius and plus 50 degrees Celsius.
The device is not recommended to be exposed to strong electric fields, excessive heat, or moisture.
The device’ s operation might interference with other electrical devices.
Please never exceed the technical limits mentioned in the UM.
Driving training, obstacles, and slopes.
We recommend having driving training when you receive the PAWS, to become familiar with the device
and its limitations.
The device can climb obstacles with a maximum height of 5 cm –do not exceed this obstacle height.
On inclines, it may be necessary to lean forward to move the center of mass (or gravity) closer to the
drive wheels to maintain traction on the drive wheel.
When device is attached to the chair, it is regarded as a three-wheel vehicle. Reduce speed when
turning, going across kerbs, cambers, and bumps to avoid tipping over.
Always be mindful of your speed when driving on public roads or footpaths. Please observe and follow
the local road traffic regulations in the country of use,
Please practice driving on the level ground before attempting sloped surfaces, to become familiar with
the device and its limitations.
When driving, and after releasing the throttle, please be aware that the device will not stop
automatically. The handbrakes must be applied to bring the device to a full stop.
Unless the brakes are applied, there is the risk of the device moving on a sloping surface. Always apply
the brakes when not using the throttle.
Do not climb slopes (up to 10 degrees) in the “Walk mode” only. We recommend the lowest speed
mode (Mode 1) for climbing.
Ensure a fully charged battery before attempting a trip that has sloping ground.
Use and Speed.
Always drive within your ability to control the device to a safe stop. Using/driving the device at
uncontrollable speeds is the user’s responsibility and the manufacturer/dealer will deny/refuse any
responsibility of accidents or damages to third party,
Speed limits are determined according to the local traffic regulations. These limits will be programmed
at the time of manufacture and will be controlled in steps to reach the maximum permitted speed as
determined by the traffic authorities. If a lower limit is required than the local regulations permit, then
this can be programmed by the authorised Rehasense PAWS representative in the delivery location.
Attention –key points.
The device must not be loaded with more than 120 kg,

Version 01/22 Page 6 of 52 PAWS UM EN
The drive wheel of PAWS is free to move even when switched off. Please do not reach into the rotating
wheel as it may cause serious injuries. Make sure that the brakes are also locked during standstill and
transport.
Use the device only in good technical condition and only for the purpose it is intended for,
If defects or errors are detected bring the device to a gradual stop (if in use) and immediately contact
your dealer,
Do not remove by yourself any parts or make any constructive changes to the device. It may influence
device's stability and performance,
Avoid skin burns during usage of the device in direct sunlight. Various parts of the device might
become hot,
Attaching any accessory which is not from the optional accessories list is not allowed,
Before using the device, please carefully check tyre air pressure, battery residual power, whether the
horn works, the brakes are functioning and all elements are secured correctly,
The device is not used for any purpose of transferring goods, carrying additional people in the chair or
use during sporting activities,
When driving on public roads or footpaths, please observe and follow the local road traffic regulations
in the country of use,
As lithium-ion cells are used in the battery pack, transportation will be subject to all regulations for
portable power cells. Please consult with authorities or your travel company (e.g., railway, bus company,
shipping company) to find the best way to transport your device’s batteries.
WARNING!
The device and chair are not designed as a seating option for a user in moving
vehicles (like e.g., buses, trains, metro, airplanes etc.).
It is forbidden to seat on the device in moving vehicle. The device and chair should
be safely stowed and secured for the time of transportation.
The user should be safely transferred and seated in a prompt seating system included
in the vehicle. It is a great risk of serious incident, injuries, and property damage to
not follow above rule .
The design of the device because of its functions includes many moving elements,
slots, holes, and gaps between device’s parts.
There is a risk of body part trapping during folding, unfolding, and adjusting different
elements of the device. It specially concerns fingers or hands.
It is also possible to have a finger cut by moving parts of the device. Always be
careful when you adjust or set-up a chair to not get your body parts squeezed and
injured.
IF ANY SERIOUS INCIDENT OCCURES IN RELATION TO THE DEVICE, PLEASE CONTACT YOUR DEALER OR REHASENSE
DIRECTLY (contact details are at the end of the user manual). These immediate actions should be taken according to the
requirements of Regulation of the European Parliament and of the EU Council 2017/745 on medical devices of April 5,
2017.

Version 01/22 Page 7 of 52 PAWS UM EN
3. General Description of the Device.
The device is an electrically powered towing device that is attached to a manual chair, converting it into a power-
assisted chair.
The range and performance of device greatly increases the chair users’ daily travel range under all but the most
conditions. This increased freedom of movement may facilitate the users’ life and broaden their activity range, which
fundamentally enhances the users’ independence and confidence. All metal components on PAWS are protected against
corrosion.
Elements of the Device.
PAWS is a system where some elements of the devices are common, and some are discrete according to the Users
requirements: -
Common elements for each model are the frames, lights, display, warning system and battery,
Selected elements are the wheel size, the handlebar set-up (Tetra enabled or Standard) and the
docking system (Manual or Auto Lift and Clamp).
Selected Elements.
Wheel Diameter/(Model) –diameter is the main model determinant.
12”/14” Wheel (City): lowest weight, battery consumption, torque (35 Nm) and motor power. Most
maneuverable. Suitable for indoors and tarmac road. Best at low to middle speed range.
16” Wheel (Cruiser): middle weight, battery consumption, torque (60 Nm) and motor power. Suitable for
outdoors in most conditions. Best at middle to higher speeds across variable terrain. Speed Modes 3 –5
are only available as a special order and must be accompanied by a recommendation by a qualified
Dealer that the User can manage the higher speeds resulting.
20” Wheel with fat tyre (Tourer): greatest weight, battery consumption, torque (80 Nm) and motor
power. Suitable for outdoors in most conditions. Best at middle to higher speeds across difficult terrain.
Speed Modes 3 –5 are only available as a special order and must be accompanied by a
recommendation by a qualified Dealer that the User can manage the higher speeds resulting.
Docking set-up options
Manual Clamp and Lift: Users have enough strength to perform the lift and clamp operation without
assistance,
Auto Clamp and Manual lift: Users have enough strength to lift but use assistance for the clamp
operation,
Auto Clamp and Auto Lift: Users require assistance for the clamp and lift operation.
Handlebar control set-up options
Standard throttle and brake handle: Users who have enough hand control and strength operate the
speed and brake control without assistance.
Tetra throttle and brake handle: Users who have reduced or negligible hand strength and control and
require Tetra Grips to operate the speed and brake control functions.
Attention! It is very important that User’s strength and coordination are tested before selecting set-up options
and test driving! See Section 2 “Safety Warnings and Recommendations” (above).

Version 01/22 Page 8 of 52 PAWS UM EN
Figure 1. Main Elements for the Device (example shown is manual clamp and lift configuration)
4. Cleaning.
Attention! Water penetration can destroy the electrical system, motor, and the battery pack. The Manufacturer
shall not be liable for damage caused by water inside the device. Please Attention that water damage is not
covered by our warranty.
Cleaning
Do not clean the individual components of the device under running water or with a high-pressure
cleaner,
Always ensure that no liquid or moisture enters the wheel hub and the battery pack,
Whenever you clean components or the battery pack, use a dry or slightly damp cloth,
Never use scouring pads, abrasive detergents, or aggressive chemicals to clean the components.
5. Transport and Storage
Transport
Please keep the original packing box for later use if the device is to be transported for service or other
reasons.
Handling and Lifting
Please observe safe lifting practices when lifting the device or its individual elements,
Remove the battery for easier handling and lifting.
When lifting, remove all detachable elements and always get the support of second person.
Do not lift or handle by gripping the basket or cables.
Always use the support legs when cleaning or handling the device.
Display
Handlebars
Lift
Mechanism
Clamp
Mechanism
Support
Legs
Driving Light
Battery
Lock
Battery
Drive
Wheel
Disc
Brake

Version 01/22 Page 9 of 52 PAWS UM EN
Storing and Commissioning
Store in a dry room, out of direct sunlight,
Remove the battery pack after fully charging and wrap it in film,
Also protect the device with film to keep moisture out,
Ensure that unauthorized persons (especially children) do not have unsupervised access to this room.
Recommissioning
Check whether maintenance is required before recommissioning and arrange this if necessary,
The chair, the device and the battery pack must be cleaned prior to recommissioning,
There must not be any metallic particles on the plug on the charger and on the charger socket on the
battery pack.
6. Recycling and Disposal
Support sustainability by adhering to local regulations for recycling and disposal of the device once its serviceable life is
ended.
The device is labelled in accordance with European Directive 2012/19/EU (WEEE Directive) with a
“crossed-out rubbish bin” symbol, reminding you that it must be recycled,
All materials may be recycled once the device has finished its serviceable life,
Be sure to dispose of the device correctly by returning to your Dealer or take to a recycling centre.
Attention - Do not add to landfill as batteries and other components may leak substances that are hazardous to
the environment.
7. Maintenance & Service.
Maintenance
Despite the solid construction and usage of resistant materials, the device is subject to wear. It is therefore
recommended to have a professional checking the device at regular intervals –usually at 2 years since purchase or
earlier if there is any doubt about the device’s performance.
This guideline value of 2 years may vary with the device's respective degree of utilization and the behavior of the user.
Checking the degree of utilization and the user behavior is the responsibility of the operator.
Attention! Please also consider the condition of the chair! The maintenance of the chair is equally important as
that of the device. Manufacturer’s recommendations may not consider the use of the chair with the device, so please
contact your chair supplier to ask about maintenance when using a device!
Parts (shown below) also include “generic” care instructions for the chair. These should be considered along with the
chair manufacturer’s own care instructions., which should be regularly inspected.
NOTE: Gradual deterioration in performance because the battery has been left in a discharged state, left in cold
conditions for an extended period of time, or worn out through heavy use is not covered.

Version 01/22 Page 10 of 52 PAWS UM EN
Part name
Control type
Control frequency
Device
Battery and Charger
Ensure contact points are clean on the battery and its housing by
wiping with a dry cloth. Also check that the plug and battery socket for
charging are clear of any dirt or metal particles.
Whenever recharging the
battery.
Brake Levers
Brake cables may stretch over time. These can be adjusted by
loosening the lock nut and turning the adjustor next to the brake lever
housing. Retighten after adjusting.
As indicated through use.
Handlebars
Check tightness of all fasteners on the handles bars to ensure stability
of parts. Only use the tools supplied.
Depending on use, and/or
monthly.
Lights and Horn
Normal function check.
Before driving each time.
Disc Brake Assembly
Clean dirt off the Brake Disc and check for excessive wear such as
gouging or deep grooves.
Whenever the braking
performance feels
diminished or monthly.
Clamping Mechanism
to Chair Frame
Check adjustments if slipping or excessive markings on the tube are
noticed or manual clamping becomes harder or easier than when first
delivered.
As indicated.
Clamping Mechanism
to Device Frame
Check the tension and adjust to ensure a firm grip on the Width
Adjusting Rods.
As indicated, especially
when changing to
different chairs.
Common to both Chair and Device
Pneumatic Tyres
Tyre pressure (check manufacturers specifications), condition of tread
and tyres. One should take care, to keep the pressure in all tyres on
the same level. Harder tyres provide better maneuverability and
easiness of driving but reduce comfort on bumpy surfaces.
At least once a week; see
manufacturers
“Specifications”.
Spokes
Loose spokes can cause deformation of the rear wheels. Contact your
dealer or local bicycle service to manage the problem of loose spokes.
If the problem occurs.
Chair only
Push Rims
Excessively scratched push rims ought to be exchanged because they
can wound the user’s hands while riding the device.
If necessary
Brakes
The braking force depends on the tyre pressure. The efficiency of
brake operation can be also affected with dirt accumulated on tyres.
Keep the brakes clean wiping them with a damp cloth to remove dirt.
At least once a month,
depending on usage
conditions.
Frame and Rear Axle
Mount
Depending on the patterns of use and the possibility of abnormal use
and wear, check all frame welds, axles, back canes, and seat mounts for
evidence of cracking or other damage. Attention! If noticed, do not use
until rectified.
At least once a month,
depending on usage
conditions.

Version 01/22 Page 11 of 52 PAWS UM EN
Turning wheels
The area between the fork and the front wheel should be kept clean,
because dirt accumulating there can cause faster wear of caster
bearings. To do so, one should disassemble the front caster by
disassembling it from the fork, to remove all dirt, and then preserve
the metal elements of the wheel (i.e., to apply technical grease).
The maintenance ought
to be made once a month
or more often depending
on usual surface type &
conditions.
Detachable elements
Check the condition of detachable elements of the chair; if screws are
loose, they should be tightened.
In case of intensive
exploitation of the chair
and device the inspection
should be carried out
once a month.
Service
Introduction
Regular service is important for the longevity of the device, which, along with repairs, must be carried out by
authorized dealers or the Manufacturer.
For authorized repairs and service, please contact the supplying dealer or contact the Manufacturer directly.
WARNING! Unauthorized repairs will cause loss of warranty. The Manufacturer does not guarantee proper.
functioning of the device if it has been repaired by unauthorized service and/or not using original spare parts.
Regular Service will be scheduled at the time of purchase with the dealer.
One Month Check.
After the first month of use it is recommended that the device be returned to the dealer for an overall
check,
Any adjustments to the fitting can be made along with an overall check of all fasteners and adjustable
elements.
24-Month Service.
Apart from regular maintenance by the owner, a 24-month full Maintenance Service is required,
This will include check for all worn parts and replacement. The Pre-Delivery check will be repeated, and
the chair and device adjusted to the User’s needs,
The battery condition and power output of the drive wheel will be checked then also.
Failure
In case of any device failure, we recommend you immediately contact the dealer.
The Display has some diagnostic functions –you may be required to relay this information to the Service Technician.
if you are not able to rectify the issue directly.

Version 01/22 Page 12 of 52 PAWS UM EN
No.
Error code
Function (Grouping)
Error description
Solution
1
Error 03
No throttle response
Brakes are locked on -
power circuit interrupted
Release the brake to re-open power
circuit.
2
Error 05
Throttle broken
1. Check the throttle cable
2. Change throttle
3. Contact dealer
3
Error 04
Cannot change gear
to "0" setting
Throttle partly engaged.
Ensure the throttle is fully released.
Clean and lubricate if dirty.
4
Error 08
Motor issue
Motor hall sensor broken
1. Check motor cable to see if it is well
connected.
2. Disconnect the motor cable, find a
new device in same model, reconnect
the cable with motor wheel in new
device. If error still exist, then the error
comes from controller. Change the
controller. If not, then change the motor
Wheel.
3. Contact dealer
5
Error 11
Motor temperature
protection value
6
Error 10
Controller issue
Controller temperature
protection value
1. Allow controller to cool down
2. Still not work, change the controller
2. Contact the dealer
7
Error 21
Speed Sensor issue
Speed sensor broken
Contact dealer
Attention! Please do not carry out repairs in dangerous areas (for example a busy road). For your own safety,
please leave the danger area. Since the PAWS has a free-moving drive wheel, you can maneuver yourself out of the
danger zone using the push rims on your wheelchair.
Attention! If using a transport service to send the device for repair of service, please use the original packing for all
transport actions. If not available, ensure that the packing used is sufficient to protect the device. If you are in doubt,
please contact the dealer for packing instructions before sending.
WARNING! The Manufacturer does not take responsibility for transport damages of the device or components
caused by improper packing.
8. Reuse
PAWS may be used by another person if required. However, before transferring it to another user, it must have technical
inspection in accordance with the chapter "MAINTENANCE" by authorized specialist dealer. The function of the device
must be set up for the new Users abilities and needs. All functional areas must be checked –especially the handlebar
controls.
In addition to the cleaning chapter the device should be disinfected using the generally available disinfectants without
chlorine and phenol. The manufacturer is not responsible for the damage caused by wrong usage of disinfectants.
9. Warranty and Liability
PAWS is a Powered Drive System designed to connect onto the front frame of manual wheelchairs.
IMPORTANT SAFETY INSTRUCTIONS
The information below is essential for the safe setup and use of the PAWS system.
To maximize user safety when using a PAWS device with a wheelchair, the following elements are essential to minimizing
risk:

Version 01/22 Page 13 of 52 PAWS UM EN
Reading the User Manual
Correct fitting and setup by a trained Product Specialist
Training for correct use by a suitably qualified product specialist
Timely maintenance being completed within required service schedule intervals
Warranty
PAWS comes with a 24-month warranty for all parts (except for the battery) against manufacturer defect or faulty
materials. The battery comes with a 12-month warranty against manufacturer defect or faulty materials.
It is a back to base warranty and is managed via the supply source where the system was purchased.
It is a limited liability warranty and does not cover damage to third-party wheelchairs.
Power Drive Systems and Wheelchair Compatibility
Wheelchairs are designed to safety standards that define how stable and how durable they must be to safely perform
during a typical usage lifecycle (ISO 7176:1-20). This standard is written to simulate typical use with reference to manual
propulsion and is tested to simulate a lifespan covering 350 km of travel*.
Using a wheelchair with a Power Drive System may expose it to wear and tear far in excess of the typical wheelchair
design lifecycle. Regular use with a Power Drive System over unsealed terrain and over extended distances may accelerate
wear of critical wheelchair parts.
It is important that the user contacts their wheelchair manufacturer/supplier to confirm the wheelchair warranty
conditions and service requirements if being used with a PAWS Powered Drive System.
Compatibility and Connection Table: Main Side or Anterior Wheelchair Frame Tube Connection
Parameters
Round Tube Diameter
Min: 19.0 mm - Max: 40 mm
Minimum Wall Thickness
1.2 mm
Tube Materials
High grade Aluminum alloy - 6061-T6 or 7005-T6
Titanium alloy (TiLite)
Clamping points width range
230 mm - 530 mm (according to adaptor chosen)
Straight Tube Section for
Clamping
Minimum 50 mm, without bends.
Clamping Force
2000 N
Irregular or composite profiles
Asymmetric or Composite Fibres - interface adaptors needed*
* Contact the authorised distributor for PAWS to find out which composite frames or irregular profiles can be
fitted with adaptors.
How To Extend Wheelchair Lifespan When Using PAWS Power Drive Systems.
Connection
oEnsure the clamp interface between the PAWS and the wheelchair frame is correctly fitted to the specific
profile/dimensions

Version 01/22 Page 14 of 52 PAWS UM EN
Check the Compatibility and Connection Table (CCT) to confirm that your wheelchair can be used
safely with PAWS and reference the CCT for critical dimensions and clamp pressure
CCT shows range of frame tube diameter, wall thickness and material that may be fitted with the
device.
Frame Material
oAluminium alloy frames (high grade) 6000 and 7000 series alloy tubes may be paired to the device.
oComposite fibres frames, such as carbon fibre, are not suggested for use with PAWS due to the inherent
weakness in composites under compressive forces.
Frame Shape
oRound Tubing –see the CCT
oNon-round or asymmetric profile shapes - please enquire with the authorised PAWS supplier
Clamping Tightness/Force
oManual Clamping - the force required to maintain a secure connection is shown in the CCT.
oAuto Clamping- the force required is measured in the electric clamp jaws and does not need to be adjusted.
Rear Wheel Selection for Shock Absorption
oTyres –it is recommended to use large profile tyres - the bigger the tyre, the greater the shock absorbing
capacity.
oSpokes –wheels with stainless steel spokes are suggested due to increased durability
Maintenance
oFrame inspection –look for any wear, bending, indentation or cracks on the frame. If any are detected, please
inform your dealer immediately and have the chair and PAWS inspected.
oRear wheels –check tyre pressure, quick release axle function, wheel symmetry, spoke tightness and rim
condition
oSeat canvas –look for general wear and any areas that might have started to fray or are broken
oOther components –check for any loose hardware or parts that may require adjustment. If necessary, use
Loctite Blue 243 to ensure fasteners are appropriately secured.
Pairing With Wheelchairs
PAWS Wheelchairs
oThese models are developed based on our knowledge of chair design and observations of durability
requirements during the development of PAWS.
oFeatures include: -
Frame Reinforcement
Rear Axle Camber
Rigid Back Canes
Safety Belt
Rear Wheels with stainless steel spokes and high-profile tyres

Version 01/22 Page 15 of 52 PAWS UM EN
Third Party Wheelchairs
oIt is recommended that only chairs that have passed ISO 7176, by an independent testing authority, be paired
to power add-on devices,
oThe wheelchairs paired must meet the criteria for frame tubing, especially at clamp interface. Please see the
CCT for frame requirements,
oThe device and chair coupling must be performed by an authorised PAWS distributor.
The warranty is limited to replacement due to defects in parts or workmanship. REHASENSE shall not be required to
replace any units that malfunction or are damaged due to abuse, accidents, alteration, misuse, neglect, maintenance by
someone other than REHASENSE or sales partner, or failure to operate the instrument in accordance with this user
manual.
Further, REHASENSE assumes no liability for malfunction of or damage to REHASENSE products caused using wheelchair,
charger, or accessories other than the appropriate products recommended in this user manual.
REHASENSE has no knowledge of the performance of the PAWS when used with any wheelchairs or chargers other than
recommended in this user manual, and therefore does not warrant the performance of the PAWS when used with any
wheelchair or charger other than recommended in this user manual is altered or modified in any manner.
REHASENSE makes no warranty regarding the performance of the PAWS when used with any wheelchair or charger other
than recommended in this user manual.
REHASENSE MAKES NO OTHER EXPRESS WARRANTY FOR THIS PRODUCT. THE OPTION OF REPLACEMENT, DESCRIBED
ABOVE, IS THE ONLY OBLIGATION OF REHASENSE UNDER THIS WARRANTY. IN NO EVENT SHALL REHASENSE BE LIABLE
FOR INDIRECT, SPECIAL OR CONSEQUENTIAL DAMAGES, EVEN IF REHASENSE HAS BEEN ADVISED OF THE POSSIBILITY
OF SUCH DAMAGES.
Warranty - If any defect or damage occurs, the User should immediately inform the Dealer or contact the supplier
directly.
Warranty for defects - The Manufacturer guarantees that the device is free of defects at the time of delivery. This
warranty expires 24 months after the date of delivery of the device,
During that period, all material, or parts defects (excluding the Battery), caused by manufacturing faults or usage of
improper materials during construction will be repaired or replaced free of charge.
Battery Exception: The Battery has a replacement guarantee of 12 months from the time of purchase. This is because
the condition and performance of the battery will depend on the recharging history.
The Warranty does not include:
Devices whose serial numbers have been tampered with or removed.
Worn parts such as tyres, grips, handles, levers, and spokes.
Defects caused by normal wear, incorrect handling including non-compliance with the instructions in this
operating manual, accidents, reckless damage, damage caused by fire, water, force majeure, and other events
that are outside the control of the Manufacturer.
Parts that may need to be serviced or replaced as due to normal wear and tear as part of normal use (e.g., tyre
change).
Device inspection without detection of a fault or defect.

Version 01/22 Page 16 of 52 PAWS UM EN
All mechanical defects and damages caused by improper use or usage not intended by manufacturer are not
covered by warranty.
Unauthorized changes and modifications of the device will cause loss of warranty.
Range of responsibility - This Warranty does not cover.
transport cost,
cover personal injury or other damages eventually related to a malfunction of this device,
damage caused by the inability to use the device,
damages caused as the result of inappropriate or incorrect understanding of this user's manual,
Modifications - If the device has any unauthorized modifications, then the Warranty is null and void. If you have any
questions or doubts concerning modifications, please contact the Manufacturer before you take any action.
Liability - The Manufacturer shall not be liable for the safety of the device, if:
The device is incorrectly handled.
The device is not serviced at the prescribed two-year intervals by an authorized specialist dealer or the
Manufacturer.
The device is operated in contravention to the instructions in this operating manual.
The device is operated with insufficient battery charge.
The device is repaired or modified by a person not authorized to carry out such work.
Third-party parts are attached to the device.
Parts of the device have been removed.
10. Scope of Delivery and Identification
Scope of Delivery
The Device is delivered partially disassembled and requires setting up and adjusting after unpacking. This should be
done by an authorized dealer.
Please check the contents of the box before proceeding to Assembly. Each delivery includes these items: -
Main frame, handlebar assembly and drive wheel –assembled.
Manual or Auto Clamp
Battery
Battery Charger
Hexagonal Key Wrenches (for assembly and adjustment)
2 pcs of Open End and Socket Spanners
User Manual
Optional Accessories that may be included: -
Compact Smart Tyre Inflator
Taillight
Attention! If possible, please keep the original packing in case it needs to be transported to the Dealer of
Manufacturer. This is also useful in the event of long-distance travel.
Packaging Instruction
Please keep all original packaging materials –these may be needed if the device must be shipped for service or repair.

Version 01/22 Page 17 of 52 PAWS UM EN
Identification
The Label located on the side of the main frame has important information about the device.
Figure 2. Label
Type - The Type describes key elements of the device. The codes for each of the ten places in the Type is described below: -
Place 1 - The Manufacturer –“R” for Rehasense
Place 2 –The Family –“P” for PAWS
Place 3 –the Style. “I” for City; “C” for Cruiser; “T” for Tourer
Places 4 and 5 –the Wheel Diameter. 12”; 14”; 16”; 20”.
Places 6 and 7 - Docking. “MM” Manual Lift/Clamp; “AM” Auto Clamp/Manual Lift; “AA” Auto Lift/Clamp
Place 8 - Handlebar Control. “S” Standard; “T” Tetra
Place 9 and 10 –Tyre reference. “01” for Standard; “00” for Fat Tyres (over dimensioned tyres)
Item no.
Item description:
Model
name
Clamping
Lifting
Wheel
diameter
RPI12MMS00
PAWS / CITY 12" / MANUAL CLAMP & LIFT / NORMAL HANDLES
City
Manual
Manual
12"
RPI12MMT00
PAWS / CITY 12" / MANUAL CLAMP & LIFT / TETRA HANDLES
City
Manual
Manual
12"
RPI12AAS00
PAWS / CITY 12" / AUTOMATIC CLAMP & LIFT / NORMAL
HANDLES
City
Auto
Auto
12"
RPI12AAT00
PAWS / CITY 12" / AUTOMATIC CLAMP & LIFT / TETRA HANDLES
City
Auto
Auto
12"
RPI14MMS00
PAWS / CITY 14" / MANUAL CLAMP & LIFT / NORMAL HANDLES
City
Manual
Manual
14"
RPI14MMT00
PAWS / CITY 14" / MANUAL CLAMP & LIFT / TETRA HANDLES
City
Manual
Manual
14"
RPI14AAS00
PAWS / CITY 14" / AUTOMATIC CLAMP & LIFT / NORMAL
HANDLES
City
Auto
Auto
14"
RPI14AAT00
PAWS / CITY 14" / AUTOMATIC CLAMP & LIFT / TETRA HANDLES
City
Auto
Auto
14"
RPC16MMS00
PAWS / CRUISER 16" / MANUAL CLAMP & LIFT / NORMAL
HANDLES
Cruiser
Manual
Manual
16"
RPC16MMT00
PAWS / CRUISER 16" / MANUAL CLAMP & LIFT / TETRA
HANDLES
Cruiser
Manual
Manual
16"
Product name
Production date
Item number
Max. speed
Max. weight of
User and Chair
Range of battery
Max. gradeability
Manufacturer
Serial number in
standard GS1
(UDI-DI)
Barcode EAN –
GS1 128
Barcode EAN 13
in standard GS1
Medical Device
Familiarize
yourself with UM
Can be used
outdoor

Version 01/22 Page 18 of 52 PAWS UM EN
RPC16AAS00
PAWS / CRUISER 16" / AUTOMATIC CLAMP & LIFT / NORMAL
HANDLES
Cruiser
Auto
Auto
16"
RPC16AAT00
PAWS / CRUISER 16" / AUTOMATIC CLAMP & LIFT / TETRA
HANDLES
Cruiser
Auto
Auto
16"
RPT20MMS00
PAWS / TOURER 20" / MANUAL CLAMP & LIFT Fat tyre 20"x4"/
NORMAL HANDLES
Tourer
Manual
Manual
20"x4"
RPT20MMT00
PAWS / TOURER 20" / MANUAL CLAMP & LIFT Fat tyre 20"x4"/
TETRA HANDLES
Tourer
Manual
Manual
20"x4"
RPT20AAS00
PAWS / TOURER 20" / AUTOMATIC CLAMP & LIFT Fat tyre
20"x4" / NORMAL HANDLES
Tourer
Auto
Auto
20"x4"
RPT20AAT00
PAWS / TOURER 20" / AUTOMATIC CLAMP & LIFT Fat tyre
20"x4" / TETRA HANDLES
Tourer
Auto
Auto
20"x4"
RPT20MMS01
PAWS / TOURER 20" / MANUAL CLAMP & LIFT / 20"x2.125" TIRE
/ NORMAL HANDLES
Tourer
Manual
Manual
20"x2.125
"
RPT20MMT01
PAWS / TOURER 20" / MANUAL CLAMP & LIFT / 20"x2.125" TIRE
/ TETRA HANDLES
Tourer
Manual
Manual
20"x2.125
"
RPT20AAS01
PAWS / TOURER 20" / AUTOMATIC CLAMP & LIFT / 20"x2.125"
TIRE / NORMAL HANDLES
Tourer
Auto
Auto
20"x2.125
"
RPT20AAT01
PAWS / TOURER 20" / AUTOMATIC CLAMP & LIFT / 20"x2.125"
TIRE / TETRA HANDLES
Tourer
Auto
Auto
20"x2.125
"
RPI14AMT00
PAWS / CITY 14" / AUTOMATIC CLAMP & MANUAL LIFT / TETRA
City
Auto
Manual
14”
RPI12AMT00
PAWS / CITY 12" / AUTOMATIC CLAMP & MANUAL LIFT / TETRA
City
Auto
Manual
12”
RPC16AMT00
PAWS / CRUISER 16" / AUTOMATIC CLAMP & MANUAL LIFT /
TETRA
Tourer
Auto
Manual
16”
Figure 3. Model Decoder -Types and Descriptions
11. Product Specifications
Element
City 12"
City 14"
Cruiser 16"
Tourer
20"*2.125
Tourer 20"*4
Overall L*W*H: (mm)
800 x 490 x 810
800 x 490 x 810
820 x 490 x 860
1000 x 520 x 920
1000 x 520 x 920
Packing L*W*H: (mm)
1110 x 600 x 300
1110 x 600 x 300
1110 x 660 x 290
1260 x 705 x 290
1260 x 705 x 290
Max. weight of person: (kg)
120
120
120
120
120
Max. overall weight:(kg)
140.8
141.3
143.8
147.5
148.8
Total weight less
battery:(kg)
17.5
18
20.5
24.2
25.5
Battery Weight: (kg)
3.3
3.3
3.3
3.3
3.3
Total weight: (kg)
20.8
21.3
23.8
27.5
28.8
Motor Power: (W)
350
400
500
500
500
Motor max input power (W)
900
900
1100
1100
1100
Motor MAX Torque(N.M)
45
60
78
87
87
Motor Voltage: (V)
48
48
48
48
48
Battery Capacity:(Ah)
11.6
11.6
11.6
11.6
11.6
Battery Rated Energy: (Wh)
557
557
557
557
557
Battery: (mm) (LxWxH)
371 x 130 x 86
371 x 130 x 86
371 x 130 x 86
371 x 30 x 86
371 x 30 x 86
Battery Charger
Standard
Standard
Standard
Standard
Standard
Charge time: (Hour)
5
5
5
5
5
Docking - Auto/Manual
Option
Option
Option
Option
Option
Disc and "e" Brakes
Standard
Standard
Standard
Standard
Standard
Parking Brake
Standard
Standard
Standard
Standard
Standard
Turning Radius:(cm)
100
110
120
150
150
Climbing capability (dg)
10
10
10
10
10

Version 01/22 Page 19 of 52 PAWS UM EN
Step climbing height (mm)
50
50
40
55
55
Range On flat terrain: (km)
40
40
38
35
35
Max Speed: (km/h)
The gear and speed settings are programmed to meet local regulated speeds.
Modes: in range (km/h)
Reverse Gear
Yes
Yes
Yes
Yes
Yes
Cruise Control
Yes
Yes
Yes
Yes
Yes
Walking Mode
Yes
Yes
Yes
Yes
Yes
Tetra Function
Option
Option
Option
Option
Option
Frame Material
Steel &
Aluminum
Steel &
Aluminum
Steel &
Aluminum
Steel & Aluminum
Steel &
Aluminum
Tyre: (Inches)
12.5*2.25 (57-
203)
14*3.0-8 (58-
203)
16*3 (76-305)
20*2.125 (57-406)
20*4.0 (100-406)
Rim
24 x 203
38 x 203
50 x 305
73 x 406
73 x 406
Rec. Tyre Pressure:(Bar)
2.8
2.8
2.4-3.1
2
2
Bell or Horn
Horn
Horn
Horn
Horn
Horn
Front Light
Yes, 3 positions
Yes, 3 positions
Yes, 3 positions
Yes, 3 positions
Yes, 3 positions
Figure 4. Specifications
Attention!
Max speed is only for special orders of customers (users).
Speed mode 1-2 are for each product, X• Speed limits are determined according to the local traffic regulations.
These limits will be programmed at the time of manufacture and will be controlled in steps to reach the maximum
permitted speed as determined by the traffic authorities. If a lower limit is required than the local regulations
permit, then this can be programmed by the authorised Rehasense PAWS representative in the delivery location.
(mm)
A
B
C
12”
800
810
490
16”
820
860
490
20”
1000
920
520
Device in Park Position
Battery
Table Dimensions
Figure 5. Device and Battery Dimensions
Dia.
Tread Pattern
Description
Dia.
Tread
Description
12”
Brand: CHAOYANG
Size: 12 1/2 x 2 1/4
ETRTO: 52-203
Pattern: H-5
Air Pressure: 40 P.S.I / 2.8
Bar
Car Valve
14”
Brand: INNOVA
Size: 14x 3.0
ETRTO: 76-203
Pattern: IA –2805
Air Pressure: 50 P.S. I /
3.5 Bar
Car Valve

Version 01/22 Page 20 of 52 PAWS UM EN
Dia.
Tread Pattern
Description
Dia.
Tread
Description
16”
Brand: CST
Size: 16X3.0
ETRTO: 75-305
Pattern: C-1488
Air Pressure: 35-45 P.S.I /
2.4-3.1 Bar
Car Valve
20”
Brand: CST
Size: 20X4.0
ETRTO: 100-406
Pattern: C-1752
Air Pressure: 30 P.S.I /
2.0 Bar
Car Valve
20”
Brand: CST
Size: 20X2.125
ETRTO: 57-406
Pattern: C-1488
Air Pressure: 35-45 P.S. I /
2.4-3.1 Bar
Car Valve
Figure 6. Tyre Specifications
Corrosion protection
Component
Used material
Surface treatment
Care
Front fork
Steel
KTL + powder coating
Please use only a slightly
damp cloth and standard
household cleaners for
cleaning. Please repeat in
case of heavy soiling
Handle tube
Aluminum alloy
anodizing
Controller box
Aluminum alloy
anodizing
All bolts
steel and stainless steel
dacromat , galvanizing ,
untreated
All screws
same as point 4
All washers
steel
galvanizing
All nuts
steel and stainless steel
dacromat , galvanizing,
untreated
Support legs
Stainless steel and
aluminum alloy
untreated and anodizing
Center bracket
Aluminum alloy
anodizing
Side bracket
stainless steel
polishing
Manual clamping
aluminum alloy
anodizing
Auto clamping
aluminum alloy
anodizing
Bag support bracket
aluminum alloy
anodizing
Mug guard
plastic and steel
galvanizing
12. Configurations, Controls and Display.
Description
The configuration of the device is made at the time of ordering and may involve a therapist with the dealer and Use
discussing the options that best suit the Users situation.
Thus, the set-up of controls of the device will be matched to the driving, braking, and docking options chosen by the
User at the time of ordering.
While most features are standard, there are options in the Docking, Driving and Braking Systems to allow the User to
have the level of control that does not exceed their physical abilities.
Generally, Users with neural damage and/or muscle atrophy will choose auto or assisted docking, driving and braking
controls.
